10FT-3D-7K-I - Sliding door hardware Vevor - Free user manual and instructions

Product Type	Barn Door Sliding Hardware Kit
Brand	Vevor
Model	10FT-3D-7K-I
Rail Length	10 feet (3000 mm)
Maximum Door Width	≤60 inches (1524 mm)
Compatible Door Thickness	1-3/8" to 1-3/4" (35-44 mm)
Number of Hangers	2 I-hangers
Number of Rail Mounting Holes	7 holes
Color	Black
Material	Steel
Estimated Kit Weight	Approximately 12 kg
Included in the Kit	Rail, 2 hangers, 2 anti-jump blocks, floor guide, mounting hardware, door stops
Door Type	Single Sliding Door
Required Tools	Drill, drill bits (Φ3/8", Φ29/64", Φ7/32"), level, wrench, screwdriver, tape measure
Maintenance	Clean with a dry cloth; do not use abrasive products
Safety	Wear safety glasses and gloves during installation; keep children away
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - 10FT-3D-7K-I Vevor

What is the length of the rail?

The rail measures 10 feet (3000 mm) in length.

What is the maximum compatible door width?

This kit is designed for doors with a maximum width of 60 inches (1524 mm).

What door thickness is suitable?

Door thickness must be between 1-3/8" and 1-3/4" (35-44 mm).

How many hangers are provided?

The kit includes 2 I-hangers for a single door.

What tools are needed for installation?

You will need a drill, drill bits (Φ3/8", Φ29/64", Φ7/32"), a level, a wrench, a screwdriver, and a tape measure.

Does the kit include a floor guide?

Yes, a T-floor guide is provided to stabilize the door.

How to install the anti-jump blocks?

Mark at 0.5 inch from the door edge, align the anti-jump blocks (A) with the mark and secure them with the provided screws (B).

Can I install this kit on a drywall wall?

It is strongly recommended to use a header board if the wall is not concrete or if the studs are not spaced 16 inches apart.

What is the weight capacity of this kit?

The load capacity is not specified in the manual, but the kit is designed for standard wooden doors. Estimate a capacity of about 150 kg.

Is there a warranty?

Yes, technical support and an electronic warranty certificate are available at www.vevor.com/support.

USER MANUAL 10FT-3D-7K-I Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SIMPLE SLIDING BARN DOOR HARDWARE KI

MODEL:5FT-2D-5K-H/5FT-2D-5K-Y/6FT-2D-5K-H/

6FT-2D-5K-Y/6.6FT-2D-5K-H/6.6FT-2D-5K-Y/

8FT-2D-6K/8FT(J)Single Door/8FT(I)Single Door/

10FT-3D-7K-J/10FT-3D-7K-I

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:5FT-2D-5K-H/5FT-2D-5K-Y/6FT-2D-5K-H/6FT-2D-5K-Y/6.6FT-2D-5K-H/6.6FT-2D-5K-Y/8FT-2D-6K/8FT(J)Single Door/8FT(I)Single Door/10FT-3D-7K-J/10FT-3D-7K-I

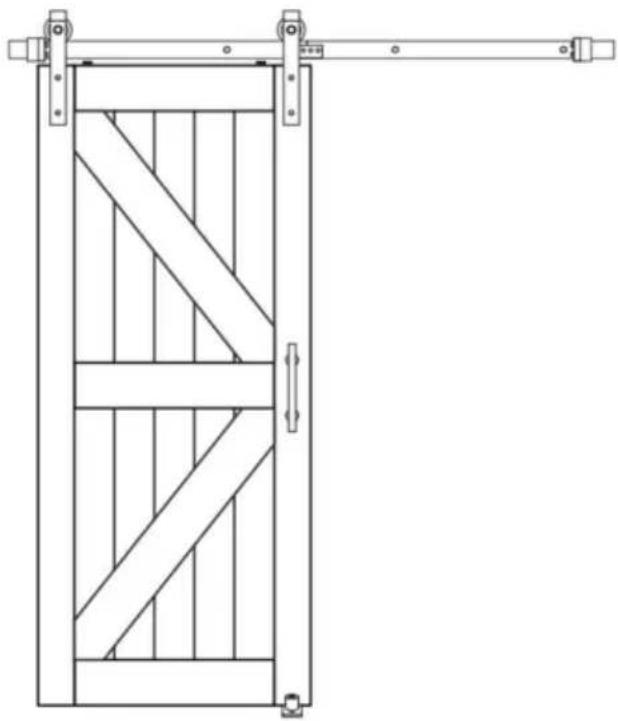

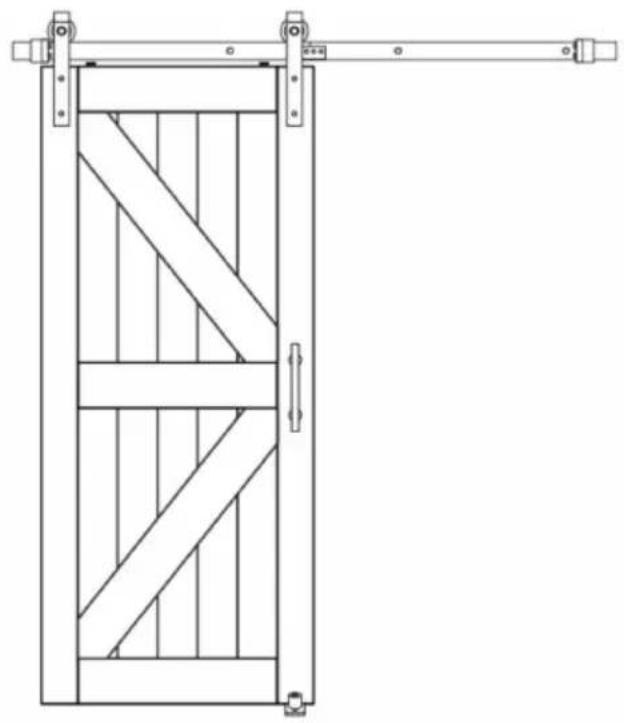

Line drawing of a wooden double door with diagonal bracing and vertical supports (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

Read this material before using this product. Failure to do so can re serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
3. Keep assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. Product capabilities apply to properly and completely assembled product only.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.
8. For safety reasons, This hardware is recommended to be installed by 2 people
9. Products are installed away from children and pets;

Use precautions

1. This product is not a toy. Do not allow children to play with this
2. Use as intended only.
3. Inspect before every use; do not use if parts are loose or damage

SAVE THESE INSTRUCTIONS

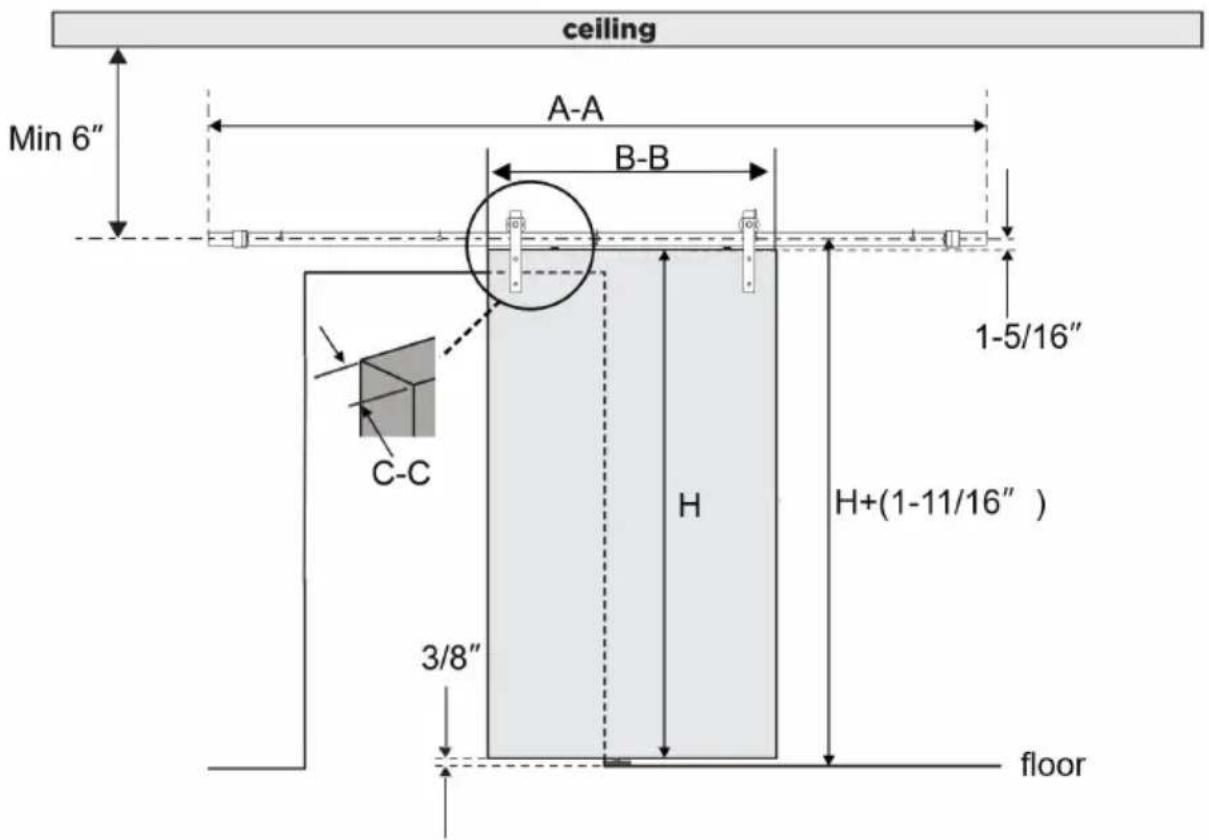

Product Suitability

The box does not contain door panels and other wooden squares, while require additional purchase

Model	rail length A-A	Door width B-B	Door thickness C-C
5FT-2D-5K-H	5ft(1500mm)	≤30inch	1-3/8" to 1-3/4"
5FT-2D-5K-Y
6FT-2D-5K-H	6ft(1830mm)	≤36inch	1-3/8" to 1-3/4"
6FT-2D-5K-Y
6.6FT-2D-5K-H	6.6ft(2000mm)	36-40inch	1-3/8" to 1-3/4"
6.6FT-2D-5K-Y
8FT-2D-6K	8ft(2440mm)	42-48inch	1-3/8" to 1-3/4"
8ft(j)single door
8ft(I)single door
10FT-3D-7K-J	10ft(3000mm)	≤60inch	1-3/8" to 1-3/4"
10FT-3D-7K-I

The remaining dimensions:

1. Product is applicable to the single sliding door, the door height is H depending on the height you purchase;
2. The track center to the ground height needs to be 1.6875 inches h than the door height;
3. The distance of the track center from the ceiling is not less than 6
4. The distance between the bottom side and the bottom side is 0.375 inches

Parameter List

Model	Product color	hanger type	Orbit split number	Number of rail mounting holes
5FT-2D-5K-H	black	J mould	2pcs	5pcs
5FT-2D-5K-Y	Dark silver
6FT-2D-5K-H	black
6FT-2D-5K-Y	Dark silver
6.6FT-2D-5K-H	black
6.6FT-2D-5K-Y	Dark silver
8FT-2D-6K	Dark silver	J mould	2pcs	6pcs
8ft(j)single door	black	J mould
8ft(I)single door	black	I mould
10FT-3D-7K-J	black	J mould	3pcs	7pcs
10FT-3D-7K-I		I mould

Parts list

Same number of parts

A:Anti-jumpblock×2pcs	B:M4×25countersunk headtapping screw×2pcs	C:DoorStopper × 2pc	D:T shapeFloor Guide× 1pc
E:φ6×30 Plasticexpansion bolt ×2pcs	F:M4×25 Roundhead tapping screw×2pcs	G:2.5mm HexKey × 1pc	H:WallSpacer×4
K:M10×55 bolt×4	L:Rail Kit × 1pc

Parts with different quantities

Model	J:Hanger-J	O:washers	P:M8×90Screw	Q:φ12×50Plasticexpansionbolt	M:WallSpacer
5FT-2D-5K-H	2	13	5	5	5
5FT-2D-5K-Y
6FT-2D-5K-H
6FT-2D-5K-Y
6.6FT-2D-5K-H
6.6FT-2D-5K-Y
8FT-2D-6K	2	14	6	6	6
8ft(j)single door
8ft(I)Single Door	0
10FT-3D-7K-J	2	15	7	7	7
10FT-3D-7K-I	0
The following are the model 8FT-2D-6K, 8ft(j)single door, 8ft(I);Door only available accessories
R:M6*10 bolt×4pcs		S:connection strap×1pc		T:4mm Hex ×1pc

The following are the model 10FT-3D-7K-I and 8ft(I)Single Doc available accessories`

I:Hanger-I×2

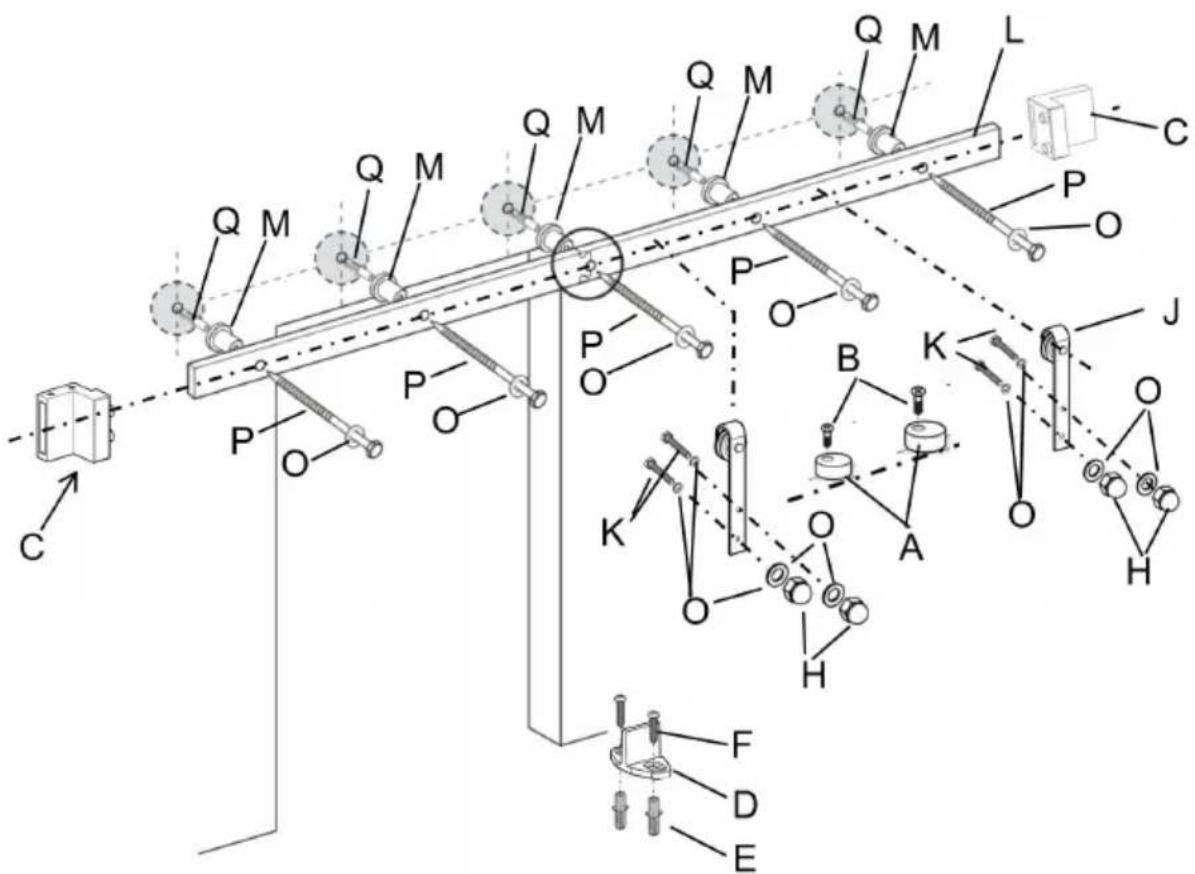

Decomposition Diagram Of Model 6ft-2d-5k-h

Note: The remaining model decomposition plots are similar

CNOAUTION

Mishandling of heavy objects (i.e.,doors) may cause a loss of balance serious injury. Always be sure you have a secure

hold on the object and are balanced before moving the object. Always safety shoes when lifting heavy objects.

Getting body parts (i.e., hair, fingers) caught in moving parts may cause pinching and serious injury. Do not put fingers in parts that may move always remove or contain anything on your body that may become entangled with a moving part.

Closing sliding doors with your hand on the end of the door may re your hand, or fingers, getting caught between the door and other soli objects (i.e., another door, molding) causing serious injury. Always use door handle to close door

Usage Statement

Use of excessive force when opening and closing the door(s) may re damage to the hardware. Always hold the handle to gently move the door(s).

Tools required

Speed Square	Pencil	Phillips Screwdriver	Tape
Wrench	Level	Drill	Φ3/8”Drill Bit
Φ29/64”Drill Bit	Φ7/32”Drill Bit

Product Assembly

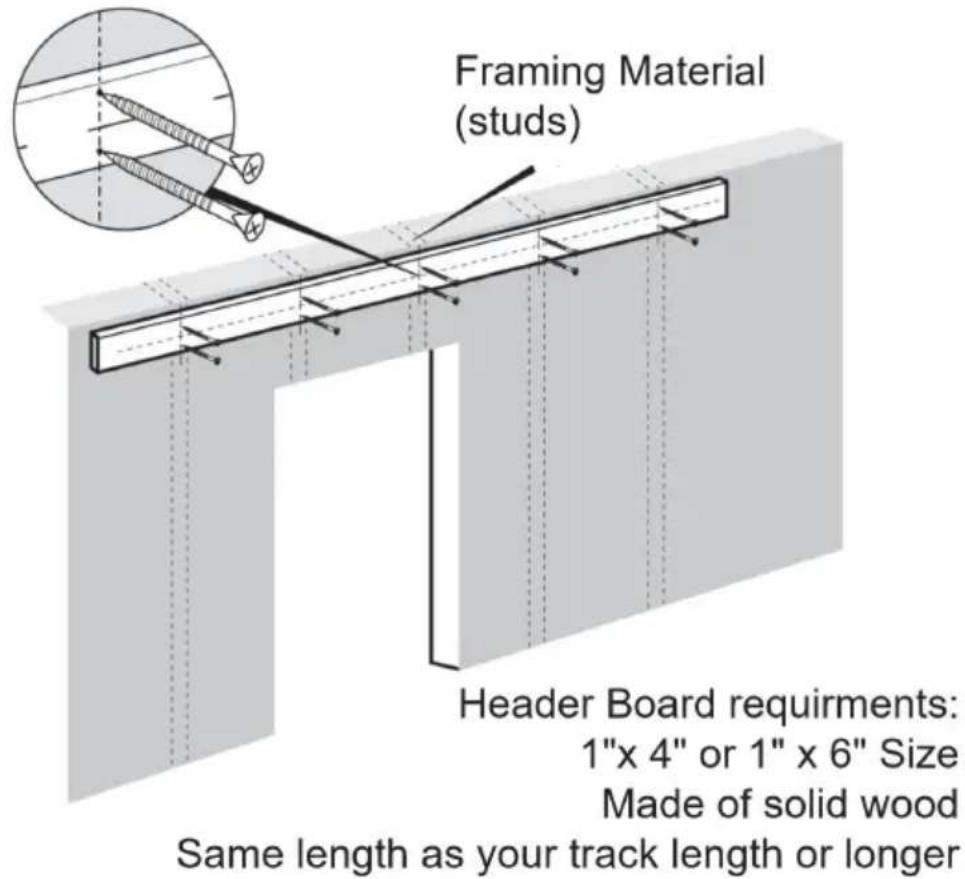

It is very important to determine whether you need to install a Head Board before you install the track.

IF you meet the following situations, we highly recommend you using Header Board.

• IF your wall studs are not 16" on center which won't line up with rail(our rail comes with pre-drilled holes every 16" on center)
• IF your wall type is non-concrete wall, is drywall or other wall type may not support the weight of the track and mounted door)
• IF there is a doorway trim

Attention: Header Board & the screws to install header board are included. You can buy them online or offline.

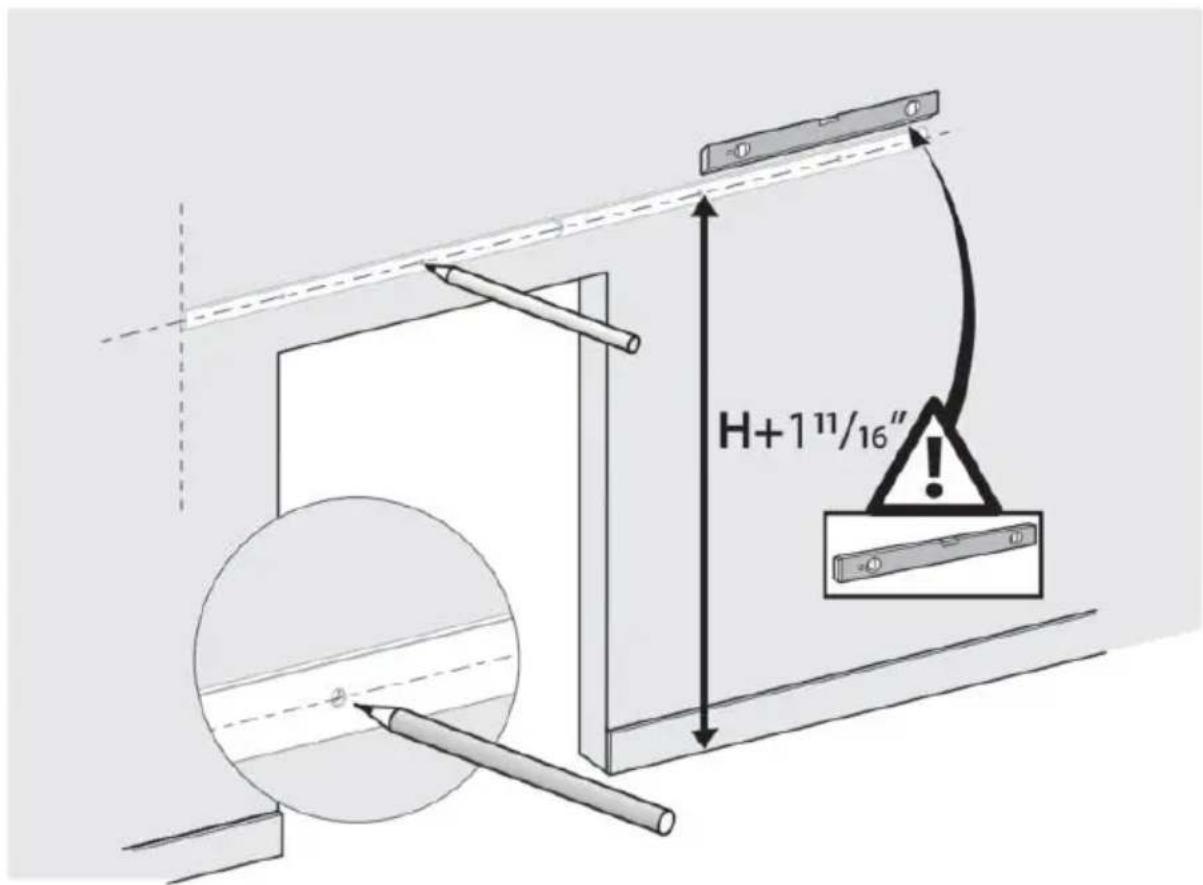

Step-1

1.1. Use a Level and Tape Measure to mark the center line of the tr shown in the product selection diagram, the height of the door is H in

picture above, the height of the center line(measuring up from the flo the height of your door PLUS 1-11/16".

1.2. Position the track in place by the marked center line, ensuring it and use the track as a template to mark mounting holes location for track with a pencil.

See installation tip below.

The track needs to fully cover the door openings on the wall panels; suggest that one end of the track is flush with the opening of the v this is related to the width of the door.

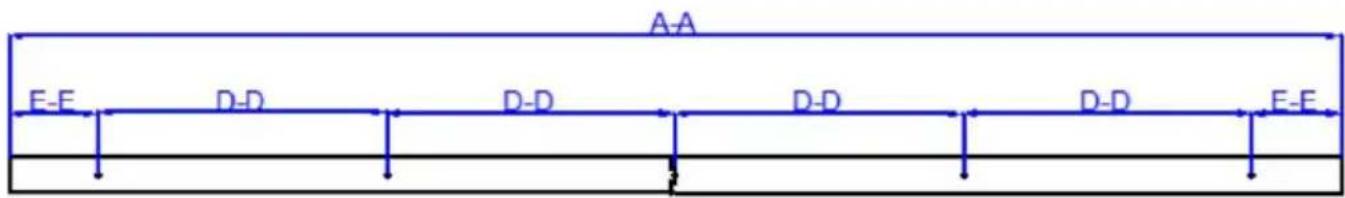

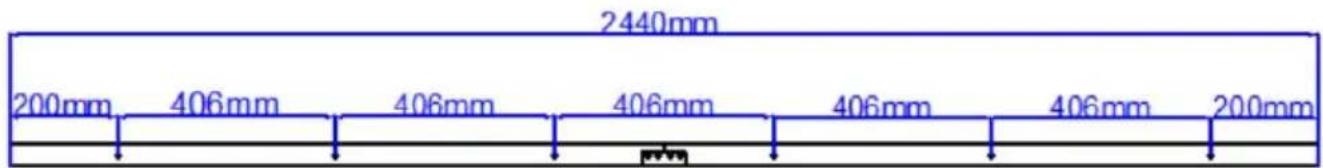

INSTALLATION TIP:

To mark the holes more conveniently, you could install track with one bolt without spacer, which helps fix one end of the track. And then move the free end to ensure the track level to mark mounting holes. You can also refer to the track size to mark the position of the track.

Model	rail length A-A	rail hole distance D-D	rail side hol and rail edg E-E	Number of marked holes
5FT-2D-5K-H	5ft(1500mm)	325mm	100mm	5pcs
5FT-2D-5K-Y
6FT-2D-5K-H	6ft(1830mm)	406mm	103mm	5pcs
6FT-2D-5K-Y
6.6FT-2D-5K-H	6.6ft(2000mm)	406mm	188mm	5pcs
6.6FT-2D-5K-Y

The rail mounting holes of model 8FT-2D-6K ,8ft(J)single door and 8ft(I)single door are as follows,six holes;

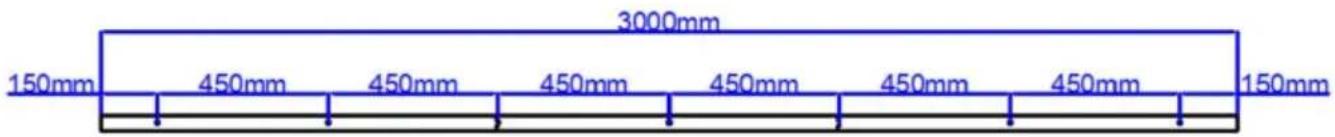

The rail mounting dimensions for model-FT-3D-7K-J and 10FT-3D-7K-I are as follows, seven holes;

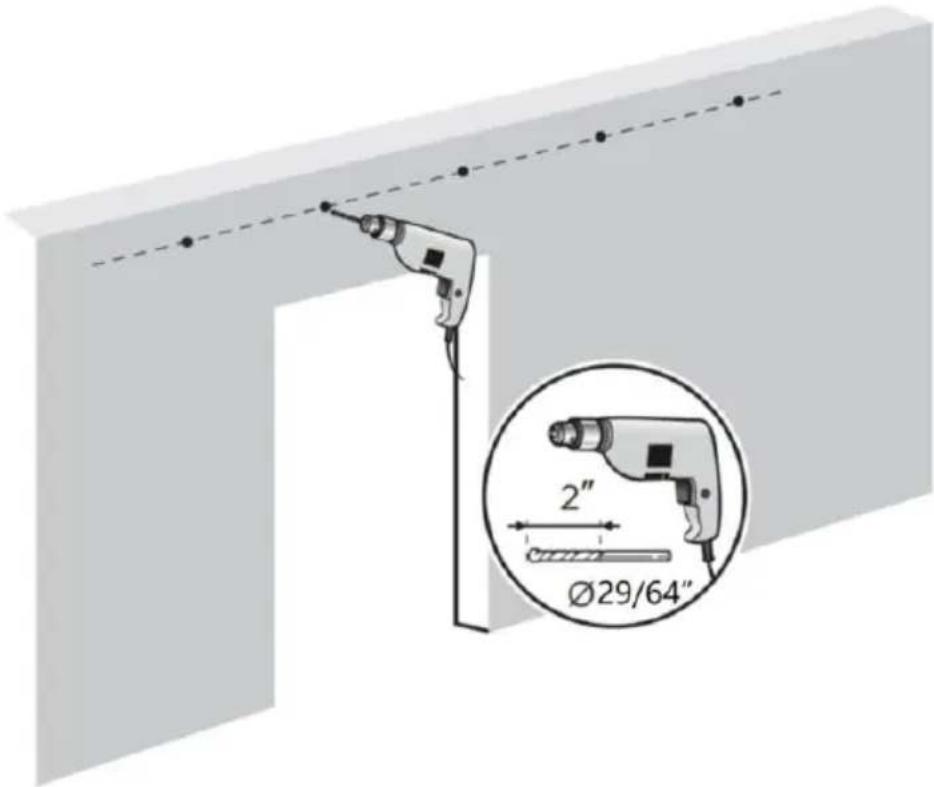

Step-2:

2.1. Use a Φ29/64"drill hole in the marked position, 2 inches deep;

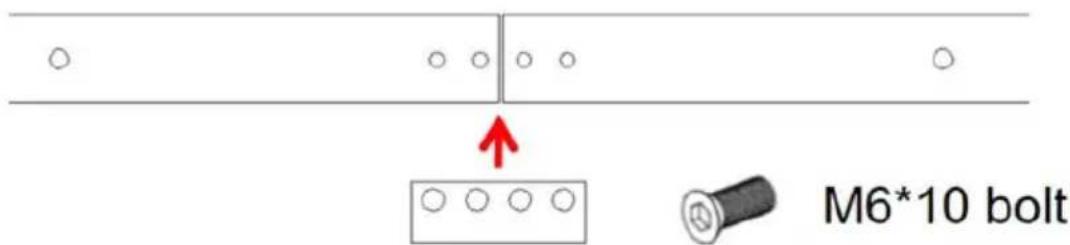

Step-3: Install the guide rail

3.1.The 2 guide of model 8FT-2D-6K is combined by connection strap 4 bolts;

The remaining models are flower-shaped combinations via the rail.

Pure technical line drawing of two mechanical components with no text or symbols

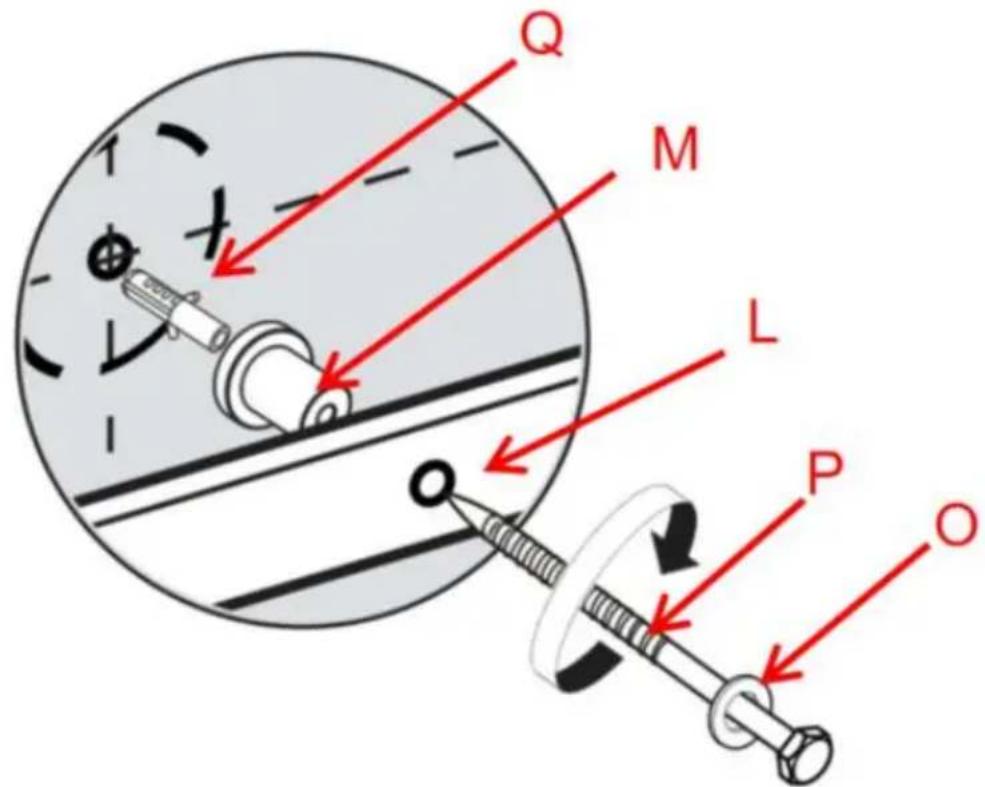

3.2. Concrete wall Installation.

Install the Plastic expansion bolt Q to holes on the concrete wall first use screw P through the washers O, rail L and Wall Spacer M, and lock on Plastic expansion bolt Q.

Step-4

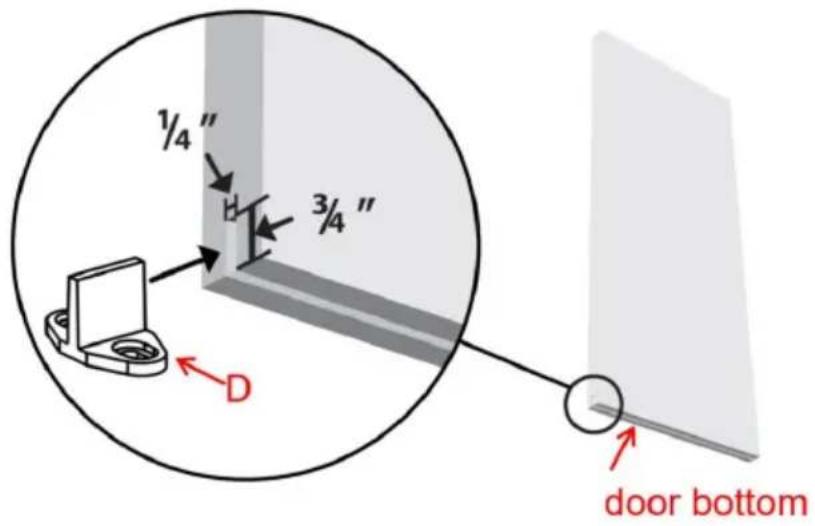

Use router or circular saw to create a kerf at bottom of the door, a center to allow the tip of the T-shaped floor guide to fit in between. The floor guide is used to keep your door stable and prevent the do bottom swinging back and forth when you slide it open and closed.

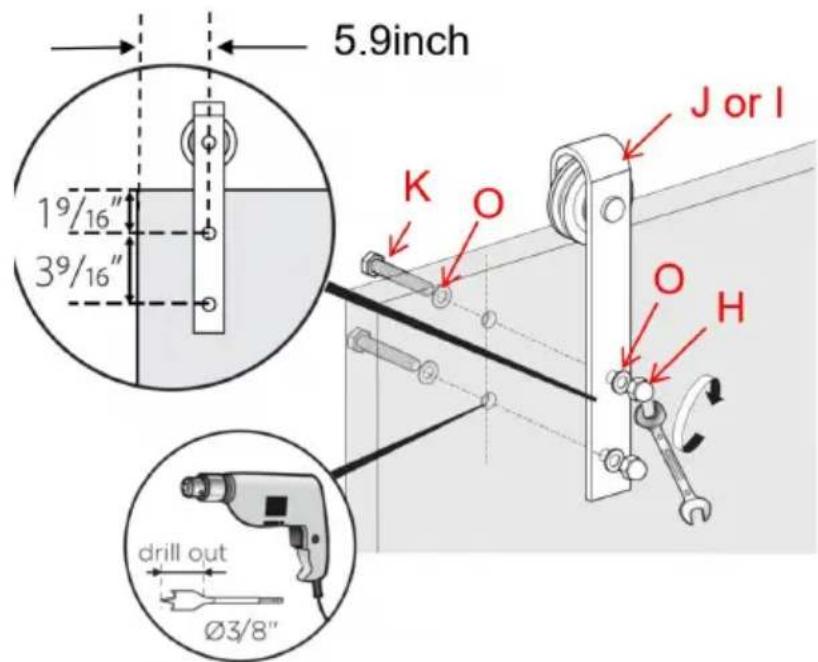

Step-5

According to the following figure, use the bolt K to pass through the O, door, Hanger J, washer O, and finally tighten the bolt H with the secure the Hanger J on the top of the door; install the hangers on the door ,Make sure the bolt K are located in the middle line of the side.

Each Hanger requires two Bolts;2 hangers are required for each door.

Note: The Hanger for the Model 10FT-3D-7K-I is the Hanger I. If your door thickness is 1-3/4 inch, you do not need to install O.

Step-6

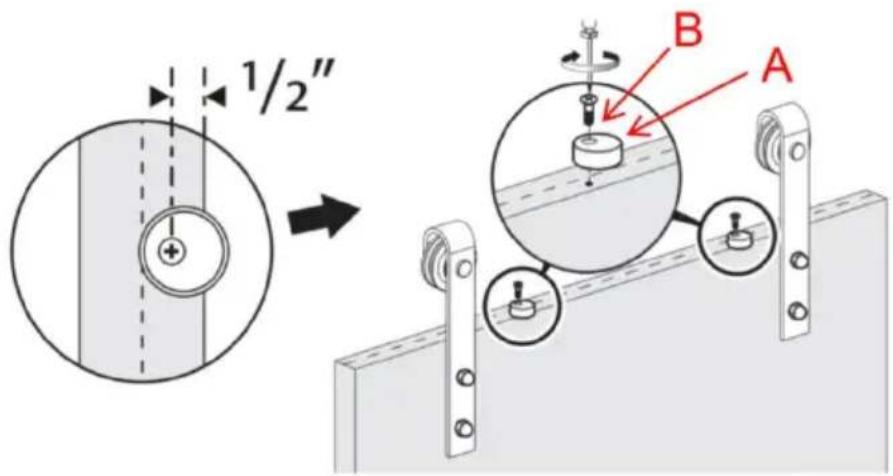

The anti-jump blocks are used to protect the door from touching the when sliding the door.

First, mark at 0.5inch from the edge of the door, then let the screw Anti-jump block A to align the mark, use the screw B through Anti-ju block A, and lock at the mark.

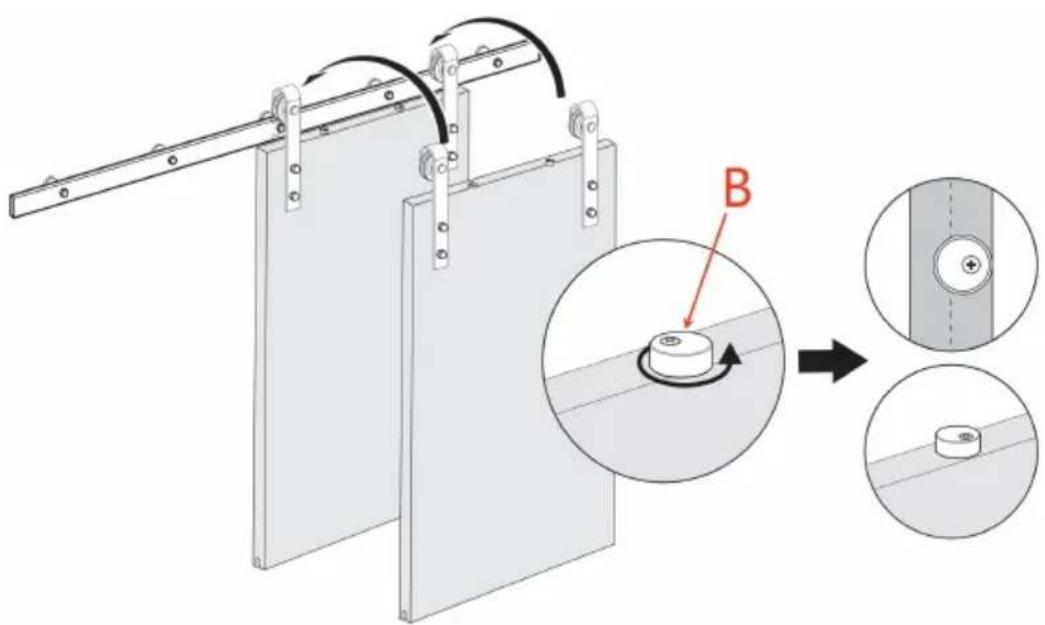

Step-7

Hang the door over the track and rotate the anti-jump blocks 180°

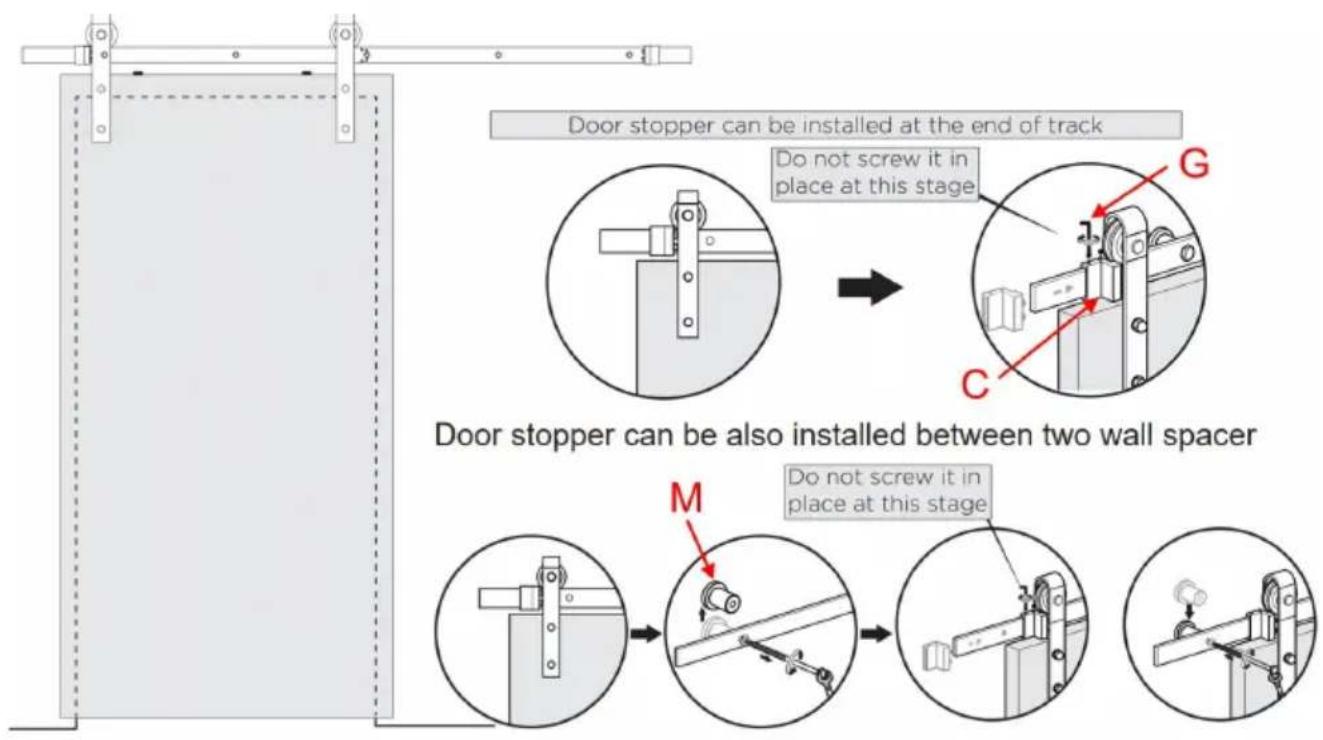

Step-8

Slide door stoppers C on both ends of track.

Slide door back and forward to test how well the door covers the o Reposition door stoppers as you need. Adjust the position of the left right door stopper when the door is open and closed.If you reduce the trip, the door stoppers C can move toward the middle of the rail.

When door stoppers C is blocked by wall spacer M and unable to r you can remove wall spacer M, move to the appropriate position and install door stoppers M back to the original position.

Door stopper can be also installed between two wall spacer

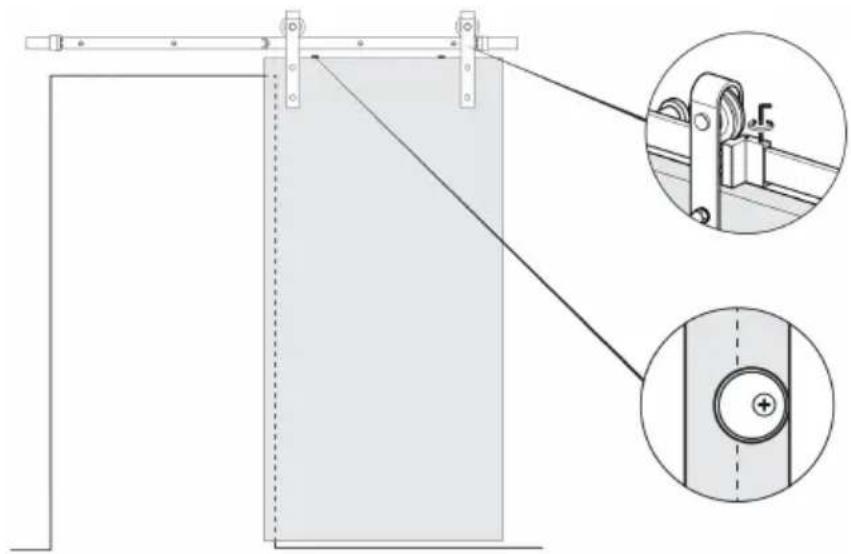

Step-9

Final Check of door stoppers and Anti-jump blocks.

Check the door stoppers are properly located and tightened in place Hex Key G.

Also check the anti-jump blocks are rotated correctly and tightened.

Technical diagram of a sliding door mechanism with two views of the handle (no text or symbols)

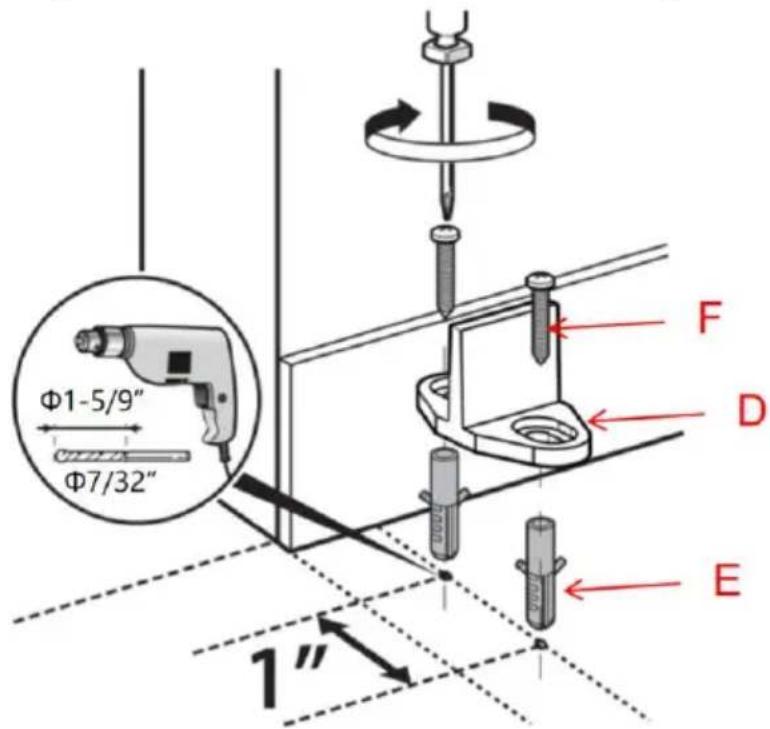

Step-10

Install the floor guide D.

10.1. Put the floor guide on the floor first to a suitable position, sliding door so that the tip of the floor guide can work well in the slot of of the door. And then mark 2 holes of the floor guide. Then two sections through floor guide mark two points on the floor.

10.2. Use 7 / 32" drill bit to drill holes with a depth of 1.375inch on the floor mark; Then put Plastic expansion bolt E into the floor hole; Screw F through the screw hole of floor guide D and installed in Plastic expa bolt E to complete the installation of floor guide D.
