MT-130 - Heated water hose Vevor - Free user manual and instructions

Product Type	Heated Water Hose for RV and Outdoor Use
Model	MT-130
Brand	Vevor
Length	25 feet (7.62 meters)
Diameter	5/8 inch (15.9 mm)
Input Voltage	AC 220-240 V, 50/60 Hz
Power	160 W (for 25 ft model)
Minimum Operating Temperature	-45 °F (-42.7 °C)
Anti-Freeze Protection	Yes, down to -45 °F
Heating System	Smart, automatic: starts at 46 °F (8 °C), stops at 59 °F (15 °C)
Material	PVC, BPA-free certified, for drinking water
Fittings	Quick-connect fittings with 3/4" female adapter included
Included Accessories	Teflon (PTFE) Tape
Maximum Water Pressure	600 PSI
Safety	Do not use with extension cord; do not cut or splice hose; unplug before connecting/disconnecting water
Maintenance and Cleaning	Drain completely, unplug, coil without kinking, store dry and away from sunlight
Warranty	Technical support and electronic warranty via www.vevor.com/support

Frequently Asked Questions - MT-130 Vevor

How to install the Vevor MT-130 heated water hose?

Fully unroll the hose on the ground. If the temperature is below 50 °F (10 °C), plug it in for a few minutes to make it flexible. Then connect one end to the water source and the other to the RV or desired use. Turn on the water and check for leaks. Finally, plug the power cord into a certified outlet.

Is this hose suitable for drinking water?

Yes, the hose is certified BPA-free and can be used for drinking water. However, let the water run for a few minutes before drinking to flush out any impurities.

What is the minimum operating temperature?

The hose provides freeze protection down to -45 °F (-42.7 °C). The heating system activates automatically at 46 °F (8 °C) and stops at 59 °F (15 °C).

What if water freezes inside the hose?

Move the hose to a warmer location, plug it in for about 30 minutes to thaw, then let the water drain. Make sure the hose is fully unrolled.

Can I use an extension cord with this hose?

No, using an extension cord is strictly prohibited. Plug the hose directly into a certified 220-240 V outlet.

How to clean and maintain the hose?

Drain the hose completely after use, unplug it, coil it without forcing, and store it in a dry place away from sunlight. Protect the plug in a waterproof enclosure.

The LED light is on but the hose does not heat, what to do?

This may indicate a product quality issue. Contact Vevor support via www.vevor.com/support with a detailed description of the problem.

Is there a risk of leaks at the connections?

If the hose slips at the faucet, wrap Teflon tape around the male connector. For a leak at the female connector, check for a washer. If leaks persist, contact support.

Can I bury the heated hose?

No, the hose is not designed to be buried. It should be used on the surface, fully unrolled, and under the same ambient conditions.

What is the power consumption?

The power depends on the length. For the 25 ft model, it is 160 W. Other lengths range from 96 W (15 ft) to 550 W (100 ft).

USER MANUAL MT-130 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HEATED WATER HOSE FOR RV

MODEL:MT-131-X ft

TIP:X IS 15 25 30 50 75 100

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR

TOUGH TOOLS, HALF PRICE

HEATED WATER

HOSE FOR RV

MODEL:MT-131-X ft

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

WARNING

SAFEGUARDS

1. Read all instructions before use. 2. Do not use with extension cords. 3. Do not use if the plug is wet. 4. Unplug the power cord before connecting or disconnecting the water supply. 5. Inspect the hose for damage before use. If it is defective, please do not use it! It is an electrical device and should be inspected carefully. 6. The hoses are not designed to provide protection from freezing at their connections. Please take appropriate measures for your water connections. 7. There are many environmental factors that may contribute to the hose freezing. In extreme weather conditions, additional insulation around the hose may be necessary.

WARNING

1. 1. Fully uncoil and extend the hose when in use. 2. Do not use with water pressures over 600 PSI. 3. Do not attempt to cut or splice the hose—could result in serious injury or death. 4. Do not use if the ground pin is missing from the power plug. 5. Do not use where water is microbiologically unsafe or of unknown quality.
2. 6. Do not allow water to spray into electrical outlets—could result in serious injury or death. 7. For proper use, allow water to flush through the hose for several minutes before drinking.
3. Always install the entire hose in the same ambient conditions. When using the heated water hose, do not place a portion of the hose indoors and put others outdoors.

SAVE THESE INSTRUCTIONS

INTRODUCTION

MULTI-SCENE APPLICATION: The heated water hose of RV accessories can prevent water from freezing down to -45°F (-42.7°C), and its unique intelligent temperature control system thaws ice into water gradually.

Electrically heated garden hoses are made of certified drinking water safe hose. It can be used in RVs, camping, chicken coops, homes, gardens, and trips, helping countless families stay away from the plight of water shortage in extreme cold weather.

SMART AUTOMATIC HEAT SYSTEM: After rigorous laboratory testing, the heated water hose for RV has strong cold resistance, ensuring that the water flows unimpeded in extreme cold winter.

PRODUCT PARAMETERS

Model	Colour	Diameter	Length	Temperature	Power	Voltage
MT-131-15 ft	Blue	5/8in	15ft	-45 °F	96W	AC220-240V 50/60Hz
MT-131-25 ft	Blue	5/8in	25ft	-45 °F	160W	AC220-240V 50/60Hz
MT-131-30 ft	Blue	5/8in	30ft	-45 °F	185W	AC220-240V 50/60Hz
MT-131-50 ft	Blue	5/8in	50ft	-45 °F	285W	AC220-240V 50/60Hz
MT-131-75 ft	Blue	5/8in	75ft	-45 °F	310W	AC220-240V 50/60Hz
MT-131-10 0ft	Blue	5/8in	100ft	-45 °F	550W	AC220-240V 50/60Hz

PARTS LIST

When unpacking this product, check to make sure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

NO.	Name	Pictures	QTY.
1	Heated Water Hose		1
2	3/4" Basic Adapter		1
3	Teflon Tape (White PTFE Tape)		1

INSTALLATION METHODS

PRIOR TO USE

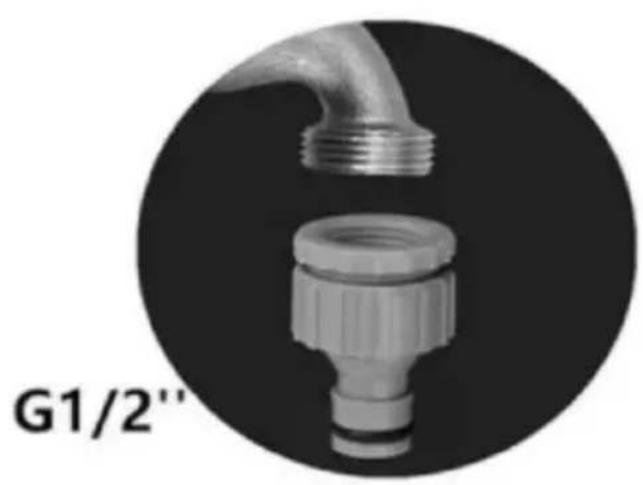

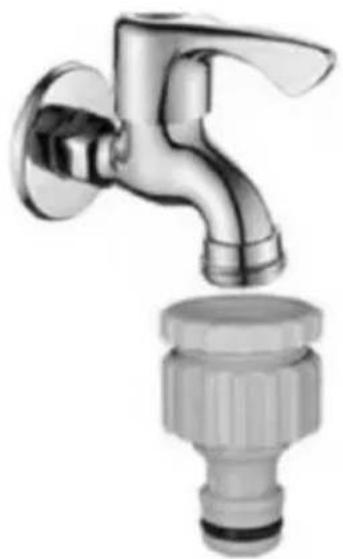

Heated Water Hose for RV with quick insertion type hose connections on both ends and includes a female quick insertion type adapter. It allows connecting the water supply on either end of the hose, which depending on the location of the electrical outlet only use a certified outlet. Water tank adapter only lightly put on - the adapter does not start!

NOTE:

The Heated water hose offers freeze protection down to -40°F (-40°C). And it only heats water when temperature drops to 46°F (8°C) or below. Stop heating when temperature reaches 59°F (15°C) or above.

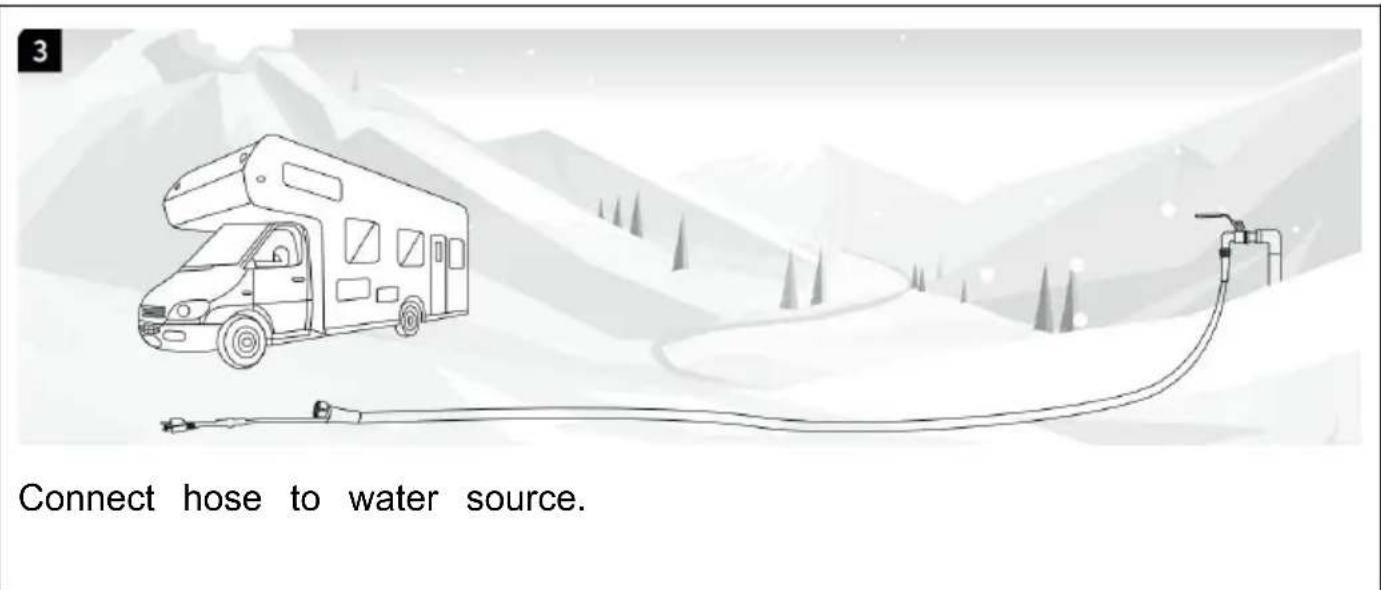

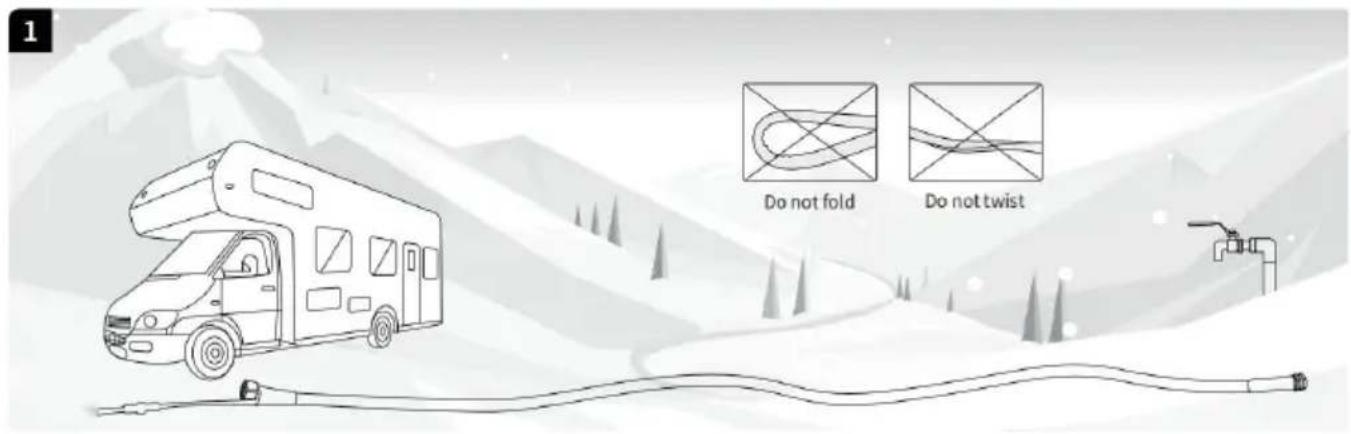

Confirm what will be connected at each end of the hose and put both the correct location through fully extending hose on the ground.

2

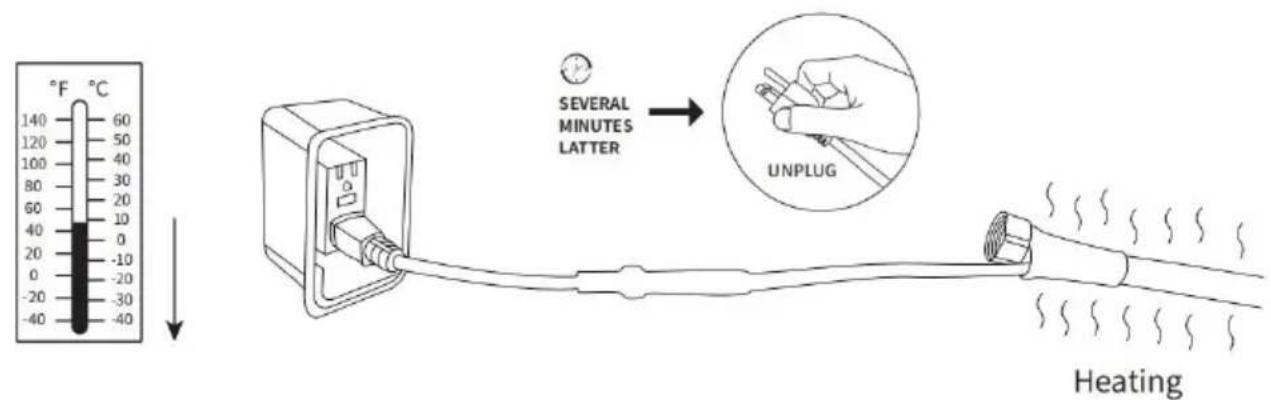

If working temperature is below 50°F (10°C), connect power cord to the outlet for several minutes to allow the hose to become flexible reducing being frozen. Unplug hose before continuing to Step 3.

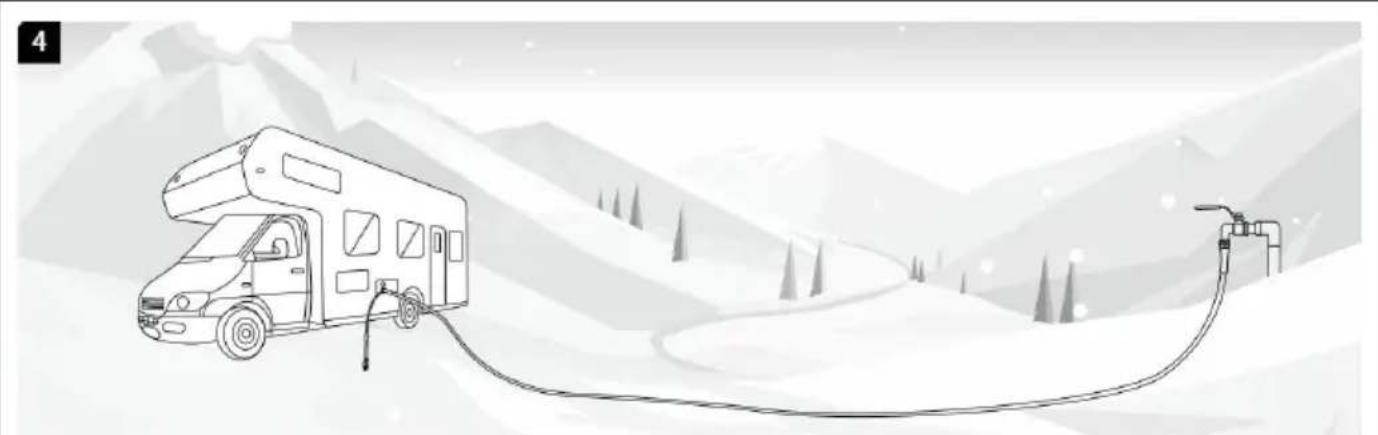

Connect hose to RV, mobile home, or boat.

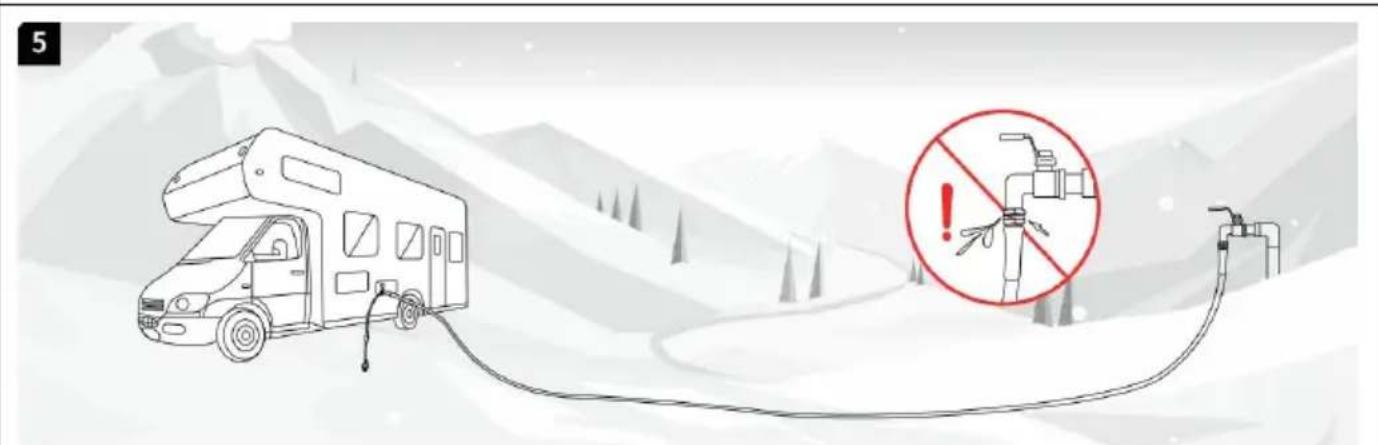

Turn on water supply and check for leaks.

NOTE:

In extremely cold weather, allowing water to drip from the faucet and flow slowly through the hose can effectively prevent the hose from freezing.

STORAGE RECOMMENDATIONS

Do not at any time pull hose with excessive force. This may damage the fittings and electrical components.		×

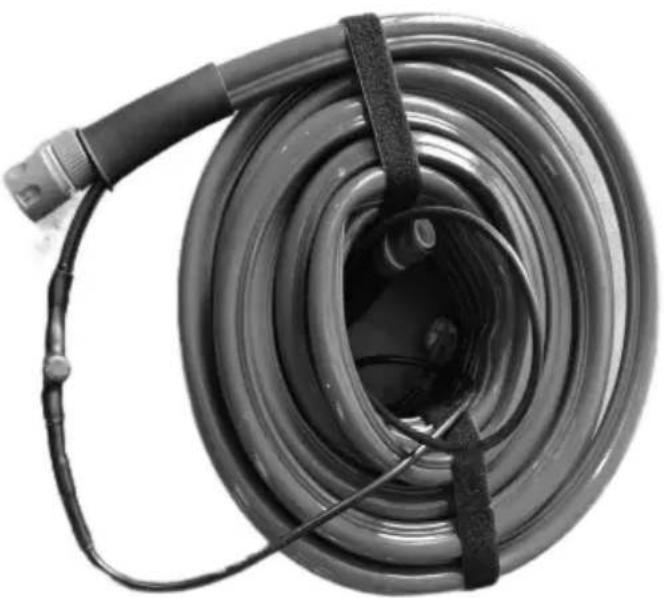

When not in use, the hose should be drai unplugged, rolled up with adjustable straps stored in a dry location out of sunlight.		×
The plug should be placed securely in a waterproof protective case.		×
4 Do not squeeze the plug to cause defor		×

TROUBLESHOOTING

PROBLEM	CAUSE	SOLUTION
1. Having ice in the hose.	There is water in the without heated and froze in the ow temperature environment	Move to warmer area, plug-in heated hose for about 30 minutes to thaw and allow water to drain
2. Hose slips off at the fa connection after a few minutes of use.	Loose connection or excessive water pressure.	- Wrap several tums of white PTFE tape around the male connector first, then try to use - If it still doesn't work, lease connect hose to another water source with suitable water pressure (lower 600 PSI)
3. Leakage at the connecti between the hose and the hose female connector.	Product quality issues	Contact us with detailed problem description,
4. Leakage at the hose
5. Leakage at the connecti between hose female connector and adapter.	Forgot to put washers	If there is no washer in female connector, put one in it
	Connection is not tight enough	Wrap several turns of w/ PTFE tape around the male connector.

TROUBLESHOOTING

PROBLEM	CAUSE	SOLUTION
6. After connecting power cord to electrical outlet, the water still fro when it flowed through the hose	Forgot to Operate Step2 on Page 5 (Installation and Operation)	First, operate problem 1's solution. Then, operate all steps once again (Installation and Operation).
7. The hose sometimes smells bad.	This is a normal phenomenon due to the PVC material. There is no doubt that this hose BPA free certified and drinking water safe.	NO action needed. Use it without worries
8. The LED light is on but the hose is not heating	a. Product quality issue	Contact us with detailed problem description
9. Components of the hose are burnt out	b.Overload Circuit	- The circuit may be overloaded or the hose was not plugged into a qualified 230 volt electrical outlet - It is recommended that you could call an electrician to h with in- specting the circuit
