USER MANUAL SRTHRV15 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HEATED WATER HOSE FOR RV

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HEATED WATER

HOSE FOR RV

Black-and-white photo of a coiled industrial hose with black straps and connectors (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

WARNING

SAFEGUARDS

1. Read all instructions before use.
2. Do not use with extension cords.
3. Do not use if the plug is wet.
4. Unplug power cord before connecting or disconnecting water supply.
5. Inspect hose for damage before use. If it is defective, please do not use! It electrical device and should be inspected carefully.
6. The hose are not designed to provide protection from freezing at their connections. Please take appropriate measures for your water connections.
7. There are many environmental factors that may contribute to the hose freezing. In extreme weather conditions, additional insulation around the hose is be necessary.

WARNING

1. Fully uncoil and extend hose when in use.
2. Do not use with water pressures over 600 PSI.
3. Do not attempt to cut or splice hose-could result in serious injury or death
4. Do not use if ground pin is missing from power plug.
5. Do not use where water is microbiologically unsafe or of unknown quality.
6. Do not allow water to spray into electrical outlet-could result in serious inj death.
7. For proper use, allow water to flush through hose for several minutes before drinking
8. Always install the entire hose in the same ambient conditions. When using heated water hose, do not place a portion of the hose indoors and put others outdoors.

SAVE THESE INSTRUCTIONS

INTRODUCTION

MUTIL-SCENE APPLICATION: The heated water hose of rv accessories can prevent water from freezing down to -45^ F ( -42.7^ C), and its unique intelligent temperature control system thaws ice into water gradually. Electrically Heated garden hoses are made certified drinking water safe hose. It can be used in camping, chicken coops, homes, gardens and on trips, Helping countless families stay away from the plight of water shortage in extreme cold weather.

SMART AUTAMATIC HEAT SYSTEM: After rigorous laboratory testing, heated water hose for RV has strong cold resistance, ensuring that the water flows unimpeded in extreme cold winter.

PRODUCT PAREMETERS

Model	Colour	Diameter	Length	Temperature	Power	Voltage
SRTHRV15-EU	Blue	5/8in	15ft	-45 °F	96W	AC220-240V50/60Hz
SRTHRV25-EU	Blue	5/8in	25ft	-45 °F	160W	AC220-240V50/60Hz
SRTHRV30-EU	Blue	5/8in	30ft	-45 °F	185W	AC220-240V50/60Hz
SRTHRV50-EU	Blue	5/8in	50ft	-45 °F	285W	AC220-240V50/60Hz
SRTHRV75-EU	Blue	5/8in	75ft	-45 °F	310W	AC220-240V50/60Hz
SRTHRV100-EU	Blue	5/8in	100ft	-45 °F	550W	AC220-240V50/60Hz

PARTS LIST

When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

NO.	Name	Pictures	QTY.
1	Heated Water Hose		1
2	3/4" Basic Adapter		1
3	Teflon Tape (White PTFE Tape)		1

INSTALLATION METHODS

PRIOR TO USE

Heated Water Hose for RV quick insertion type hose connections on both end and includes a features female quick insertion type adapter. It allows connect the water supply on either end of hose, which depending on the location of electrical outlet only use a certified outlet. Water tank adapter only lightly put on – the adapter does not start!

Close-up of a stainless steel faucet with a small pipe fitting (no text or symbols visible)

Close-up of a metallic pipe fitting with threaded end, labeled G1/2" (no other text or symbols)

NOTE:

The Heated water hose offers freeze protection down to -40^ (-40°C). And it only heats water when temperature drops to 46^ (8°C) or below. Stop heating when temperature reaches 59^ (15°C) or above.

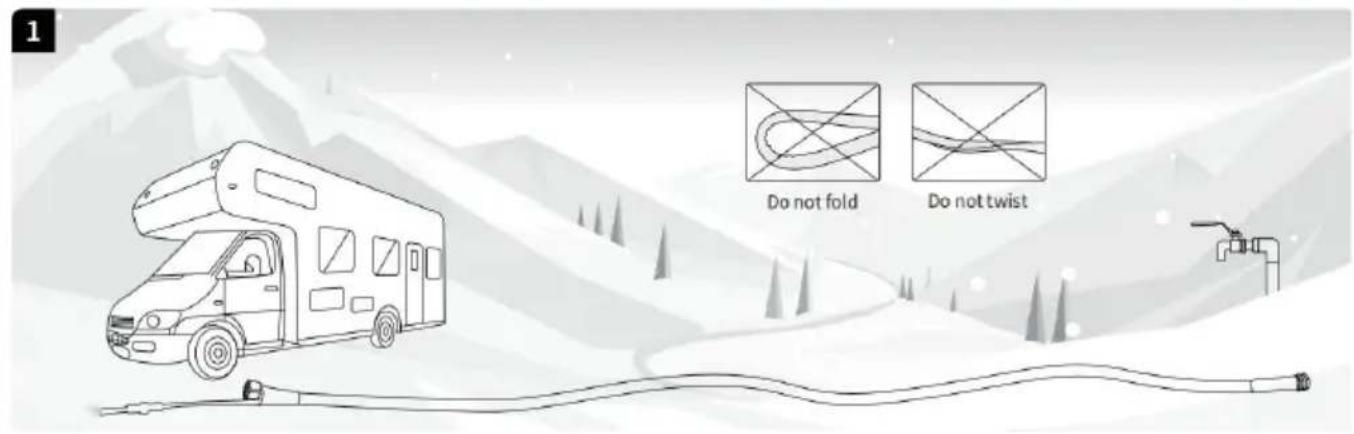

1 Do not fold Do not twist

Confirm what will be connected at each end of the hose and put both the correct location through fully extending hose on the ground.

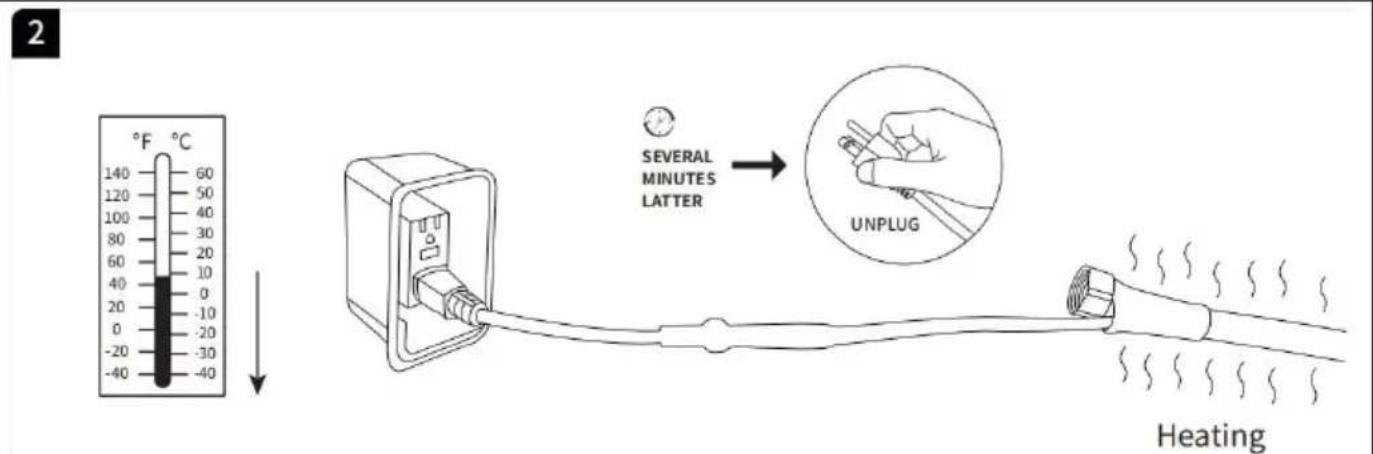

2 °F °C 140 60 120 50 100 40 80 30 60 20 40 10 20 -10 0 -20 -20 -30 -40 -40 SEVERAL MINUTES LATTER UNPLUG Heating

If working temperature is below 50^(10^) , connect power cord to the ele outlet for several minutes to allow the hose to become flexible re-ducing being frozen. Unplug hose before continuing to Step 3.

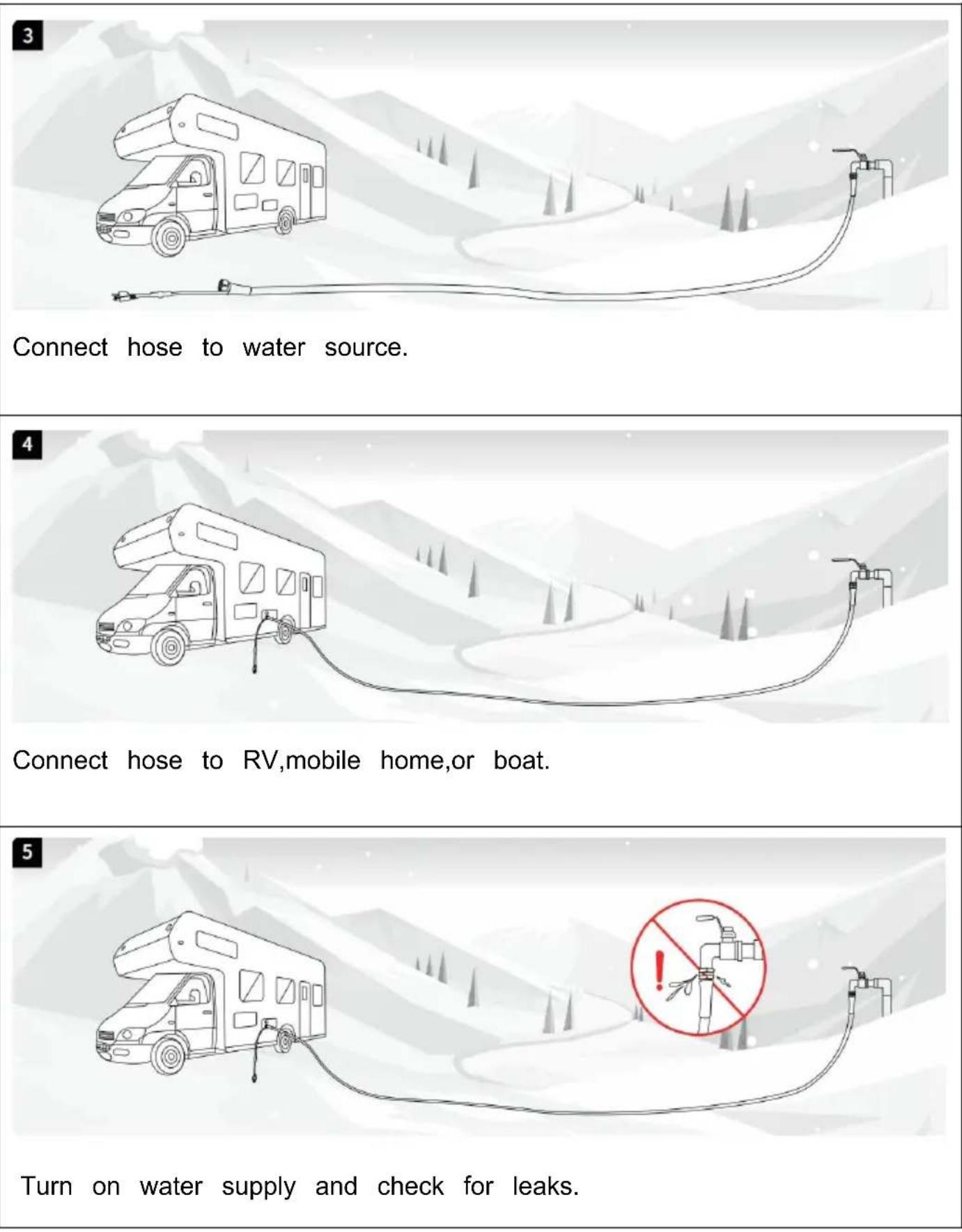

Connect hose to water source.
Connect hose to RV, mobile home, or boat.
Turn on water supply and check for leaks.

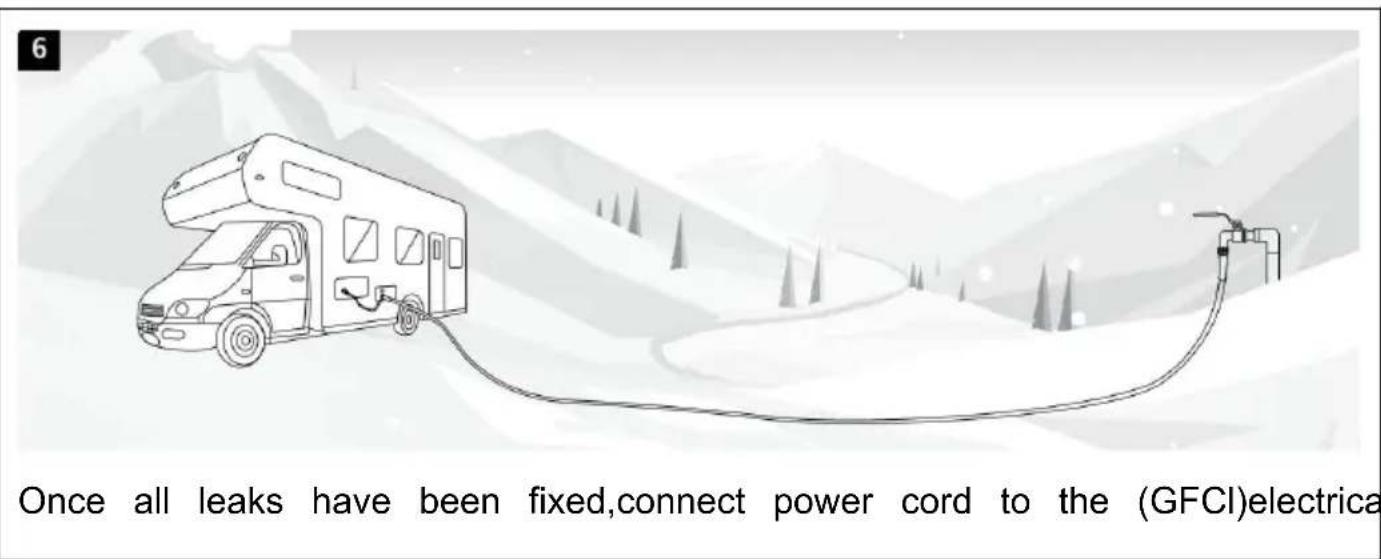

Once all leaks have been fixed,connect power cord to the (GFCI)electrica

NOTE:

In extremely cold weather, allowing water to drip from the faucet and flow sl through the hose can effectively prevent the hose from freezing.

STORAGE RECOMMENDATIONS

Do not at any time pull hose with excessive force. This may damage the fittings and electrical components.		✕
When not in use, the hose should be drain unplugged, rolled up with adjustable straps stored in a dry location out of sunlight.		✕
The plug should be placed securely in a waterproof protective case.		✕
4 Do not squeeze the plug to cause defor		✕

TROUBLE SHOOTTING

PROBLEM	CAUSE	SOLUTION
Having ice in the hose.	There is water in the h without heated and froze in the ow temperature environment	Move to warmer area, plug-in heated hose for about 30 minutes to thaw and allow water to drain
Hose slips off at the fa connection after a few minutes of use.	Loose connection or excessive water pressure.	- Wrap several tums of white PTFE tape around the male connector first, then try to use- If it still doesn't work, lease connect hose to another water source with suitable water pressure (lower 600 PSI)
Leakage at the connecti between the hose and the hose female connec4. Leakage at the hose	Product quality issues	Contact us with detailed problem description,
5. Leakage at the connecti between hose female connector and adapter.	Forgot to put washers	If there is no washer in female connector,put one in it
	Connection is not tight enough	Wrap several turns of wh PTFE tape around the male connector.

TROUBLE SHOOTTING

PROBLEM	CAUSE	SOLUTION
6. After connecting power cord to electrical outlet, the water still fro when it flowed through the hose	Forgot to Operate Step2 on Page 5 (Installation and Operation)	First, operate problem 1's solution.Then, operate all steps once again (Installation and Operation).
7. The hose sometimes smells bad.	This is a normal phenomenon due to the PVC material. There is no doubt that this hose BPA free certified and drinking water safe.	NO action needed.Use it without worries
8. The LED light is on but the hose is not heating	a. Product quality issue:	Contact us with detailed problem description
9. Components of the hose are burnt out	b. Overload Circuit	- The circuit may be overload or the hose was not plugged into a qualified 230 volt electrical outlet- It is recommended that you could call an electrician to h with in- specting the circuit

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol.

Products marked as such may not be discarded with normal domestic waste, must be taken to a collection point for recycling electrical and electronic device

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW : Australia
