Product Type	Steel Core Flip Line Kit
Brand	Vevor
Model	ROPE-G-16-10
Main Material	Dacron and steel
Color	Orange
Net Weight	2.11 kg
Line Length	12 feet (approx. 3.66 m)
Reference Standard	ANSI/ASSE Z359
Intended Use	Work restraint and positioning, prevention of falls from height
Authorized Users	Trained and competent persons, or under direct supervision
Required Anchor Point	Minimum strength of 12 kN (metal) or 18 kN (fabric), complying with EN795
Connectors	Must comply with EN 362
Maximum Storage Temperature	80 °C
Cleaning Textile Parts	Clean water and mild soap (max 30 °C), natural drying away from heat
Cleaning Metal Parts	Rinse with clean water and dry
Recommended Storage	Cool, dry, well-ventilated place, away from heat sources, humidity, sharp edges and corrosive products
Service Life	To be determined by regular inspections; replace in case of damage or chemical contact
Package Contents	Instructions, line kit, connectors

Frequently Asked Questions - ROPE-G-16-10 Vevor

What is the type of this product?

This is a Steel Core Flip Line Kit intended for work restraint and positioning at height.

What materials are used?

The product is made from Dacron and steel, offering good cut resistance.

What is the line length for model ROPE-G-16-10?

According to the instructions, the line length is 12 feet (approximately 3.66 meters).

What is the weight of the kit?

The net weight of model ROPE-G-16-10 is 2.11 kg.

How to maintain the kit?

Clean textile parts with clean water and mild soap (max 30 °C), dry naturally. Metal parts rinse with clean water and dry. Avoid temperatures above 80 °C.

What safety standards apply?

The product complies with ANSI/ASSE Z359 standard for fall protection equipment.

Can I use this product without training?

No, this equipment must only be used by trained and competent persons or under the direct supervision of a qualified person.

How to store the kit?

Store it unpacked in a cool, dry and well-ventilated place, away from heat sources, high humidity, sharp edges and corrosive products.

When should I replace the kit?

Replace the kit in case of visible damage, contact with chemicals, a fall, or if regular inspections reveal abnormal wear.

Can this kit be used as a primary fall arrest system?

This product is designed for work positioning and restraint. For fall protection, a second safety system may be necessary. Consult the instructions for fall factors.

USER MANUAL ROPE-G-16-10 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

STEEL CORE FLIP LINE KIT USER MANUAL

MODEL NO.: ROPE-T-8, ROPE-T-12, ROPE-G-127-10, ROPE-G-127-16, ROPE-G-16-8, ROPE-G-16-10, ROPE-G-16-12

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to the top brands and does not necessarily mean to cover all categories of tools offered by us. We are kindly reminded to verify carefully when you are placing an order with us if you actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Steel Core Flip line

MODEL NO.: ROPE-T-8, ROPE-T-12, ROPE-G-127-10, ROPE-G-127-16, ROPE-G-16-8, ROPE-G-16-10, ROPE-G-16-12

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure to do so may result in serious injury. SAVE THIS MANUAL

GENERAL INFORMATION

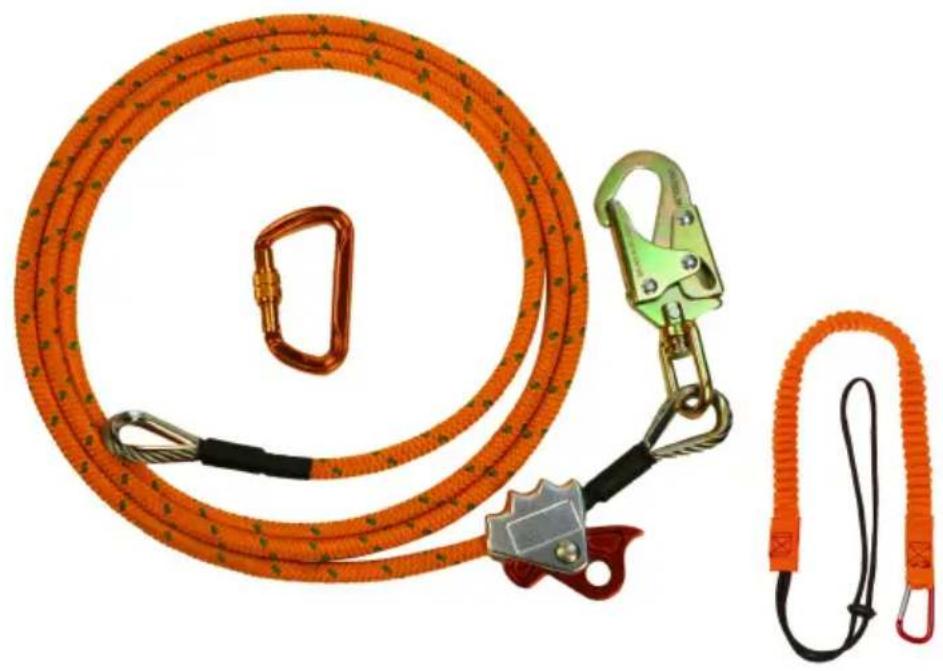

Steel Core Flip line Kit
Trademark	VEVOR® TOUGH TOOLS, HALF PRICE	Reference standards	ANSI/ASSE Z359

"VEVOR. Steel Core Flip line Kit" is an adjustable restraint and work positioning device conforming to standard ANSI/ASSE Z359. It is made with cable for improved resistance to cut, encased in a protective polyester sheath. This product is intended for use to protect and prevent against risks of falling from above in industry, in construction work, in rescue and, more generally, for any application of work at a height.

TECHNICAL SPECIFICATIONS

Model	ROPE-T-8	ROPE-T-1 2	ROPE-G-127-10	ROPE-G-127-16
Main Material	Dacron, steel	Dacron,steel	Dacron,steel	Dacron,steel
Color	Orange	Orange	Orange	Orange
Net Weight (kg)	1.7	2.1	2	2.54
line supervisor(ft)	8	12	10	16

Model	ROPE-G-16-8	ROPE-G-16-10	ROPE-G-16-12
Main Material	Dacron, steel	Dacron, steel	Dacron, steel
Color	Orange	Orange	Orange
Net Weight (kg)	1.91	2.11	2.3
line supervisor(ft)	8	12	12

PACKAGE CONTENTS

Product instruction

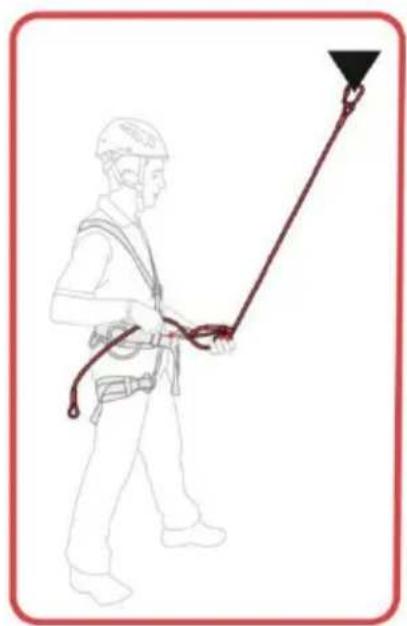

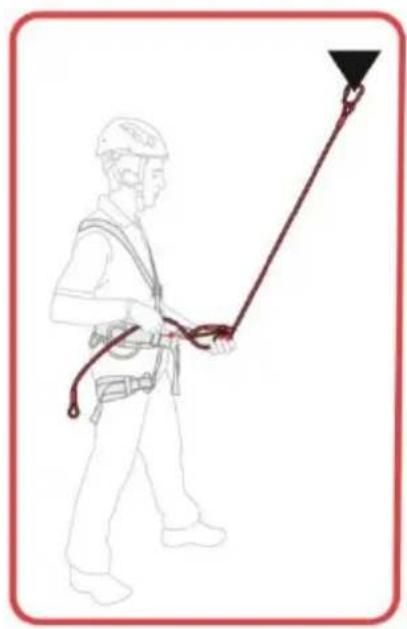

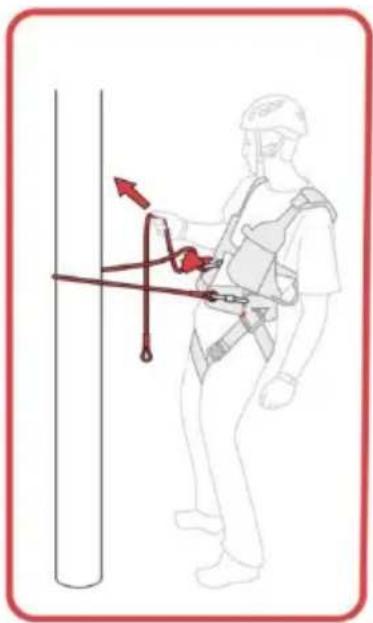

Steel Core Flip line Kit Use-pattern

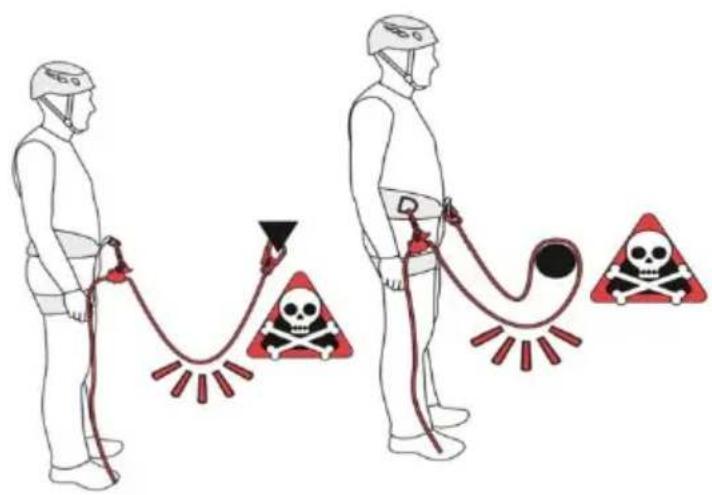

Steel Core Flip line Kit Use Warning

Steel Core Flip line Kit Connectors method of application

Steel Core Flip line Kit Locking cam method of application

USE

This equipment should be used only by trained and competent persons. Otherwise the user should be under the direct supervision of a trained and competent person. This notice will not teach you the techniques for working at height or any other associated activity: you must have received qualified instruction before using this product. Climbing, and any other activity for which these products may be used, is inherently dangerous. The consequences of incorrect selection, misuse or poor maintenance of equipment could result in damage, serious injury or death. The user must be medically fit and capable to control his security and any possible emergencies. For equipment intended for use in fall arrest systems, it is essential for safety that the anchor device or anchor point should always be positioned, and

the work carried out in such a way as to minimize both the potential for falls and the potential fall distance. Verify the free space required beneath the user at the workplace before each occasion of use, so that, in the case of a fall, there will be no collision with the ground or other obstacles in the fall path. A full-body harness is the only acceptable body-holding device that can be used in a fall arrest system. The product should only be used as instructed and no alterations should be made to it. It may be used in conjunction with any appropriate items of suitable specification and according to the ANSI standards, with due consideration to the limitations of each piece of equipment. This leaflet shows examples of improper utilization of this product. Note that it is impossible to show or imagine all improper utilization and that this product should be used only in the way specified by the manufacturer in this leaflet. If possible this product should be treated as personal protective equipment. If used by multiple individuals, these instructions must be available for consultation and must be respected by all users.

Fall Factor is a rating used to evaluate the danger of specific scenarios when working at heights, calculated using the following equation: Fall Factor = Height of Fall / Length of Lanyard. In situations where the Fall Factor will be 0 (e.g., the worker is positioned under the anchor point on a tensioned lanyard) or in situations where the Fall Factor is 1 or less, positioning/restraint equipment is adequate. Fall arrest equipment must be used for other situations where the Fall Factor is greater than 1 or more freedom of movement is required. Always keep the rope under tension and avoid creating slack. When using a work positioning system, the user relies on the equipment for his or her support. Assessing the need for a second arresting safety system is essential. All lanyards, even those made of metal cable, are not indestructible and can be cut by sharp tools (i.e., chain-saw, etc.); therefore, always use a backup line during cutting activities. The anchor point must be in compliance with the EN795 standard and/or known to have a resistance of 12 kN (metal anchors) or 18 kN (fabric anchors). The anchoring point must be at or above waist level. Connections to the harness and to the structural anchor point must be made with EN 362 connectors. Gloves are recommended to avoid burns from sliding along the cable. Use adequate rescue equipment and provide adequate training for the work crew so that they can quickly rescue an injured person to minimize the effects of suspension trauma.

MAINTENANCE

Cleaning of the textile and plastic parts: rinse in clean water and neutral soap (at a temperature of 30°C) and dry naturally away from direct heat. Cleaning of the metallic parts: rinse in clean water and then dry. Temperature: Always keep this product below 80°C so as not to affect the performance of the product. Chemicals: withdraw the product from service if it comes into contact with chemical reagents, solvents, or fuels which could affect the performance of the product. Dirt that cannot be removed: spots of unknown origin that cannot be removed should be considered chemical contamination and therefore require that the product be disposed of.

STORAGE

Store unpacked in a cool, dry, and well-ventilated, dark place away from heat sources, high humidity, sharp edges, corrosives, or other possible causes of damage. Do not leave the product exposed to the weather.

COMPLETION

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshan District, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr. 69, 60329 Frankfurt am Main

YH CONSULTING LIMITED.

C/O YH Consulting Limited, Office 147, Centurion House

London Road, Staines-upon-Thames, Surrey, TW18 4A

VEVOR

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Assistance and Electronic Warranty Certificate www.vevor.com/support

STEEL CORE FLIP LINE KIT USER MANUAL

MODEL NUMBER: CORDE-T-8, CORDE-T-12, CORDE-G-127-10, CORDE-G-127-16, CORDE-G-16-8, CORDE-G-16-10, CORDE-G-16-12

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Steel Core Flip Line

MODEL NUMBER: CORDE-T-8, CORDE-T-12, CORDE-G-127-10, CORDE-G-127-16, CORDE-G-16-8, CORDE-G-16-10, CORDE-G-16-12

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING:

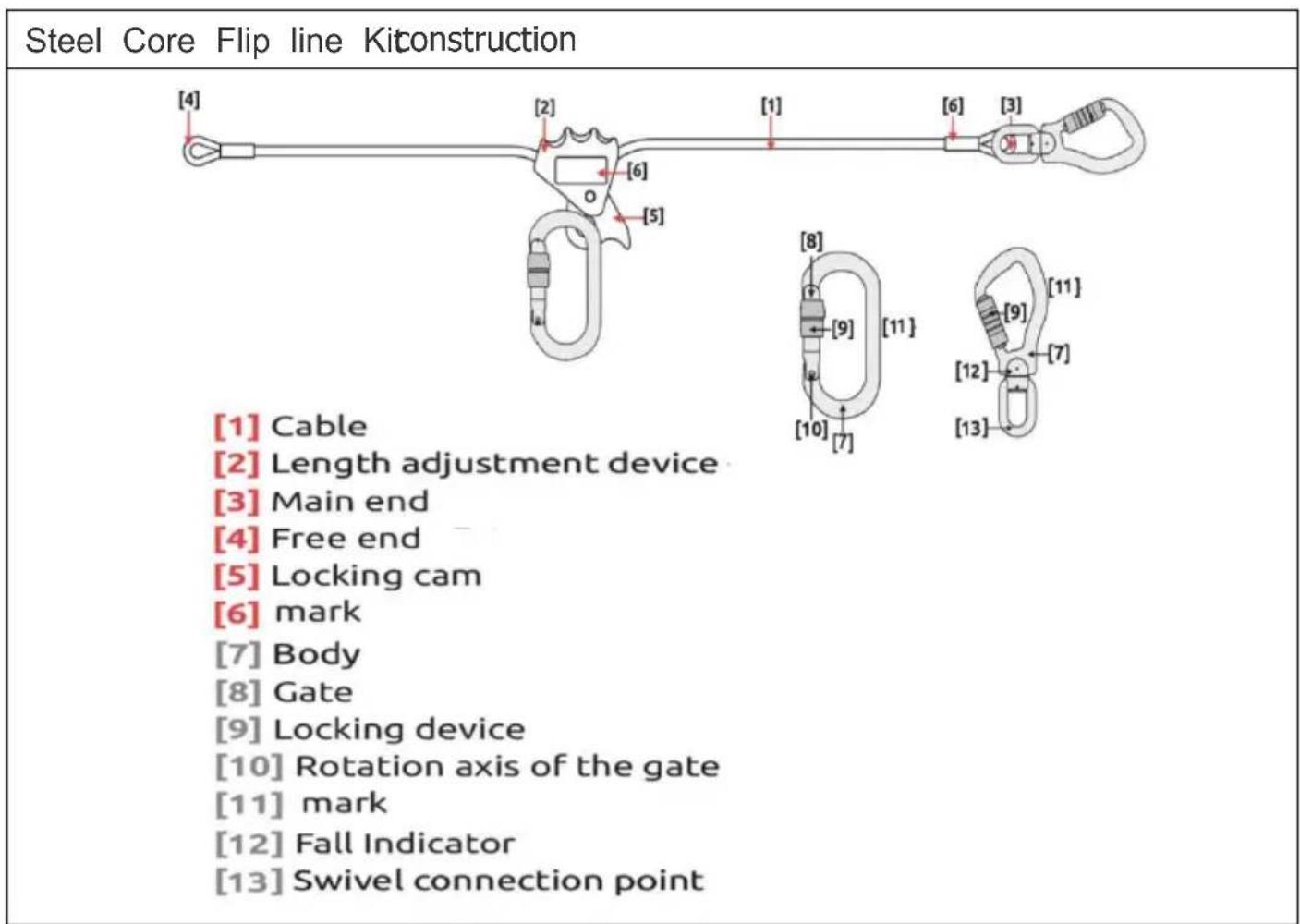

[1] Cable [2] Length adjustment device [3] Main end [4] Free end [5] Locking cam [6] mark [7] Body [8] Gate [9] Locking device [10] Rotation axis of the gate [11] mark [12] Fall Indicator [13] Swivel connection point
