USER MANUAL MMT5X7G-DUG DK2

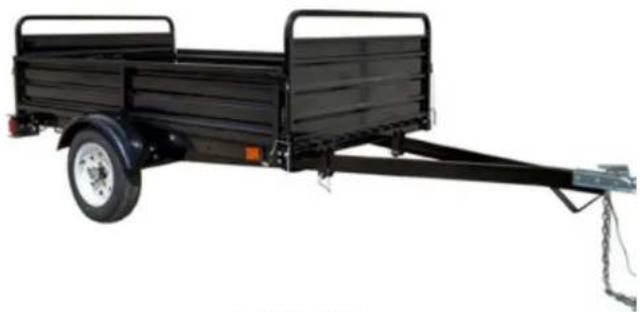

Black utility truck with extended trailer and support frame (no visible text or symbols)

MMT5X7

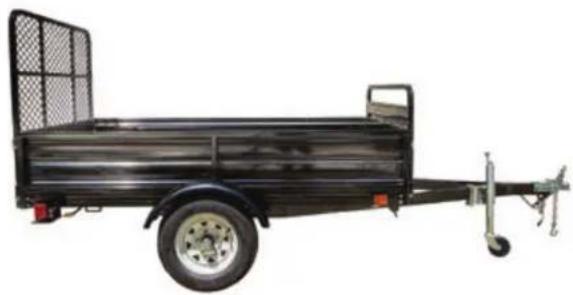

Black utility vehicle with metal frame and side-mounted handle (no visible text or symbols)

MMT5X7-DUG

Exterior view of a silver utility truck with a trailer and attached cargo (no text or symbols visible)

MMT5X7G MMT5X7G-DUG

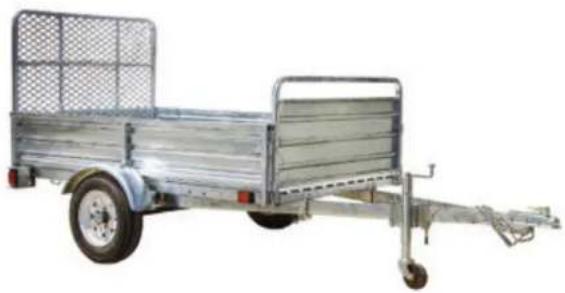

Exterior view of a metal multi-axle trailer with a mesh backrest and attached support frame (no text or symbols visible)

STEP 1

Open and unpack all items. Leave lots of working space as you will need to flip the trailer over later in the assembly.

The trailer frame is shipped upside down as shown. Leave the frame on the cardboard and use it as your work surface.

3D rendering of a metal grate structure with slatted panels and mounting brackets (no text or symbols)

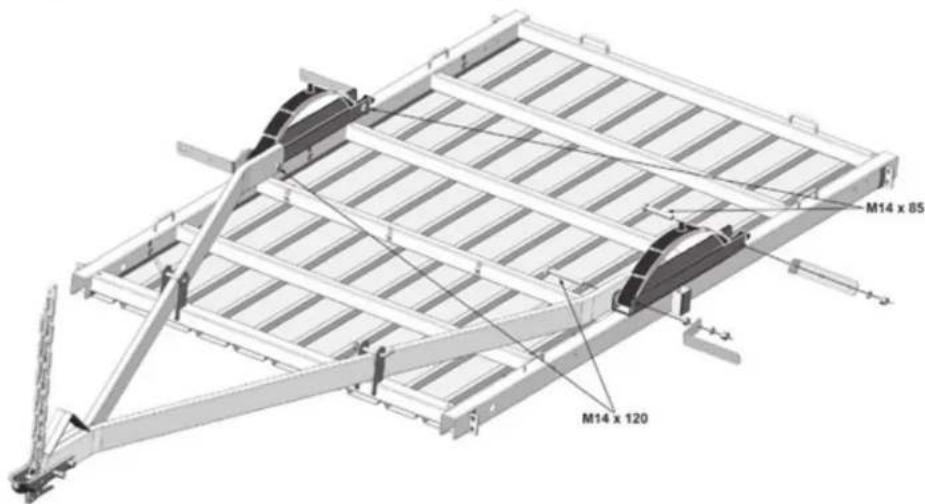

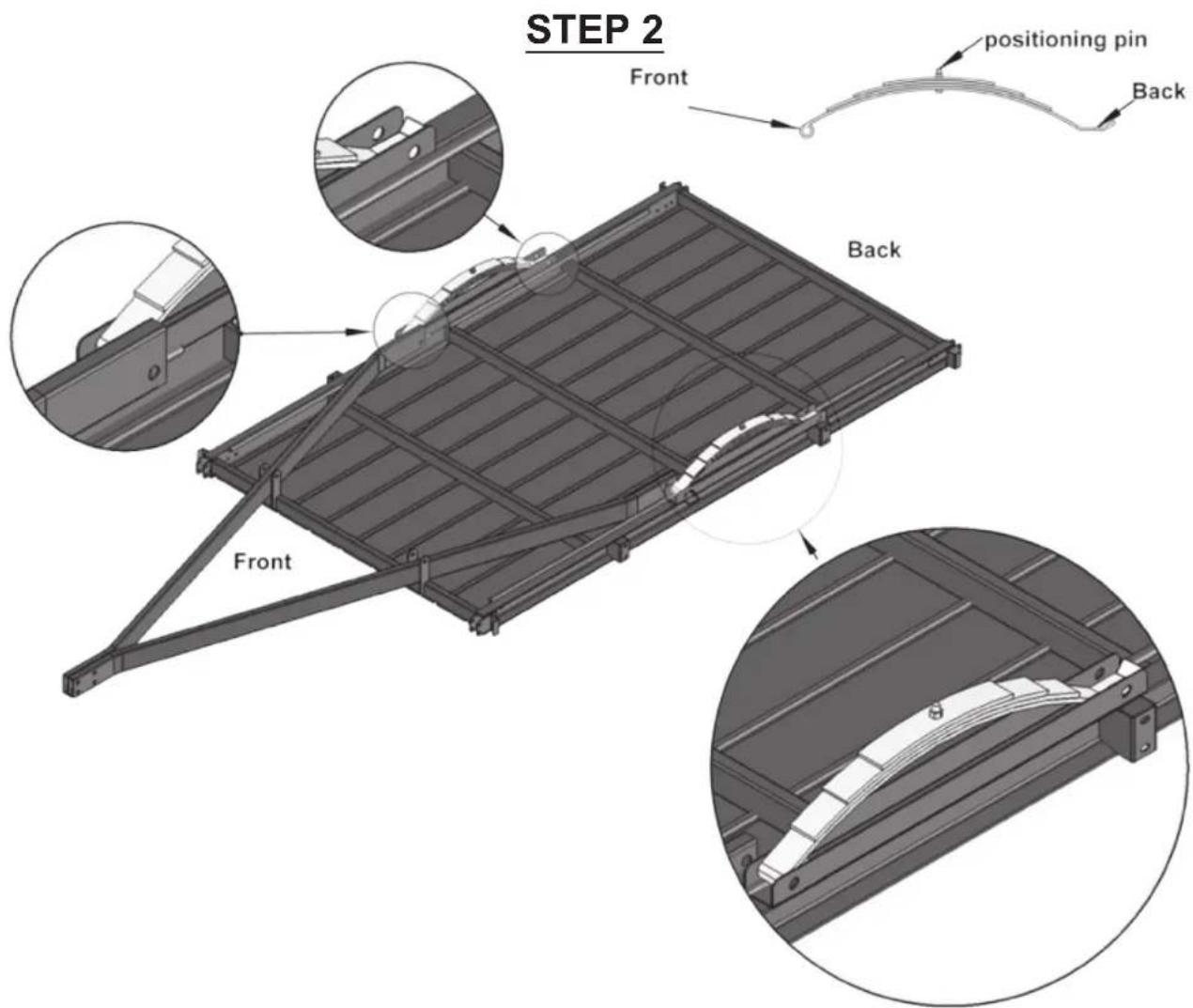

STEP 2 Front positioning pin Back Back Front

ENGLISH

Place springs and tongue tubes as shown -the hub end of the spring faces towards the front of the trailer- insert the two M14 x 120 mm bolts from inside out through the tongue tube, then the channels, spring hubs, and fender L-brackets on the front. Use

M14 x 85 M14 x 120

the M14 x 85 mm bolts at the back, again inserted from the inside outward, through the channels, over the back tabs on the springs, and the rear fender L-brackets. Install the 4 washers and 6 M14 lock nuts finger tight in the locations shown.

v.210604 En.a3

STEP 3

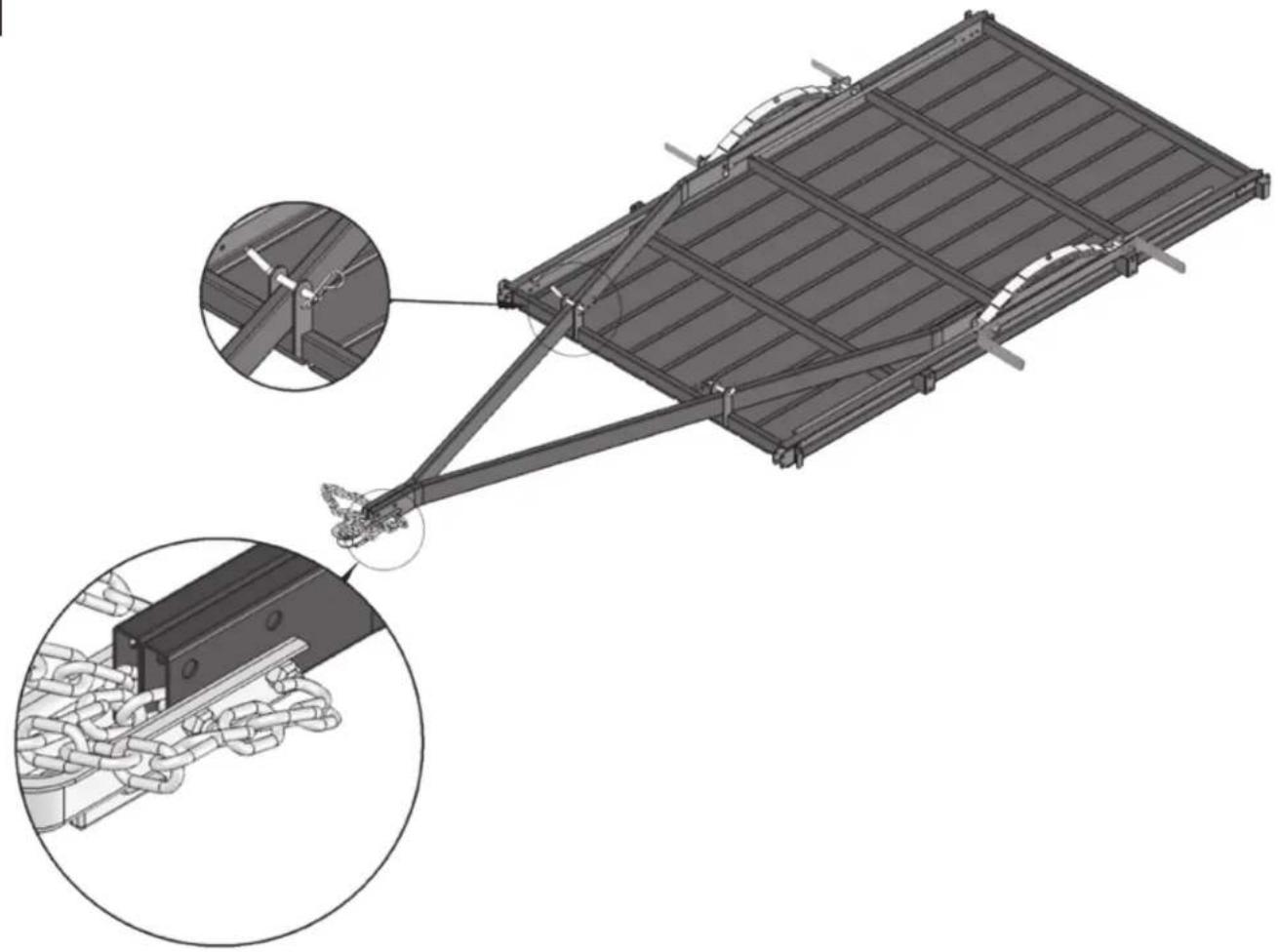

Insert the two 1/2" hitch pins as shown.

Technical illustration of a mechanical assembly with two views: one showing a structural connection and the other showing a chain link mechanism (no text or symbols present)

Install the co

provided.

Find the middle link on the chain, and feed it through the side of the tongue where the wiring harness is not present. Feed your bolt through.

En.a4 MMT5X7 man

STEP 4

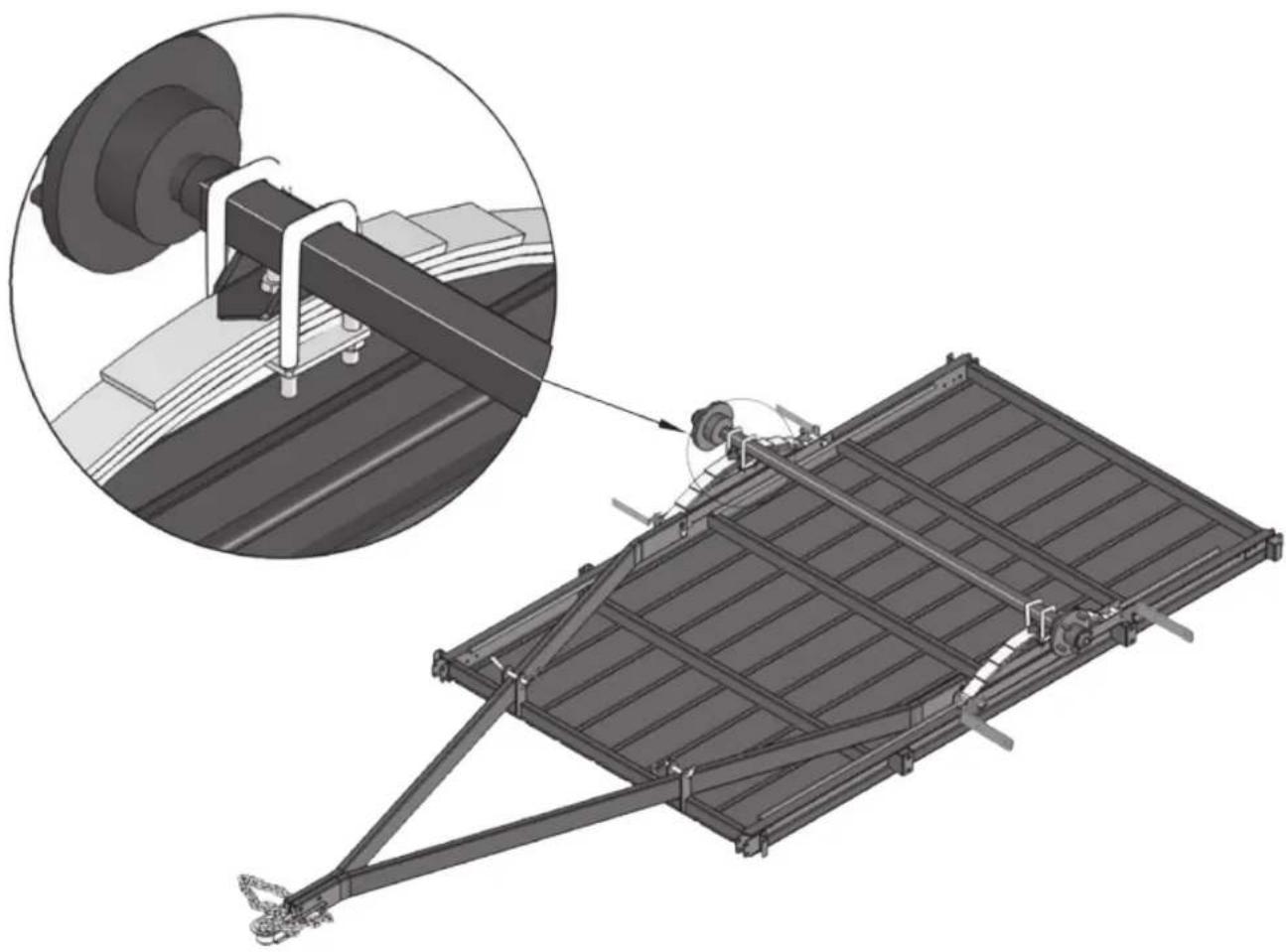

Lay the axle across the springs. Mount the axle to the springs with the M10 U – Type bolts, left spring plate, M10 washers, and M10 nylock nuts.

NOTE: Insert the raised point on the spring into the concave on the axle.

Make sure that the axle is in the right position.

Technical illustration of a satellite or radar system with a magnified inset showing the mechanical assembly (no text or symbols present)

STEP 5

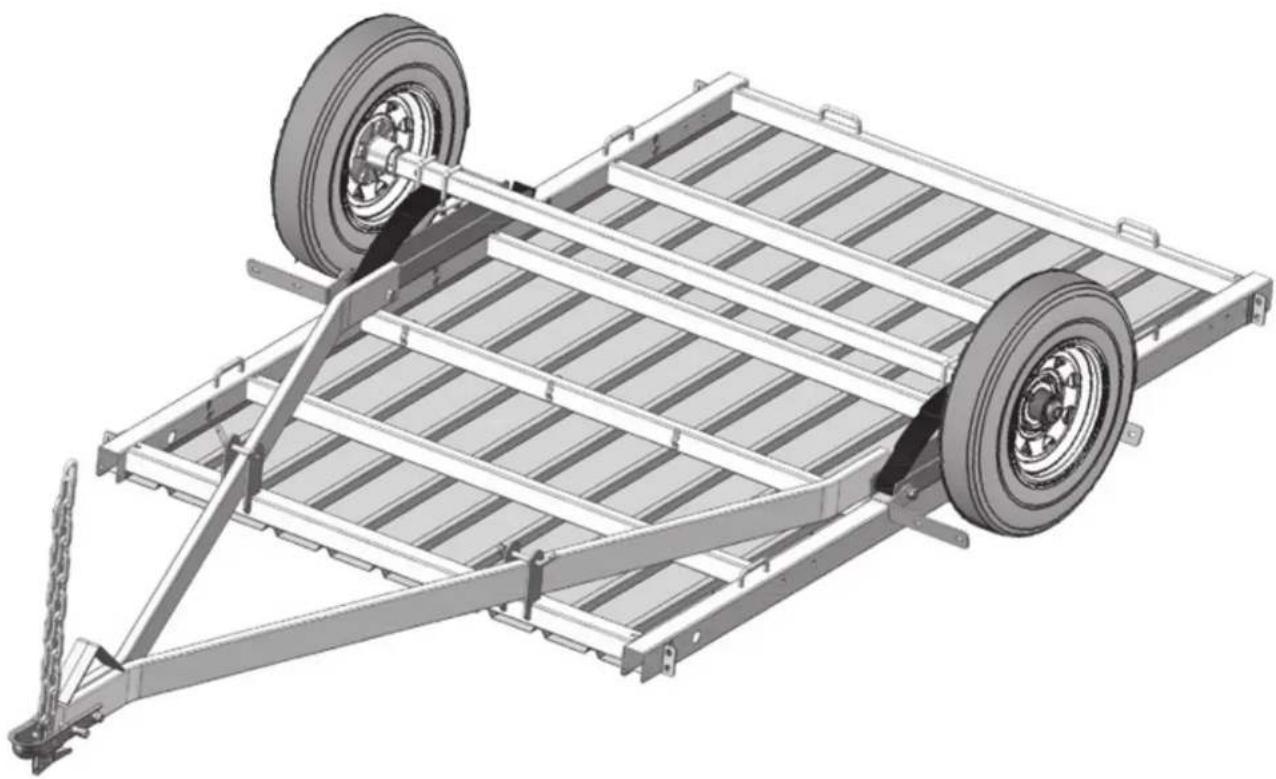

Install the tires. Snug all ten wheel nuts provided.

The wheel nuts will need to be torqued after the trailer is flipped over and the wheel can be better held.

NOTE: Tapered ends of wheel nuts face inward toward wheel.

Technical illustration of a metal tricycle chassis with two wheels and support frame (no text or symbols)

STEP 6

Pre-Wiring

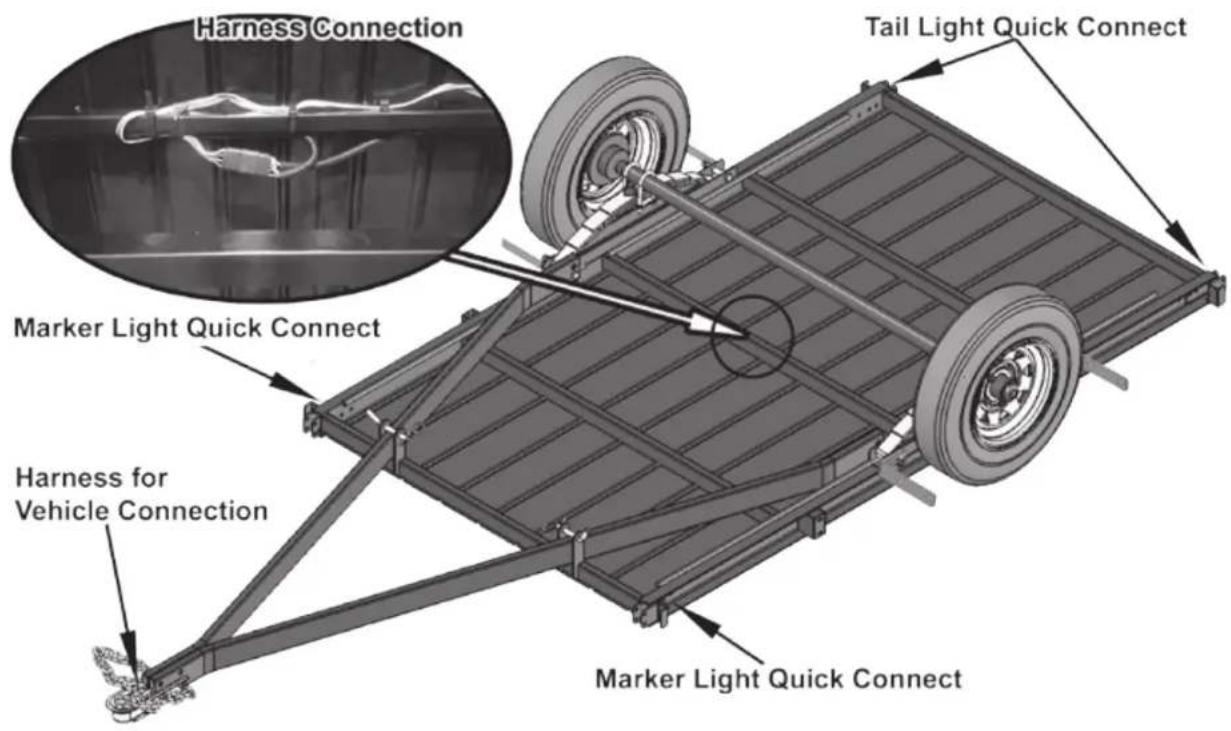

The wire harness are pre-assembled under the frame. The pre-assembled wiring harness is pre-mounted on the trailer and must be connected to the harness that goes to the front of the trailer tongue.

NOTE: Make sure all connections are accessible for light mounting when trailer is flipped over.

Mount the light assemblies onto the side of the rear portion of the frame using the M6 square neck bolts, M6 washers and M6 nylock nuts. Plug the light connector into the wire harness. Mount the side marker onto the side of the front portion of the frame using the self-tapping screws. Plug the light connector into the wire harness.

Harness Connection Tail Light Quick Connect Marker Light Quick Connect Harness for Vehicle Connection Marker Light Quick Connect

STEP 7

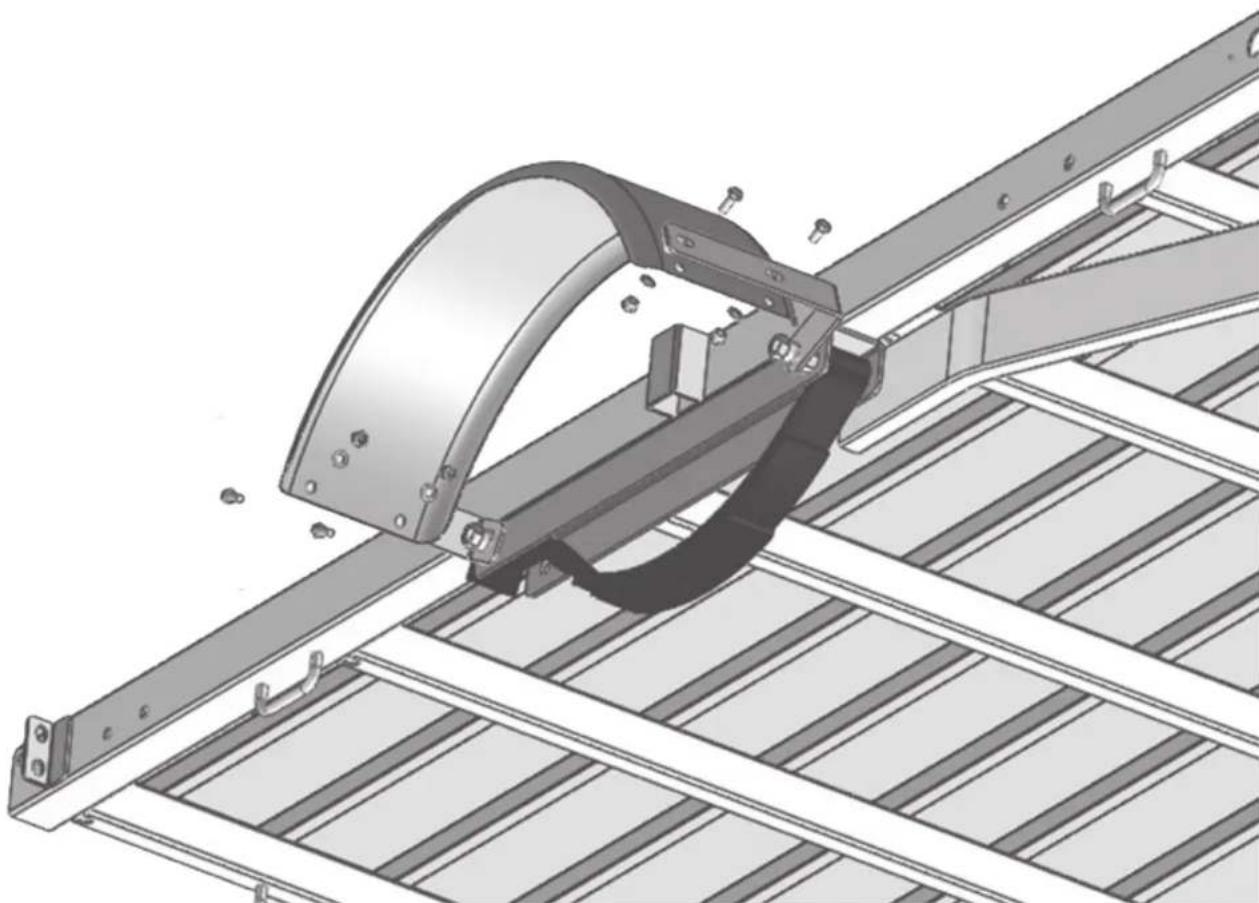

Flip the trailer over and install the fenders

CAUTION! Rolling the trailer over will require assistance. The trailer at this point weighs an estimated 400 lb. (181.4 kg).

The fenders now need to be assembled. Secure each fender by fastening the nuts and bolts provided with the fender to the L-brackets and the channel that holds the springs in place.

Once the angle of the L-brackets is established, tighten the 4 M14 bolts through the springs until springs are secure. Do not over-tighten as it will collapse spring channel. Shown from below in drawing with axle and wheels removed for clarity.

Technical illustration of a mechanical assembly with a curved metal component and ribbed metal beams (no text or symbols)

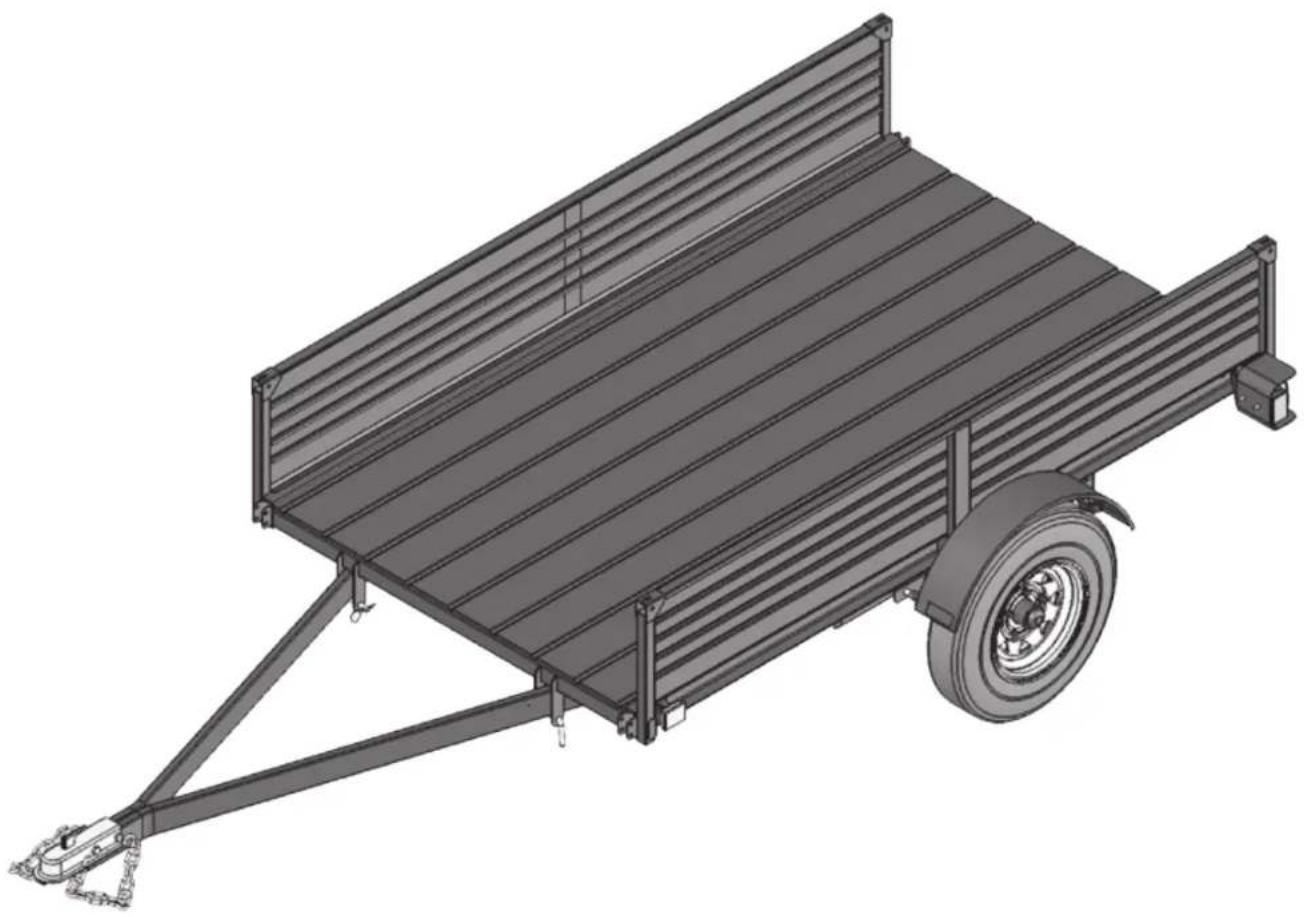

STEP 8

Install side panels.

Insert and tighten the eight (four on each side) M8 x 20 mm bolts and M8" lock nuts provided.

3D rendering of a metal tow cart with a wheel and support structure (no text or symbols)

STEP 9

Install lights.

Installing the lights and completing the wiring.

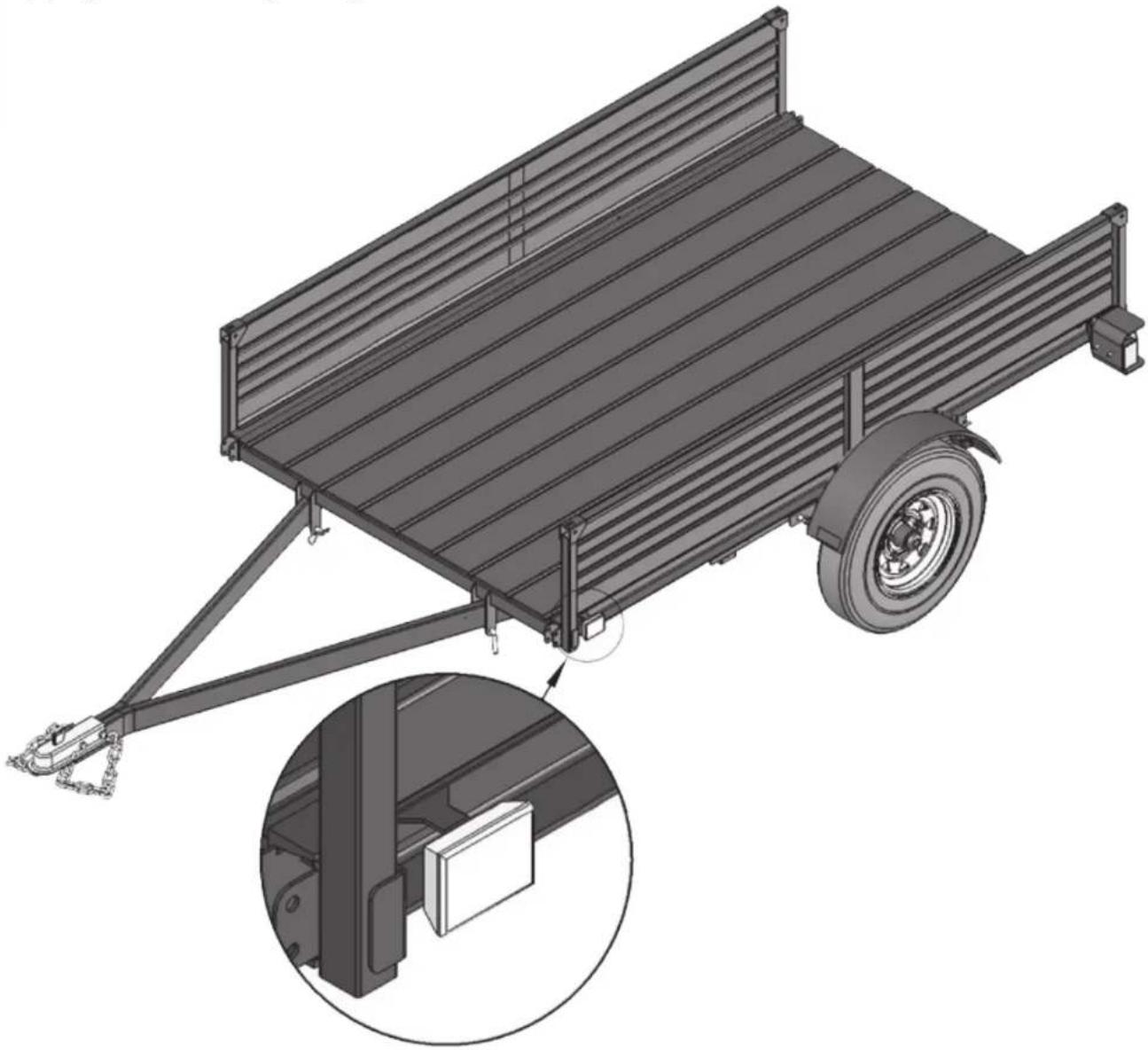

Mount the side marker onto the side of the front portion of the frame using the self tapping screws. Plug the light connector into the wire harness.

Technical illustration of a metal tow cart with attached chains and a close-up inset showing a side panel detail (no text or symbols present)

NOTE: Use Dielectric grease on each connector for corrosion prevention

STEP 9 (CONTINUED)

Technical illustration of a flatbed utility vehicle with a pull-up mechanism and close-up details (no text or symbols)

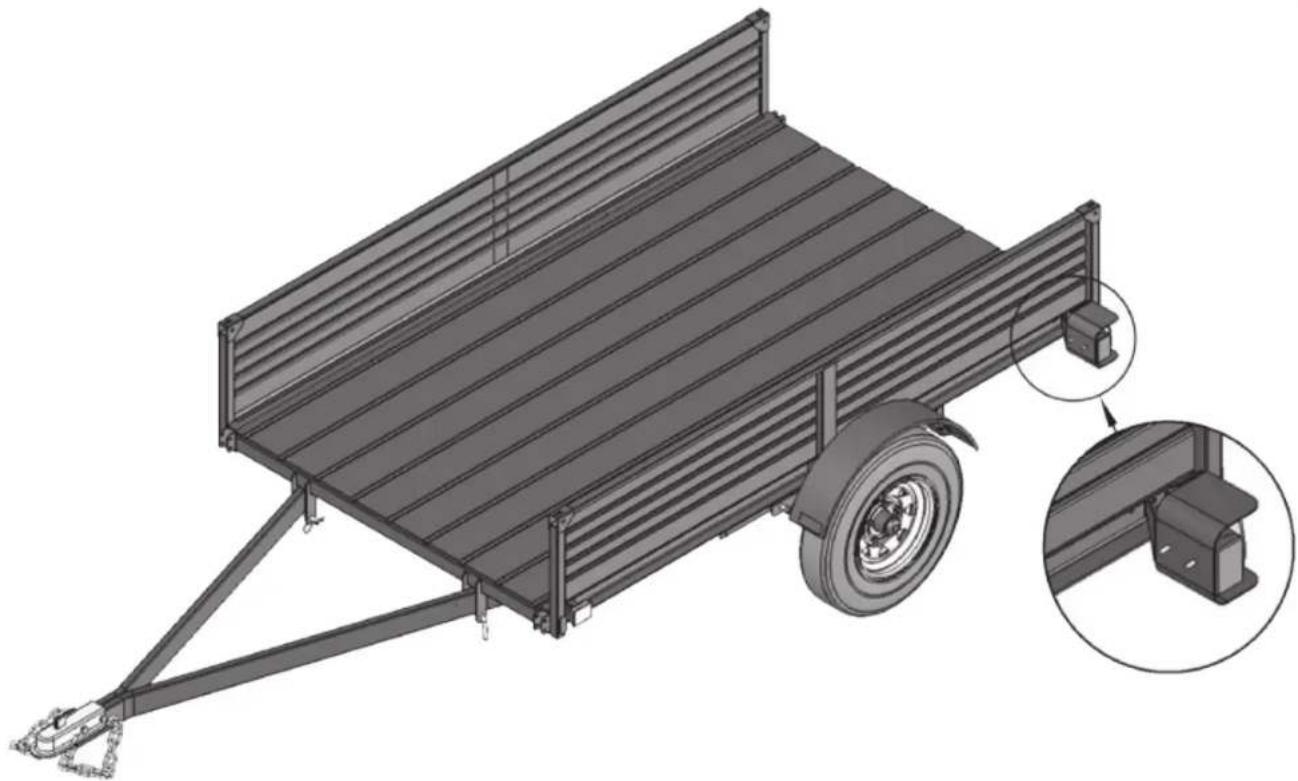

Attach rear light brackets and install light assemblies. Connect light assembly to wiring harness.

The driver's side light is the one with the clear lenses on the bottom, the licence plate bracket needs to be installed on the driver's side as well at the same time of assembly. Attach all necessary wiring and fasten lights to side of trailer.

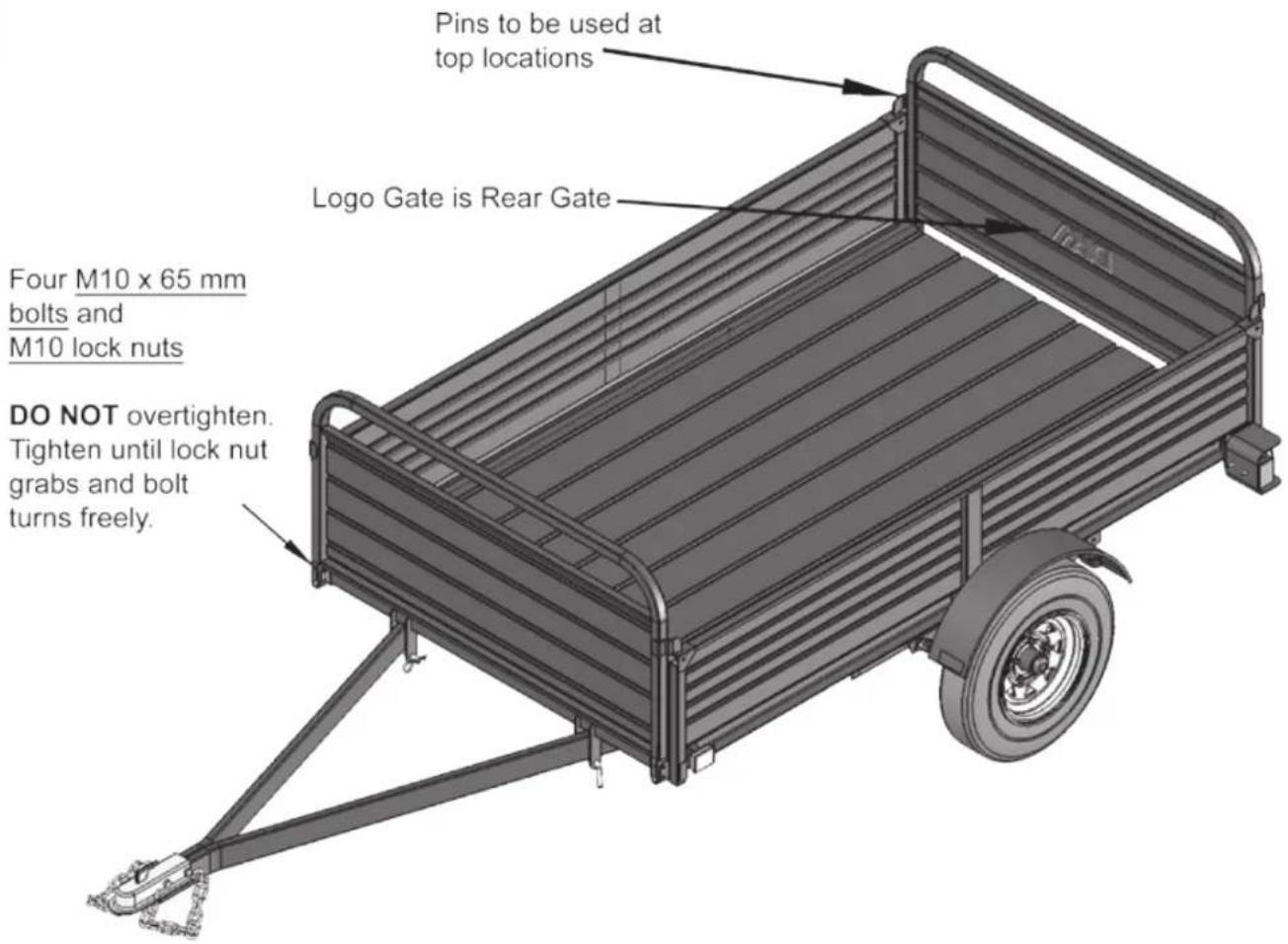

STEP 10

Install gates

Pins to be used at top locations Logo Gate is Rear Gate Four M10 x 65 mm bolts and M10 lock nuts DO NOT overtighten. Tighten until lock nut grabs and bolt turns freely.

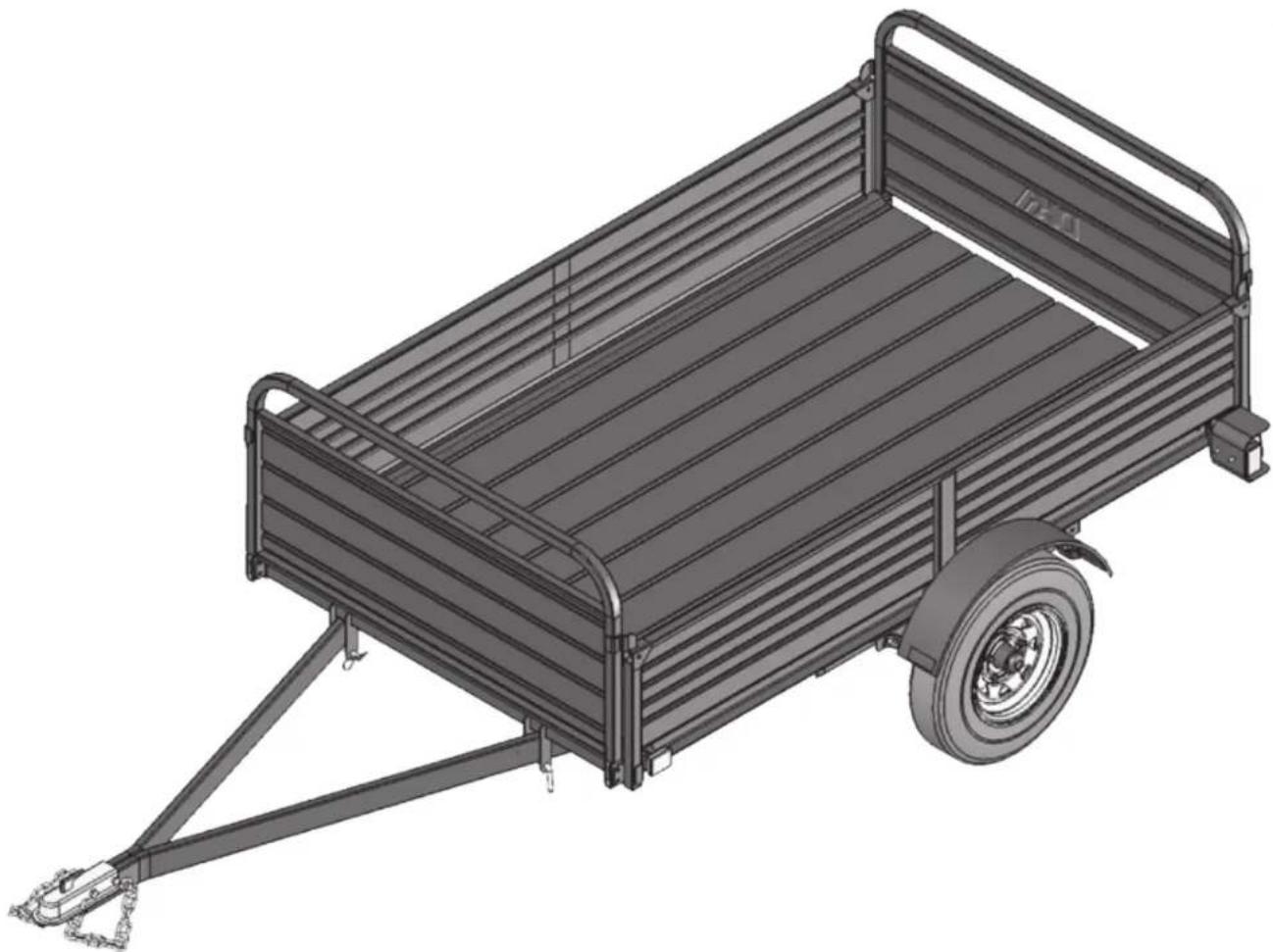

FINAL STEPS

MUST TORQUE WHEEL NUTS TO 80 lb.

Connect to vehicle to confirm all lights are working correctly.

Inspect trailer once more to make sure all steps were completed properly. Remember to recheck all nuts before use to make sure they are all properly tightened.

3D rendering of a metal tow cart with a handle and wheels, no text or symbols visible

CAUTION: It is the trailer owner's responsibility to periodically check all hardware is secure and fastened properly

DK1

MMT5X7, MMT5X7-DUG, MMT5X7G & MMT5X7G-DUG Owner's Manual

DETAIL K2 INC.

5330 Mainway

Burlington Ont. L7L 6A4

1-888-277-6960

Read the owner's manual over carefully before you begin using your trailer.

7.5 ft.

Utility

Trailer

Black utility truck with extended trailer and metal frame (no visible text or symbols)

MMT5X7

Black utility vehicle with metal frame and side-mounted handle (no visible text or symbols)

MMT5X7-DUG

Exterior view of a silver utility truck with a trailer and attached cargo (no text or symbols visible)

MMT5X7G MMT5X7G-DUG

Exterior view of a metal multi-axle trailer with a mesh backrest and attached support frame (no text or symbols visible)

The following pages contain the assembly diagrams and complete parts list

IMPORTANT SAFETY CHECK LIST

Trailers are generally not used everyday. Your trailer may sit for extended periods of time between uses making it very important to check all components thoroughly before each use. Following these simple instructions will maximize the life of your trailer and help you safely transport your cargo.

DO NOT ABUSE THE TRAILER. Trailer performance is best if you follow the guidelines set forth in this manual. Do not force the trailer to do a job it's not designed for. Know your trailer; learn its applications and limitations.

1. Make sure the towing vehicle as well as the hitch is capable of towing the trailer. Check your vehicle owner's manual for trailering ratings.
2. Inspect the trailer and all of its parts before each use.
3. Check the operation of all lights. Operating lights are mandatory on a trailer.
4. Check to ensure Wheel Bolts are tight. Torque to 80 ft.-Ibs. Re-tighten after the first 50 miles or 80 kilometers.
5. Check the tire pressure. Maximum 80 PSI (552 KPA) when carrying the maximum rated load.
6. Re-pack the wheel bearings every 2000 miles or 3200 kilometers or a minimum of once every year.
7. Check that the trailer coupler is fastened securely onto the trailer ball. The trailer ball must be a 2" ball.
8. Make sure the safety chain is attached to the trailer and the towing vehicle.
9. If your trailer has an optional side kit, make sure all bolts and pins are in place before transporting your trailer.
10. Do not exceed the Gross Vehicle Weight Rating (G.V.W.R.) which is shown on the trailer serial / certification label.
11. Balance and secure the load on the trailer. See "Trailer Loading" section in this manual.
12. Lubrication of the coupler, springs and the tilt mechanism should be done periodically to stop corrosion and keep parts moving freely.

DANGER

• KEEP CHILDREN AWAY. Be sure children are kept a safe distance from the trailer operating area.
• NEVER SIT OR RIDE ON THE TRAILER. Serious injury or death could occur.
• EXERCISE EXTREME CAUTION WHEN TILTING THE TRAILER. There are many areas of the trailer where injury can occur if used improperly. The trailer may tilt quickly and unexpectedly during the loading and unloading process. The tilt option should not be used for heavy loads.
• Ramps should be used for loading heavy items.
  • DO NOT drive with the trailer in the tilted position.
• DO NOT load more than one all-terrain vehicle on to this trailer.
• If the trailer is incorrectly attached to the vehicle, it could pull away from the vehicle and fall off.
• Secure trailer to the towing vehicle before transportation. Make sure coupler is locked and the safety chains are attached to the trailer and the vehicle.
• Secure your cargo into the trailer properly and in compliance to local laws.
• When driving do not exceed the speed limit. Braking time can be considerably longer when a vehicle is towing a loaded trailer.
• Any modifications made to the trailer or parts of the trailer will void the trailer warranty and release Detail K2 Inc. of any responsibility for damages, injuries or accidents incurred.

Replacement Lenses

Rear Red Lens (Large) 41237

Rear Red Lens (Small) 41238

Marker Lens (Orange) 41239

- ONLY USE ORIGINAL EQUIPMENT PARTS AND ACCESSORIES. Consult Detail K2 Inc. for the recommended accessories. The use of improper accessories may cause hazards or injuries.

LIGHTING & WIRING MAINTENANCE

WIRING LEGEND

Symbol Color Description Operation
G Green Wire Passenger Side (Right) Right Signal Brake
B Brown Wire Running Lights Tail light marker Yellow Front Side Markers
Y Yellow Wire Driver Side (Left) Left Signal Brake
W White Wire	Ground	Trailer Ground

• NOTE: Brake light goes out on the side that is signaling.
● Lower filament (Brighter light) = Brake & Signal
● Higher Filament (Dimmer Light) = Running Lights

To test vehicle wiring;

You will need a 12v light tester. Attach the wire clamp of the tester to the ground wire on the vehicle plug.

Then touch the tester pin into one of the vehicle plug contacts. Turn on the corresponding vehicle operation i.e. Running lights. This will illuminate the tester light if the vehicle wiring is correct. Follow this same procedure for the signal and brake lights.

To test the Trailer wiring;

Once you have confirmed that the vehicle trailer plug is operating properly, connect the trailer plug to your vehicle.

Proceed to test each of the lights and power leads using your 12v light tester. Follow the wiring legend and diagram to test each corresponding wire for power when trailer light is not operating.

Always be sure to check your brake, running and signal lights before each use. Make sure that all of your connections are solid and that all wiring is in good condition.

Note: Bare, stripped or pinched wire will cause a short in the trailer, which will cause the vehicle fuse to blow. A solid ground is required for your lights to work properly. All contacts must be to bare metal. Light covers should be well maintained and kept clean. Be sure that your lights are always visible, not obstructed by your load.

A/B.Distribute the weight evenly.

C. Center the load over the axle, keeping about 10% of the weight on the tongue. (If vehicle wheels are not on a crossbeam you will need to add wood to the floor to support each axle).
D. Center the load from side to side.
E. Always secure your cargo into the trailer properly and in compliance to local laws.

CAUTION

Do not build your trailer load higher than 3'. Higher loading will affect trailer handling due to increased wind resistance. This may cause violent movements, accidents and serious injury.

TRAILER CAPACITY:

• Never overload your trailer. Each trailer has a maximum payload that should not be exceeded. Overloading your trailer could cause serious damage to your trailer as well as the towing vehicle. Please refer to your trailer serial / certification label located on the frame of the trailer for capacity details.
• The Gross Vehicle Weight Rating (G.V.W.R.) is: The Weight of the Trailer + The Maximum payload the trailer can carry. The trailer weight and the payload must not exceed this (G.V.W.R.) weight rating.
• Be sure that any load carried in your trailer does not extend beyond the frame of your trailer. Never place loads on one side only.

Tongue Weight

● The tongue weight is 10% of the load (this does not include the weight of the trailer).
● The load is divided so that 90% of the load is over the axle and 10% is over the tongue.

TRAILER COUPLER

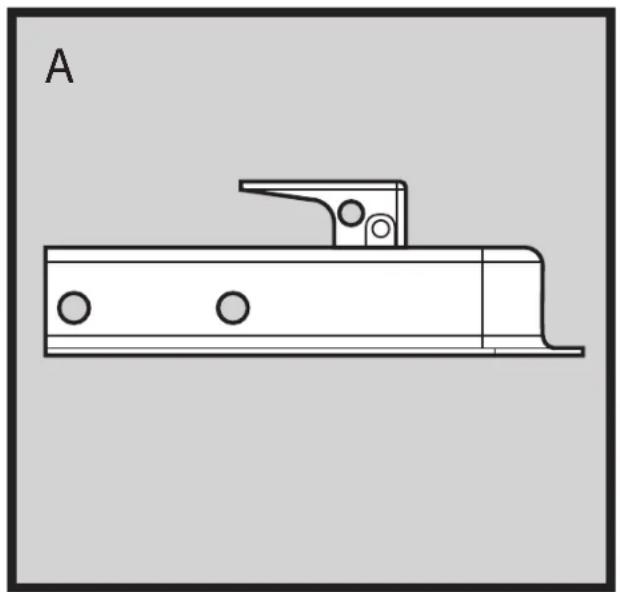

A = Locked

Technical line drawing of a mechanical bracket or bracket with mounting holes and a handle (no text or symbols)

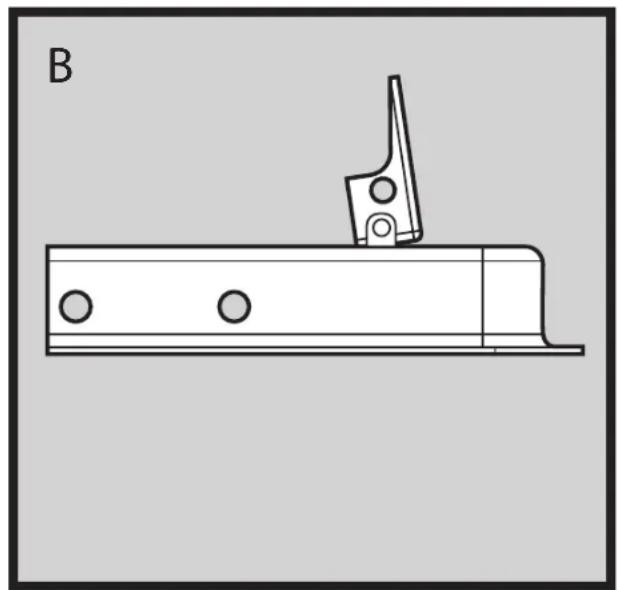

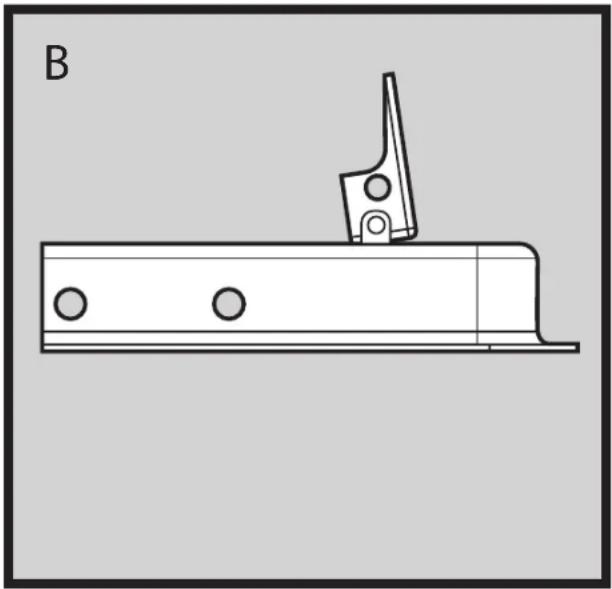

B = Unlocked

Technical line drawing of a mechanical bracket with mounting holes and a triangular support (no text or symbols)

To adjust coupler to ball;

Set coupler and tongue on to the 2" trailer ball on your vehicle.

Raise the locking lever, push up on channel lock and turn nut to tighten or loosen the coupler.

Proper adjustment is obtained when coupler is as tight as possible on the ball and locking lever can still be opened and closed.

Before towing your trailer be sure to check the capacity of your trailer hitch on your vehicle (never exceed this or your trailers capacity). The Detail K2 Trailer is equipped with a 2" coupler and must be used with a 2" trailer ball. Make sure that the trailer ball is completely engaged in the coupler ball

WHEEL BEARING & HUB ASSEMBLY

NOTE: Bearings should be re-packed every 2000 miles or 3200 kilometers.

NO PARTS ARE MORE CRITICAL FOR THE DEPENDABLE PERFORMANCE OF YOUR TRAILER THAN THE BEARINGS, RACES, AND SEALS. TO ENSURE THAT YOUR TRAILER PERFORMS RELIABLY, YOU SHOULD INSPECT THE BEARINGS, RACES, AND SEALS AND REPACK THE BEARINGS EVERY 12 MONTHS OR 2000 mi. (3200 km). THIS IS EASILY FOUND ON THE INTERNET BY SEARCHING "TRAILER WHEEL BEARINGS MAINTENANCE"

Item #	Description Qty.
1 1"	Axle Bearing Kit 1
1A	Bearing Cup (press fit) 2
1B 1"	Bearing Cone 2
1C	Grease Seal 1
1D 2"	Axle Dust Cap 1

Item #	Description Qty.
1E 1"	Axle Castle Nut 1
1F 3/16"	Cotter Pin	1
2 Hub (bare) with bearing race		1
3 Axle c/w hubs and bearings		1

Part # ____ Axle Bearing Kit includes all parts 1A to 1E.

Note: Part 1A Bearing Race is press fit into the Hub and may not need to be replaced when changing bearings.

Re-packing Wheel Bearings

1. Loosen wheel bolts (Do not remove!).
2. Support trailer so the wheel is off the ground. (jack stack - floor jack - block)
3. Remove nuts and wheel.
4. Disassemble hub
5. Clean hub and pack bearings with wheel bearing grease.
6. Re-install bearings, nut and cotter pin.

Caution: DO NOT over tighten nut. The hub must turn freely and without play.

1. Re-attach bolts and wheel. (Torque to 80 lbs.)

TRAILER LICENSING

The Detail K2 kit trailer MUST BE CERTIFIED after assembly by a local garage which is approved and holds a license to provide safety certificates for roadway vehicles.

In order to register your trailer with the Department of Motor Vehicles or Ministry of Transportation and obtain a license plate you will need to have either the NVIS form in Canada or the Manufacturers Certificate of Origin in the US filled out and signed by the dealer transferring ownership to you. This form is found in your trailer manual package. Take this form along with the bill of sale (cash register receipt) and safety certificate to your local Department of Motor Vehicles or Ministry of Transportation licensing office. Once you pay the appropriate fees you will be issued a title or registration and license plate to be attached to the trailer.

US Residents

To Contact National Highway Traffic Safety Administration

If you believe that your vehicle has a defect, which could cause an accident, personal injury or death, immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Detail K2 If NHTSA receives similar complaints, or finds safety defects existing in a group of vehicles it may open an investigation or order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or Detail K2.

To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-800-424-9393 (or 366-0123 in Washington, DC area) or write to: NHTSA, U.S. Department of Transportation, Washington, DC 20590.

PARTS LIST

Part No. Description Qty.
MMT5X71L4 OR	MMT5X7G1L4	Left drawbar 1
MMT5X72L4 OR	MMT5X7G2L4	Right drawbar 1
MMT5X73L4 OR	MMT5X7G3L4	Body 1
MMT5X74L4 OR	MMT5X7G4L4	Front gate 1
MMT5X75L4 OR	MMT5X7G5L4	Back gate 1
MMT5X76L4 OR	MMT5X7G6L4	Side panel 2
MMT5X77L4 OR	MMT5X7G7L4	Wheel nut 10
MMT5X78L4 OR	MMT5X7G8L4	Axle 1
MMT5X79L4 OR	MMT5X7G9L4	Wheel 2
MMT5X710L4 OR	MMT5X7G10L4	3-leaf spring 2
MMT5X711L4 OR	MMT5X7G11L4	Fender 2
MMT5X712L4 OR	MMT5X7G12L4	Fender L-bracket front & rear	4
MMT5X713L4 OR	MMT5X7G13L4	Left light housing	1
MMT5X714L4 OR	MMT5X7G14L4	Right light housing	1
MMT5X715L4 OR	MMT5X7G15L4	Tail light with harness	2
MMT5X716L4 OR	MMT5X7G16L4	License holder	1
MMT5X717L4 OR	MMT5X7G17L4	Coupler	1
MMT5X718L4 OR	MMT5X7G18L4	Safety chain 1
MMT5X719L4 OR	MMT5X7G19L4	Side amber clearance light	2
MMT5X720L4 OR	MMT5X7G20L4	Side marker bolts	4
MMT5X721L4 OR	MMT5X7G21L4	Side marker nut	4
MMT5X722L4 OR	MMT5X7G22L4	M8 x 20 hex bolt	8
MMT5X723L4 OR	MMT5X7G23L4	M10 x 50 hex bolt	8
MMT5X724L4 OR	MMT5X7G24L4	M10 x 70 hex bolt	8
MMT5X725L4 OR	MMT5X7G25L4	M12 x 80 hex bolt	2
MMT5X726L4 OR	MMT5X7G26L4	M14 x 85 hex bolt	2
MMT5X727L4 OR	MMT5X7G27L4	M14 x 120 hex bolt	2
MMT5X728L4 OR	MMT5X7G28L4	M8 lock nut	8
MMT5X729L4 OR	MMT5X7G29L4	M10 lock nut	24
MMT5X730L4 OR	MMT5X7G30L4	M12 lock nut	2
MMT5X731L4 OR	MMT5X7G31L4	M14 lock nut	4
MMT5X732L4 OR	MMT5X7G32L4	M14 hex nut 2
MMT5X733L4 OR	MMT5X7G33L4	ø8 flat washer	8
MMT5X734L4 OR	MMT5X7G34L4	ø10 flat washer	24
MMT5X735L4 OR	MMT5X7G35L4	ø12 flat washer	2
MMT5X736L4 OR	MMT5X7G36L4	ø14 flat washer	4
MMT5X737L4 OR	MMT5X7G37L4	Axle fish plate	2
MMT5X738L4 OR	MMT5X7G38L4	M10 U-bolt	4
MMT5X739L4 OR	MMT5X7G39L4	Gate clip pin 4
MMT5X740L4 OR	MMT5X7G40L4	L-pin	2
MMT5X741L4 OR	MMT5X7G41L4	R-clip	2

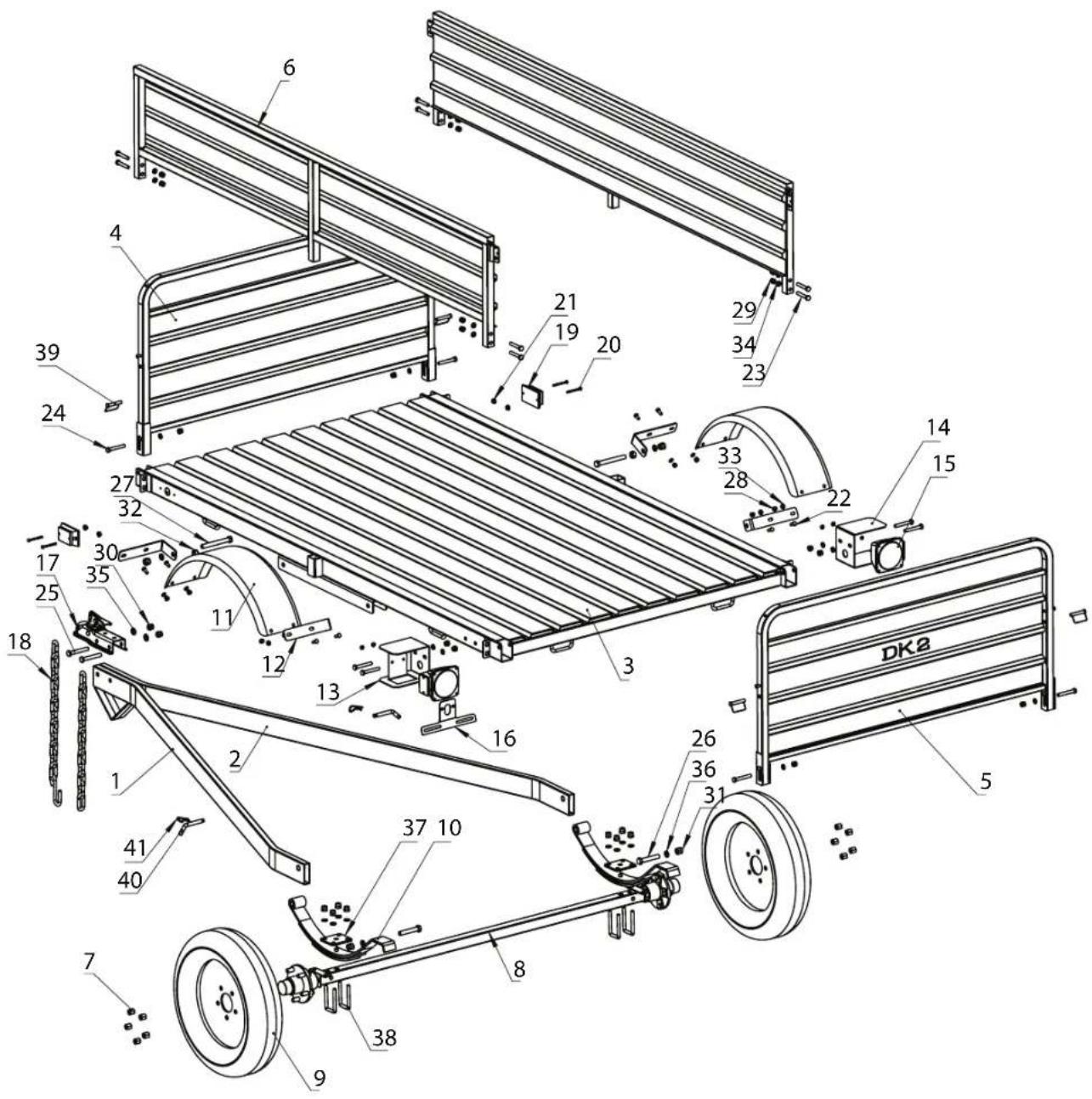

SCHEMATIC DRAWING

Technical diagram of a DTK2 utility vehicle with numbered components and labeled parts

DK1

Guide d'assemblage de la remorque MMT5X7, MMT5X7-DUG, MMT5X7G & MMT5X7G-DUG

DETAIL K2 INC.

5330 Mainway

Burlington Ont. L7L 6A4

1-888-277-6960

Black utility truck with extended trailer and metal frame (no visible text or symbols)

MMT5X7

Black utility vehicle with chain-link fence and side-mounted handle (no visible text or symbols)

MMT5X7-DUG

Exterior view of a silver utility truck with a trailer and attached cargo (no text or symbols visible)

MMT5X7G MMT5X7G-DUG

Exterior view of a metal modular vehicle with a mesh back panel and attached support structure (no text or symbols visible)

ÉTAPE 1

3D rendering of a metal grate structure with slatted panels and mounting brackets (no text or symbols)

Technical illustration of a mechanical assembly with two views: one showing a structural connection and the other showing a chain link mechanism (no text or symbols present)

Technical illustration of a satellite or solar panel assembly with a magnified inset showing the mechanical components (no text or symbols present)

ÉTAPE 5

3D technical illustration of a wheeled vehicle chassis with two wheels and metal frame structure (no text or symbols)

ÉTAPE 6

Pré-câblage

Technical illustration of a mechanical assembly with a curved bracket and metal frame (no text or symbols)

ÉTAPE 8

3D rendering of a metal tow cart with a wheel and support structure (no text or symbols)

ÉTAPE 9

Technical illustration of a flatbed utility vehicle with a pull-up arm and side panel detail (no text or symbols)

Technical illustration of a flatbed utility vehicle with a wheel and support structure, showing structural details (no text or symbols)

3D rendering of a metal tow cart with a handle and wheels, no text or symbols visible

Black utility vehicle with two side trunks and a metal trailer extending into the trailer (no visible text or symbols)

MMT5X7

Black utility vehicle with metal frame and side-mounted handle (no visible text or symbols)

MMT5X7-DUG

Exterior view of a silver utility vehicle with a trailer and cargo handle (no text or symbols visible)

MMT5X7G MMT5X7G-DUG

Exterior view of a metal multi-axle trailer with a mesh backrest and attached support frame (no text or symbols visible)

Technical line drawing of a mechanical bracket or lever component (no text or symbols)

B = Non-barré

Technical line drawing of a mechanical bracket with mounting holes and a triangular support (no text or symbols)

Technical diagram of a DTK2 utility vehicle with numbered components and labeled parts
