USER MANUAL MAD111D8CPKL MIDEA

Technical line drawing of a device casing with internal compartments and mounting feet (no text or symbols)

TWO-ZONE AIR FRYER OVEN

SmartHome

QR code image containing encoded data, no visible human-readable text

Download the app & activate product

USER MANUAL

MAD111D8CPKL

ITM. / ART.3808880

THANK YOU LETTER

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER 01

IMPORTANT SAFEGUARDS 02

SPECIFICATIONS 07

PRODUCT OVERVIEW 08

OPERATING INSTRUCTIONS 09

APP SETUP AND OPERATION 21

CLEANING AND MAINTENANCE 22

TROUBLESHOOTING 24

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT 27

DATA PROTECTION NOTICE 28

1 YEAR LIMITED WARRANTY 29

IMPORTANT SAFEGUARDS

Intended Use

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

Explanation of Symbols

	DangerThis symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.
	Warning of electrical voltageThis symbol indicates that there is a danger to life and health of persons due to voltage.
	WarningThe signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.
	CautionThe signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.
	AttentionThe signal word indicates important information (e.g. damage to property), but not danger.
	Observe instructionsThis symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

• Read all instructions.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.

- To protect against electrical shock do not immerse cord, plugs, or other live parts in water or other liquid.

- WARNING: To prevent electric shock, unplug before cleaning

- Do not touch hot surfaces. Use handles or knobs.

- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

- Close supervision is necessary when any appliance is used by or near children.

- Do not use outdoors. Household use only.

- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.

- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

- Do not let cord hang over edge of table or counter, or touch hot surfaces.

- Do not place on or near a hot gas or electric burner, or in a heated oven.

- To disconnect, turn any control to "off", then remove plug from wall outlet.

- Do not use appliance for other than intended use.

- Caution: To reduce the risk of electric shock, cook only in removable container

- Use extreme caution when removing tray or disposing of hot grease.

- Oversize foods or metal utensils must not be inserted in a toaster-oven as they may create a fire or risk of electric shock.

- A fire may occur if the toaster-oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation.

- Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts involving a risk of electric shock.

- Extreme caution should be exercised when using containers constructed of other than metal or glass.

- Do not store any materials, other than manufacturers recommended accessories, in this oven when not in use.

- Do not place any of the following materials in the oven: (List all materials – that is, paper, cardboard, plastic, and the like).

- Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.

- A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

- Make sure the frying basket is locked into the front of the drawer – both frying basket handle tabs must be fully inserted into the notches on the top of the basket drawer.

- Always make sure frying basket drawer is fully closed, with frying basket handle locked securely in the drawer, while Air Fryer is in operation.

• WARNING: Air Fryer will not operate unless frying basket drawer is fully closed.
• CAUTION: After hot air frying, the frying basket and frying basket drawer and the cooked foods are hot. Extreme caution must be used when handling the hot Air Fryer basket/drawer.

- WARNING: After air frying, make sure to place the frying basket drawer on a flat, heat-resistant surface before pressing the basket release button.

- Do not cover the air inlet and the air outlet openings while the appliance is operating.

- Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.

If a longer detachable power-supply cord or extension cord is used:

1. The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance;
2. The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally; and
3. If the appliance is of the grounded type, the cord set or extension cord should be a grounding-type 3-wire cord.

- CAUTION: Hot surface when be used.

- This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

SAVE THESE INSTRUCTIONS

• Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

• This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions:

• This device may not cause interference;

• This device must accept any interference, including interference that may cause undesired operation of the device.

- This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.

SPECIFICATIONS

Product Model

MAD111D8CPKL

Voltage 120V\~

Frequency 60Hz

Rated Power 1700W

Capacity

11L / 11,6 QT

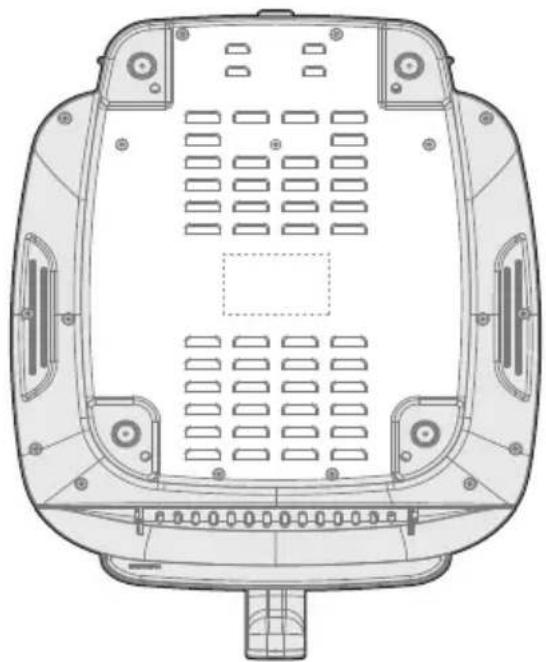

How To Find The Model Name And Serial Number

Both the model name and serial number can be found on the rating label that is located on the bottom of the air fryer.

Technical line drawing of a vehicle rear panel with ventilation grilles and mounting points (no text or symbols)

PRODUCT OVERVIEW

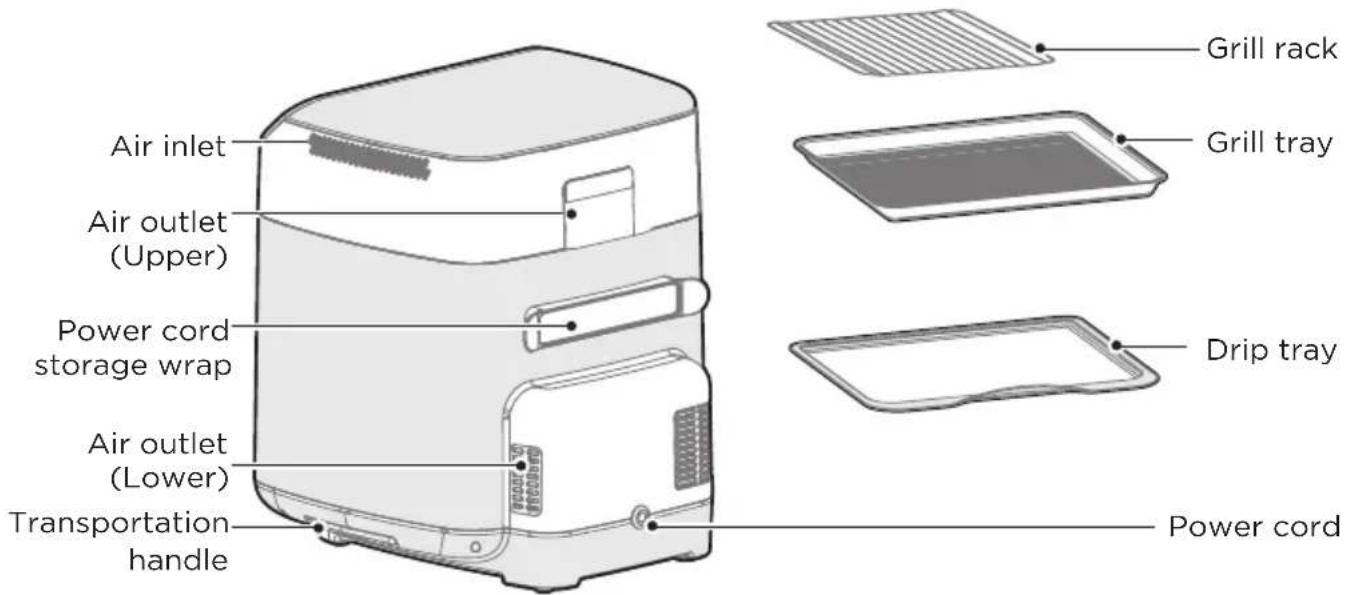

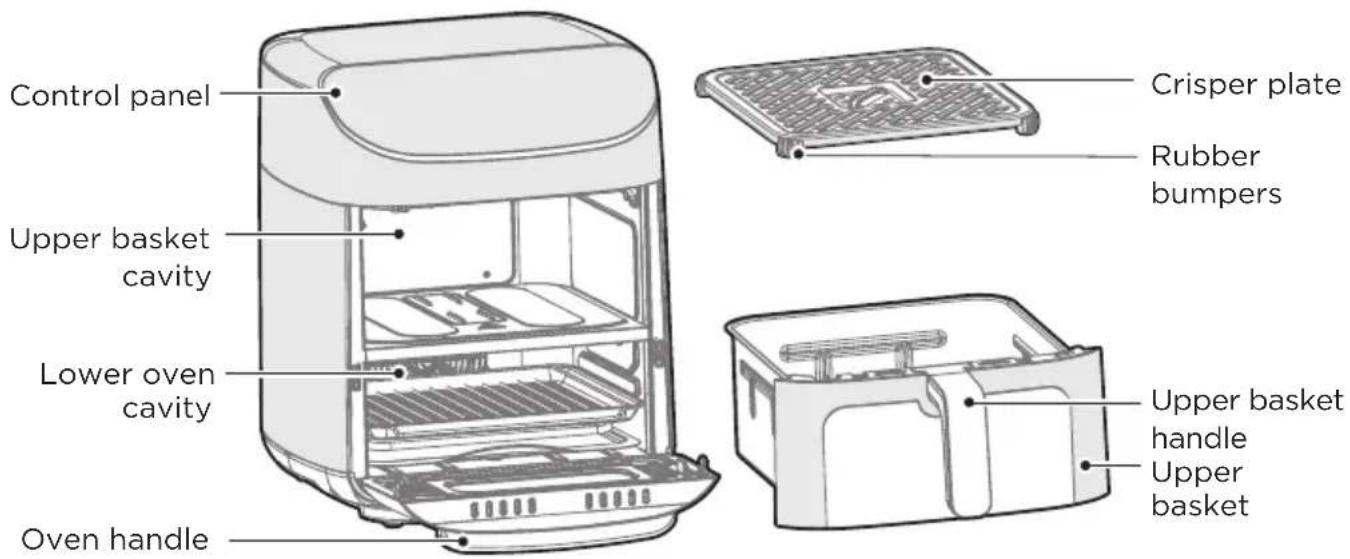

Parts and Accessories

Before using your new air fryer, make sure that all parts and accessories are included.

Control panel Upper basket cavity Lower oven cavity Oven handle Crisper plate Rubber bumpers Upper basket handle Upper basket

Air inlet Air outlet (Upper) Power cord storage wrap Air outlet (Lower) Transportation handle Grill rack Grill tray Drip tray Power cord

NOTE

All the pictures in this manual are for explanatory purposes only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real subject.

OPERATING INSTRUCTIONS

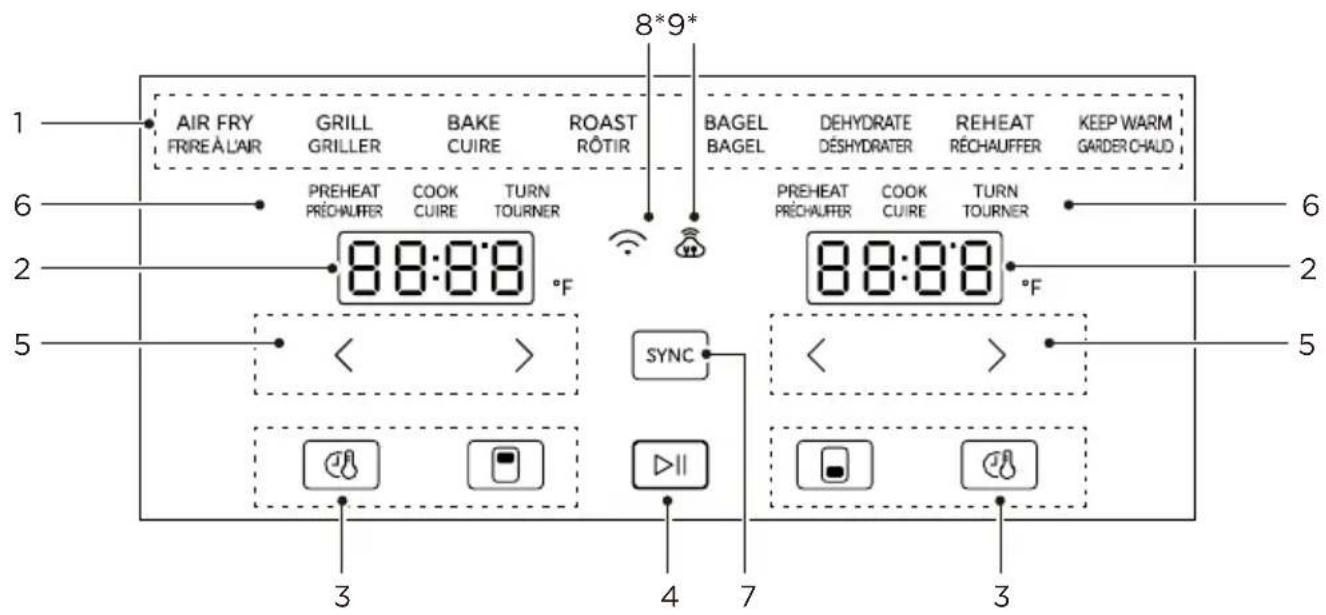

Control Panel

AIR FRY FRIRE À L'AR GRILL GRILLER BAKE CUIRE ROAST RÔTIR BAGEL BAGEL DEHYDRATE DÉSHYDRATER REHEAT RÉCHAUFFER KEEP WARM GARDER CHAUD PREHEAT PRÉCHAUFFER COOK CUIRE TURN TOURNER 88:88 °F 88:88 °F SYNC 3 4 7 3 5 6 2 5

	Name Description
1 Functions		Any of the 8 functions can be used in the upper or lower cavity to cook a large variety of meals. The temperature and time can be adjusted for each function. After touching Menu to change the function or select the function.
2 Display		The cook time, set temperature, reminder messages, and error messages are shown here.
3	Cavity Selection Button	In the standby state, press theorelect the corresponding chamber menu. Select the chamber key Flicker, unselected long light. Press the cavity menu selection key to select the menu (AIR FRY - KEEP WARM). This corresponds to the time of the cavity. The temperature key lights up, and the nixie of the cavity. The temperature key lights up, and the nixie tube alternately displays the menu's default time temperature.
4 Start		After selecting the menu, you can press the▷|key to enter the working state at any time.
5	Parameter adjustment	After selecting the corresponding cavity menu, you can press the time and temperature key of the corresponding cavity to select the adjustment time/temperature. The</>key is on, and the</>key is used to adjust parameters

	Name Description
6 Operative mode	Select BAKE, After entering the work, enter the PREHEAT stage first, the preheat indicator lights up, the digital tube shows the running lamp, and the preheat temperature reaches the rear digit.Digital tube display Add Food. 30 seconds later, it will enter the countdown state, and the COOK indicator will light up. Working hours to one.Half back digital tube alternately displays turn/Food prompts at 2S frequency Turn over 30s. The TRUN indicator lights up. Then work until the job is done.Display End. You can also press the time and temperature key to adjust the parameters during the working process.
7 Sync button	The sync finish function will make both cavities finish cooking at the same time. After programming both cavities, touchSYNCto activate or deactivate the sync finish function. If the sync finish function is activated, The cavity with less cook time will display “HoLd” until both cavities have the same remaining cook time.If the sync finish indicator is visible, the sync finish function is activated.
8* APP Connection	If flashing, the air fryer is available to connect to SmartHome. If solid, the air fryer is connected to SmartHome. Long press the knob button to reconnect to APP.
9* APP Recipe	If the is visible, cooking settings for a SmartHome recipe have been uploaded to the air fryer.

*Only applies to APP connected models.

Display Messages

Message Description
	While programming, the display will show the set cook time. While cooking, the display will show the remaining cook time.
	The display shows the set temperature.
	Some recipes will display the "turn Food" reminder when the food is ready to be turned, flipped, or shook.
	Cooking is complete and the upper basket or lower tray can be removed.
	The upper cavity is not operating properly. Please contact our Customer Service Center.
	The lower cavity is not operating properly. Please contact our Service service Center.
	The upper basket was removed, or the lower door is open. Note: No buttons for that cavity can be used while open.
	While the sync finish function is activated, the cavity with less cook time will show “HoLd” until both cavities have the same remaining cook time.

Upper Cavity Cooking (Basket)

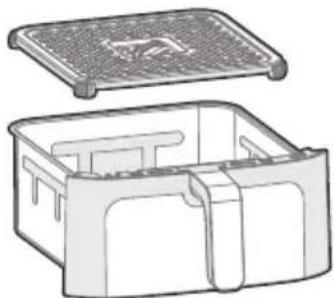

1. Place the crisper plate into the basket (crisper plate handle up) and evenly place food onto the crisper plate.

Technical line drawing of a plastic container with lid and side compartments (no text or symbols)

1. Insert the basket into the upper cavity.

2. Plug the air fryer into an appropriate power outlet and the air fryer will now be in standby mode.

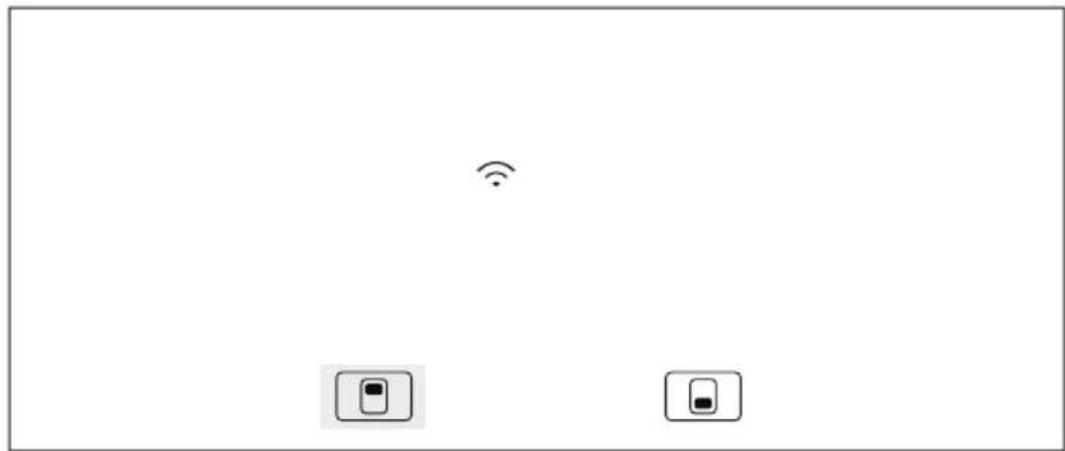

3. Touch ☐ to start programming a cooking cycle for the upper cavity.

Simple diagram showing a Wi-Fi symbol above two smartphone icons, no text or labels present

1. Pressing the repeatedly can switch the menu.

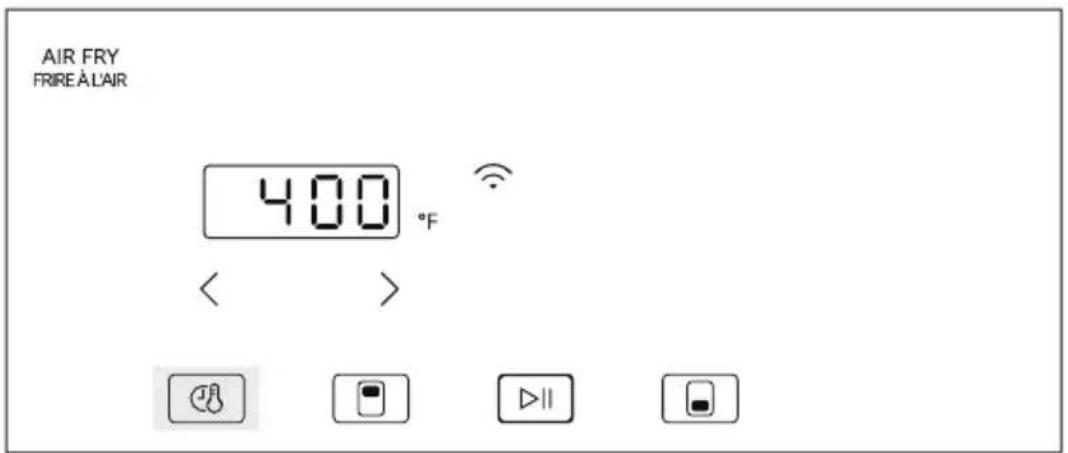

AIR FRY FRIREÀ LAIR 400 °F < >

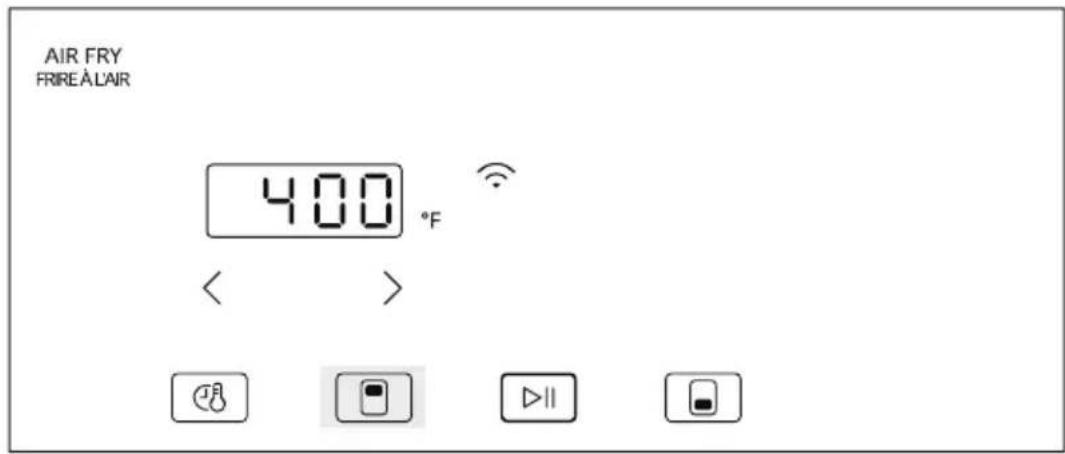

1. After selecting the menu, the corresponding function light will flash. If the default settings are not used, touch the ☐ key to switch between time and temperature, and press < or > to adjust the desired values.

AIR FRY FRIRE À L'AIR 400 °F < > ?

1. Once the desired function, temperature, and time have been selected, touch ▷II to start cooking.

AIR FRY FRIREÀL'AIR 00:16 < > ?

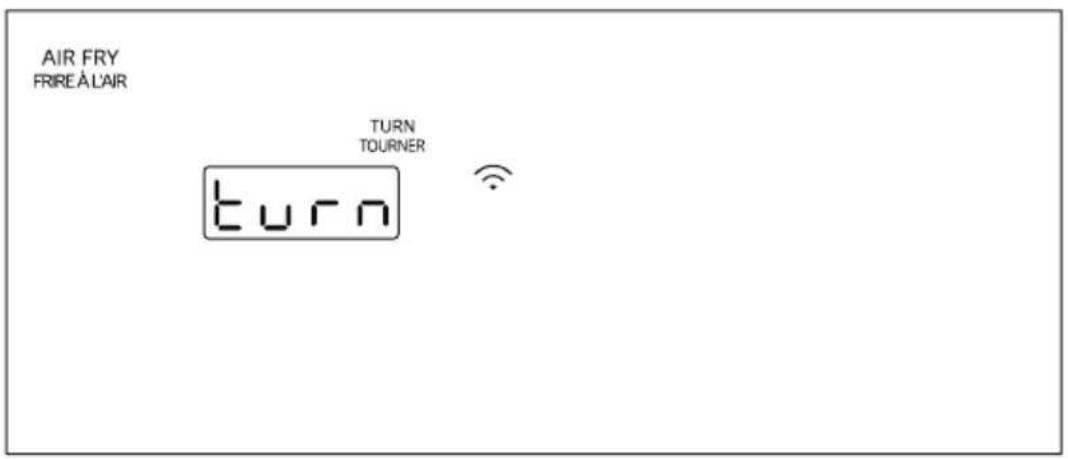

1. For some menus, when cooking is approximately halfway through, the left display screen will show "Flip Food". Recommended by the recipe, turn, flip, or shake the food. After 30 seconds the "Turn Food" will go away.

AIR FRY FRIRE À L'AIR TURN TOURNER turn

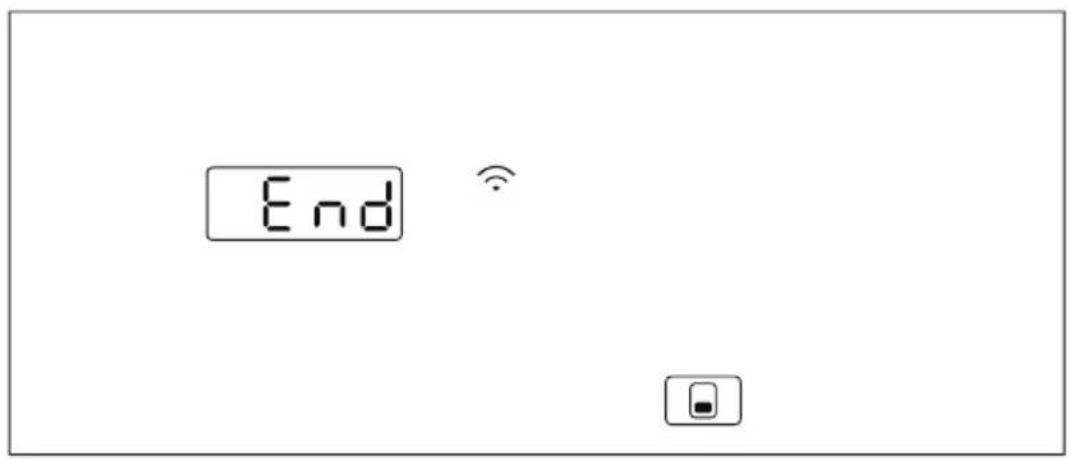

1. When cooking is complete, the left display will show "End".

End

Lower Cavity Cooking (Oven)

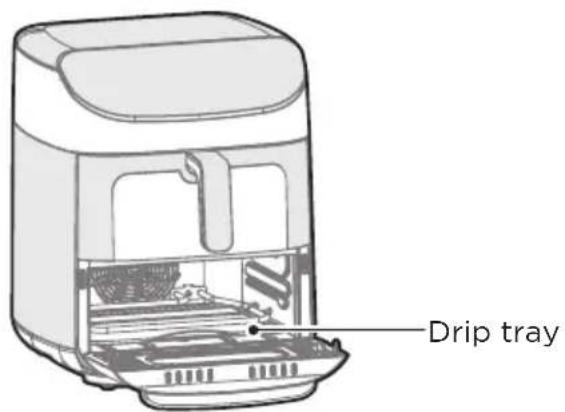

1. Insert the drip tray into the lower cavity.

Drip tray

1. Evenly place food on the lower tray.

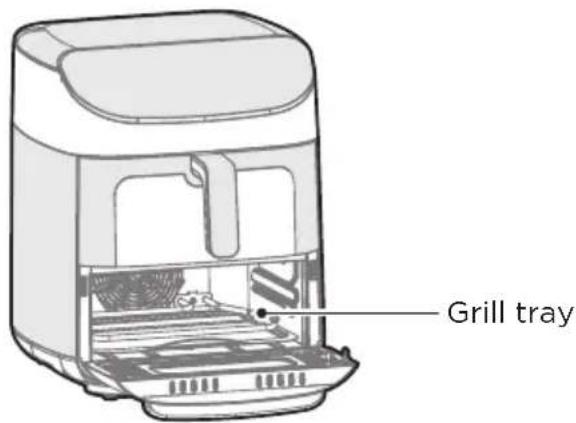

2. Insert the grill tray into the lower cavity.

Grill tray

1. Plug the air fryer oven into an appropriate power outlet and the air fryer will now be in standby mode.

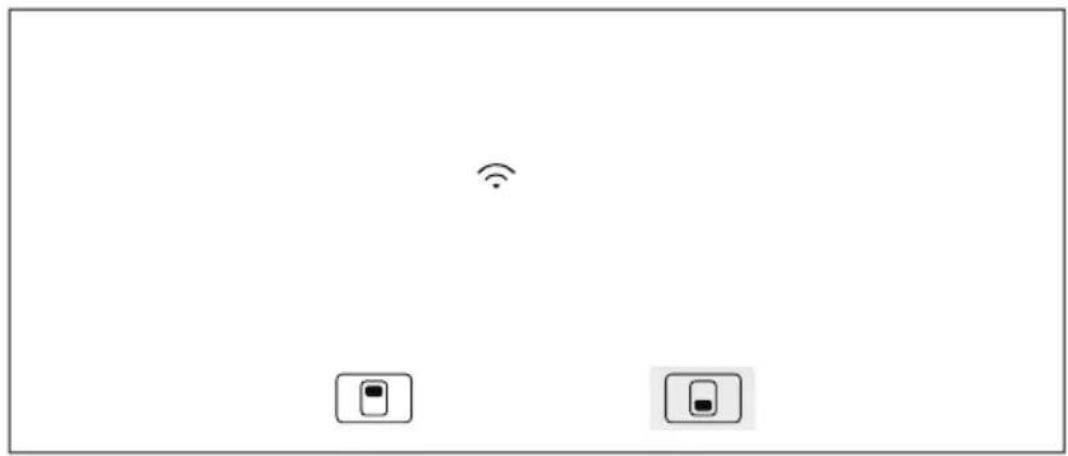

2. Touch ☐ to start programming a cooking cycle for the upper cavity.

Simple diagram with Wi-Fi signal icon above two square devices, no text or symbols present

1. Pressing the 📄 repeatedly can switch the menu.

AIR FRY FRIRE À L'AIR 400 °F < >

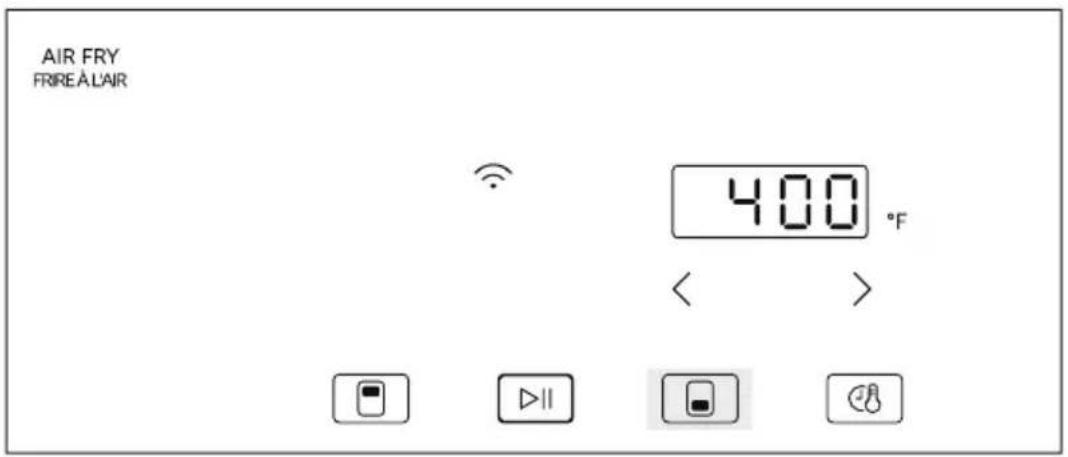

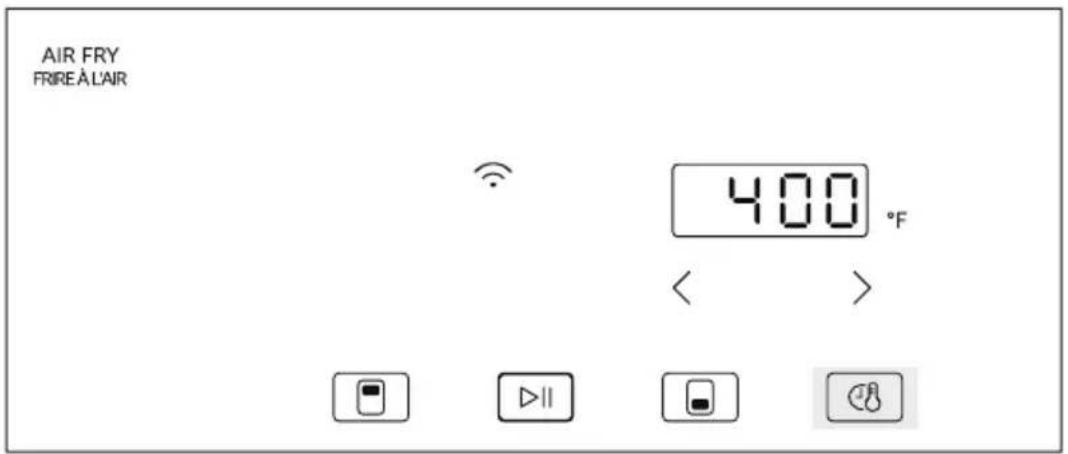

1. After selecting the menu, the corresponding function light will flash. If the default settings are not used, touch the ☐ key to switch between time and temperature, and press < or >to adjust the desired values.

AIR FRY FRIRE À L'AIR 400 °F < >

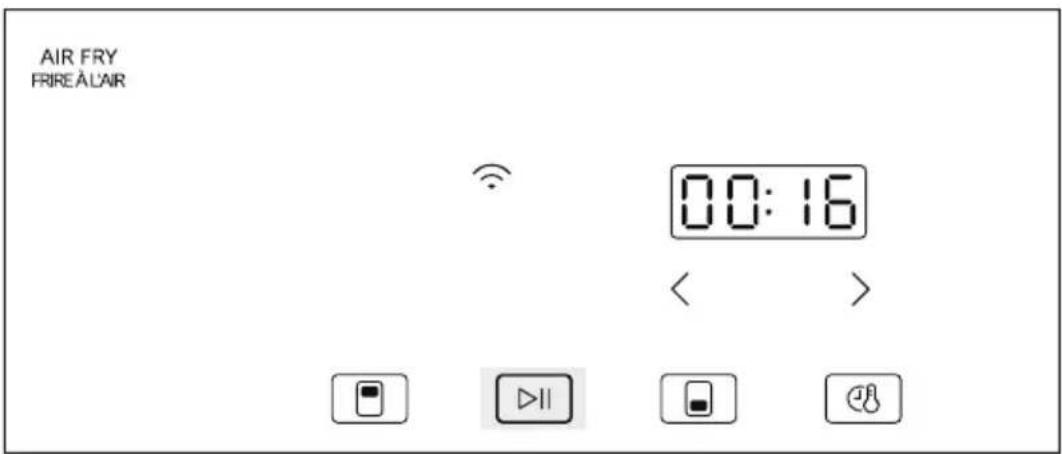

1. Once the desired function, temperature, and time have been selected, touch start cooking.

AIR FRY FRIREÂLAIR 00:16 < >

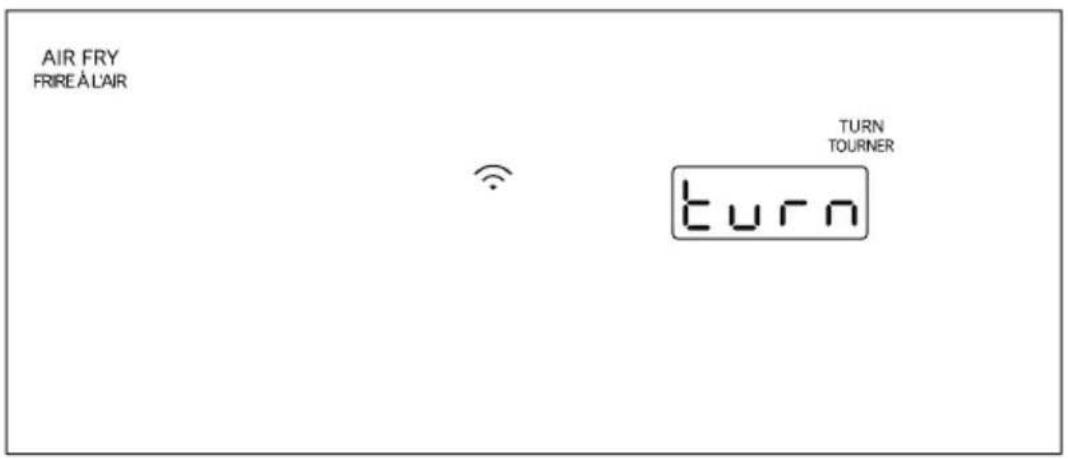

1. For some menus, when cooking is approximately halfway through, the left display screen will show "Flip Food". Recommended by the recipe, turn, flip, or shake the food. After 30 seconds the "Turn Food" will go away.

AIR FRY FRIRE À L'AIR TURN TOURNER turn

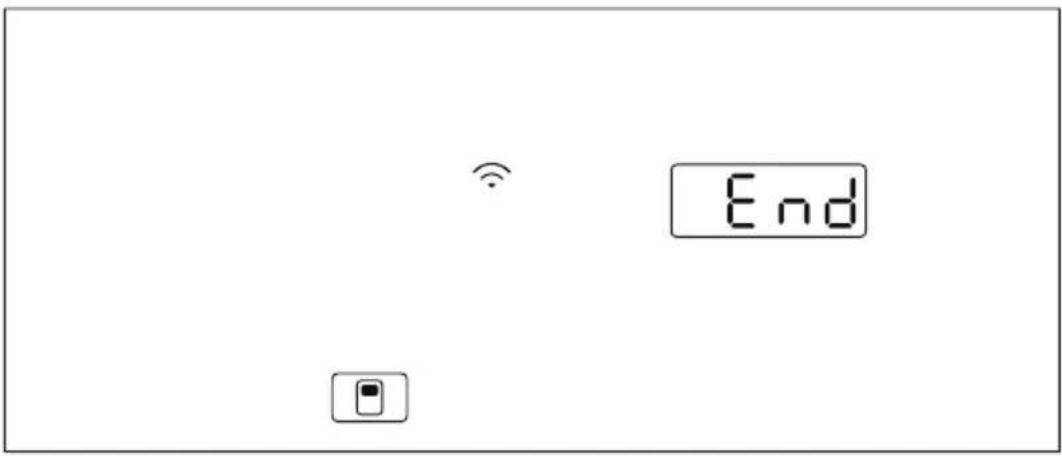

1. When cooking is complete, the left display will show "End".

End

Two-Zone Cavity Cooking (Basket and Oven)

1. Go to the corresponding cavity settings menu and then press the start button, can perform cooking for each cavity.
2. With SYNC finish: After programming both cavities, touch SYNC to activate the sync finish function. If the sync finish function is activated, touching ▷|| will start both cavities. The cavity with less cook time will display “Hold” until both cavities have the same remaining cook time.

Tips:

• The SYNC function can be selected only when neither of the two chambers has started working and the menu has been selected. After selection, the "same maturity" key will flash; if not selected, the light will remain on.
• Only after both chambers are set up and the start/cancel key is pressed can the working state be entered.

Cooking

• These cooking options give your meals all the rich and crispy flavor of deep frying with with little to no oil.
- The default time and temps are a starting point that you can experiment with to get the results you like best.
- The function listed for each food is a recommendation for optimal cooking. Any function can be used in both the upper basket and lower oven cavities.
- The cooking parameters provided in the table are reference times. The actual cooking time can be adjusted according to the size of the food.

Ingredient	Recommended function	Frozen	Upper Basket Setting Lower Oven Setting
			Amount	Cooking Temp	Time (Single)	Time (Dual)	Amount	Cooking Temp	Time (Single)	Time (Dual)
French Fries	Air Fry Yes	1.1 lbs	400°F 16min	31min	0.6 lbs	400°F 21min	27min
Chicken Wings	Air Fry No	1.3 lbs	380°F 14min	17min	0.9 lbs	400°F 16min	19min
Chicken Thighs	Air Fry	Yes	2.4 lbs	360°F	36min	42min	1.4 lbs	400°F	39min	43min
	Air Fry	No	2.4 lbs	360°F	19min	23min	1.4 lbs	400°F	20min	24min
Dehydrated Apples	Dehydrate	No	1 piece	195°F	120min	150min	1 piece	195°F	120min	150min
Beef Burgers	Grill	Yes	1 piece	400°F	8min	11min	1 piece	400°F	8min	11min
Bagel	Bagel	No	2 Bagel Halves	370°F	3min	5min	2 Bagel Halves	370°F	4min 6min
Asparagus	Roast	No	0.88lbs	355°F	10min	14min	0.66lbs	380°F	12min	14min
Chicken Breasts	Air Fry	Yes	1.1 lbs	360°F	37min	39min	1.1 lbs	400°F	37min	39min
	Air Fry No	1.1 lbs	360°F	21min 22min	1.1 lbs	400°F 21min	22min
Toast	Toast	No	4 slices	360°F	6min	10min	4 slices	400°F	6min	8min
Breaded Chicken	Air Fry	Yes	2 pieces	370°F	13min	18min	2 pieces	400°F	15min	20min
Breaded Fish	Air Fry	Yes	0.6 lbs	370°F	13min	18min	0.6 lbs	400°F	15min	20min
Breaded Shrimp	Air Fry	Yes	0.4 lbs	370°F	9min	13min	0.4 lbs	400°F	11min	15min
French Toast Sticks	Toast	Yes	0.3 lbs	350°F	5-9min	6-10 min	0.3 lbs	380°F	6-10 min	6-10 min
Brussel Sprouts	Air Fry No	0.9 lbs	375°F	9-12min		16-24 min	0.9 lbs	400°F	12-18 min	16-22 min
Chocolate Chip Cookies	Bake	No	0.2 lbs	325°F	8-13min	9-15 min	0.2 lbs	350°F	9-15 min	9-16 min
Pepperoni Pizza	Bake	Yes	9 inch	330°F	10min	17min	9 inch	340°F	13min	18min

Hints

• Always place food evenly on the crisper plate and grill tray for best cooking results.
• Overlapping food may result in uneven cooking performance.
- To increase crispiness, small amounts of oil can be sprayed or brushed onto the food before cooking.
- If the air fryer has been paused for more than 10 minutes, it will return to standby mode and clear all the existing settings.
- For most foods, turning, shaking, or flipping half-way through cooking will achieve the best cooking results.
- Time and Temp can be adjusted at any time during cooking process.

CAUTION

• To avoid the risk of fire, property damage and personal injury, DO NOT spray cooking oil into the cooking cavity.
• Do not place any objects on top of air fryer at any time.

APP SETUP AND OPERATION

Download the SmartHome app

On an app market (Google Play Store, Apple App Store), search for SmartHome* and find the SmartHome app. Download and install it on your phone. You can also download the app by scanning the QR code below.

SmartHome SmartHome Download the app & activate product

Connect your devices to SmartHome

Please make sure your mobile phone is connected to a wireless network. If it is not, go to Settings and enable wireless networks and Bluetooth.
2 Please power on your devices.
3 Open SmartHome app on your phone.
5 If no message appears, select "+" on the page and select your device in the list of nearby devices available. If your device is not listed, please add your device manually by the device category and device model.

Illustration of a hand interacting with a smartphone displaying a screen interface, with a speech bubble containing text.

Register and log in

Open the SmartHome app, and create a new account to start (you can also register through a third-party account). If you already have an existing account, use the account to log in.

Login Login Login

4 If a message of "Smart devices discovered nearby" appears, click to add.

6 Connect your device to the wireless network according to instructions on app. If the connection fails, please follow the instructions provided by the app to continue with the operation.

NOTE

• Make sure your devices are powered on.
- Keep your mobile phone close enough to your device when you are connecting your device to the network.
- Connect your mobile phone to the wireless network at home, and make sure you know the password of the wireless network.
- Check if your wireless router supports 2.4 GHz band and turn it on. If you are not sure whether the router supports 2.4 GHz band, please contact the router manufacturer.
- The device cannot connect to the wireless network that requires authentication, and it usually appears in public areas such as hotels, restaurants, etc. Please connect to a wireless network that does not require authentication.
- Turn off the WLAN+ (Android) or WLAN Assistant (iOS) function of your mobile phone when connecting your device to the network.
- In the case that your device connected to a wireless network before but it needs to reconnect, please click "+" on the app Home page, and add your device again by the device category and model according to the instructions on app.

CLEANING AND MAINTENANCE

• Clean the basket, crisper plate and grill tray after each use.
• Always unplug the air fryer and let it cool to room temperature before cleaning. Never use harsh chemical detergents, scouring pads, or powders on any of the parts or components.
• Let all surfaces dry thoroughly before use, and before storage.

Part or accessory Cleaning method
Upper basket	Clean the air fryer basket with a sponge or cloth and warm water and dish soap. then rinse well. Ensure that all grease and food debris are removed.
Grill tray	Clean the grill tray with a cloth or sponge and warm water with dish soap.The grill tray has non-stick coating. To avoid damage to the non-stick coating, DO NOT use metal cleaning utensils.
Crisper plate	Clean the crisper plate with a cloth or sponge and warm water with dish soap.The crisper plate has non-stick coating. To avoid damage to the non-stick coating, DO NOT use metal cleaning utensils.
Drip tray	Clean the drip tray with a cloth or sponge and warm water with dish soap.The drip tray has non-stick coating. To avoid damage to the non-stick coating, DO NOT use metal cleaning utensils.
Upper basket cavity/Lower oven cavity	Clean the cooking cavity with a sponge or soft cloth and warm water and dish soap.To remove baked-on grease and food residue from cooking cavity, spray with a mixture of baking soda and vinegar and wipe clean with a damp cloth.For stubborn residue, allow the mixture to sit on the affected area for several minutes before scrubbing clean.Check the heating element for oil spatter and food debris.Clean the heating element with a damp cloth as needed.Ensure the heating element is completely dry before next use.DO NOT clean in the dishwasher.
Exterior • Clean with a soft and damp cloth or sponge and wipe dry.
Upper basket window/Lower oven window	Clean the internal and external side of the windows with a cloth or sponge and warm water with dish soap. DO NOT use metal cleaning utensils.

Any other servicing must be performed by an authorized representative.

WARNING

• Without proper cleaning, food and grease splatter may build up around the heating element. This can cause smoke, fire, and personal injury.
• If you see or smell smoke, touch Cancel, unplug the appliance, and allow it to cool. Remove food residue or grease with a soft cloth and dishsoap.

TROUBLESHOOTING

Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to the service center.

Problem Cause Solution
Product not working	Power isn't connected	Plug the power cord into a grounded outlet
E1/E2 displayed	Temperature sensor open/ Temperature sensor short circuit protection	Re-plug the power cord to the outlet or send to the designated service center for repair
OPEN displayed	Frying bucket isn't assembled in place	Pull out the frying bucket and push it back to the machine to assemble it in place
The fan does not run	Power isn't connected	Send to the designated service center for repair
	The motor is damaged or other components are short-circuited	Send to the designated service center for repair
Fan noise • Fan blade	deformed	Send to the designated service center for repair
Unable to push the fryer into the product smoothly	Fryer edge deformed	Send to the designated service center for repair
White smoke	Greasy food is being baked	White smoke will leak when grilling greasy food, which is a normal phenomenon
	The fryer still has grease residue from the previous bake	Be sure to clean the air fryer after baking each time
Problem Possible Reasons Solutions
No power	Improper power cord and outlet connection	Check that the power cord is firmly plugged into outlet. If this cannot solve the problem, please contact the Customer Service Center.
Display shows E1 or E2	The unit is not operating properly	Contact the Customer Service Center.
Cannot activate Sync Finish	Both the upper basket and lower oven have not been programmed	To activate Sync Finish a function must be selected for both cavities. Then, the SYNC button will appear. If Sync Finish is activated the Sync Finish indicator SYNC will be lit up. See OPERATION INSTRUCTIONS.
Cannot activate single cavity	Sync Finish is activated	While Sync Finish is activated, either ▷□ button will start, pause, and resume both cavities to ensure that both cavities finish at the same time. If you wish to control each cavity independently, do not use Sync Finish.
Food undercooked	The upper basket and lower oven are operating at the same time	Overall, the Two-Zone Air Fryer Oven is faster than cooking two consecutive batches in the same air fryer. However, if the upper basket and lower oven are operating simultaneously, cook times will need to be increased. See COOKING.
	Food not placed in an even layer	For best cooking performance, place food in an even layer with no overlapping. See COOKING.
Food not crispy	·Crisper plate not used in upper basket	·For the best air frying performance, always use the crisper plate in the upper basket. The crisper plate allows air to flow underneath food and produces the best cooking results.
	·Food improperly prepped	·For optimal crispiness, spray or brush small amounts of oil onto food before air frying. See COOKING.
Lower oven improperly cooking	·Grill tray placed in wrong slot	·The grill tray can be placed into an upper or lower slot within the lower oven cavity. Ensure that the grill tray is placed in the proper slot before cooking. See COOKING.
	·Incorrect cook time or temperature	·The lower oven is a unique design. Traditional cook times and temperatures may need to be adjusted for the lower oven. See COOKING.
Difficult to see through windows	·Improper window cleaning	·Clean the interior and exterior of windows after each use. See CLEANING AND MAINTE- NANCE.
Difficult to remove or insert upper basket	·Too much food within basket	·Do not pile food too high or the food will contact the top of the upper cavity. This can result in difficulty inserting and removing the upper basket and may cause food to burn.
	·Debris on basket exterior or within upper cavity	·Remove all debris from the basket exterior and within the upper cavity. See CLEANING AND MAINTENANCE.

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT

Midea logo, word marks, trade name, trade dress and all versions there of are valuable assets of Midea Group and/or its affiliates (“Midea”), to which Midea owns trademarks, copyrights and other intellectual property rights, and all goodwill derived from using any part of an Midea trademark. Use of Midea trademark for commercial purposes without the prior written consent of Midea may constitute trademark infringement or unfair competition in violation of relevant laws.

This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.

All the described functions and instructions were up to date at the time of printing this manual. However, the actual product may vary due to improved functions and designs.

DATA PROTECTION NOTICE

For the provision of the services agreed with the customer,

we agree to comply without restriction with all stipulations of applicable data protection law, in line with agreed countries within which services to the customer will be delivered, as well as, where applicable, the EU General Data Protection Regulation (GDPR).

Generally, our data processing is to fulfil our obligation under contract with you and for product safety reasons, to safeguard your rights in connection with warranty and product registration questions. In some cases, but only if appropriate data protection is ensured, personal data might be transferred to recipients located outside of the European Economic Area.

Further information are provided on request. You can contact our Data Protection Officer via [e-mail]. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via [e-mail]. To find further information, please follow the QR Code.

1 YEAR LIMITED WARRANTY

This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning the product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover wear from normal use, and damages to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales. This warranty is void if products is used for other than single family household use or subjected to any voltage and waveform. We exclude all claims for special, incidental, and consequential damages by breach of express or implied warranty. All liability is limited to amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. Legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental consequential damages, so the foregoing limitations may not apply to you. Please note that failure to complete and submit this form does not diminish your warranty.

In the event of a warranty period claim, question, comments or if service is required for this product, please contact us at the following:

[e-mail]

1-888-365-2230

Midea

make yourself at home

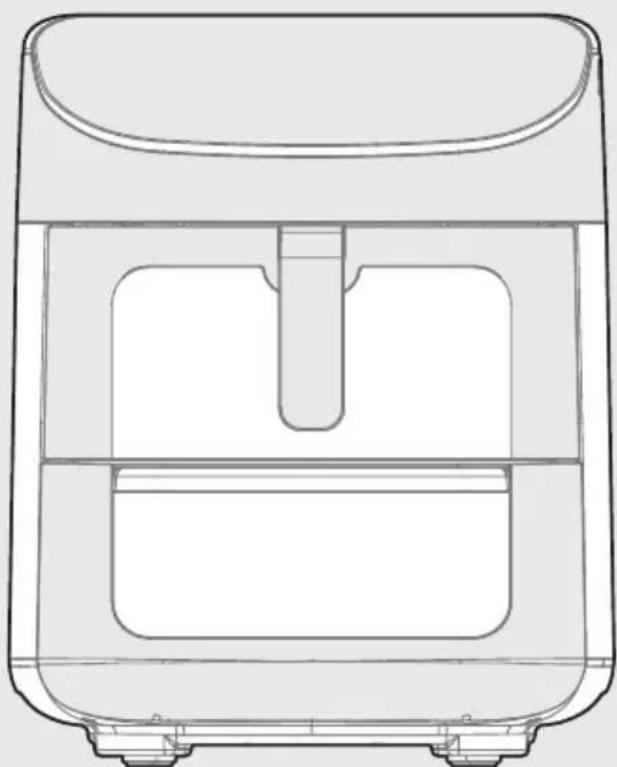

Technical line drawing of a rectangular device with internal compartments and mounting feet (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Dovrlean large app & l'application et utiliser l'appareil

MANUEL

D'UTILISATION

MAD111D8CPKL

ITM. / ART.3808880

Technical line drawing of a vehicle rear panel with ventilation grilles and mounting points (no text or symbols)

APERÇU DE L'APPAREIL

Technical line drawing of a rectangular container with lid and side compartments (no text or symbols)

Simple diagram showing a Wi-Fi signal above two smartphone icons, no text or symbols present

Simple diagram with Wi-Fi signal icon above two square buttons, no text or symbols present

Illustration of a smartphone screen with a hand pointing to a speech bubble containing a small icon, likely indicating a notification or call.

[e-mail]

1-888-365-2230

Midea

make yourself at home
