USER MANUAL HW-3701-1500MM-90KG Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Bed Lift Mechanism

MODEL:

HW-3701-1200MM-60KG

HW-3701-1500MM-120KG

HW-3701-1500MM-90KG

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: HW-3701-1200MM-60KG

HW-3701-1500MM-120KG

HW-3701-1500MM-90KG

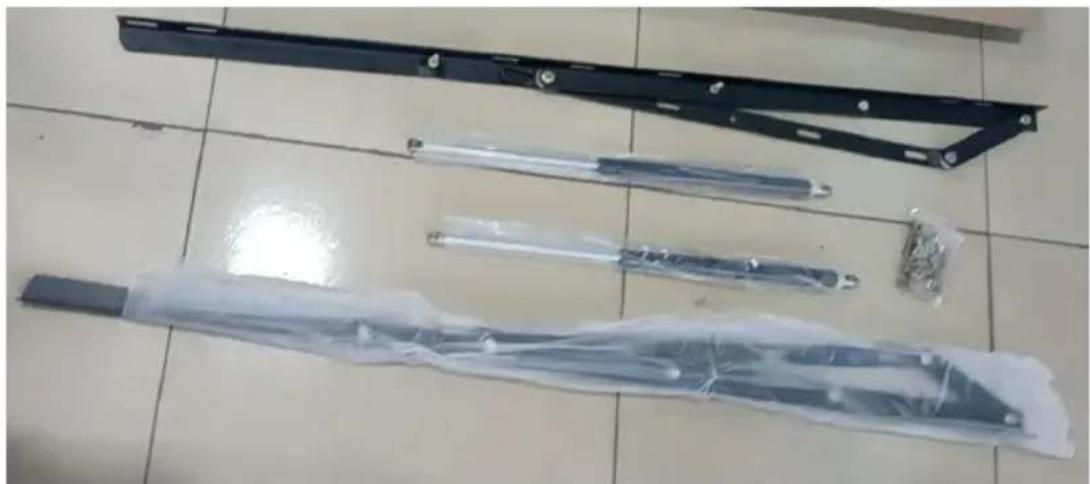

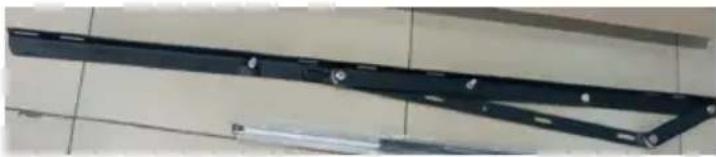

Disassembled metal bracket and plastic-wrapped components laid out on tiled floor (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

PARAMETER LIST

Model	HW-3701-1200mm-60kg	HW-3701-1500mm-120kg	HW-3701-1500mm-90kg
Maximum Load Bearing (lbs)	154	308	264
Mattress size(m)	1.5-1.8	1.5-2	1.5-2

PART LIST

Model	Picture	Quantity
screw		8
air leg		2
M8 Nylon nut		4
M8 lock nu		8
left bracket		1
right bracket		1

Note:

HW-3701-1200mm-60kg/HW-3701-1500mm-120kg/HW-3701-1500mm-90kg The number of accessories is the same for the above three mode

SECURITY & WARNINGS

WARNING:

Do not allow children to climb on the unit.

1. Keep children and pets away during assembly.

ASSEMBLY PRECAUTIONS

1. Please assemble the product in strict accordance with the instructic Incorrect assembly could be hazardous.
2. Please wear safety goggles and work gloves properly during assem
3. Do not try to assemble the product when feeling tired or when un influence of alcohol, drugs or medication.
4. Load-bearing capacity and other product parameters are applied to properly and completely assembled product only.
5. Separate and count all parts and hardware.
6. Prepare the following tool: Philips Head Screwdriver.
7. If using power tools, please be careful to slow down and stop wr needed.
8. Two people are required for assembly.
9. Follow the intended uses only. Do not sit or stand on the above.
10. When using the bed box elevator to lift the mattress, there should items other than the mattress on the bed, otherwise people may be

SAVE THESE INSTRUCTIONS

INSTRUCTIONS

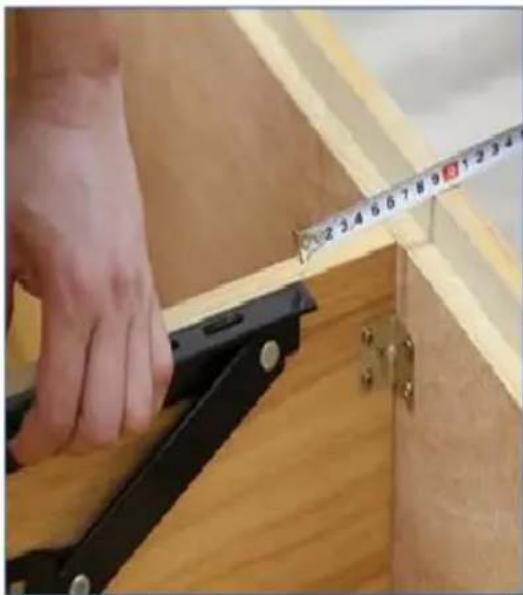

Close-up of a hand using a metal ruler to measure a wooden frame, with no visible text or symbols.

1. Mounting position of the lift: the distance between the rear end of lift and the backboard of the be is about 5cm. (Note: the installation position can adjusted appropriately.)

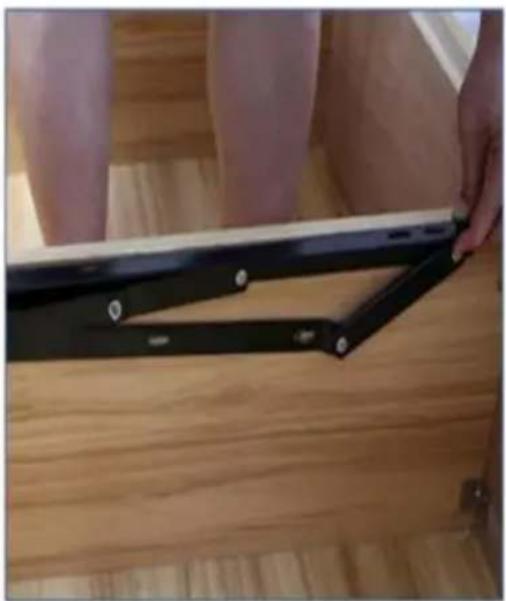

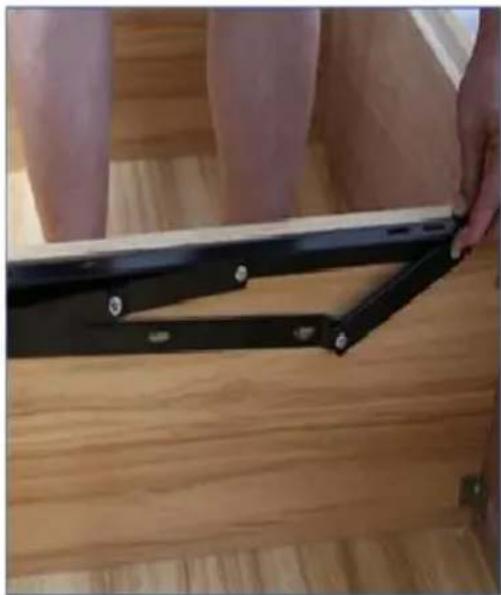

Close-up of a person adjusting a black metal frame on a wooden floor (no text or symbols visible)

2.The longest side bracket of lift shall be the same level with the side board of the bed bed

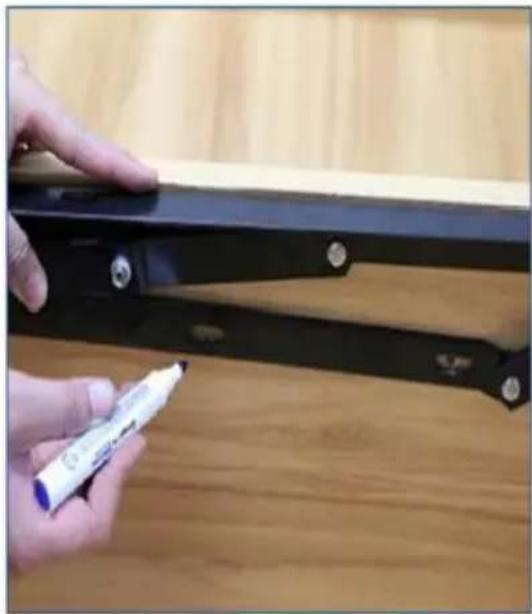

Hand holding a pen next to a black metal bracket with wooden frame (no text or symbols visible)

1. Open the lifter slightly to rev the mounting hole, use the mark

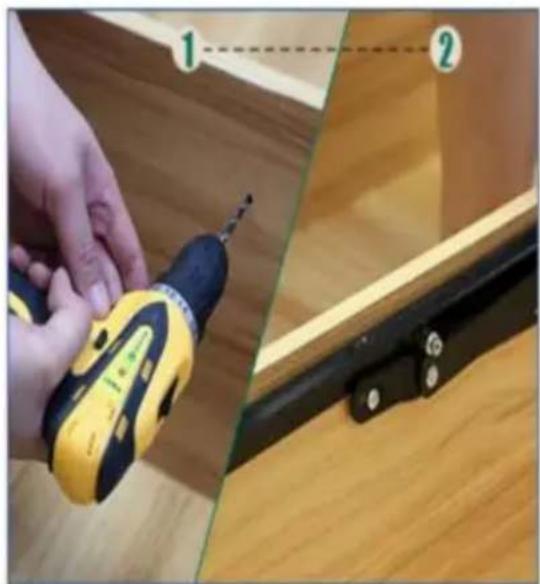

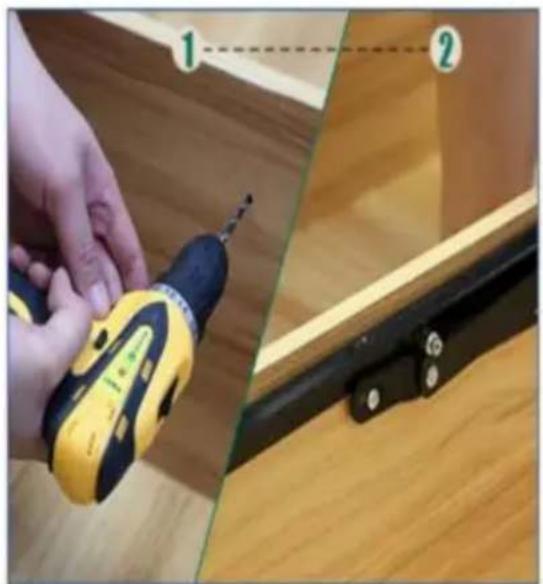

Close-up of a hand using a power drill to install a wooden screw and bracket (no text or symbols visible)

1. Remove the lifter, punch hol in the marked position with th

pen to correspond to the bracke hole under the lifter. and mark hole on the board.	electric dill, then install the lif and tighten the screw.

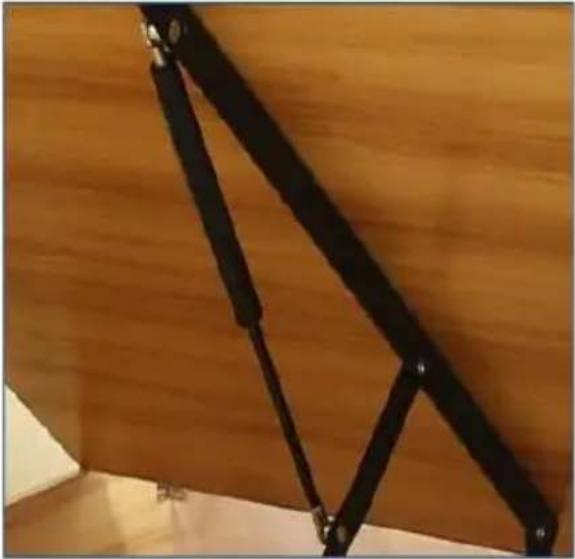

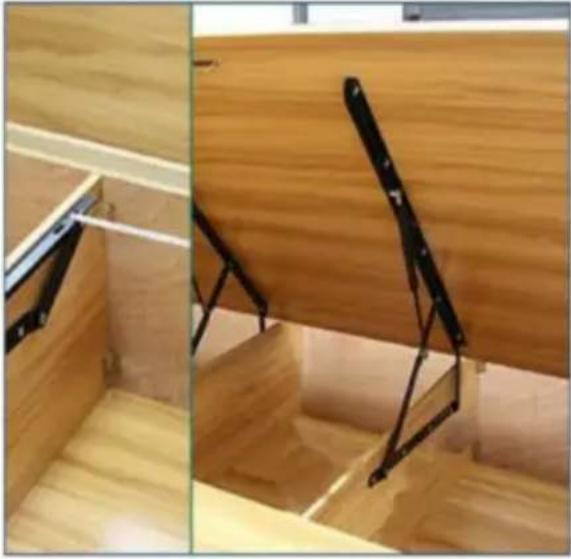

5.After the lifter is installed in the bed box,support the lifter and in the air support.(note:stroke rod should be installed face down)	6. Press down the mounted I to complete closure, measure installation distance from the b to the lifter, confirm the installation hole position of the longest side bracket on the b board, and make a hole mark (note: There are many mounti holes in the lift; the number mounting holes can be select according to the actual situatio It is recommended to measure the mounting screws of the ta and front end of the lift and install other holes to avoid dr wrong holes.)

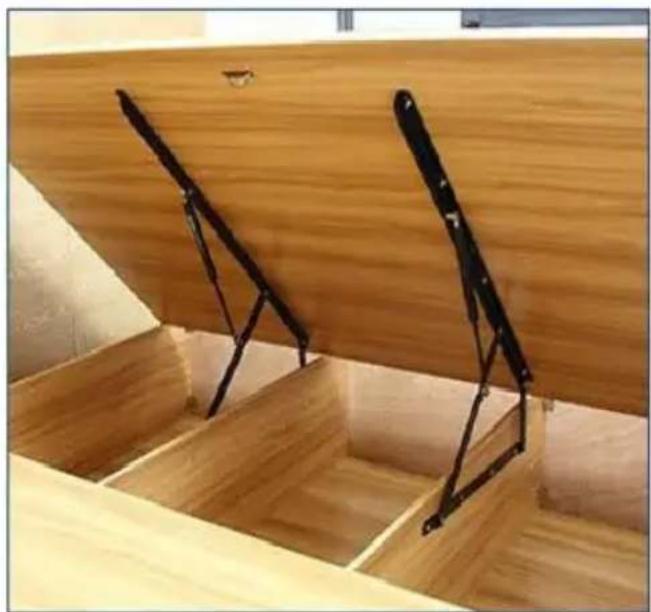

Interior view of a wooden cabinet or shelf with two black metal stand holders placed on top (no text or symbols visible)

1. Use the electric dill to punch holes on the bed board acco to the mark. Place the lifter or bed board. Correspond to the hole position, screw on and ins it.
