HW-3701-1500MM-120KG - Bed lifting mechanism Vevor - Free user manual and instructions

Product Type	Bed Lifting Mechanism
Brand	Vevor
Model	HW-3701-1500MM-120KG
Maximum Load	308 kg
Stroke (Lifting Length)	1500 mm
Compatible Mattress Size	1.5 m to 2 m
Material	Metal (Steel)
Number of Gas Springs	2
Accessories Included	Screws, M8 nylon nuts, M8 lock nuts, left and right brackets
Tools Required for Assembly	Phillips screwdriver, electric drill
Recommended Number of Persons for Assembly	2
Safety	Do not let children climb; keep away from children and animals during assembly; do not sit or stand on the mechanism
Maintenance	Periodically check screw tightness; clean with a damp cloth
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support
Intended Use	Lift the mattress only; no other objects on the bed during use
Recommended Installation Distance	Approximately 5 cm between the rear end of the lifter and the back panel of the chest

Frequently Asked Questions - HW-3701-1500MM-120KG Vevor

What is the maximum load supported by the Vevor HW-3701-1500MM-120KG lifting mechanism?

The maximum load is 308 kg (according to the manual). Make sure not to exceed this limit.

What is the lifting stroke of this model?

The lifting stroke is 1500 mm, ideal for suitable bed chest dimensions.

What tools are needed to assemble this mechanism?

The required tools are a Phillips screwdriver and an electric drill. It is recommended to have two people.

Can I use this mechanism to lift something other than a mattress?

No. The intended use is only to lift the mattress. No other objects should be on the bed during lifting, risk of injury.

How to install the lifting mechanism in the bed chest?

Follow the instructions: mark the position 5 cm from the back panel, drill holes, fix the mechanism with the provided screws, then install the gas springs ensuring the stroke rod is oriented downward.

What safety precautions should I take during assembly?

Wear safety glasses and work gloves. Do not assemble if tired or under influence. Keep children and animals away.

Does the mechanism fit a 180×200 cm bed?

Yes, the manual indicates compatibility with mattresses from 1.5 m to 2 m, which includes a 180×200 cm bed.

How to maintain the lifting mechanism?

Regularly check screw tightness. Clean with a damp cloth. Avoid excessive humidity or corrosive products.

Where can I find the full manual or technical support?

The full manual is available on Vevor's website. For technical support and warranty certificate, go to www.vevor.com/support.

Can I install this mechanism alone?

It is strongly recommended to have two people for assembly due to the weight and handling of parts.

USER MANUAL HW-3701-1500MM-120KG Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Bed Lift Mechanism

MODEL:

HW-3701-1200MM-60KG

HW-3701-1500MM-120KG

HW-3701-1500MM-90KG

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: HW-3701-1200MM-60KG

HW-3701-1500MM-120KG

HW-3701-1500MM-90KG

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

PARAMETER LIST

Model	HW-3701-1200mm-60kg	HW-3701-1500mm-120kg	HW-3701-1500mm-90kg
Maximum Load Bearing (lbs)	154	308	264
Mattress size(m)	1.5-1.8	1.5-2	1.5-2

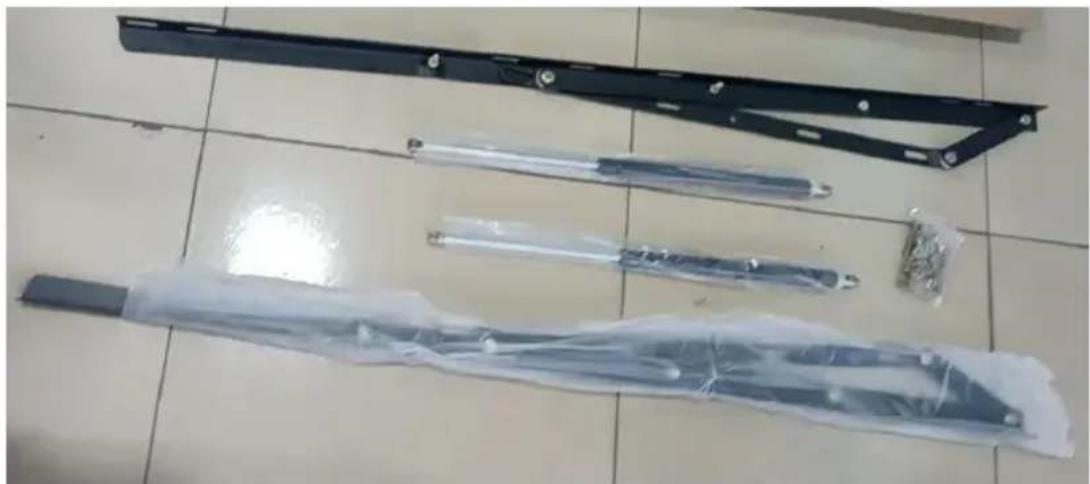

PART LIST

Model	Picture	Quantity
screw		8
air leg		2
M8 Nylon nut		4
M8 lock nu		8
left bracket		1
right bracket		1

Note:

HW-3701-1200mm-60kg / HW-3701-1500mm-120kg / HW-3701-1500mm-90kg. The number of accessories is the same for the above three models.

SECURITY & WARNINGS

WARNING:

Do not allow children to climb on the unit.

1. Keep children and pets away during assembly.

ASSEMBLY PRECAUTIONS

1. Please assemble the product in strict accordance with the instructions. Incorrect assembly could be hazardous.
2. Please wear safety goggles and work gloves properly during assembly.
3. Do not try to assemble the product when feeling tired or when under the influence of alcohol, drugs or medication.
4. Load-bearing capacity and other product parameters apply to a properly and completely assembled product only.
5. Separate and count all parts and hardware.
6. Prepare the following tool: Philips Head Screwdriver.
7. If using power tools, please be careful to slow down and stop when needed.
8. Two people are required for assembly.
9. Follow the intended uses only. Do not sit or stand on the above.
10. When using the bed box elevator to lift the mattress, there should be no items other than the mattress on the bed, otherwise people may be injured.

SAVE THESE INSTRUCTIONS

INSTRUCTIONS

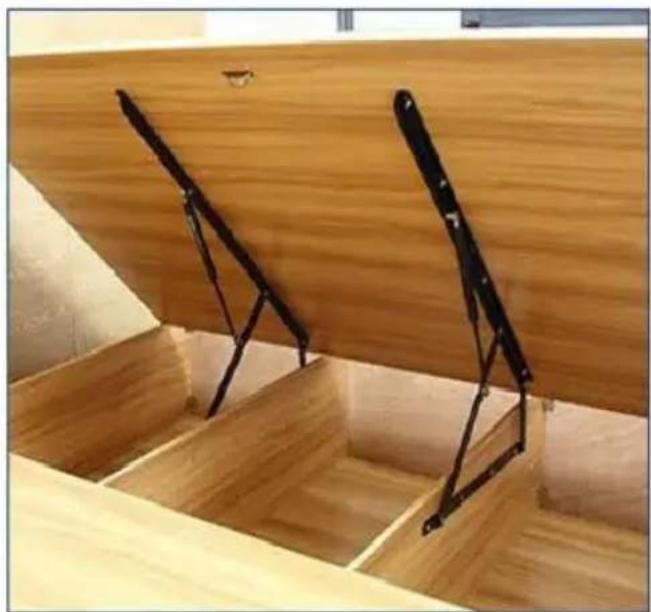

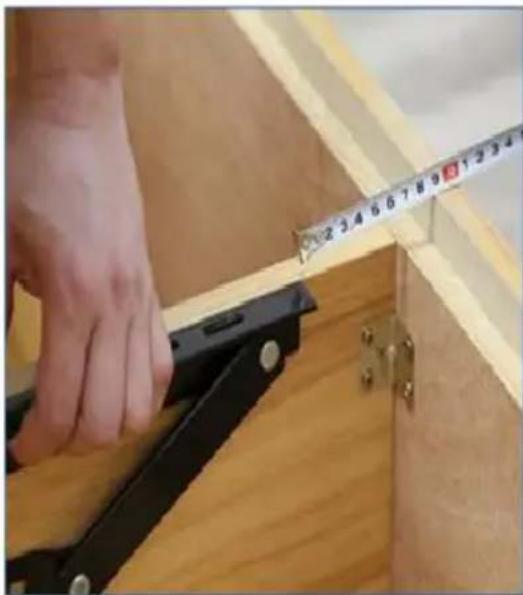

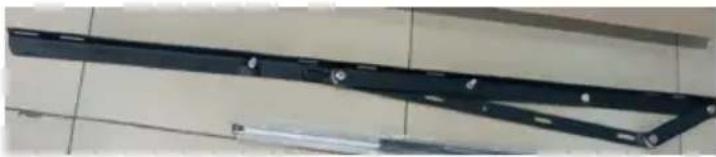

1. Mounting position of the lift: the distance between the rear end of the lift and the backboard of the bed is about 5cm. (Note: the installation position can be adjusted appropriately.)

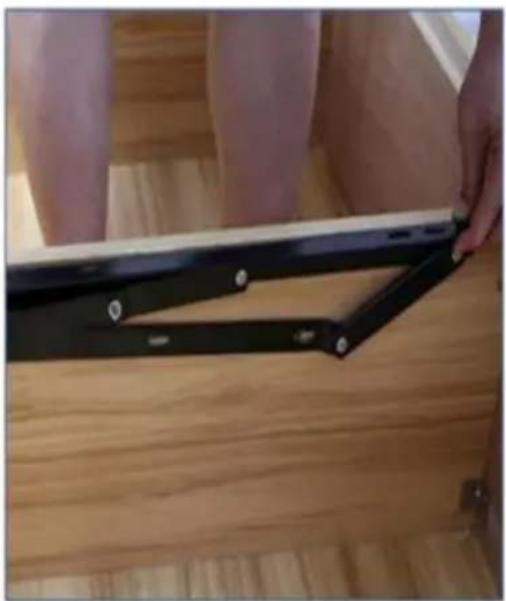

1. The longest side bracket of the lift shall be at the same level as the side board of the bed.

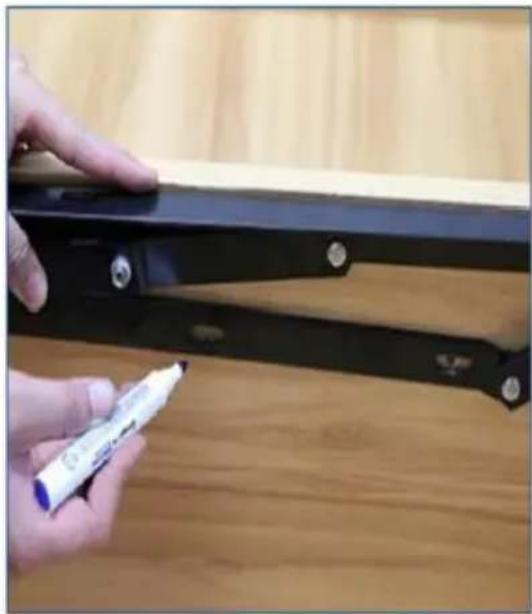

1. Open the lifter slightly to reveal the mounting hole, use the mark.

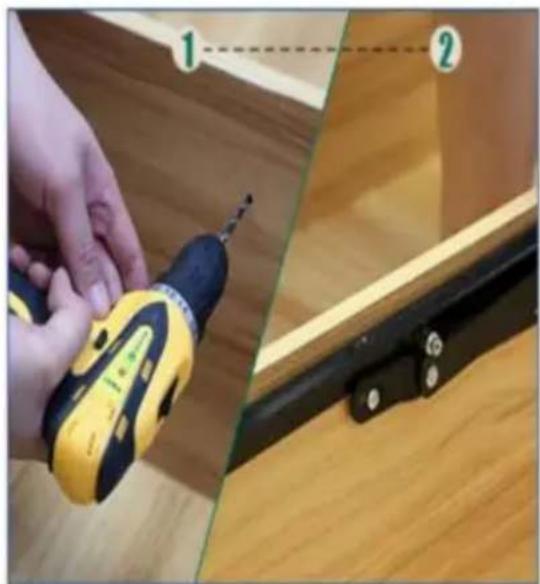

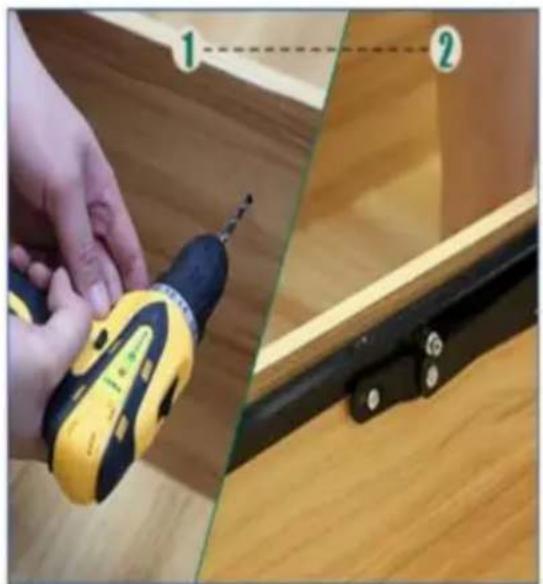

1. Remove the lifter, punch holes in the marked position with the drill.

pen to correspond to the bracke hole under the lifter. and mark hole on the board.	electric dill, then install the lif and tighten the screw.

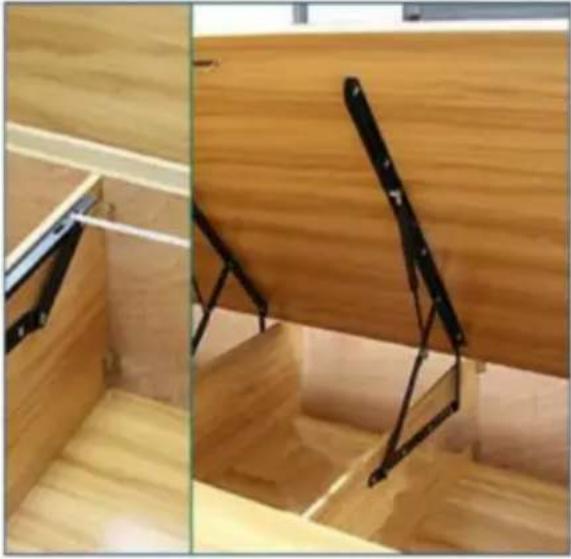

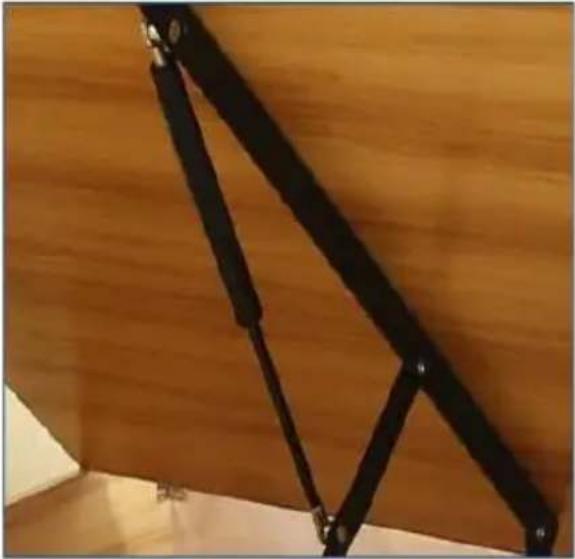

5.After the lifter is installed in the bed box,support the lifter and in the air support.(note:stroke rod should be installed face down)	6. Press down the mounted I to complete closure, measure installation distance from the b to the lifter, confirm the installation hole position of the longest side bracket on the b board, and make a hole mark (note: There are many mounti holes in the lift; the number mounting holes can be select according to the actual situatio It is recommended to measure the mounting screws of the ta and front end of the lift and install other holes to avoid dr wrong holes.)
