Vevor ys-202-1 - Roofing accessory
📄 60 pages English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
Notice Vevor ys-202-1 - page 1
1 / 60
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Roof Pipe Boot (Roofing Accessory)
Brand Vevor
Model ys-202-1
Compatible Pipe Diameter Range 6 3/4 to 14 inches
Material NE-5160 (Synthetic Rubber)
Color Red
Intended Use Sealing pipe penetrations on roofs
Sealing Ensured by silicone applied to the base

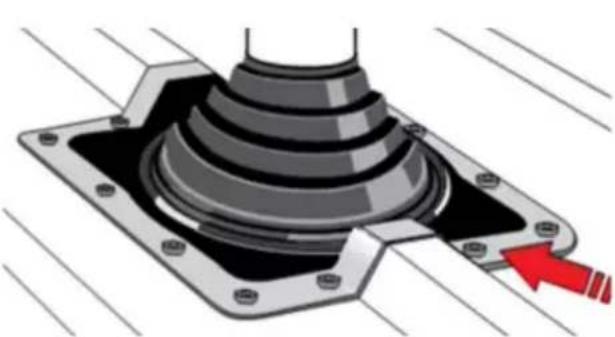

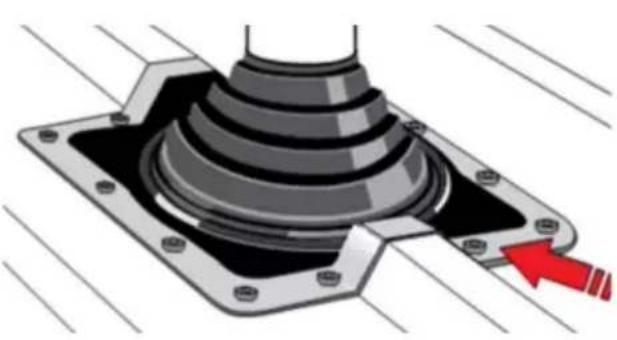

Fixation Roofing screws (not included)
Installation Steps Cut, slide over the pipe, seal the base with silicone, secure with screws
Cutting Opening to cut approximately 20% smaller than the pipe diameter
Base Aluminum, deforms to conform to roof surface
Maintenance Clean with a damp cloth; check seal periodically
Weather Resistance Designed to resist UV and temperature variations
Package Contents 1 roof boot, installation manual
Warranty Manufacturer's warranty, technical support at www.vevor.com/support

Frequently Asked Questions - ys-202-1 Vevor

How to install the Vevor ys-202-1 roof pipe boot?
First, cut the boot opening to about 20% smaller than your pipe diameter. Slide the boot over the pipe and position the aluminum base on the roof. Seal the base with silicone by pressing firmly. Finally, secure the flashing with roofing screws.
What type of silicone to use for sealing?
Use a silicone sealant specifically for roofing, resistant to UV and weather. Apply it generously under the base before pressing it against the roof.
What pipe diameters are compatible with model ys-202-1?
Model ys-202-1 accepts pipes with a diameter between 6 3/4 and 14 inches. If your pipe has a different diameter, check model YS-05-1 which covers 10-18 inches.
Is NE-5160 material UV resistant?
Yes, NE-5160 is a synthetic rubber designed to resist UV rays, ozone, and extreme temperatures, ensuring a long outdoor lifespan.
Can I install this boot on a tiled roof?
Yes, the aluminum base is flexible and can adapt to different roof types, including tiles. Make sure to seal properly and fix with screws suitable for your roofing material.
How to maintain the roof boot?
Regularly inspect the condition of the rubber and silicone seal. Clean with a damp cloth and mild soap. If the silicone degrades, reseal.
Does the kit include roofing screws?
No, roofing screws are not included. You must use screws suitable for your roof type (wood, metal, etc.), typically sold separately.
Where to find the complete product manual?
The manual is available for free in PDF format on notice-facile.com or on the manufacturer Vevor's website. You can also request a translation via the online form.
How to contact Vevor customer service?
For any technical questions or claims, visit www.vevor.com/support to access technical support and the electronic warranty certificate.
What is the difference between models ys-202-1 and ys-202-2?
Both models have the same diameter range (6 3/4-14 inches) and the same NE-5160 material, but ys-202-1 is red while ys-202-2 is black. The choice depends on your aesthetic preferences.

User questions about ys-202-1 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Roofing accessory in PDF format for free! Find your manual ys-202-1 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ys-202-1 by Vevor.

USER MANUAL ys-202-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Roof Pipe Boot

MODEL: ys-202-1 / ys-202-2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: ys-202-1 / ys-202-2

Black dome-shaped object with ribbed texture, placed on a square base (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

Modelys-202-1ys-202-2
Adaptive pipe diameter range (inch)6 3/4-146 3/4-14
MaterialNE-5160EDPM
ColorRedBlack

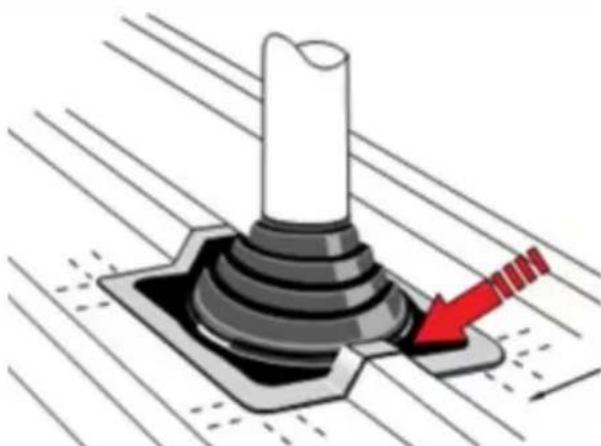

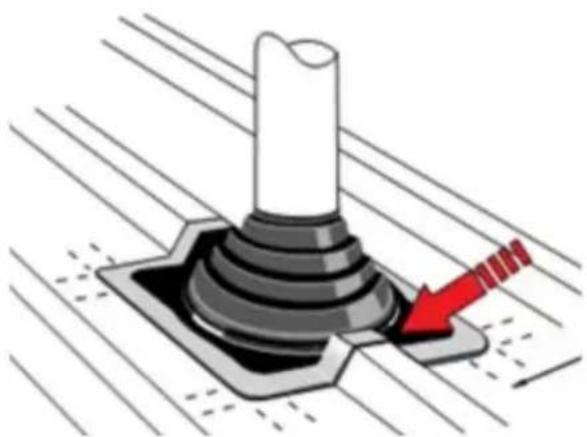

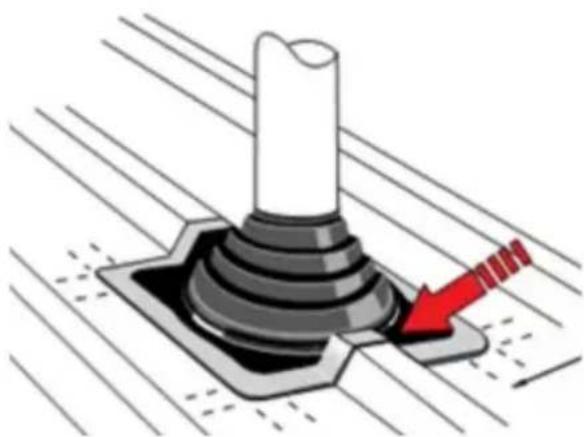

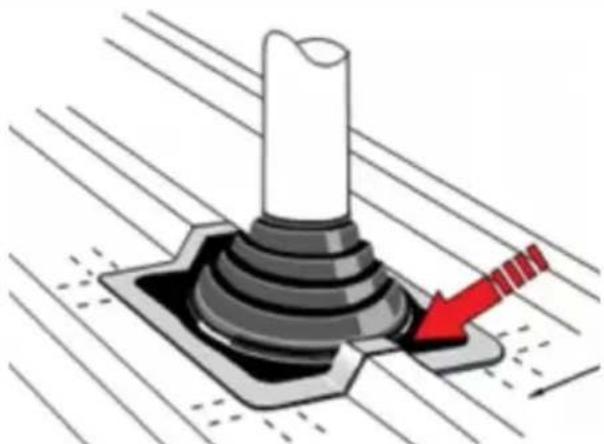

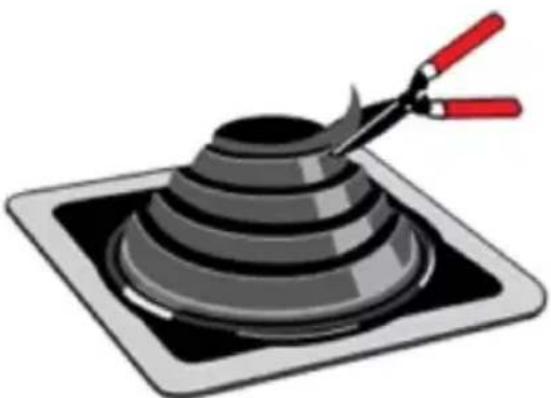

Step 1:Cut your pipe flashing openings to fit.(The cutting size should be about 20% smaller the pipe diameter.)Step 2:Slide the flashing into tube and install the aluminum to the roof surface.
Vevor ys-202-1 - Technical Support and E-Warranty Certificate www.vevor.com/support - 1Vevor ys-202-1 - Technical Support and E-Warranty Certificate www.vevor.com/support - 2

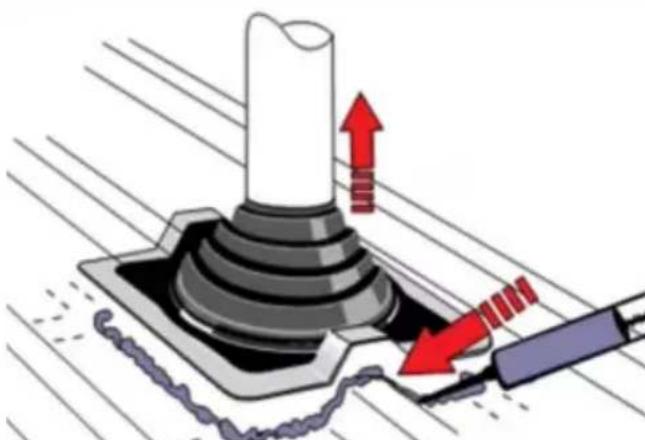

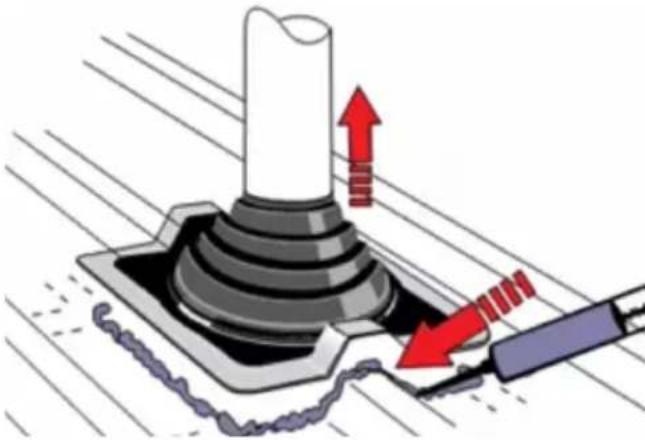

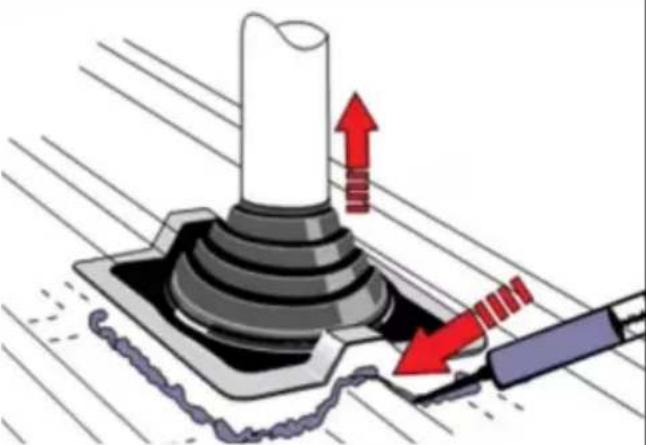

Step 3:Seal the base with silic by squeezing in the sealant a pressing the base.Step 4:Fix pipe flashing with r screws.
