YS-28-2 - Roofing accessory Vevor - Free user manual and instructions

Product Type	Roof pipe boot (roof flashing)
Brand	Vevor
Model	YS-28-2
Material	EPDM (synthetic rubber)
Color	Black
Compatible pipe diameter	6 to 11 inches (approx. 15 to 28 cm)
Base material	Aluminum
Installation	Cut 20% smaller than the pipe diameter, slide the flashing onto the pipe, press the aluminum base against the roof, secure with roof screws
Base dimensions (approx.)	30 x 30 cm
Weight (approx.)	0.5 kg
Use	Sealing around roof pipes
Maintenance	Clean with a damp cloth; avoid harsh solvents
Safety	Wear gloves during installation; use appropriate roof screws
Reparability	Not repairable; replace if damaged
Warranty	Technical support via www.vevor.com/support
Country of origin	China (Shanghai)
Importer (EU)	YH Consulting Limited, Frankfurt am Main, Germany

Frequently Asked Questions - YS-28-2 Vevor

How to install the YS-28-2 pipe boot?

Installation is done in 4 steps: 1) Cut the flashing to about 20% smaller than the pipe diameter. 2) Slide the flashing onto the pipe. 3) Press the aluminum base against the roof surface. 4) Secure the flashing with appropriate roof screws. Make sure the roof is clean and dry before installation.

What type of pipe is compatible?

The YS-28-2 model is compatible with pipes with a diameter between 6 and 11 inches (approx. 15 to 28 cm). It is suitable for drain, ventilation, or chimney pipes, provided the surface is smooth.

Is EPDM material UV resistant?

Yes, EPDM (synthetic rubber) is known for its good resistance to UV, weather, and ozone, making it suitable for extended outdoor use on roofs.

Can I use this product on a tile roof?

Yes, but installation may require additional precautions. It is advised to properly fit the aluminum base on the tiles and use specific roof screws for tiles. Check the seal after installation.

What tools are needed for installation?

Basic tools are: a tape measure, a knife or scissors to cut the flashing, a screwdriver or drill for the roof screws, and possibly a caulking gun for additional sealant.

How to maintain the roof flashing?

Clean it regularly with a damp cloth to remove dust and debris. Avoid abrasive cleaners or solvents that could damage the EPDM or aluminum. Periodically inspect the flashing condition, especially after storms.

Is there a warranty?

Vevor offers technical support and an electronic warranty certificate via its website www.vevor.com/support. For specific warranty details, contact support with your model number and proof of purchase.

Can I paint the flashing?

It is not recommended to paint the flashing, as paint may crack with thermal movement and reduce the flexibility of EPDM. Additionally, paint may affect the adhesion of the aluminum base. The original black appearance is designed for optimal durability.

Is the product reusable?

The flashing is designed for single installation. Once removed, it may be damaged or deformed, compromising the seal. It is better to install a new one to ensure optimal performance.

How to contact technical support?

You can contact Vevor technical support via their website: www.vevor.com/support. Have your model number (YS-28-2) and a description of your issue on hand for quick assistance.

USER MANUAL YS-28-2 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

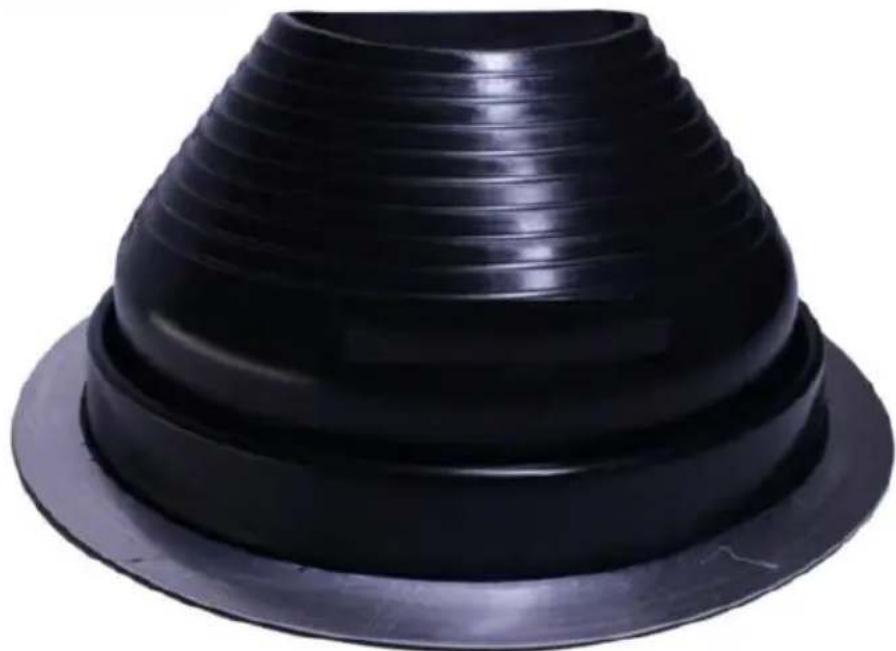

Roof Pipe Boot

MODEL: YS-28-2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: YS-28-2

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Model	YS-28-2
Adaptive pipe diameter range (inch)	6-11
Material	EDPM
Color	Black

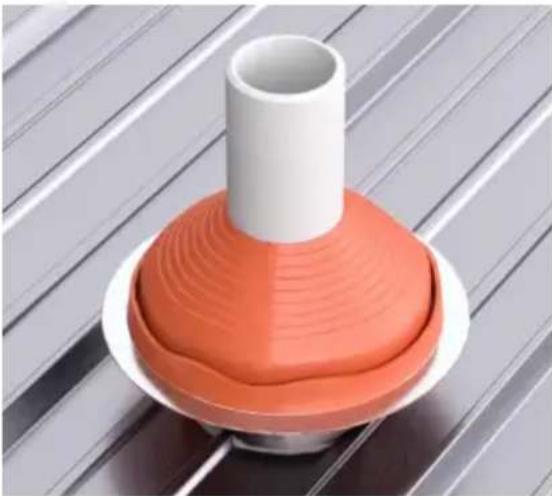

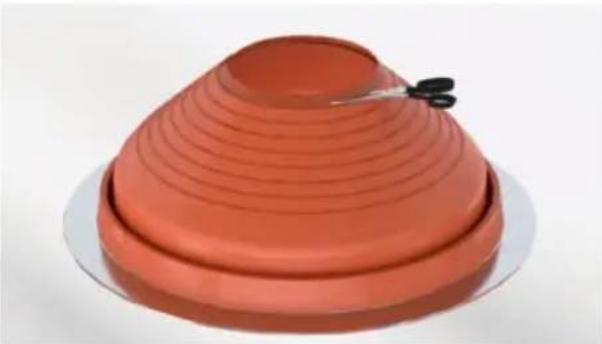

Step 1:Cut your pipe flashing openings to fit.(The cutting size sh be about 20%smaller than the pi diameter.)	Step 2:Slide the flashing into pipe.

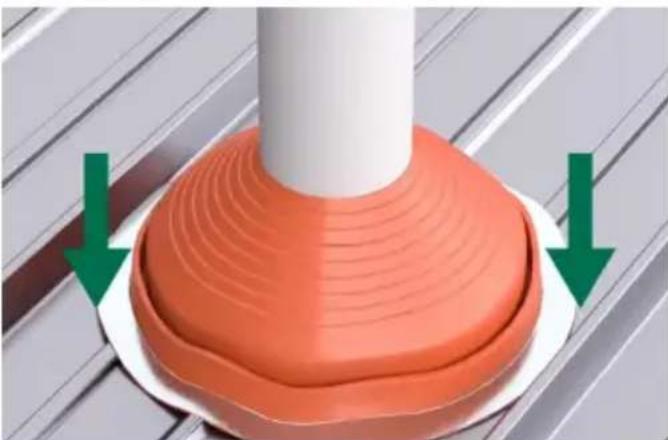

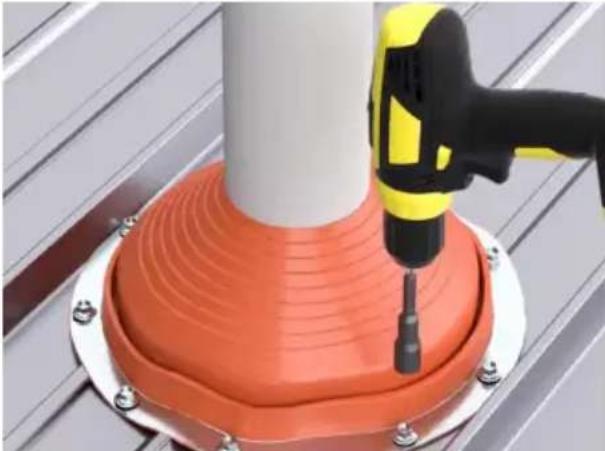

Step 3:Then press the aluminum basedown to the roof surface.	Step 4:Secure the pipe flash withroof screws.
