Brand	Vevor
Model	GT-SFD60D-E

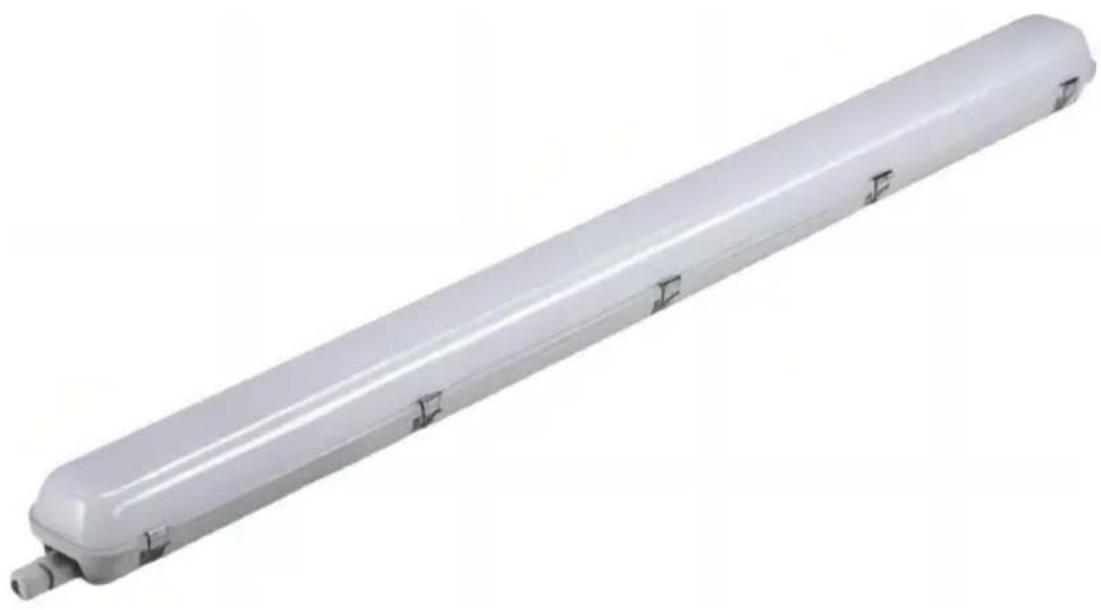

Product Type	Waterproof LED Luminaire
Power Supply	AC 220-240 V, 50/60 Hz
Wattage	40 W / 50 W / 60 W (adjustable to 3 levels)
Color Temperature	5000 K (cool white light)
Luminous Flux	5400 lm / 6400 lm / 7400 lm (adjustable to 3 levels)
Protection Rating	IP65 (waterproof and dustproof)
Dimensions	4 feet (approx. 120 cm)
Weight	Approx. 2 kg
Installation	Surface mounting, requires a qualified person
Main Functions	Waterproof LED lighting, adjustable power and brightness, suitable for indoor and outdoor use
Safety	Cut off power before installation, do not use with a dimmer, do not cover with thermal insulation
Maintenance and Cleaning	Clean with a dry, non-abrasive cloth, unplug before any intervention
Spare Parts and Repairability	Repair by a professional, contact Vevor customer service
Warranty	Manufacturer's warranty according to conditions, repair or replacement in case of defect
Compliance	Certified FCC Part 15, European WEEE directive

Frequently Asked Questions - GT-SFD60D-E Vevor

How to install the GT-SFD60D-E luminaire?

Turn off the power supply. Open the metal clips, lift the cover, remove the light panel by pressing the plastic clips. Fix the bracket to the ceiling or wall, connect the wiring according to the diagram, then replace the panel and close the cover. Installation must be carried out by a qualified person.

Can I use this luminaire with a dimmer?

No, this product is not suitable for dimmers. Using a dimmer may damage the luminaire.

What is the maximum wattage of this model?

The wattage is adjustable to three levels: 40 W, 50 W and 60 W. The maximum wattage is 60 W.

Is this luminaire suitable for outdoor use?

Yes, thanks to its IP65 protection rating, it is resistant to water and dust, making it suitable for outdoor use.

How to adjust the brightness?

The brightness is adjusted via a switch or selector (not provided in the manual) allowing you to choose between 5400 lm, 6400 lm and 7400 lm. Consult the manual for more details.

What to do if the light does not turn on?

Check the power wiring and connections. Make sure the power supply is properly plugged in and the circuit breaker is not tripped. If the problem persists, contact Vevor customer service.

Can the luminaire be covered with insulating material?

No, the product is not suitable for covering with thermally insulating material. This could cause overheating.

What is the color temperature of this LED?

The color temperature is 5000 K, corresponding to cool white light.

Is the luminaire compliant with European standards?

Yes, it is compliant with directive 2012/19/EU (WEEE) and FCC standards. The crossed-out wheelie bin symbol indicates that it should not be disposed of with household waste.

Where to find technical support or make a claim?

Visit www.vevor.com/support for technical support and electronic warranty certificate. Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai, China.

USER MANUAL GT-SFD60D-E Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

LED WATERPROOF FIXTURE MANUAL

MODEL: GT-SFD60-U / GT-SFD60-E GT-SFD60D-U / GT-SFD60D-E

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODEL: GT-SFD60-U / GT-SFD60-E / GT-SFD60D-U / GT-SFD60D-E

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructic manual carefully.
	This device complies with Part 15 of the FCC Rules. Operati subject to the following two conditions:(1)This device may not harmful interference, and (2)this device must accept any interfere received, including interference that may cause undesired opera
	This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accession marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices.

WARNINGS

1. Please read the user manual carefully before installing or using the product. 2. Before installation, please read and follow the technical specifications and symbols indicated on the product box. 3. Before installation, ensure that the electricity is turned off. 4. Product is not suitable for dimmer switches. 5. Product is not suitable for covering thermally insulating material. 6. Do not dispose of with household waste. Please ask your local municipal authority for the way of utilization. 7. Product must be installed and maintained by a qualified person.

WARRANTY TERMS

1. If any defect due to faulty product occurs within the warranty period, the company is responsible for repair. If repair is not possible, the company will replace the product.

2. Warranty is valid only provided that the product has been handled properly in accordance with the warnings, symbols and/or technical specifications indicated on the box or user manual.

3-Company is not responsible for injuries and damages resulting from improper use of the product.

SPECIFICATION PARAMETERS

Model	GT-SFD60-U	GT-SFD60-E	GT-SFD60D-U	GT-SFD60D-E
Input	AC120V 60Hz	AC220-240V 50/60Hz	AC120V 60Hz	AC220-240V 50/60Hz
Power	60W		40W / 50W / 60W(third gear power adjustable)
Colour temperature	5000 K		5000 K
Luminous flux	7400 LM		5400LM / 6400LM / 7400L(Third level brightness adjustable)
IP rating	IP65		IP65
Product size	4 FT		4 FT

INSTALLATION STEPS

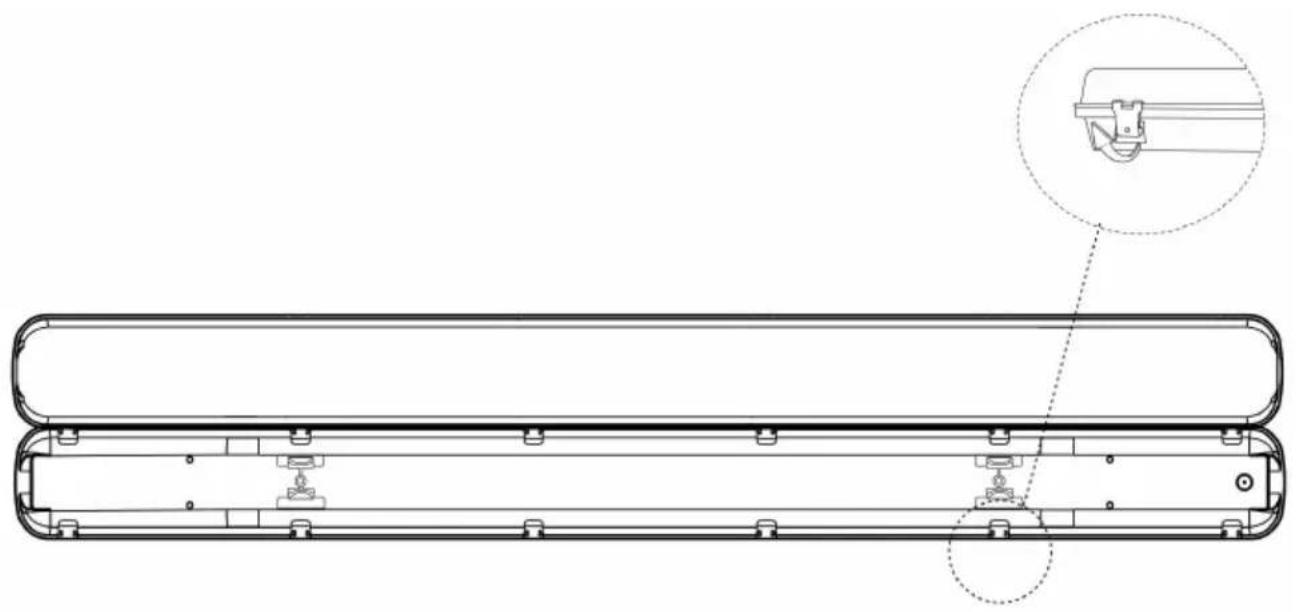

1. Open all metal buckles and lift up the cover.

1. Find two plastic buckles, press and push them toward the middle to remove the light panel.

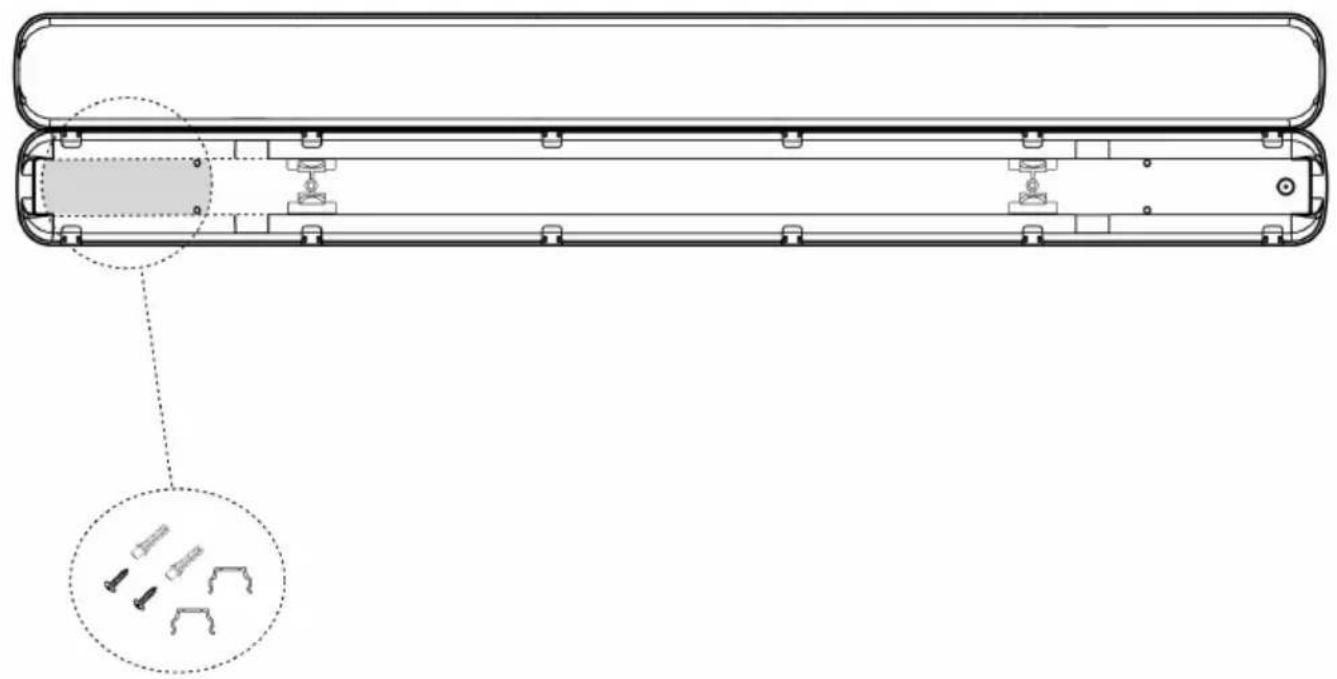

1. The accessories are located at the bottom.

FCC STATEMENT

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.

Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

FAULT ANALYSIS

Questions	Analysis of causes	Countermeasure
The light is out	Power cord connection wrong.	Connect the power cord correctly.
The lights will not fit properly	Check whether mounting holes are correctly installed.	Drill and install the hole correctly according to the required dimensions.
The lights are dim.	Whether the voltage is correct.	Use the right power source.

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshan District, Shanghai 200000, China.

Imported to Australia: SIHAO PTY LTD, 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia.

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730.

EC

REP

E-CrossStu GmbH

Mainzer Landstr. 69, 60329 Frankfurt am Main, Germany.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX, United Kingdom.
