LED WATERPROOF FIXTURE MANUAL

MODEL: GT-SFD60-U / GT-SFD60-E GT-SFD60D-U / GT-SFD60D-E

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: GT-SFD60-U / GT-SFD60-E / GT-SFD60D-U / GT-SFD60D-E

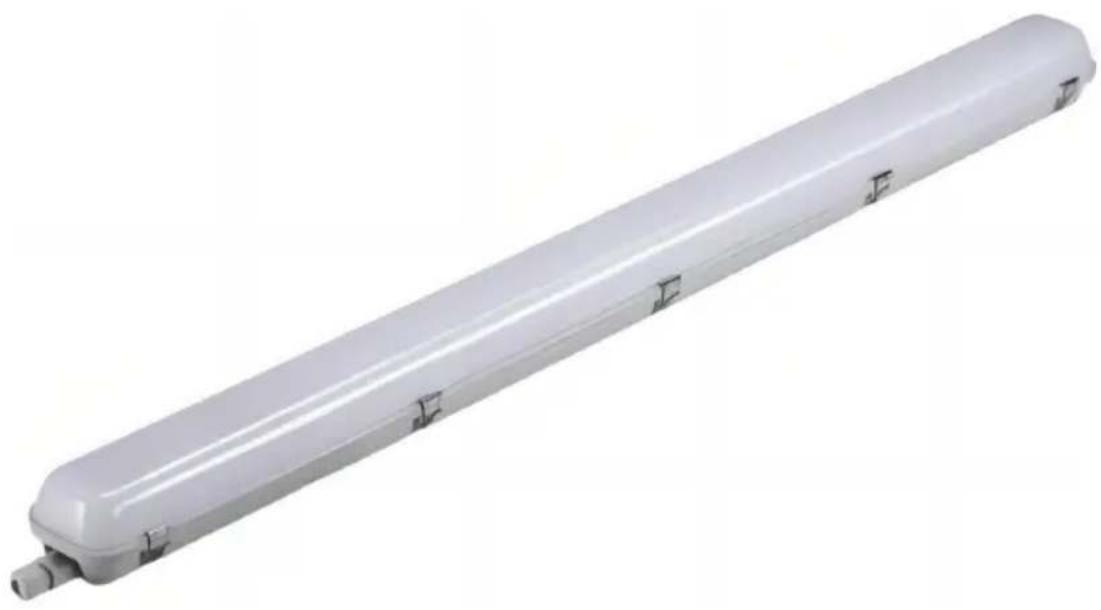

White cylindrical electronic device with a long shaft and small port, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructic manual carefully.
	This device complies with Part 15 of the FCC Rules. Operati subject to the following two conditions:(1)This device may not harmful interference, and (2)this device must accept any interfere received, including interference that may cause undesired opera
	This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accession marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices.

WARNINGS

1-Please read the user manual carefully before installing or using the product.
2-Before installation please read and follow technical specification and symbols indicated on the product box.
3-Before installation ensure that electricity is turned off.
4-Product is not suitable for dimmer switches.
5-Product is not suitable for covering thermally insulating material.
6- Do not dispose with household waste. please ask your local municipal for the way of utilization.
7-Product must be installed and main tenanced by qualified person.

WARRANTY TERMS

1-If any defect due to faulty product occurs within the warranty period, company is responsible for repair. If repair is not possible company rereplace the product.

2-Warranty is valid only provided that the product has been handled properly in accordance with the warnings, symbols and/or technical specifications indicated on the box or user manual.

3-Company is not responsible for injuries and damages resulting from improper use of the product.

SPECIFICATION PARAMETERS

Model	GT-SFD60-U	GT-SFD60-E	GT-SFD60D-U	GT-SFD60D-E
Input	AC120V 60Hz	AC220-240V 50/60Hz	AC120V 60Hz	AC220-240V 50/60Hz
Power	60W		40W / 50W / 60W(third gear power adjustable)
Colour temperature	5000 K		5000 K
Luminous flux	7400 LM		5400LM / 6400LM / 7400L(Third level brightness adjustable)
IP rating	IP65		IP65
Product size	4 FT		4 FT

INSTALLATION STEPS

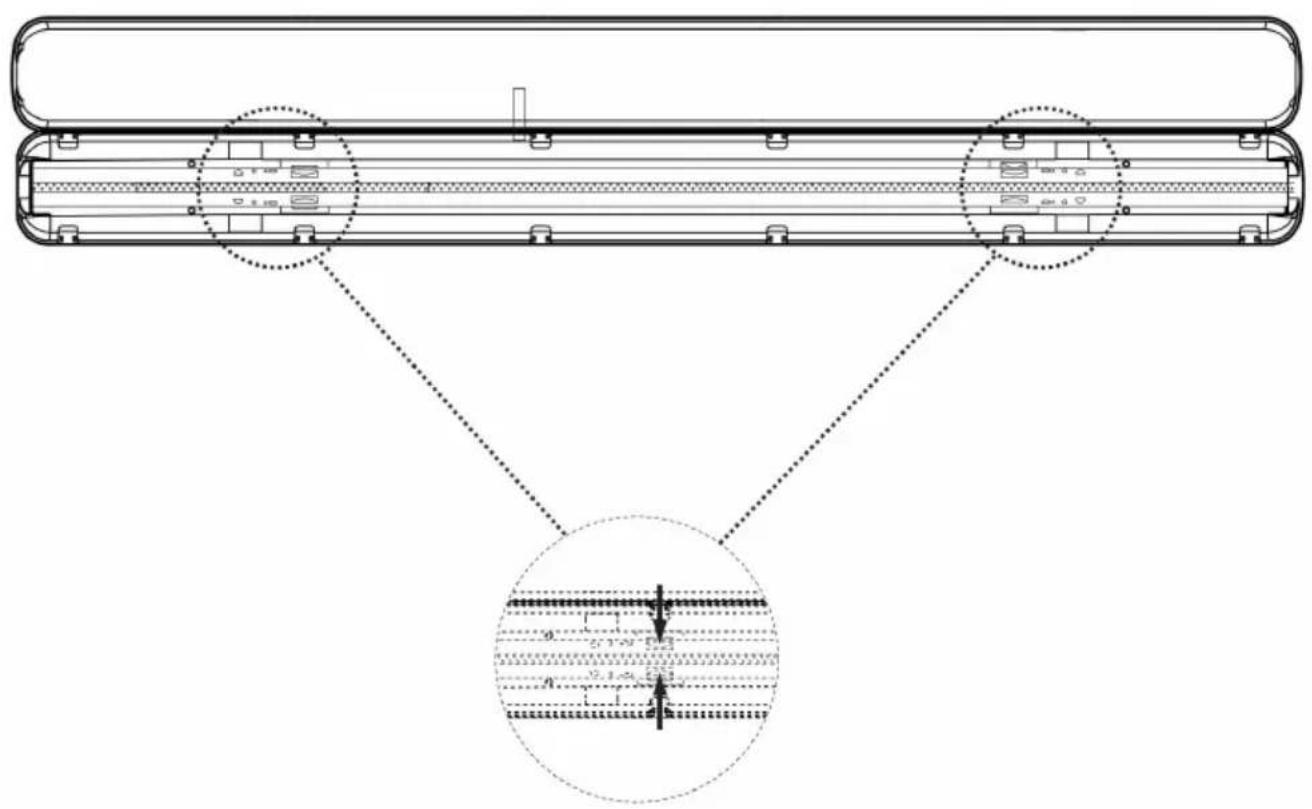

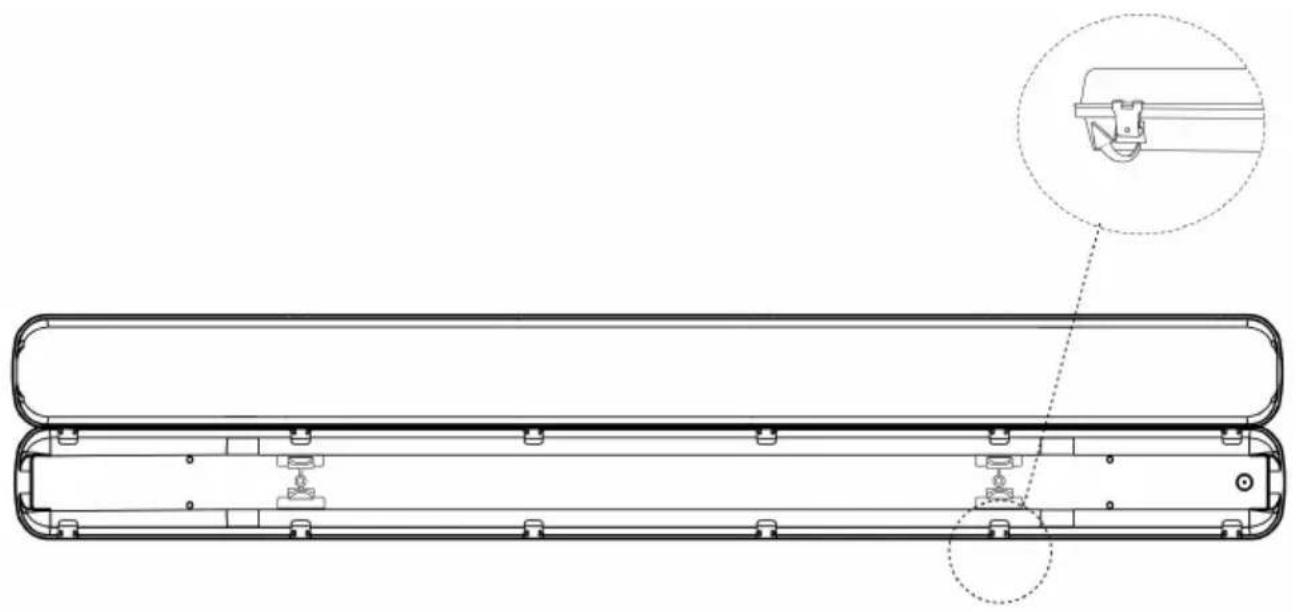

Technical line drawing of a rectangular electronic device with internal components and a close-up inset showing a mechanical component (no text or symbols)

1. Open all metal buckles and lift up the cover.

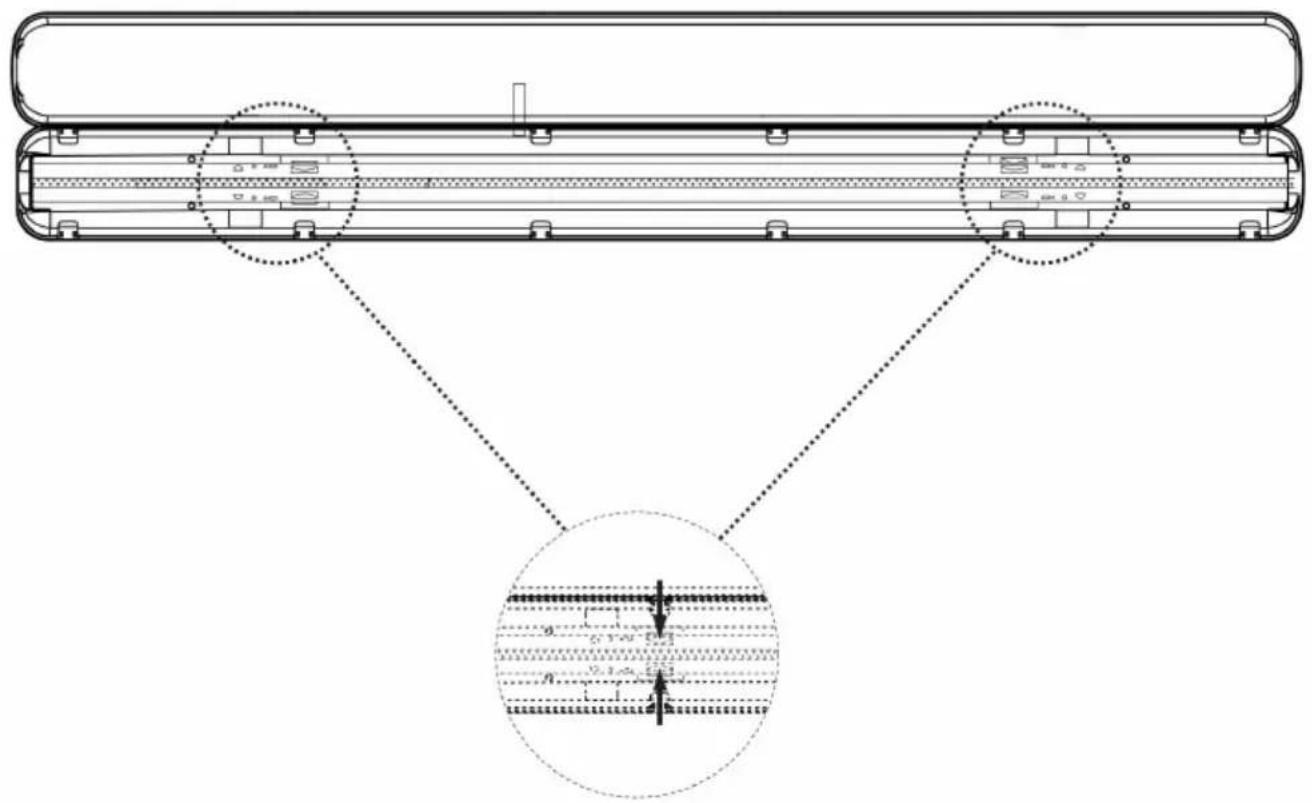

Technical diagram of a cylindrical device with internal components and a magnified cross-section showing measurement annotations.

1. find two plastic buckles, press and push them towa the middle to remove the light panel.

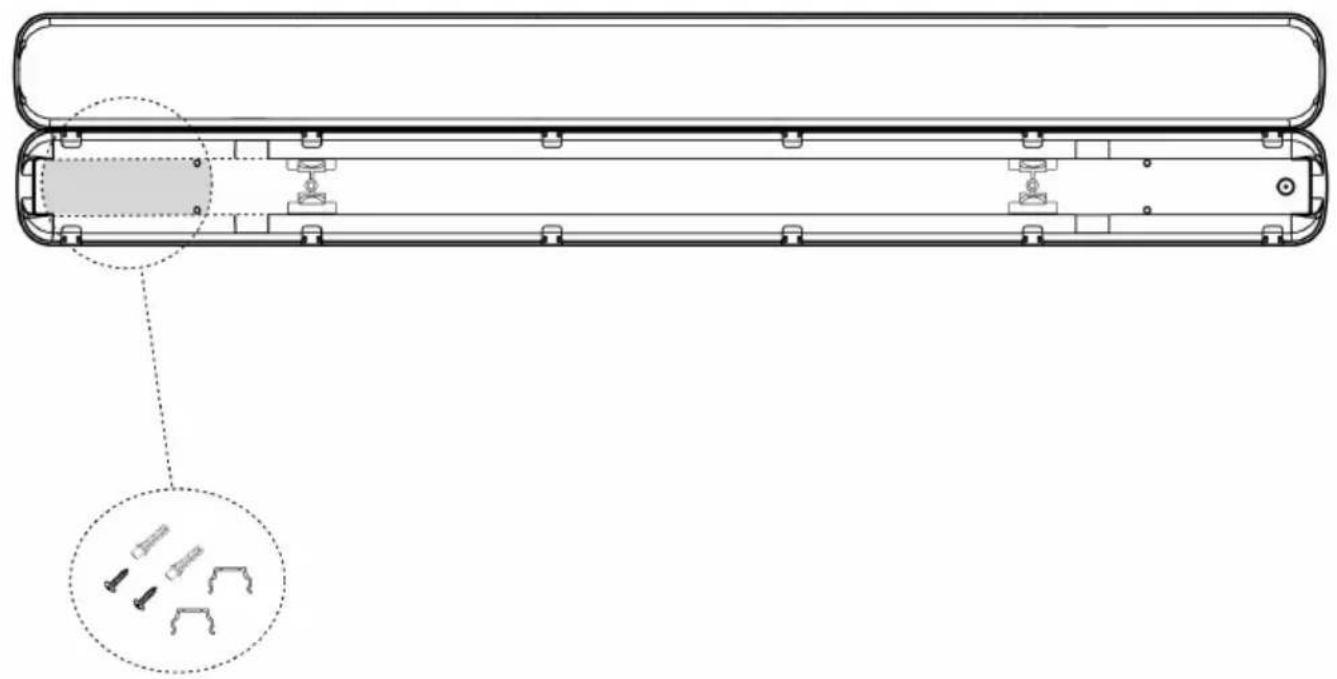

Technical line drawing of a rectangular electronic device with internal components and a magnified inset showing internal parts (no text or symbols)

1. The accessories are located at the bottom.

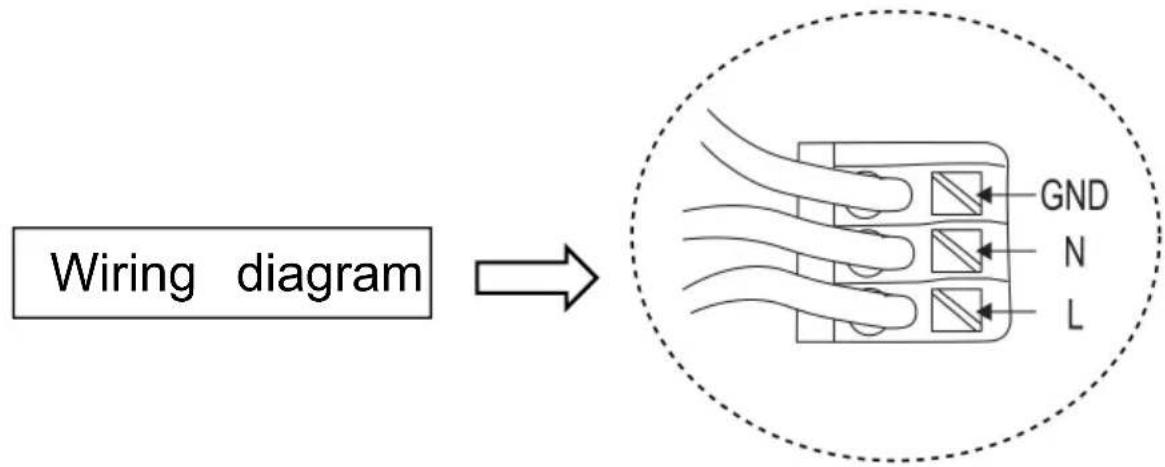


FCC STATEMENT

Any Changes or modifications not expressly approved by the partly responsible for compliance could void the user's authority to operate t equipment.

This device complies with part 15 of the FCC Rules.Operation is sub, the following two conditions:

(1)This device may not cause harmful interference,and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the for a Class B digital device, pursuant to part 15 of the FCC Rules. The limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used accordance with the instructions, may cause harmful interference to reduce communications. However, radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.

Connect the equipment to an outlet on a circuit different from that to the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth uncontrolled environment.

This transmitter must not be co located or operating in conjunction with other antenna or transmitter.

FAULT ANALYSIS

Questions	Analysis of causes	Countermeasure
The light is out	Power cord connection wrong.	Connect the power cord correctly.
The lights will not fit properly	Check whether mounting holes are correctly installed.	Drill and install the hole correctly according to the required dimensions.
The lights are dim.	Whether the voltage is correct.	Use the right power source.

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730
