This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the instant garage.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded instant garage.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

PARTS LIST

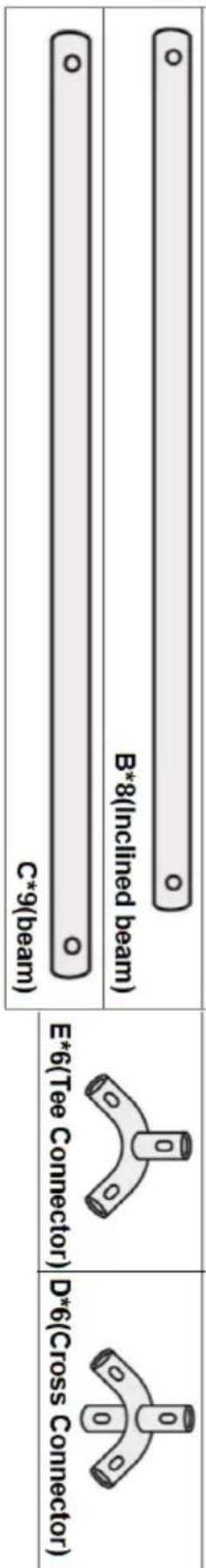

A1*4 (Column)
A2*4 (Column)
B*8 (Inclined beam)
C*9 (Beam)
D*6 (Cross Connector)	E*6 (Tee Connector)
F*40(Bouncy Ball)	G*1 (Tarpaulin)
H*12 (Rope nail)	I*12 (Rope)
J*16 (Ground nails)	K*16 (Expansion screws)

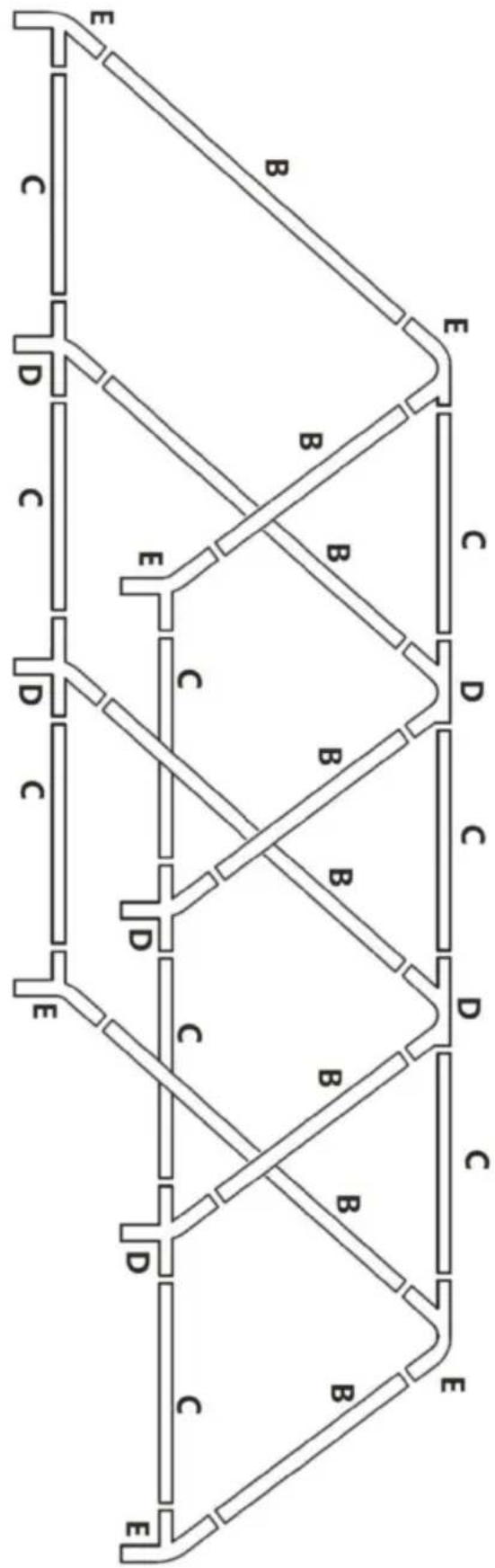

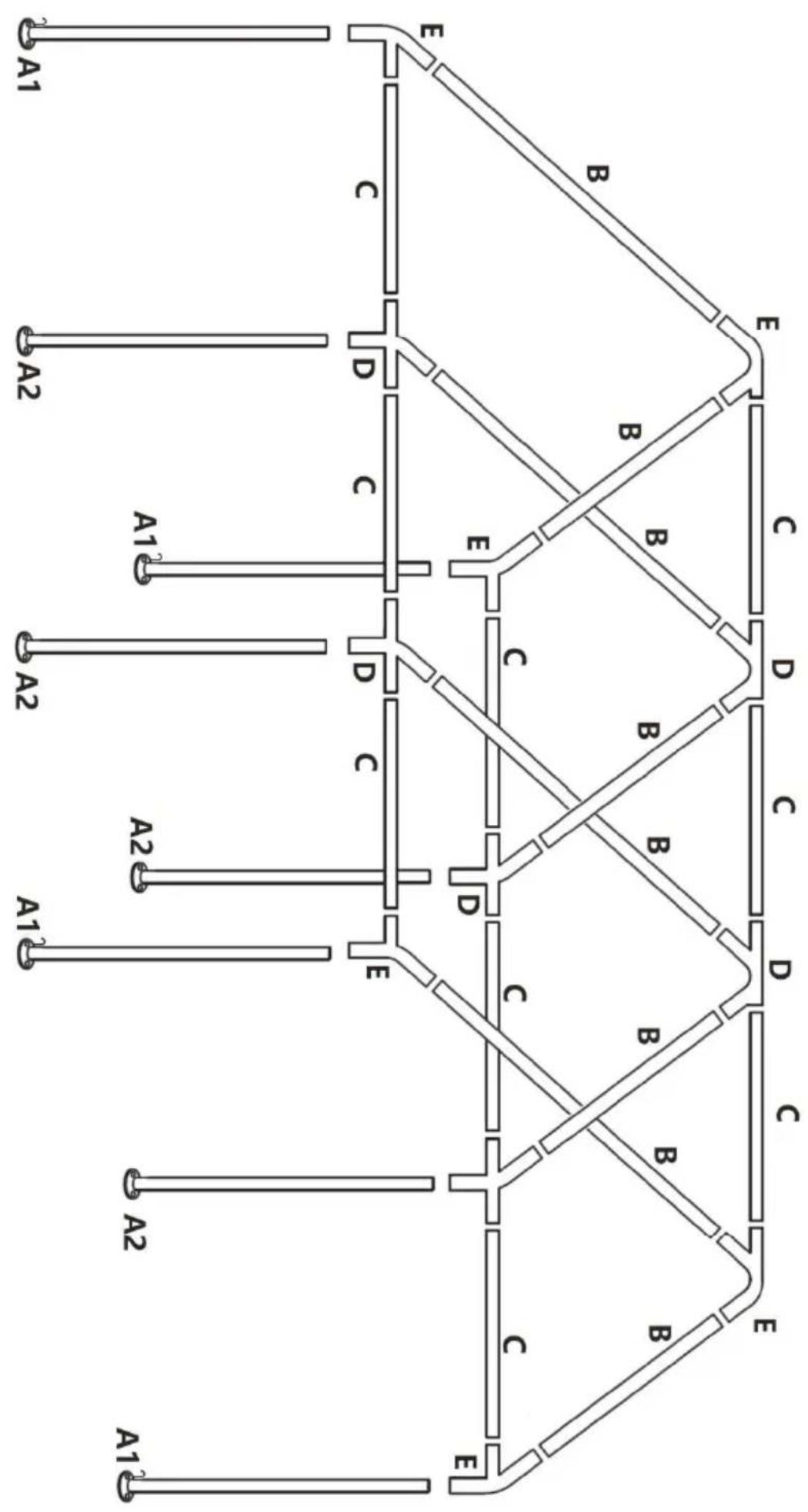

E C D C D C E B B B B B B B E C D C D C C E E C D C D C E A1' A2' A2' A1' A1' A2'

Install the top bevel.

C D C D C E B B B B C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C E

C*9(beam) C*6(Cross Connector) D*6(Tree Connector) E*6 B*8(incinded beam) B*8(incinded beam)

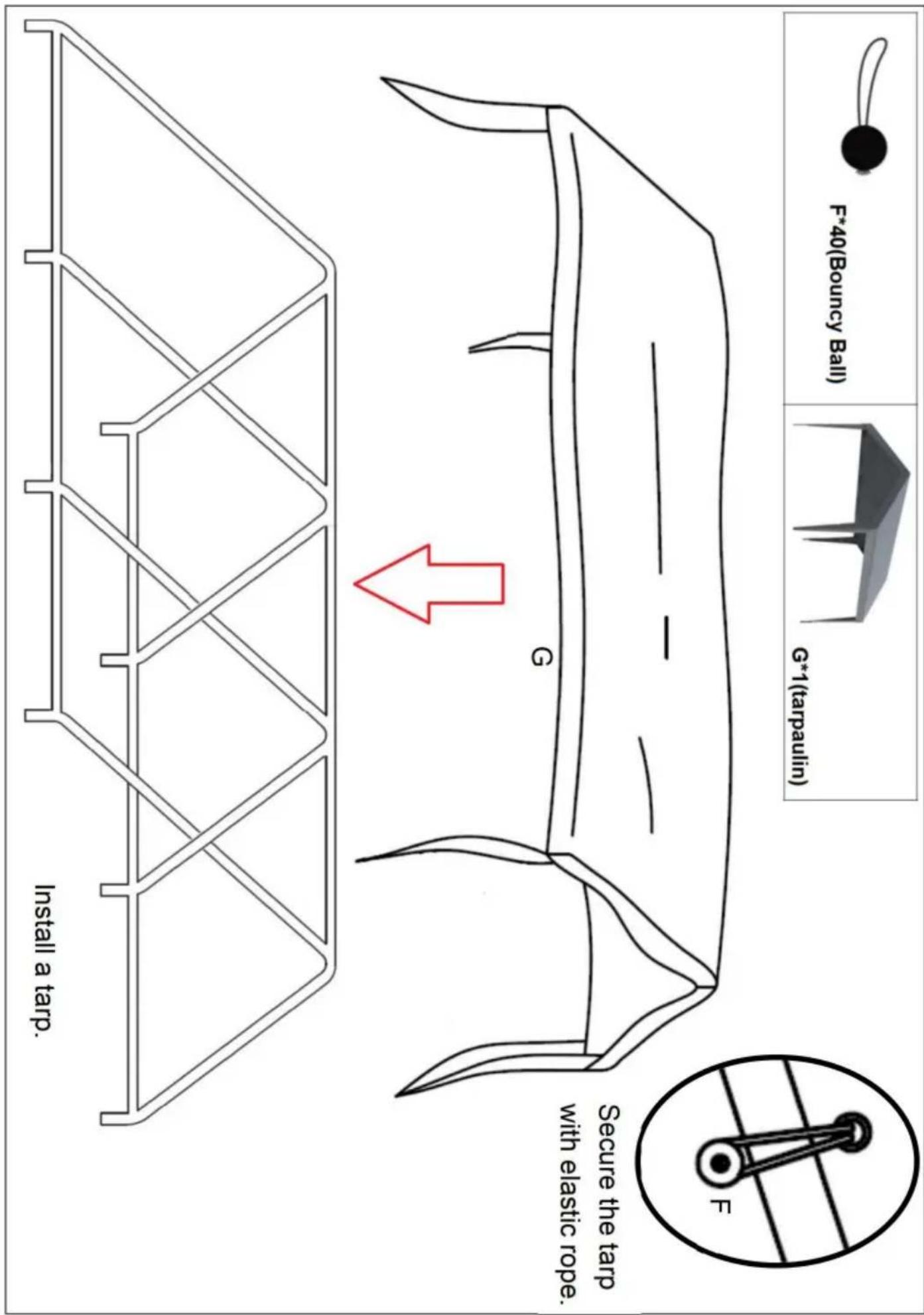

F*40(Bouncy Ball) G*1(tarpaulin) G Secure the tarp with elastic rope. Install a tarp.

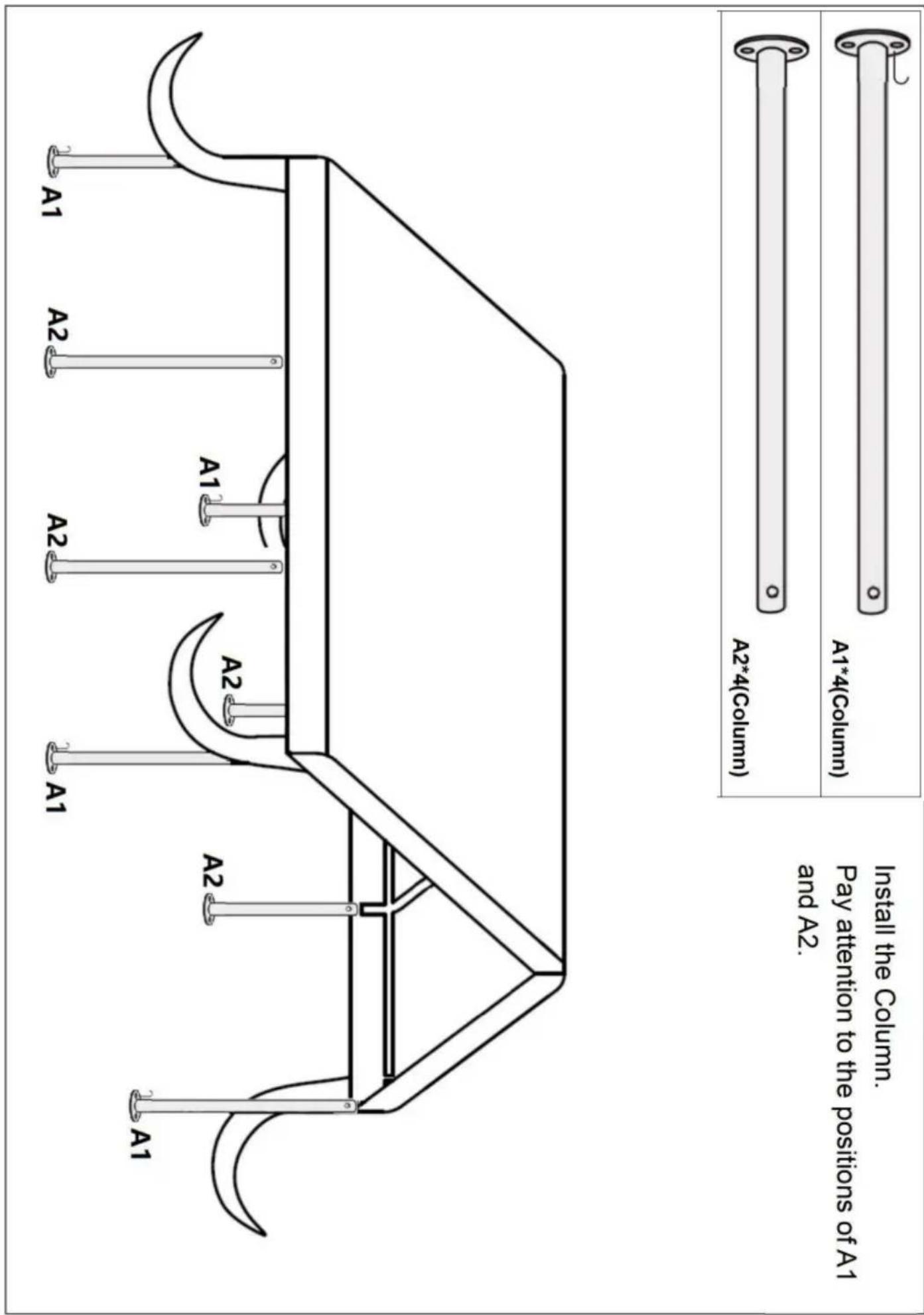

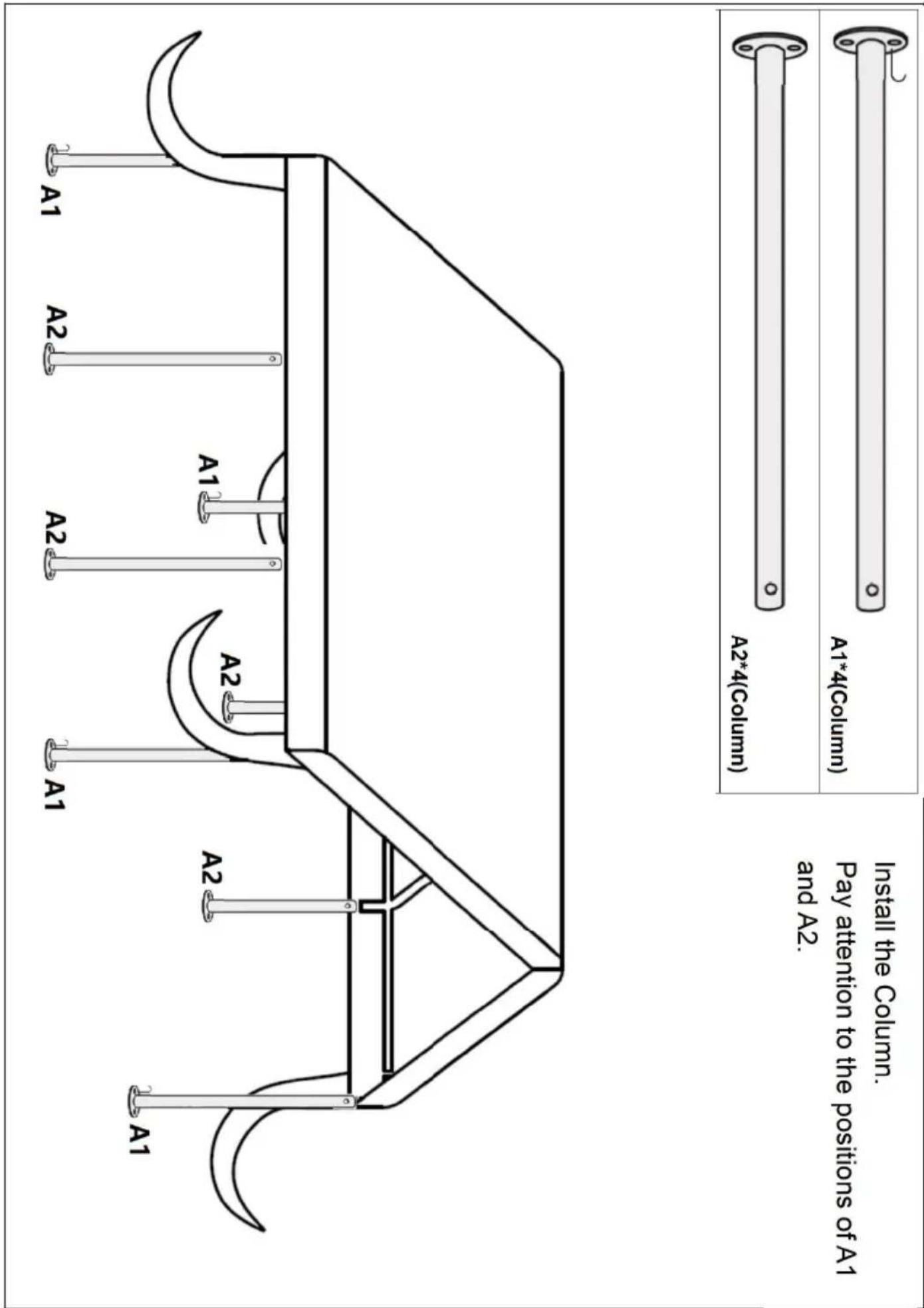

A1*4(Column) A2*4(Column) Install the Column. Pay attention to the positions of A1 and A2.

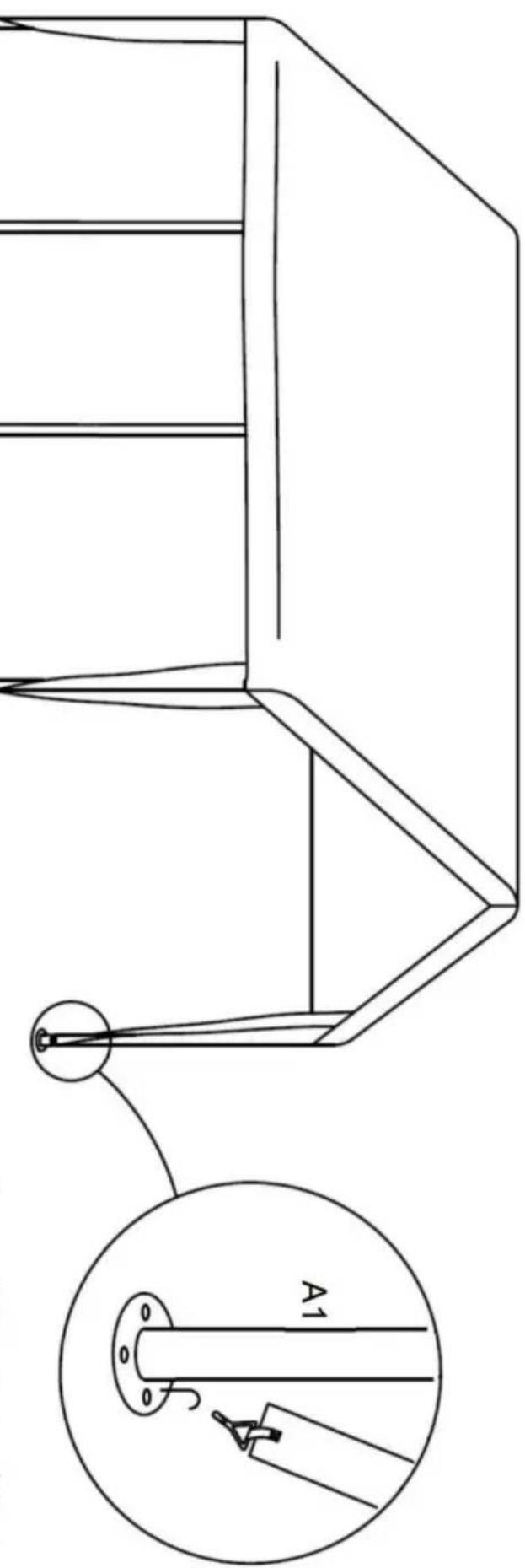

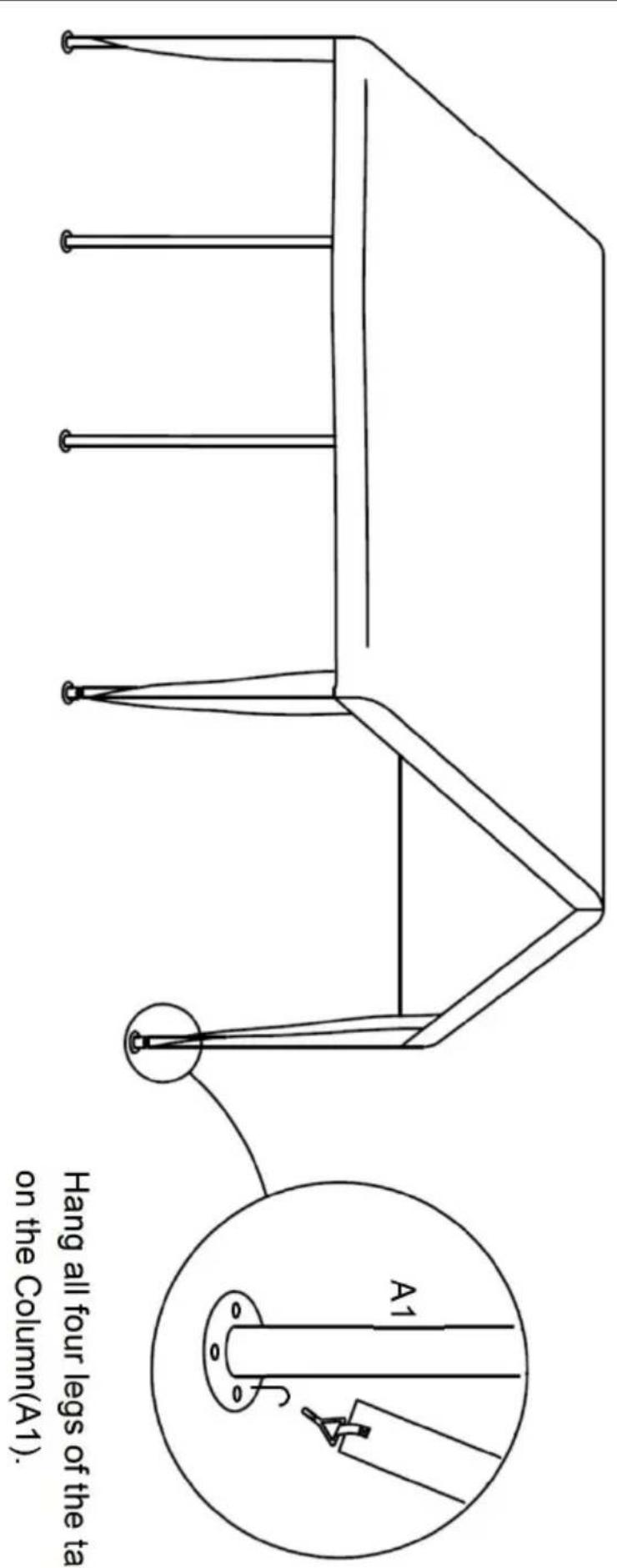

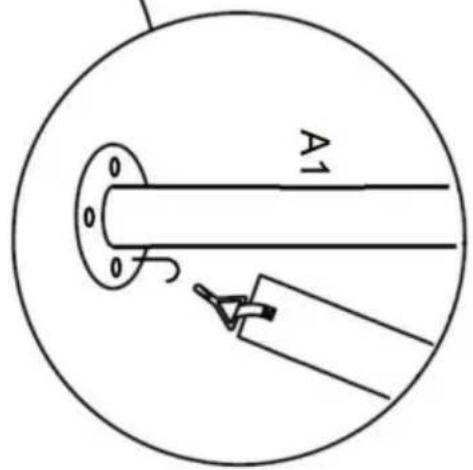

Hanging all four legs of the ta on the Column(A1).

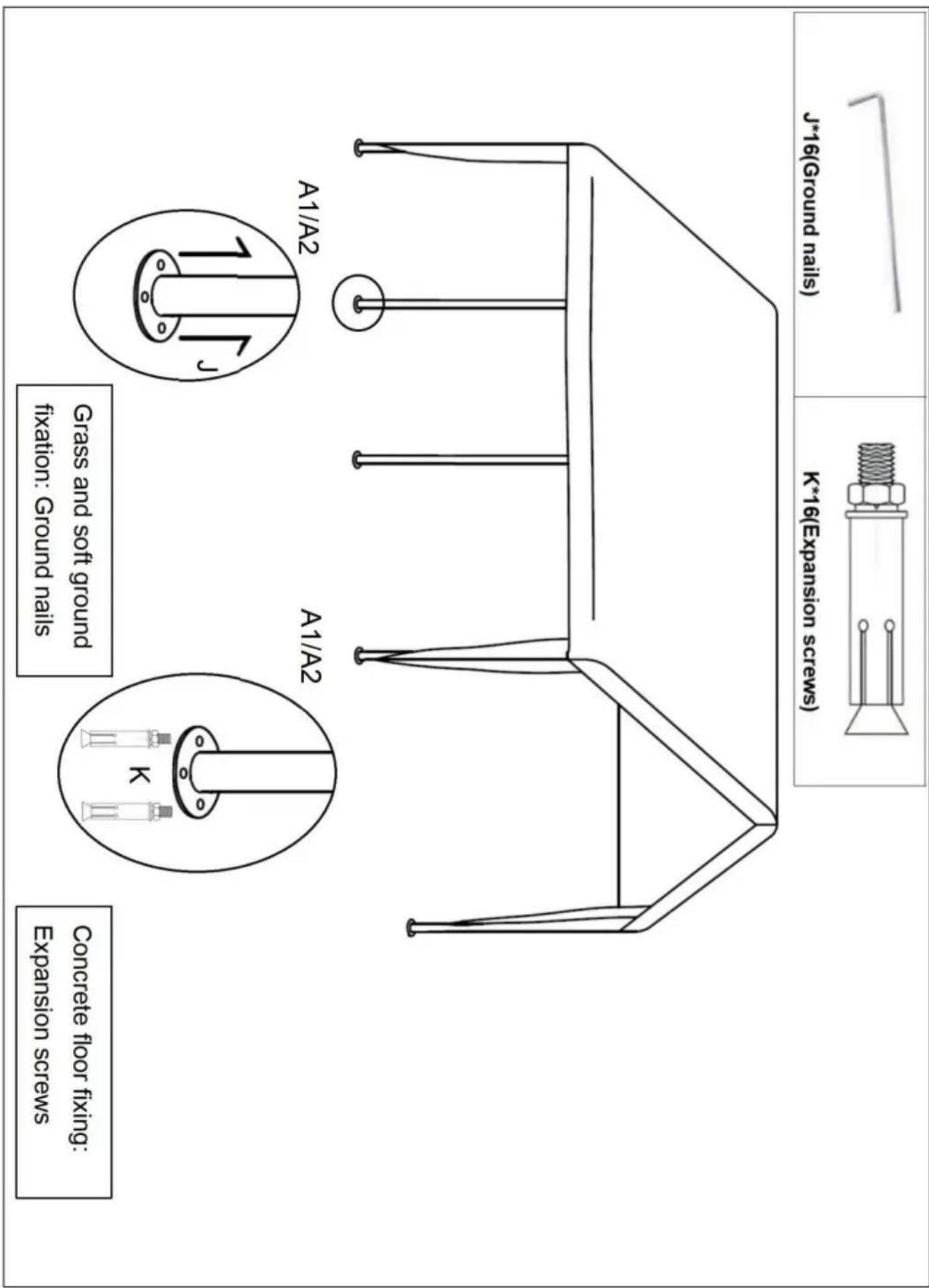

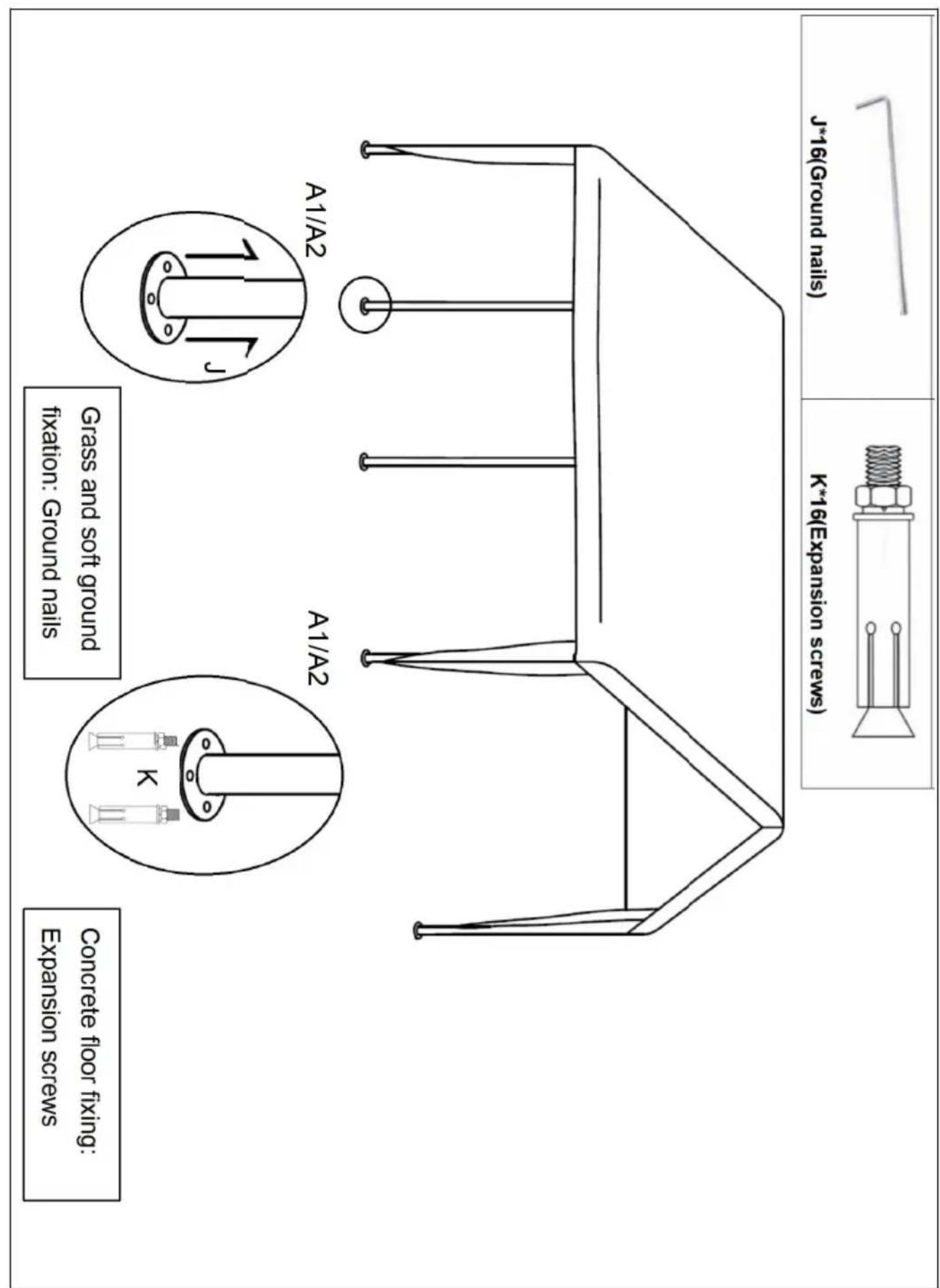

J*16(Ground nails) K*16(Expansion screws) A1/A2 A1/A2 Grass and soft ground fixation: Ground nails Concrete floor fixing: Expansion screws

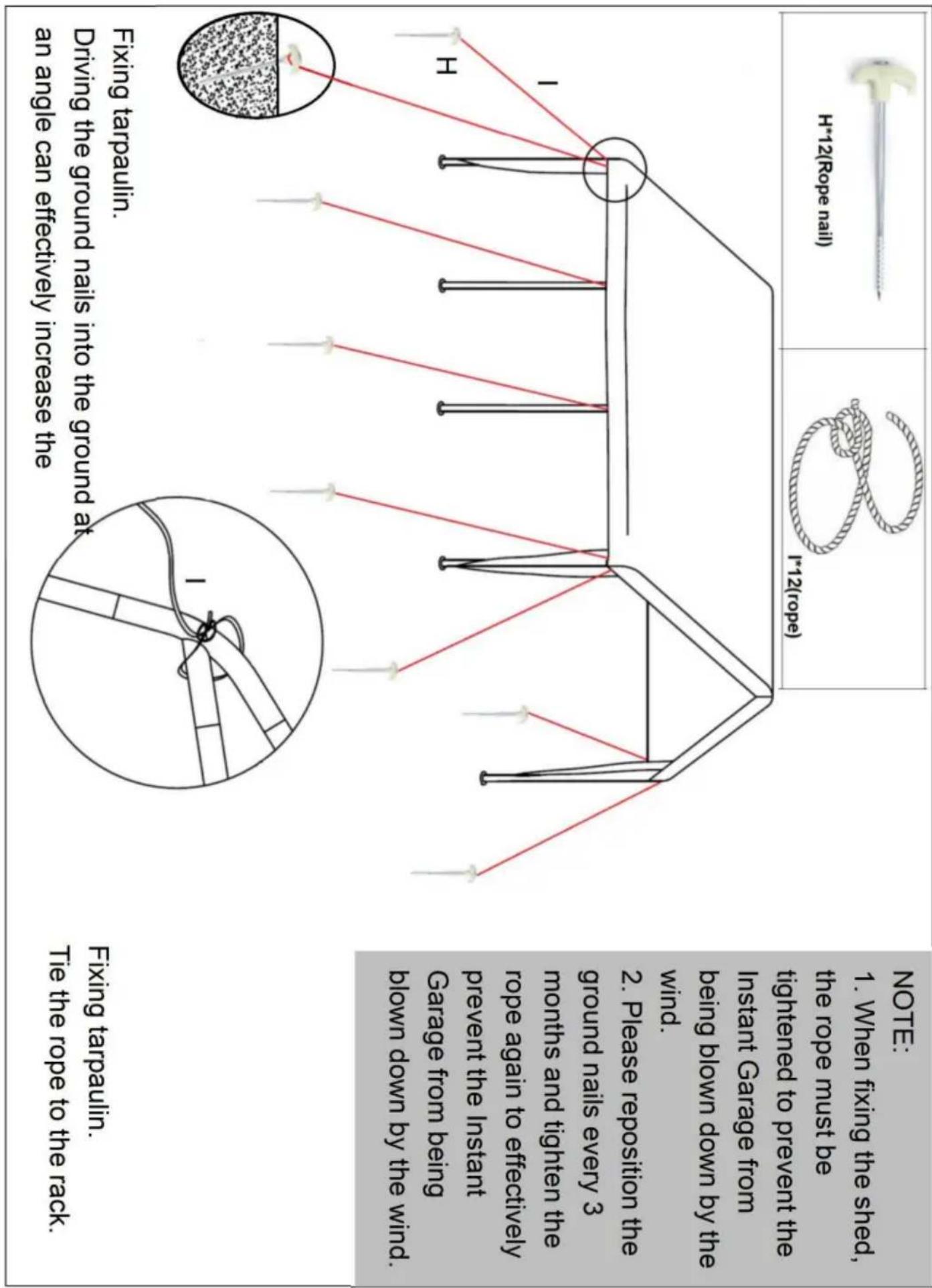

H*12(Rope nail) I*12(rope) I H Fixing tarpaulin. Driving the ground nails into the ground at an angle can effectively increase the NOTE: 1. When fixing the shed, the rope must be tightened to prevent the Instant Garage from being blown down by the wind. 2. Please reposition the ground nails every 3 months and tighten the rope again to effectively prevent the Instant Garage from being blown down by the wind. Fixing tarpaulin. Tie the rope to the rack.

PRODUCT PARAMETER

Model	SXYJSCK-KFS1020FT-W
Colour	Metal frame: Silver;Tarpaulin: White
Product Size	10x20x9.2ft3.05*6.09*2.87m

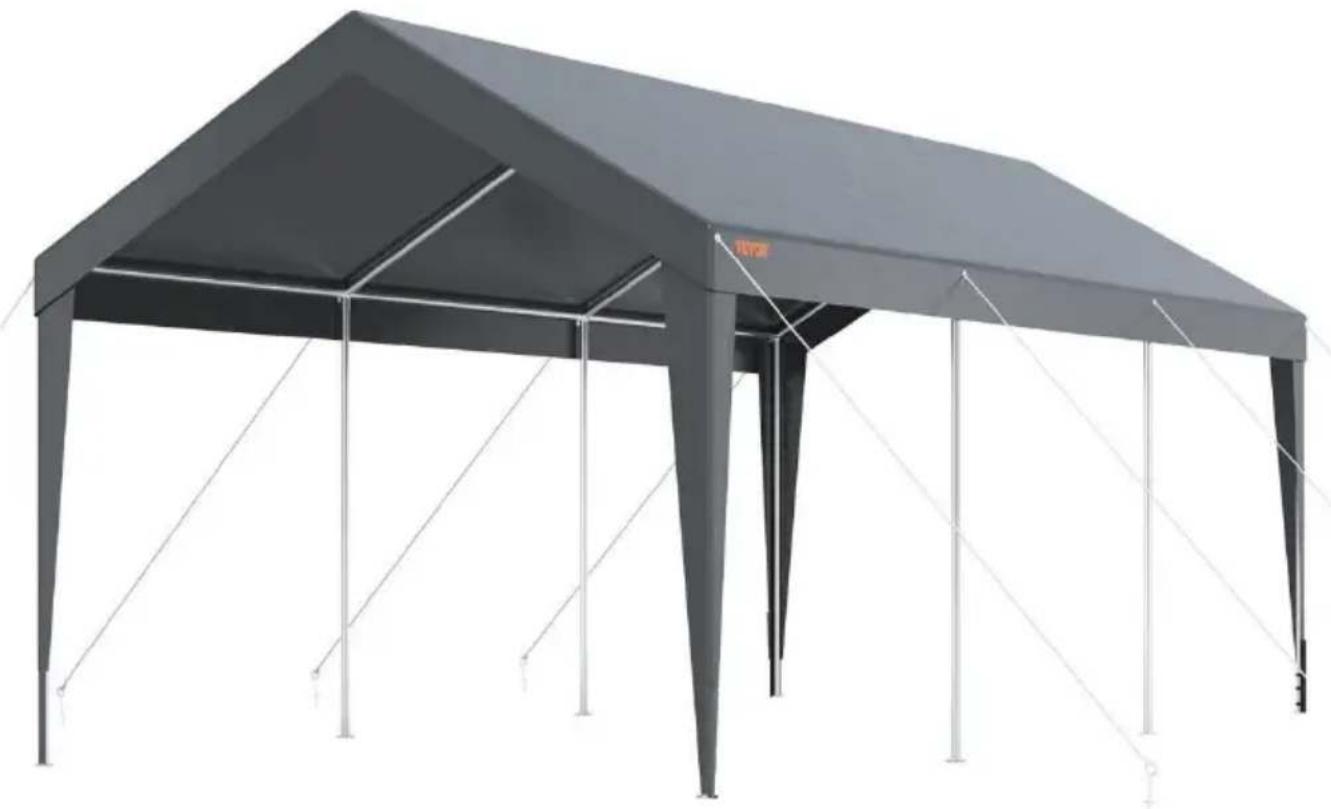

Model	SXYJSCK-KFS1020FT-G
Colour	Metal frame: Silver;Tarpaulin: Grey
Product Size	10x20x9.2ft3.05*6.09*2.87m

The roof is made of cloth and has a limit load-bearing capacity. When it snows, store tarpaulin to prevent it from collapsing from being crushed by the snow.
