SXYJSCK-FBS12X20FT-W - Garage shelter Vevor - Free user manual and instructions

Product Type	Instant garage shelter with side panels and doors
Brand	Vevor
Model	SXYJSCK-FBS12X20FT-W
Dimensions (L x W x H)	12 x 20 x 9.9 ft (3.65 x 6.09 x 3.02 m)
Tarp color	White
Frame color	Silver
Frame material	Metal (steel)
Tarp material	Waterproof fabric
Floor area	Approximately 22.2 m²
Height under roof	3.02 m (9.9 ft)
Product weight (estimated)	Approximately 60 kg
Assembly required	Yes, user assembly according to instructions
Usage recommendations	Flat, hard, and level surface; remove tarp in case of heavy snow
Maintenance	Clean tarp with a damp cloth; avoid snow accumulation
Safety precautions	Safety goggles and gloves; do not sit or stand on the structure
Warranty	Electronic warranty via www.vevor.com/support

Frequently Asked Questions - SXYJSCK-FBS12X20FT-W Vevor

How to assemble the Vevor garage shelter?

Follow the instructions provided in the manual. Wear safety goggles and gloves. Assemble on a flat, hard surface. Refer to the assembly diagram to identify parts (columns, beams, trusses).

What is the maximum load capacity?

The manual does not specify an exact load capacity. However, it is not recommended to exceed standard limits. The canvas roof has a limited capacity; in case of snow, remove the tarp to prevent collapse.

Is the shelter snow-resistant?

The tarp is not designed to support heavy snow loads. It is recommended to remove the tarp in case of heavy snowfall to prevent the structure from collapsing.

How to clean the tarp?

Clean the tarp with a damp cloth and a mild detergent. Do not use abrasive products. Make sure the tarp is completely dry before storing.

Can the shelter be used year-round?

The shelter is designed for temporary use. It is not recommended to leave it exposed to extreme weather such as storms or heavy snowfall. Store it in a dry place when not in use.

What tools are needed for assembly?

The manual does not list the tools precisely, but it is recommended to have safety goggles, work gloves, and probably a wrench or screwdriver depending on the fasteners provided.

Can the shelter be anchored to the ground?

The manual does not mention specific anchoring, but for better stability, it is advisable to use anchor straps or stakes suitable for the terrain.

What to do if parts are missing?

Check the parts list in the manual. If a part is missing, contact technical support via www.vevor.com/support to get a replacement part.

How to store the shelter when not in use?

Disassemble the structure properly, clean the tarp and let it dry completely. Store all parts in a dry place away from moisture to prevent rust.

Are there important safety precautions?

Yes: do not stand or sit on the shelter, do not exceed weight limits, inspect before each use, and keep children away during assembly or use.

USER MANUAL SXYJSCK-FBS12X20FT-W Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

INSTANT GARAGE WITH SIDEWALLS&DOORS

USER MANUAL

MODEL:SXYJSCK-FBS10X20FT-W /SXYJSCK-FBS10X20FT-G / SXYJSCK-FBS12X20FT-W /SXYJSCK-FBS12X20FT-G

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

INSTANT GARAGE

WITH SIDEWALLS & DOOR

MODEL:SXYJSCK-FBS10X20FT-W /SXYJSCK-FBS10X20FT-G

/ SXYJSCK-FBS12X20FT-W /SXYJSCK-FBS12X20FT-G

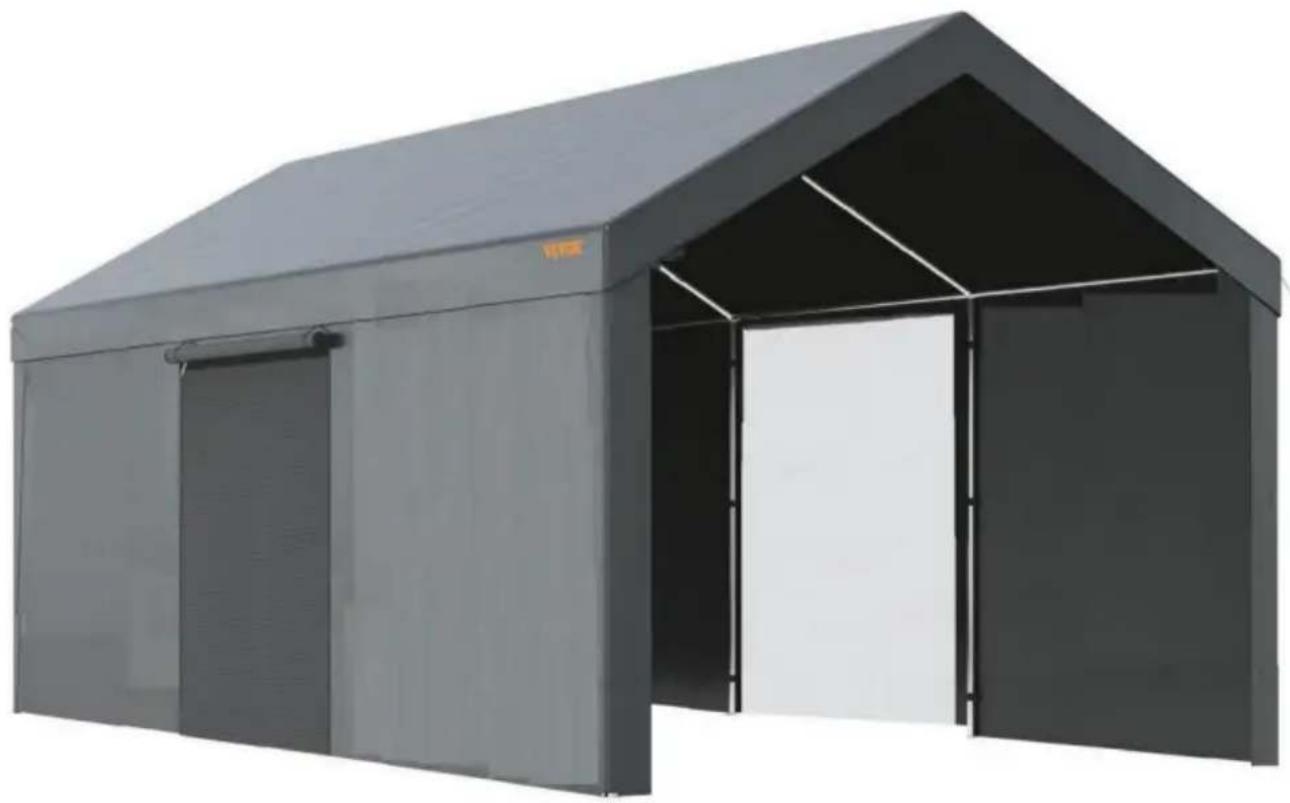

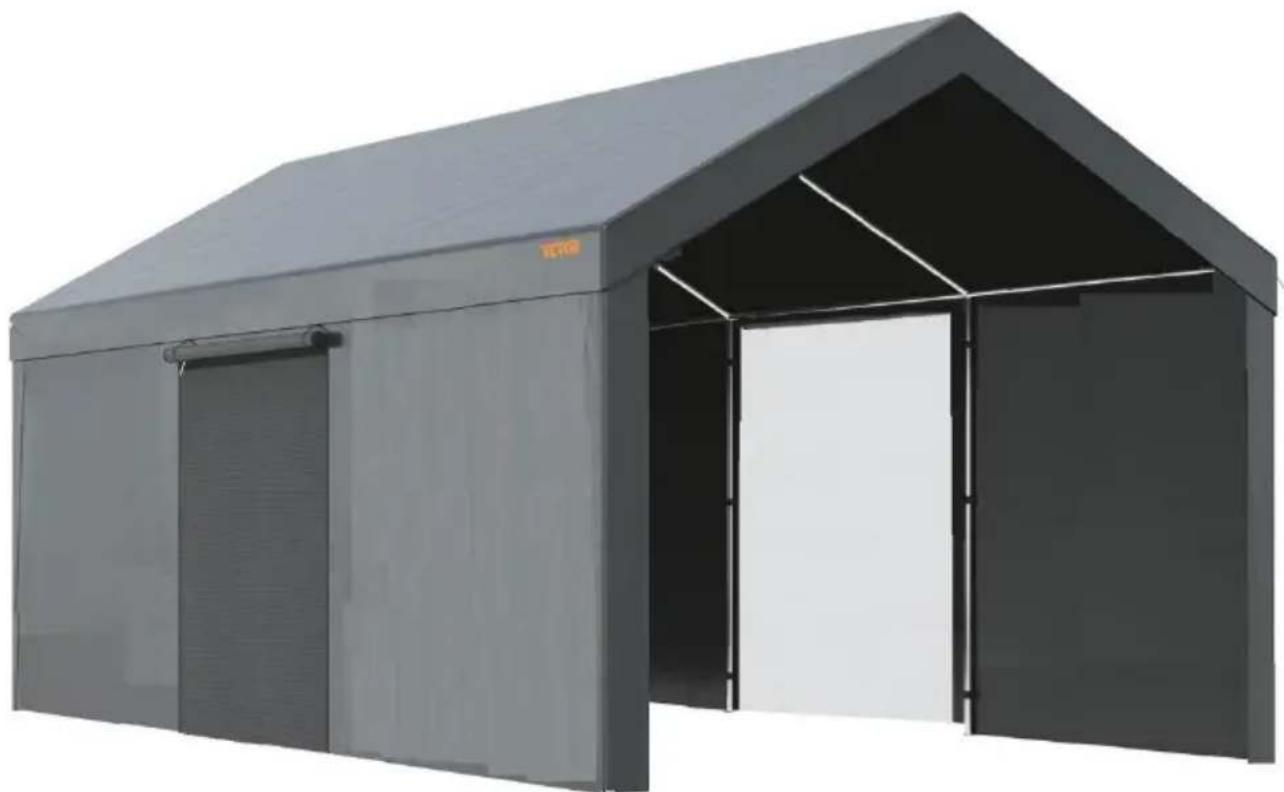

Exterior view of a modern gray industrial structure with triangular roof and open door (no signage or text)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the instant garage.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded instant garage.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

PARTS LIST

A1*4 (Column)
A2*4 (Column)
B*8 (Inclined beam)
C*9 (Beam)
D*6 (Cross Connector)	E*6 (Tee Connector)
F*60 (Bouncy Ball)	G1*1/G2*2/G3*1 (Tarpaulin) (4 pieces combined into a set tarpau)
H*12 (Rope nail)	I*12 (Rope)
J*16 (Ground nails)	K*16 (Expansion screws)

Install the top bevel.

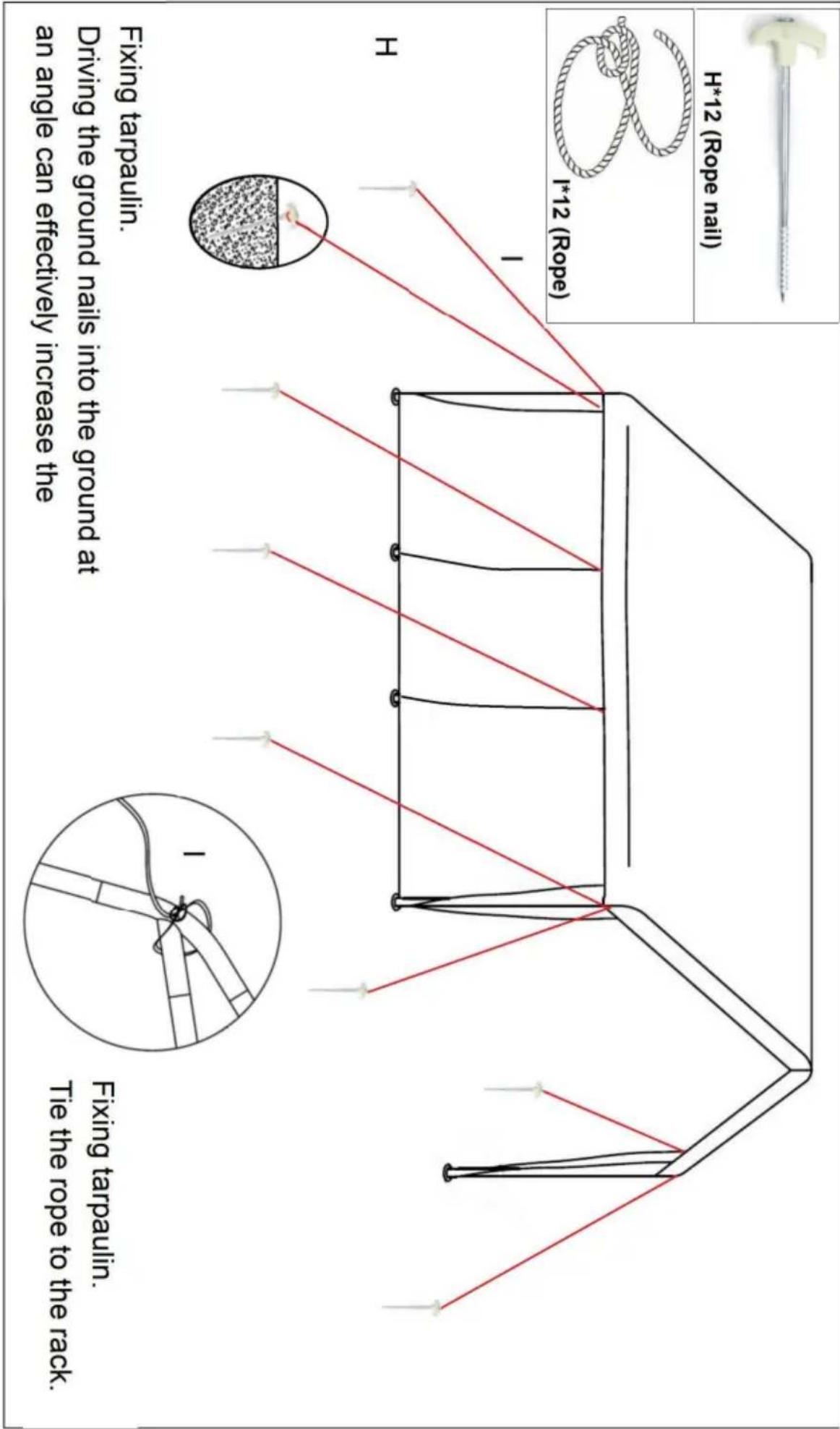

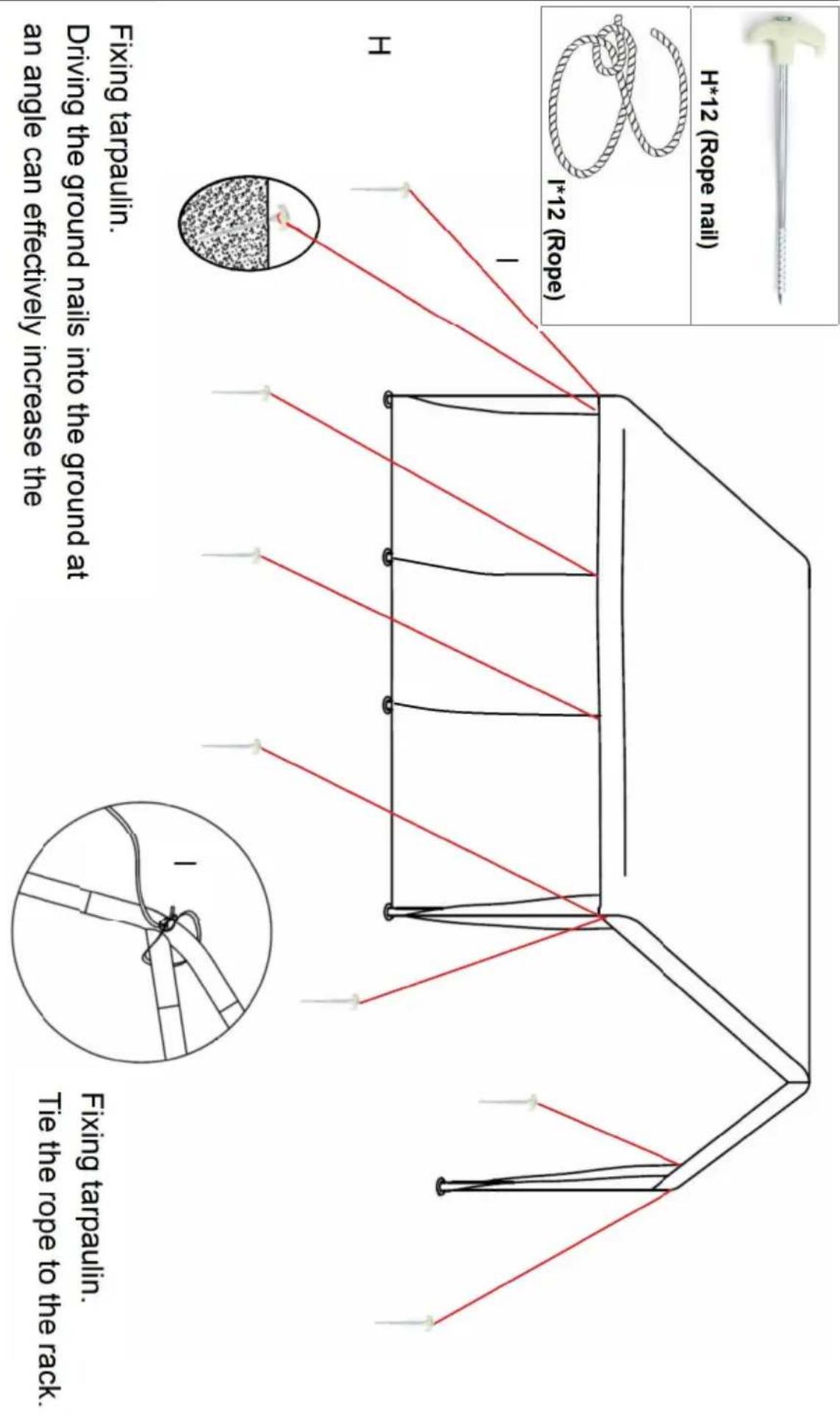

with elastic rope.

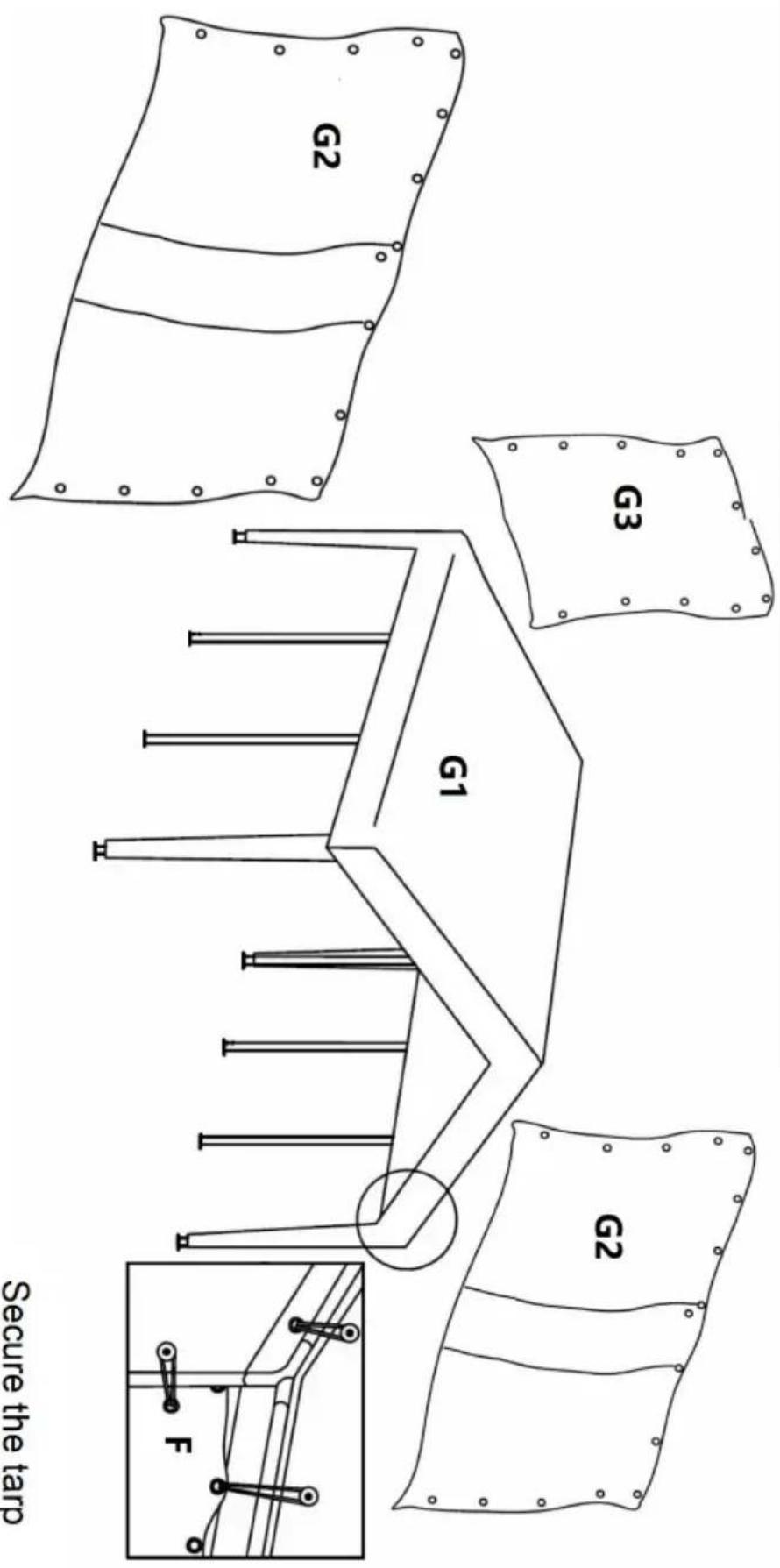

Secure the tarp

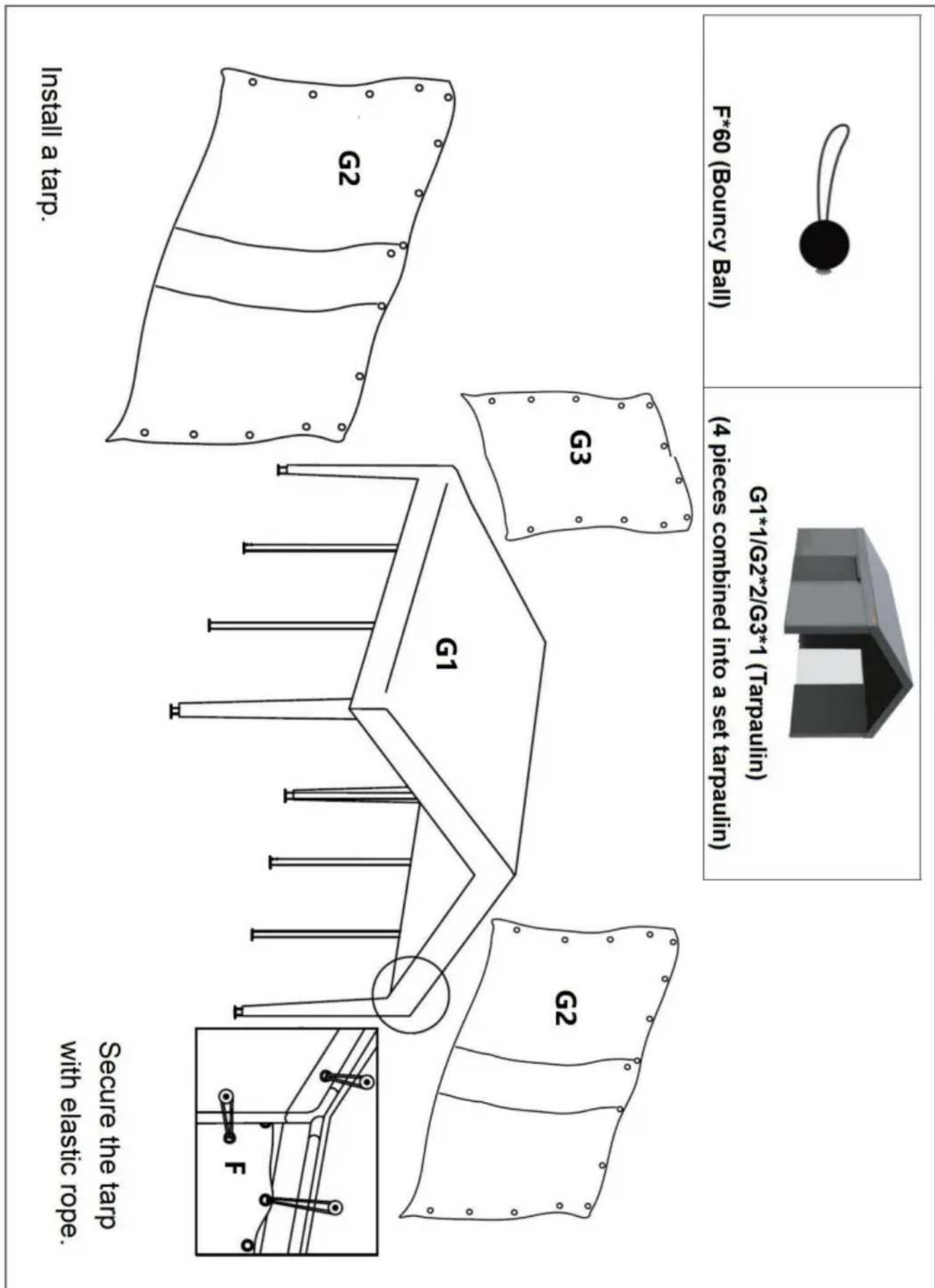

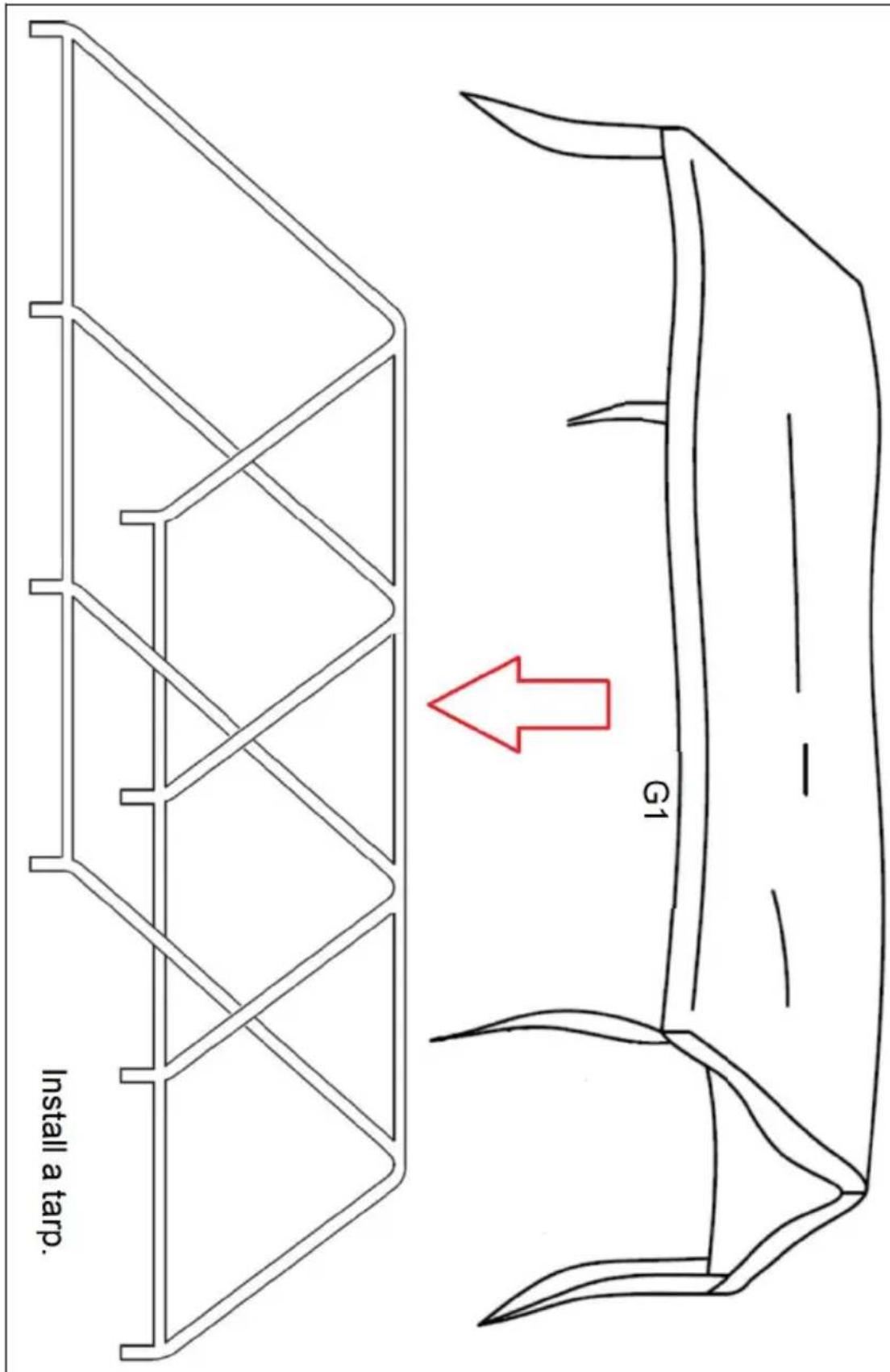

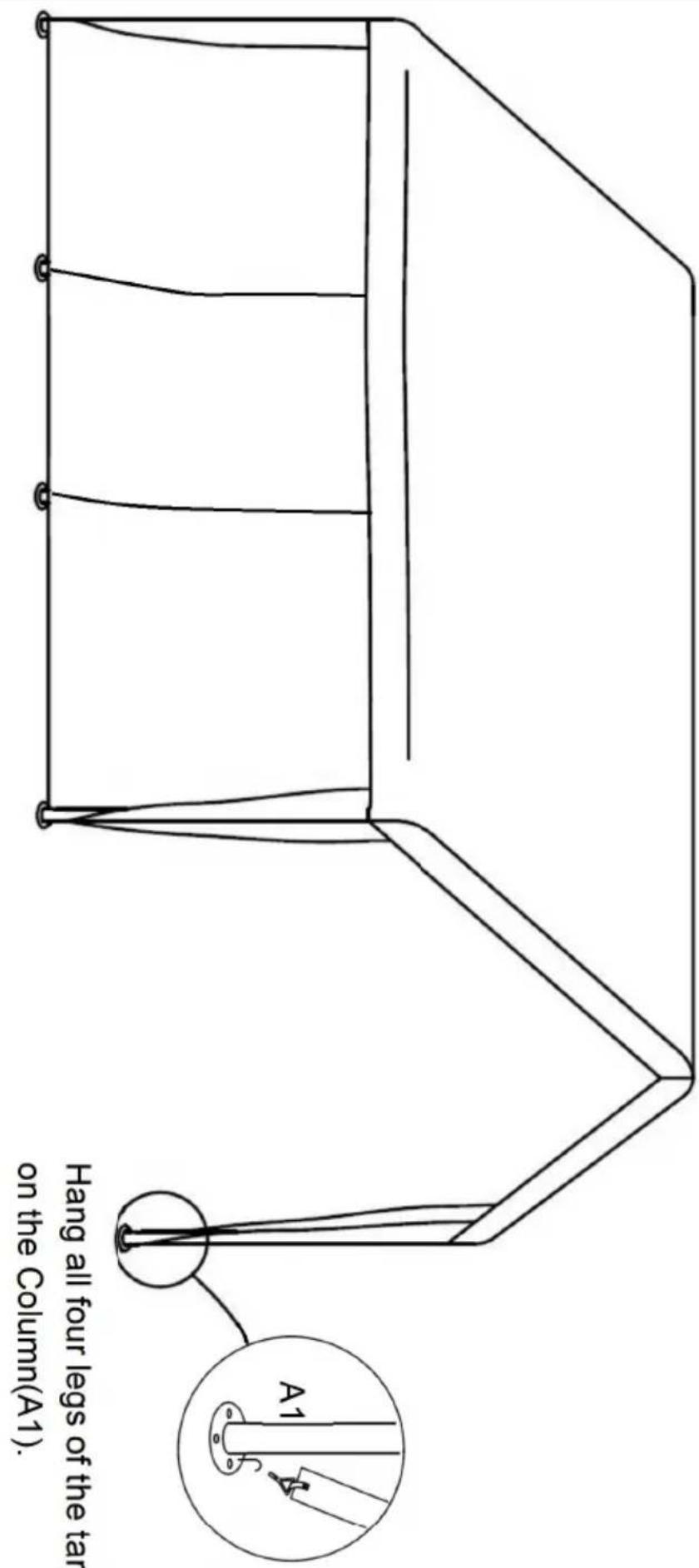

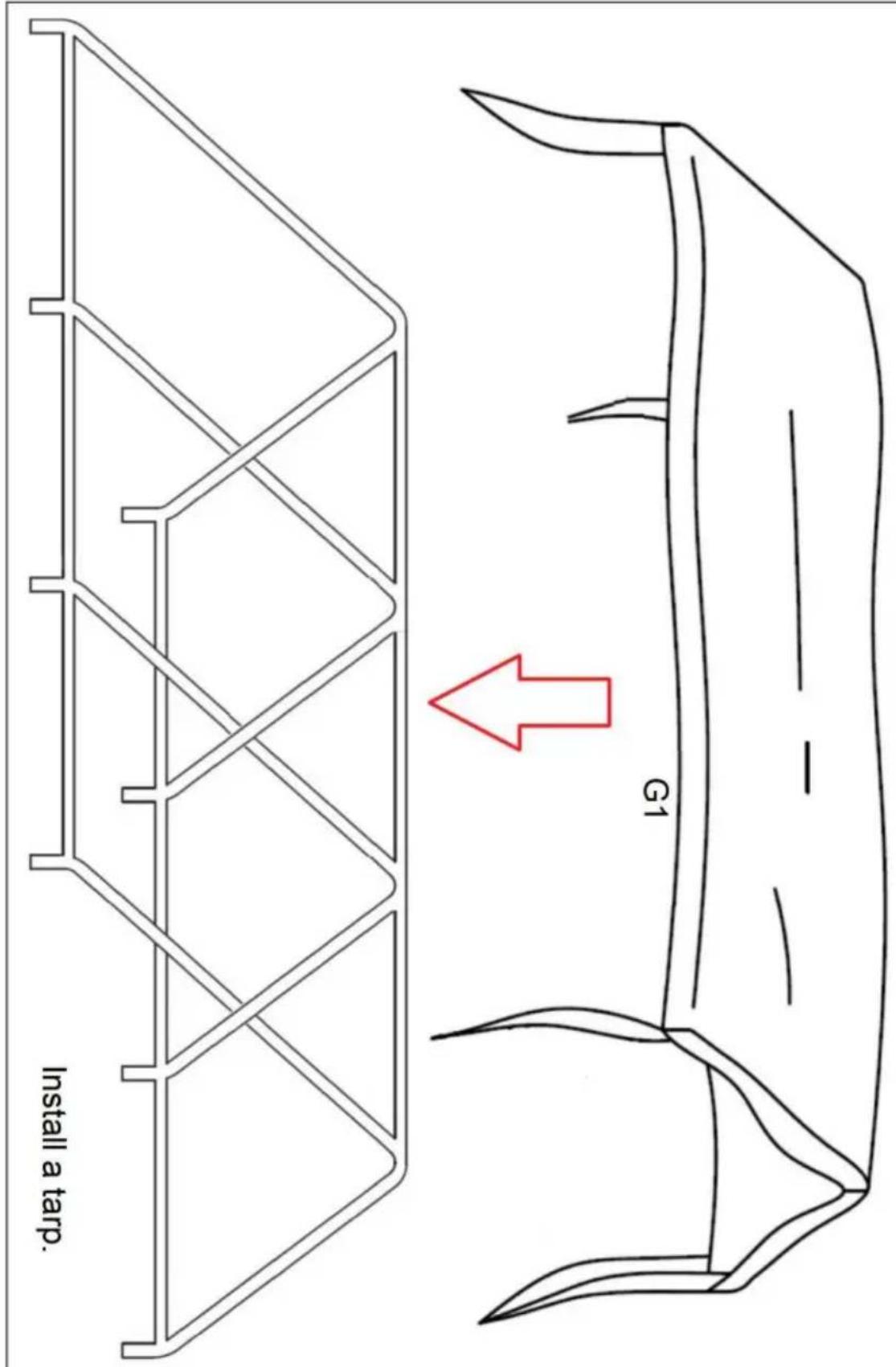

install a tarp.

F*60 (Bouncy Ball)

(4 pieces combined into a set tarpaulin)
G1*1/G2*2/G3*1 (Tarpaulin)

3D geometric shape resembling a folded corner or bracket with shaded surfaces (no text or symbols)

NOTE:1. When fixing the shed, the rope must be tightened to prevent the instant Garage from being blown down by the wind. 2. Please reposition the ground nails every 3 months and tighten the rope again to effectively prevent the instant Garage from being blown down by the wind.

PRODUCT PARAMETER

Model	SXYJSCK-FBS10X20FT-W
Colour	Metal frame: Silver;Tarpaulin: White
Product Size	10x20x9.2ft3.05*6.09*2.87m
Model	SXYJSCK-FBS10X20FT-G
Colour	Metal frame: Silver;Tarpaulin: Grey
Product Size	10x20x9.2ft3.05*6.09*2.87m
Model	SXYJSCK-FBS10X20FT-W
Colour	Metal frame: Silver;Tarpaulin: White
Product Size	12x20x9.9ft3.65*6.09*3.02m
Model	SXYJSCK-FBS10X20FT-G
Colour	Metal frame: Silver;Tarpaulin: Grey
Product Size	12x20x9.9ft3.65*6.09*3.02m

The roof is made of cloth and has a limited load-bearin capacity. When it snows, store the tarpaulin to prevent collapsing from being crushed by the snow.

Manufacturer:Shanghaimuxinmuyeyouxiangongsi

Address:Shuangchenglu803nong11hao1602A-1609shi,baoshanqu,shanghai200000CN.

ECREP:E-CrossStuGmbH.

MainzerLandstr.69,60329FrankfurtamMain.

UKREP: YHCONSULTINGLIMITED.

C/OYHConsultingLimitedOffice147, CenturionHouse, LondonRoad,

Staines-upon-Thames, Surrey, TW184AX

ImportedtoAUS:SIHAOPTYLTD.

1ROKEVASTREETEASTWOODNSW2122Australia

ImportedtoUSA:SanvenTechnologyLtd.

Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

INSTANT GARAGE WITH SIDEWALLS&DOORS

USER MANUAL

MODEL:SXYJSCK-FBS10X20FT-W /SXYJSCK-FBS10X20FT-G / SXYJSCK-FBS12X20FT-W /SXYJSCK-FBS12X20FT-G

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

INSTANT GARAGE

WITH SIDEWALLS & DOOR

MODEL:SXYJSCK-FBS10X20FT-W /SXYJSCK-FBS10X20FT-G

/ SXYJSCK-FBS12X20FT-W /SXYJSCK-FBS12X20FT-G

Exterior view of a modern gray industrial structure with triangular roof and open door (no signage or text)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the instant garage.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded instant garage.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

PARTS LIST

A1*4 (Column)
A2*4 (Column)
B*8 (Inclined beam)
C*9 (Beam)
D*6 (Cross Connector)	E*6 (Tee Connector)
F*60 (Bouncy Ball)	G1*1/G2*2/G3*1 (Tarpaulin) (4 pieces combined into a set tarpau)
H*12 (Rope nail)	I*12 (Rope)
J*16 (Ground nails)	K*16 (Expansion screws)

Install the top bevel.

with elastic rope.
Secure the tarp
install a tarp.

F*60 (Bouncy Ball)

(4 pieces combined into a set tarpaulin)
G1*1/G2*2/G3*1 (Tarpaulin)

3D geometric shape resembling a folded corner or bracket with shaded surfaces (no text or symbols)

NOTE:1. When fixing the shed, the rope must be tightened to prevent the instant Garage from being blown down by the wind. 2. Please reposition the ground nails every 3 months and tighten the rope again to effectively prevent the instant Garage from being blown down by the wind.

PRODUCT PARAMETER

Model	SXYJSCK-FBS10X20FT-W
Colour	Metal frame: Silver;Tarpaulin: White
Product Size	10x20x9.2ft3.05*6.09*2.87m
Model	SXYJSCK-FBS10X20FT-G
Colour	Metal frame: Silver;Tarpaulin: Grey
Product Size	10x20x9.2ft3.05*6.09*2.87m
Model	SXYJSCK-FBS10X20FT-W
Colour	Metal frame: Silver;Tarpaulin: White
Product Size	12x20x9.9ft3.65*6.09*3.02m
Model	SXYJSCK-FBS10X20FT-G
Colour	Metal frame: Silver;Tarpaulin: Grey
Product Size	12x20x9.9ft3.65*6.09*3.02m

The roof is made of cloth and has a limited load-bearin capacity. When it snows, store the tarpaulin to prevent collapsing from being crushed by the snow.

Manufacturer:Shanghaimuxinmuyeyouxiangongsi

Address:Shuangchenglu803nong11hao1602A-1609shi,baoshanqu,shanghai200000CN.

ECREP:E-CrossStuGmbH.

MainzerLandstr.69,60329FrankfurtamMain.

UKREP: YHCONSULTINGLIMITED.

C/OYHConsultingLimitedOffice147, CenturionHouse, LondonRoad,

Staines-upon-Thames, Surrey, TW184AX

ImportedtoAUS:SIHAOPTYLTD.

1ROKEVASTREETEASTWOODNSW2122Australia

ImportedtoUSA:SanvenTechnologyLtd.

Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Exterior view of a modern black-and-white modular warehouse structure with triangular roof and open door (no signage or text)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

NOTE:1. When fixing the shed, the rope must be tightened to prevent the instant Garage from being blown down by the wind. 2. Please reposition the ground nails every 3 months and tighten the rope again to effectively prevent the instant Garage from being blown down by the wind.

PARAMETR PRODUKTU

Model	SXYJSCK-FBS10X20FT-W
Kolor	Rama metalowa: Srebrna; Plandeka: Biała
Rozmiar produktu	10x20x9,2 stopy 3,05*6,09*2,87m
Model	SXYJSCK-FBS10X20FT-G
Kolor	Rama metalowa: Srebrna; Plandeka: Szara
Rozmiar produktu	10x20x9,2 stopy 3,05*6,09*2,87m
Model	SXYJSCK-FBS10X20FT-W
Kolor	Rama metalowa: Srebrna; Plandeka: Biała
Rozmiar produktu	12x20x9,9 stopy 3,65*6,09*3,02m
Model	SXYJSCK-FBS10X20FT-G
Kolor	Rama metalowa: Srebrna; Plandeka: Szara
Rozmiar produktu	12x20x9,9 stopy 3,65*6,09*3,02m

1ROKEVASTREETEASTWOODNSW2122Australia

Import do USA: SanvenTechnology Ltd.

Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730

VEVOR®

TOUGH TOOLS, HALF PRICE

/SXYJSCK-FBS12X20FT-W /SXYJSCK-FBS12X20FT-G

Exterior view of a modern gray industrial structure with triangular roof and rectangular openings (no signage or text)

NOTE:1. When fixing the shed, the rope must be tightened to prevent the instant Garage from being blown down by the wind. 2. Please reposition the ground nails every 3 months and tighten the rope again to effectively prevent the instant Garage from being blown down by the wind.

PARAMETRO PRODOTTO

Staines-upon-Thames, Surrey, TW184AX

Importato in AUS:SIHAOPTYLTD.

1ROKEVASTREETWOODNSW2122Australia

Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Exterior view of a modern black-and-white modular warehouse or shelter structure (no signage or text visible)

NOTE:1. When fixing the shed, the rope must be tightened to prevent the instant Garage from being blown down by the wind. 2. Please reposition the ground nails every 3 months and tighten the rope again to effectively prevent the instant Garage from being blown down by the wind.

PARÁMETRO DEL PRODUCTO

Staines-upon-Thames, Surrey, TW184AX

Importado a AUS: SIHAOPTYLTD.

1ROKEVASTREETEATESTWOODNSW2122Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Exterior view of a modern black-and-white modular warehouse structure with triangular roof and open door (no signage or text)

BEHÖVER HJÄLP? KONTAKTA OSS!

NOTE:1. When fixing the shed, the rope must be tightened to prevent the instant Garage from being blown down by the wind. 2. Please reposition the ground nails every 3 months and tighten the rope again to effectively prevent the instant Garage from being blown down by the wind.

PRODUKTPARAMETER

Modell	SXYJSCK-FBS10X20FT-W
Färg	Metallram: Silver;Presenning: Vit
Produktstorlek	10x20x9,2 fot3,05*6,09*2,87m
Modell	SXYJSCK-FBS10X20FT-G
Färg	Metallram: Silver;Presenning: Grå
Produktstorlek	10x20x9,2 fot3,05*6,09*2,87m
Modell	SXYJSCK-FBS10X20FT-W
Färg	Metallram: Silver;Presenning: Vit
Produktstorlek	12x20x9,9 fot3,65*6,09*3,02m
Modell	SXYJSCK-FBS10X20FT-G
Färg	Metallram: Silver;Presenning: Grå
Produktstorlek	12x20x9,9 fot3,65*6,09*3,02m

C/OYHConsultingLimitedOffice147, CenturionHouse, LondonRoad, Staines-upon-Thames, Surrey, TW184AX

Importerad till AUS:SIHAOPTYLTD.

1ROKEVASTREETEASTWOODNSW2122Australien

Importerad till USA: SanvenTechnologyLtd.

Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730

VEVOR®

TOUGH TOOLS, HALF PRICE

/SXYJSCK-FBS12X20FT-W /SXYJSCK-FBS12X20FT-G

Exterior view of a modern black-and-white modular warehouse structure with triangular roof and open door (no signage or text)

HULP NODIG? NEEM CONTACT MET ONS OP!

NOTE:1. When fixing the shed, the rope must be tightened to prevent the instant Garage from being blown down by the wind. 2. Please reposition the ground nails every 3 months and tighten the rope again to effectively prevent the instant Garage from being blown down by the wind.

PRODUCTPARAMETER

Model	SXYJSCK-FBS10X20FT-W
Kleur	Metalen frame: Zilver; Zeildoek: Wit
Productgrootte	10x20x9,2ft3,05*6,09*2,87m
Model	SXYJSCK-FBS10X20FT-G
Kleur	Metalen frame: Zilver; Zeildoek: Grijs
Productgrootte	10x20x9,2ft3,05*6,09*2,87m
Model	SXYJSCK-FBS10X20FT-W
Kleur	Metalen frame: Zilver; Zeildoek: Wit
Productgrootte	12x20x9,9ft3,65*6,09*3,02m
Model	SXYJSCK-FBS10X20FT-G
Kleur	Metalen frame: Zilver; Zeildoek: Grijs
Productgrootte	12x20x9,9ft3,65*6,09*3,02m

Staines-upon-Thames, Surrey, TW184AX

Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e- garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Exterior view of a modern gray industrial structure with triangular roof and rectangular openings (no signage or text)

BESOIN D'AIDE? CONTACTEZ-NOUS!

3D rendering of a simple gray and white house structure with no text or symbols

Close-up of a small white plastic tool with a metallic handle and threaded shaft (no text or symbols visible)

Abstract wavy line drawing with no text or symbols

Simple L-shaped metal angle with no text or symbols

Pure technical line drawing of a mechanical component with threaded end and flanged ends (no text or symbols)

ÉTAPE D'ASSEMBLAGE

Install the top bevel.

NOTE:1. When fixing the shed, the rope must be tightened to prevent the instant Garage from being blown down by the wind. 2. Please reposition the ground nails every 3 months and tighten the rope again to effectively prevent the instant Garage from being blown down by the wind.

PARAMÈTRE DU PRODUIT

C/OYHConsultingLimitedBureau147, CenturionHouse, LondonRoad, Staines-upon-

Thames, Surrey, TW184AX

1ROKEVASTREETEASTWOODNSW2122Australie

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Exterior view of a modern gray industrial structure with triangular roof and rectangular openings (no signage or text)

NOTE:1. When fixing the shed, the rope must be tightened to prevent the instant Garage from being blown down by the wind. 2. Please reposition the ground nails every 3 months and tighten the rope again to effectively prevent the instant Garage from being blown down by the wind.

PRODUKTPARAMETER

Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730

VEVOR®

TOUGH TOOLS, HALF PRICE
