Product Type	Instant garage shelter without side walls and doors
Brand	Vevor
Model	SXYJSCK-KFS1020FT-W
Dimensions (L x W x H)	3.05 x 6.09 x 2.87 m
Floor area	Approximately 18.6 m²
Estimated weight	Approximately 65 kg
Frame material	Steel with silver coating
Tarp material	Waterproof fabric (white)
Available colors	White (-W) or Gray (-G)
Ridge height	2.87 m
Number of posts	8 metal columns
Structure	Columns, inclined beams, horizontal beams, cross and T connectors
Usage	Garage without side walls or doors
Assembly	Assembly required by at least 2 people
Safety	Wearing safety glasses and gloves recommended
Ground fixation	Included: 16 ground nails and 16 expansion screws
Maintenance	In case of snow, remove the tarp to prevent collapse
Cleaning	Clean the tarp with water and mild soap
Warranty	Electronic warranty certificate available at www.vevor.com/support
After-sales service	Technical support and spare parts via www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi

Frequently Asked Questions - SXYJSCK-KFS1020FT-W Vevor

How to assemble the Vevor SXYJSCK-KFS1020FT-W garage shelter?

Assembly is done in several steps: place the columns (A1, A2), attach the inclined beams (B) and the horizontal beams (C), then install the connectors (D, E). Next, stretch the tarp (G) and secure it with the provided ropes and nails. Follow the assembly diagram in the manual and wear safety glasses and gloves.

Can I use the shelter in winter?

Yes, but be careful with snow. The tarp has a limited load capacity. In case of heavy snow, it is imperative to remove the tarp to prevent the structure from collapsing.

What is the wind resistance of this shelter?

The manual does not specify an exact wind resistance. For safe use, firmly secure the shelter to the ground using the provided ground nails and expansion screws. Avoid using it in strong winds.

How to clean the tarp?

Clean the tarp with a soft cloth, water, and mild soap. Rinse with clean water and let dry completely before storing. Do not use abrasive products or solvents.

Can I add side walls to this shelter?

No, this model is designed as a shelter without side walls and doors. It is not intended for adding walls. If you need an enclosed shelter, look for a model with walls.

How to fix the shelter to the ground?

Use the included 16 ground nails (J) and 16 expansion screws (K). Place the column feet on the fixing points and drive the nails or screws into the ground. Make sure you are on a flat, hard, and stable surface.

What is the maximum load on the roof?

The manual indicates that the fabric roof has a limited load capacity and that the tarp should be removed in case of snow. No specific value is given. Do not place heavy objects on the roof.

Is the shelter waterproof?

Yes, the fabric tarp is waterproof to protect against rain. However, since it has no walls, water can enter from the sides in strong wind.

How long does it take to assemble the shelter?

Assembly time is estimated between 2 and 3 hours with two people. Prepare all tools and parts in advance and carefully follow the instructions in the manual.

Where can I find spare parts or assistance?

For any spare parts or technical assistance, visit www.vevor.com/support. There you will find the electronic warranty certificate and can contact customer service.

User questions about SXYJSCK-KFS1020FT-W Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Garage shelter in PDF format for free! Find your manual SXYJSCK-KFS1020FT-W - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SXYJSCK-KFS1020FT-W by Vevor.

USER MANUAL SXYJSCK-KFS1020FT-W Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

INSTANT GARAGE WITHOUT SIDEWALLS & DOORS

USER MANUAL

MODEL:SXYJSCK-KFS1020FT-W /SXYJSCK-KFS1020FT-G

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

INSTANT GARAGE WITHOUT

SIDEWALLS & DOORS

MODEL:SXYJSCK-KFS1020FT-W /SXYJSCK-KFS1020FT-G

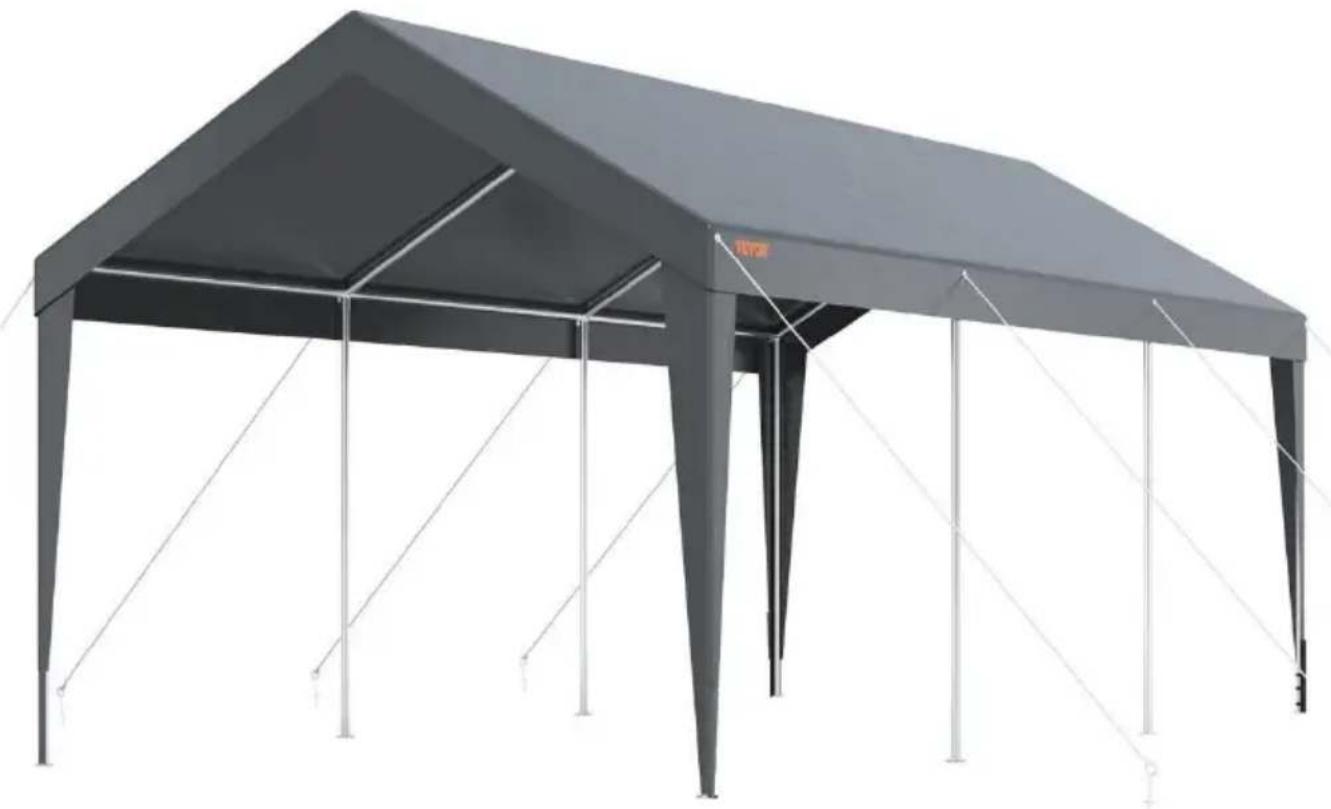

Exterior view of a modern black-and-white outdoor shelter with vertical supports and a triangular roof (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

Assemble only according to these instructions. Improper assembly can create hazards.
Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
Keep the assembly area clean and well-lit.
Keep bystanders out of the area during assembly.
Do not assemble if tired or when under the influence of alcohol, drugs, or medication.
The product capabilities apply to properly and completely assembled products only.
Assemble on a flat, level, hard, and smooth surface capable of safely supporting the instant garage.
For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unpack and separate all parts in a clean work area.

Use precautions

DO NOT SIT OR STAND ON THIS ITEM.
This product is not a toy. Do not allow children to play with this item.
Do not exceed specified weight capacities.
Use only on a flat, level, hard, and smooth surface that can safely support a fully loaded instant garage.
Use as intended only.
Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

PARTS LIST

A1*4 (Column)
A2*4 (Column)
B*8 (Inclined beam)
C*9 (Beam)
D*6 (Cross Connector)	E*6 (Tee Connector)
F*40(Bouncy Ball)	G*1 (Tarpaulin)
H*12 (Rope nail)	I*12 (Rope)
J*16 (Ground nails)	K*16 (Expansion screws)

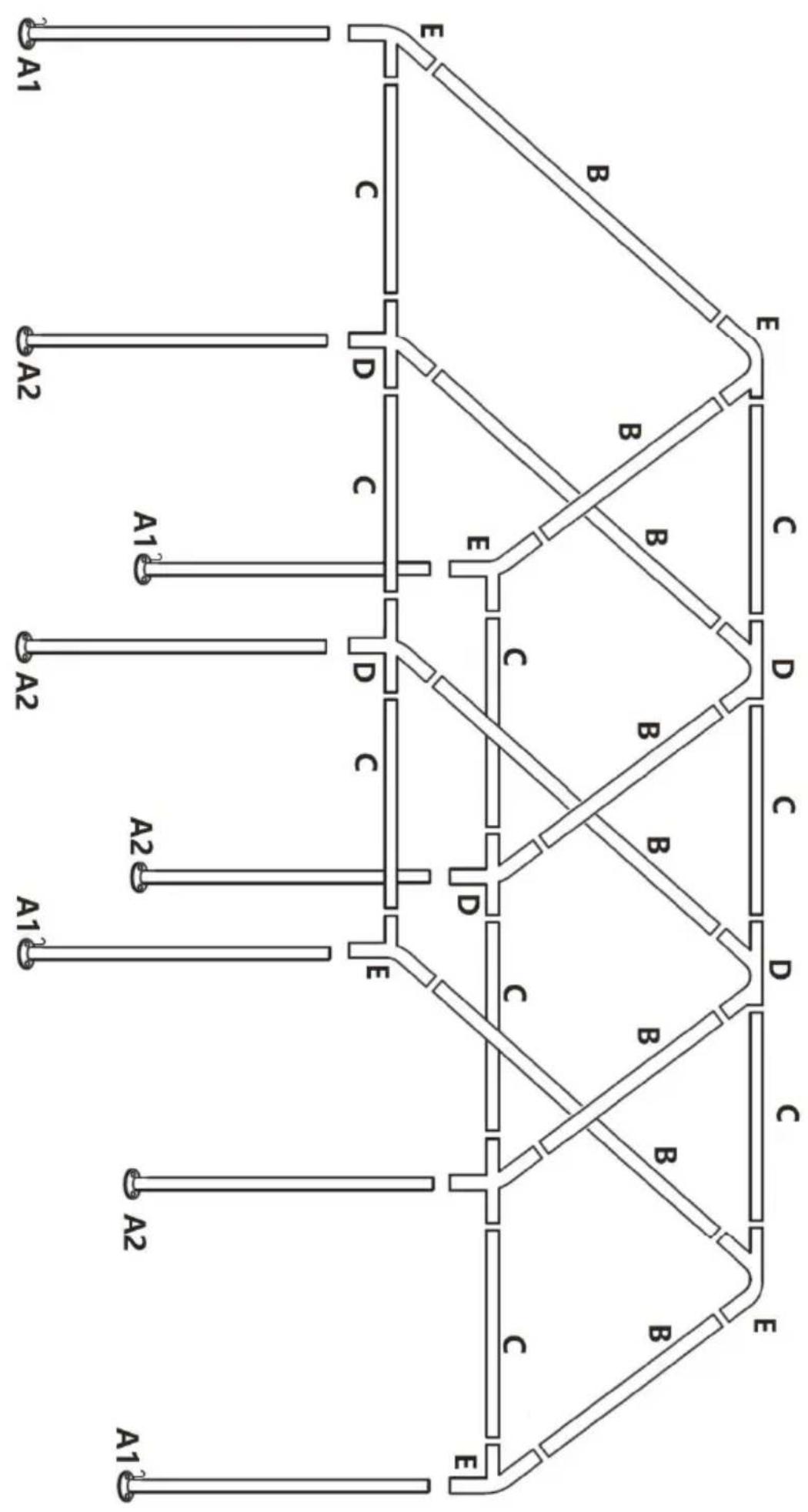

E C D C D C E B B B B B B B E C D C D C C E E C D C D C E A1' A2' A2' A1' A1' A2'

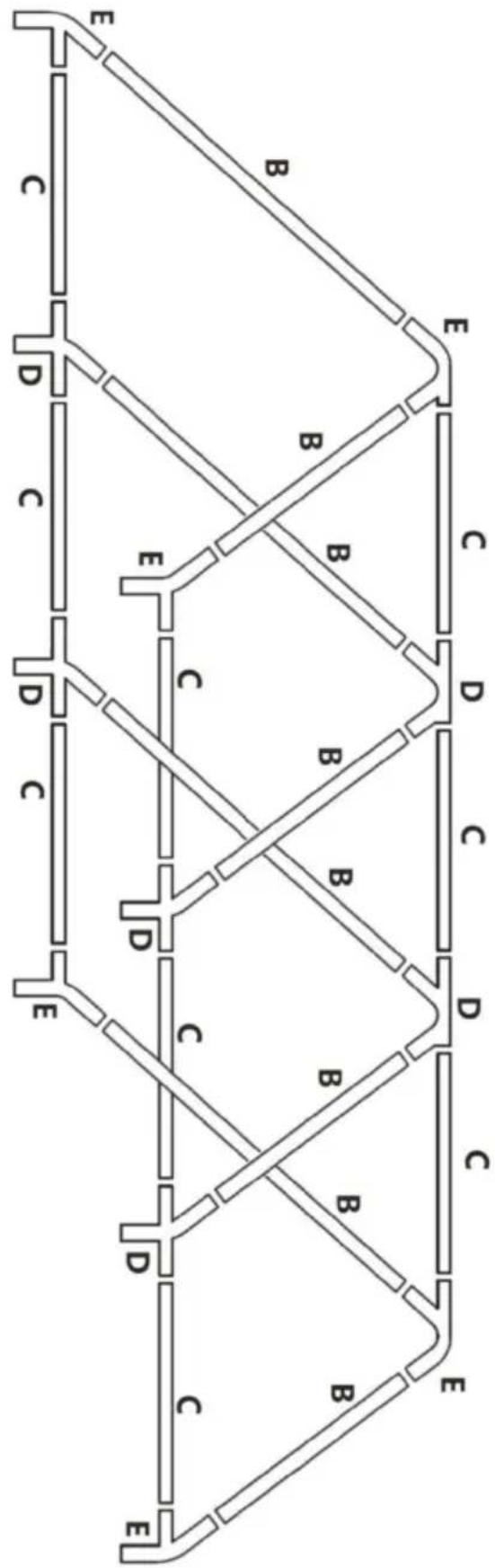

Install the top bevel. C D C D C E B B B B C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C E

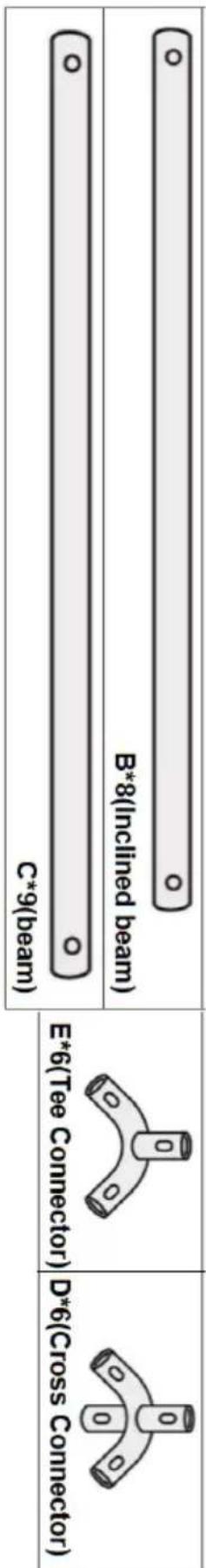

C*9 (beam), C*6 (cross connector), D*6 (tree connector), E*6, B*8 (inclined beam), B*8 (inclined beam)

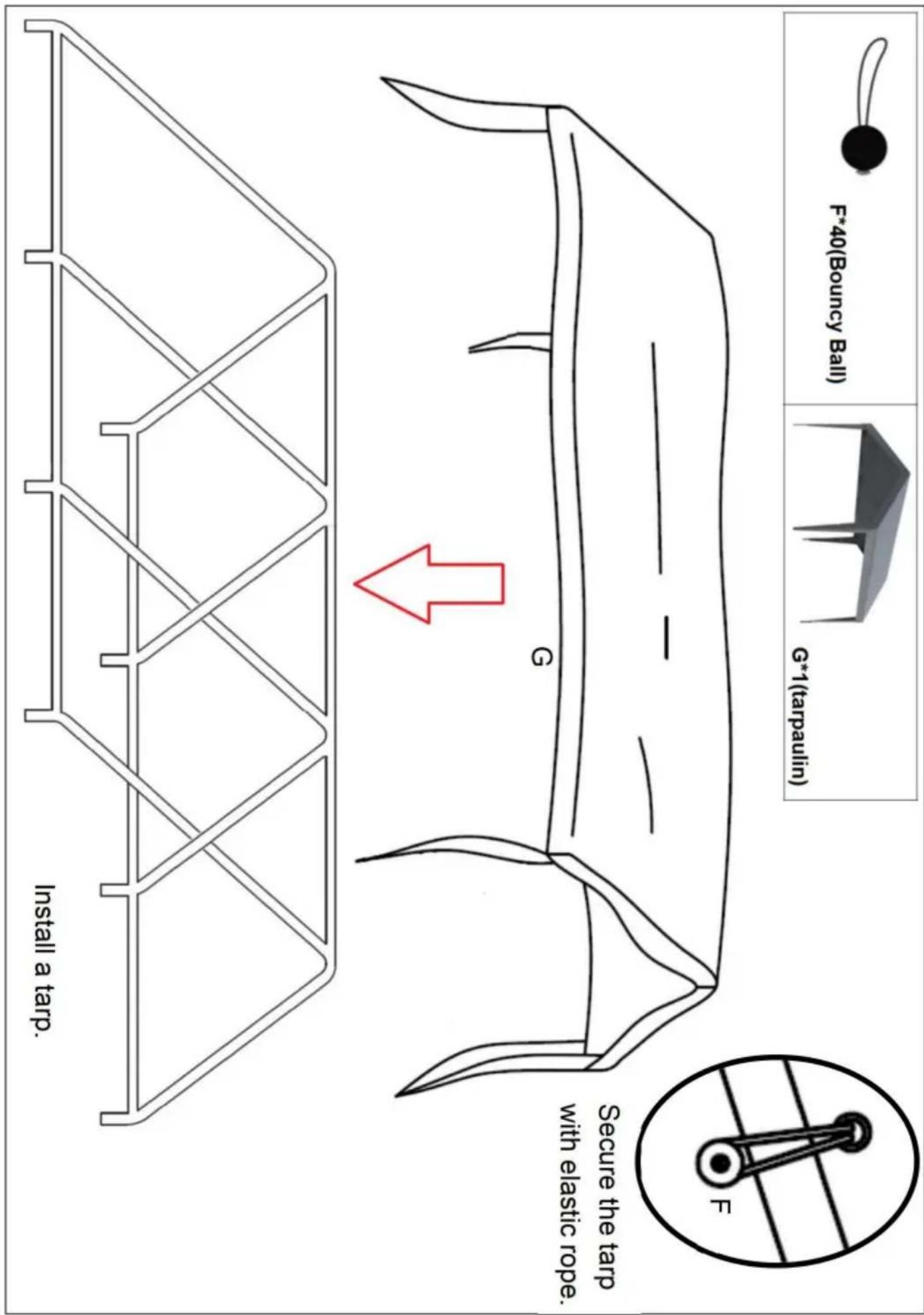

Install a tarp. Secure the tarp with elastic rope. G+1 (tarpaulin), G+1 (tarpaulin), F+40 (bouncy ball)

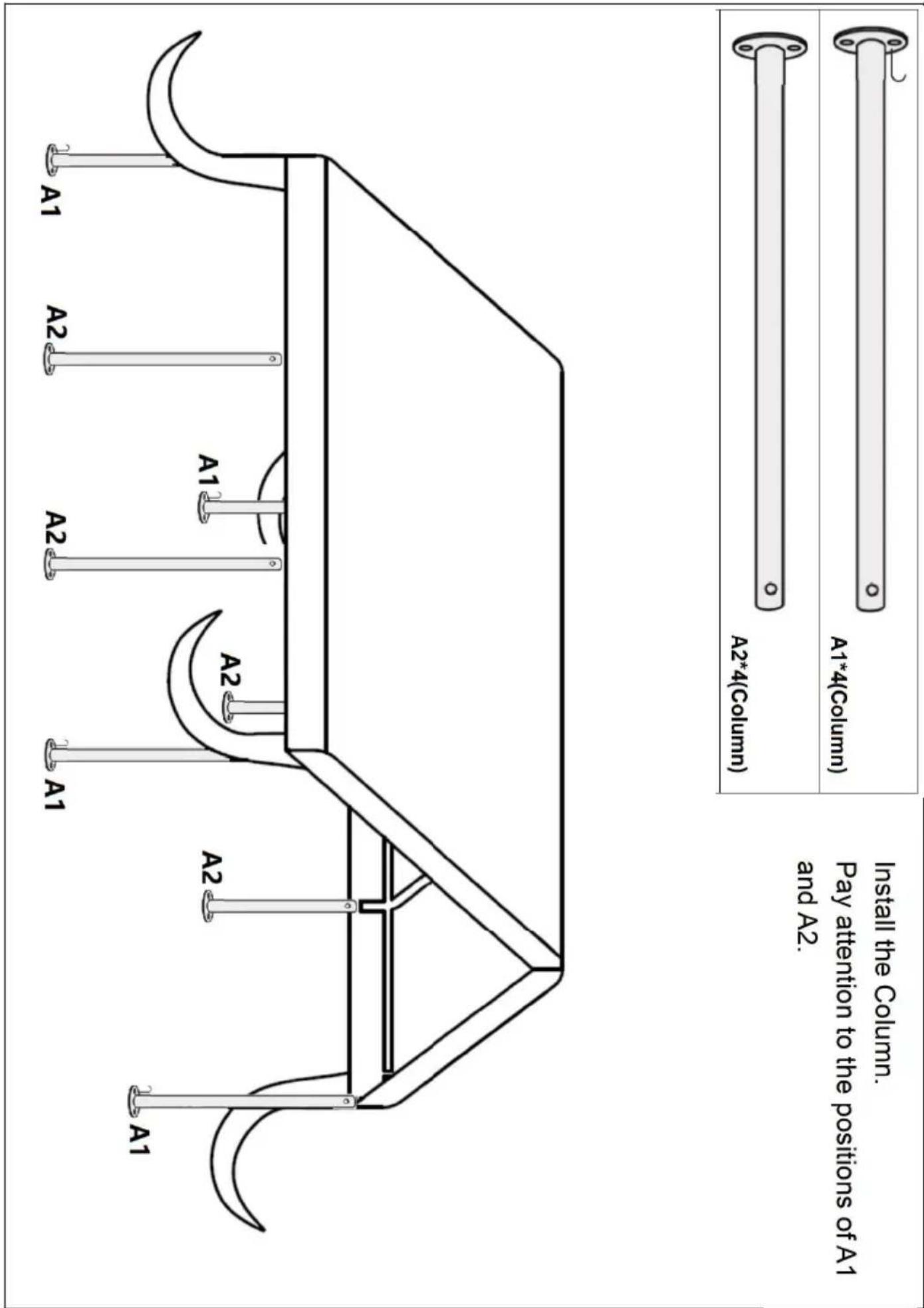

A1*4 (column), A2*4 (column). Install the columns. Pay attention to the positions of A1 and A2.

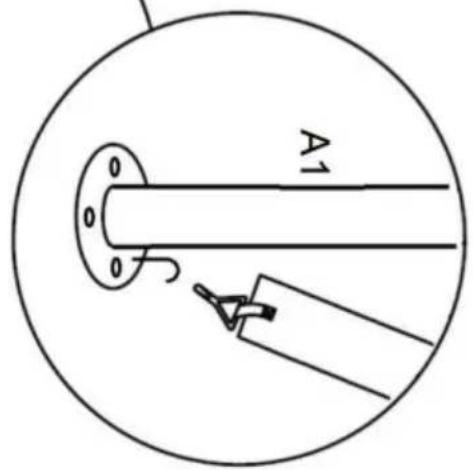

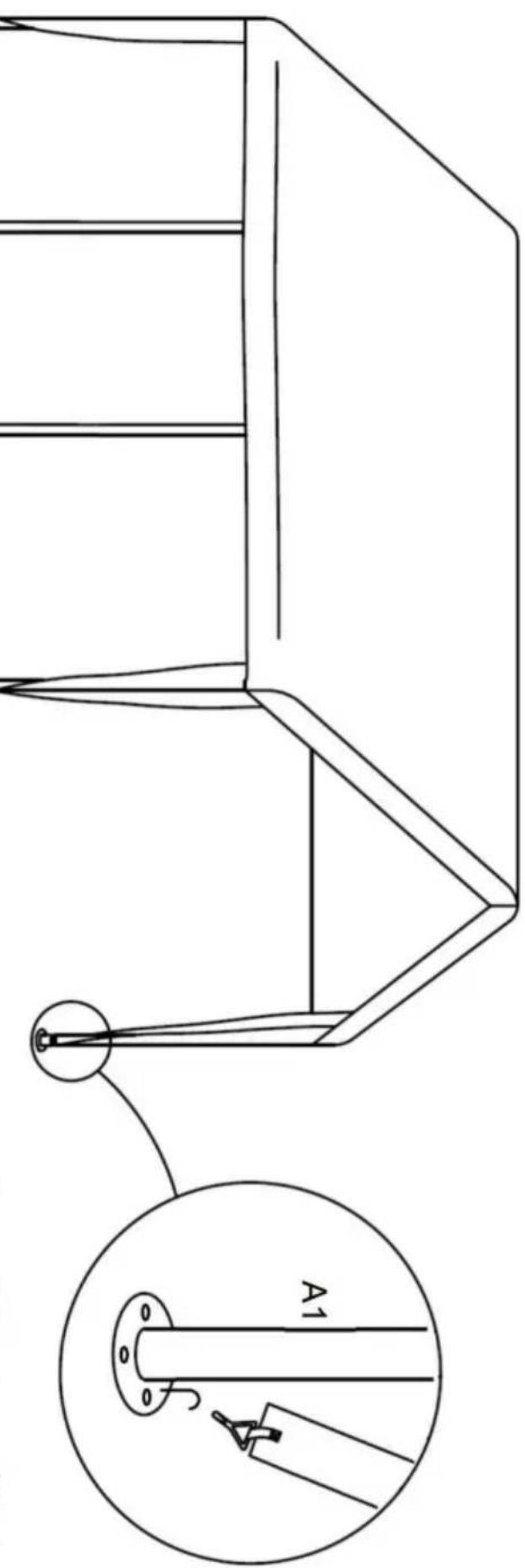

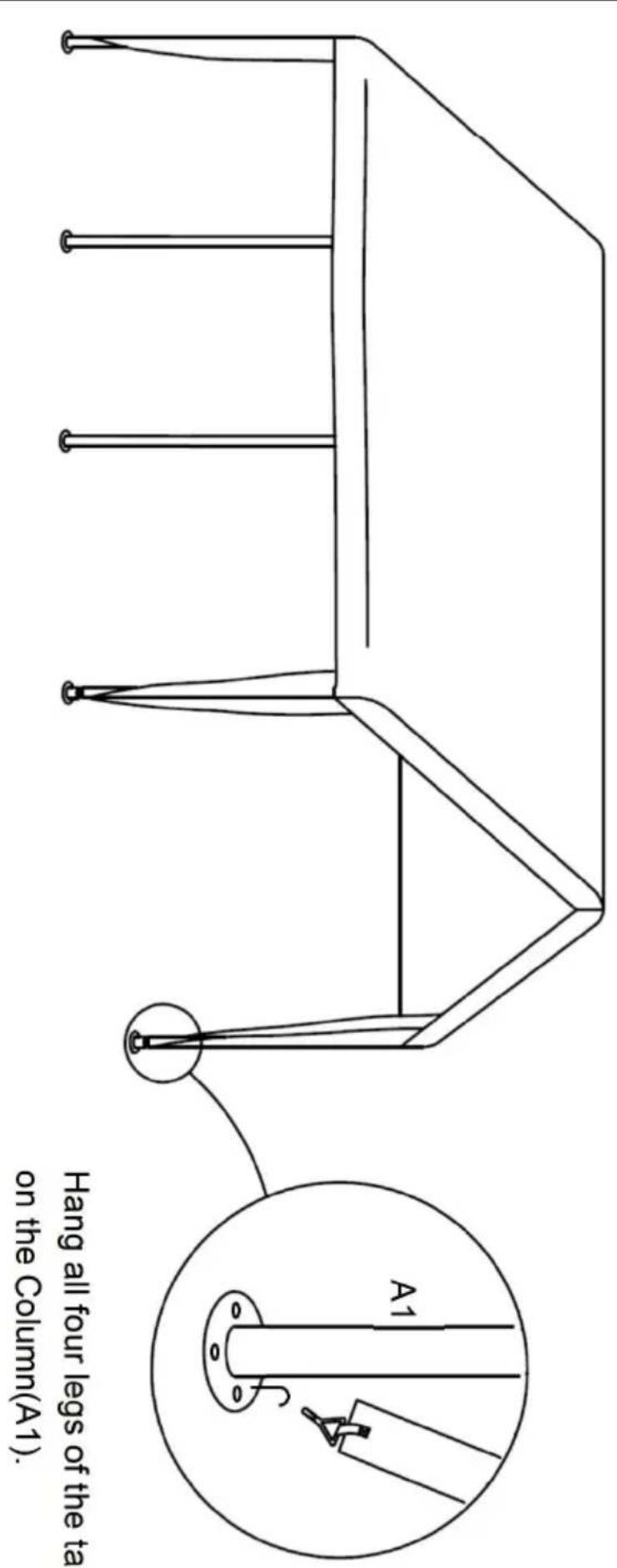

Hang all four legs of the tarp on the column (A1).

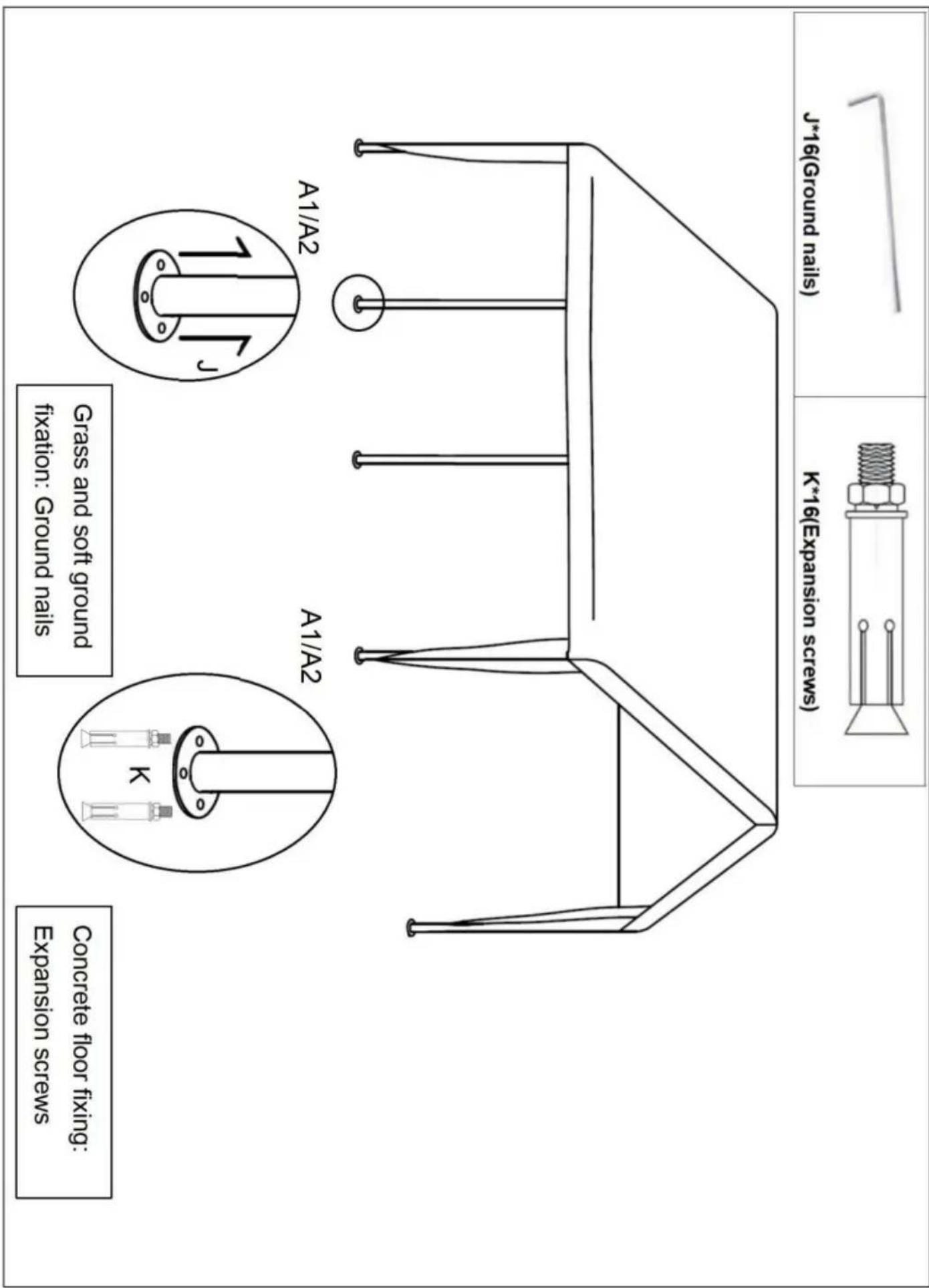

J*16 (Ground nails) K*16 (Expansion screws) A1/A2 A1/A2 Grass and soft ground fixation: Ground nails Concrete floor fixing: Expansion screws

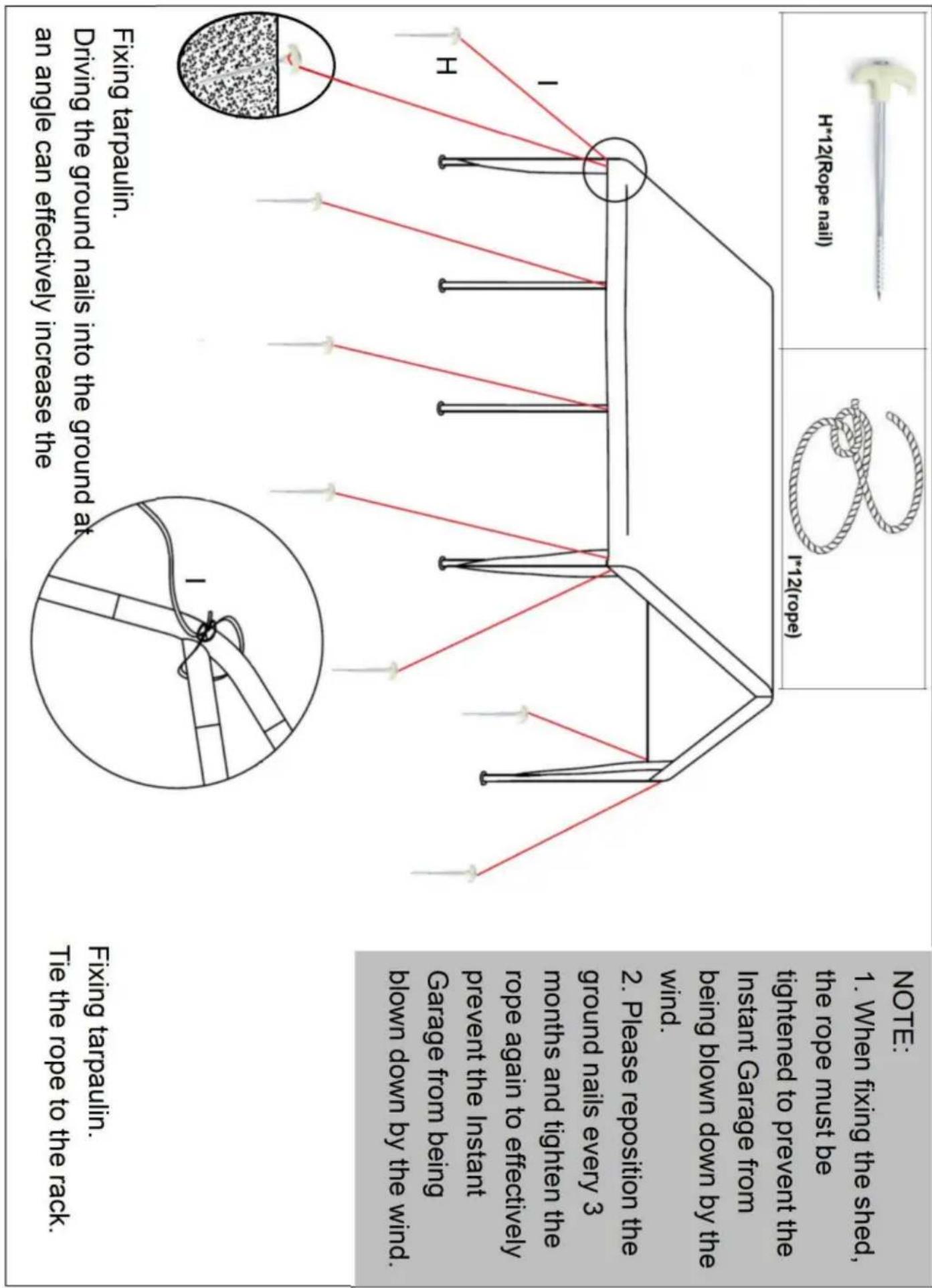

H*12 (Rope nail) I*12 (rope) I H Fixing tarpaulin. Driving the ground nails into the ground at an angle can effectively increase the NOTE: 1. When fixing the shed, the rope must be tightened to prevent the Instant Garage from being blown down by the wind. 2. Please reposition the ground nails every…

PRODUCT PARAMETER

Model	SXYJSCK-KFS1020FT-W
Colour	Metal frame: Silver;Tarpaulin: White
Product Size	10x20x9.2ft3.056.092.87m

Model	SXYJSCK-KFS1020FT-G
Colour	Metal frame: Silver;Tarpaulin: Grey
Product Size	10x20x9.2ft3.056.092.87m

The roof is made of cloth and has a limited load-bearing capacity. When it snows, store the tarpaulin to prevent it from collapsing under the weight of the snow.

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangcheng Road 803 Nong 11 Hao 1602A-1609 Shi, Baoshan District, Shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr. 69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

INSTANT GARAGE WITHOUT SIDEWALLS & DOORS

USER MANUAL

MODEL: SXYJSCK-KFS1020FT-W / SXYJSCK-KFS1020FT-G

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

INSTANT GARAGE WITHOUT

SIDEWALLS & DOORS

MODEL: SXYJSCK-KFS1020FT-W / SXYJSCK-KFS1020FT-G

Exterior view of a modern black-and-white outdoor shelter with vertical supports and a triangular roof (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

Assemble only according to these instructions. Improper assembly can create hazards.
Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
Keep the assembly area clean and well-lit.
Keep bystanders out of the area during assembly.
Do not assemble if tired or when under the influence of alcohol, or medication.
The product capabilities apply to properly and completely assembled products only.
Assemble on a flat, level, hard and smooth surface capable of supporting the instant garage.
For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unpack and separate all parts in a clean work area.

Use precautions

DO NOT SIT OR STAND ON THIS ITEM.
This product is not a toy. Do not allow children to play with or item.
Do not exceed specified weight capacities.
Use only on a flat, level, hard, and smooth surface that can safely support a fully loaded instant garage.
Use as intended only.
Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

PARTS LIST

A1*4 (Column)
A2*4 (Column)
B*8 (Inclined beam)
C*9 (Beam)
D*6 (Cross Connector)	E*6 (Tee Connector)
F*40(Bouncy Ball)	G*1 (Tarpaulin)
H*12 (Rope nail)	I*12 (Rope)
J*16 (Ground nails)	K*16 (Expansion screws)

E C D C D C E B B B B B B B E C D C D C C E E C D C D C E A1' A2' A2' A1' A1' A2'

Install the top bevel. C D C D C E B B B B C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C E

C*9 (beam) C*6 (Cross Connector) D*6 (Tree Connector) E*6 B*8 (inclined beam) B*8 (inclined beam)

Install a tarp. Secure the tarp with elastic rope. G+1 (tarpaulin) G+1 (tarpaulin) F+40 (Bouncy Ball)

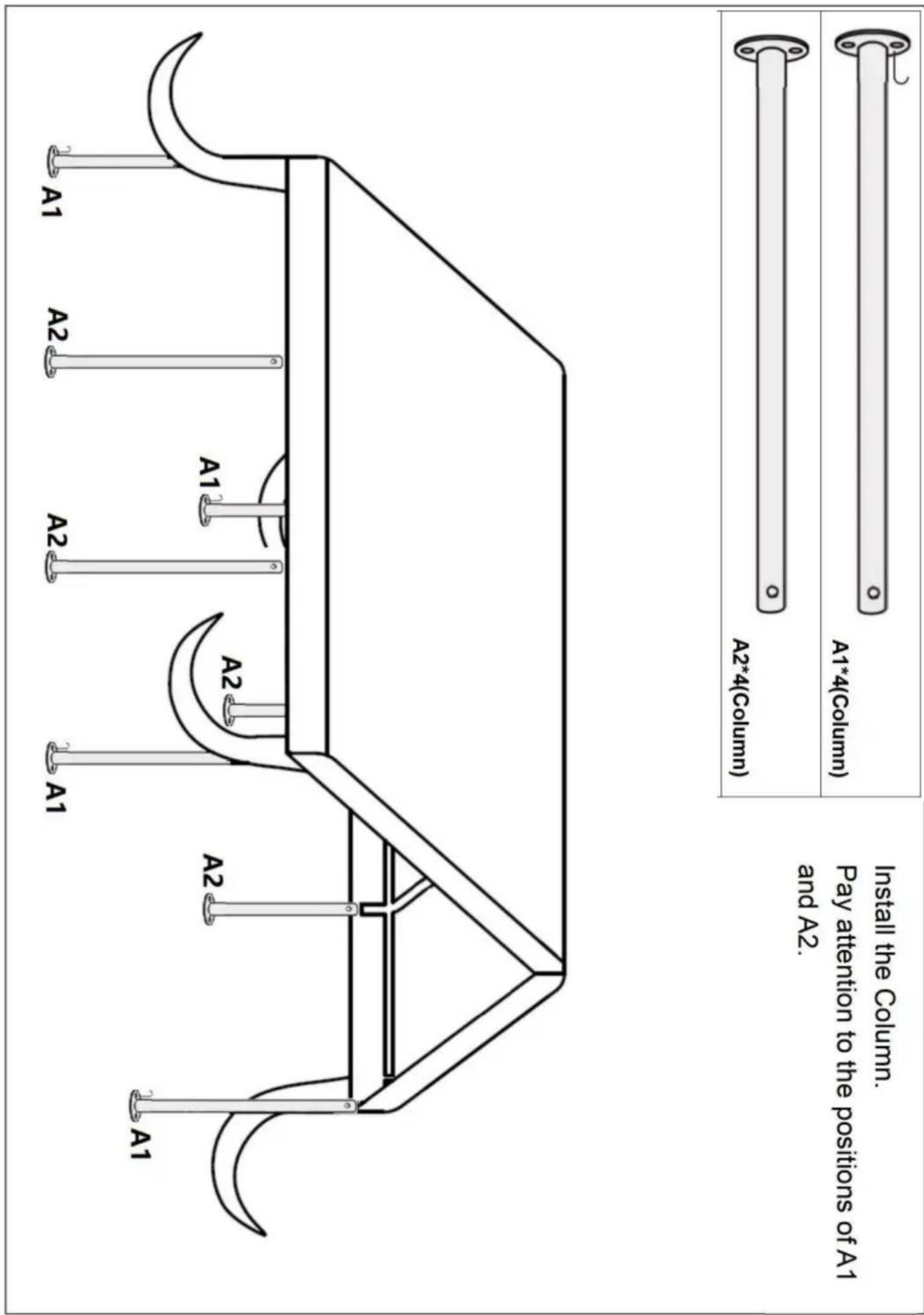

A1*4 (Column) A2*4 (Column) Install the Column. Pay attention to the positions of A1 and A2.

Hang all four legs of the tarpaulin on the Column (A1).

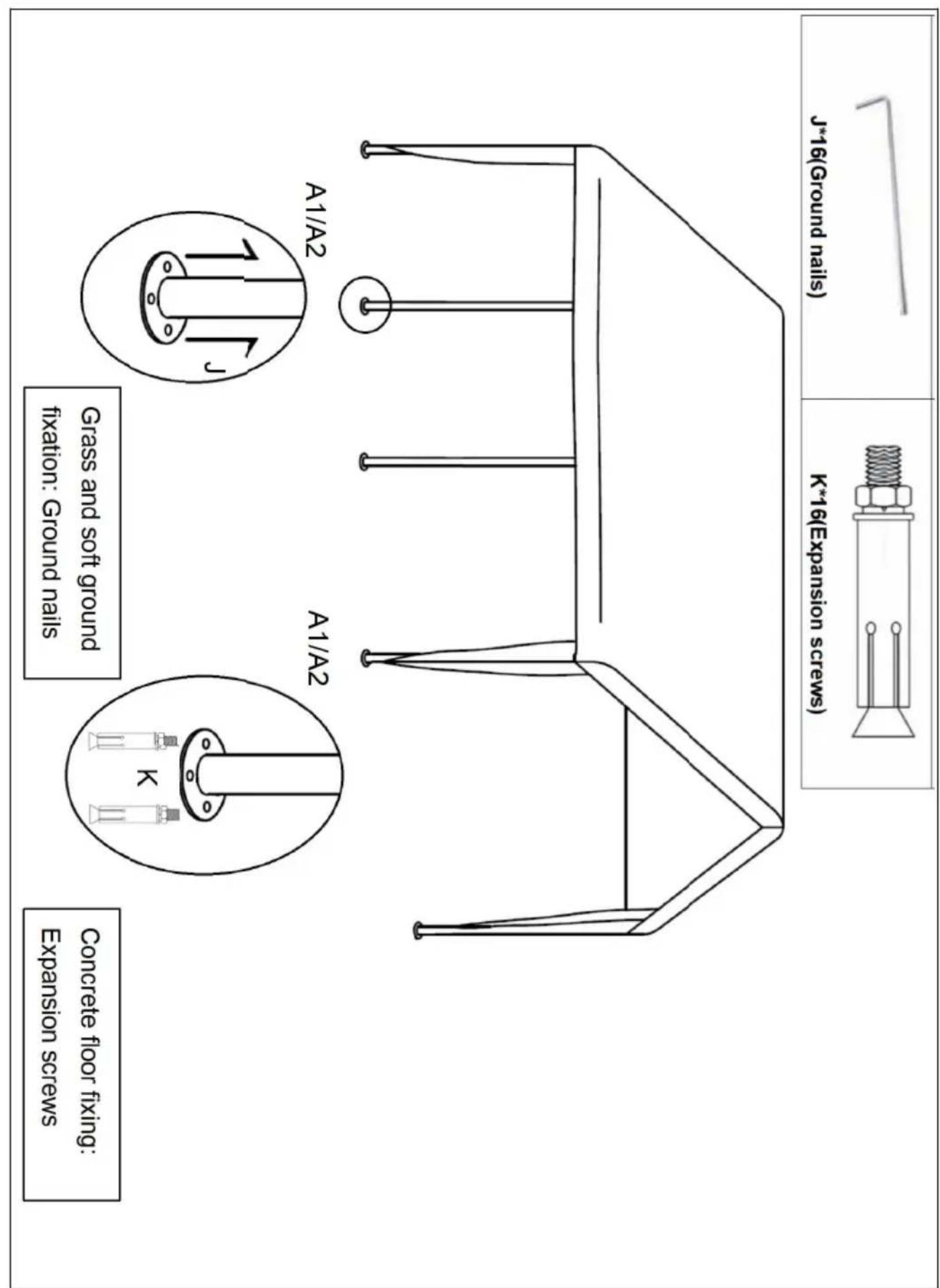

J*16 (Ground nails) K*16 (Expansion screws) A1/A2 A1/A2 Grass and soft ground fixation: Ground nails Concrete floor fixing: Expansion screws

H*12 (Rope nail) I*12 (Rope) I H Fixing tarpaulin. Driving the ground nails into the ground at an angle can effectively increase the grip. NOTE: 1. When fixing the shed, the rope must be tightened to prevent the Instant Garage from being blown down by the wind. 2. Please reposition the ground nails…

PRODUCT PARAMETER

Model	SXYJSCK-KFS1020FT-W
Colour	Metal frame: Silver;Tarpaulin: White
Product Size	10x20x9.2ft3.056.092.87m

Model	SXYJSCK-KFS1020FT-G
Colour	Metal frame: Silver;Tarpaulin: Grey
Product Size	10x20x9.2ft3.056.092.87m

The roof is made of cloth and has a limited load-bearing capacity. When it snows, store the tarpaulin to prevent it from collapsing from being crushed by the snow.

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr. 69, 60329 Frankfurt am Main.

UK REP: YH Consulting Limited.

C/O YH Consulting Limited, Office 147, Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: Sihao Pty Ltd.

1 Rokeva Street, Eastwood NSW 2122, Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Install a tarp. Secure the tarp with elastic rope. G*1 (Tarpaulin) F*40 (Bouncy Ball)

Install the Column. Pay attention to the positions of A1 and A2. A1*4 (Column) A2*4 (Column) A1 A2 A2 A1 A2 A1 A2 A1 A2 A1 A2 A1 A2 A1 A2 A1 A2 A1 A2 A1 A2 A1 A2 A1 A2 A1 A2 A1 A2 A1 A2 A1 A2 A1 A2 A1 A2

Hang all four legs of the tarpaulin on the Column (A1).

Technical diagram showing a mechanical assembly with a magnified inset detail labeled 'A1' and a circular detail view.

Concrete floor fixing: Expansion screws K16 (Expansion screws) J*16 (Ground nails) K*16 (A1/A2) A1/A2 Grass and soft ground fixation: Ground nails J

NOTE: 1. When fixing the shed, the rope must be tightened to prevent the Instant Garage from being blown down by the wind. 2. Please reposition the ground nails every 3 months and tighten the rope again to effectively prevent the Instant Garage from being blown down by the wind. H-12 (Rope nail) H I…

PRODUCT PARAMETER

Staines-upon-Thames, Surrey, TW184AX

Imported into AUS: SIHAOPTYLTD.

1 ROKEVA STREET WOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Install a tarp. Secure the tarp with elastic rope. G*1 (Tarpaulin) F*40 (Bouncy Ball)

Hang all four legs of the tarpaulin on the Column (A1).

Concrete floor fixing: Expansion screws K16 (Expansion screws), J*16 (Ground nails), K*16 (A1/A2), A1/A2. Grass and soft ground fixation: Ground nails J.

NOTE: 1. When fixing the shed, the rope must be tightened to prevent the instant Garage from being blown down by the wind. 2. Please reposition the ground nails every 3 months and tighten the rope again to effectively prevent the instant Garage from being blown down by the wind. H-12 (ROPE nail). Fi…

PRODUCT PARAMETER

	SXYJSCK-KFS1020FT-WModel
Kolor	Rama metalowa: Srebrna; Plandeka: Biała
Rozmiar produktu	10x20x9,2 stopy 3,056,092,87m

Model SXYJSCK-KFS1020FT-G
Kolor	Rama metalowa: Srebrna; Plandeka: Szara
Rozmiar produktu	10x20x9,2 stopy 3,056,092,87m

1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Import into USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Install a tarp. Secure the tarp with elastic rope. G*1 (tarpaulin), F*40 (Bouncy Ball).

Install the Column. Pay attention to the positions of A1 and A2. A1*4 (column), A2*4 (column). A1, A2, A2, A1, A2, A1, A2, A1, A2, A1, A2, A1, A2, A1, A2, A1, A2, A1, A2, A1, A2, A1, A2, A1, A2, A1, A2, A1, A2, A1, A2, A1, A2, A1, A2.

Hang all four legs of the tarpaulin on the Column (A1).

Technical diagram showing a mechanical assembly with a magnified inset detail labeled 'A1' and a circular detail view.

Concrete floor fixing: Expansion screws K16 (Expansion screws), J*16 (Ground nails), K*16 (A1/A2), A1/A2. Grass and soft ground fixation: Ground nails J.

PRODUCT PARAMETERS

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Install a tarp. Secure the tarp with elastic rope. G*1 (tarpaulin), F*40 (Bouncy Ball).

Hang all four legs of the tarpaulin on the Column (A1).

Technical diagram showing a mechanical assembly with a magnified inset detail labeled 'A1' and a circular detail view.

Concrete floor fixing: Expansion screws K16 (Expansion screws), J*16 (Ground nails), K*16 (A1/A2), A1/A2. Grass and soft ground fixation: Ground nails J.

PRODUCT PARAMETERS

C/O YH Consulting Limited, Bureau 147, Centurion House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Install a tarp. Secure the tarp with elastic rope. G*1 (tarpaulin), F*40 (Bouncy Ball).

Hang all four legs of the tarpaulin on the Column (A1).

Technical diagram showing a mechanical assembly with a magnified inset detail labeled 'A1' and a circular detail view.

Concrete floor fixing: Expansion screws K16 (Expansion screws), J*16 (Ground nails), K*16 (A1/A2), A1/A2. Grass and soft ground fixation: Ground nails J.

PRODUCT PARAMETERS

Model	SXYJSCK-KFS1020FT-W
Kleur	Metalen frame: Zilver;Zeildoek: Wit10x20x9.2ft
Productgrootte	3,056,092,87m

Model	SXYJSCK-KFS1020FT-G
Kleur	Metalen frame: Zilver;Zeildoek: Grijs10x20x9.2ft
Productgrootte	3,056,092,87m

Staines-upon-Thames, Surrey, TW18 4AX

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical support and e-warranty certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Install a tarp. Secure the tarp with elastic rope. G*1 (tarpaulin), F*40 (bouncy ball).

Hang all four legs of the tarpaulin on the Column (A1).

Concrete floor fixing: Expansion screws. K16 (expansion screws), J*16 (ground nails), K*16 (A1/A2). A1/A2. Grass and soft ground fixation: Ground nails J.

PRODUCT PARAMETERS

	SXYJSCK-KFS1020FT-WModell
Färg	Metallram: Silver;Presenning: Vit
Produktstorlek	10x20x9,2ft3,056,092,87m

Modell	SXYJSCK-KFS1020FT-G
Färg	Metallram: Silver;Presenning: Grå
Produktstorlek	10x20x9,2ft3,056,092,87m

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

C*9 (beam), E*6 (tee connector), D*6 (cross connector), B*8 (inclined beam).

Install a tarp. Secure the tarp with elastic rope. G*1 (tarpaulin), F*40 (bouncy ball).

Hang all four legs of the tarpaulin on the Column (A1).

Technical diagram showing a mechanical assembly with a magnified inset detail labeled 'A1' and a circular detail view.

Concrete floor fixing: Expansion screws. K16 (expansion screws), J*16 (ground nails), K*16 (A1/A2). A1/A2. Grass and soft ground fixation: Ground nails J.

PRODUCT PARAMETER

Staines-upon-Thames, Surrey, TW184AX

Imported to AUS: SIHAOPTYLTD.

1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Table of contents Click a title to access it

INSTANT GARAGE WITHOUT SIDEWALLS & DOORS
VEVOR®
NEED HELP? CONTACT US
WARNING
ASSEMBLY PRECAUTIONS
USE PRECAUTIONS
SAVE THIS MANUAL
PARTS LIST
PRODUCT PARAMETER
TOUGH TOOLS, HALF PRICE
PRODUCT PARAMETERS

Manual assistant

Waiting for your message

Product information

Brand : Vevor

Model : SXYJSCK-KFS1020FT-W

Category : Garage shelter
