MODEL:XSJ23-F06

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

BOAT TRAILER GUIDES

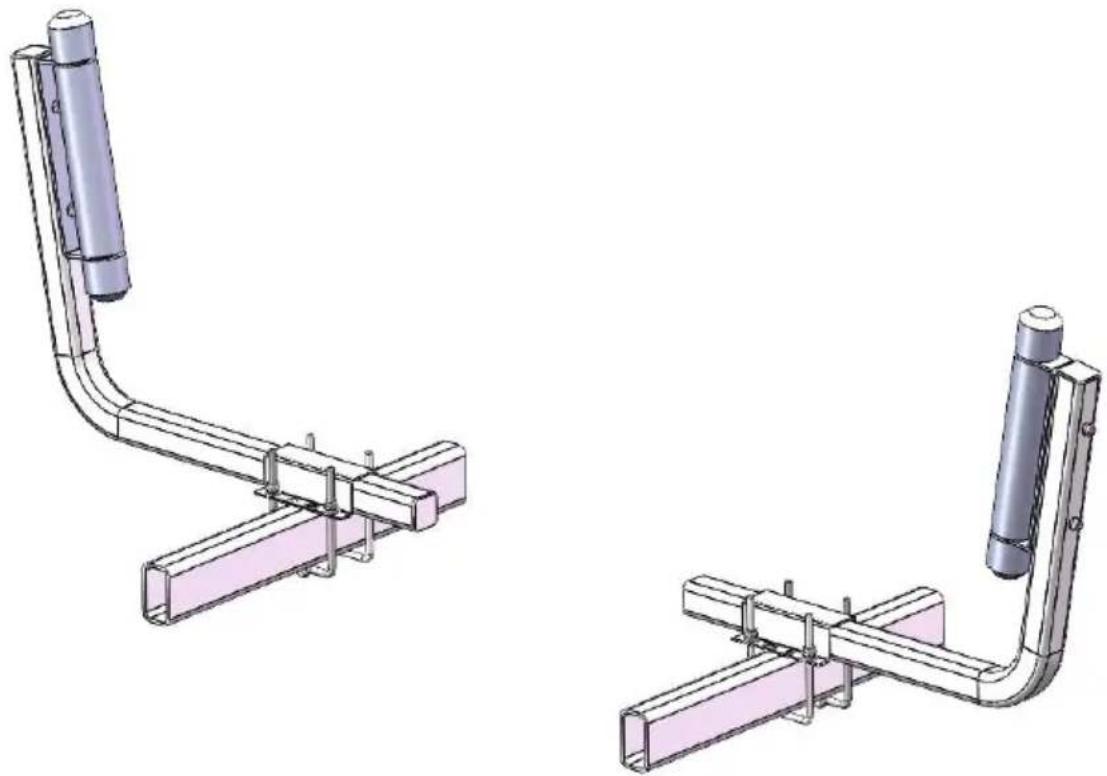

MODEL:XSJ23-F06

Technical illustration of two mechanical pipe fittings with labeled components (a, c), no text or symbols present.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using boat trailer guides. And this product is not a Do not allow children to play.
• Keep away from sharp points, blades and other items.

• Assembly precautions

• Assemble only according to these instructions. Improper assembly c create hazards.

• Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
• Keep assembly area clean and well-lit.
• Keep bystanders out of the area during assembly.
• Do not assemble when tired or when under the influence of alcohol drugs or medication.
• Product capabilities apply to properly and completely assembled pro only.
• For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare parts children's reach.

SAVE THESE INSTRUCTIONS

PRODUCT SPECIFICATIONS:

Model	L(mm)	H(mm)	W(mm)	S(mm)
XSJ23-F06	500	520	85	190

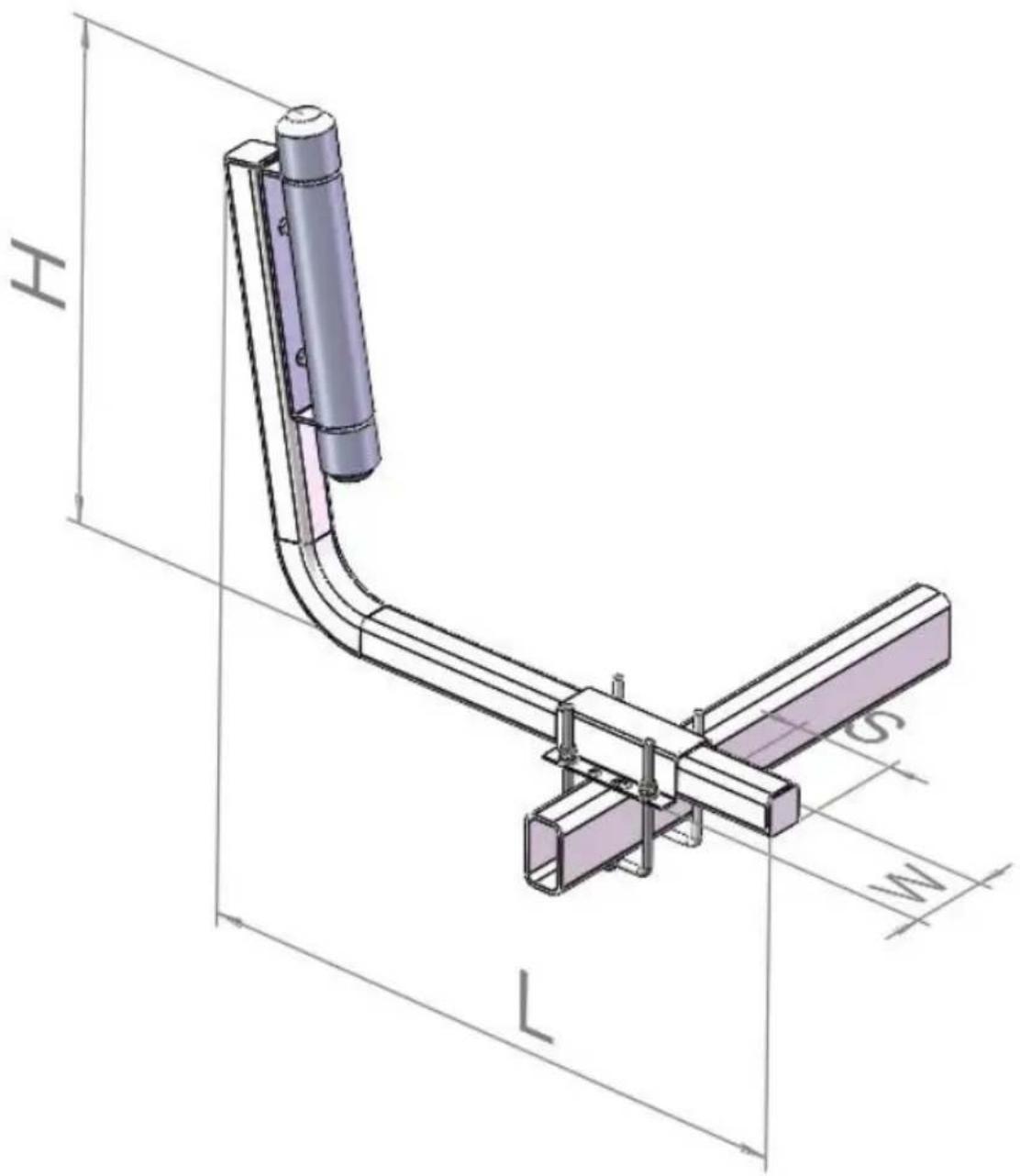

H S W L

PACKAGE INCLUDE

No	Components	Picture	QTY
1	u-bolt-2		2pcs
2	U-shaped slot plate		2pcs
3	u-bolt-1		2pcs
4	flat washer		8pcs
5	Spring washer		8pcs
6	nut		8pcs
7	rail assembly		2pcs
8	wrench		1pcs

SIMPLE INSTRUCTION

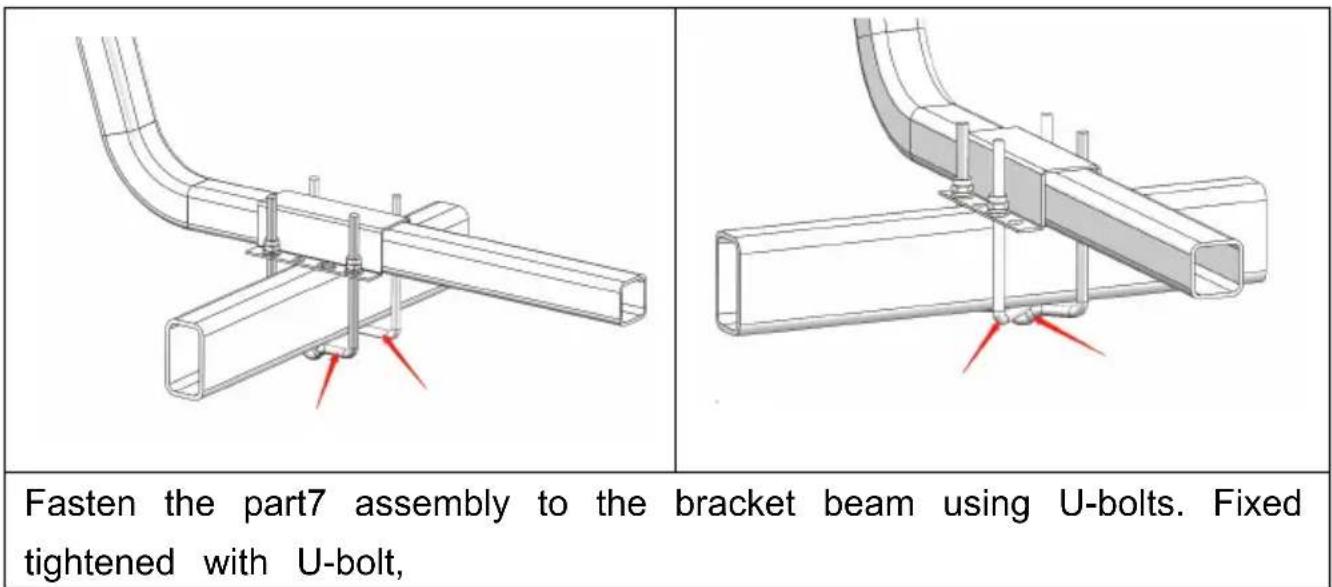

Fasten the part7 assembly to the bracket beam using U-bolts. Fixed tightened with U-bolt,

Technical line drawing of a pipe fitting with two connectors and red arrows indicating connection points (no text or symbols)

Technical line drawing of a pipe connection assembly with two pipes and a curved pipe (no text or symbols)

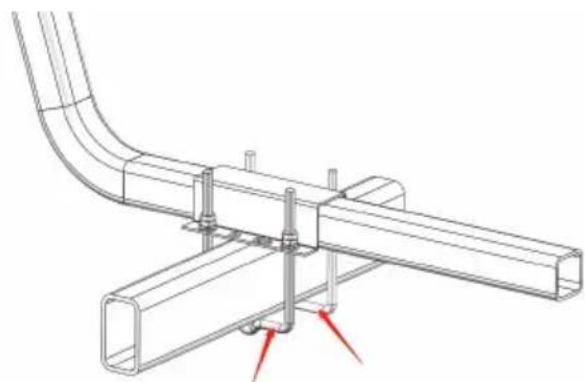

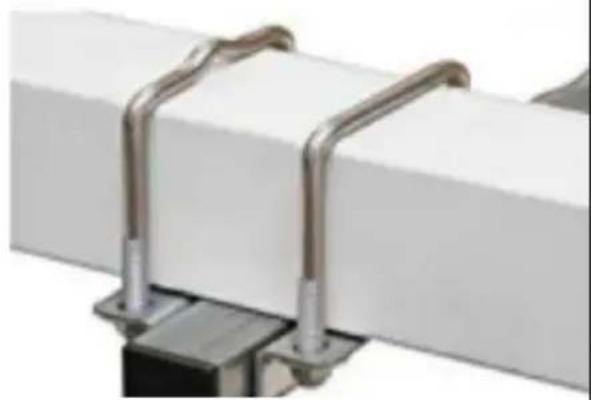

The U-bolts can be installed in the two ways shown in the figure ad actual conditions.

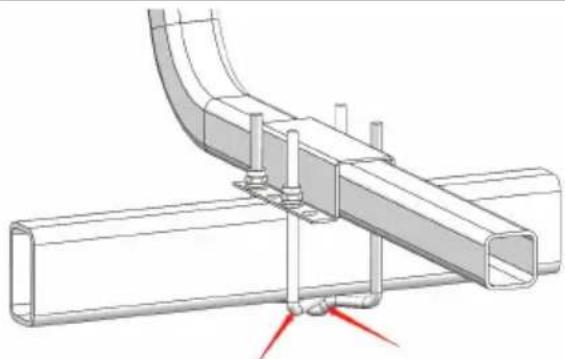

	You can also mount the rail assembly under the trailer beam

ATTENTION:

• It is recommended to find someone to assist with the installation.
• Ensure that the guide rail is installed in the correct position, and f tighten the screws with the plate handle.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
