CXFC05-4 - Jack Vevor - Free user manual and instructions

Product Type	RV Leveling Jack Support
Brand	Vevor
Model	CXFC05-4
Number of Pieces	4
Maximum Load per Support	5000 lb (2268 kg)
Support Height	15 mm (0.59 inch)
Support Foot Adaptation Diameter	254 mm (10 inches)
Material	Heavy-duty metal (steel)
Main Use	Stabilization and leveling of campers
Additional Function	Increases the support surface of the jack
Lubrication	Lubricating oil included
Safety Precautions	Read the manual, wear PPE, avoid open flames
Maintenance	Apply lubricating oil regularly
Cleaning	Wipe with a dry cloth after use
Compatibility	Standard camper jacks
Warranty	Electronic warranty certificate available
Country of Origin	China

Frequently Asked Questions - CXFC05-4 Vevor

What is the maximum load supported by each pad of the CXFC05-4?

Each pad can support up to 5000 lb (2268 kg).

Is this support compatible with all RV jacks?

It is designed for camper jacks. Check that the support foot diameter is 254 mm (10 inches) for the CXFC05-4.

How many pads are included in the set?

The set contains 4 pads.

How to install the pads on the jack?

Place the pad under the jack foot and ensure it is centered and stable. Follow the manual instructions for secure mounting.

Do the pads need lubrication?

Yes, a lubricating oil is provided. Apply it regularly to prevent corrosion and ensure smooth operation.

Are the pads rust-resistant?

They are made of robust steel. Regular lubrication and dry storage extend their lifespan.

Can I use these pads on uneven ground?

Yes, they increase the contact surface and improve stability on soft or uneven terrain.

What safety precautions should be taken?

Wear protective goggles and gloves, work in a clean and dry space, and keep away from open flames.

Is this product guaranteed?

Yes, Vevor offers an electronic warranty certificate available at www.vevor.com/support.

What to do if the pad is damaged?

Contact Vevor technical support to obtain replacement parts or assistance.

USER MANUAL CXFC05-4 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RV LEVELING JACK PAD

MODEL: CXFC05-4/ CXFC06-4

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only reflect an estimate of savings you might benefit from buying certain tools with us compared to top brands, and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR

TOUGH TOOLS, HALF PRICE

RV LEVELING JACK PAD

MODEL: CXFC05-4/ CXFC06-4

CXFC05-4 CXFC06-4

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING

• Please read this manual carefully before using the product.
• Keep away from sharp points, blades, and other items to avoid scratching the product.
• Use the product only after receiving professional training.
• Wear necessary personal protective equipment such as safety goggles and protective gloves during use.
• Ensure that the workspace remains clean, dry, and well-ventilated during operation.
• Keep away from open flame. This product will ignite and burn if brought into contact with an open flame. Do not use the jack in flammable, explosive, or damp environments.
• Ensure that the jack pad is securely installed and stable to prevent movement or tipping during use.
• Follow safe operating procedures when using the jack pad, avoid excessive force or incorrect techniques. Fix it first when using it to avoid injury.
• This product is not a toy; keep it away from children and do not allow children to play with it.

Suitable for camping trailer jacks, each pad bearing up to 5,000 pounds. Designed specifically for strength and quality.

It can be embedded into the support tripod to protect the support foot and increase the support area.

PRODUCTION CONFIGURATION

Model	CXFC05-4	CXFC06-4
Quantity (pcs)	4	4
Support Height (inch / mm)	0.59 / 15	1.1 / 28
Single Max. Load (lbs / kg)	5000 / 2268	5000 / 2268
Adapt to support foot size (inch/ mm)	10(Φ254mm)	5.5*5.5 (139.7*139.7)

1 pc oil is included.

PRODUCT INTRODUCTION

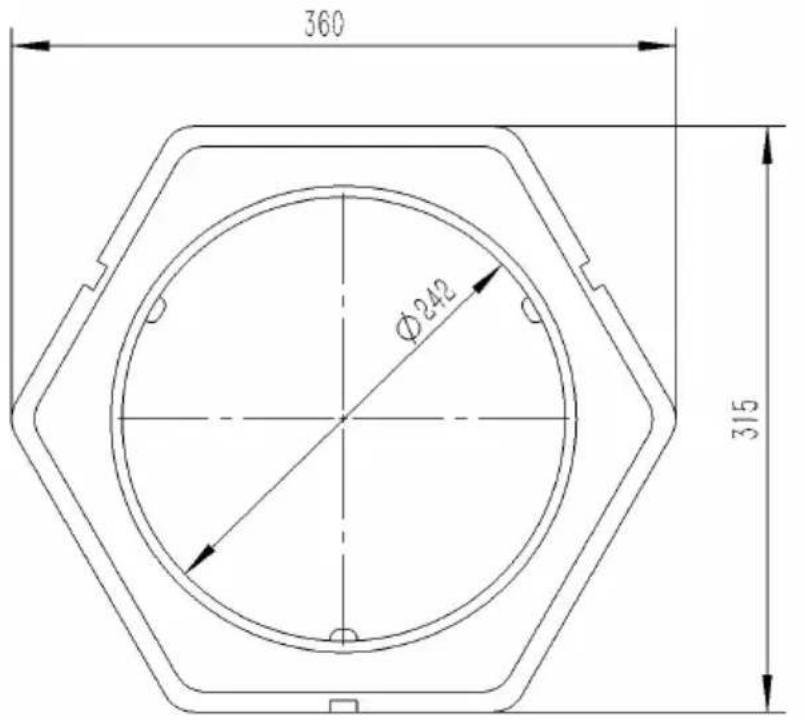

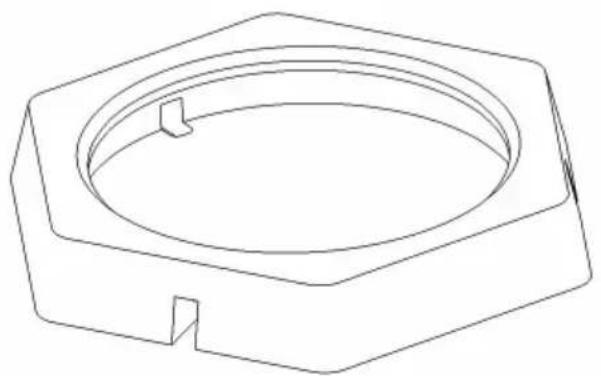

Model: CXFC05-4

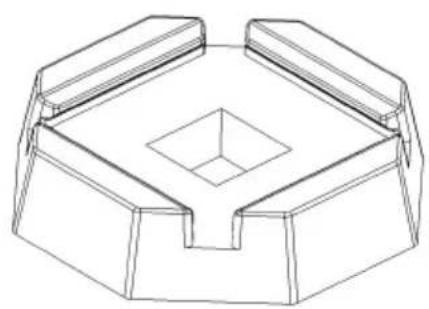

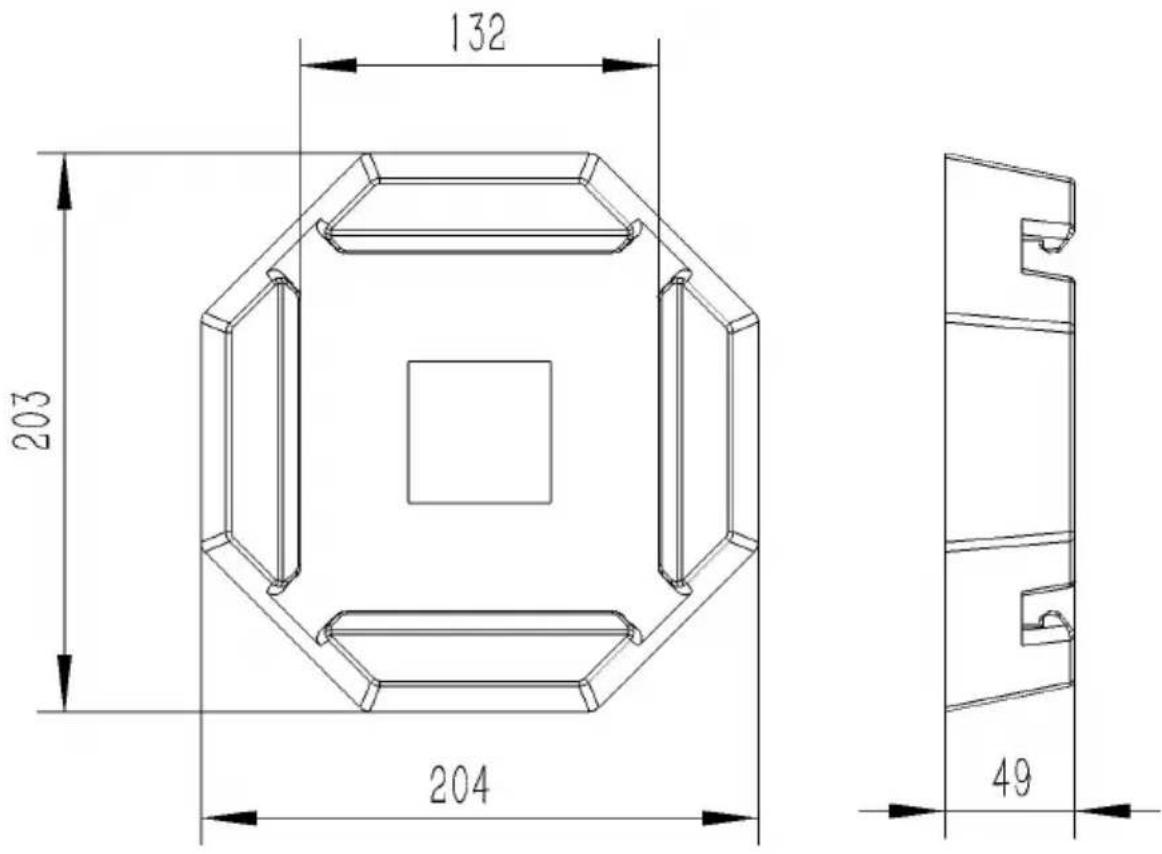

Model: CXFC06-4

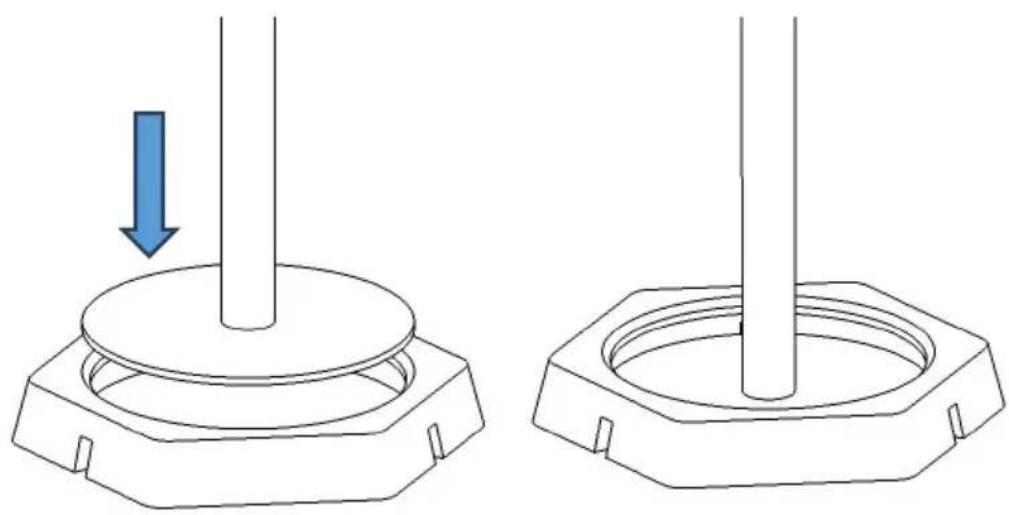

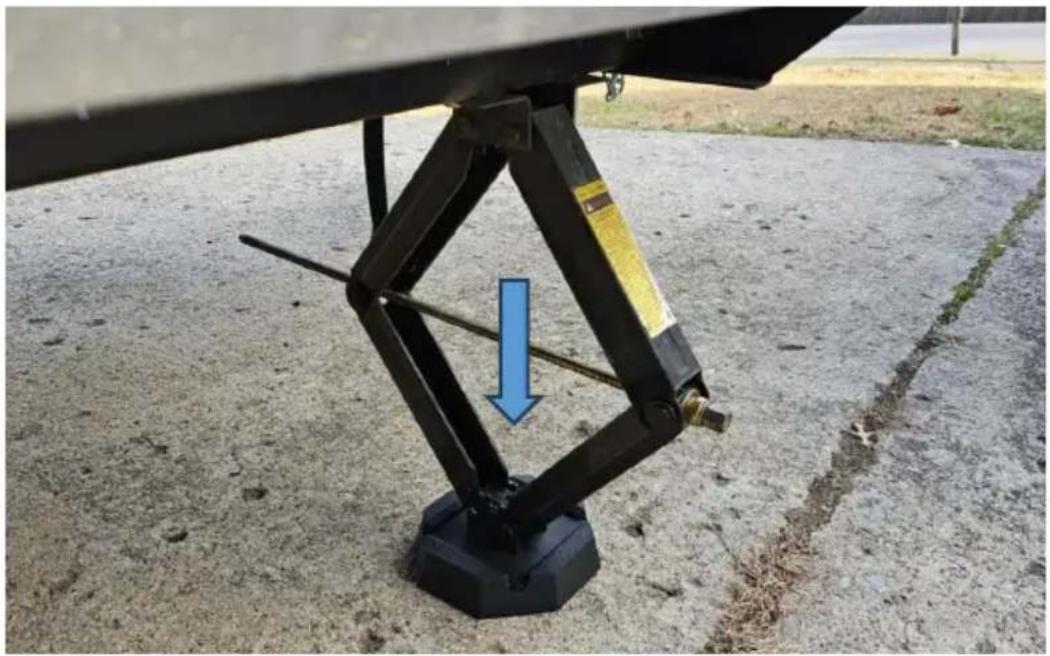

USE INDICATION

Model: CXFC05-4

Model: CXFC06-4

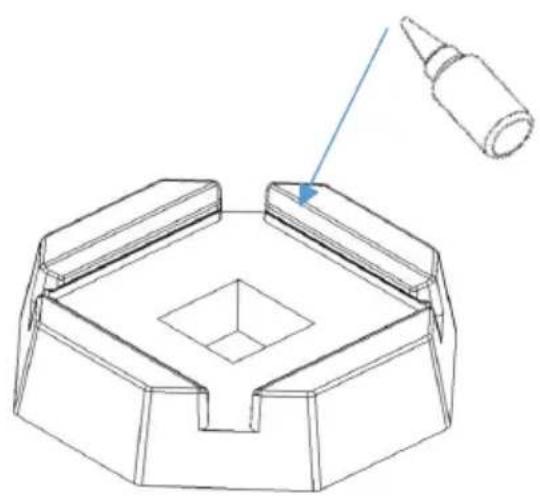

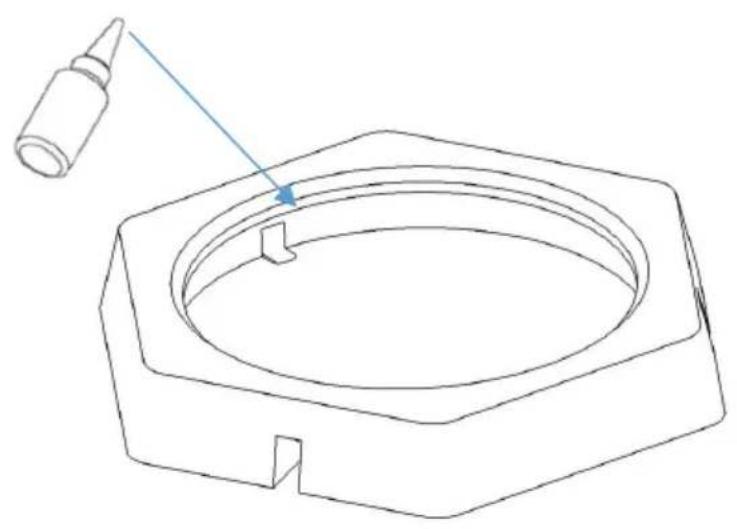

LUBRICATING OIL USE METHOD
