VB45-D-2 - Lighting Vevor - Free user manual and instructions

Product type	LED outdoor wall light
Model	VB45-D-2
Brand	Vevor
Power	21 W
Input voltage	85-265 V AC, 50/60 Hz, max 0.5 A
Output voltage	100-200 V DC, 220 mA ± 5%
Color temperature	2700 K - 6000 K (adjustable)
Power supply	Mains powered
Control type	Touch remote with color ring
Main functions	On/off, color, brightness, speed adjustment and effect modes (depending on model)
Remote control range	Mini version: 30 m, plastic case version: 100 m
Remote control power	2 AAA batteries (not included)
Installation	Wall mounting with bracket and expansion screws; requires a qualified electrician
Maintenance and cleaning	Wipe with a soft, clean cloth; avoid acidic or alkaline chemicals
Safety	Cut off power before any intervention; maintain safety distances from combustible materials
Protection	Compliant with FCC (Class B); outdoor use
Spare parts and repairability	Contact the dealer for missing parts or installation issues
General information	Manufactured by Shanghai Muxin Muye Youxiangongsi; imported into Australia and the United States

Frequently Asked Questions - VB45-D-2 Vevor

How to install the Vevor VB45-D-2 wall light?

Drill a hole in the wall, insert a plug, attach the bracket with screws, connect the wires using a waterproof connector, then fix the light to the bracket with round head screws. Make sure to cut off power before any manipulation.

What to do if the remote control doesn't work?

Check the batteries (2 AAA batteries). If the problem persists, refer to the remote control video tutorial or contact customer service. You can also re-pair the remote by pressing and holding the blue button on the color ring for 5 seconds.

How to adjust the color temperature of the VB45-D-2?

Use the touch remote: touch the color ring to select a hue, or use the M+ and M- buttons to scroll through modes. The color temperature is adjustable from 2700K to 6000K.

Can I use this light outdoors in rainy weather?

Yes, the light is designed for outdoor use. Make sure the connections are waterproof and the installation complies with electrical standards.

What to do if parts are missing from the package?

Contact the dealer who will provide replacement parts free of charge.

How to reset the remote control?

To clear the pairing, press and hold the yellow button at the bottom of the color ring for 5 seconds. The yellow LED will flash three times. Afterwards, any remote can control the controller.

What is the maximum power of the VB45-D-2?

The rated power is 21 W. The input power supply accepts 85-265 V AC, with a maximum current of 0.5 A.

How to clean the light without damaging it?

Use a soft, clean cloth. Avoid any acidic or alkaline chemicals as they could corrode the surface.

Is the lamp dimmable?

Yes, the brightness is adjustable via the remote using the B+ and B- buttons. It also offers several brightness levels.

What to do if the displayed color does not match the color ring?

It is necessary to adjust the RGB order. Turn off the light, hold the 'A' button for 5 seconds, then use the B+ button to adjust the order until the first 15 LEDs are correctly red, green, and blue.

USER MANUAL VB45-D-2 Vevor

Affordable. Reliable. Home Improvement.

Outdoor Wall Light

MODEL: VB45-2, VB30-2, VB35-2, VB20-1, VB45-D-2, VB55-D-2, VB20-D-2, VB35-D-2, VB35-DRGB-2

MODEL:VB45-2, VB30-2, VB35-2, VB20-1, VB45-D-2, VB55-D-2, VB20-D-2, VB35-D-2, VB35-DRGB-2

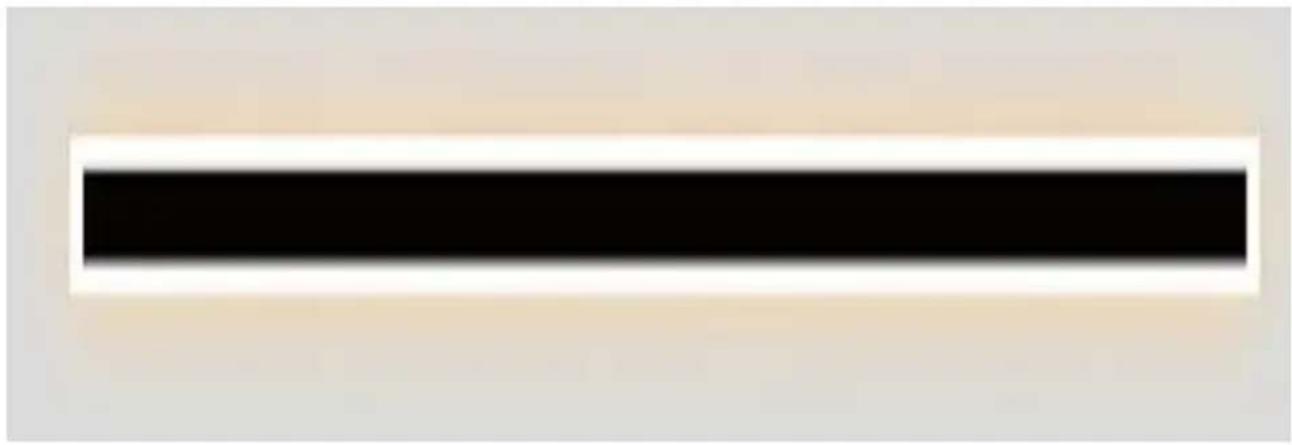

A solid black horizontal bar on a light background, no text or symbols present.

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again there are any technology or software updates on our product.

PRECAUTIONS

1. The lamps shall not be close to acid, alkali chemical objects and gases containing corrosive, it is recommended to wipe with a clean soft cloth.
2. Safe power supply: Before carrying out any electrical work, ensure that therelevant circuit is closed and use a voltage tester to verify that the wires are not charged. If necessary, the off the power to the main new circuits or related circuits
3. Wire Connections: Use the correct size wire and use the appropriate wire connectors to make the connections. Make wire connections in accordance with electricalcodes to ensure proper insulation and protection of wire connection points.
4. Safe Spacing: Ensure that there is adequate safe spacing between the chandelier and combustible materials in accordance with the electrical code. This will avoid fre risks and overheating problems.
5. Test and Verify: Before reconnecting the power supply, double-check all wire connections and use a voltage tester to verify that the electrical connections are correct and safe. Measure the pendant light switch and dimmer are working properly.

WHAT CAN BE DONE ABOUT THE FACT THAT THE LIGHTS ARENOT SIZED TO COVER THE JUNCTION BOX?

Purchase a cover plate for your junction box to cover the junction box.

WHAT TO DO IF PARTS ARE MISSING

Missing accessories contact the merchant, the merchant will send you replacement accessories

WHAT IF YOU DON'T KNOW HOW TO INSTALL IT YOURSELF?

For product installation issues, contact the merchant, who will guide you through the installation with pictures and videos.

WHAT TO DO IF THE REMOTE CONTROL DOESN'T WORK

Remote control can not use the problem, please see the remote control Tutorial video, or contact us.

Wall lamp installation method

Instructions for usage of outdoor wall lights remote control

INSTALLATION STEPS

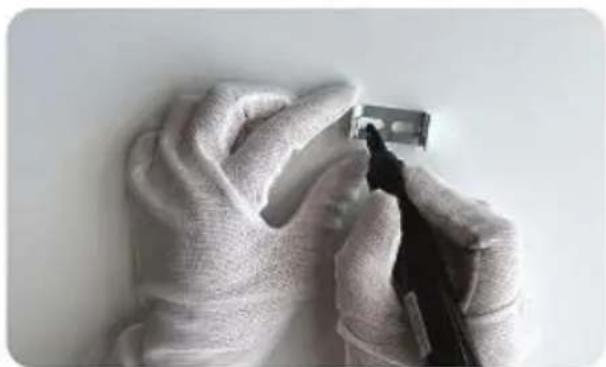

Close-up of gloved hands holding a small electronic component (no visible text or symbols)

Close-up of a black cylindrical object with a pointed tip against a plain sky background (no text or symbols visible)

1. Determine the location of the hole in the wall for the mounting hole of the wall lamp.

2. Punch the hole in the wall with an electric spinner.

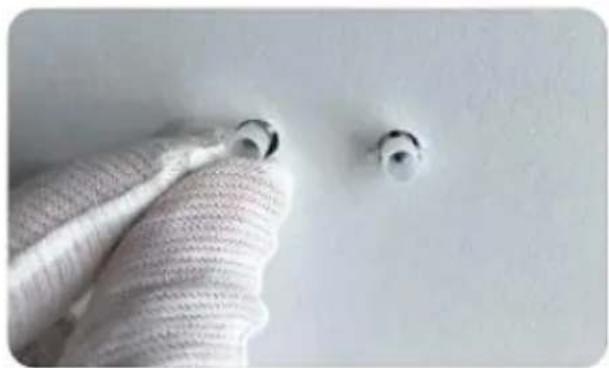

Close-up of a gloved hand holding a white textured surface next to two small white circular objects on a plain white surface (no text or symbols visible)

Close-up of a hand using a screwdriver to apply a small component to a wall-mounted fixture (no text or symbols visible)

1. Place the expansion screw into the hole

2. Fix the bracket to the wall.

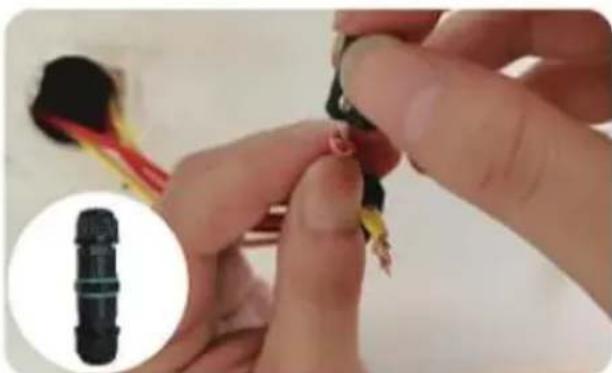

Close-up of hands assembling a small electronic component with wires, no visible text or symbols

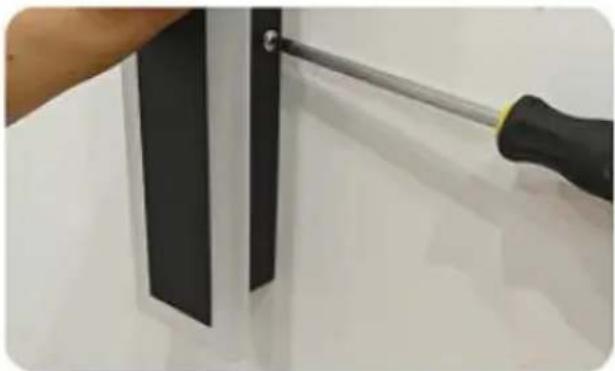

Close-up of a hand using a screwdriver to adjust or install a black panel on a white surface (no text or symbols visible)

1. install waterproof connector and connecting the wires.

2. Attach the wall lamp to the w with round head screws.

LED Touch Dream-color controller

LED2020-RF-Touch

1. Basic parameters:

Working voltage: 5-24V

Effect mode:358 effects

Control points: Max up to 2048 pixels points

Remote control distance: Mini version 30 meter, Plastic box version 100 meter

Battery modek: 2 pcs No.7 batteries(remote control battery)

2. Key operation instructions:

: Power an/ off

: Auto play (In the shutdown state . Long press 5 seconds to enter theustment pixel points and RGB sequence menu)

M+t: Mode+ M-: Mode-

S+: Speed+ S-: Speed-

B+: Brightness+ B-: Brightness-

Color Ring: Touch the color ring, led strip to display the corresponding color.

Adjust the number of pixel points function: First press"ON/OFF key" to shut down. In the shutdown state, long press"A" key for 5 seconds to enter the number of p points adjustment menu. At this time, press"M+" and"M-" to adjust the number of pixel points. After adjustment, press"ON/OFF key" to save.

Adjust RGB order function: If the color of the led strip and the color ring cannot match, you need to adjust the RGB order. The adjustment method is the same as the number of adjustment pixel points. First, press the "ON/OFF key" to shut down. In the shutdown state, long press the "A" key for 5 seconds to enter the number of adjustment menu. At this time, press the "B+" key to adjust the RGB order until the color order of the 15 LED in front of the led strip is" red, green and blue". After adjustment, press "ON/OFF key" to save.

Remote control one-to-one matching function: In any case, long press the" blue key at the top" of the color ring for 5 seconds (no shaking left and right), to real the remote control one-to-one matching function. After the matching is successful, the blue light of the led strip flashes three times. At this time, only this remote controller can control this controller.

Delete the remote control matching function: In any case, press and hold the "yellow key at the bottom" of the color ring for 5 seconds (no shaking left and right) delete the remote control matching function. After successful delete, the yellow light of the led strip flashes three times. at this time, all remote controllers can control the controller.

FCC

FCC Information:CAUTION: Changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment!This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1) This product may cause harmful interference.2) This product must accept any interference received, including interfered that may cause undesired operation.WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.Note: This product has been tested and found to comply with the limits Class B digital device pursuant to Part 15 of the FCC Rules, These lines designed to provide reasonable protection against harmful interference in residential installation.This product generates, uses and can radiate radio frequency energy, a not installed and used in accordance with the instructions, may cause h interference to radio communications. However, there is no guarantee the interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception,which can be determined by turning the product off and on, the user is encouraged to correct the interference by one or more of the following measures.Reorient or relocate the receiving antenna.Increase the distance between the product and receiver.Connect the product to an outlet on a circuit different from that to wh receive is connected.Consult the dealer or an experienced radio/TV technician for assistanceWarning-To reduce the risk of injury, user must read instructions manual carefully.

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices

Model	Input	Output	Power	CCT
VB45-2	AC90-265V~0.25A50/60Hz	DC24V=1A(0.5A@50°C)	12W	3000K
VB30-2			8W
VB35-2			10W
VB20-1	AC90-265V~0.5A50/60Hz	DC24V=0.5A(1A@50°C)	6W
VB45-D-2	85-265Vac 50/60HzMax:0.5A	100-200VDC220mA±5%	21W	2700K-6000K
VB55-D-2			27W
VB20-D-2	85-265Vac 50/60HzMax:0.2A	50-84VDC220mA±5%	11W
VB35-D-2	85-265Vac 50/60HzMax:0.3A	60-140VDC220mA±5%	18W
VB35-DRGB-2	AC90-265V~0.25A50/60Hz	DC24V=1A(0.5A@50°C)	10W

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
