USER MANUAL JM-YP20 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Extendable Underhood Rechargeable Floodlight User Manual

MODEL:JM-YP20

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:JM-YP20

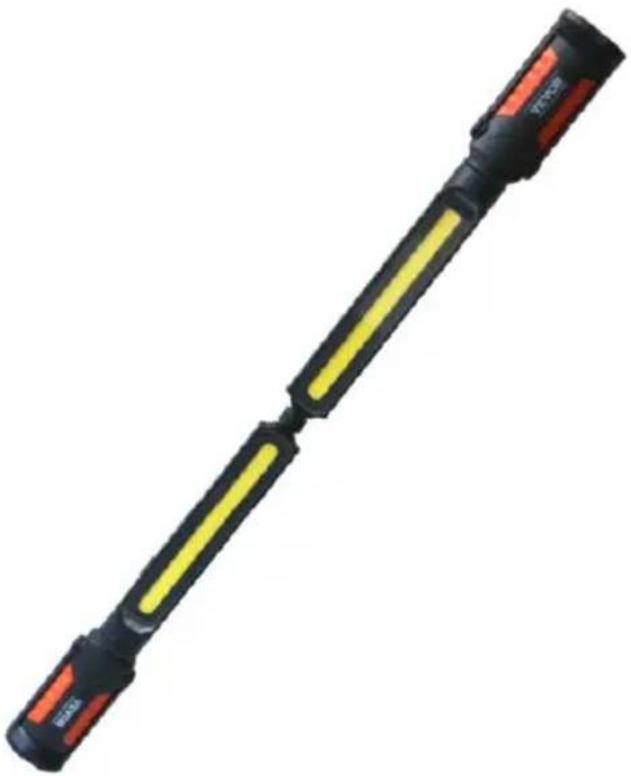

Yellow and black mechanical tool with red and black end caps (no visible text or symbols)

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refus collection in the European Union. This applies to the pr and all accessories marked with this symbol. Products r as such may not be discarded with normal domestic wa must be taken to a collection point for recycling electric electronic devices

WARNING:

To prevent serious injury, FIRE, and EXPLPSION:

1. Do not disassemble the device.
2. The LED light is very bright. Do not look directly into the light beam point the light beam at others!
3. Do not operate in direct sun light or extreme temperature condition
4. Operating temperature, -4^ ( -20^ ) to 122^ ( 50^ )
5. Keep dry. Do not open, drop, short-circuit, incinerate, expose to temperatures high than 140^ F ( 60^ C), or charge/use if damaged.
6. Do not submerge Light.
7. Do not operate it explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
8. People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close proximity to heart pacemaker could cause pacemaker interference or pacemaker failure.
9. Keep away from children! Children should be supervised in order to ensure that they do not play with the device!

Charging procedure:

1. Do not place the magnetic work light in a strong magnetic or ele field environment to prevent affecting its magnetic adhesion effect and performance.
2. Do not use the work light during charging to avoid affecting the effector causing damage.
3. Do not use or charge the work light in damp or high-temperature environments to prevent affecting its performance and lifespan.

FEATURES

Close-up of a handheld electronic device with two small sun icons above it, no visible text or symbols.

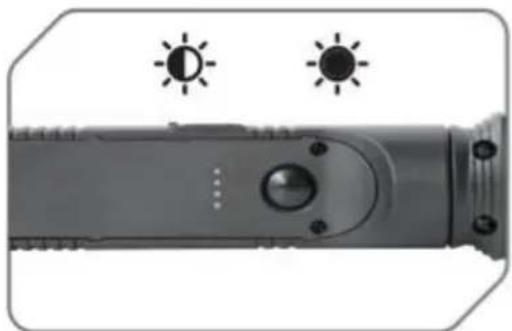

2 Level Brightness, Red Fla:

Close-up of a mechanical device with orange handle and black base, showing rotational motion arrows (no text or symbols)

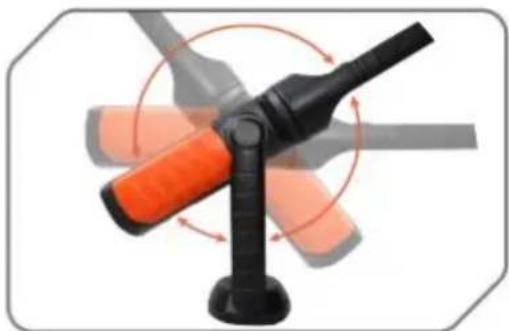

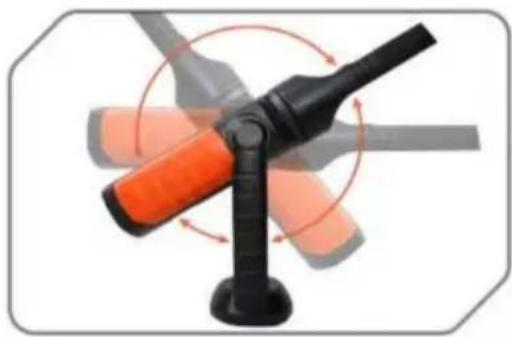

Base with 300^

Two black objects: a hook and a flashlight with two lenses, shown side by side (no text or symbols)

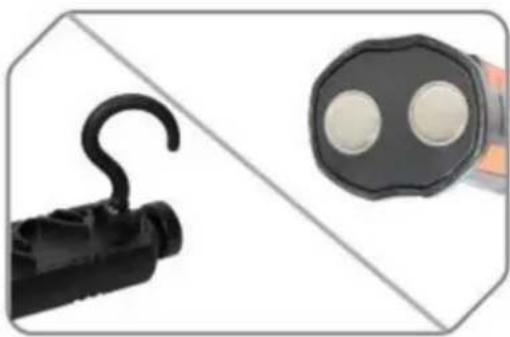

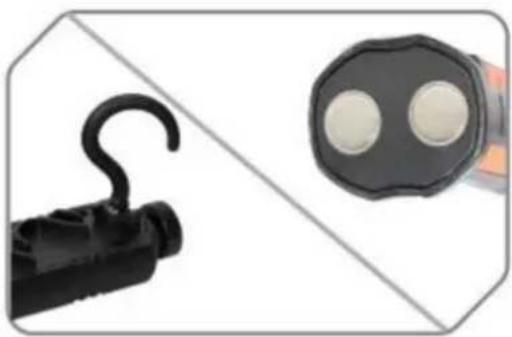

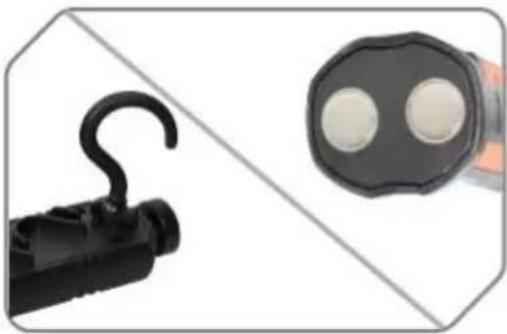

Hook and Magnet

Close-up of a black and orange traffic light fixture with a yellow beam, showing a 350° angle (no text or symbols on the object itself)

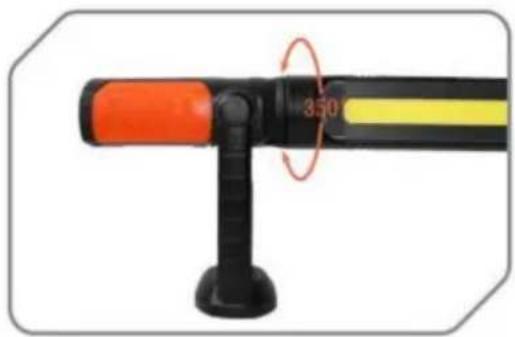

Body Swivel 350°

6500K

CCT

COB

COB LED

Simple line drawing of a U-shaped magnet with magnetic field lines (no text or symbols)

Magnetic

Battery icon with lightning bolt symbol, enclosed in rounded square (no text or numbers)

Rechargeable

PERFORMANCE PARAMETER

Model	JM-YP20
Battery Capacity	4400mAh
Brightness	1450LM (Single tube 750LM)
Color Temperature	6000-7000K
Power	20W(Single tube 10W)
Lighting Time	3.5H(High) / 8H(Low)
Material	ABS
USB Cable	Type-C
Charging Time	4H
Charging voltage	DC5V 1A

OPERATION

1. Align the magnetic adsorb at the bottom of the work light with a metal surface and gently bring them together until the magnet firmly adheres.
2. The two light can be installed separately or docked together for use

OPERATION

1. Turn on the power switch, and the work light will illuminate.
2. To adjust the brightness, press the switch button again.
3. To switch to the red strode flashing made, continuously power switc until the light starts strobe flashing.
4. After use, press the power switch for the fourth time to turn off the light.

ACCESSORIES LIST

1.TYPE-C charging cable *2

2.User Manual *

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4
