USER MANUAL RBSDGZD-008 Vevor

Affordable. Reliable. Home Improvement.

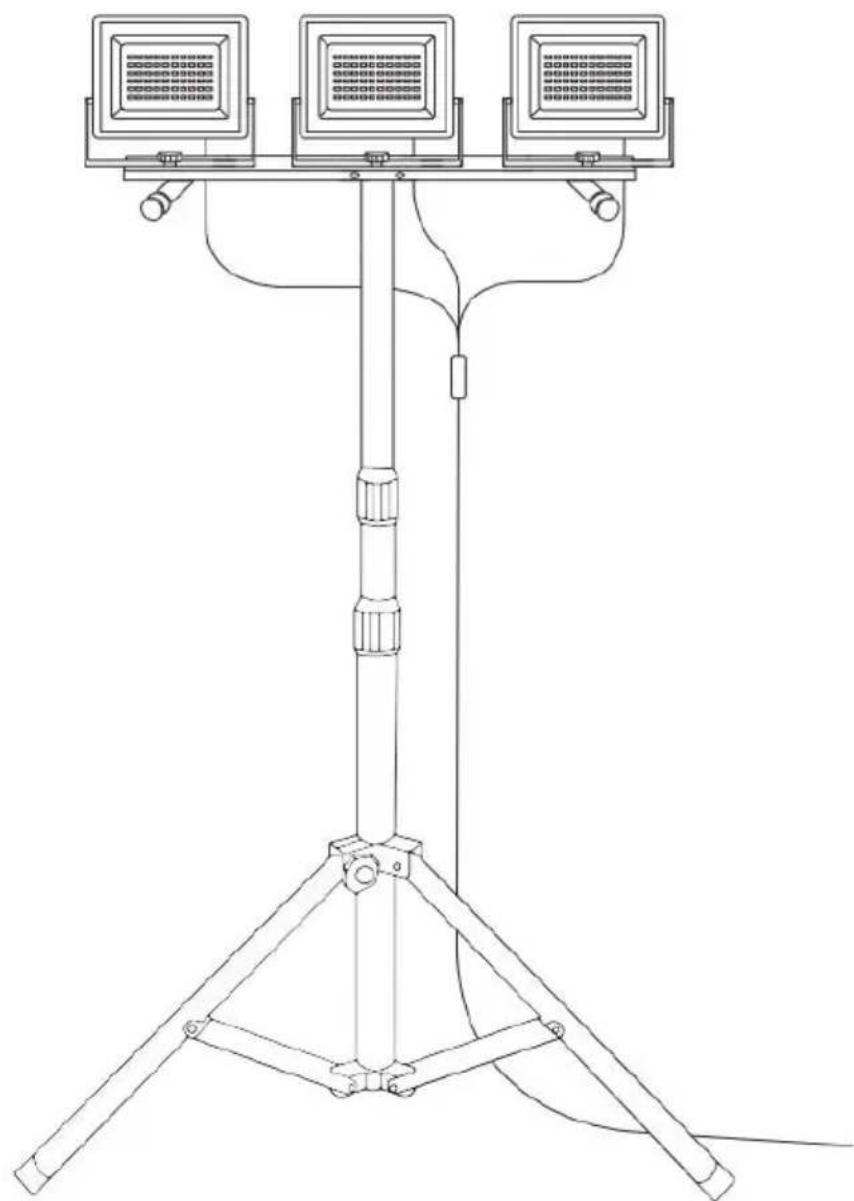

Work Light With Tripod

MODEL:RBSDGZD-005,

RBSDGZD-006,

RBSDGZD-007,

RBSDGZD-008

MODEL:RBSDGZD-005,RBSDGZD-006,RBSDGZD-007,RBSDGZD-008

Vevor RBSDGZD-008 - MODEL:RBSDGZD-005,RBSDGZD-006,RBSDGZD-007,RBSDGZD-008 - 1

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:(1)This device not cause harmful interference, and (2)this device must any interference received, including interference that may cause undesired operation.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices

PLEASE READ THESE INSTRUCTIONS CAREFULLY AND SAVE THEM, AS YOU MAY NEED THEM AT A LATER DATE.

WARNING: Failure to use with specific U.L. safety standards for the intended working environment (location/application), may cause serious personal injury, death and/or property damage. This product must be assembled by a person qualified and familiar with the operation and the intended use of this fixture.

SAFETY INFORMATION

1) If an extension cord is used with this unit, it must be the ground 3-prong.
2) Ground Fault Interrupt(GFCD) protection must be provided on crust outlet(s) to be used for outdoor or wet location use with this work line.

3) Avoid touching the lighted area to protect you from any heat expos
4) Do not look directly into light to avoid injury to the eyes.
5) Always keep the work light away from any flammable material or surfaces. Never use it around volatile liquid.
6) Do not use an extension cord near any place where water may accumulate.
7) Keep work light away from pools and spas.
8) When plugging in unit to cord plugs (EX1 provided), keep enough on the cord so it cannot be pulled, which may knock over the work
9) Make sure to put tripod in a flat, secure place to avoid it from falling over.

1) Lamp holder: 3 pieces
2) Work light bracket: 1 p
3) Connecting rod: 1 piece
4) Tripod: 1 piece
5) 6*25 screws: 4 pieces
6) 6*35 screws: 1 piece
7) Hex key wrench: 1 piece
8) Instruction manual: 1 cc

Vevor RBSDGZD-008 - SAFETY INFORMATION - 1


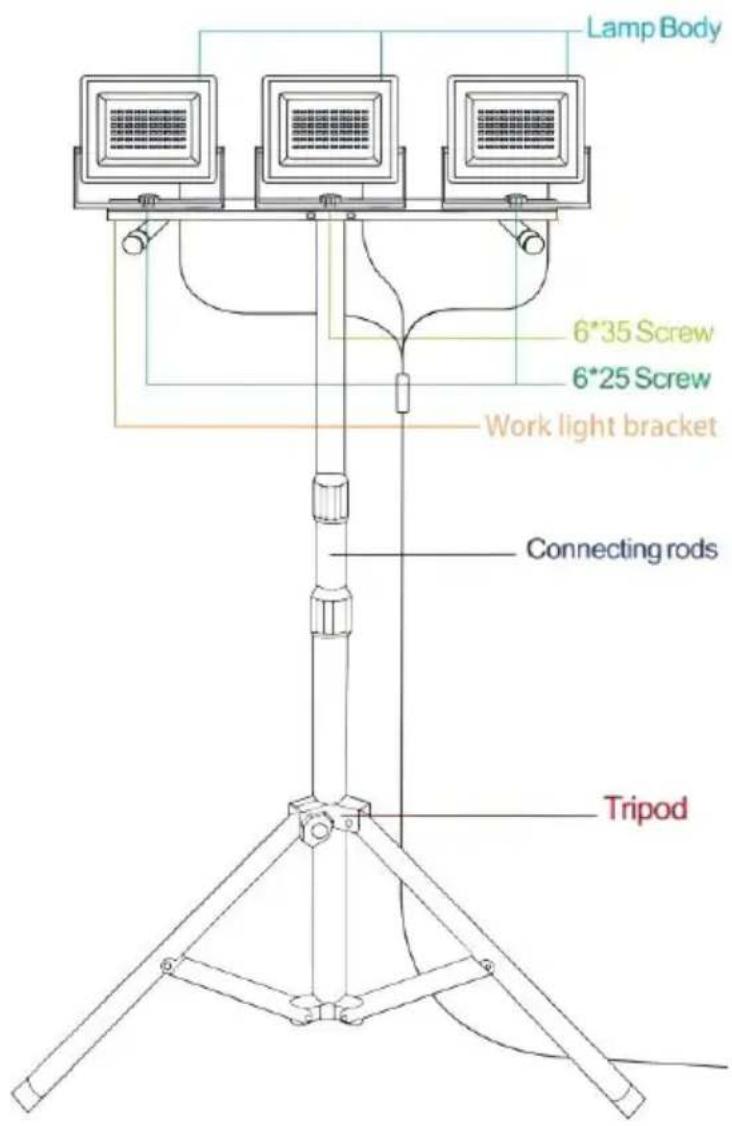

Lamp Body 6*35 Screw 6*25 Screw Work light bracket Connecting rods Tripod

PART INCLUDED

IMPORTANT NOTE: The safeguards and Instructions appearing in this page, are not meant to cover all possible conditions and situations that may occur. It may be understood that common sense, caution, and care factors that cannot be built into any product. The person(s) install operating is responsible for the work light, must execute these common sense factors.

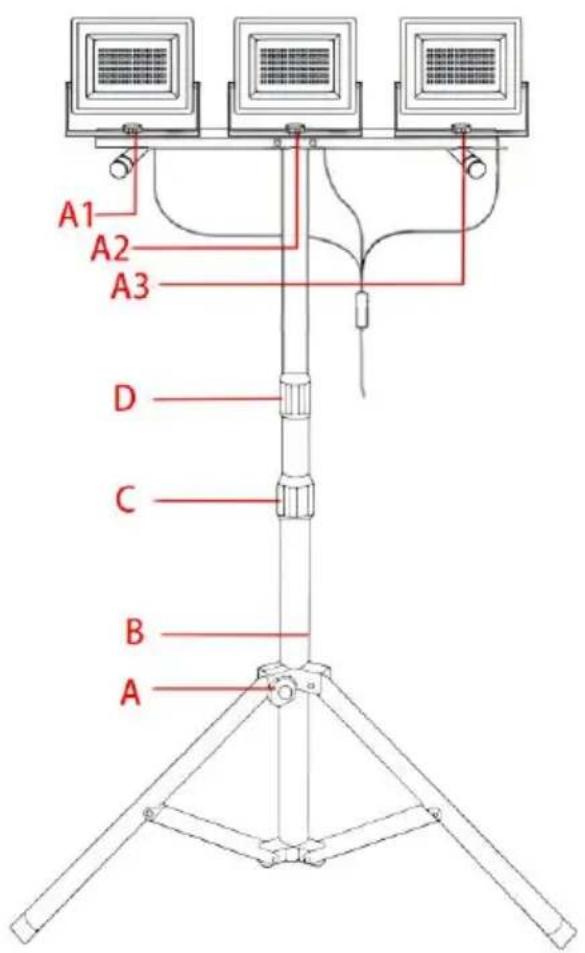

ASSEMBLY

①.Open the tripod and tighten the (A).

②.Fix the connecting rod (B) onto tripod using a knob and tighten it completely.

③. Place the cross connection of th l-frame on the concave part of the connecting rod and tighten it with

④. Install the lamp head above the installed I-frame (A1, A2, A3).

⑤.The height of (C) and (D) on the post can be adjusted by tightening on the left and loosening them on right.

Vevor RBSDGZD-008 - ASSEMBLY - 1

CLEANING&CARE

Make sure unit is not pulled or dropped. Regularly clean the unit with nonabrasive cleaner.

Dry tripod & hand head unit if any water gets on the unit.

Store in a dry and secure location.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

REP

Affordable. Reliable. Home Improvement.

MODÈLE : RBSDGZD-005 , RBSDGZD-00 6, RBSDGZD-00 7, RBSDGZD-00 8

Vevor RBSDGZD-008 - Affordable. Reliable. Home Improvement. - 1


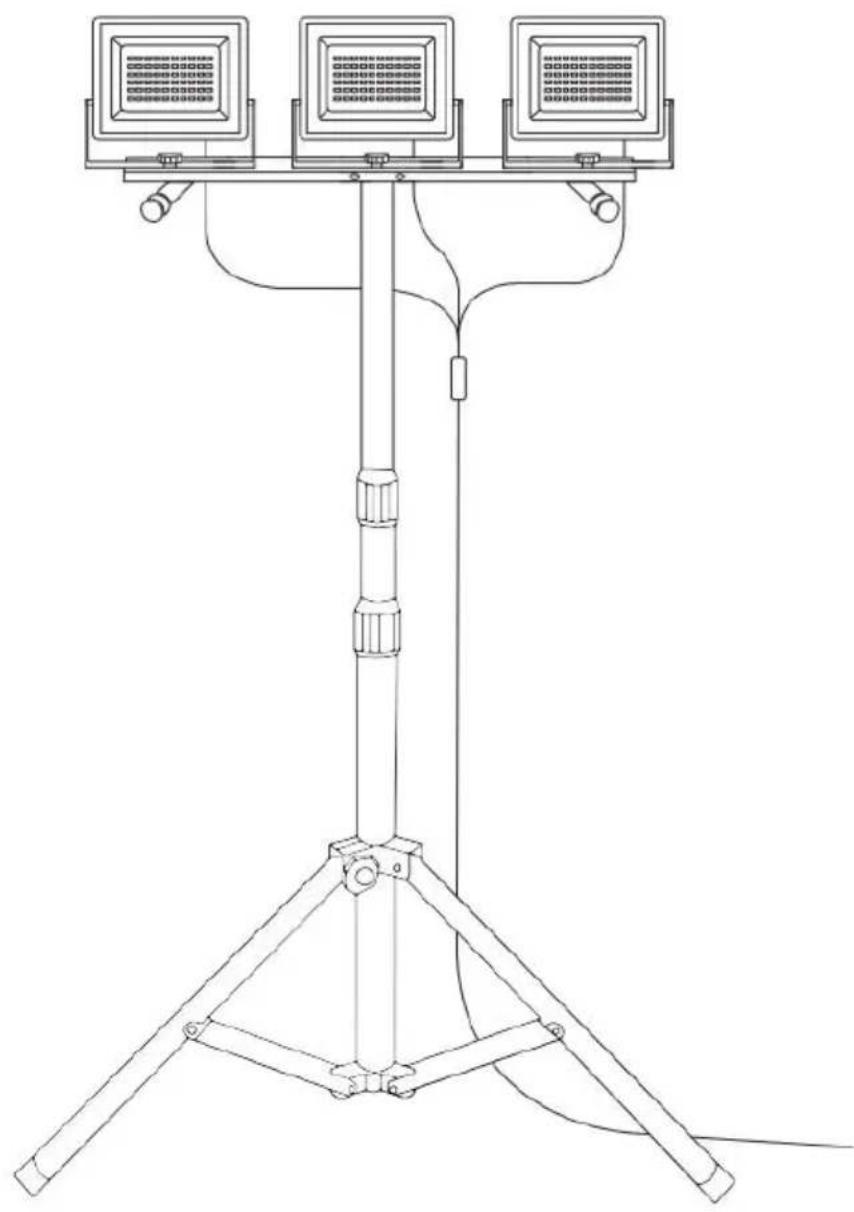

PART INCLUDED

Lieu, Rancho Cucamonga, CA 91730

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

REP

Affordable. Reliable. Home Improvement.

MODELL: RBSDGZD-005, RBSDGZD-006, RBSDGZD-007, RBSDGZD-008

Vevor RBSDGZD-008 - PART INCLUDED - 1

PART INCLUDED

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

REP

Affordable. Reliable. Home Improvement.
