SMS-038 - Cable stripper Vevor - Free user manual and instructions

Brand	Vevor
Model	SMS-038
Product type	Manual cable stripper
Dimensions (L × W × H)	55.5 × 37 × 43 cm
Weight	25.5 kg
Stripping range	Φ1.5 mm to Φ40 mm
Compatible cable types	Single or double core copper wires, flat cables
Cutting depth adjustment	By M12 handles at the input
Axis spacing adjustment	0.3-0.6 mm for fine wires
Blade maintenance	Sharpening with included oil stone
Package contents	Manual, gloves, oil stone, spare blade
Power supply	Manual (no electrical source)
Safety	Use gloves, cut cable heads before feeding
Repairability	Replaceable blades and springs, adjustments possible
General information	Support certificate and electronic warranty available

Frequently Asked Questions - SMS-038 Vevor

How to adjust the cutting depth on the SMS-038 stripper?

Use the M12 handles located on the input side. Tighten or loosen them to adjust the blade pressure on the cable.

What to do if wires get stuck in the machine?

Check if the pressure wheel springs are too tight; loosen them. If the cable is too oily, wipe it before feeding.

How to sharpen the blades of the Vevor stripper?

Use the included oil stone to polish the blades. Ensure they remain sharp for a clean cut.

What types of cables can be stripped with the SMS-038 model?

This machine accepts single or double core copper wires, as well as flat cables, with a diameter from 1.5 mm to 40 mm.

Why is the plastic stripped but the copper wires do not come out?

Check 4 points: 1) Polish the upper axle with the oil stone. 2) Retighten the springs if loose. 3) For fine wires, adjust the axis spacing to 0.3-0.6 mm. 4) If the cables are hot, wait for them to cool down.

How to replace a blade on the SMS-038 stripper?

Unscrew the worn blades and replace them with the provided spare blades. Make sure to secure them properly before use.

Can I use the stripper for large diameter cables?

Yes, up to 40 mm. Insert large cables into the corresponding large feed holes.

How to avoid damaging cables during stripping?

Cut the cable head before feeding and use the feed hole suitable for its diameter. Adjust the cutting depth gradually.

What to do if the blades are tilted?

Check if the central adjustment device is loose, then adjust the screws on both sides to center the blades.

Does the Vevor SMS-038 stripper require electrical power?

No, it is a completely manual machine. No external power source is required.

USER MANUAL SMS-038 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

WIRE STRIPPING MACHINE

USER MANUAL

MODEL: SMS-038YKL

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: SMS-038YKL

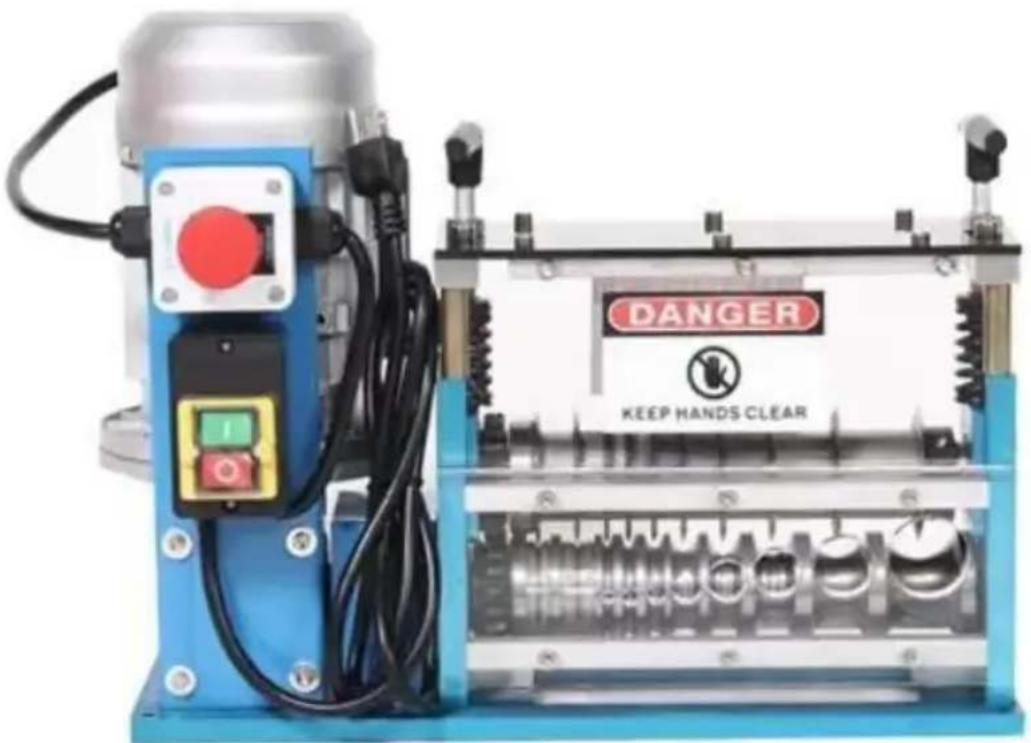

(The picture is for reference only; please refer to the actual object.)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Warning: To reduce the risk of injury, the user must read the instruction manual carefully.

INSTRUCTIONS

Wire stripping range: Φ1.5mm ~ 40mm

This machine is easy to operate and convenient to carry. It can process single-core copper wire and twin-core copper wire.

Please note that there will be a small margin of error in actual use.

1. Compare the cable/wire diameters with the feeding holes on the machine, and feed the cables/wires one at a time. Before feeding, cut off the head of the cable/wire to avoid gaps that could damage the blades.
2. On the output side, if the cuts on the cables/wires are too deep, please check the following points:

(1) Adjust the handles on the input side, either screw down or loosen (M12 handles). (2) Check whether the cables/wires are in the correct position as you feed them. (3) Make sure the blades are sharp; if not, sharpen them with the oil stone.

1. On the output side, if the plastic (PVC) has been stripped but the copper wires cannot be discharged, please check the following 4 points:

(1) Polish the axis of the upper side with the oil stone. (2) Check whether the springs are loose; if so, tighten them. (3) If the diameter of the cables/wires is too small, adjust the gap between the two axes to 0.3-0.6 mm.

(4) If the cables/wires you want to strip are hot, the wires may not be stripped out properly.

4. If the cables/wires are blocked in the axes, please check the following points:

(1) If the springs on the press wheels are too tight, loosen them. (2) If there is too much oil on the cables/wires, wipe it off.

5. If the blades appear tilted:

(1) Check whether the center adjuster is loose. (2) Perform centering adjustment and adjust the screws on both sides of it.

Make sure the cable/wire diameters are similar to the feeding holes: large cables/wires go in large feeding holes, small cables/wires in small feeding holes, and flat cables/wires in flat feeding holes.

This product comes with the following items: manual, gloves, oil plug blade
