USER MANUAL JF166-HFK-09111 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ACOUSTIC WPC SLAT WALL PANELS

MODEL: JF166-HFK-11411 / JF166-HFK-09111

/ JF166-HFK-30220 / JF166-HFK-21381

/ JF166-HFK-30110 / JF166-HFK-6007

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ACOUSTIC WPC SLAT WALL PANELS

MODEL: JF166-HFK-11411 / JF166-HFK-09111 / JF166-HFK-30220 / JF166-HFK-21381 / JF166-HFK-30110 / JF166-HFK-6007

Aerial view of a road with parallel tracks and scattered construction materials on the ground.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

  1. Please read and understand this manual carefully before using the Acoustic WPC slat wall panels.

The installation should be done by an adult, and children should not be without supervision.

  1. Please ensure that the Acoustic WPC slat wall panels are firmly installed; otherwise, they may fall off and cause harm to people.
  2. Check the stability and safety of the product fixation regularly. If the product is loose, it should be strengthened immediately.
  3. Do not install wall panels on curved walls. Wall panels may be damaged and cause harm to people.

PARAMETER LIST

ModelSizeQTYColor
JF166-HFK-114112450*166*9mm8White wax wood colo
JF166-HFK-091112450*166*9mm8Black walnut color
JF166-HFK-302202450*166*9mm8Grey oak color
JF166-HFK-213812450*166*9mm8Deep pomelo wood co
JF166-HFK-301102450*166*9mm8Dumb light white
JF166-HFK-60072450*166*9mm8Mute black

If there is any difference between the color of this product and the instruction manual, please refer to the physical object.

INSTRUCTIONS

Safety and Care Advice

  • Check you have all the components and tools listed on the following pages.
  • Remove all fittings from the plastic bags and separate them into groups.
  • Keep children and animals away from the work area; small parts can choke if swallowed. • Make sure you have enough space to layout the parts before starting.
  • Parts of the assembly will be easier with 2 people.
  • Please handle it carefully during installation. The wall board is brittle and may break upon impact.

Required tools for installation

Vevor JF166-HFK-09111 - Safety and Care Advice - 1Circular SawVevor JF166-HFK-09111 - Safety and Care Advice - 2Electric ScrewdriverVevor JF166-HFK-09111 - Safety and Care Advice - 3PencilVevor JF166-HFK-09111 - Safety and Care Advice - 4band tapeVevor JF166-HFK-09111 - Safety and Care Advice - 5Knife
Vevor JF166-HFK-09111 - Safety and Care Advice - 6• To reduce the likelihood of damaging your proplease ensure that your power drill is set on a torque setting.

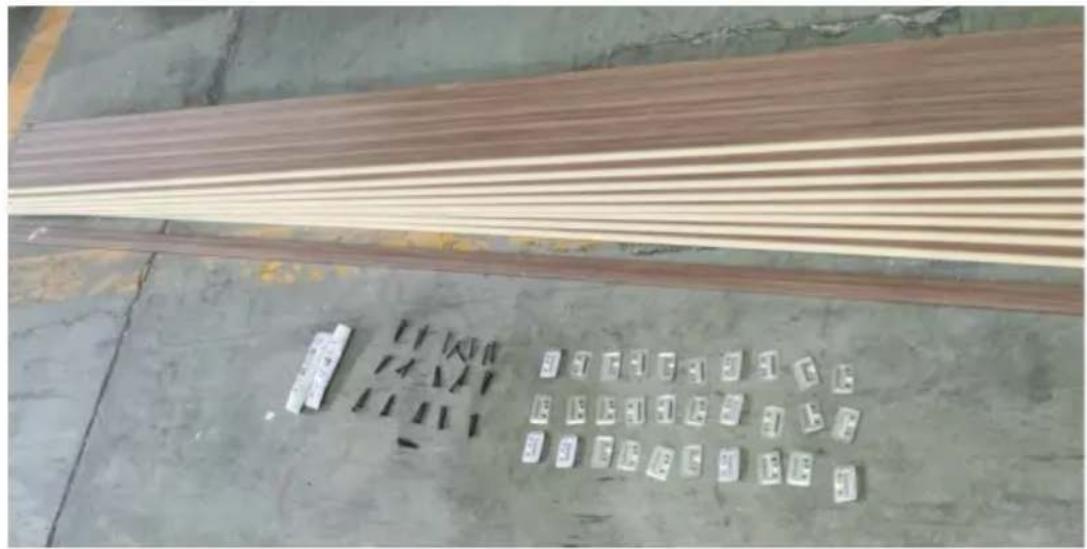

List of kit parts

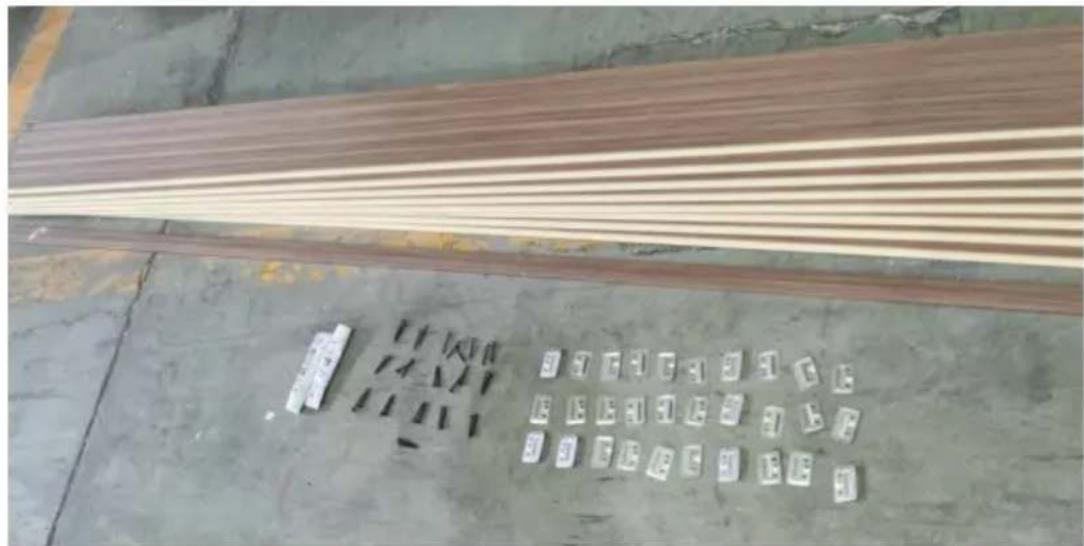

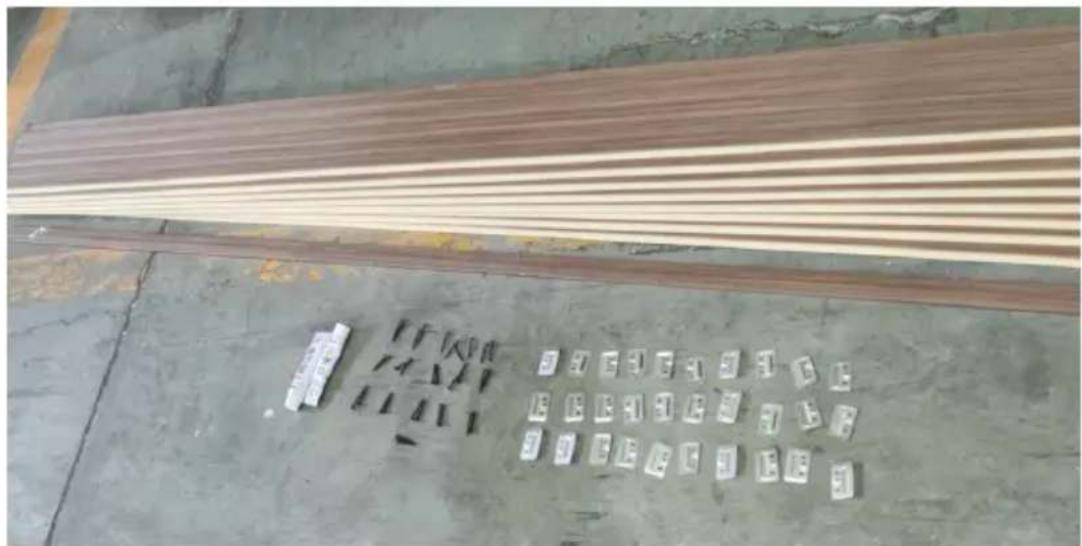

Vevor JF166-HFK-09111 - Safety and Care Advice - 7A:SLAT WALL PANELS x 8pcsVevor JF166-HFK-09111 - Safety and Care Advice - 8B:decorative sheet x 1pcVevor JF166-HFK-09111 - Safety and Care Advice - 9C:connection strap x 32pcs
Vevor JF166-HFK-09111 - Safety and Care Advice - 10D:screws x 32pcsVevor JF166-HFK-09111 - Safety and Care Advice - 11E:Nail free glue x 2pc

THE STANDARD INSTALLATION METHOD

Step 1: Preparing the wall.

• Make sure the surfaces are clean and dry, without nails or screws. Measure the wall size with a measuring tape, and record the size of the required Acoustic WPC slat wall panels.

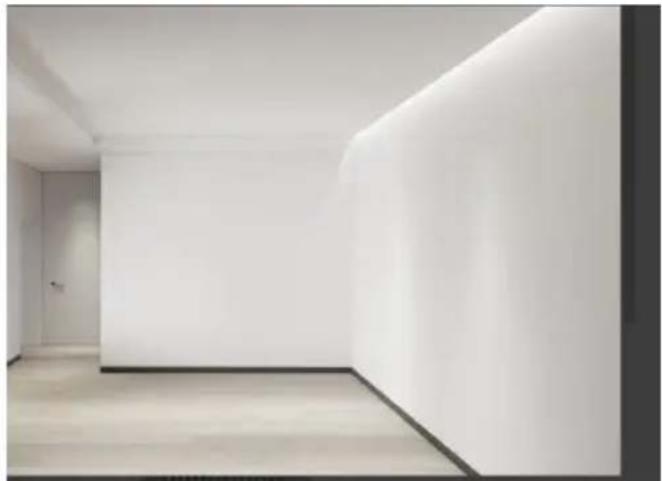

Interior view of a minimalist room with white walls and dark corner accents.

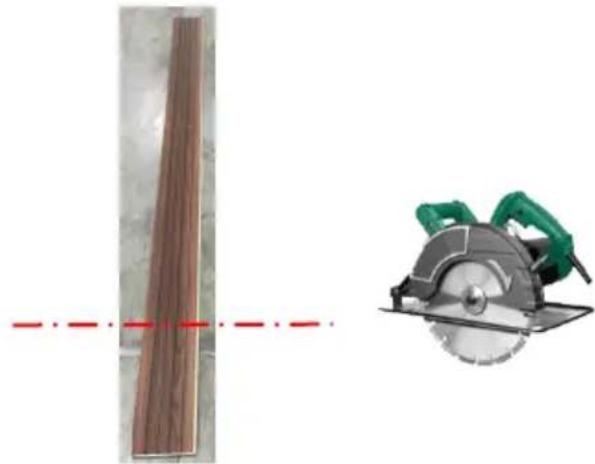

Step 2: Cutting the panels

- Cut products with circular saws and knives to your required size.

Two-panel image: left shows a wooden strip next to a vertical line, right shows a green power saw cutting a circular cutter.

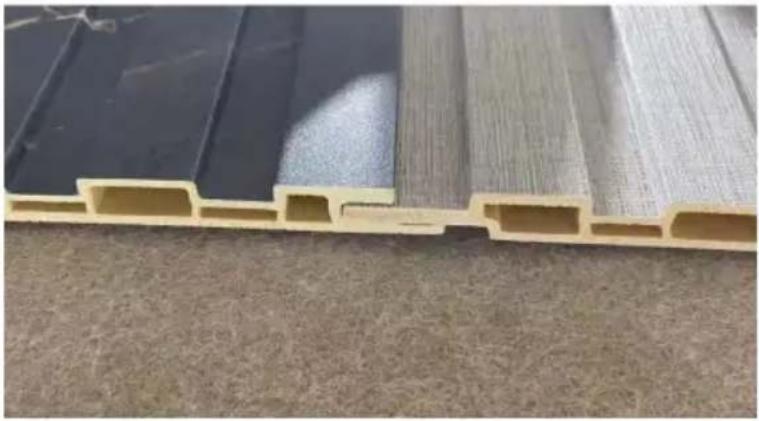

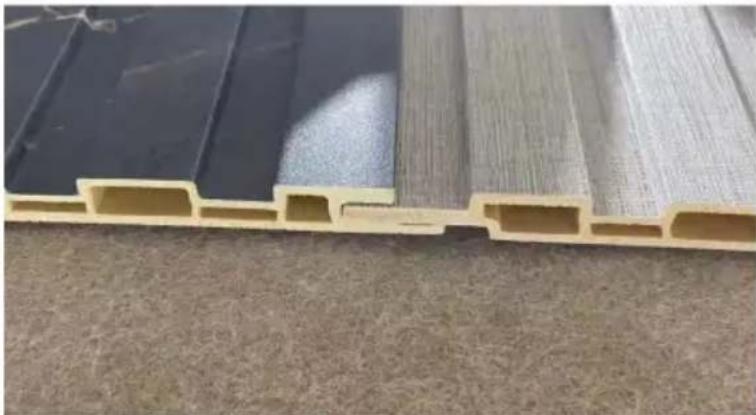

Step 3: Mounting the panel

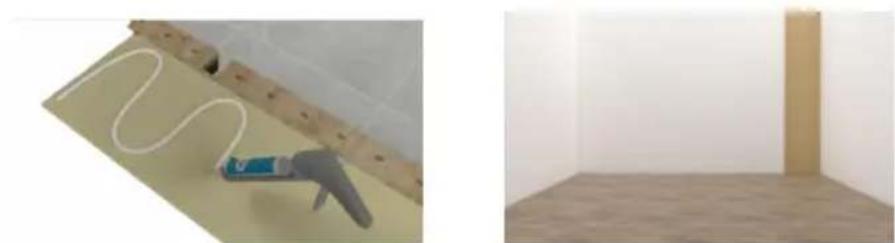

Apply nail glue on the back of the wall panel; attach the panel to the wall.

Two-panel image: left shows a wooden plank with a curved line and a small tool, right shows an empty room with a vertical wooden beam.

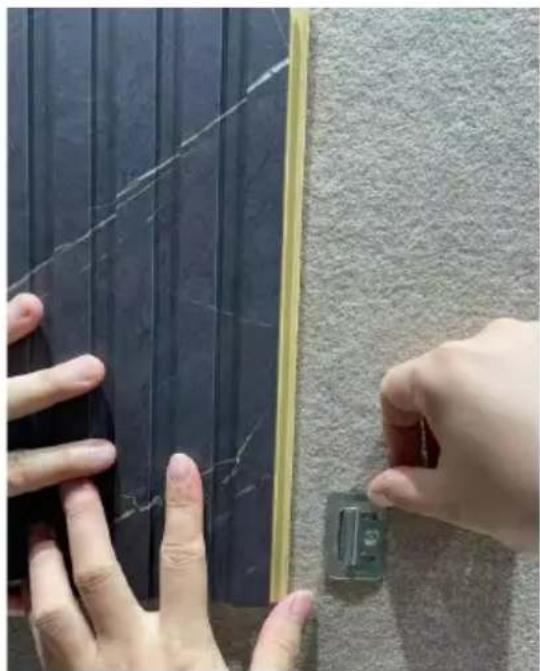

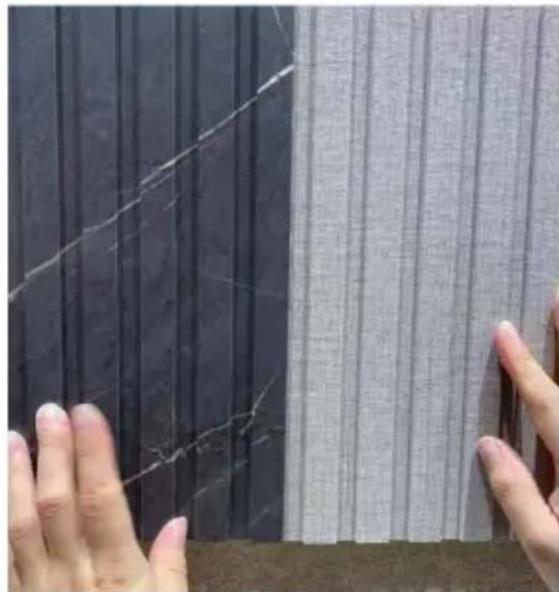

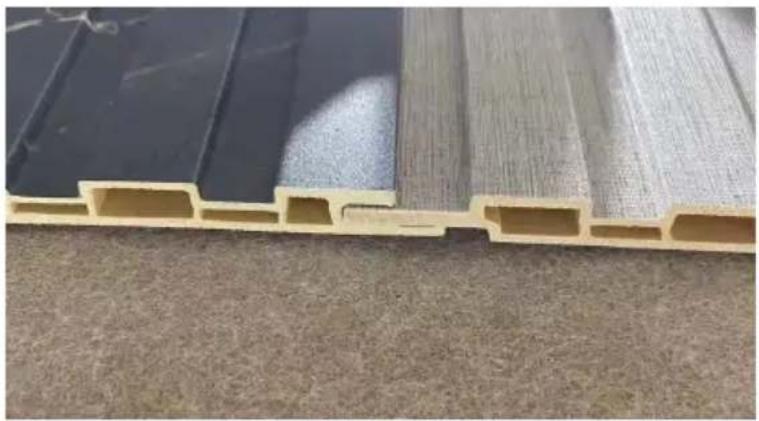

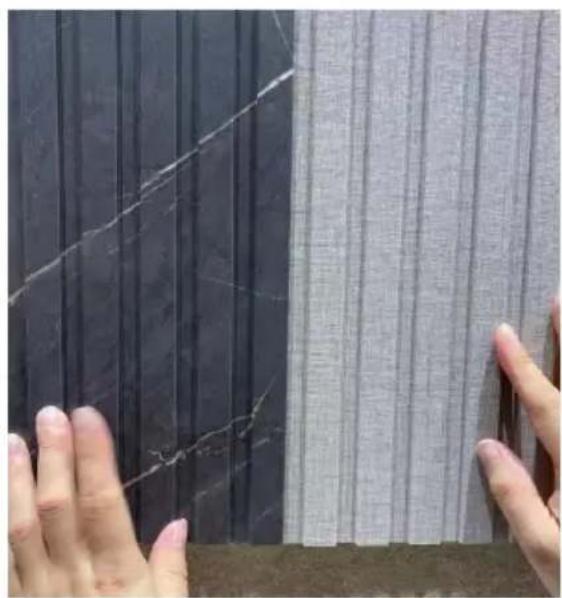

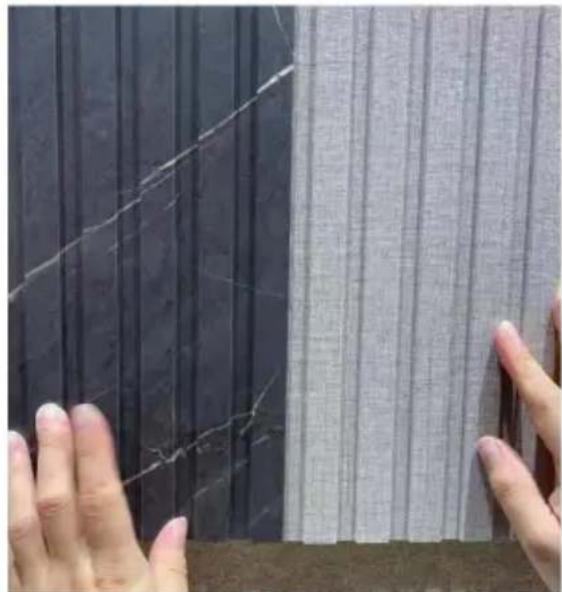

Step 4: Splicing Acoustic WPC slat wall panels;

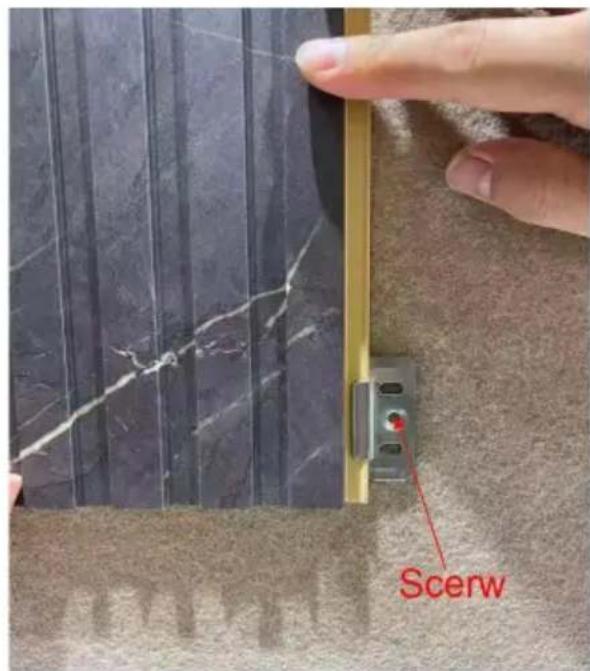

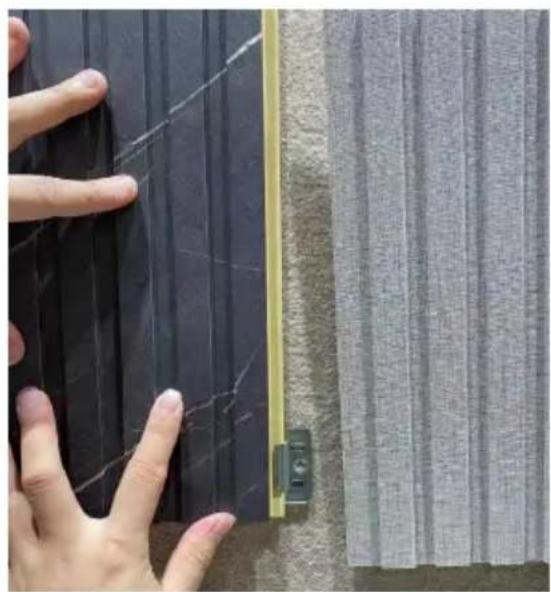

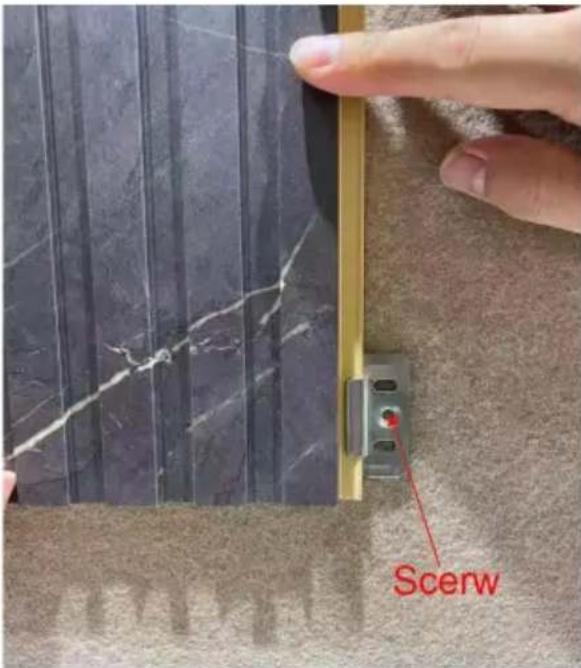

Card hardware connectors into the wall board and secure them with screws. Each wall board is recommended to install 4 connecting panels, with two connecting panels 600mm apart.

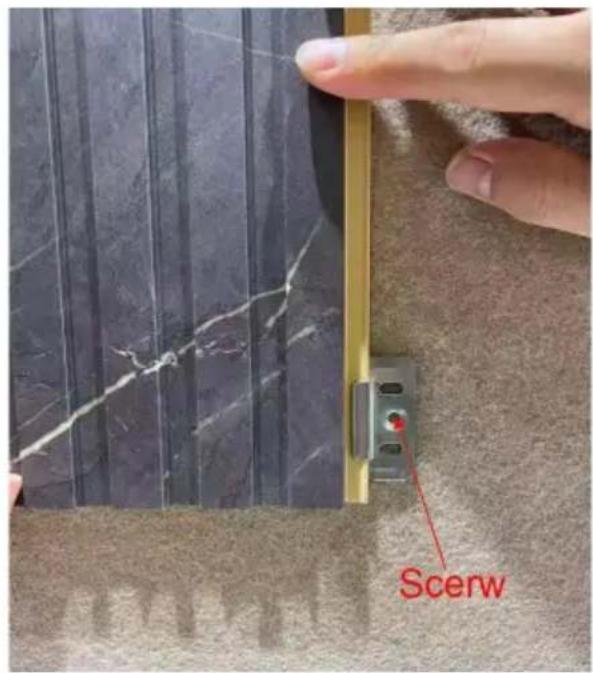

Install a screw in the middle round hole of the connecting plate.

Close-up of hands installing or adjusting a dark panel on a textured wall, with a close-up of the clip and a small lock nearby.

Screw

Apply nail glue on the back of the wall panel and put it into the wall board slot on the wall.

Close-up of hands touching a dark metal panel next to a textured gray curtain wall and a yellow vertical lock.

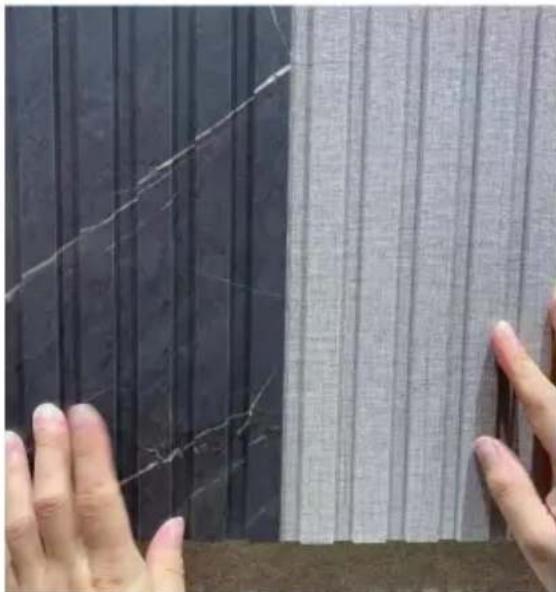

Close-up of hands holding a dark panel with visible cracks, next to a gray textured panel.

Close-up of a wooden panel with visible grain and cutouts, placed on a textured surface.

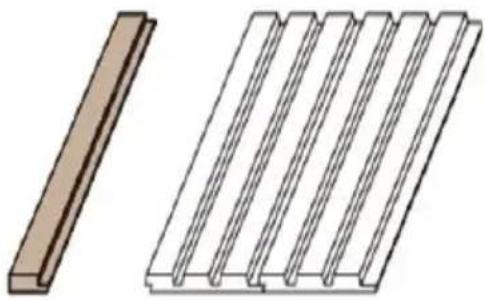

Step 5: Apply nail-free glue on the back of the decorative piece, then card it into the Acoustic WPC slat wall panels card slot.

Two technical illustrations: a wooden plank and a multi-layered grid-patterned structure.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UKREP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

ECREP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

/JF166-HFK-30110/JF166-HFK-6007

/JF166-HFK-21381/JF166-HFK-30110/JF166-HFK-6007

Aerial view of a concrete road with parallel white railings and scattered construction materials on the ground.

NEED HELP? CONTACT US!

Interior corner of a room with a wooden panel and a vertical wooden beam.

Screw

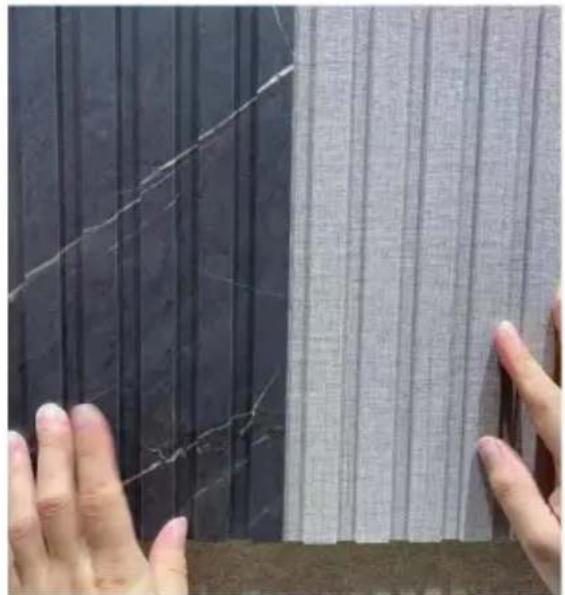

Close-up of hands holding a textured surface with visible cracks, next to a dark panel (no text or symbols)

Close-up of a wooden panel with visible grain and construction details (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Representative of the United Kingdom

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

Representative CE

E-CrossStu GmbH

Mainzer Landstr.69,

/JF166-HFK-30110/JF166-HFK-6007

/JF166-HFK-21381/JF166-HFK-30110/JF166-HFK-6007

Aerial view of a concrete road with parallel white railings and scattered construction materials on the ground (no visible text or symbols)

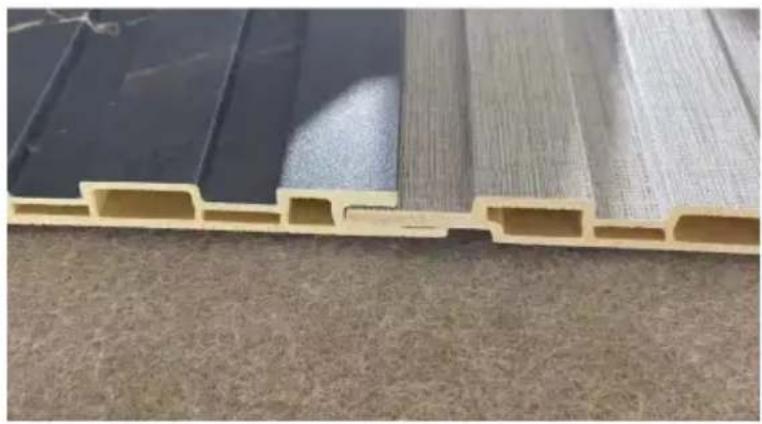

Step 3: Panel Assembly
