ACOUSTIC WPC SLAT WALL PANELS

MODEL:JF166-HFK-11411/JF166-HFK-09111

/JF166-HFK-30220/JF166-HFK-21381

/JF166-HFK-30110/JF166-HFK-6007

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ACOUSTIC WPC SLAT WAL PANELS

MODEL: JF166-HFK-11411/JF166-HFK-09111/JF166-HFK-30220/JF166-HFK-21381/JF166-HFK-30110/JF166-HFK-6007

Aerial view of a road with parallel tracks and scattered construction materials on the ground (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. Please read and understand this manual carefully before using the Acoustic WPC slat wall panels

The installation should be done by an adult, and children should not without supervision.

1. Please ensure that the Acoustic WPC slat wall panels is firmly installed otherwise he may fall off and cause harm to people.
2. Check the stability and safety of the product fixation regularly. If the product is loose, it should be strengthened immediately.
3. Do not install wall panels on curved walls. Wall panels may be d and cause harm to people.

PARAMETER LIST

Model	Size	QTY	Color
JF166-HFK-11411	2450*166*9mm	8	White wax wood colo
JF166-HFK-09111	2450*166*9mm	8	Black walnut color
JF166-HFK-30220	2450*166*9mm	8	Grey oak color
JF166-HFK-21381	2450*166*9mm	8	Deep pomelo wood co
JF166-HFK-30110	2450*166*9mm	8	Dumb light white
JF166-HFK-6007	2450*166*9mm	8	Mute black

If there is any difference between the color of this product and the the instruction manual, please refer to the physical object.

INSTRUCTIONS

Safety and Care Advice

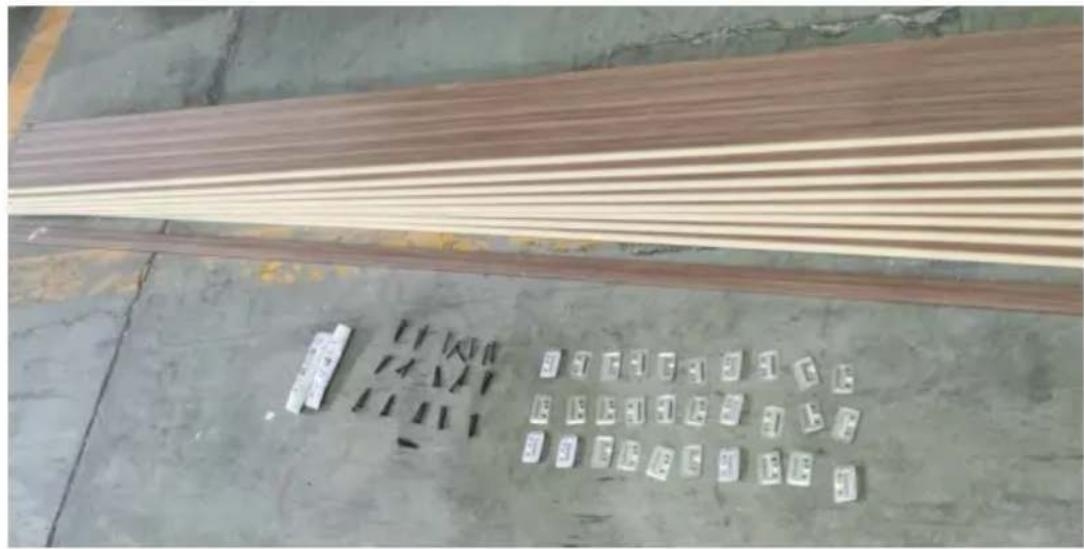

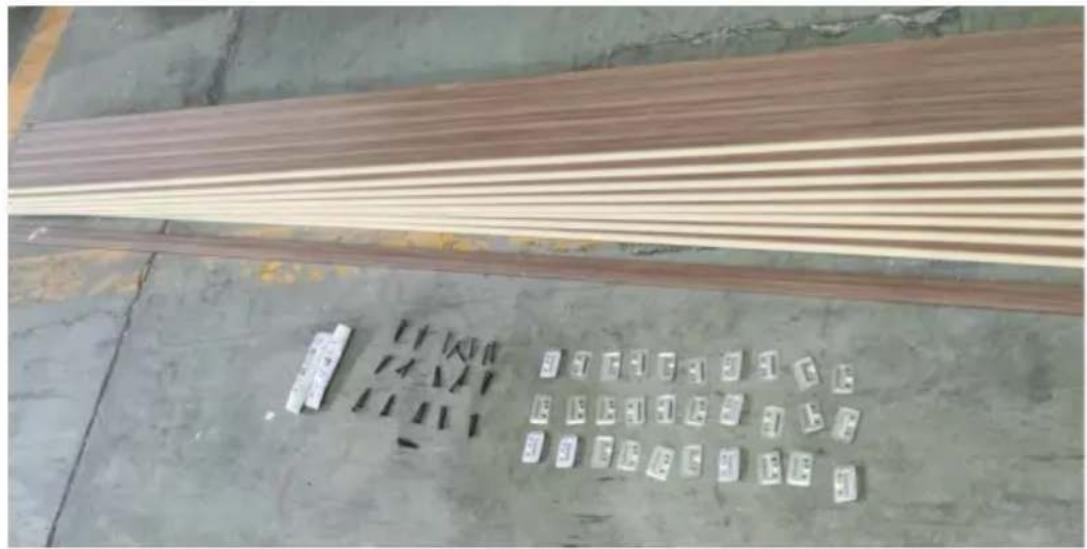

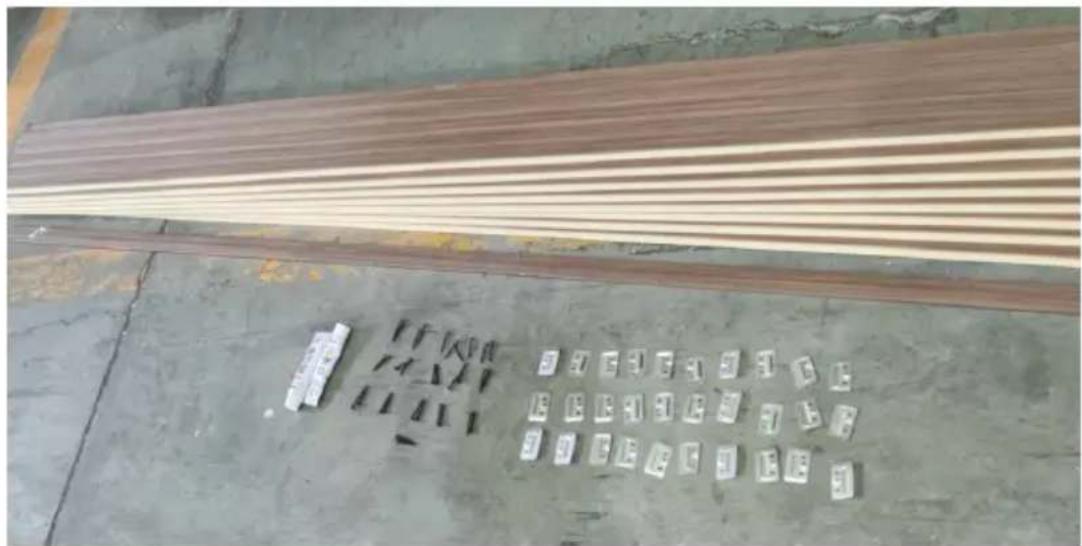

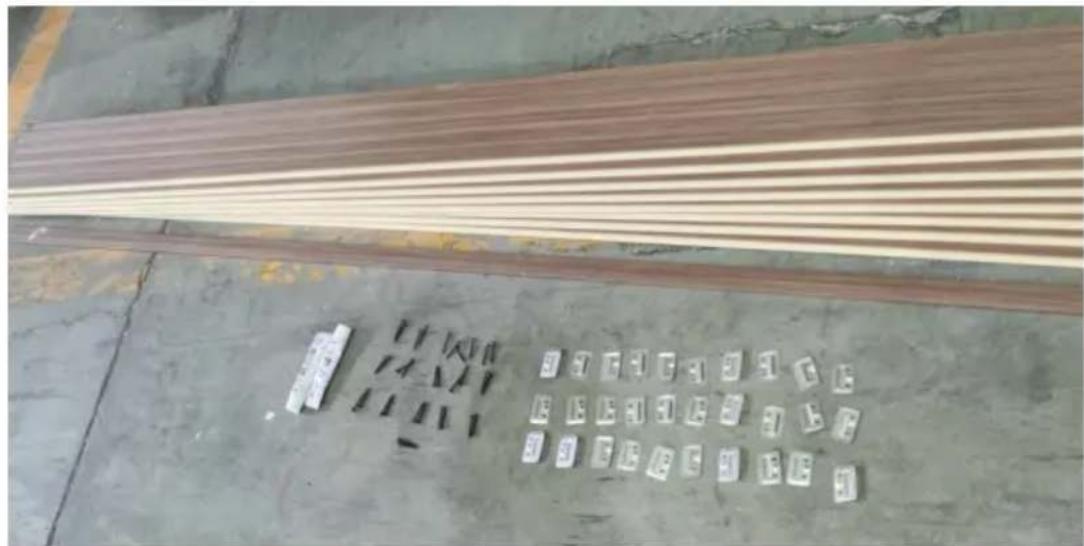

• Check you have all the components and tools listed on the followir pages.
• Remove all fittings from the plastic bags and separate them into the groups.

©

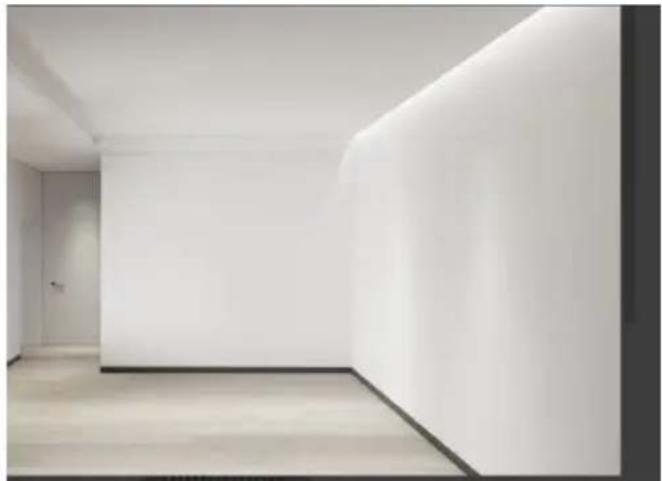

Step1:Preparing the wall.

• Make sure the surfaces are clean and dry, without nails and screw. Measure the wall size with a measuring tape, and record the size of required Acoustic WPC slat wall panels.

Interior view of a minimalist room with white walls and dark corner accents, no visible text or symbols

Step 2: Cutting the panels

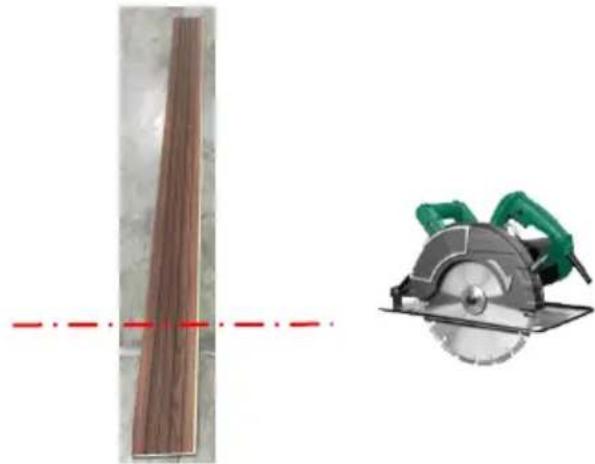

- Cut products with circular saws and knives for your size requiremer need.

Two-panel image: left shows a wooden strip next to a vertical line, right shows a green power saw cutting a circular cutter (no text or symbols)

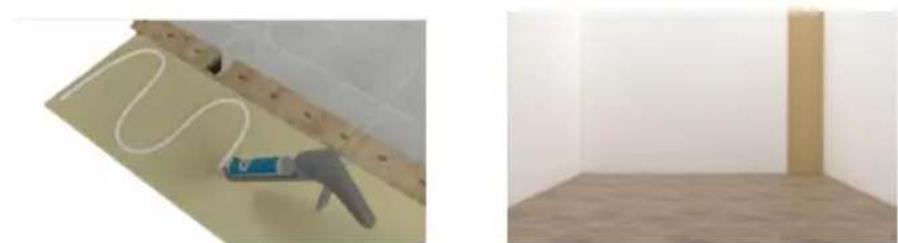

Step 3:Mounting the panel

Apply nail glue on the back of the wall panel; attach the panel to t wall

Two interior photos: one showing a wooden plank with a curved line, the other showing a plain wall with a vertical rod (no text or symbols visible)

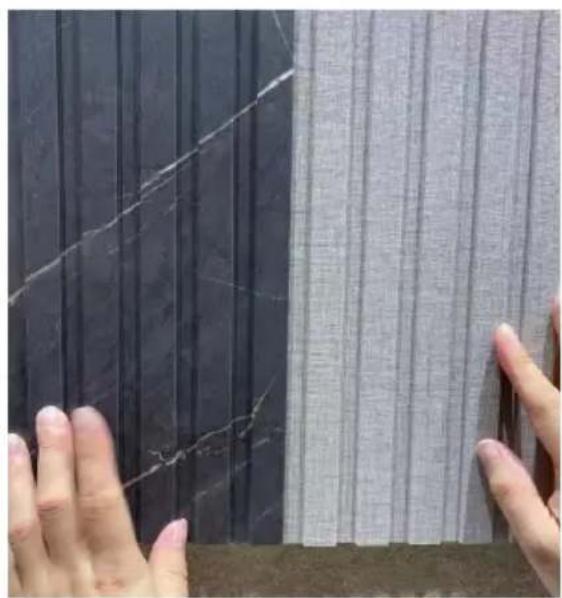

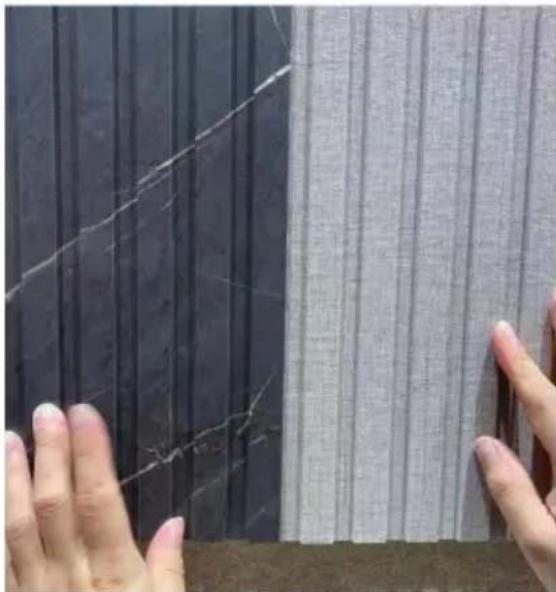

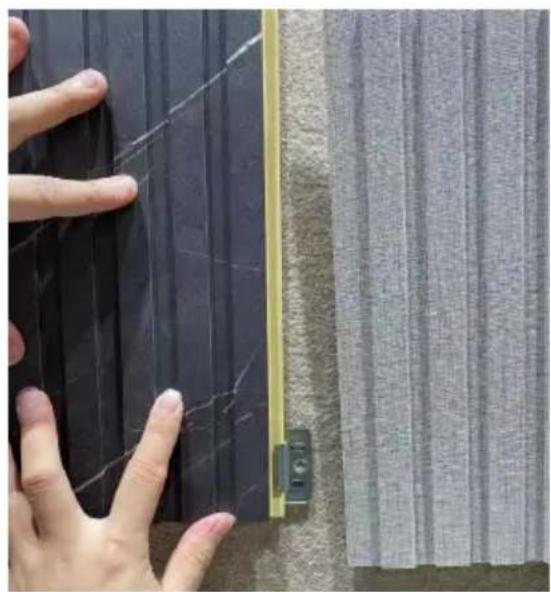

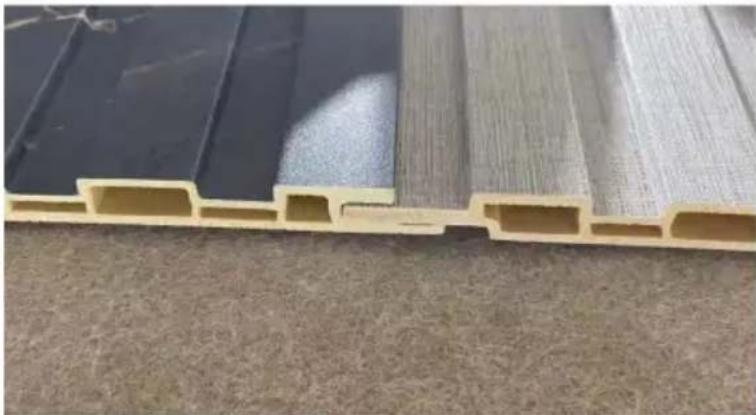

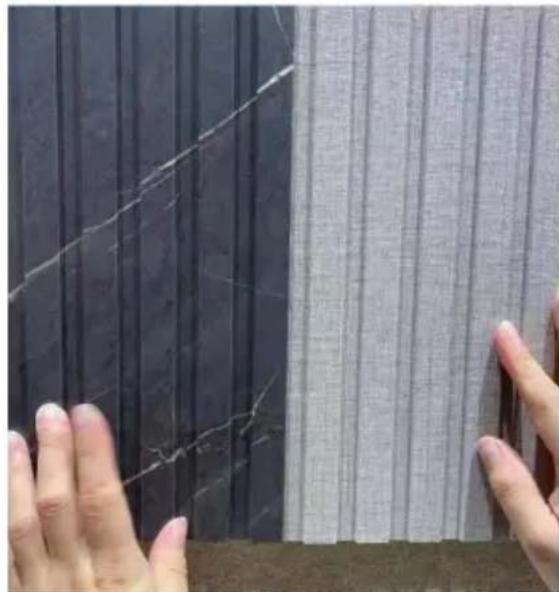

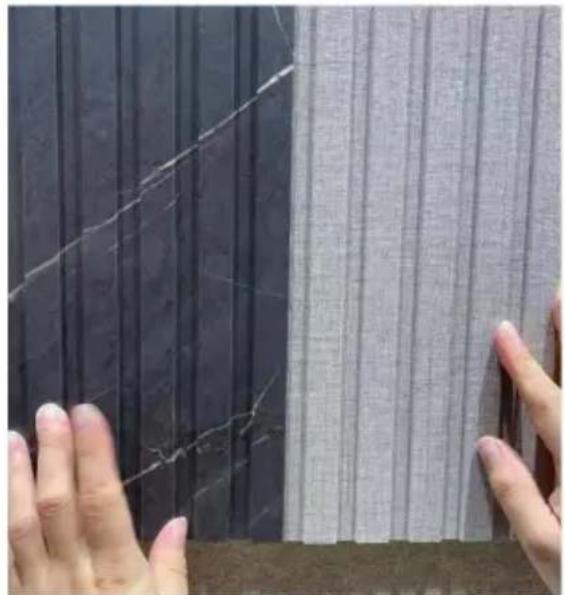

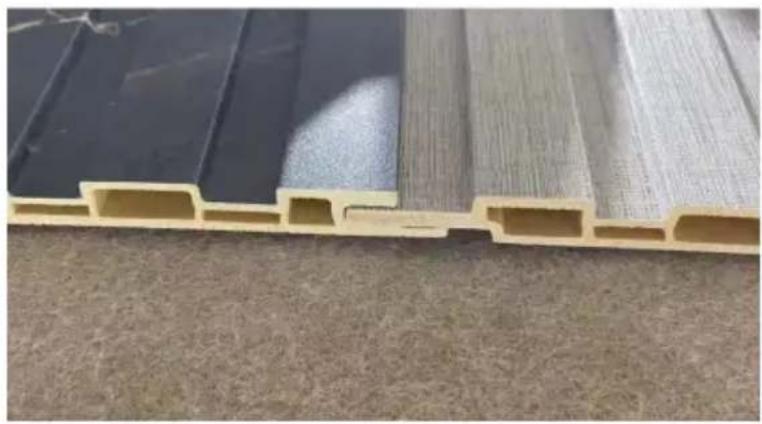

Step 4: Splicing Acoustic WPC slat wall panels;

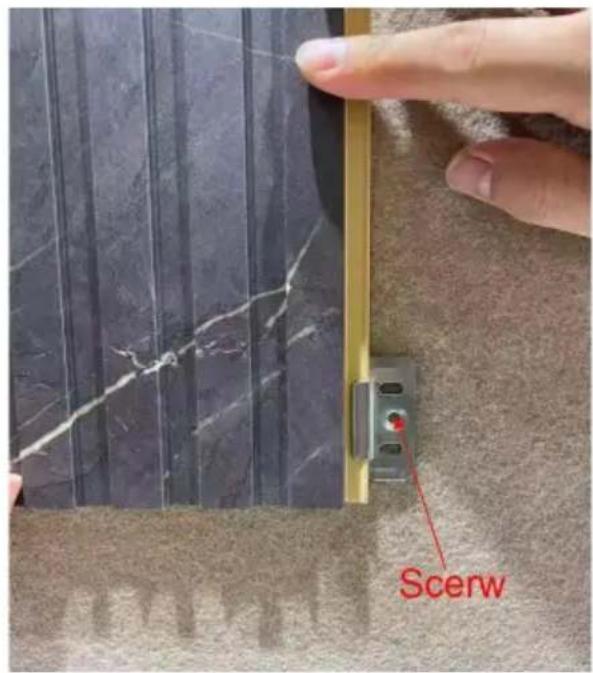

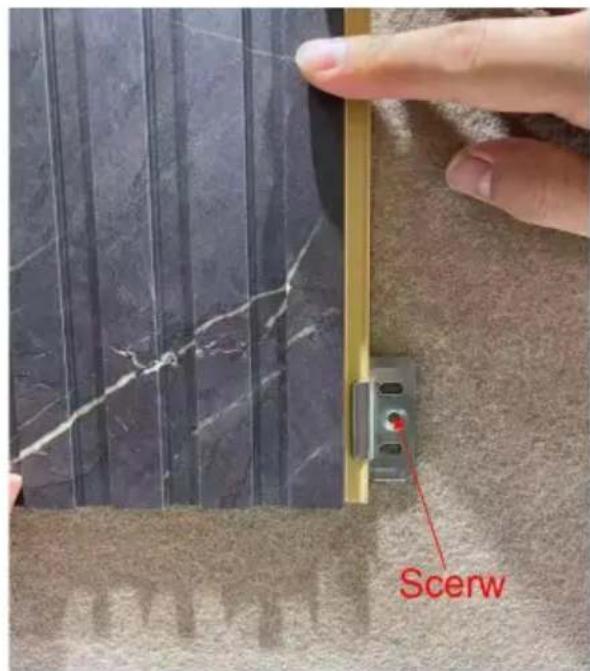

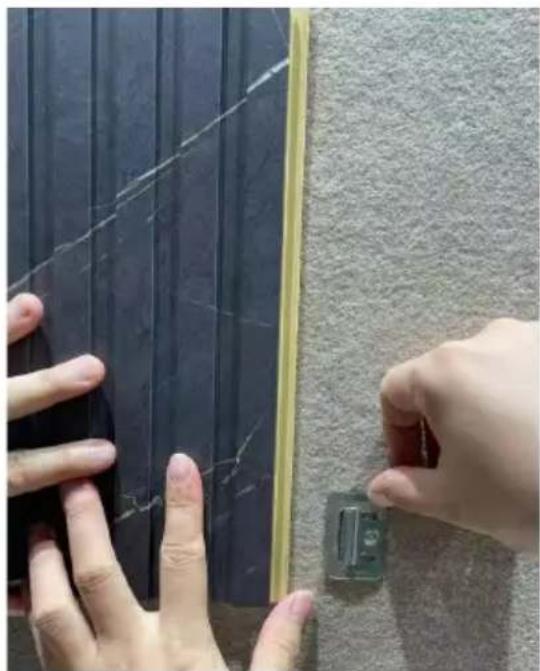

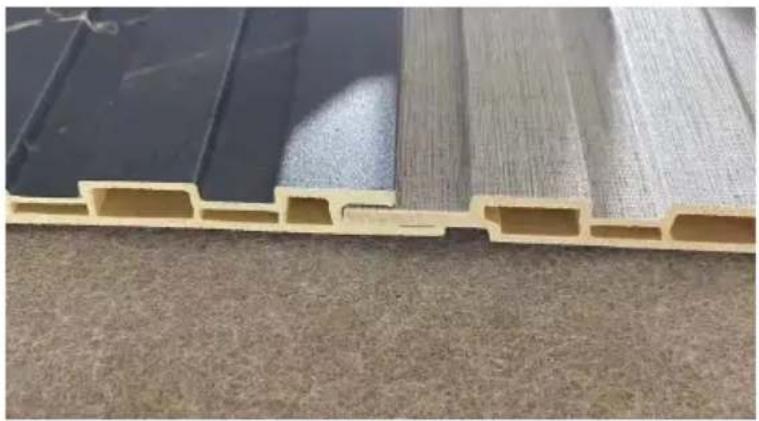

Card hardware connector into the wall board and secure them with s Each wall board is recommended to install 4 connecting panels, two connecting panels 600mm apart.

Install a screw in the middle round hole of the connecting plate.

Close-up of hands installing or adjusting a dark panel on a textured wall, with a close-up of the clip and a small lock nearby (no text or symbols visible)

Scerw

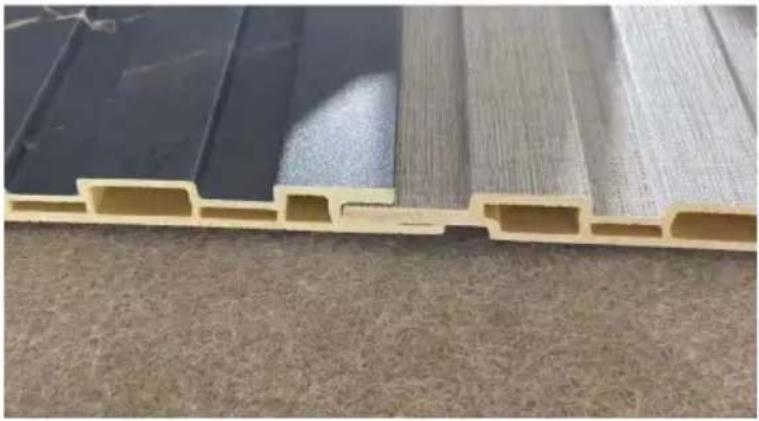

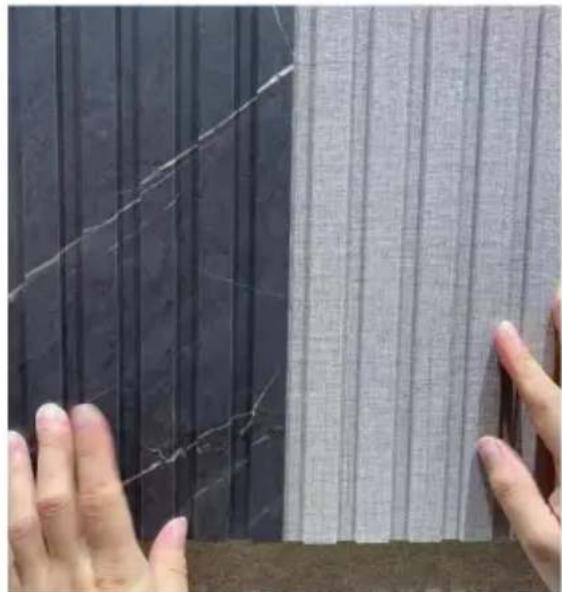

Apply nail glue on the back of the wall panel and put it into the in board slot on the wall.

Close-up of hands adjusting a dark metal panel next to a textured gray curtain wall and a yellow vertical lock (no text or symbols visible)

Close-up of hands holding a dark panel with visible cracks, next to a gray textured panel (no text or symbols)

Close-up of a wooden panel with visible grain and cutouts, placed on a textured surface (no text or symbols)

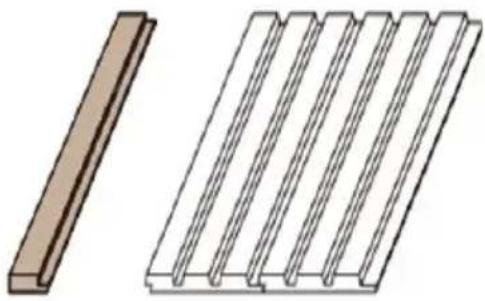

Step 5: Apply nail-free glue on the back of the decorative piece, then card into the Acoustic WPC slat wall panels card slot.

Two technical illustrations: a wooden plank and a grid-patterned panel (no text or symbols)
