JF166-HFK-30110 - Acoustic wall panels Vevor - Free user manual and instructions

Product Type	WPC slatted acoustic wall panels
Brand	Vevor
Model	JF166-HFK-30110
Dimensions (L x W x Thickness)	2450 x 166 x 9 mm
Color	Muted white light
Material	WPC (Wood Plastic Composite)
Quantity per kit	8 panels
Kit contents	8 slatted wall panels, 1 decorative sheet, 32 connection brackets, 32 screws, 2 tubes of nail-free adhesive
Usage	Acoustic insulation and wall decoration
Installation	Requires circular saw, electric screwdriver, pencil, masking tape and knife. Steps: wall preparation, cutting to size, applying adhesive to back, fixing to wall, splicing with brackets and screws
Maintenance and cleaning	Clean with a soft dry cloth; avoid abrasive products or solvents
Safety	Installation by an adult only; regularly check fixation; do not install on curved walls; keep away from children and pets during installation
Warranty	Technical support and electronic warranty certificate available at www.vevor.com/support

Frequently Asked Questions - JF166-HFK-30110 Vevor

How to install the Vevor acoustic wall panels?

Installation is done in several steps: 1) Prepare the wall (clean, dry, without nails). 2) Measure and cut the panels to desired size with a circular saw. 3) Apply nail-free adhesive to the back of the panel. 4) Fix the panel to the wall. 5) Use the connection brackets and screws to assemble the panels together. 6) Install the decorative sheet into the slots. Make sure the fixation is firm.

What tools are needed for installation?

The required tools are: a circular saw, an electric screwdriver, a pencil, masking tape, and a knife. It is recommended to set the screwdriver to a low torque to avoid damaging the panels.

Are the panels easy to cut?

Yes, the WPC panels can be cut with a circular saw or a knife. Measure carefully before cutting and use a guide for straight cuts.

How to clean and maintain the panels?

Clean the panels with a soft dry cloth. Do not use abrasive products or solvents that could damage the surface. Regular maintenance extends the product's lifespan.

Are the panels fireproof?

The manual does not mention any specific fireproof treatment. It is recommended to follow general safety instructions and not expose the panels to direct heat sources.

Can I install the panels on a curved wall?

No, it is not recommended to install the panels on curved walls. This could damage the panels and cause injury. The wall must be flat.

What is the size of the panels?

Each panel measures 2450 mm long, 166 mm wide, and 9 mm thick.

How many panels are included in the kit?

The kit contains 8 acoustic slatted wall panels, along with a decorative sheet, 32 connection brackets, 32 screws, and 2 tubes of nail-free adhesive.

What to do if a panel is damaged?

If a panel is damaged, contact Vevor technical support via www.vevor.com/support for advice on possible repair or replacement under warranty.

Is there a warranty?

Yes, Vevor provides technical support and an electronic warranty certificate. For more information, visit www.vevor.com/support.

USER MANUAL JF166-HFK-30110 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ACOUSTIC WPC SLAT WALL PANELS

MODEL:JF166-HFK-11411/JF166-HFK-09111

/JF166-HFK-30220/JF166-HFK-21381

/JF166-HFK-30110/JF166-HFK-6007

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ACOUSTIC WPC SLAT WAL PANELS

MODEL: JF166-HFK-11411/JF166-HFK-09111/JF166-HFK-30220/JF166-HFK-21381/JF166-HFK-30110/JF166-HFK-6007

Aerial view of a road with parallel tracks and scattered construction materials on the ground (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. Please read and understand this manual carefully before using the Acoustic WPC slat wall panels

The installation should be done by an adult, and children should not without supervision.

1. Please ensure that the Acoustic WPC slat wall panels is firmly installed otherwise he may fall off and cause harm to people.
2. Check the stability and safety of the product fixation regularly. If the product is loose, it should be strengthened immediately.
3. Do not install wall panels on curved walls. Wall panels may be d and cause harm to people.

PARAMETER LIST

Model	Size	QTY	Color
JF166-HFK-11411	2450*166*9mm	8	White wax wood colo
JF166-HFK-09111	2450*166*9mm	8	Black walnut color
JF166-HFK-30220	2450*166*9mm	8	Grey oak color
JF166-HFK-21381	2450*166*9mm	8	Deep pomelo wood co
JF166-HFK-30110	2450*166*9mm	8	Dumb light white
JF166-HFK-6007	2450*166*9mm	8	Mute black

If there is any difference between the color of this product and the the instruction manual, please refer to the physical object.

INSTRUCTIONS

Safety and Care Advice

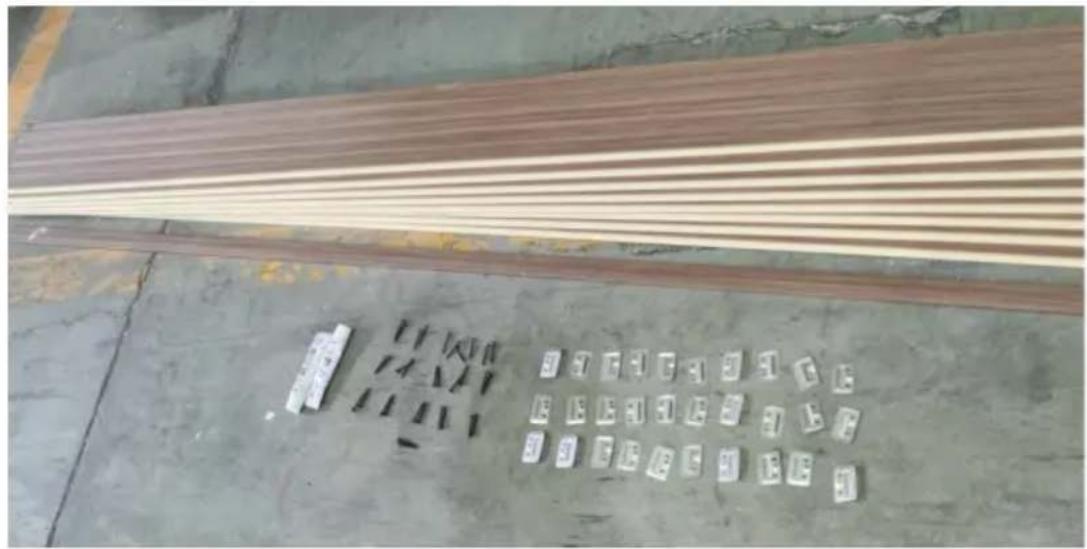

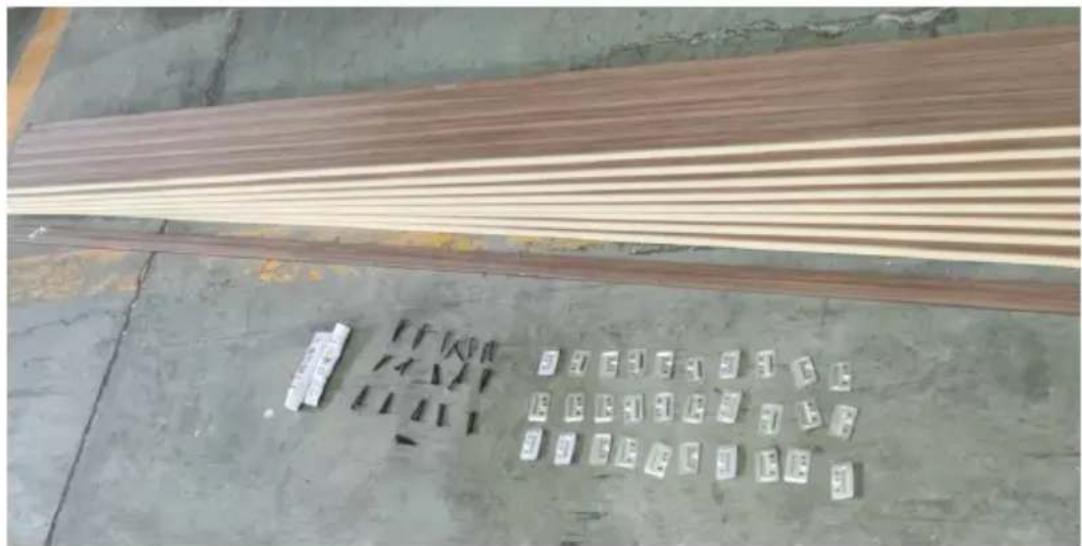

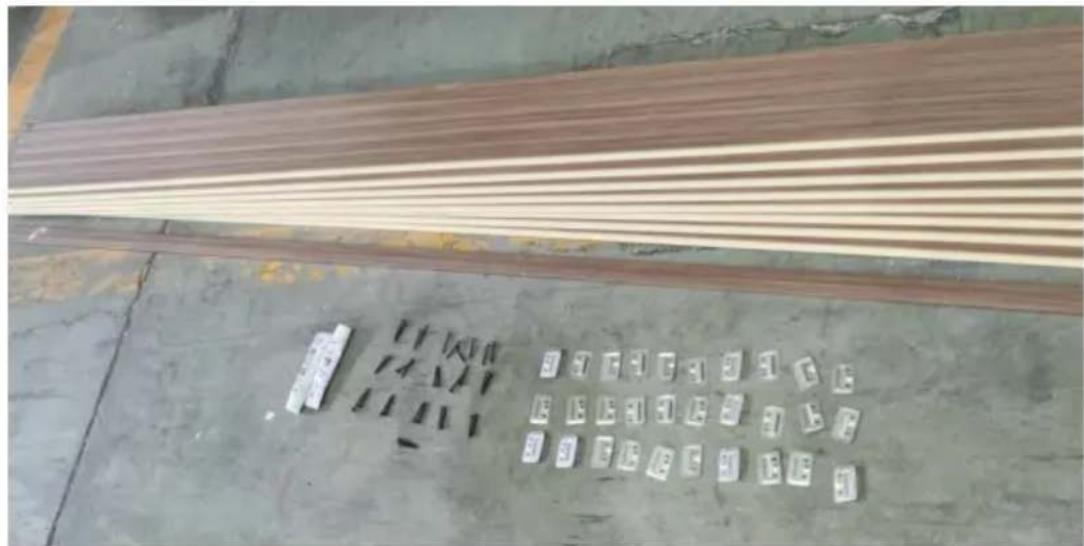

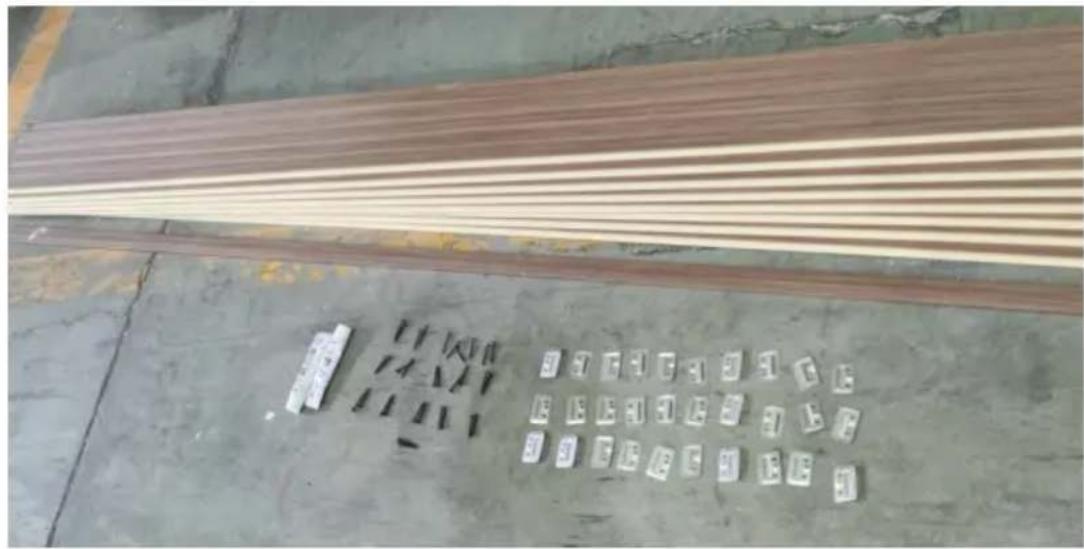

• Check you have all the components and tools listed on the followir pages.
• Remove all fittings from the plastic bags and separate them into the groups.

©

Step1:Preparing the wall.

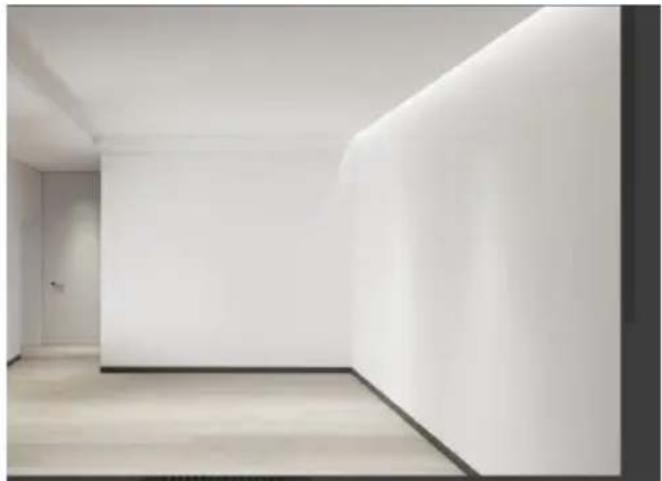

• Make sure the surfaces are clean and dry, without nails and screw. Measure the wall size with a measuring tape, and record the size of required Acoustic WPC slat wall panels.

Interior view of a minimalist room with white walls and dark corner accents, no visible text or symbols

Step 2: Cutting the panels

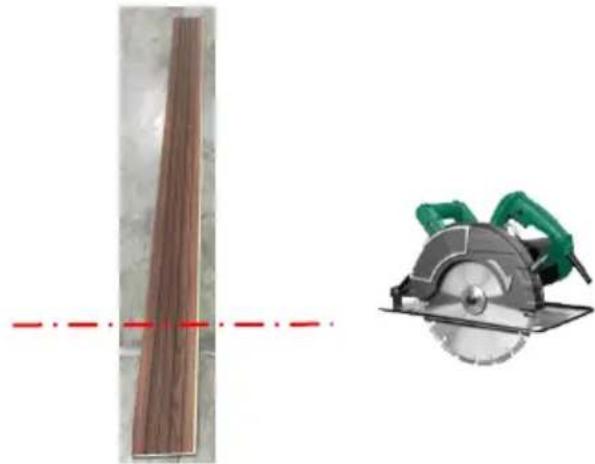

- Cut products with circular saws and knives for your size requiremer need.

Two-panel image: left shows a wooden strip next to a circular cutterhead; right shows a green-handled tool on a cutting board (no text or symbols)

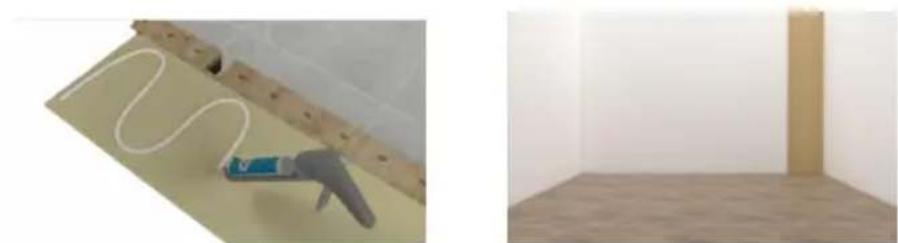

Step 3:Mounting the panel

Apply nail glue on the back of the wall panel; attach the panel to t wall

Two interior photos: one showing a wooden plank with a curved line, the other showing a plain wall with a wooden post (no text or symbols)

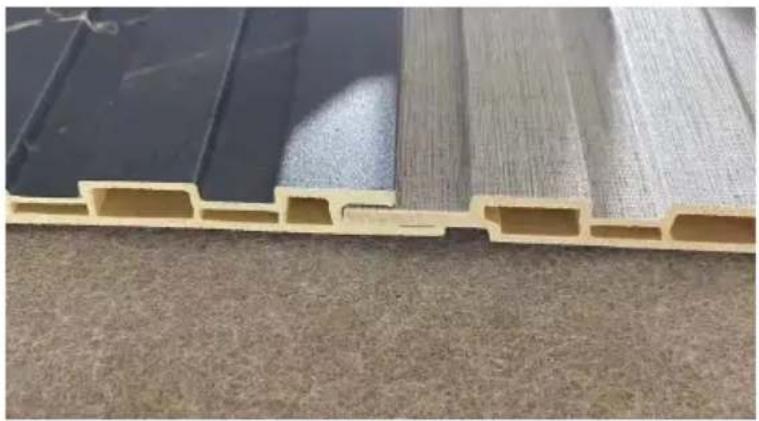

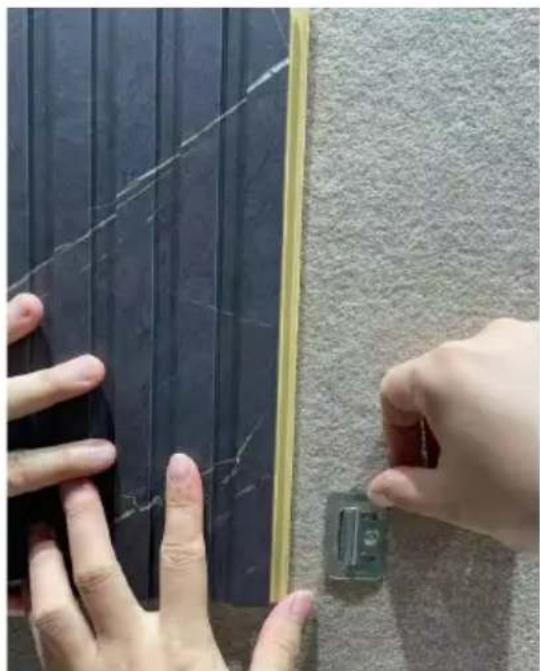

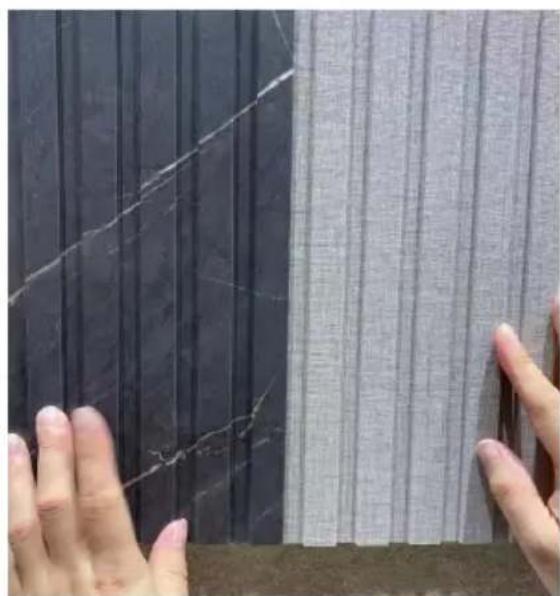

Step 4: Splicing Acoustic WPC slat wall panels;

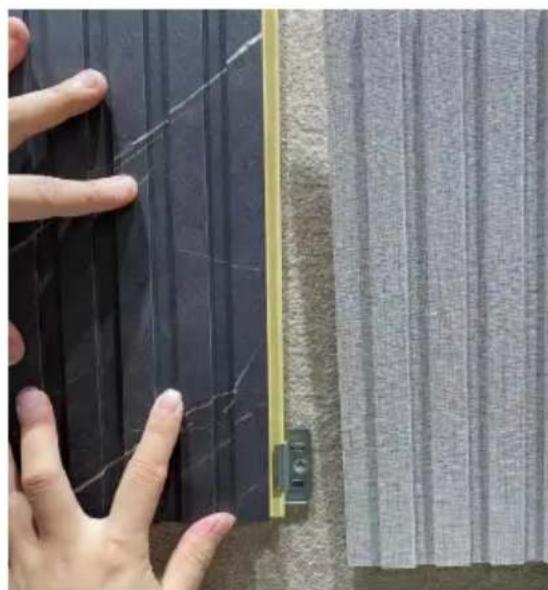

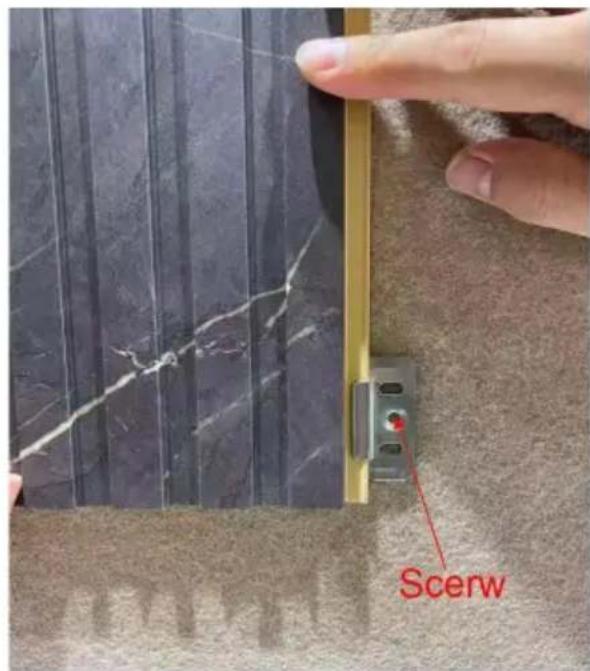

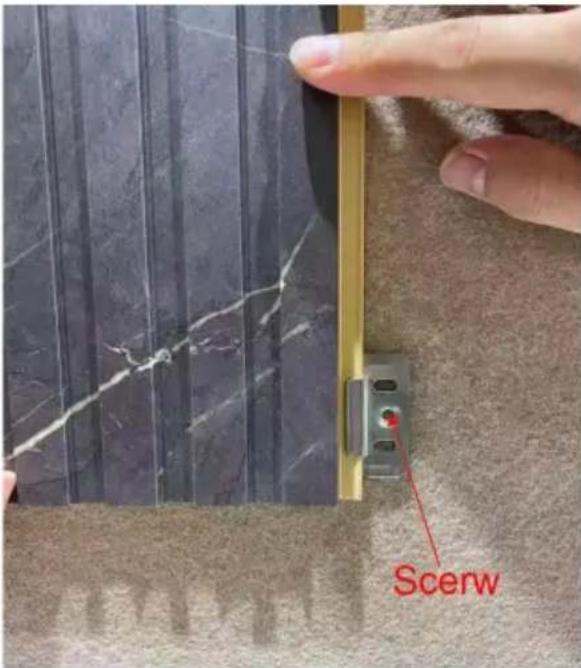

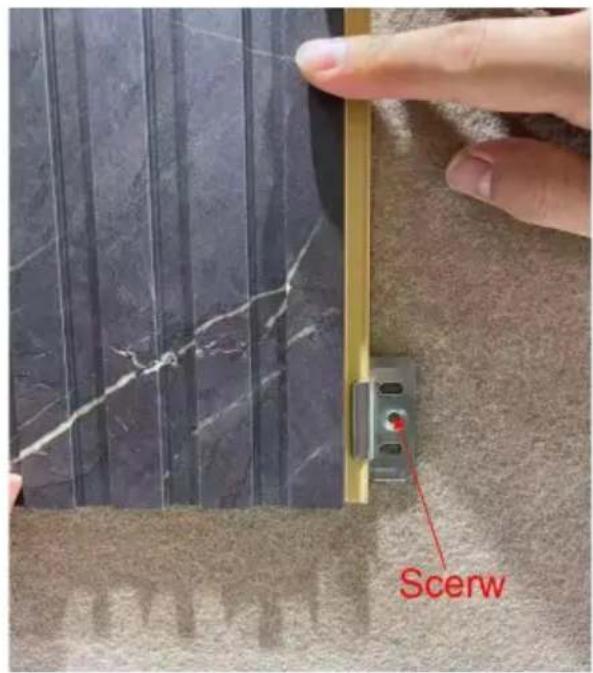

Card hardware connector into the wall board and secure them with s Each wall board is recommended to install 4 connecting panels, two connecting panels 600mm apart.

Install a screw in the middle round hole of the connecting plate.

Close-up of hands installing or adjusting a dark panel on a textured wall, with a close-up of the clip and a small lock nearby (no text or symbols visible)

Apply nail glue on the back of the wall panel and put it into the in board slot on the wall.

Close-up of hands adjusting a dark panel with visible cracks, next to a textured wall and a yellow vertical lock (no text or symbols)

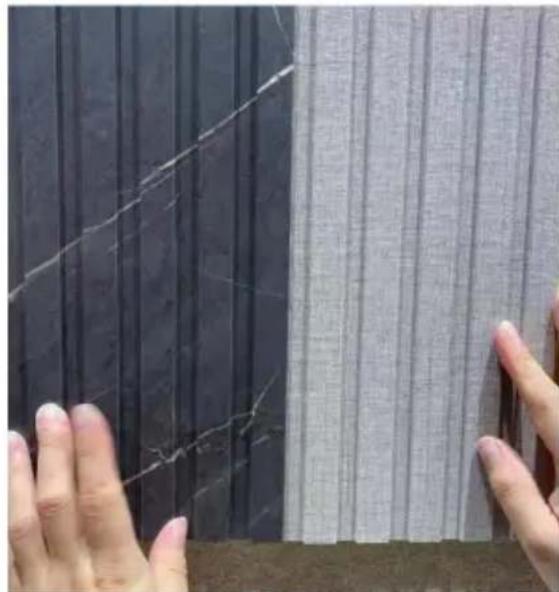

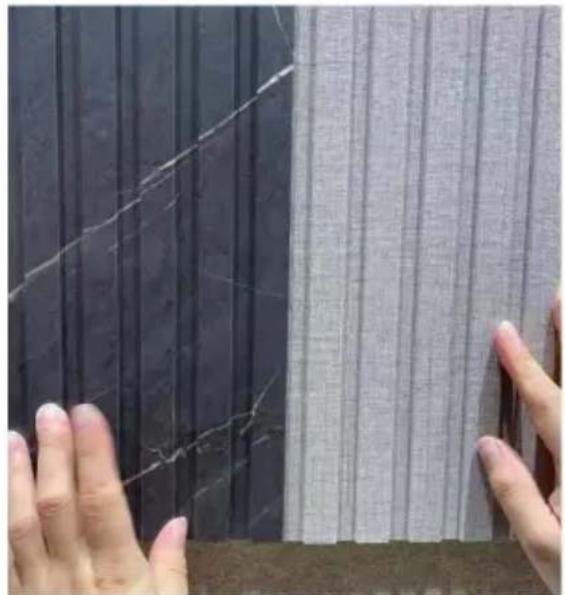

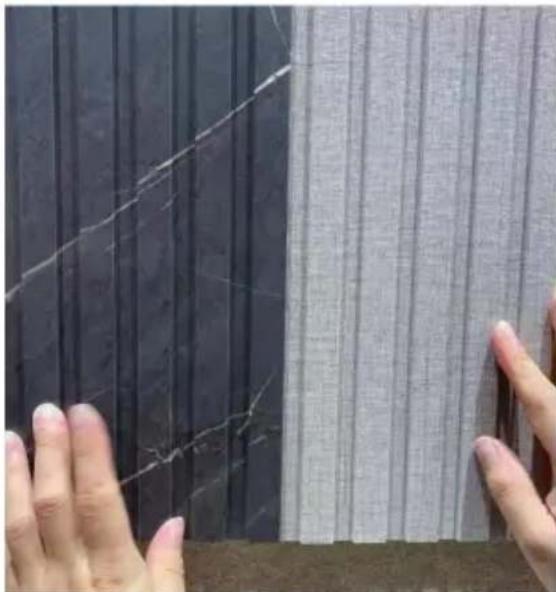

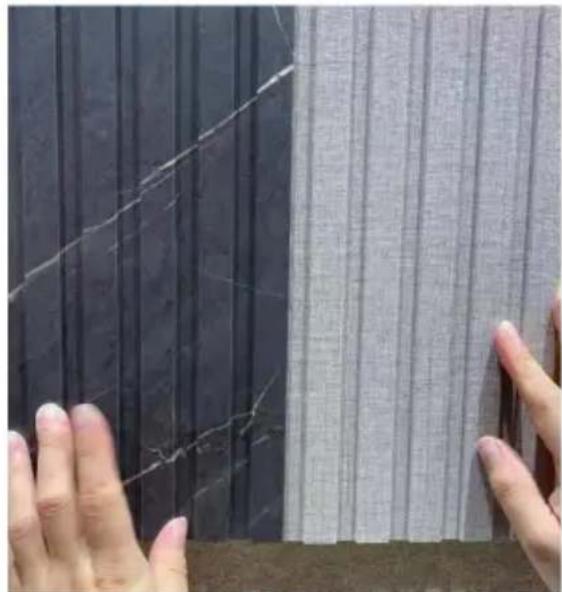

Close-up of hands holding a dark panel with visible cracks, next to a gray textured panel (no text or symbols)

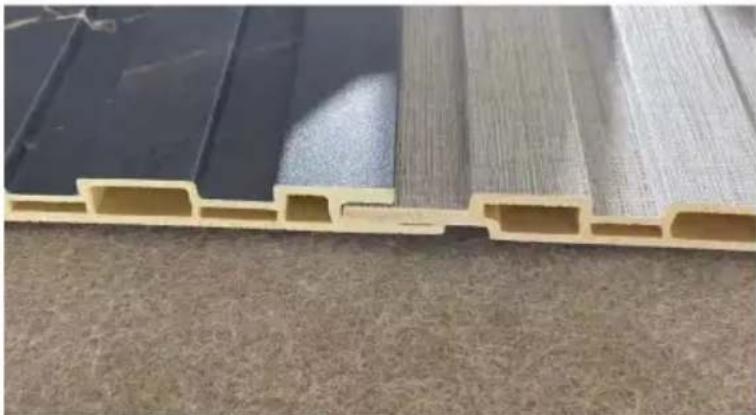

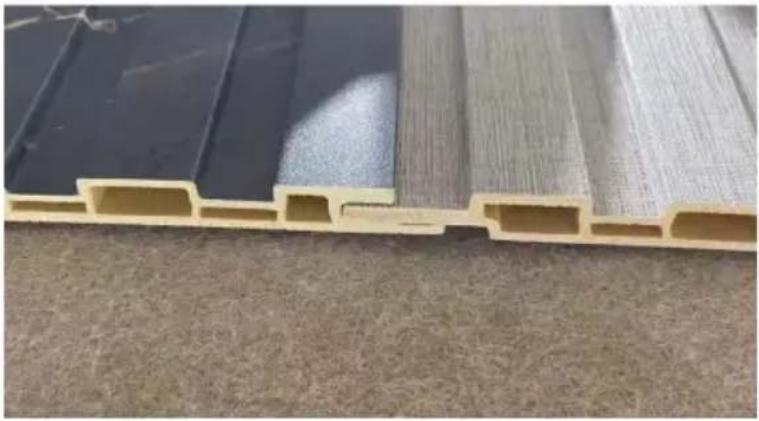

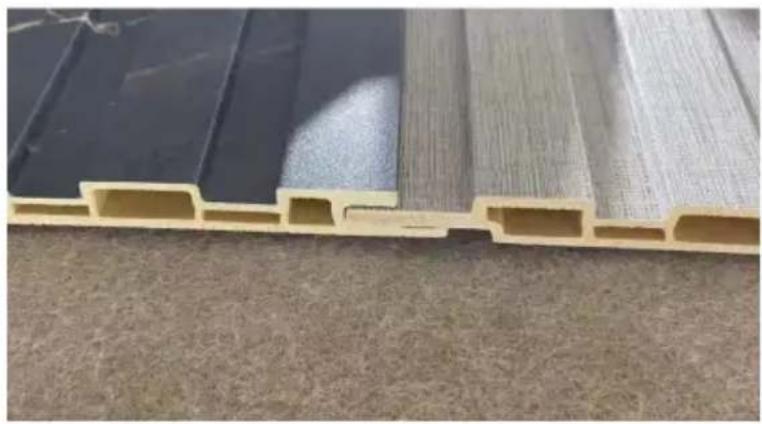

Close-up of a wooden panel with visible grain and cutouts, placed on a textured surface (no text or symbols)

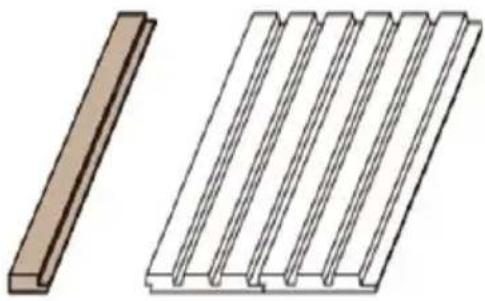

Step 5: Apply nail-free glue on the back of the decorative piece, then card into the Acoustic WPC slat wall panels card slot.

Two technical illustrations: a wooden plank and a multi-layered grid-patterned structure (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

/JF166-HFK-30110/JF166-HFK-6007

/JF166-HFK-21381/JF166-HFK-30110/JF166-HFK-6007

Aerial view of a concrete road with parallel white railings and scattered construction materials on the ground (no visible text or symbols)
