USER MANUAL T505540-10 Vevor

Affordable. Reliable. Home Improvement.

THATCH ROOFING

MODEL:T505540-1 & T505540-5

T505540-10 & T505550-5

Technical Support and E-Warranty Certificate

www.vevor.com/support

MODEL:T505540-1 & T505540-5

T505540-10 & T505550-5

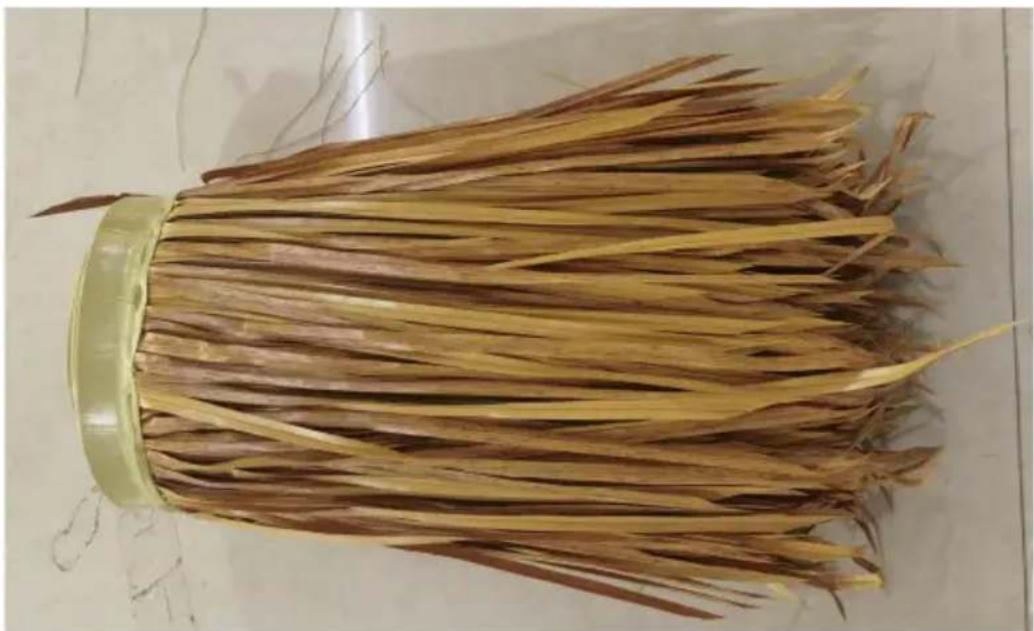

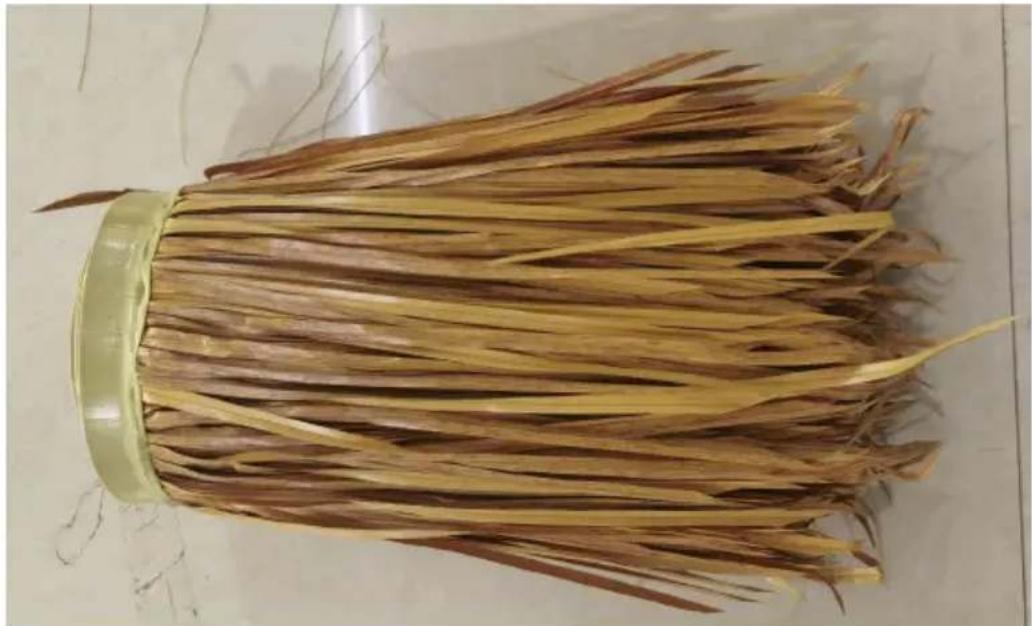

Bunch of dried, brown plant stalks tied with a light green bandage, displayed on a plain surface (no text or symbols visible)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there a technology or software updates on our product.

Technical parameter

Model	Size (L * W)	Colour
T505540-1	1000*400 mm	Spotted Yellow (Color R5055)
T505540-5	5000*400 mm
T505540-10	10000*400 mm
T505550-5	5000*500 mm

Installation - Roof

Note: The installation method may be different in different scenarios. The installation procedure is for reference only.

1. Eaves part:

In the first row, along the reference line (keel), nail the real part of the tha along the eaves;

Second row, overlapping; The third row to the sixth row, each row cup back basically overlapping, highlighting the eaves thick effect; Above the sixth row, 6.5cms - 7cms (the width of the thatch tile part).

2. Ridge part:

Oblique ridge: first lay the main surface on both sides of the thatched house then synchronously spread the spine shape from the bottom to the top to for rain guide; Positive ridge: the roofing thatch tiles are laid and then the positiridge is closed; Tips: Oblique ridge and positive ridge thatch pieces Angle to the main surface of the thatch shingle part to adjust the size, according to to cut the thatch tiles into small pieces installation, the effect is natural, easy close, the number of 2-3 small pieces (according to the width of the ridge to determine the shear size), first spread on both sides and then spread a piece the middle to form the backbone effect;

3. Finishing work after installation:

After the entire thatch roof is installed, the bending of the thatch tile can be properly pressed and picked to make it smooth and natural (especially the ea part). You can choose from a fluffy effect (with a high degree of thatch bent a smooth effect (with a low degree of thatch bending) to finish as needed.

4. Installation tips:

Do not be too compact or too loose when installing, so as not to affect the effect; The thatched grass along the eaves suggests that the grass lines should long and overlapping, and the first six rows of the eaves are basically overlapped highlighting the heavy effect of floating and hanging; Color and style are spread according to the proportioning scheme; Take the dislocation paving method, the overall effect from the bottom up, do not see the base layer of the roof, the effect.

Fixing method

1. Bind with cable ties or iron wire and rope;
2. fixed with nails, yard nails, straight nails, or self-tapping screws;
3. Use structural adhesive or double-sided adhesive to fix.

Matters needing attention

1. the installation is completed do not tread, with hand folding;
2. not used for fire and insect prevention after installation;
3. the installation process pay attention to safety, do a good job of protectio
