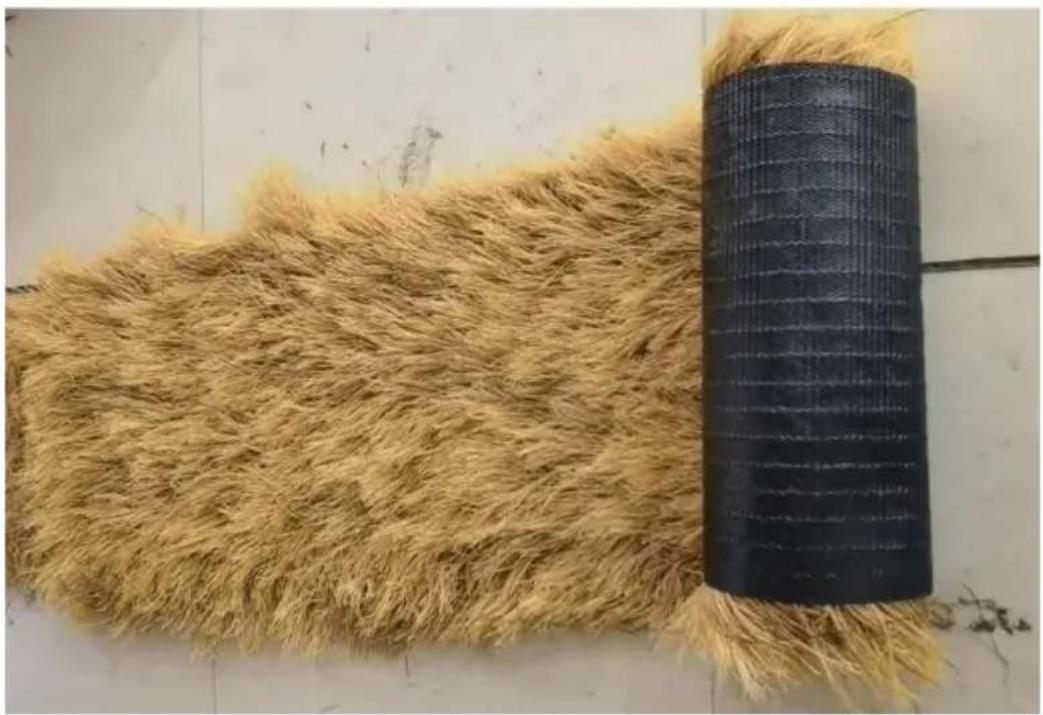

D1-40120 - Roofing materials Vevor - Free user manual and instructions

Model	D1-40120
Product Type	Synthetic thatch tile for roofing
Dimensions (L x W)	1200 x 400 mm
Color	Yellow + Black
Approximate Weight	1.5 kg
Material	Synthetic thatch (polyethylene or similar)
Usage	Outdoor roofing, thatch roof decoration
Fixing Methods	Cable ties, wire, nails, self-tapping screws, structural adhesive
Recommended Overlap	6.5 to 7 cm (visible part) for upper rows; larger overlap for the first 6 rows
Installation Area	Eaves, hip ridge, and ridge
Pieces per Pack	Not specified (sold individually)
Weather Resistance	Designed for outdoor use, UV and rain resistant
Maintenance	Clean with clear water, avoid abrasive products
Safety Precautions	Do not walk on tiles after installation; use protective equipment during installation
Repairability	Individual replaceable parts; can be cut for adjustment
Warranty	Electronic warranty certificate included
Manufacturer	Shanghai Muxin Muye Co., Ltd., Shanghai, China
Importer (Australia)	SIHAO PTY LTD, NSW
Importer (USA)	Sanven Technology Ltd., CA
Representative (UK)	VEVOR, Frankfurt am Main
Manual Available In	French, English, Polish (free download)

Frequently Asked Questions - D1-40120 Vevor

How to fix Vevor D1-40120 thatch tiles?

You can use cable ties, wire, nails (garden nails, straight nails) or self-tapping screws. Structural adhesive or double-sided tape is also possible.

What is the recommended overlap between rows?

For the first six rows (eaves), a large overlap is recommended for a thick effect. Above, plan an overlap of 6.5 to 7 cm (visible tile width).

Can I walk on the roof after installation?

No, it is not recommended to walk on the tiles. If necessary, bend by hand and avoid any trampling to prevent damage.

How to maintain synthetic thatch tiles?

Clean with clear water and a soft cloth. Do not use abrasive products or solvents that could damage the material.

What are the safety precautions during installation?

Wear protective equipment (gloves, goggles). Ensure secure access to the roof and avoid working in bad weather.

Can I cut the tiles to fit specific shapes?

Yes, you can cut the tiles with a utility knife or scissors to adjust size, especially for ridges or corners.

Is the product fire resistant?

Synthetic thatch is not designed for fire prevention. Avoid direct heat sources and flames nearby.

How to install tiles on the ridge?

First install tiles on both slopes, then close the ridge with pieces cut into 2-3 small pieces to form a natural spine effect.

What is the difference between models D1-40120 and D1-50600?

The D1-40120 measures 1200 x 400 mm (yellow and black), while the D1-50600 measures 6000 x 500 mm. Installation instructions are identical.

Where can I download the manual?

The manual is available for free download in PDF format on notice-facile.com. You can also request a translation by email.

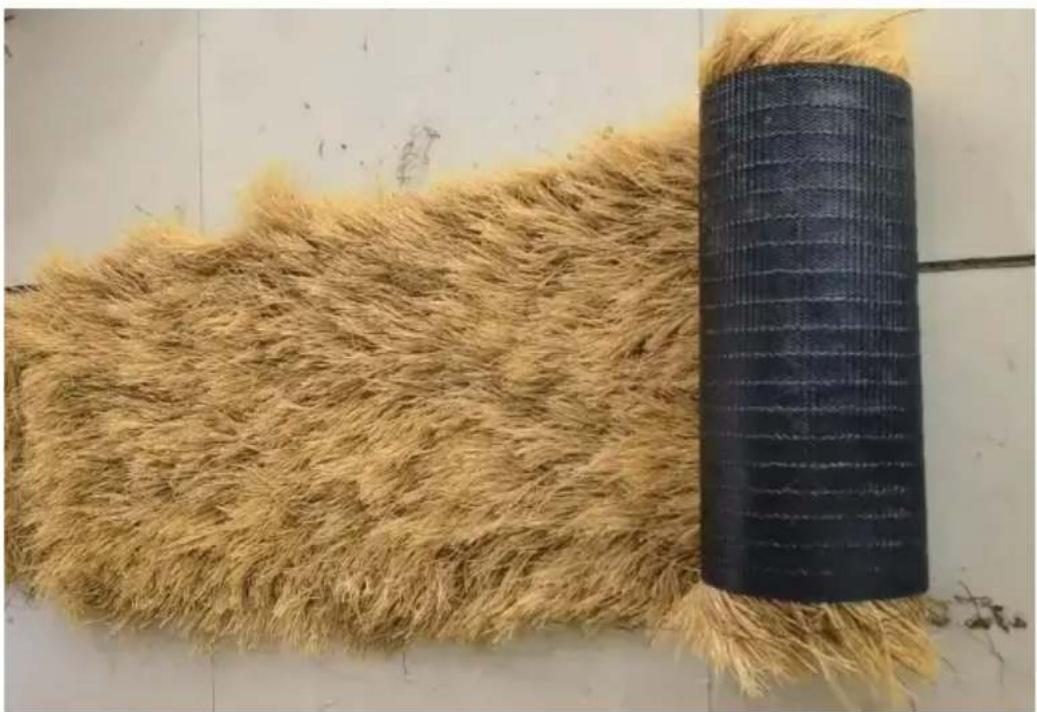

USER MANUAL D1-40120 Vevor

THATCH ROOFING

MODEL: D1-40120 & D1-50600

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

THATCH ROOFING

MODEL: D1-40120 & D1-50600

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

Technical parameters

Model	Size (L * W)	Colour
D1-40120	1200*400 mm	Yellow + Black
D1-50600	6000*500 mm

Installation - Roof

Note: The installation method may be different in different scenarios. The installation procedure is for reference only.

1. Eaves part:

In the first row, along the reference line (keel), nail the real part of the thatch along the eaves;

Second row, overlapping; The third row to the sixth row, each row cup back basically overlapping, highlighting the eaves thick effect; Above the sixth row, 6.5cms - 7cms (the width of the thatch tile part).

2. Ridge part:

Oblique ridge: first lay the main surface on both sides of the thatched house then synchronously spread the spine shape from the bottom to the top to form rain guide; Positive ridge: the roofing thatch tiles are laid and then the positive ridge is closed; Tips: Oblique ridge and positive ridge thatch pieces Angle to the main surface of the thatch shingle part to adjust the size, according to cut the thatch tiles into small pieces installation, the effect is natural, easy close, the number of 2-3 small pieces (according to the width of the ridge to determine the shear size), first spread on both sides and then spread a piece the middle to form the backbone effect;

3. Finishing work after installation:

After the entire thatch roof is installed, the bending of the thatch tile can be properly pressed and picked to make it smooth and natural (especially the ea part). You can choose from a fluffy effect (with a high degree of thatch bent a smooth effect (with a low degree of thatch bending) to finish as needed.

4. Installation tips:

Do not be too compact or too loose when installing, so as not to affect the effect; The thatched grass along the eaves suggests that the grass lines should be long and overlapping, and the first six rows of the eaves are basically overlapped highlighting the heavy effect of floating and hanging; Color and style are spread according to the proportioning scheme; Take the dislocation paving method, the overall effect from the bottom up, do not see the base layer of the roof, the effect.

Fixing method

1. Bind with cable ties or iron wire and rope; 2, fixed with nails, yard nails, straight nails, or self-tapping screws;
2. Use structural adhesive or double-sided adhesive to fix.

Matters needing attention

1. the installation is completed do not tread, with hand folding;
2. not used for fire and insect prevention after installation;
3. the installation process pay attention to safety, do a good job of protection

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshan District, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

Technical Support and E-Warranty Certificate www.vevor.com/support
