USER MANUAL RS1061B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

VESSEL SINK

MODEL: RS1237B /RS1237/RS1061B /RS1011 /RS1196

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:RS1237B /RS1237/RS1061B /RS1011 /RS1196

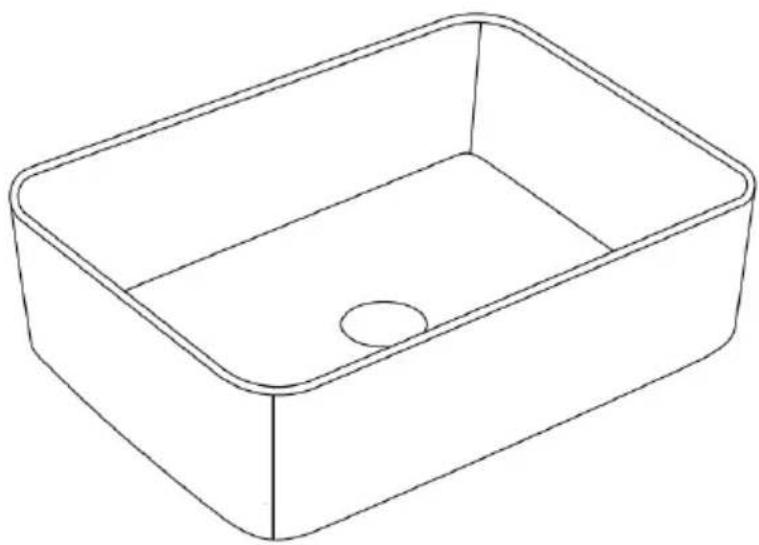

Line drawing of a rectangular basin with a circular hole at the bottom (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your there are any technology or software updates on our product.

SECURITY & WARNINGS

- Observe and comply with all building and plumbing codes.

- As our basins are handcrafted and dimensions are approximate, we recommend using the actual basin for the cutout.

- Use 100% Silicone (non-water based) for all installations.

- Ensure adequate space behind the basin for faucet and backsplash, includir the full range of motion for faucet handles and spouts.

- Make sure a watertight seal exists on all drain connections.

- Do not place basin directly on floor. After unpacking, place basin on protected material such as packing materials.

- Remember to always use non-abrasive cleaners on Vevor sinks.

GENERAL RECOMMENDATIONS:

Please read installation instructions thoroughly before installing the vesselsink. Be sure to use proper tools and always wear proper personal safety access for your protection.

PARAMETER LIST

Model	size	picture
RS1237B	40*30cm/15.7*11.8in
RS1237	48*37cm/18.9*14.6in
RS1061B	61*35cm/24*13.8in
RS1011	41*34cm/16.1*13.4in
RS1196	60*36cm/23.6*14.2in

PART LIST

Name	Picture	Quantity
Drainer		1

INSTRUCTIONS

(1) SUGGESTED TOOLS AND MATERIALS

Safety Glasses Pencil Tape Measure

Simple line drawing of a handheld electric drill bit (no text or symbols)

Drill

Pure electrical circuit symbol symbols without any text or labels

Level

Simple line drawing of a cylindrical object with a pointed tip, resembling a stylized pen or tool (no text or symbols)

Thread Sealant

- Sealant-We recommend the use of a stone, marble and granite silicone ca a general purpose silicone sealant.

WARNING:

To reduce the risk of injury or property damage, read and follow all of the installation instructions before installing this product and wear safety goggles. Product must be installed in accordance with all state and local plumbing and building codes. Call a professional if you are uncertain about installing this property.

(2) INSTALLATION STEPS

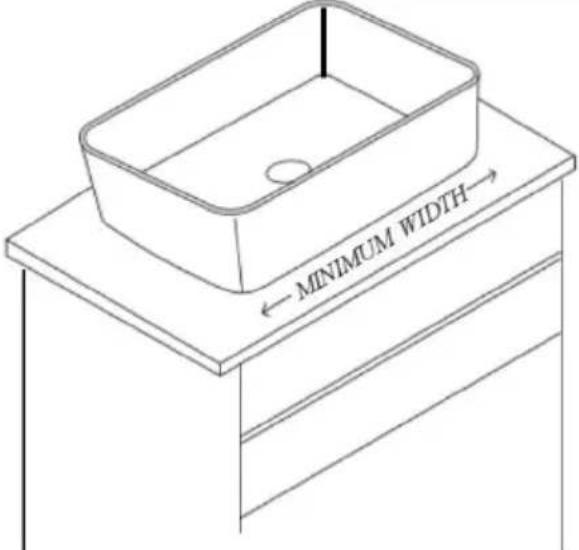

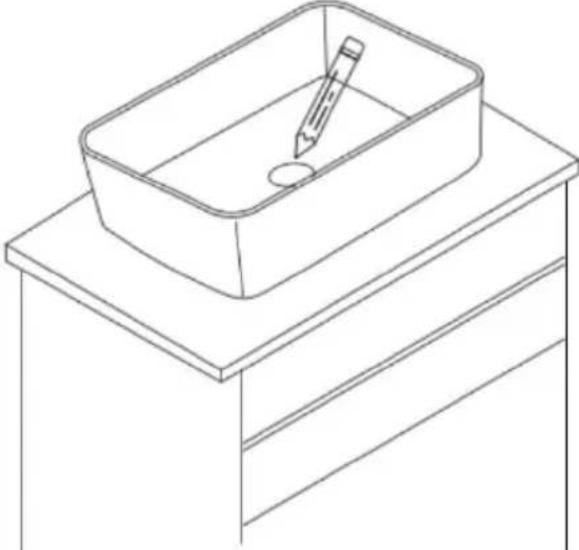

Step1:Place the vesselsink on the installa countertop and confirm the size of vesselsink is appropriate to ensure that there is enough space left be to Install the faucet.	Step2:Mark the drain hole location on th countertop with a pencil.

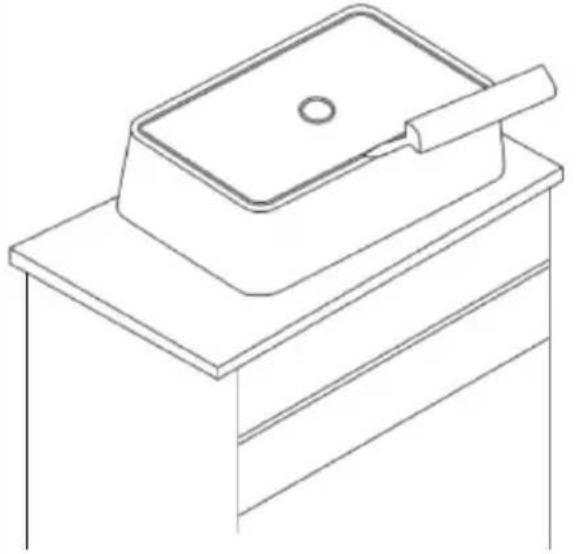

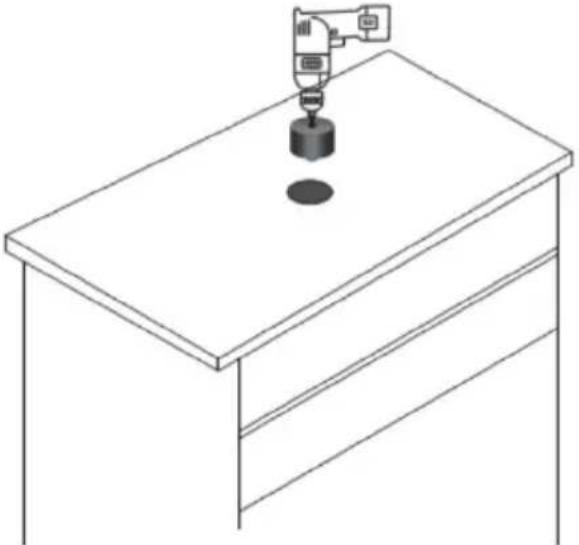

Step3:Cut countertop for drain opening. T recommended size of the counterto drain opening is 1- 3/4 inches to inches.	Step4:Put the vesselsink up side down a apply silicone to the bottom edge.
