USER MANUAL P2001-1 Vevor

Affordable. Reliable. Home Improvement.

BABY PLAYPEN

MODEL: P2001-1

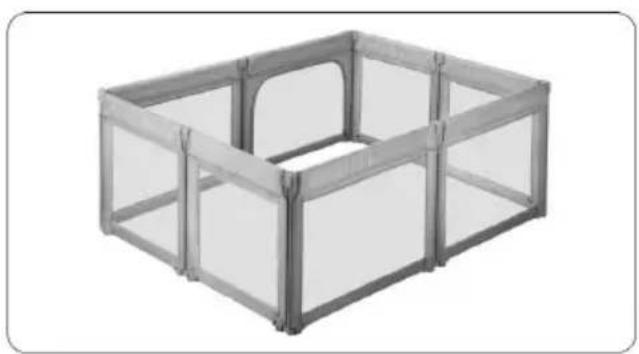

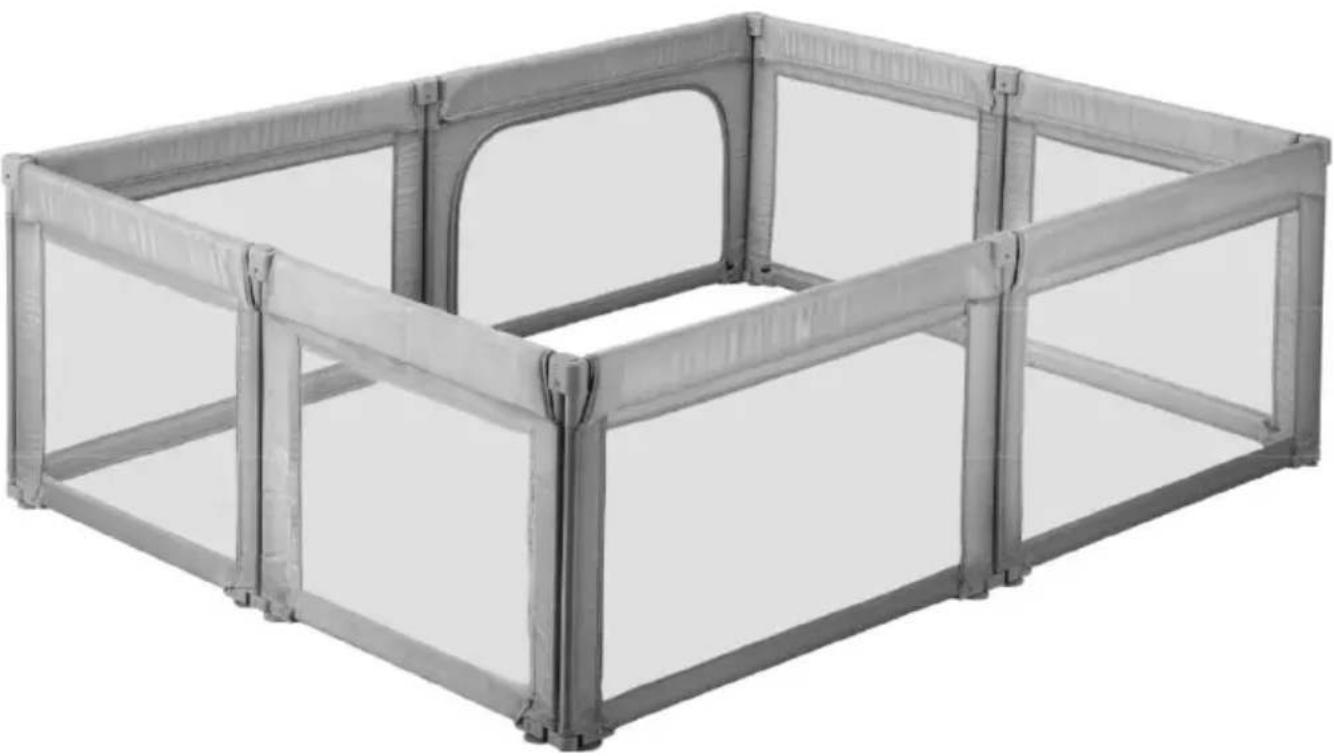

MODEL:P2001-1 50*50*27.36 inch\1270*1270*695 mm

Exterior view of a modern office building (no signage)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

WARNING

1. Read all instructions BEFORE assembly and USE of product .KEEP INSTRUCTIONS FOR FUTURE USE.
2. Failure to follow these warnings and the instructions could result in serious injury or death.
3. This product is suitable for children aged 6 months to 24 months.
4. The product, including side rails, must be fully erected prior to use.
5. Top support member must be installed prior to use. Failure to install result in child falling out of product.
6. Strings can cause strangulation! Never place items with a string arour child's neck such as hood strings or pacifier cords. Never suspend st over product or attach strings to toys.
7. Discontinue use of the product when child is able to climb out or the height of 35 in.(890 mm).
8. Child can become entrapped and die when improvised netting or c are placed on top of product.
9. Never add such items to confine child in product.
10. when child is able to pull to standing position, remove bumper pack large toys, and other objects that could serve as steps for climbing c
11. Never place product near a window where cords from blinds or can strangle a child.
12. Always provide the supervision necessary for the continued safety your child.when used for playing,never leave child unattended.
13. To reduce the risk of SLDS, pediatricians recommend healthy infant placed on their back to sleep, unless otherwise advised by your physic
14. Never use plastic shipping bag or other plastic film as mattress cc not sold and intended for that purpose. They can cause suffocation.
15. Never use a water mattress with this product.

16. Before installation, please make sure to clean the floor thoroughly ensure a tight connection between the suction cup and the floor. During installation, apply force firmly on the column with the suction cup to enter a secure connection between the suction cup and the floor.

17. Maintenance instruction: If the suction cup becomes contaminated after repeated use, it can be cleaned with water. After cleaning, the suction of the suction cup can be enhanced.

INSTALLATION NOTE

1. Parts for Baby Playpen

Name	Side Tube	Upper Tube	Bottom Tube	Fabric sheet	Hanging hooks
Qty	1 X 16	1 X 8	1 X 8	1 X 8	1 X 2

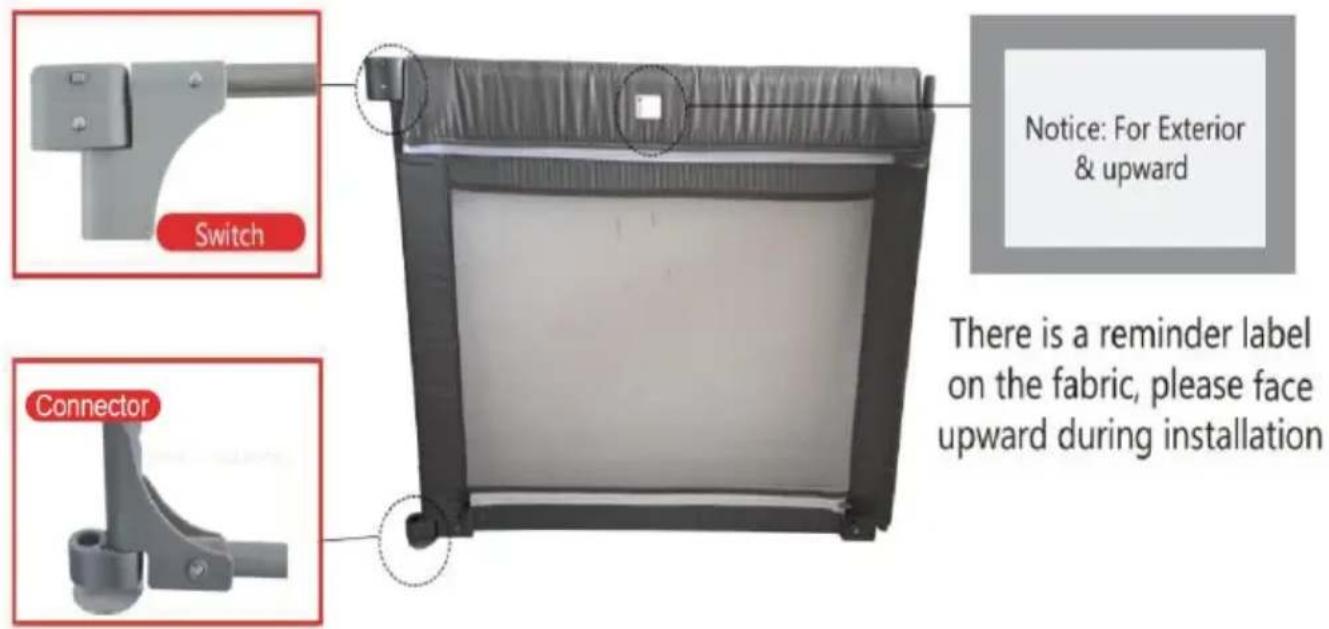

1.1.Details for single Panel

Switch Notice: For Exterior & upward There is a reminder label on the fabric, please face upward during installation Connector

Noted: The switch of the upper tube and the connector of the lower must be placed on the same side (this means hinges should stick on the same side), otherwise the panels cannot be connected with each

1.2.Installation Step for Single Panel

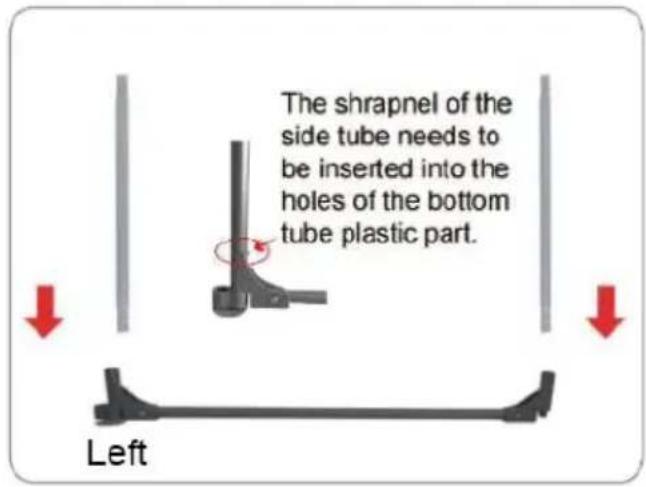

The shrapnel of the side tube needs to be inserted into the holes of the bottom tube plastic part. Left

1). Connect the side tube the bottom tube.

Black rectangular frame with a white cushion and a black top, labeled 'Left' on both sides (no additional text or symbols)

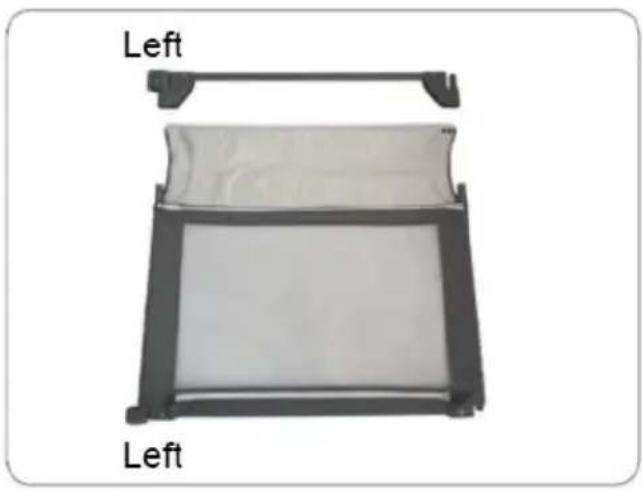

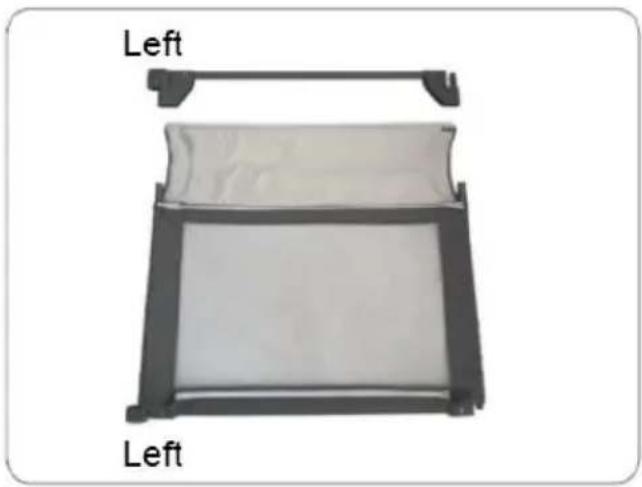

2). Insert the corresponding fabric cover into the side tu

Black rectangular frame with a white cushioned panel, no visible text or symbols

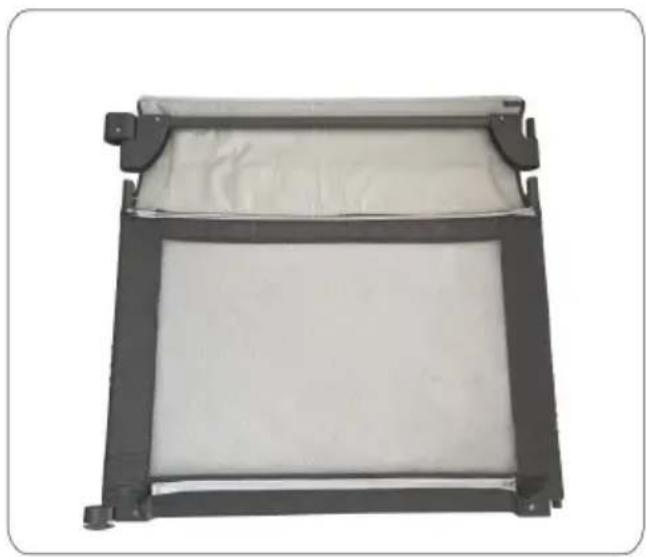

3). Match the suitable upper tube to the side tube.

Black and white photo of a baby crib with a flat top and side supports (no text or symbols visible)

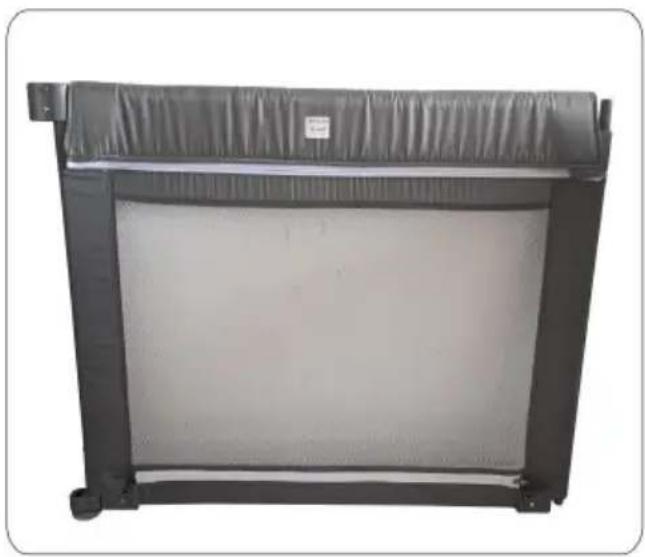

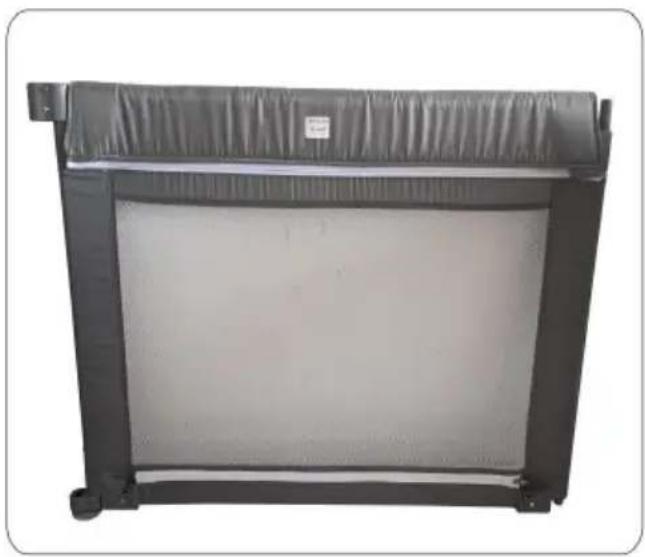

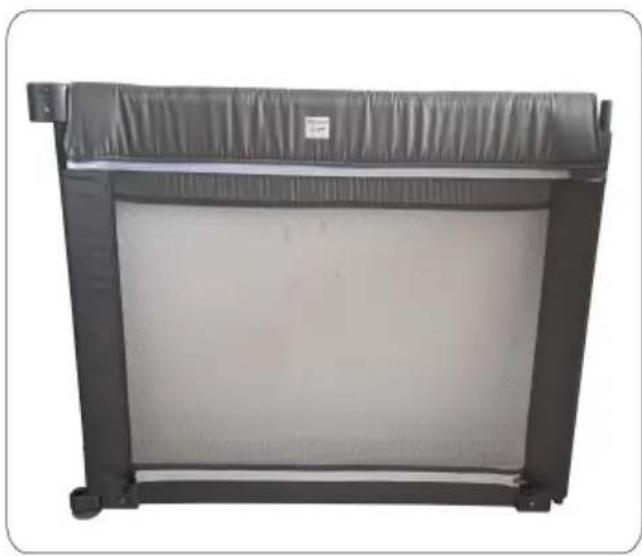

4). Close both zippers around the tubes.

Noted:

1. After installing single pieces, please carefully check whether the zip properly closed and the corresponding steel tubes are aligned.
2. For the sake of safety, please make sure that all single pieces are installed correctly according to the instructions before connecting them together.

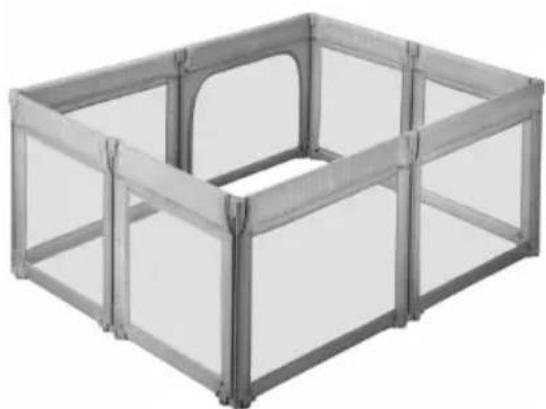

2. Accessories description

Name	QTY	Image	Installation Image Panel
Panel	8

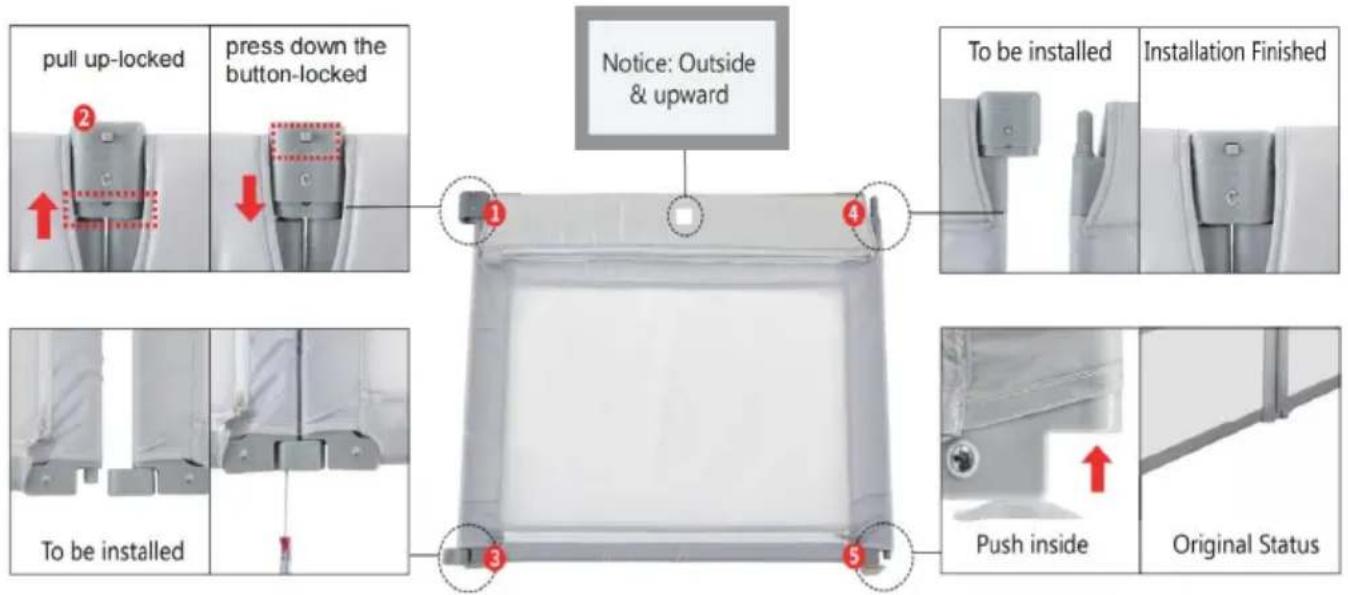

2.1. Details for Single Panel

pull up-locked press down the button-locked Notice: Outside & upward To be installed Installation Finished Push inside Original Status

1 Fixed switch 2 Button Connector Solid pole Retractable pole

Noted:

1. The floor where the products are placed and the product suction can need to be cleaned thoroughly before pressing.
2. The suction cup can be cleaned with clean water.

2.2. Installation Step for fence

Note: The pieces need to be connected based on following procedure connect the top hinge first and then insert the retractable pole into the bottom connector, push it upward and connect together.

Exterior view of a modern office building (no signage)

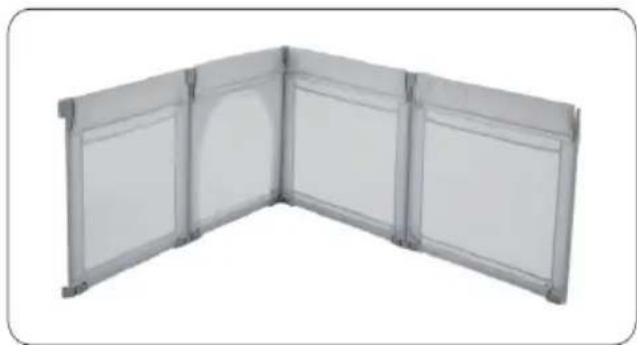

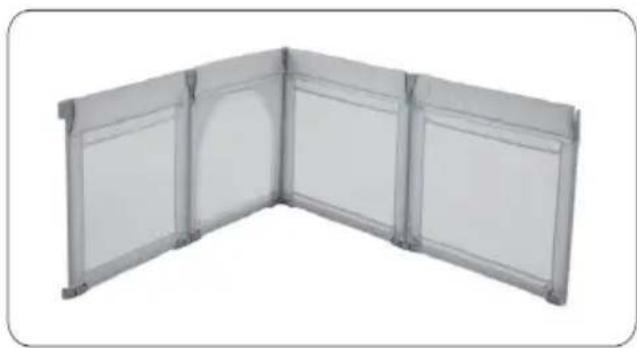

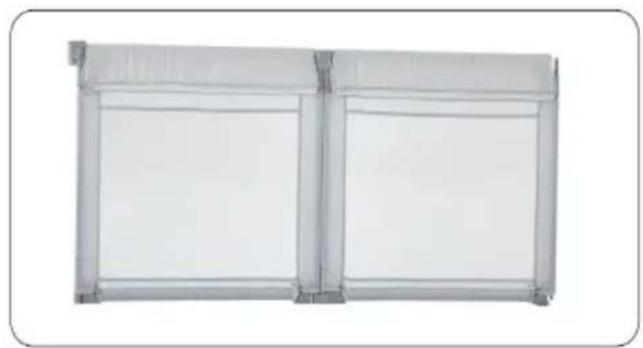

1). Connect two panels for one

L-shaped metal panel or enclosure structure with six panels, no text or symbols visible

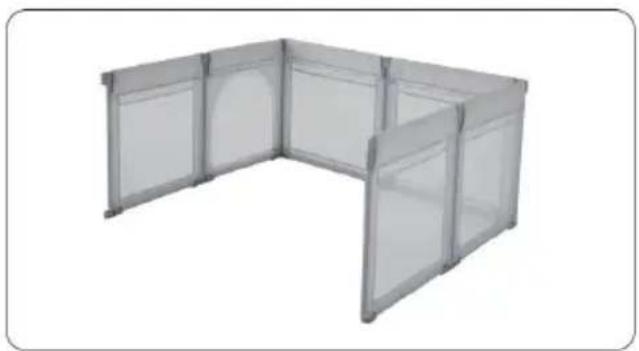

2).Connect another 2 panels for the second side.

Exterior view of a modern office building (no signage)

3). Repeat, connect the third sid 4). Connect the last side

Exterior view of a rectangular metal enclosure with internal compartments (no text or symbols)

Note: You can change it's dimension or the shape by adding or rem some panels

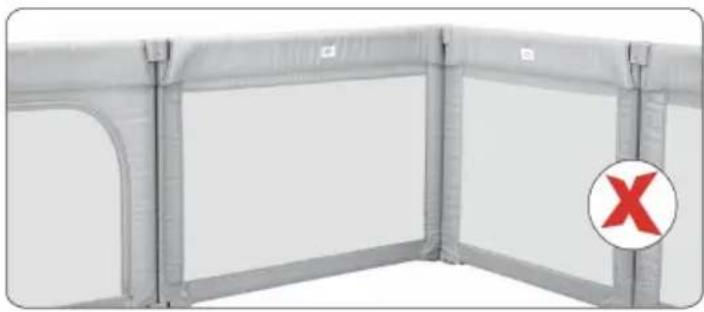

2.3.Wrong Installation Step

Exterior view of a modern office building (no signage)

Do not install the reminder label side inside, all zippers should be put outside.

Caution:

1. After installation, pls check and make sure all switches are locked use.

2. For safety reasons, make sure that the baby playpen is installed according to the installation instructions.

3. To avoid danger of choking, do not place any small items which cause choking inside.

4. Before using, please check the playpen carefully, If there is any dam please stop using.

STORAGE INSTRUCTION

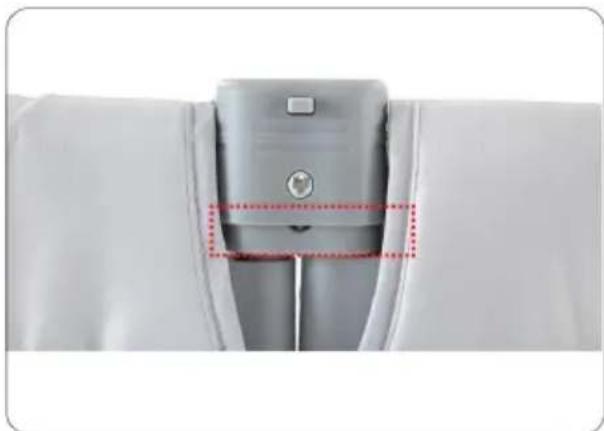

Note: Before storing, please pull up the switch to make it unlocked. Method A

Close-up of a mechanical component with red arrows indicating upward motion, no visible text or symbols

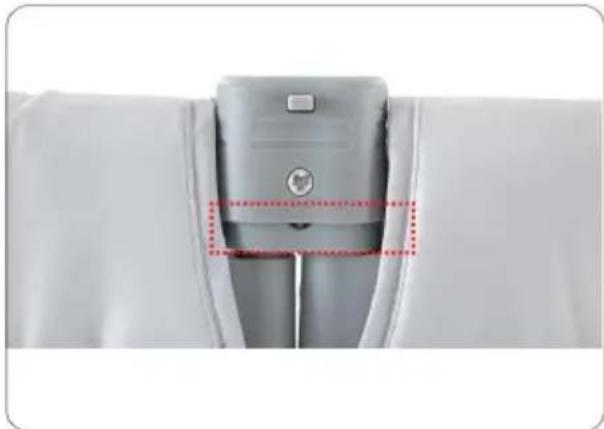

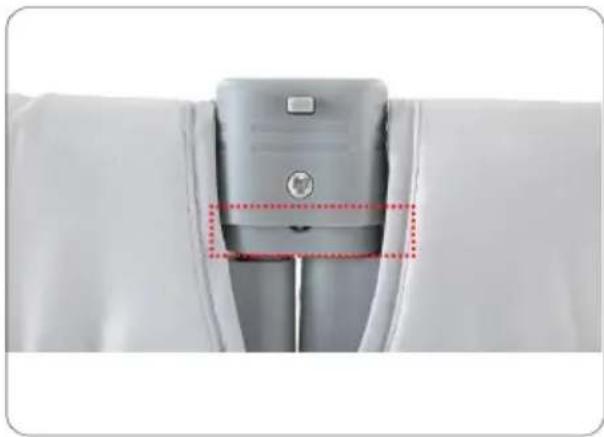

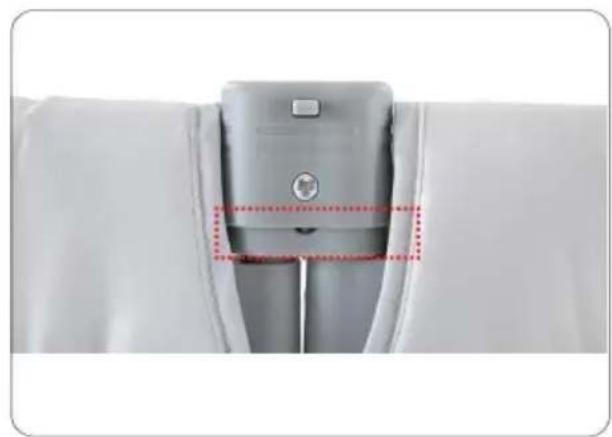

Close-up of a gray mechanical component with a red dotted rectangle highlighting a section (no text or symbols visible)

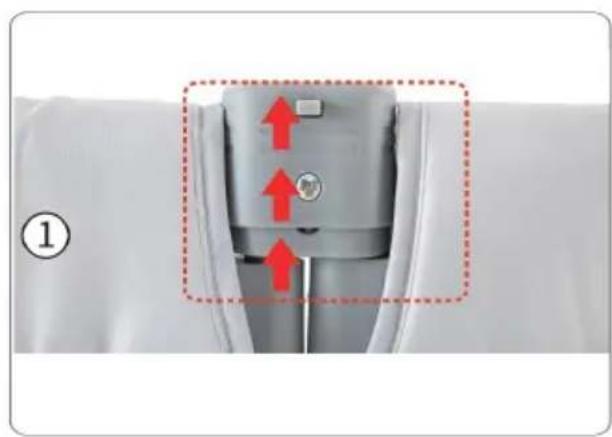

Step 1: Lift up the switch make it The switch is in active status. unlocked.

Step 2: According to step I, turn off all switches, make them active

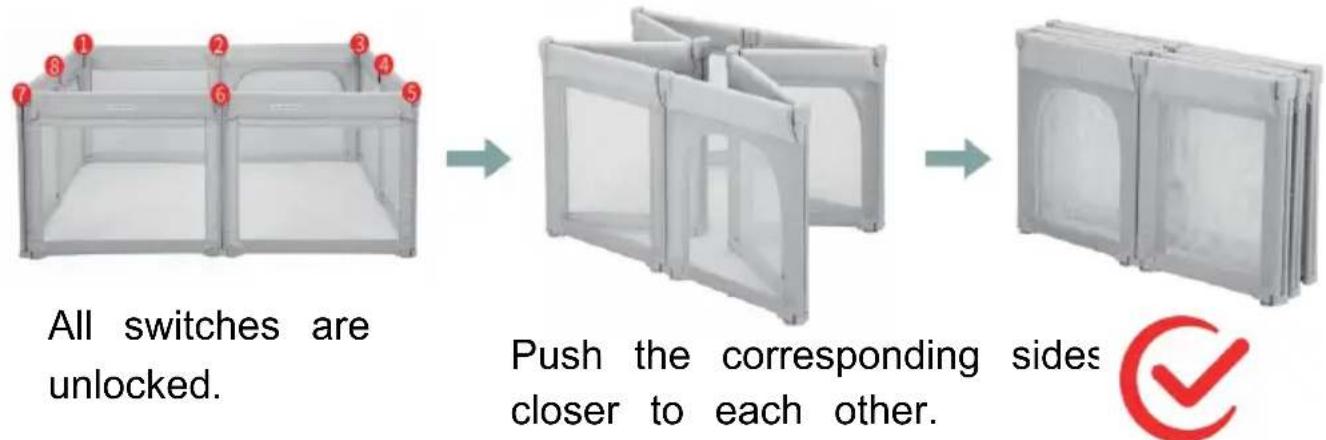


Method B

1

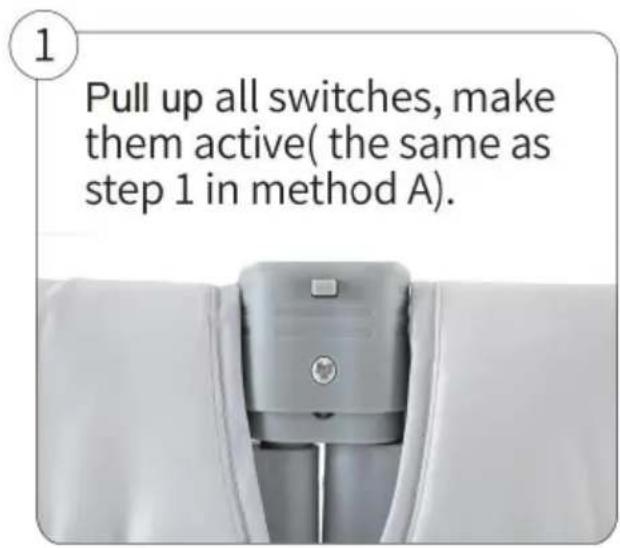

Pull up all switches, make them active( the same as step 1 in method A).

Close-up of a metallic mechanical component with a circular button and rectangular body (no visible text or symbols)

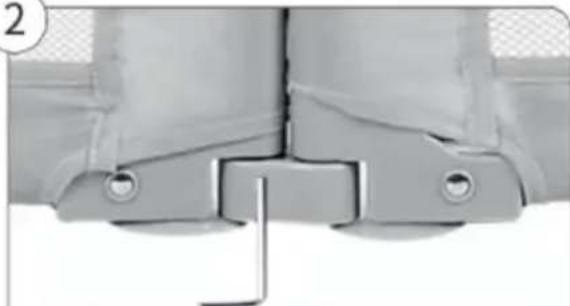

2

Close-up of a mechanical component with mounting holes and a central bracket (no visible text or symbols)

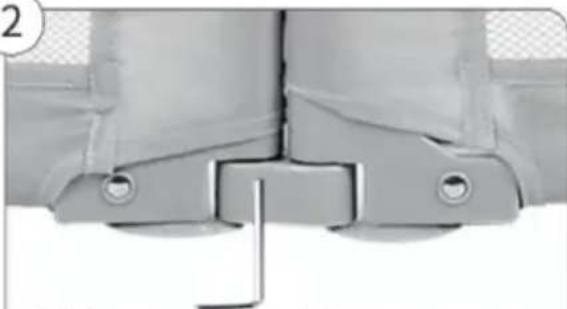

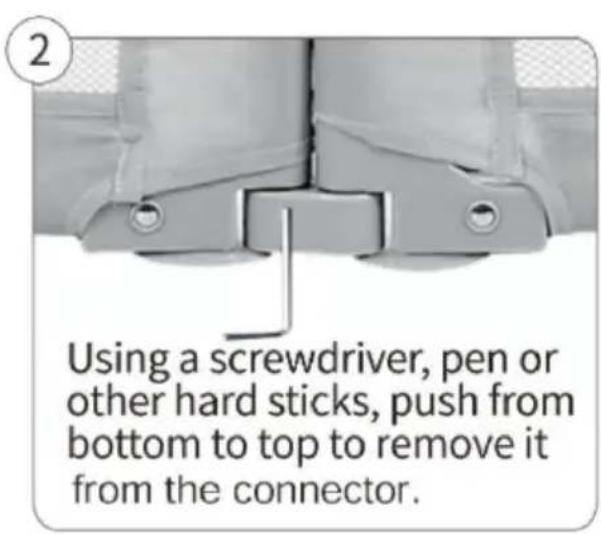

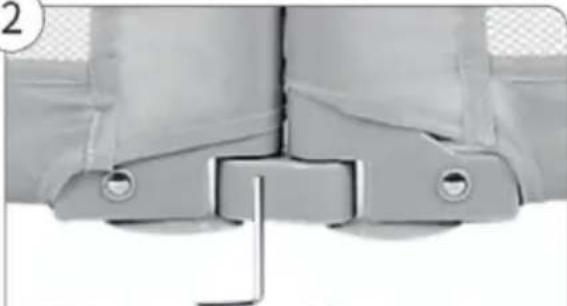

Using a screwdriver, pen or other hard sticks, push from bottom to top to remove it from the connector.

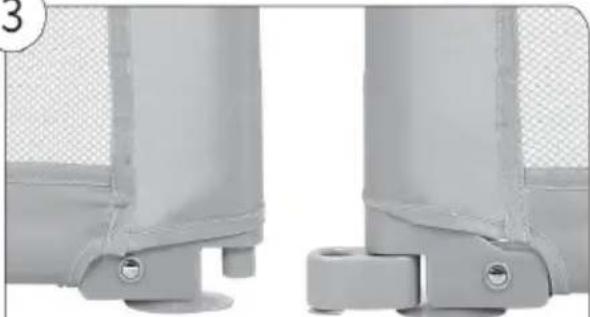

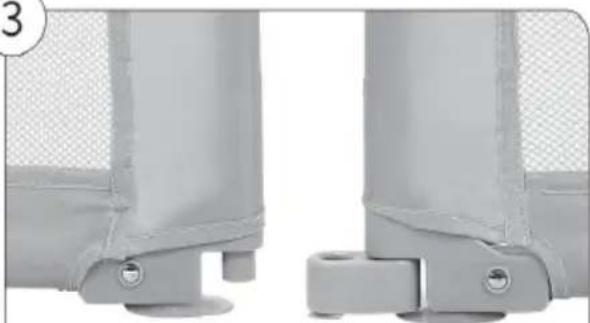

3

Close-up of two gray mechanical components with mounting holes and connectors (no text or symbols visible)

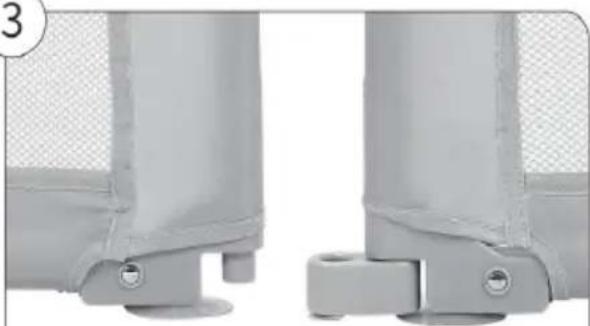

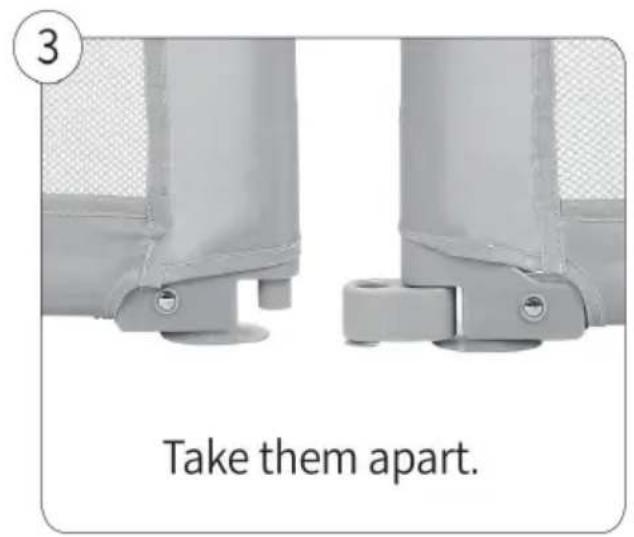

Take them apart.

4

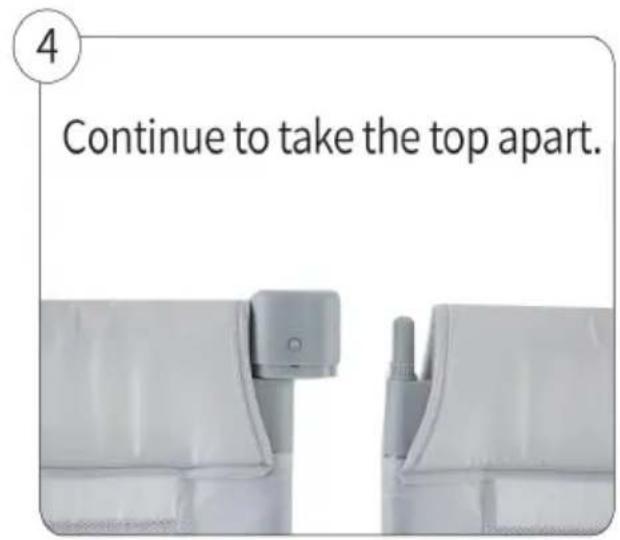

Continue to take the top apart.

Close-up of white plastic car seats with a small mechanical component attached (no visible text or symbols)

5

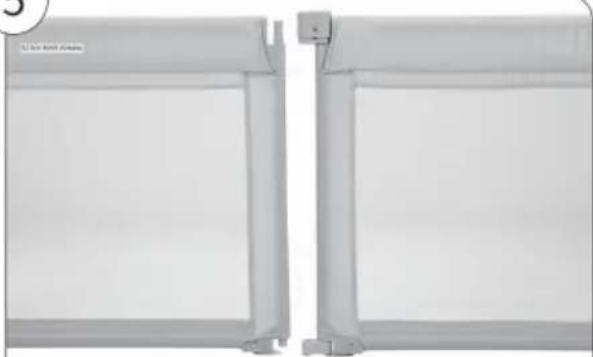

Two white rectangular electronic devices with vertical connectors, one front and one side, against a plain background (no visible text or symbols)

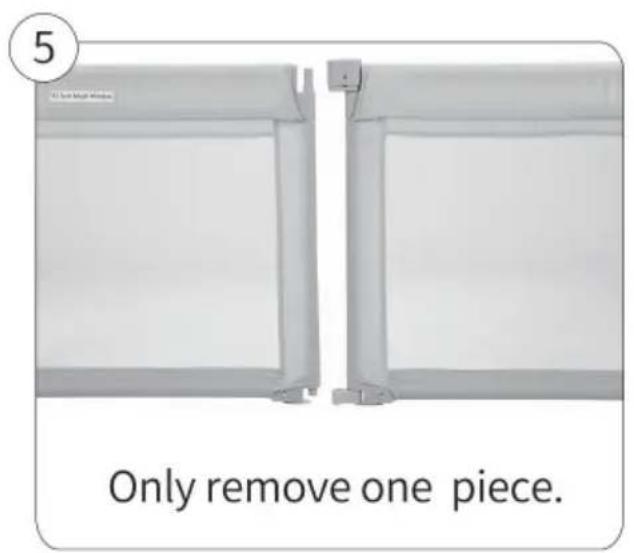

Only remove one piece.

6

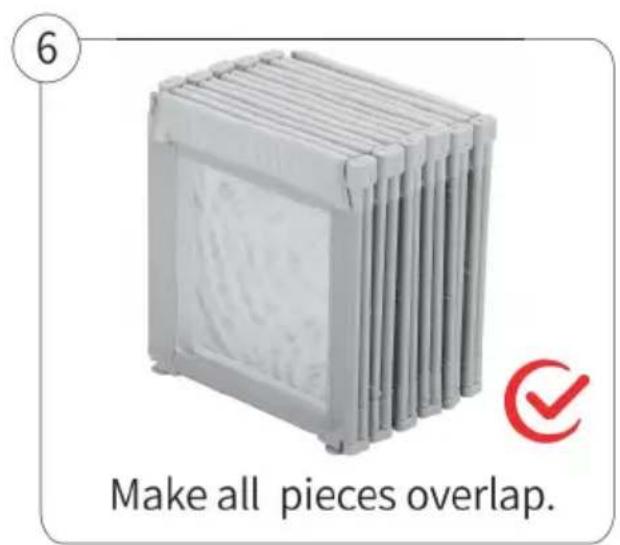

Stacked cylindrical storage unit with a red checkmark icon (no text or symbols on the unit itself)

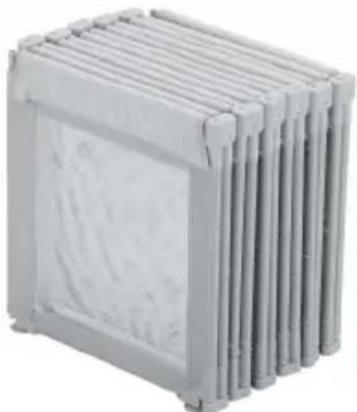

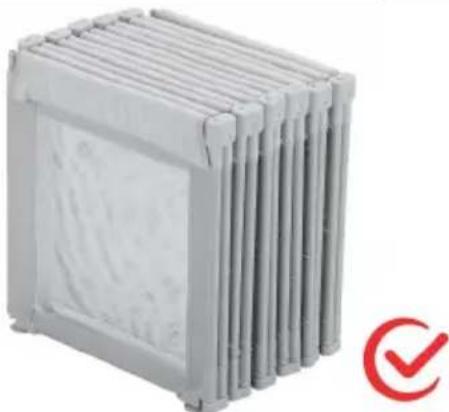

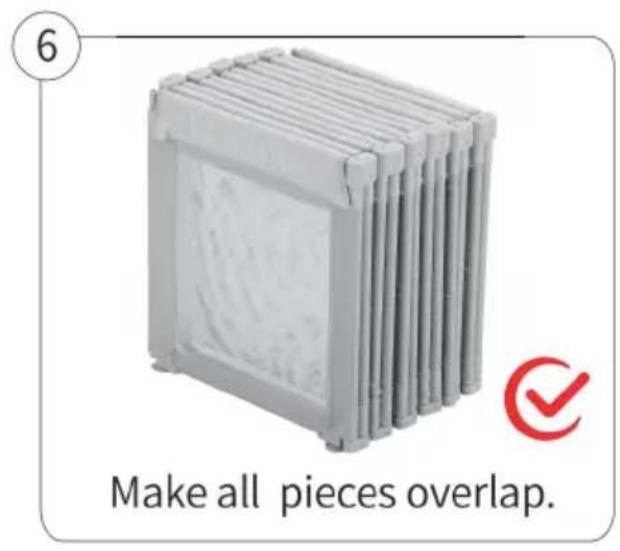

Make all pieces overlap.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

PARC POUR BÉBÉ

MODÈLE: P2001-1

MODÈLE : P2001-1 50*50*27,36 pouces\1270*1270*695 mm

Exterior view of a rectangular metal enclosure with internal partitions (no text or symbols)

Switch Notice: For Exterior & upward There is a reminder label on the fabric, please face upward during installation Connector

The shrapnel of the side tube needs to be inserted into the holes of the bottom tube plastic part. Left

1). Connect the side tube the bottom tube.

Black rectangular device with a white cushion and labeled 'Left' (no other text or symbols)

2). Insert the corresponding fabric cover into the side tu

Exterior view of a rectangular mechanical component with a flat top and side mounting feet (no text or symbols visible)

3). Match the suitable upper tube to the side tube.

Black rectangular frame with a white panel and a gray top cover, no visible text or symbols.

4). Close both zippers arour the tubes.

Noté:

pull up-locked press down the button-locked Notice: Outside & upward To be installed Installation Finished Push inside Original Status

Exterior view of a modern office building (no signage)

1). Connect two panels for one

L-shaped metal panel or shelf structure with six panels, no text or symbols visible

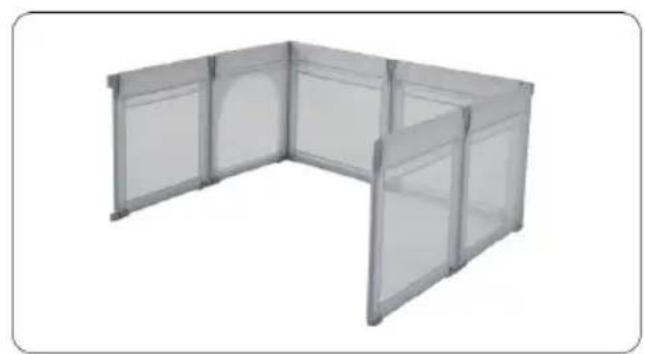

62).Connect another 2 panels for the second side.

3D rendering of a U-shaped metal enclosure or cabinet structure with multiple panes (no text or symbols visible)

Exterior view of a rectangular metal enclosure with internal partitions (no text or symbols)

3). Repeat, connect the third sid 4). Connect the last side

Exterior view of a modern office building (no signage)

Do not install the reminder label side inside, all zippers should be put outside.

Prudence:

Close-up of a mechanical component with red arrows indicating upward motion, no visible text or symbols

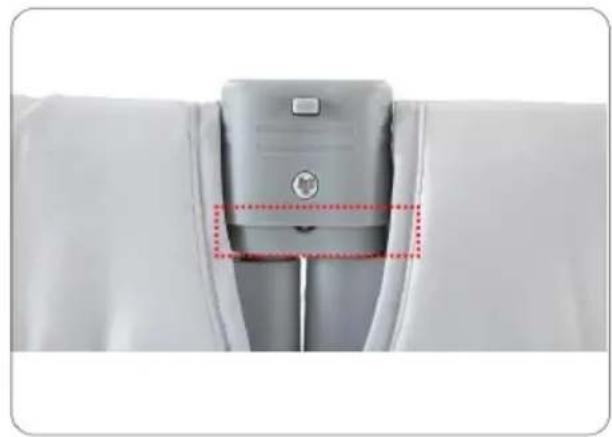

Close-up of a gray mechanical component with a red dotted rectangle highlighting a section (no text or symbols visible)

Step 1: Lift up the switch make it The switch is in active status. unlocked.

Méthode B

1

Pull up all switches, make them active( the same as step 1 in method A).

Close-up of a white garment with a gray button and metal clip (no text or symbols visible)

2

Close-up of a mechanical component with a metal bracket and mounting holes (no visible text or symbols)

Using a screwdriver, pen or other hard sticks, push from bottom to top to remove it from the connector.

3

Close-up of two gray mechanical components with mounting holes and side brackets (no text or symbols visible)

Take them apart.

4

Continue to take the top apart.

Close-up of white leather or leather clip components with a small metallic clip attached (no visible text or symbols)

5

Two white rectangular panels with white panels and a small electrical outlet, no visible text or symbols.

Only remove one piece.

6

Stacked cylindrical electronic components or modules with no visible text or symbols

Make all pieces overlap.

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200 000 CN.

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA STREET, ASTV NSW 2122 Australie

Lieu, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

BABY-LAUFSTALL

MODELL: P2001-1

MODELL:P2001-1 50*50*27,36 Zoll\1270*1270*695 mm

Exterior view of a rectangular metal enclosure with internal partitions (no text or symbols)

Switch Notice: For Exterior & upward There is a reminder label on the fabric, please face upward during installation Connector

The shrapnel of the side tube needs to be inserted into the holes of the bottom tube plastic part. Left

1). Connect the side tube the bottom tube.

Black rectangular device with a white cushion and labeled 'Left' (no other text or symbols)

2). Insert the corresponding fabric cover into the side tu

Exterior view of a rectangular mechanical component with a flat top and side mounting feet (no text or symbols visible)

3). Match the suitable upper tube to the side tube.

Black rectangular frame with a white panel and a gray top cover, no visible text or symbols.

4). Close both zippers around the tubes.

Hinweis:

pull up-locked press down the button-locked Notice: Outside & upward To be installed Installation Finished To be installed Push inside Original Status

Exterior view of a modern office building (no signage)

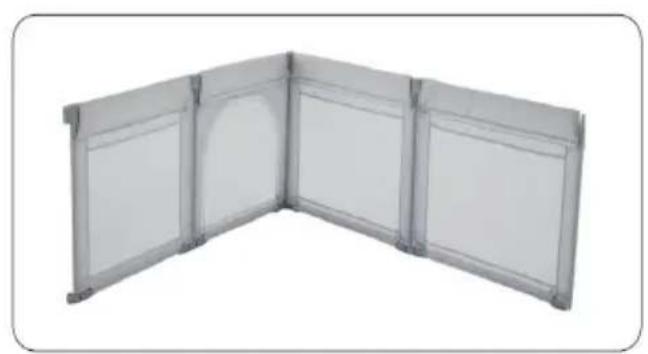

1). Connect two panels for one

L-shaped metal panel structure with four panes, no text or symbols visible

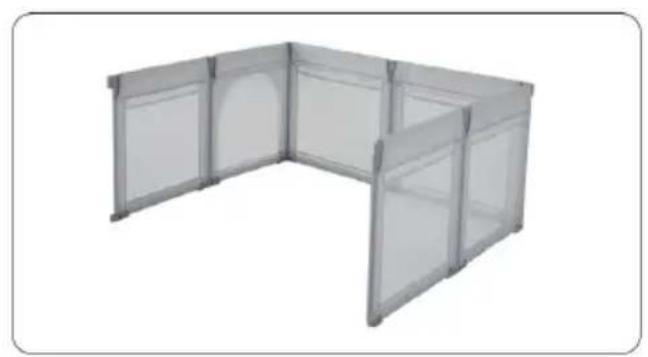

2).Connect another 2 panels for the second side.

3D rendering of a simple U-shaped metal enclosure or cabinet structure (no text or symbols visible)

Exterior view of a rectangular metal enclosure with internal partitions (no text or symbols)

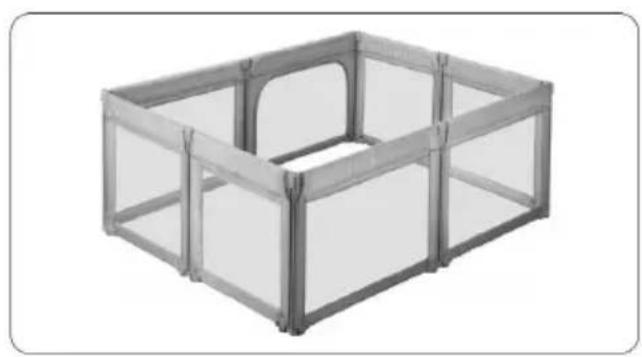

3). Repeat, connect the third sid 4). Connect the last side

Exterior view of a modern office building (no signage)

Do not install the reminder label side inside, all zippers should be put outside.

Vorsicht:

Close-up of a mechanical component with red arrows indicating upward motion, no visible text or symbols

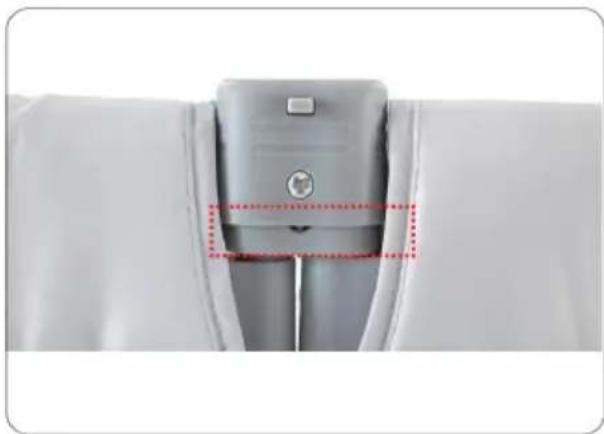

Close-up of a gray mechanical component with a red dotted rectangle highlighting a section (no text or symbols visible)

Step 1: Lift up the switch make it The switch is in active status. unlocked.

All switches are unlocked. Push the corresponding sides closer to each other.

Methode B

1

Pull up all switches, make them active( the same as step 1 in method A).

Close-up of a white garment with a gray button and metal clip (no text or symbols visible)

2

Close-up of a mechanical component with a metal bracket and mounting holes (no visible text or symbols)

Using a screwdriver, pen or other hard sticks, push from bottom to top to remove it from the connector.

3

Close-up of two gray mechanical components with mounting holes and side brackets (no text or symbols visible)

Take them apart.

4

Continue to take the top apart.

Close-up of a white plastic car seat with a small mechanical component attached (no visible text or symbols)

5

Two white rectangular panels with white panels and a small electrical outlet, no visible text or symbols.

Only remove one piece.

6

Stacked cylindrical electronic components or modules with no visible text or symbols

Make all pieces overlap.

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200.000 CN.

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

BOX PER BAMBINI

MODELLO: P2001-1

MODELLO: P2001-1 50*50*27,36 pollici\1270*1270*695 mm

Exterior view of a rectangular metal enclosure with internal partitions (no text or symbols)

Switch Notice: For Exterior & upward There is a reminder label on the fabric, please face upward during installation Connector

The shrapnel of the side tube needs to be inserted into the holes of the bottom tube plastic part. Left

1). Connect the side tube the bottom tube.

Black rectangular device with a white cushion and labeled 'Left' (no other text or symbols)

2). Insert the corresponding fabric cover into the side tu

Exterior view of a rectangular mechanical component with a flat top and side mounting feet (no text or symbols visible)

3). Match the suitable upper tube to the side tube.

Black rectangular frame with a white panel and a gray top cover, no visible text or symbols.

4). Close both zippers around the tubes.

Notato:

pull up-locked press down the button-locked Notice: Outside & upward To be installed Installation Finished Push inside Original Status

Exterior view of a modern office building (no signage)

1). Connect two panels for one

L-shaped metal panel structure with six panes, no text or symbols visible

62).Connect another 2 panels for the second side.

3D rendering of a U-shaped metal enclosure or cabinet structure with multiple panes (no text or symbols visible)

Exterior view of a rectangular metal enclosure with internal partitions (no text or symbols)

3). Repeat, connect the third sid 4). Connect the last side

Exterior view of a modern office building (no signage)

Do not install the reminder label side inside, all zippers should be put outside.

Attenzione:

Close-up of a mechanical component with red arrows indicating upward movement, no visible text or symbols

Close-up of a gray mechanical component with a red dotted rectangle highlighting a section (no text or symbols visible)

Step 1: Lift up the switch make it The switch is in active status. unlocked.

All switches are unlocked. Push the corresponding sides closer to each other.

Metodo B

1 Pull up all switches, make them active( the same as step 1 in method A).

Using a screwdriver, pen or other hard sticks, push from bottom to top to remove it from the connector.

3 Take them apart.

4 Continue to take the top apart.

5 Only remove one piece.

6 Make all pieces overlap.

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

PARQUE PARA BEBÉS

MODELO: P2001-1

MODELO: P2001-1 50*50*27.36 pulgadas\1270*1270*695 mm

Exterior view of a rectangular metal enclosure with internal partitions (no text or symbols)

Switch Notice: For Exterior & upward There is a reminder label on the fabric, please face upward during installation Connector

The shrapnel of the side tube needs to be inserted into the holes of the bottom tube plastic part. Left

1). Connect the side tube the bottom tube.

Black rectangular device with a white cushion and labeled 'Left' (no other text or symbols)

2). Insert the corresponding fabric cover into the side tu

Exterior view of a rectangular mechanical component with a flat top and side mounting feet (no text or symbols visible)

3). Match the suitable upper tube to the side tube.

Black rectangular foam tray with a white panel, no visible text or symbols

4). Close both zippers around the tubes.

Anotado:

pull up-locked press down the button-locked Notice: Outside & upward To be installed Installation Finished Push inside Original Status

Exterior view of a modern office building (no signage)

1). Connect two panels for one

Exterior view of a modern office building (no signage)

2). Connect another 2 panels 6 for the second side.

3D rendering of a U-shaped metal enclosure or cabinet structure with multiple panes (no text or symbols visible)

Exterior view of a rectangular metal enclosure with internal partitions (no text or symbols)

3). Repeat, connect the third sid 4). Connect the last side

Exterior view of a modern office building (no signage)

Do not install the reminder label side inside, all zippers should be put outside.

Precaución:

Close-up of a mechanical component with red arrows indicating upward motion, no visible text or symbols

Close-up of a gray mechanical component with a red dotted rectangle highlighting a section (no text or symbols visible)

Step 1: Lift up the switch make it The switch is in active status. unlocked.

All switches are unlocked. Push the corresponding sides closer to each other.

Método B

1

Pull up all switches, make them active( the same as step 1 in method A).

Close-up of a white garment with a gray button and metal clip (no text or symbols visible)

2

Close-up of a mechanical component with a metal bracket and mounting holes (no visible text or symbols)

Using a screwdriver, pen or other hard sticks, push from bottom to top to remove it from the connector.

3

Close-up of two gray mechanical components with mounting holes and side brackets (no text or symbols visible)

Take them apart.

4

Continue to take the top apart.

Close-up of a white plastic car seat with a small mechanical component attached (no visible text or symbols)

5

Two white rectangular panels with white panels and a small electrical outlet, no visible text or symbols.

Only remove one piece.

6

Stacked cylindrical electronic components or modules with no visible text or symbols

Make all pieces overlap.

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

KOJEC DLA NIEMOWLĄT

MODEL: P2001-1

MODEL:P2001-1 50*50*27,36 cal\1270*1270*695 mm

Exterior view of a rectangular metal enclosure with internal partitions (no text or symbols)

Switch Notice: For Exterior & upward There is a reminder label on the fabric, please face upward during installation Connector

The shrapnel of the side tube needs to be inserted into the holes of the bottom tube plastic part. Left

1). Connect the side tube the bottom tube.

Black rectangular device with a white cushion and labeled 'Left' (no other text or symbols)

2). Insert the corresponding fabric cover into the side tu

Exterior view of a rectangular mechanical component with a flat top and side mounting feet (no text or symbols visible)

3). Match the suitable upper tube to the side tube.

Black rectangular frame with a white panel and a gray top cover, no visible text or symbols.

4). Close both zippers around the tubes.

Znakomity:

pull up-locked press down the button-locked Notice: Outside & upward To be installed Installation Finished Push inside Original Status

Exterior view of a modern office building (no signage)

1). Connect two panels for one

L-shaped metal panel structure with four panes, no text or symbols visible

62).Connect another 2 panels for the second side.

3D rendering of a U-shaped metal enclosure or cabinet structure with multiple panes (no text or symbols visible)

Exterior view of a rectangular metal enclosure with internal partitions (no text or symbols)

3). Repeat, connect the third sid 4). Connect the last side

Exterior view of a modern office building (no signage)

Do not install the reminder label side inside, all zippers should be put outside.

Ostrożność:

Close-up of a mechanical component with red arrows indicating upward motion, no visible text or symbols

Close-up of a gray mechanical component with red dotted lines indicating a measurement or alignment (no text or symbols visible)

Step 1: Lift up the switch make it The switch is in active status. unlocked.

All switches are unlocked. Push the corresponding sides closer to each other.

Metoda B

1

Pull up all switches, make them active( the same as step 1 in method A).

Close-up of a white garment with a gray button and metal clip (no text or symbols visible)

2

Close-up of a mechanical component with a metal bracket and mounting holes (no visible text or symbols)

Using a screwdriver, pen or other hard sticks, push from bottom to top to remove it from the connector.

3

Close-up of two gray mechanical components with mounting holes and side brackets (no text or symbols visible)

Take them apart.

4

Continue to take the top apart.

Close-up of a white plastic car seat with a small mechanical component attached (no visible text or symbols)

5

Two white rectangular panels with white panels and a small electrical outlet, no visible text or symbols.

Only remove one piece.

6

Stack of cylindrical concrete or steel sheets with a red checkmark icon (no text or symbols on the sheets themselves)

Make all pieces overlap.

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, szanghaj 200000 CN.

Importowane do AUS: SIHAO PTY LTD. 1 ROKEVA

STREETEASTWOOD

NSW 2122 Australia

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

BABY BOX

MODEL: P2001-1

MODEL: P2001-1 50*50*27,36 inch\1270*1270*695 mm

Exterior view of a rectangular metal enclosure with internal partitions (no text or symbols)

Close-up of a metallic mechanical bracket with a red 'Switch' button (no other text or symbols)

Exterior view of a rectangular electronic device with a flat panel and two circular annotations pointing to the sides (no text or symbols visible)

Notice: For Exterior & upward

Close-up of a mechanical clamp or bracket component with a red 'Connector' label (no other text or symbols)

There is a reminder label on the fabric, please face upward during installation

The shrapnel of the side tube needs to be inserted into the holes of the bottom tube plastic part. Left

1). Connect the side tube the bottom tube.

Black rectangular device with a white cushion and black frame, labeled 'Left' (no text or symbols on the device itself)

2). Insert the corresponding fabric cover into the side tu

Black rectangular frame with a white cushioned panel, no visible text or symbols

3). Match the suitable upper tube to the side tube.

Black rectangular device with a white top and gray panel, no visible text or symbols

4). Close both zippers around the tubes.

Opgemerkt:

pull up-locked press down the button-locked Notice: Outside & upward To be installed Installation Finished To be installed Push inside Original Status

Exterior view of a modern office building (no signage)

1). Connect two panels for one

L-shaped metal panel structure with six panes, no text or symbols visible

2).Connect another 2 panels for the second side.

3D rendering of a U-shaped metal enclosure or folding unit (no text or symbols visible)

3). Repeat, connect the third sid

Exterior view of a rectangular metal enclosure with internal compartments (no text or symbols)

4).Connect the last side

Exterior view of a white industrial structure with vertical supports and a red X symbol (no text or labels)

Do not install the reminder label side inside, all zippers should be put outside.

Voorzichtigheid:

Close-up of a gray mechanical component with red arrows indicating upward movement, no visible text or symbols

Close-up of a gray mechanical component with red dotted bounding boxes highlighting a section (no text or symbols visible)

Step 1: Lift up the switch make it The switch is in active status. unlocked.

All switches are unlocked. Push the corresponding sides closer to each other.

Methode B

1

Pull up all switches, make them active( the same as step 1 in method A).

Close-up of a white mechanical component with a metallic knob and handle (no visible text or symbols)

2

Close-up of a mechanical component with mounting holes and a metal bracket (no visible text or symbols)

Using a screwdriver, pen or other hard sticks, push from bottom to top to remove it from the connector.

3

Close-up of two white mechanical components with mounting holes and a circular base, no visible text or symbols

Take them apart.

4

Continue to take the top apart.

Close-up of a white plastic car seat with a small mechanical component attached (no visible text or symbols)

5 Only remove one piece.

6 Make all pieces overlap.

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

BABYLEKHAGE

MODELL: P2001-1

MODELL: P2001-1 50*50*27,36 tum\1270*1270*695 mm

Exterior view of a rectangular metal enclosure with internal partitions (no text or symbols)

Close-up of a metallic mechanical bracket with a red 'Switch' button (no other text or symbols)

Exterior view of a rectangular electronic device with a flat panel and two circular annotations pointing to the sides (no text or symbols visible)

Notice: For Exterior & upward

Close-up of a mechanical clamp or bracket component with a red 'Connector' label (no other text or symbols)

There is a reminder label on the fabric, please face upward during installation

The shrapnel of the side tube needs to be inserted into the holes of the bottom tube plastic part. Left

1). Connect the side tube the bottom tube.

Black rectangular device with a white cushion and labeled 'Left' (no other text or symbols)

2). Insert the corresponding fabric cover into the side tu

Black rectangular frame with a white cushioned panel, no visible text or symbols

3). Match the suitable upper tube to the side tube.

Black rectangular foam tray with a white back cover and a gray top cover (no text or symbols visible)

4). Close both zippers around the tubes.

Noterat:

pull up-locked press down the button-locked Notice: Outside & upward To be installed Installation Finished Push inside Original Status

Exterior view of a white rectangular structure with vertical panels and a small protrusion (no text or symbols)

1). Connect two panels for one

L-shaped metal panel structure with four panes, no text or symbols visible

2).Connect another 2 panels for the second side.

3D rendering of a U-shaped metal enclosure or cabinet structure (no text or symbols visible)

3). Repeat, connect the third sid

Exterior view of a rectangular metal enclosure with internal compartments (no text or symbols)

4). Connect the last side

Exterior view of a modern office building (no signage)

Do not install the reminder label side inside, all zippers should be put outside.

Försiktighet:

Close-up of a mechanical component with red arrows indicating upward motion, no visible text or symbols

Close-up of a gray mechanical component with a red dotted rectangle highlighting a section (no text or symbols visible)

Step 1: Lift up the switch make it The switch is in active status. unlocked.

Metod B

1

Pull up all switches, make them active( the same as step 1 in method A).

Close-up of a white garment sleeve with a gray plastic zipper and circular button (no text or symbols visible)

2

Close-up of a mechanical component with a metal bracket and mounting holes (no visible text or symbols)

Using a screwdriver, pen or other hard sticks, push from bottom to top to remove it from the connector.

3

Close-up of two white mechanical components with mounting holes and a mesh panel (no text or symbols visible)

Take them apart.

4

Continue to take the top apart.

Close-up of a white plastic mechanical component with a small attached bracket (no visible text or symbols)

5 Only remove one piece.

6 Make all pieces overlap.

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200 000 kanadensiska republiken.

Importerad till Australien: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Plats, Rancho Cucamonga, Kalifornien 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP
