YG19-660B-101 - Terrace railing Vevor - Free user manual and instructions

Product Type	Deck Railing
Brand	Vevor
Model	YG19-660B-101
Material	Aluminum Metal
Number of Pieces per Kit	101 balusters
Outer Diameter	3/4 inch (approx. 19 mm)
Baluster Length	26 inches (approx. 660 mm)
Total Railing Height	36 inches (approx. 914 mm)
Included Hardware	202 M5x30 screws and 202 plastic connectors
Maintenance and Cleaning	Clean with a damp cloth. Avoid abrasive products.
Safety	Do not allow children to climb. Wear safety glasses and gloves during assembly. Requires two-person assembly.
Spare Parts and Repairability	Screws and connectors available separately. Other parts (rails, posts) must be purchased by the user.
Required Tools for Installation	Electric drill, circular saw, measuring tape, Phillips screwdriver.
Intended Use	Installation on horizontal deck or balcony rail.
Warranty and Support	Technical support and electronic warranty certificate at www.vevor.com/support
Kit Weight	Approx. 8-10 kg (estimated)
Spacing Between Balusters	Center-to-center spacing of 4.5 inches (approx. 114 mm)
Load Capacity	Not specified, comply with local safety standards

Frequently Asked Questions - YG19-660B-101 Vevor

What tools are needed to install the Vevor YG19-660B-101 railing?

You will need an electric drill, a circular saw, a measuring tape, and a Phillips screwdriver. M5x30 screws and plastic connectors are included.

How many balusters are provided in the YG19-660B-101 kit?

The kit contains 101 aluminum balusters, along with 202 M5x30 screws and 202 plastic connectors.

What are the dimensions of the balusters?

Each baluster has an outer diameter of 3/4 inch (approx. 19 mm), a length of 26 inches (660 mm), and the railing height is 36 inches (914 mm).

How to attach the balusters to the rails?

Mark the positions on the rails with a center-to-center spacing of 4.5 inches. Screw the plastic connectors onto the rails, then insert the balusters into the connectors.

Is the railing compatible with all types of decks?

It is designed to be installed on horizontal rails of a deck or balcony. Posts, top and bottom rails are not included and must be purchased separately.

What safety precautions should I take during installation?

Wear safety glasses and work gloves. Assembly must be done by two people. Keep children and pets away.

Can I paint or change the color of the balusters?

Yes, aluminum can be painted with paint suitable for metal. Make sure to degrease and prepare the surface before application.

How to maintain the railing?

Clean regularly with a damp cloth and mild detergent. Avoid abrasive products that could scratch the surface.

What to do if a part is missing or damaged?

Contact Vevor customer service at www.vevor.com/support for replacement parts or warranty replacement.

What is the maximum load supported by the railing?

The manual does not specify a maximum load. It is essential to comply with local safety standards for guardrails. Generally, a horizontal load of 50 kg/m is common for residential railings.

USER MANUAL YG19-660B-101 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DECKING BALUSTER

MODEL:YG19-660B-101/YG19-914B-101/

YG19-813B-101/YG19-660B-51/

YG19-813B-51/YG19-914B-51

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:YG19-660B-101/YG19-914B-101/YG19-813B-101/YG19-660B-51/YG19-813B-51/YG19-914B-51

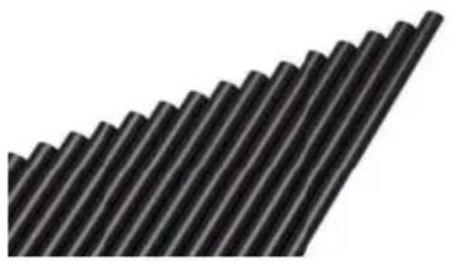

Close-up of a diagonal striped pattern resembling corrugated metal or fabric (no text or symbols)

Close-up of a black plastic component with a metallic screw head, enclosed in a circular frame (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

WARNING:

1. Do not allow children to climb on the unit.
2. Keep children and pets away during assembly.

SAFETY INSTRUCTIONS

1. Please assemble the product in strict accordance with the instruction Incorrect assembly could be hazardous.
2. Please wear safety goggles and work gloves properly during assemb
3. Do not try to assemble the product when feeling tired or when unc influence of alcohol, drugs or medication.
4. Load bearing capacity and other product parameters are applied to properly and completely assembled product only.
5. Separate and count all parts and hardware.
6. Prepare the following tool: Philips Head Screwdriver.
7. If using power tools, please be careful to slow down and stop when needed.
8. Two people are required for assembly.
9. Follow the intended uses only.
10. The product is made of metal aluminum. After installation, please not intentionally impact to avoid damage to the wooden fence.

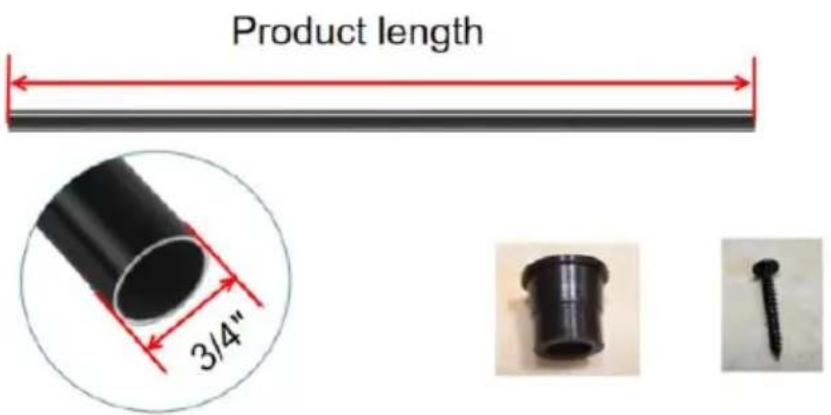

PARAMETER LIST

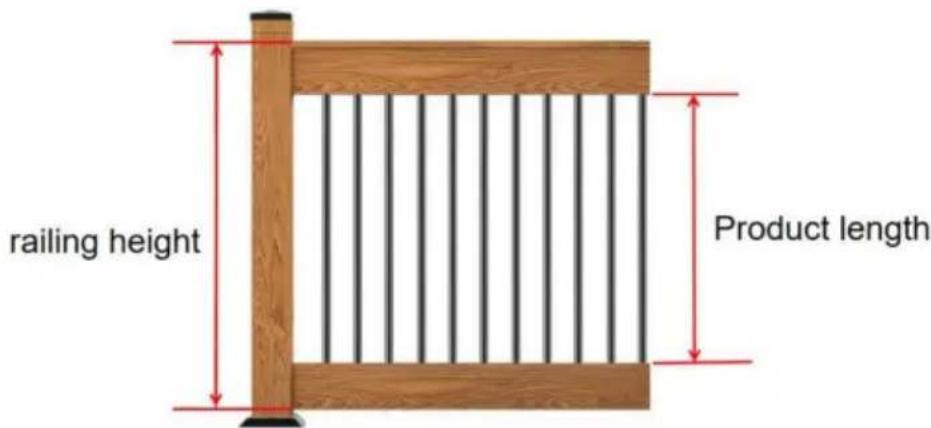

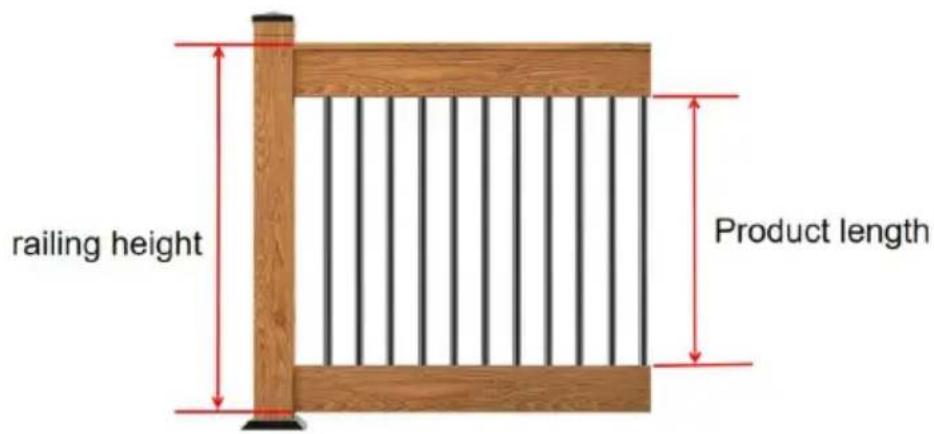

Model	Number of kits	Product outer diameter	Product length	railing height	M5*30 Screw	Plastic connector
YG19-66 0B-101	101pcs	∅3/4"	26inch	36inch	202pcs	202pcs
YG19-91 4B-101	101pcs	∅3/4"	36inch	48inch	202pcs	202pcs
YG19-813B-101	101pcs	∅3/4"	32inch	42inch	202pcs	202pcs
YG19-660B-51	51pcs	∅3/4"	26inch	36inch	102pcs	102pcs
YG19-813B-51	51pcs	∅3/4"	32inch	42inch	102pcs	102pcs
YG19-914B-51	51pcs	∅3/4"	36inch	48inch	102pcs	102pcs

Each Decking Baluster requires 2 connectors and 2 screw mounting; The package only includes Decking Baluster, M5*30 Screw and Plastic connector, Please purchase the other installation parts by yourself. Decking Baluster, is applicable to the installation on the horizontal rail

2pcs Plastic connector and 2pcs screws

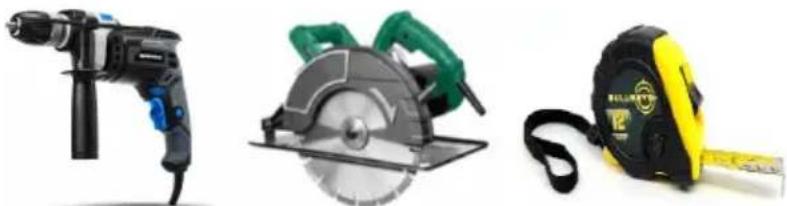

You need to prepare the electric drill, Circular Saw, and the tape mea by yourself before installation.

Three different types of power tools: a drill, a circular cutter, and a tape measure (no text or symbols visible)

Installation Guide

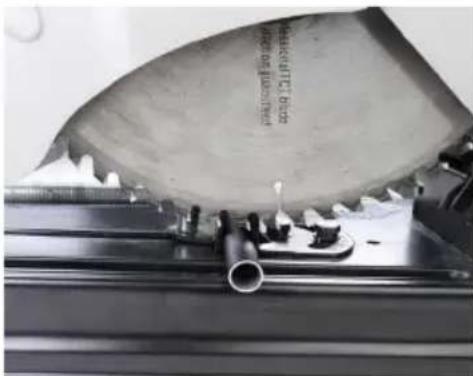

1. Process the Decking Baluster according to the height of the railing.

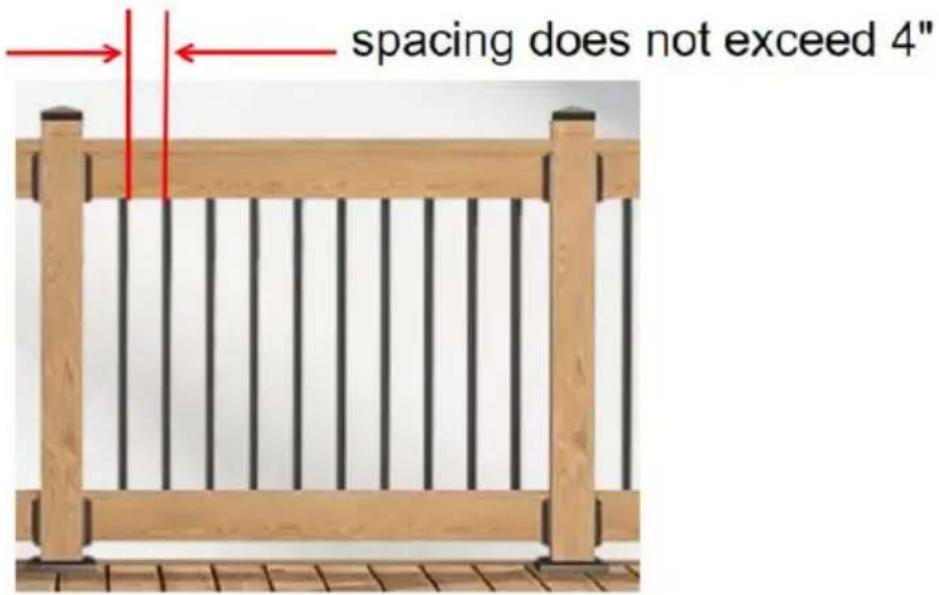

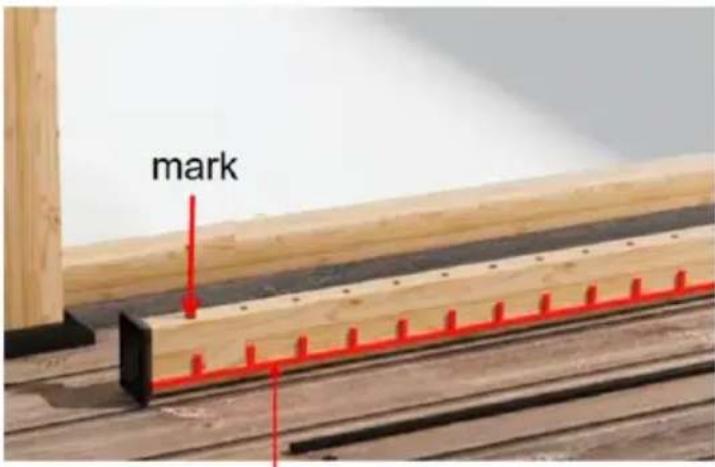

1. Draw the installation mark on the railing, the center distance of the markers is 4.5 inches, the marking distance between the top railing a bottom railing is the same;

Two markers are 4.5 inches apart

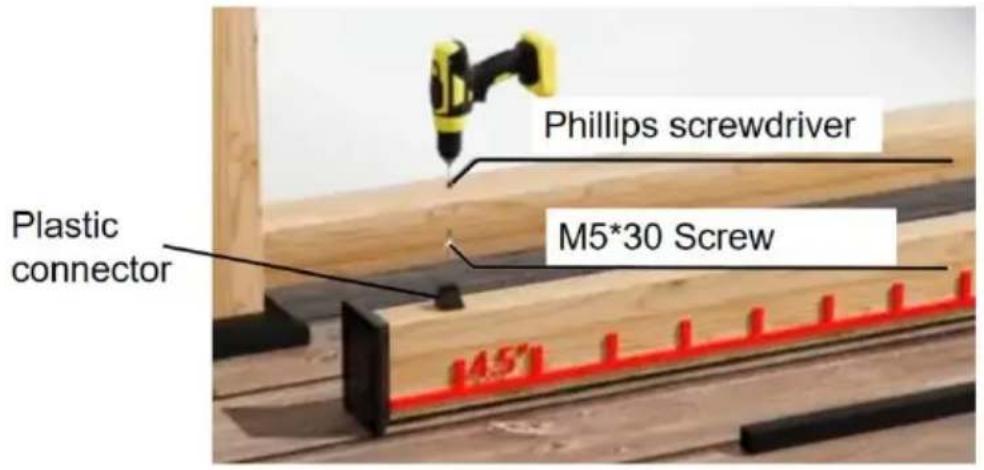

1. On the marked mark, screw the plastic connector to the railing.

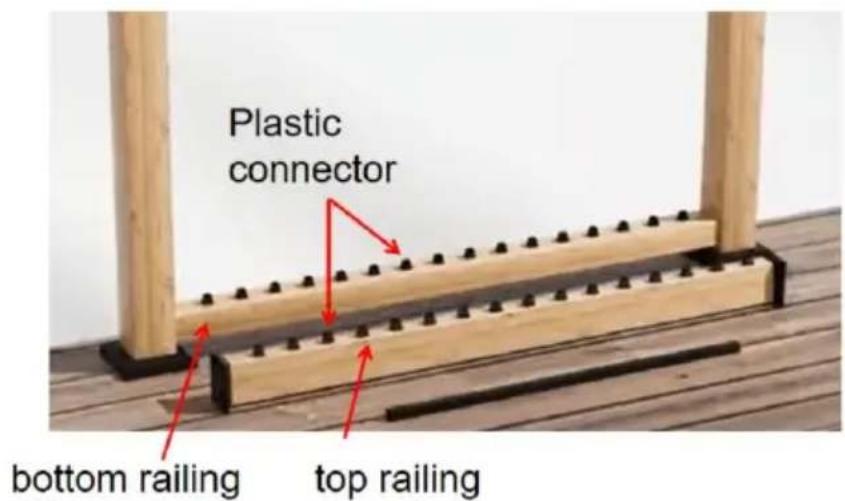

1. Install all connectors on the top and bottom rails

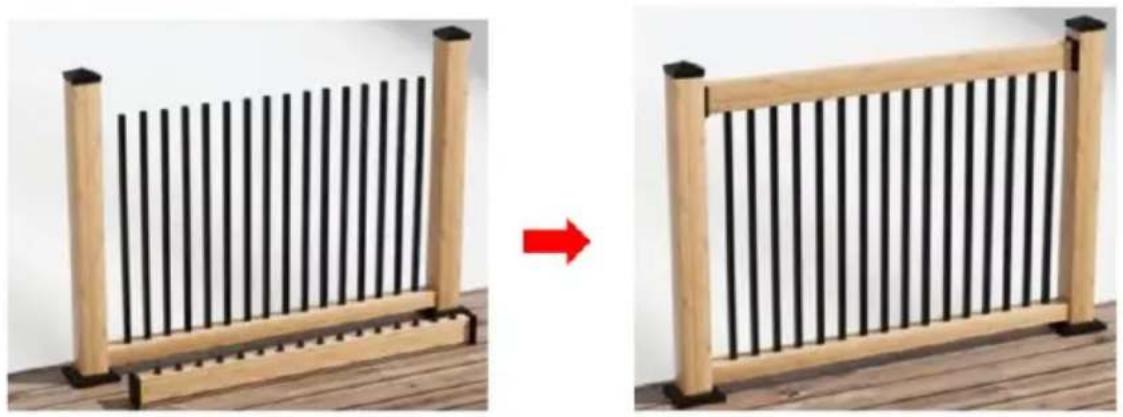

1. Insert the inner hole of Decking Baluster into the plastic connector insert the plastic connector of the top track into the inner hole of De Baluster

Two wooden deck railings with black vertical bars, one showing a red arrow indicating change (no text or symbols)

1. Fix the top railing to the left and right railing columns and complete installation; After installation, the two Decking Baluster's are less than 4 inches

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support
