Marque	Vevor
Modèle	YG19-660B-51
Type de produit	Balustrade de terrasse (ensemble de balustres)
Matériau	Aluminium métallique
Nombre de kits	51 pièces
Diamètre du balustre	3/4 pouce (19 mm)
Longueur du balustre	26 pouces (66 cm)
Hauteur de la balustrade	36 pouces (91,4 cm)
Fixation	Vis M5*30 et connecteurs en plastique (inclus)
Nombre de vis incluses	102
Nombre de connecteurs inclus	102
Entretien	Nettoyage avec un chiffon doux et de l'eau savonneuse ; éviter les produits abrasifs
Sécurité	Ne pas laisser les enfants grimper ; assembler à deux ; porter des lunettes et gants
Outillage nécessaire	Tournevis cruciforme, perceuse électrique, scie circulaire, mètre ruban
Garantie	Assistance technique et certificat de garantie électronique sur www.vevor.com/support
Pays d'importation	Importé aux États-Unis par Sanven Technology Ltd.

Frequently Asked Questions - YG19-660B-51 Vevor

What is the height of the railing with this model YG19-660B-51?

The railing height is 36 inches (91.4 cm).

How many balusters are included in the kit?

The kit includes 51 balusters, along with 102 M5*30 screws and 102 plastic connectors.

What is the diameter of the balusters?

The diameter is 3/4 inch (19 mm).

Can I use this product outdoors?

Yes, this aluminum baluster is designed for outdoor use on decks.

What tools are needed for installation?

You will need a Phillips screwdriver, an electric drill, a circular saw, and a tape measure.

Does the kit include everything needed for installation?

The kit includes the balusters, M5*30 screws, and plastic connectors. You need to provide the horizontal rails and railing posts.

How do I install the plastic connectors?

Locate the installation marks on the rail (spacing of 4.5 inches center-to-center), then screw the plastic connectors onto the rail using the provided screws.

Is the material rust-resistant?

Yes, aluminum is rust-resistant and ideal for outdoor conditions.

Can I cut the balusters to the correct length?

Yes, you can cut the balusters using a circular saw according to your railing height.

How do I maintain the railing?

Clean regularly with a soft cloth and soapy water. Avoid harsh chemical or abrasive cleaners.

User questions about YG19-660B-51 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Terrace railing in PDF format for free! Find your manual YG19-660B-51 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. YG19-660B-51 by Vevor.

USER MANUAL YG19-660B-51 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DECKING BALUSTER

MODEL: YG19-660B-101 / YG19-914B-101 /

YG19-813B-101 / YG19-660B-51 /

YG19-813B-51 / YG19-914B-51

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: YG19-660B-101 / YG19-914B-101 / YG19-813B-101 / YG19-660B-51 / YG19-813B-51 / YG19-914B-51

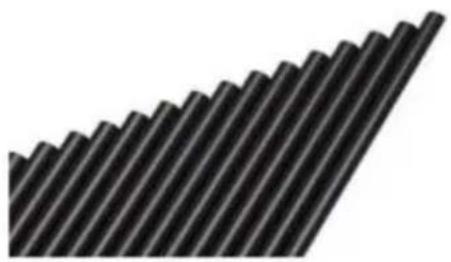

Close-up of a diagonal striped pattern resembling corrugated metal or fabric (no text or symbols).

Close-up of a black plastic component with a metallic screw attached, enclosed in a circular frame (no text or symbols visible).

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

WARNING:

Do not allow children to climb on the unit.
Keep children and pets away during assembly.

SAFETY INSTRUCTIONS

Please assemble the product in strict accordance with the instructions. Incorrect assembly could be hazardous.
Please wear safety goggles and work gloves properly during assembly.
Do not try to assemble the product when feeling tired or when under the influence of alcohol, drugs, or medication.
Load bearing capacity and other product parameters apply only to a properly and completely assembled product.
Separate and count all parts and hardware.
Prepare the following tool: Philips Head Screwdriver.
If using power tools, please be careful to slow down and stop when needed.
Two people are required for assembly.
Follow the intended uses only.
The product is made of metal aluminum. After installation, please do not intentionally impact it to avoid damage to the wooden fence.

PARAMETER LIST

Model	Number of kits	Product outer diameter	Product length	railing height	M5*30 Screw	Plastic connector
YG19-66 0B-101	101pcs	∅3/4"	26inch	36inch	202pcs	202pcs
YG19-91 4B-101	101pcs	∅3/4"	36inch	48inch	202pcs	202pcs
YG19-813B-101	101pcs	∅3/4"	32inch	42inch	202pcs	202pcs
YG19-660B-51	51pcs	∅3/4"	26inch	36inch	102pcs	102pcs
YG19-813B-51	51pcs	∅3/4"	32inch	42inch	102pcs	102pcs
YG19-914B-51	51pcs	∅3/4"	36inch	48inch	102pcs	102pcs

Each Decking Baluster requires 2 connectors and 2 screw mountings. The package only includes Decking Baluster, M5*30 Screw, and Plastic connector. Please purchase the other installation parts by yourself. Decking Baluster is applicable to installation on the horizontal rail.

Product length: 3/4"

2pcs Plastic connector and 2pcs screws

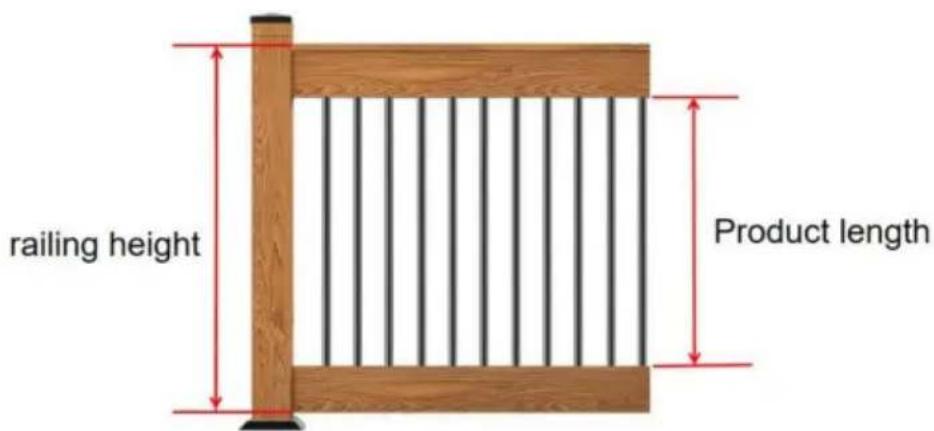

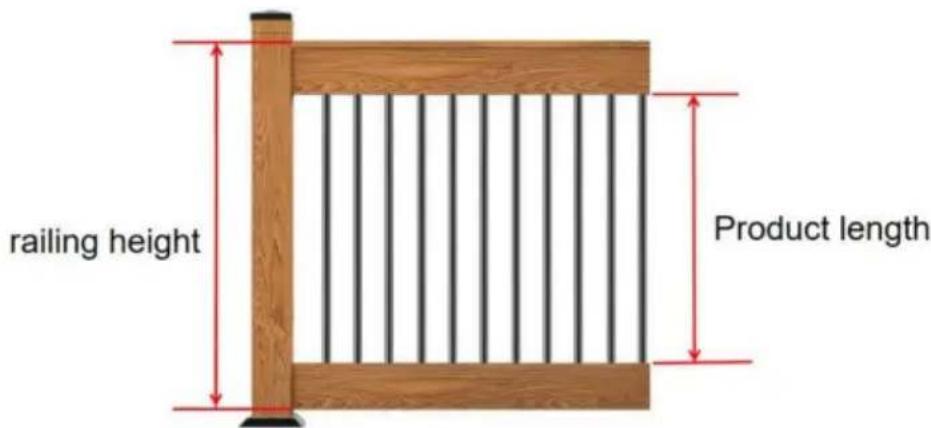

Railing height: Product length

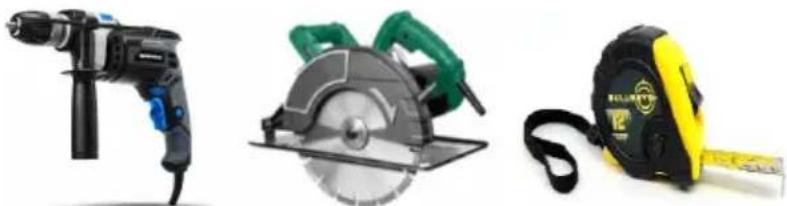

You need to prepare the electric drill, circular saw, and tape measure by yourself before installation.

Three industrial tools: a pushaxe, a circular cutter, and a tape measure (no text or symbols visible).

Installation Guide

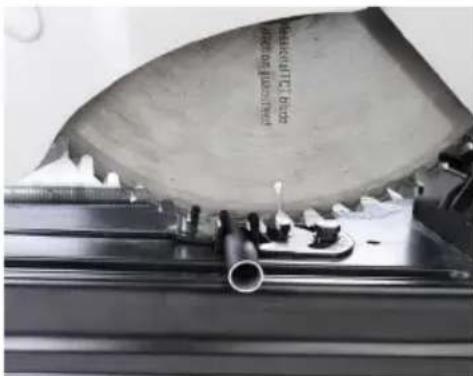

Process the Decking Baluster according to the height of the railing.

ABRICHIC BOD FOR THE INDUSTRIAL

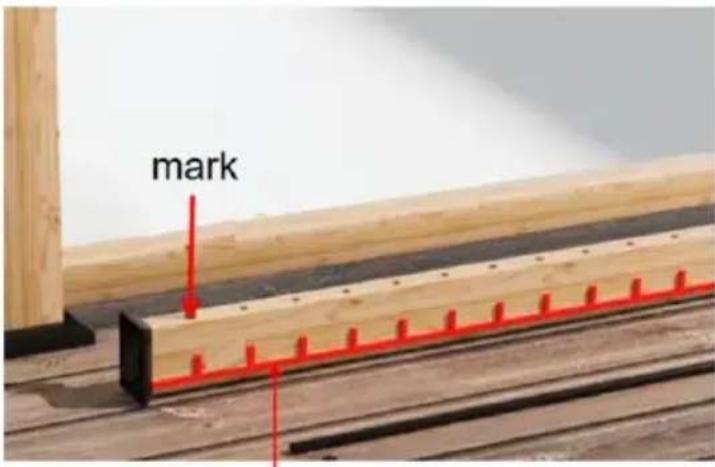

Draw the installation mark on the railing, the center distance of the markers is 4.5 inches, the marking distance between the top railing and bottom railing is the same;

Mark

Two markers are 4.5 inches apart

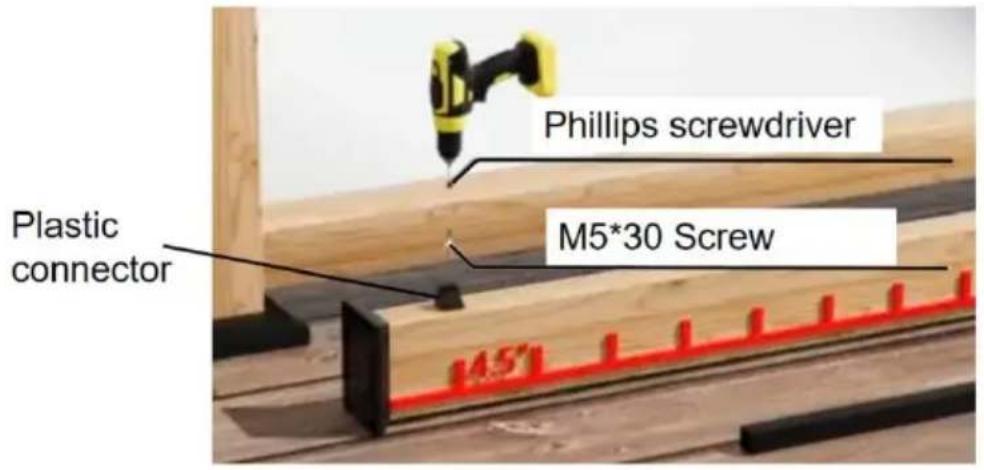

On the marked mark, screw the plastic connector to the railing.

Phillips screwdriver, M5*30 screw, plastic connector

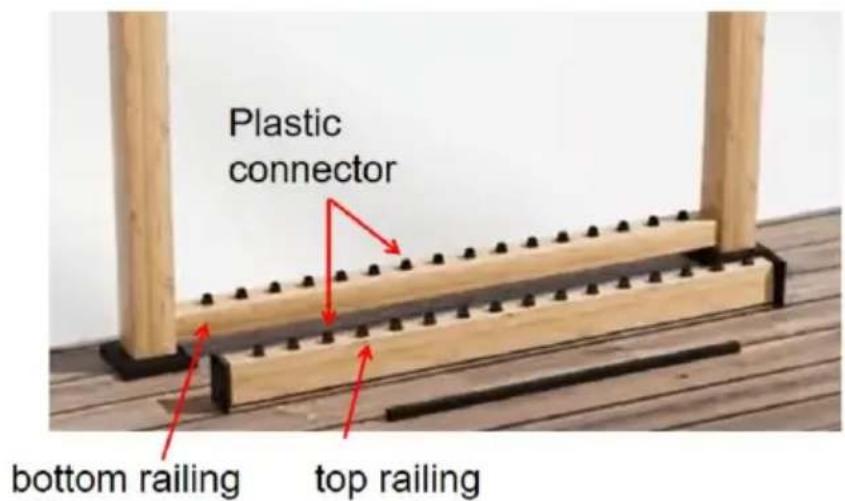

Install all connectors on the top and bottom rails

Plastic connector, bottom railing, top railing

Insert the inner hole of Decking Baluster into the plastic connector; insert the plastic connector of the top track into the inner hole of Decking Baluster

Two wooden deck railings with black vertical bars, one showing a red arrow indicating change (no text or symbols).

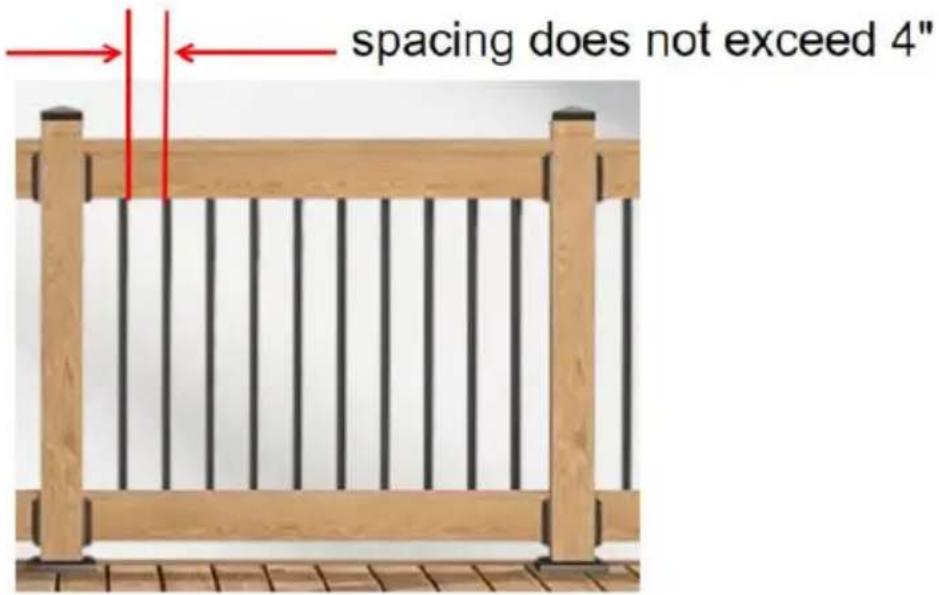

Fix the top railing to the left and right railing columns and complete installation; After installation, the two Decking Balusters are less than 4 inches apart

Spacing does not exceed 4"

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd.
