LM-177B - Curling iron Vevor - Free user manual and instructions

Product Type	Curling Iron / Hair Straightener
Brand	Vevor
Model	LM-177B
Main Functions	Straightening, curling, infrared, ionic
Temperature Control	Electronic adjustment via + and - buttons
Power Supply	Mains (rated voltage not specified)
Plate Material	Not specified (probably ceramic or tourmaline)
Recommended Use	On clean, dry hair, without styling products
Safety	Do not use near water, do not leave unattended, unplug after use
Cleaning	Wipe with a damp cloth after complete cooling
Storage	In a dry, safe place, out of reach of children, do not wrap the cord around the appliance
Warranty	Electronic warranty certificate at www.vevor.com/support
Technical Support	www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongs, Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai, China
Imported by (EU)	SHUNSHUN GmbH, Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany
Imported by (Australia)	SIHAO PTY LTD, 1 ROKEVA STREET, EASTWOOD NSW 2122
Imported by (USA)	Sanven Technology Ltd., Suite 250, 9166 Anaheim Pavilions, Preston, United Kingdom
Compliance	FCC Part 15, European directive 2012/19/EU (WEEE)

Frequently Asked Questions - LM-177B Vevor

How to turn on and off the Vevor LM-177B curling iron?

Press the power button to turn the device on or off. When turned on, the infrared and anionic functions are automatically activated.

How to adjust the temperature?

Use the + and - buttons to set the desired temperature. The exact range is not specified in the manual, but it allows styling suitable for different hair types.

Can I use the iron on wet hair?

No, the product cannot be used on wet hair. It is recommended to dry them completely before use to avoid damage or risk of burns.

How to activate the infrared and ionic function?

Press and hold the + button for about 3 seconds to activate or deactivate the infrared and anionic function. By default, it is active when turned on.

What to do if the power cord is damaged?

Do not use the product anymore. Contact qualified personnel or customer service for repair. Do not attempt to repair it yourself.

How to clean the appliance?

Make sure the appliance is unplugged and completely cooled. Wipe it with a clean, damp cloth. Do not use abrasive products and do not wrap the cord around the appliance.

Where to find technical support?

Visit the website www.vevor.com/support for technical support and the electronic warranty certificate.

Can I use the iron on a wig?

No, the manual advises against using the product on a wig. It is designed only for natural hair.

How to achieve a perfect straightening?

Work with sections of hair 1 to 1.5 inches wide and 0.5 inch thick. Place the hair between the hot plates, press firmly and slide slowly while maintaining constant tension. Let the strands cool before touching them.

What to do in case of overheating or problem?

Unplug the device immediately and let it cool on a heat-resistant surface. If the problem persists, contact technical support via www.vevor.com/support.

USER MANUAL LM-177B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

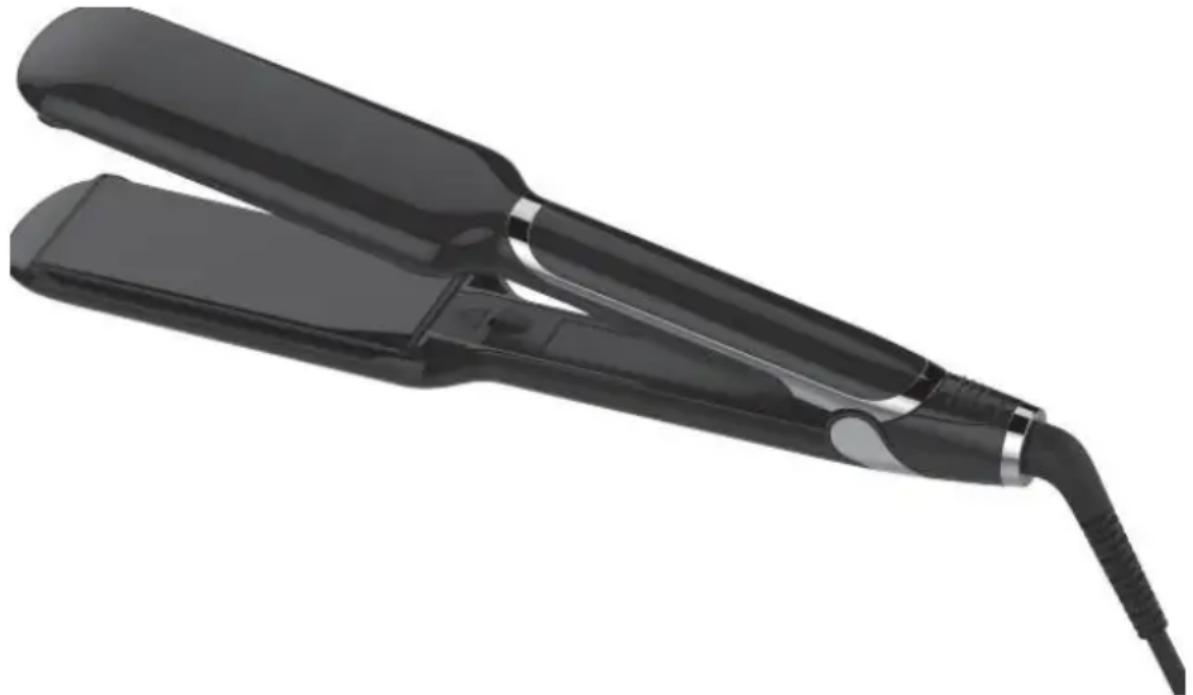

HAIR STRAIGHTENER

MODEL: LM-177B

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands, and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAIR

STRAIGHTENER

MODEL: LM-177B

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Product Information

Thank you for your purchase. The iron is for safe use, easy styling, and fast heating. It can be used for straightening, curling, and multiple styles. It is turned on or off by the on/off button (at the same time, the infrared and anion functions are turned on/off), and the "+" and "-" buttons adjust the temperature. If the product is working, hold down "+" for about 3 seconds to turn on/off the infrared and anion functions.

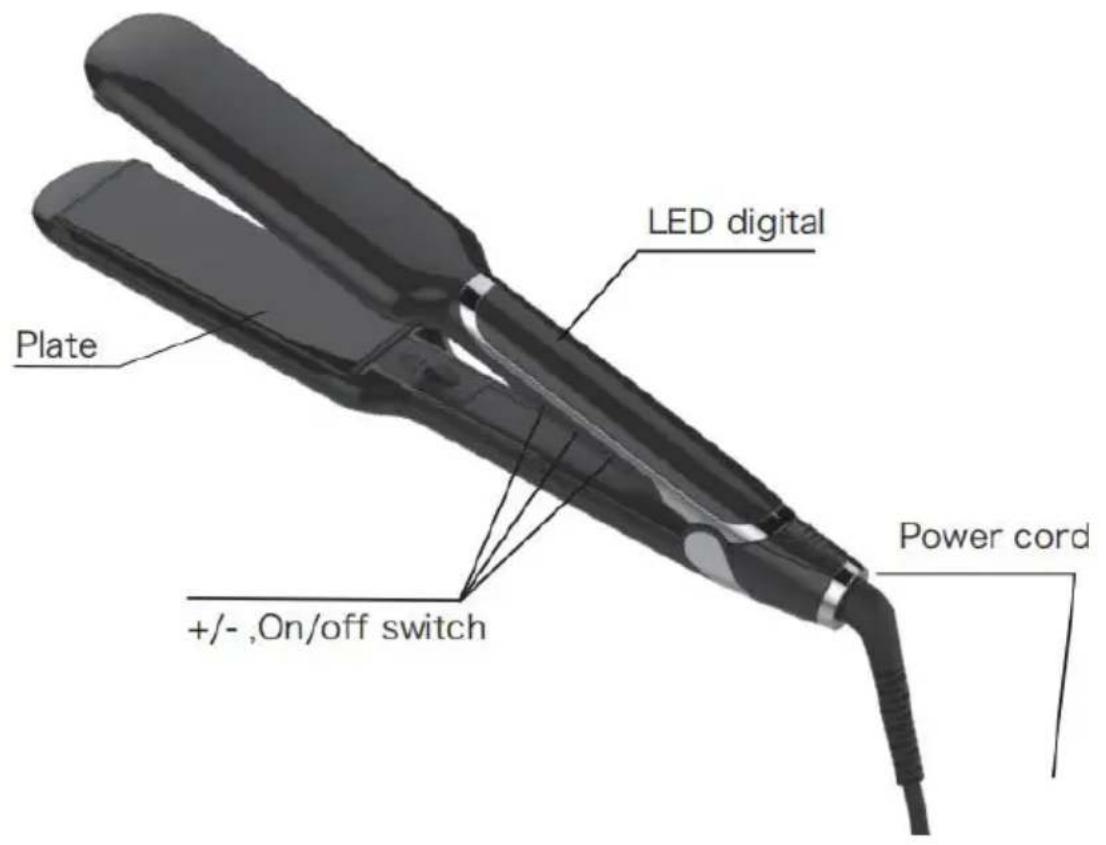

Components

Parameters

Product model	LM-177B	imensions	305*56*35mm
ated voltage	100-240V AC	Operating temperature	130 °C-230°C
Rated frequency	50-60 Hz	Operating indication	LED digital
Rated power	68.6W	Heating unit	MCH

Safety Attentions

Before using the product, please read the instruction manual and keep it for future reference.

Danger

The product should not be exposed to water. Do not use it in a bathing pool, basin, or other containers with water or nearby.

Warning

Check the power cord periodically. If the plug, power cord, or the product is damaged, do not use the product again. If the product is damaged and needs repairing, to avoid danger, only full-time staff from the factory or service center shall be responsible for repairing.

It is not recommended to use the product by any person with physical inability, perception, or mental disturbance, or lack of relevant experiences and knowledge (including children), unless they are supervised or instructed by others in charge of safety.

Keep children out of reach of the product.

Do not make the A.C. power cord contact the heating component of the product.

Do not place the product on a non-heat-resistant surface, and keep it away from flammables (such as towels or clothes).

The user cannot move away when the product is powered on.

Attentions

The product cannot be used on wet hair with dripping! Do not use the product on a wig. After use, remove the plug of the product. Do not wind the power cord around the product. Store the product after it cools down completely. If you use hair after the product cools down, clean the plate to avoid any damage to the product. Except for hair styling, the product cannot be used for other purposes.

Preparations before use

The product is best used on washed hair, and hair styling preparations should be made.

1. Wash the hair.
2. Properly blow the hair dry and comb it neatly, so as to make the hair free of tangles.

Attentions!

Do not ignore the product when it is powered on.

When the product is heated and becomes hot, always place the product on a heat-resistant surface.

The product is a powerful heating tool for hair styling. If the product is not used correctly or if the temperature setting is an error, the hair may be overheated or even scorched.

After use, turn off the power supply and remove the plug.

Always operate as follows.

Power on the iron with rated voltage.

Press the "+" and "-" buttons to set your desired temperature.

Work with hair sections that are no more than 1-1/2" wide and 1/2" thick.

Place hair between hot plates and press down firmly.

Pull through hair, maintaining the same consistent tension.

Release pressure from handle and allow hair to slip out.

CAUTION: Hair will be hot. Let cool before touching.

Environmental Protection

Please do not discard or store the iron with other household garbage. Give it to the designated official recycle center to protect the environment.

Cleaning and Storage

Make sure that power has been turned off and the power plug has been unplugged.

Place the product on a heat-resistant surface and let it cool down completely. Wipe the product with a moist and clean cloth. Do not wind the power wire around the product.

Store the product in a dry and safe place out of children's reach.

FCC Information:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

- Reorient or relocate the receiving antenna. - Increase the distance between the product and receiver.

- Connect the product to an outlet on a circuit different from that to which receiver is connected.

- Consult the dealer or an experienced radio/TV technician for assistance.

CORRECT DISPOSAL

This product is subject to the provisions of European Directive 2012/19. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD

NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

Place, Rancho Cucamonga, CA 91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Technical Support and E-Warranty Certificate
