WF045C - Curling iron Vevor - Free user manual and instructions

Product Type	Hair Straightener
Brand	Vevor
Model	WF045C
Dimensions	355 × 123 × 65 mm
Rated Voltage	100-240 V AC
Rated Frequency	50-60 Hz
Rated Power	55 W
Temperature Range	100 °C - 230 °C (210 °F - 450 °F)
Heating Technology	MCH (Ceramic)
Ionic Technology	Yes (Negative ion generator)
Display	Digital LED
Cord	360° swivel
Auto Shut-off	After 60 minutes
Usage Type	Dry natural hair only
Use	Domestic
Warranty	365 days
Maintenance	Clean with a damp cloth; do not use solvents
Safety	Auto shut-off, overheat protection
Certification	CE, FCC Class B
Manufacturer	Shenzhen Winfuture Technology Co., Ltd.
CE Representative	SHUNSHUN GmbH

Frequently Asked Questions - WF045C Vevor

How to use the WF045C hair straightener?

Plug in the device, press the power button to turn it on. Adjust the temperature using the +/- buttons according to your hair type. Wait until the LED light stops flashing (temperature reached). Take a section of dry hair, place it between the plates, and glide from roots to ends. After use, turn off the device by pressing and holding the power button and unplug it.

What are the recommended temperatures for different hair types?

For fine or damaged hair: 150 °C (310 °F). For dyed or dark hair: 180 °C (350 °F). For normal or slightly wavy hair: 200-210 °C (390-410 °F). For thick and very curly hair: 230 °C (450 °F).

How do I clean the device?

Unplug the device and let it cool completely. Wipe the surfaces with a damp cloth. Do not use any harsh or abrasive cleaning products or solvents. Store the device in a cool, dry place.

What should I do if the device does not turn on?

Check that the plug is properly inserted and that the outlet works. If the device still does not turn on, contact after-sales service via www.vevor.com/support.

The device emits a burning smell on first use, is this normal?

Yes, it is normal. The first use may cause a slight burning smell or very slight smoke due to residual oil on the MCH heating element. This lasts only a few seconds and is harmless.

Can I use the straightener on wet hair?

No, use the device only on dry hair and natural hair without flammable products. Do not use on wet or artificial hair.

How long does it take for the device to heat up?

The heating time depends on the set temperature. The LED light flashes during heating and stays on steadily once the temperature is reached. It takes about 30 to 60 seconds.

Does the device have an automatic shut-off?

Yes, the straightener has a safety auto shut-off function that activates after 60 minutes of use. To turn it back on, simply press the power button.

What is the warranty for this product?

The warranty is 365 days from the date of purchase. Malfunctioning defects will be corrected by replacement or repair, except in case of repair by an unauthorized dealer.

Can I use an extension cord with this device?

No, it is not recommended to use an extension cord. Plug the device directly into a wall outlet.

USER MANUAL WF045C Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HAIR STRAIGHTENER

MODEL: WF045C

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAIR

STRAIGHTENER

MODEL: WF045C

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

HAIR STRAIGHTENER USER MANUAL

Please read the instructions carefully before use and retain this manual in a place for future reference, and pass the manual onto any subsequent users.

About Ion Technology: The built-in ionic generator emits negative ions, negatively charged atoms and molecules that can interact with the molecular particles in hair. They seal the hair cuticle and reduce frizziness, split ends and knotting, increasing hair manageability, leaving hair silky and lustrous!

SAFETY WARNINGS:

- Read all of the instructions carefully before use.

- This appliance can be used by juniors aged from 15 years and above and persons lack of experience and knowledge if they have been given supervisory instruction concerning the safety use of the appliance and understand the hazard involved. Children shall not play with the appliance, Cleaning and user maintenance shall not be made by children unless they are older than 15 years supervised

- Keep away from water.

- Unplug the device immediately after use in order to reduce the risk of electric shock.

- Do not put the appliance in a place where it can slide into a sink or a bath. Do not keep the device in such a place.

- Do not use the appliance while you are taking a shower.

- Do not immerse or drop it into water or other liquids. If an appliance falls into water, unplug immediately at the power outlet.

- Never leave the hair straightener unattended in order to reduce the risk of electrical shock, fire or damage.

- Close observation is required when the appliance is in use to prevent usage by children or other persons for whom it is not intended. Do not let children play with this hair straightener appliance.

- If the cable or plug of the hair straightener is damaged or not working properly, or if it has been dropped into water, stop using it.

- If the cable or plug of this appliance is damaged, it must be changed by the manufacturer or similarly qualified persons in order to avoid a hazard.

- In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, the appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the user.

- Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.

-Keep the electricity cable away from hot surfaces.

-Never operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been dropped or damaged, or dropped into water. Return the appliance to a service center for examination and repair.

-Do not place the heated unit directly on any surface while it is hot or plugged in.

-Do not use on people while they are sleeping.

-Do not use on pets.

-Do not use in open areas, or places where sprays are used or oxygen is administered.

-The hair straightener's heater can get extremely hot during use. Do not touch hot areas with exposed skin.

-Only use this appliance on dry, natural hair without any flammable hair products.

-This appliance is not suitable for artificial hair.

-This appliance is not intended for commercial or salon use.

POWER CORD SAFETY TIPS:

-Never pull or yank the cord of the appliance and do not use an extension cord with this appliance.

-When inserting the plug, grasp it firmly and guide it into the outlet.

-To disconnect the appliance, grasp the plug and remove it from the outlet.

-Before each use, inspect the power cord for cuts and/or abrasion marks. If any are found, this indicates that the appliance should be serviced and the line cord replaced.

- Never wrap the cord tightly around the appliance as this could place undue stress on the cord where it enters the appliance and cause it to fray and break.

- DO NOT OPERATE THE APPLIANCE IF THE POWER CORD SHOWS ANY DAMAGE OR IF THE APPLIANCE WORKS INTERMITTENTLY OR STOPS WORKING ENTIRELY.

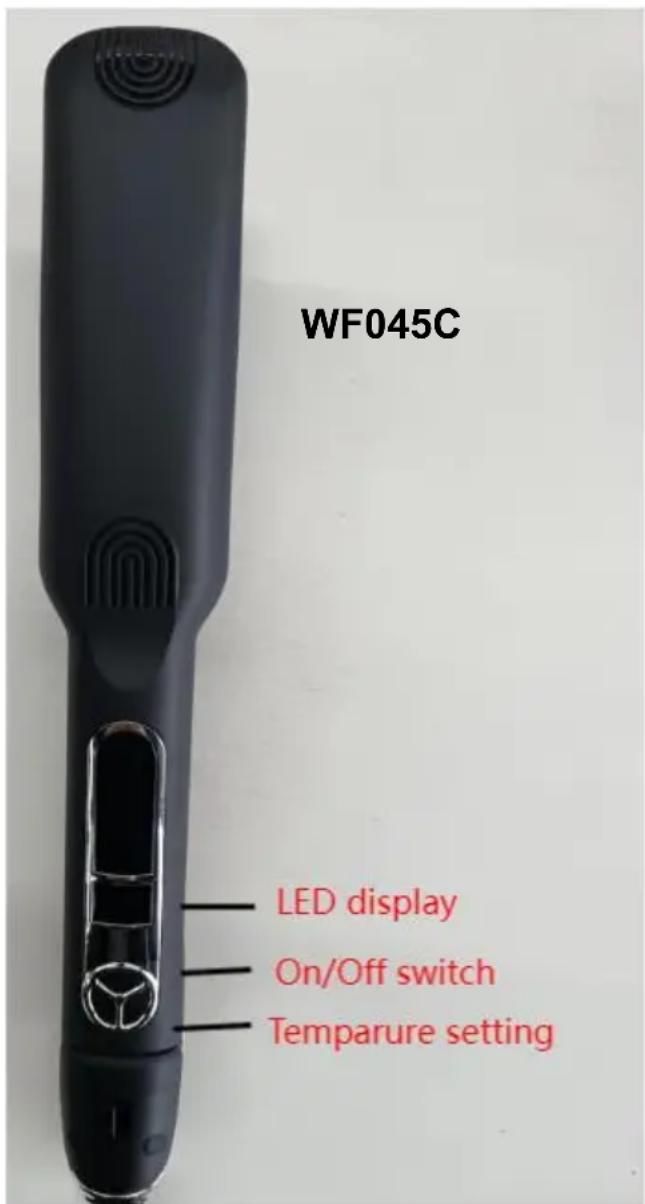

APPEARANCE AND INFORMATION: Anion hair straightener

LED Display

Temperature adjustment/MCH heater ON/OFF button

360-degree rotatable power cord

Built-in heater

Parameters WF045C (anion):

Product model	WF045C	imensions	355*123*65mm
ated voltage	100-240V AC	Operating temperature	100 °C-230°C or 210°F-450°F
Rated frequency	50-60 Hz	Operating indication	LED digital
Rated power	55W	Heating unit	MCH

OPERATION INSTRUCTIONS:

PLEASE USE IT ON DRY HAIR ONLY

Step 1: Insert power plug into a wall socket. Press the power button, the LED will turn on and the heater begins to warm up. Press +/- button to adjust temperature according to your hair type.

Step 2: Press +/- button to choose different temperature settings according to different hair types. Different temperature settings available are

WF045C: 210°F - 450°F (100°C - 230°C).

WF066I: 270°F - 450°F (140°C - 230°C).

Step 3: When the brush is heating up, the temperature setting LED light will flash until the set temperature is reached. Once the temperature setting LED light stays on, the brush is ready to use for hair straightening. Please hold the handle and keep a safe distance from exposed skin and eyes.

Step 4: For straightening curly hair or other hard to straighten hair, set the temperature to 230°C (450°F). For tinted & permed hair or fine blond hair, set temperature to 150°C~180°C (310°F~350°F). For other ordinary hair, set the temperature to 180°C-200°C (350°F~390°F).

Step 5: Hold certain parts of your hair with clips (thickness less than 100mm) top, middle, back, front and sides in order to make the hair styling operation easier.

Step 6: First straighten the lower layers of your hair and then pass to upper. Take a small part of your hair, disperse it in the middle of the brush and the tight. Hold the hair straightener in one of your hands and comb your hair straight from the root to the tips in 15 seconds without stopping. Do not hold the hair straightener in one place for more than 10 seconds. Make sure that you are holding the hair straightener by its handle. Repeat this operation until your hair is straightened as desired.

Step 7: Once the hair straightening is complete, long press the power button to power off the hair straightener. Then unplug it and let it cool down before storing. Note: Please do not comb your hair before it has cooled down, otherwise the hairstyle may be affected.

AUTO-OFF SAFETY FUNCTION:

The hair straightener has an auto-off safety feature and will turn off after 60 minutes of use. If you want to use it again, simply press the power button to turn it on again.

TEMPERATURE SETTING:

The default operating temperature setting is 410°F (210°C). You can short press the temperature adjustment button to adjust the operating temperature. During heating, the LED temperature display will flash. It will stop flashing and stay on when the set temperature is reached.

Setting 1: 150°C (310°F), suitable for first time users or users with thin, fine hair or bleached hair. Setting 2: 180°C (350°F), suitable for dyed or dark color hair. Settings 3 & 4: 200°C (390°F) to 210°C (410°F), suitable for normal or slightly curled hair. Setting 5: 230°C (450°F), suitable for thick and very curly hair, or difficult to style hair.

ATTENTION:

Your hair straightener has an automatic turning off feature for your security. The hair straightener turns off after a usage of 60 minutes. If you want to use it again, you can press the power button to turn on the appliance.

First time usage of this appliance may occasionally cause a slight burning smell or very light smoke, which is caused by the small amount of residual oil on the heater burning off when heated. This is normal and safe to use and should last a few seconds.

It is important to set the appropriate working temperature for your hair before usage in order to prevent your hair getting damaged.

When the MCH heater is on, the appliance can get extremely hot. Make sure to keep it away from eyes, nose, hands, neck and facial areas.

MAINTENANCE AND CLEANING:

Unplug the appliance and allow it to cool.

Wipe the surfaces with a damp cloth to clean.

Do not use harsh or abrasive cleaning agents or solvents.

Store the appliance in a cool, dry place.

SERVICE AND GUARANTEE:

Defects affecting product functionality appearing within the guarantee period will be corrected by replacement or repair at our option provided

Defects from repair by an unauthorized dealer are not covered.

Consumables are excluded; your statutory rights are not affected.

Warranty date: 365 days

ENVIRONMENTAL PROTECTION:

To avoid environmental and health problems due to hazardous substances in electrical and electronic goods, appliances marked with this symbol must not be disposed of with unsorted municipal waste, but recovered, reused or recycled.

FCC Information:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the product and receiver.
• Connect the product into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CORRECT DISPOSAL

This product is subject to the provisions of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

SHENZHEN WINFUTURE TECHNOLOGY CO., LTD.

Address: 6F, Huahao High-tech Industrial Park No. 59, Gangzai Street, Xinqiao Shajing Street Baoan District, 518125 Shenzhen Guangdong P.R. China.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

FCC Information:

Address: 6F, Huahao High-tech Industrial Park No. 59, Gangzai Street, Xinqiao, Shajing Street, Baoan District, 518125 Shenzhen, Guangdong, PR China.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address:

Shanghai Baoshan District, Shuangcheng Road 803, Building 11, Room 1602A-1609, Shanghai. Imported into Australia: SIHAO

PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Pooledas Group Ltd Unit

5 Albert Edward House, The Pavilions

Parameter WF045C (Anion):

FCC Information:

Address: 6F, Huahao High-tech Industrial Park, No. 59, Gangzai Street, Xinqiao, Shajing Street, Baoan District, 518125 Shenzhen, Guangdong, PR China.

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd. Address:

Shanghai Baoshan District, Shuangcheng Road 803, Building 11, Room 1602A-1609, Shanghai. Imported into Australia: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

UK REP

Pooledas Group Ltd Unit

5 Albert Edward House, The Pavilions

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

FCC Information:

Address: 6F, Huahao High-tech Industrial Park No. 59, Gangzai Street, Xinqiao, Shajing Street, Baoan District, 518125 Shenzhen, Guangdong, PR China.

5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

electronics www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

HAIR DRYER MODEL: WF045C

NEED HELP? CONTACT US!

Parameters WF045C (anion):

FCC Information:

Address: 6F, Huahao High-tech Industrial Park No. 59, Gangzai Street, Xinqiao, Shajing Street, Baoan District, 518125 Shenzhen, Guangdong, PR China.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address: Baoshan District

Shuangcheng Road 803 Lane 11, No. 1602A-1609, Shanghai. Importer for Australia: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

REP WIELKIEJ BRYTANII

Pooledas Group Ltd Unit

5 Albert Edward House, The Pavilions

SAFETY WARNINGS:

Parameters WF045C (anion):

Productmodel	WF045C	afmetingen	355*123*65mm
nominale spanning	100-240 V AC	Bediening temperatuur	100 y -230 y of 210 y -450 y
Beoordeeld frequentie	50-60Hz	Bediening indicatie	LED digitaal
Nominaal vermogen	55W	Verwarmingseenheid	MCH

INSTRUCTIONS FOR USE:

USE ONLY ON DRY HAIR

FCC information:

Address: 6F, Huahao High-tech Industrial Park No. 59, Gangzai Street, Xinqiao, Shajing Street, Baoan District, 518125 Shenzhen, Guangdong, PR China.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address: Baoshan District

Shuangcheng Road 803 Lane 11, No. 1602A-1609, Shanghai. Imported into AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

VK

REP

Pooledas Group Ltd Unit

5 Albert Edward House, The

Warranty certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

SERVICE AND WARRANTY:

FCC information:

Address: 6F, Huahao High-tech Industrial Park No. 59, Gangzai Street, Xinqiao, Shajing Street, Baoan District, 518125 Shenzhen, Guangdong, PR China.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address:

Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai. Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

UK

REP

Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, UK [e-mail] 01772418127

EC

REP

SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany [e-mail] [phone]

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
