6834-49 - Fire Pit Vevor - Free user manual and instructions

Product type	Fire pit (Outdoor wood fireplace)
Brand	Vevor
Model	6834-49
Diameter	490 mm
Height	390 mm
Material	Steel
Use	Outdoor only
Fuel	Wood (logs)
Main function	Secondary combustion, double wall, smokeless
Ignition	Manual (wood fire, no accelerant)
Additional features	Removable ash pan, included poker, 3 foot pads
Maintenance	Clean and dry after each use to prevent rust
Safety	Do not use indoors, do not use accelerants, surface is very hot
Package contents	Fire pit, ash pan, poker, 3 foot pads, manual
Warranty	Technical support via www.vevor.com/support
Manufacturer	Shanghai Muxin Muye Youxian Gongsi, Shanghai, China

Frequently Asked Questions - 6834-49 Vevor

Where to install the Vevor 6834-49 fire pit?

Install the fire pit on a flat, non-flammable surface, away from any combustible materials, buildings, or overhangs. Outdoor use only, never indoors.

What type of fuel to use?

Use only dry wood (logs) or charcoal. Never use gasoline, kerosene, alcohol or other flammable liquids.

How to safely light the fire?

Light the fire with kindling and matches. Do not use accelerant. Make sure the fire pit is on a stable surface and away from children.

Why does my fire pit produce smoke?

Our fire pit is designed for secondary combustion smokeless. If smoke appears, check that the wood is dry and the air vents are not blocked.

How to clean the fire pit after use?

Let the fire pit cool completely, then remove the ashes. Clean with a dry cloth and store away from moisture to prevent rust.

Can I use the fire pit in windy weather?

No, avoid using the fire pit in strong wind or gusts. Wind can spread embers and cause a fire.

How to properly extinguish the fire?

Let the fire go out naturally or use an extinguisher. Do not pour water on a hot fire pit, as it could warp the metal. Ensure the embers are completely extinguished.

What to do if the paint chips?

After repeated use, the high-temperature paint may chip. Brush the surface and, if necessary, apply heat-resistant paint. Slight corrosion does not affect use.

Is the fire pit delivered with a warranty?

Yes, Vevor provides technical support and an electronic warranty certificate via www.vevor.com/support. See the manual for details.

Can I use the fire pit on a wooden deck?

Yes, but use a fireproof mat under the fire pit. Place the included foot pads to reduce heat transmitted to the ground. Stay vigilant.

USER MANUAL 6834-49 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

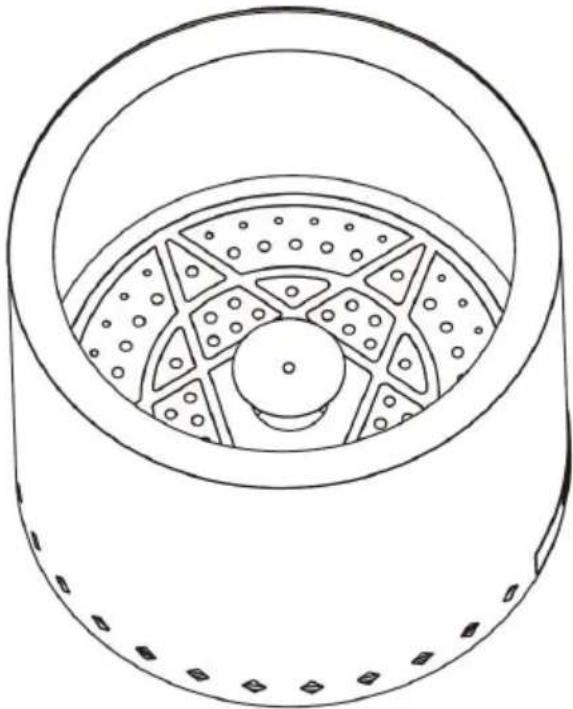

WOOD-BURNING FIRE PIT

MODEL: 6834-38/6834-49/6834-71

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODEL: 6834-38/6834-49/6834-71

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

WARNING

1. The fire pit is for outdoor use only and should not be used in a garage, or any other enclosed area.
2. Do not use the fire pit for indoor heating. Toxic carbon monoxide can accumulate and cause asphyxiation and possibly death.
3. Do not use if you suffer from heart and lung conditions because inhalation may exacerbate existing conditions.
4. Fire pit will be extremely hot when in use. Never attempt to touch or move the fire pit until all fire, coals, and ashes are completely extinguished.
5. Do not sit too close to the burning product. Keep a considerable distance away from the product. Keep kids and pets away from the product.
6. Do not overfill the fire pit during use.
7. Do not use accelerants to light the fire. Do not use gasoline, kerosene, diesel fuel, lighter fluid, alcohol, or any other flammable liquid to light or relight the fire pit.
8. Do not use in inclement weather, such as windy, rainy, or snowy weather.
9. Keep flammable liquids well away from the product, as some flammable liquids can catch fire from the emitting heat.
10. Keep the set-up area clear of any combustible materials. Dry leaves, paper, dry grass, or pine needles can catch fire easily from the embers that come out of the product.
11. Do not use the fire pit in any explosive environment. Keep the area around the fire pit clear and free of any combustible materials, gases, or any other flammable liquids.
12. Only handle the product with the poker if you have to.
13. Only adults can set up and maintain the product.
14. Never leave the fire pit unattended, especially when children and pets are nearby.
15. The fire pit is not to be used in a boat or recreational vehicle.
16. Always use the fire pit in accordance with all applicable local, state, and national codes. Contact your local fire department for details.
17. When using the fire pit, exercise the same precautions you would with any open fire.
18. The use of alcohol, prescription, or non-prescription drugs may impair the consumer's ability to operate the fire pit safely.
19. Do not use the fire pit until you have read the operating instructions and user warnings.
20. Do not alter or modify the fire pit in any manner.
21. Do not store or use LP gas cylinders within 30 feet of the fire pit while it is in operation.
22. Do not use the fire pit under any overhead or near any unprotected combustible constructions. Avoid using under or near any overhanging trees or shrubs.
23. Always use the fire pit on a level and stable surface. Use on wood composite decks at your own risk.
24. Do not wear flammable or loose clothing when operating the fire pit.
25. Keep all electrical cords away from the fire pit.
26. ALL surfaces of the fire pit are extremely hot when in operation. To avoid burns and serious injury, do not touch the fire pit until the fire is completely out and it has completely cooled. Never touch the coals to see if they're still warm.
27. Avoid breathing smoke from the fire and avoid getting smoke in eyes.

After a period of non-use, check the fire pit for signs of damage or creosote buildup. Do not operate until necessary repairs and/or cleanup are done.

1. Do not use water to extinguish the fire as this could cause damage to the fire pit as well as injury to the user.
2. Serious injury, death, and/or property damage may occur if the instructions are not followed exactly.

Instructions are not followed exactly.

SAVE THESE INSTRUCTIONS

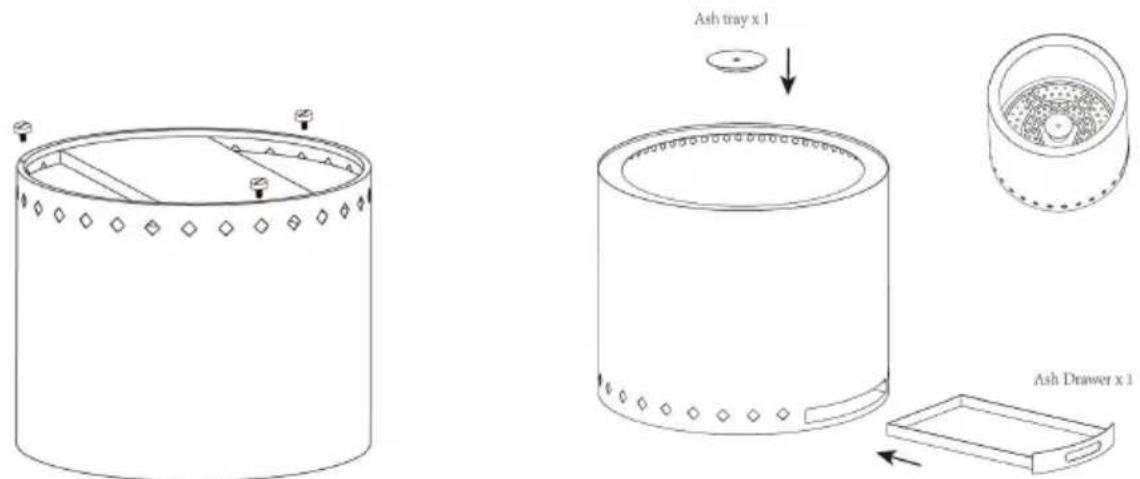

Assembly instructions:

1. Fix the 3 pcs foot pad screws to the bottom of the fire pit, to keep the ground at a lower temperature.

Cautions: If used on a wooden floor, please use a fireproof mat.

1. Put the ash tray on the bottom of the fire pit.

Cautions: When the fire is going, DO NOT open the ash drawer.

1. Set up on a flat surface, away from anything that could pose a fire hazard. As this item is low to the ground, always keep an eye on the fire.

Fire pit user guide:

Please be careful and cautious when using this product.

This product is for outdoor use only and will become very hot during burning.

Maintenance

After each use, please clean and dry it to avoid iron oxidation. If the high-temperature paint on the surface falls off after repeated use, please brush it. Warm tips: if there is slight corrosion, it will not affect use.

Smokeless experience

Enjoy your fire without the nuisance of smoke. Our smokeless fire pit features a double-walled construction that efficiently circulates the air and allows the wood to burn without too much smoke.

Secondary combustion

The camping stove has a double wall design that maximizes airflow during the burning process. Bottom vent holes allow oxygen to feed the fire below while simultaneously channeling warm oxygen up between the walls of the stove and back into the fire. Approximately 12 minutes after ignition, the temperature in the furnace increased, and the secondary combustion started working.

A more efficient burn

A more complete burn means the little particles that would have been smoke are burned up by the top vents. It also means no more half logs to deal with.

Eco-friendly & wood burning

We recommend using dry skin-peeled wood logs or wood pellets for the best bonfire experience.

The fire pit should be completely cleaned and dried after use.

Make sure to cover the fire pit to prevent rust.

We cannot be held liable for rust due to weather conditions.

Considerations before use

Check with your fire department for information on burning bans and regulations in your area. Fire pits can remain hot and smolder for hours after the visible fire has been extinguished. Smoldering fire pits are a common cause of injuries and burns, especially for children.

The surface of this product will discolor when placed outdoors and upon first use, due to the nature of the product and the heat/naked flames.

CHOOSING A LOCATION FOR SETUP

Fire pits need to be placed in a safe location. Do not place them near buildings, walls, outdoor furniture, inflatable pools, or other flammable items. Nearby items could catch fire from heat or flames. Position on a non-flammable surface, clear of overhanging objects.

Using The Fire Pits

The product is for outdoor use only, and will become very hot during use. To maintain the coating color, cover the bottom of the fire bowl with stones or sand stones before each use.

Using the wrong materials inside a fire pit can be dangerous. Use only coal or wood.

Do not use highly flammable items such as clothing, rags, paper towels, tissues, or other items that could burn uncontrollably.

Do not use petrol, lighter fuel, alcohol, or similar substances to light a fire. Never leave the product unattended.

Wind

The fire pits should be protected from wind and not used when wind is high or gusty. Wind causes the smoke and fire to blow around, which can spread burning embers. When using fire pits during light breezes, keep an eye on it to ensure no small embers escape.

Do not place fire pits near anything that could catch fire.

People & Pets

Supervise children and pets when the fire pit is in use.

Ensure that everyone near the fire pits understands it is an active fire that can produce smoke and embers. Do not allow children or animals to get close to fire pits to avoid smoke inhalation and burns.

The fire pits will get very hot and could burn someone if they get too close.

Extinguishing the Fire Properly

Fire pits are dangerous if the fire is not extinguished properly. Do not extinguish the fire by pouring water into a hot fire bowl because this can

cause distortion, rust, or flaking paint. The fire should be allowed to die on its own, or be extinguished with a fire extinguisher. It's important to note that fire can continue to smolder and embers remain hot even if there is no visible flame. Make sure to stay near the fire pit after the flame is out and check for burning embers or smoke, which could indicate that a live fire exists. When in doubt, after the bowl has been allowed plenty of time to cool down, fill the inside of the fire pit with water to make sure all embers are out. The fire pit could still be hot for hours after use.

DO NOT USE A CHEMICAL BASED CLEANER as this may ignite a fire on next use.

Storage

It is best to keep the fire pits out of the rain. After you are sure they are completely extinguished, clean them out and store them away so they do not get wet from outdoor conditions.

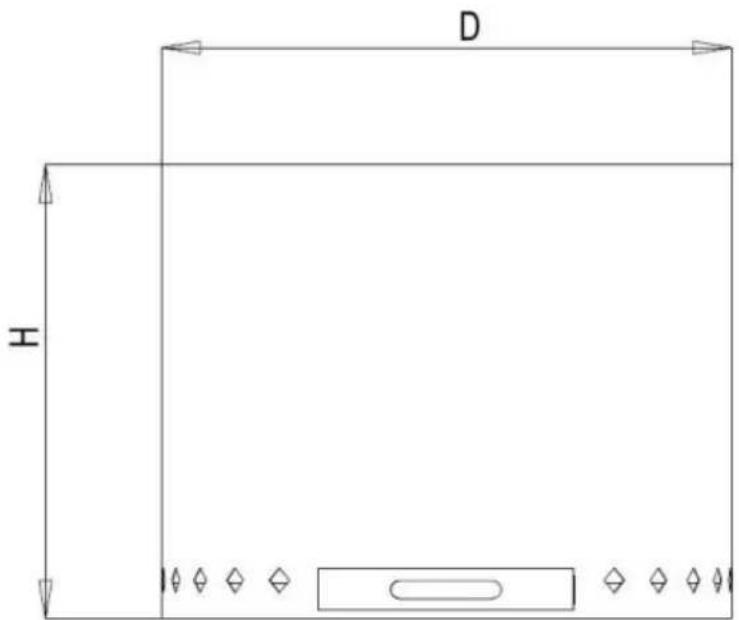

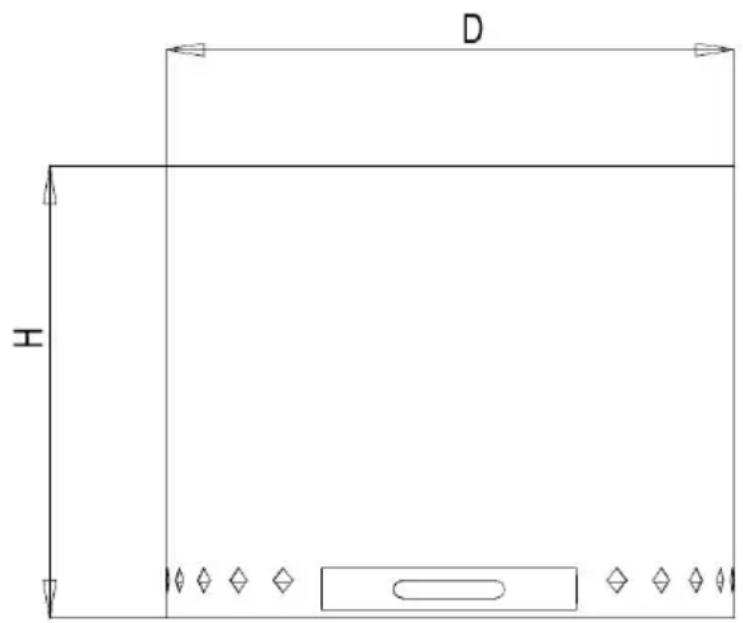

PRODUCT SPECIFICATIONS:

Model	D (mm)	H(mm)
6834-38	∅ 380	320
6834-49	∅ 490	390
6834-71	∅ 710	430

PACKAGE INCLUDES

No	Components	Picture	QTY
1	Fire Pit		1
2	Ash tray		1
3	Poker		1
4	Foot pad		3
5	Manual		1
