USER MANUAL 6834-38 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WOOD-BURNING FIRE PIT

MODEL: 6834-38/6834-49/6834-71

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:6834-38/6834-49/6834-71

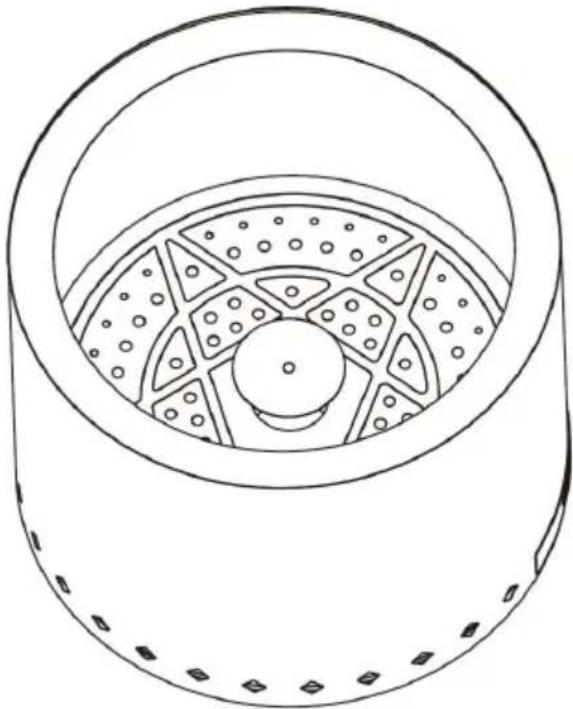

Technical line drawing of a circular mechanical component with internal gear-like structure (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

WARNING

1. The fire pit is for outdoor use only and should not be used in a garage, or any other enclosed area.
2. Do not use the fire pit for indoor heating. Toxic carbon monoxide accumulate and cause asphyxiation and possibly death.
3. Do not use if you suffer from heart and lung conditions because inhalation may exacerbate existing conditions.
4. Fire pit will be extremely hot when in use. Never attempt to touch move your the fire pit until all fire, coals, and ashes are completely extinguished.
5. Do not sit too close to the burning product. Keep a considerable d away from the product. Keep kids and pets away from the product.
6. Do not overfill the fire pit during use.
7. Do not use accelerate to light the fire. Do not use gasoline, kero diesel fuel, lighter fluid alcohol or any other flammable liquid to light relight the fire pit.
8. Do not use in inclement weather, such as windy, rainy, snowy we
9. Keep flammable liquid well away from the product as some flamma liquids can catch fire from the emitting heat.
10. Keep the set-up area clear from any combustible materials. Dry I paper, dry grass or pine needles can catch fire easily from the embedome out of the product.
11. Do not use the fire pit in any explosive environment Keep the a around the the fire pit clear and free of any combustible materials, g or any other flammable liquids.
12. Only handle the product with the poker if you had to.

13. Only adults can set up and maintain products.

14. Never leave the fire pit unattended, especially when children and p are nearby.

15. the fire pit is not to be used in a boat or recreational vehicle.

16. Always use the fire pit in accordance with all applicable local, state national codes. Contact your local fire department for details.

17. When using the fire pit, exercise the same precautions you would any open fire.

18. The use of alcohol, prescription or non-prescription drugs may imp the consumers ability to operate the fire pit safely

19. Do not use the fire pit until you have read the operating instruction user warnings.

20. Do not alter or modify the fire pit in any manner.

21. Do not store or use LP gas cylinders within 30 feet of the Fire it is in operation.

22. Do not use the fire pit under any overhead or near any unprotect combustible constructions. Avoid using under or near any overhanging trees or shrubs.

23. Always use the fire pit on a level and stable surface. Use on wo composite decks at your own risk.

24. Do not wear flammable or loose clothing when operating the fire

25. Keep all electrical cords away from the fire pit.

26. ALL surfaces of the fire pit are extremely hot when in operation. avoid burns and serious injury, do not touch the fire pit until the fire completely out and it has completely cooled. Never touch the coals c to see if they're still warm.

27. Avoid breathing smoke from the fire and avoid getting smoke in eyes.

28 After a period of non-use, check the fire pit for signs of damage creosote buildup. Do not operate until necessary repairs and/or cleanup done.

1. Do not use water to extinguish the fire as this could cause damage, the fire pit as well as injury to the user.

2. Serious injury, death, and/or property damage may occur if the al

instructions are not followed exactly.

SAVE THESE INSTRUCTIONS

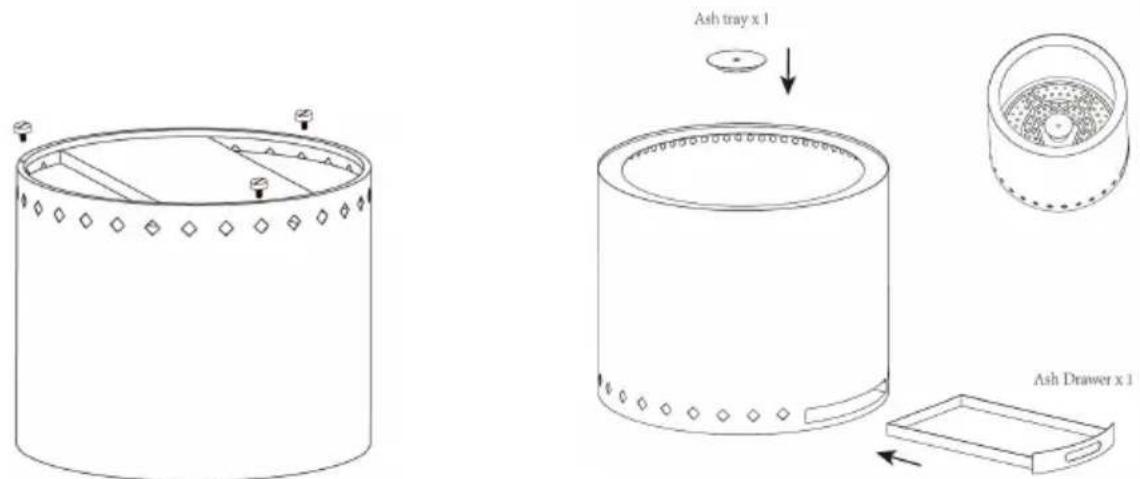

Assembly instructions:

1. Fix the 3 pcs foot pad screws to the bottom of the fire pit, to ke ground at a lower temperature.

Cautions:If use it on the wooden floor, please use a Fireproof m

Ash tray x 1 Ash Drawer x 1

1. Put the ash tray on the bottom of the fire pit.

Cautions: When the fire going, DO NOT open the ash drawer.

1. Set up on a flat surface, away from anything that could pose a fir As this item is low to the ground, always keep an eye on the fire.

Fire pit user guide:

Please be careful and cautious when using this product.

This product is for outdoor use only and will become very hot during burning.

Maintenance

After each use, please clean and dry it to avoid iron oxidation and the high-temperature paint on the surface falls off after repeated use, please brush it. Warm tips: if there is slight corrosion, it will not affect use.

Smokeless experience

Enjoy your fire without the nuisance smoke. Our smokeless fire pit fe a double-walled construction that efficiently circulates the air and allowi the wood to burn without too much smoke.

Secondary combustion

The camping stove has a double wall design that maximizes airflow at the burning process. Bottom vent holes allow oxygen to feed the fire below while simultaneously channelling warm oxygen up between the walls of the stove and back into the fire. Approximately 12 minutes a ignition started, the temperature in the furnace increased, and the secondary combustion started working.

A more efficient burn

A more complete burn means the little particles that would have been smoke are burned up by the top vents. It also means no more half logs to deal with.

Eco-friendly & wood burning

We recommend using dry skin-peeled wood logs or wood pellets for best bonfire experience

The fire pit should be completely cleaned and dried after use.

Make sure to cover the fire pit to prevent rust.

We can't be held liable for rust due to weather conditions.

Considerations before use

Check with your fire department for information on burning bans and regulations in your area. Fire pits can remain hot and smoulder for f hours after the visible fire has been extinguished. Smouldering fire pits a common cause of injuries and burns, especially for children.

The surface of this product will discolour when placed outdoors and first use, due to the nature of the product and the heat/naked flames

CHOOSING A LOCATION FOR SETUP

Fire pits need to be placed in a safe location. Do not place them r buildings, walls, outdoor furniture, inflatable pools or other flammable items. Or nearby items could catch fire from heat or flames. Position on a flammable surface, clear of overhanging objects.

Using The Fire Pits

The product is for outdoor use only, and will become very hot during To maintain the coating color, cover the bottom of the fire bowl with stones or sand stones before each use.

Using the wrong materials inside a fire pit can be dangerous. Make use only coal or wood.

Do not use highly flammable items such as clothing, rags, paper towel tissues or other items that could burn uncontrollably.

Do not use petrol, lighter fuel, alcohol or similar substances to light a Never leave the product unattended.

Wind

The Fire pits should be protected from wind and not used when wind high or gusty. Wind causes the smoke and fire to blow around, which spread burning embers. When using Fire pits during light breezes, keep eye on it to ensure no small embers escape.

Do not place Fire pits near anything that could catch fire.

People & Pets

Supervised Children and Pets when the fire pit is in use.

Ensure that everyone near the Fire pits understands it is an active fire can produce smoke and embers. Do not allow children or animals to close to Fire pits to avoid smoke inhalation and burns.

The Fire pits will get very hot and could burn someone if they get

Extinguishing The Fire Properly

Fire pits are dangerous if the fire is not extinguished properly. Do no extinguish the fire by pouring water into a hot fire bowl because this

cause distortion, rust or flaking paint. Fire should be allowed to die of its own, or extinguished with a fire extinguisher. Its important to note fire can continue to smoulder and embers remain hot even if there is visible flame. Make sure to stay near the fire pit after the flame is check for burning embers or smoke, which could indicate that a live exists. When in doubt, after the bowl has been allowed plenty of time cool down, fill the inside of the fire pit with water to make sure all out. The fire pit could still be hot for hours after use.

DO NOT USE A CHEMICAL BASED CLEANER as this may ignite a on next use.

Storage

It is best to keep the Fire pits out of the rain. After you are sure completely extinguished, clean it out and store it away so it does no wet from outdoor conditions.

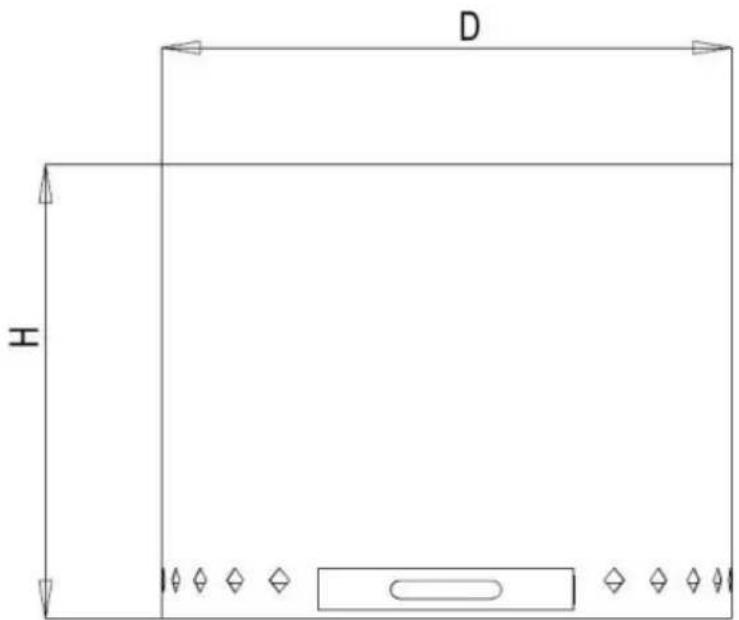

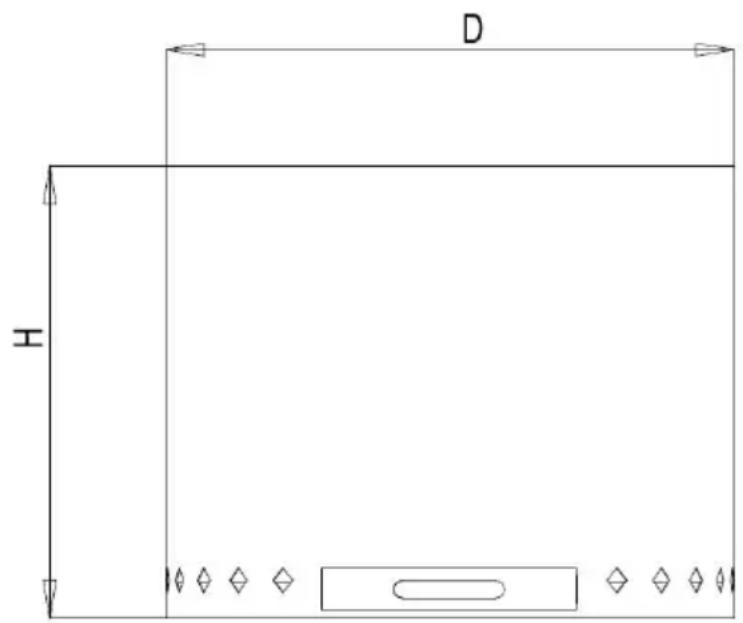

PRODUCT SPECIFICATIONS:

D H

Model	D (mm)	H(mm)
6834-38	∅ 380	320
6834-49	∅ 490	390
6834-71	∅ 710	430

PACKAGE INCLUDE

No	Components	Picture	QTY
1	Fire Pit		1
2	Ash tray		1
3	Poker		1
4	Foot pad		3
5	Manual		1
