BSC507-1 - Pneumatic tool kit Vevor - Free user manual and instructions

Product Type	Air Brake Kit for Semi Truck
Brand	Vevor
Model	BSC507-1
Number of Pieces	12
Max Power Supply	≤DC 76V, ≤30A
Kit Contents	1 air hose and electrical line kit, 2 gladhands, 2 air valves, 1 hook, 1 spring assembly, 4 rubber plugs, 1 Teflon tape
Main Functions	Provide compressed air and electrical connection between tractor and trailer
Recommended Use	Semi trucks, trailers
Fitting Type	Quick connect fittings (gladhands)
Materials	Reinforced rubber hoses, metal fittings
Safety	Check joints before use, tighten locknuts, avoid hose rubbing on ground
Maintenance	Clean regularly, replace damaged seals
Repairability	Replaceable seals and fittings
Warranty	Electronic warranty certificate available at www.vevor.com/support
Technical Support	www.vevor.com/support
Assembly Procedure	1. Tighten and secure the hoses to the platform. 2. Connect the other end to the truck head. 3. Lock with the spring kit and hook to the truck.

Frequently Asked Questions - BSC507-1 Vevor

How to install the air brake kit?

Follow the steps in the manual: STEP 1: Tighten and secure the air hoses to your truck platform. STEP 2: Connect the other end of the air hose to the truck head. STEP 3: Lock the hoses with the spring kit and hook the other end of the spring to the truck to prevent loosening.

What is the maximum voltage of the electrical circuit?

The maximum voltage for the electrical circuit is 76 V DC with a maximum current of 30 A. This generally corresponds to 12V or 24V truck systems.

How to check the seals?

Before each use, check that each butt joint is tightened. Visually inspect the seals for any damage or wear. Replace damaged seals promptly.

What to do if a hose rubs on the ground?

Avoid rubbing hoses on the ground while driving. If it happens, store the gladhands firmly when not in use and check that the hoses are properly secured.

How many pieces does the BSC507-1 kit contain?

The BSC507-1 kit contains 12 pieces: 1 air hose and electrical line kit, 2 gladhands, 2 air valves, 1 hook, 1 spring assembly, 4 rubber plugs, and 1 Teflon tape.

How to replace a damaged seal?

Unscrew the fitting, remove the old seal and clean the surface. Apply Teflon tape (provided) to the threads if necessary, then install the new seal. Tighten firmly.

Where to find the warranty certificate?

The electronic warranty certificate is available on the website www.vevor.com/support. You can access it for any warranty-related questions.

What accessories are included in the kit?

The kit includes: an air hose and electrical line kit, two gladhands, two air valves, a hook, a spring assembly, four rubber plugs, and Teflon tape.

How to maintain the air hoses?

Clean the hoses regularly with a damp cloth to remove dirt. Always check that the seals are not damaged and replace them if necessary. Avoid exposure to extreme temperatures.

Can I use this kit on all types of semi trucks?

Yes, this kit is designed for standard air and electrical systems of semi trucks. Make sure the fittings are compatible with your connectors. The electrical voltage ≤76V DC is suitable for most 12V or 24V trucks.

USER MANUAL BSC507-1 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Semi Truck Air Line Kit

MODEL: BSC507-1 / BSC507-3

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: BSC507-1 / BSC507-3

Roll of black and green tire with attached welding torches and metal fittings (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ATTENTIONS

1. Check every butt joint is tightened before use.
2. Tighten the lock nuts of the 3-hole clamp when hanging the air hoses.
3. Always check the seals for damage and replace them in time.
4. Avoid rubbing the hoses on the ground when driving.
5. Store the gladhands firmly when not in use.

Model	BSC507-1	BSC507-3
Specification(ft)	12	15
Power	≤slant DC 76V, ≤slant 30A

Part List
No.	Name	Picture	QTY.
1	Air Hoses & Power Line		1
2	Hand Shank		2
3	Air Valve		2
4	Pothook		1
5	Spring Assembly		1
6	Rubber Plug		4
7	Teflon Tape		1

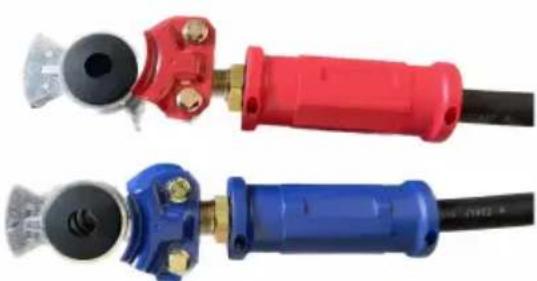

Assembly procedure

STEP1:	Tighten and attach the air hoses to your truck bed.
STEP2:	The other end of the air is connected to the truck head.

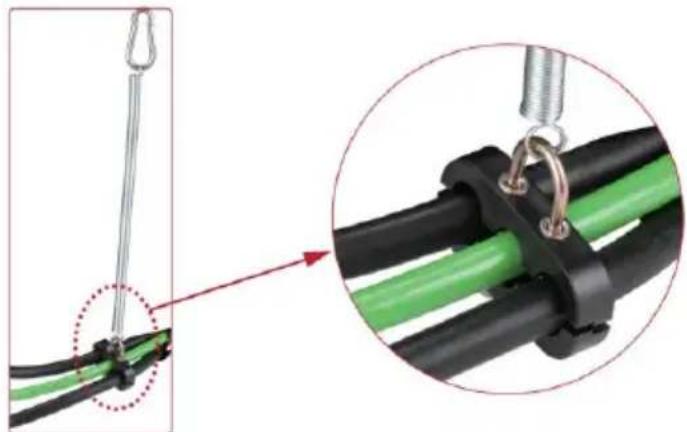

STEP3:	Lock the hoses with the spring kit and hang the o end of the spring on the to prevent the hoses from loosening and falling.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place,Rancho Cucamonga,CA91730
