USER MANUAL Y08004 Vevor

KAYAK STORAGE RACK

MODEL: Y08004

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us whether you are actually saving half in comparison with the top major brands.

MODEL: Y08004

Two identical red metal frame structures with black horizontal bars, shown side by side. No text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Safety Instructions

Thoroughly read the assembly and operating instructions prior to assembly and follow the individual steps as described in the assembly instructions.

Risk of injury!

WARNING! Do not exceed the maximum load capacity of 400 lbs. Injuries or product damages may result.
WARNING! Only set up the kayak storage rack on solid and even surfaces to prevent the product from tipping.
WARNING! Do not sit persons on the kayak storage rack. Risk of injury.
CAUTION! Unconventional or even improper use may put persons at risk or result in damage to the kayak storage rack.
Suggestion! Installation and disassembly by two people is safer and easier.
Routinely inspect all parts on the kayak storage rack. Tighten loose screws and replace defective parts to avoid product damage. Always ensure all screws are tightened securely.
For additional information regarding the parts listed in the following, please refer to the Accessories package of this manual. Unwrap and separate all parts in a clean work area.
This product contains small parts. If swallowed, they pose a choking hazard. Keep these small parts away from children when assembling!

Caution! Crushing hazard!

When folding and unfolding the kayak storage rack, take care not to pinch your fingers.

Position the kayak storage rack to leave sufficient space to move around. Avoid property damage!
When securing frames, be careful to prevent damaging the frame.
The guide and securing components must be kept free from oil and grease.

SAVE THESE INSTRUCTIONS

Diagram showing six types of mechanical parts with numbered labels and corresponding visual representations.

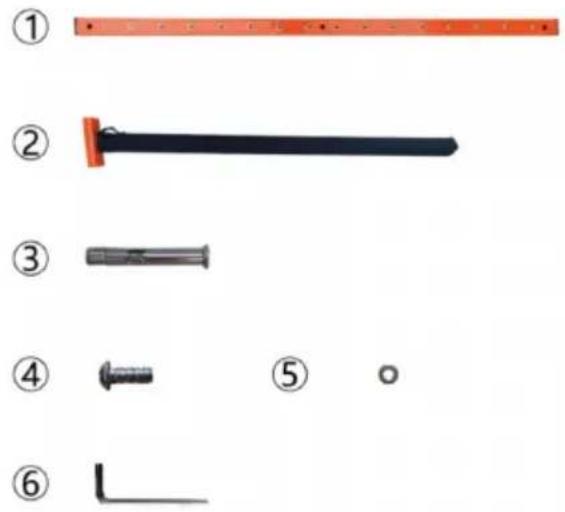

Parts List
	Qty	Part Name
1	2	Wall Rack
2	8	Arm
3	6	M8x60mm Expansion Screw
4	16	20mm Carriage Bolt
5	16	Shim
6	1	Hex Wrench

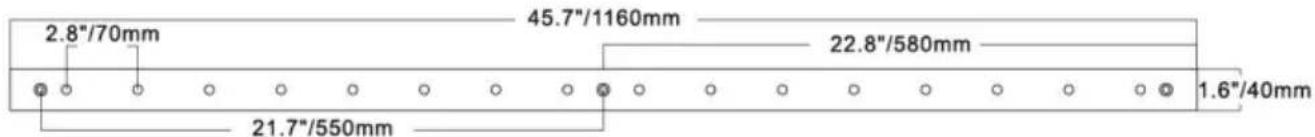

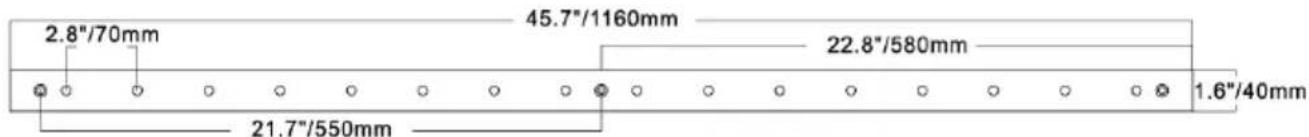

2.8"/70mm 45.7"/1160mm 22.8"/580mm 1.6"/40mm 21.7"/550mm

Installation Introduction

Make a small hole in the appropriate position.

Tip:

Use clean and hard walls.
Prepare an 8mm drill bit on your own.

Diagram of a vertical ruler with measurement markings and projection lines. No text or symbols.

Pure electrical circuit lines without any symbols.

Red vertical stripe with three circular holes. No text or symbols.

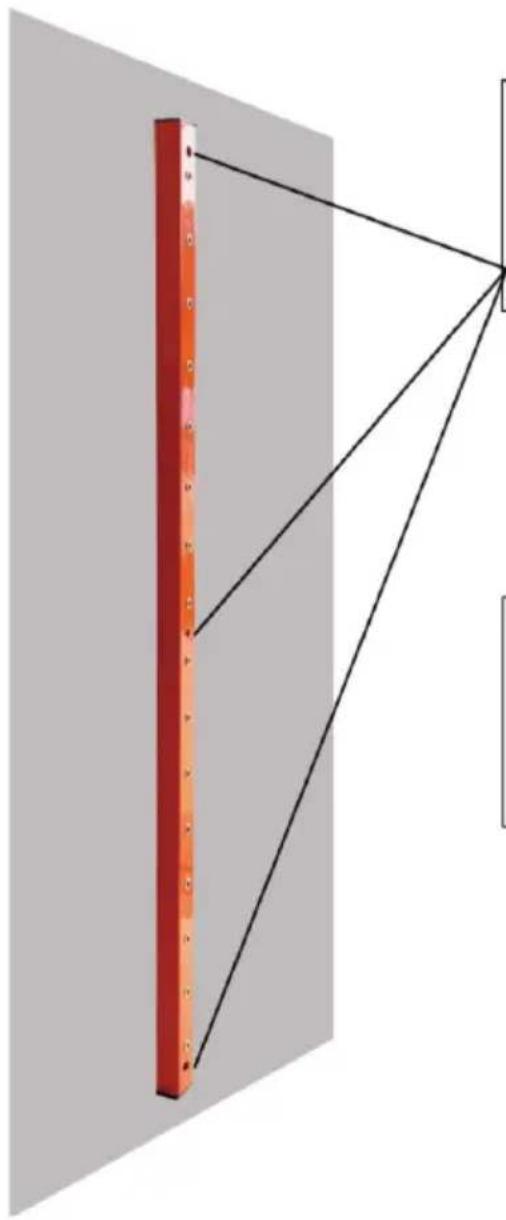

To fix the wall rack to the wall, first align the small hole on the top of the wall rack with the small hole on the wall, and then tighten it with an expansion screw as shown.

Close-up of a black pipe joint with red vertical structure and bolted fasteners. No text or symbols visible.

Close-up of a red vertical pole with black cable and wires attached. No text or symbols visible.

Calculate the spacing between each arm, align the two holes on the top of the first arm with the two small holes on the top of the wall rack, and fix them with bolts.

Repeat the above installation steps, done.

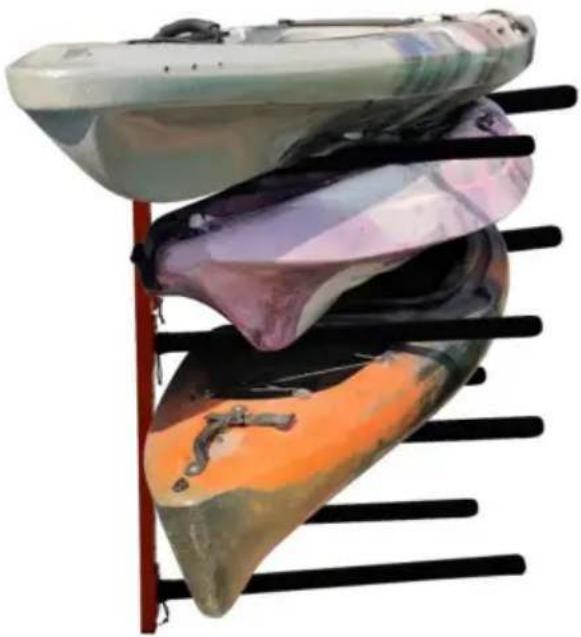

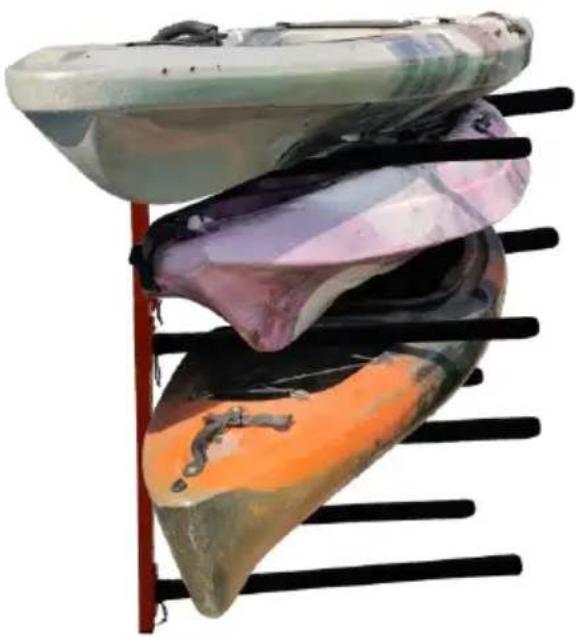

Use display
