Y08006-D4 - Storage support Vevor - Free user manual and instructions

Product Type	Kayak Storage Rack
Brand	Vevor
Model	Y08006-D4
Maximum Load Capacity	100 kg (220 lb)
Main Material	Steel
Style	Foldable
Number of Kayaks Supported	1
Recommended Use	Indoor (garage, basement) or sheltered outdoor
Assembly Required	Yes, with instructions included
Tools Included	Hex key
Accessories Provided	Swivel bar, poles, feet, arms, bolts, buttons
Safety Instructions	Do not exceed maximum load, install on flat and solid surface
Maintenance	Regularly check screws, tighten if necessary, replace defective parts
Cleaning	Clean with dry cloth, avoid oil and grease on components
Warranty	Electronic warranty certificate available at www.vevor.com/support
Manufacturer	Shanghai uxin muye youxiang gongsi
Importer	Australia: SIHAO PTY LTD; United States: Sanven Technology Ltd.
Country of Origin	China

Frequently Asked Questions - Y08006-D4 Vevor

What is the maximum load capacity of the Vevor Y08006-D4 rack?

The maximum load capacity is 100 kg (220 lb). Do not exceed this limit to avoid injury or damage.

Is this rack foldable?

Yes, the Vevor Y08006-D4 kayak storage rack is foldable. Follow the folding/unfolding instructions carefully to avoid pinching.

What tools are needed for assembly?

A hex key is provided in the kit. No additional tools are required.

Can I install this rack outdoors?

Yes, but it is recommended to install it on a solid and flat surface, sheltered from direct weather for optimal durability.

What type of kayak can this rack accommodate?

It can accommodate a standard kayak up to 100 kg. Check your kayak dimensions against the rack configuration (not specified in the manual).

Is the rack delivered assembled?

No, it requires full assembly. Follow the detailed steps in the manual for a secure installation.

How do I maintain the Vevor storage rack?

Regularly inspect all parts, tighten loose screws, and replace defective components. Clean with a dry cloth.

What is the warranty for this product?

Vevor offers an electronic warranty certificate accessible via www.vevor.com/support. Check the site for details.

Can I use this rack to store objects other than a kayak?

It is designed specifically for kayaks. Improper use may result in risk of injury or damage to the product.

How do I contact Vevor customer service?

You can reach customer service via the website www.vevor.com/support for any technical questions or warranty claims.

USER MANUAL Y08006-D4 Vevor

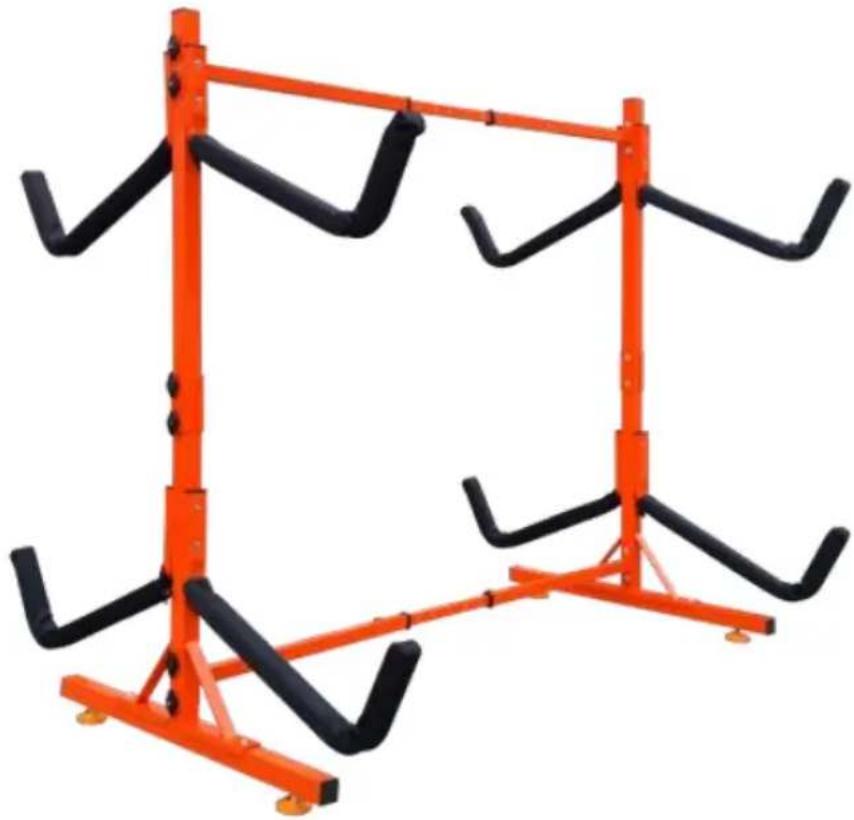

KAYAK STORAGE RACK

MODEL: Y08006-D4

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODEL: Y08006-D4

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Safety Instructions

Thoroughly read the assembly and operating instructions prior to assembly and follow the individual steps as described in the assembly instructions. Risk of injury!

• WARNING! Do not exceed the maximum load capacity of 220 lbs. Injuries or product damages may result.
• WARNING! Only set up the kayak storage rack on solid and even surfaces to prevent the product from tipping.
• WARNING! Do not sit persons on the kayak storage rack. Risk of injury.
• CAUTION! Unconventional or even improper use may put persons at risk or result in damage to the kayak storage rack.
• Suggestion: Installation and disassembly by two people is safer and easier.
• Routinely inspect all parts on the kayak storage rack. Tighten loose screws and replace defective parts to avoid product damage.
• Always ensure that all screws are tightened securely.
• For additional information regarding the parts listed in the following, please refer to the Accessories package of this manual. Unwrap and separate all parts in a clean work area.
• This product contains small parts. If swallowed, they pose a choking hazard. Keep these small parts away from children when assembling!

Caution! Crushing hazard!

When folding and unfolding the kayak storage rack, take care not to pinch your fingers.

• Position the kayak storage rack to leave sufficient space to move around.

Avoid property damage!

• When securing frames, be careful to prevent damaging the frame.
• The guide and securing components must be kept free from oil and grease.

SAVE THESE INSTRUCTIONS

Parts List

The upper post x 2	The lower post x 2	Bottom caster bar x 2

The lower crossbar x 4	Middle part of the adjustable crossbar x 2	Arm x 8

Coupling plate x 4	M8*20 Screw x 4	M8*65 Carriage Screw x12

Child And Mother Bolts x 8	Knob x 12	Knob Screw x 4

L	x→c
Hex wrench x 2	Wrench x 1	Foot pad x 4

Installation Introduction

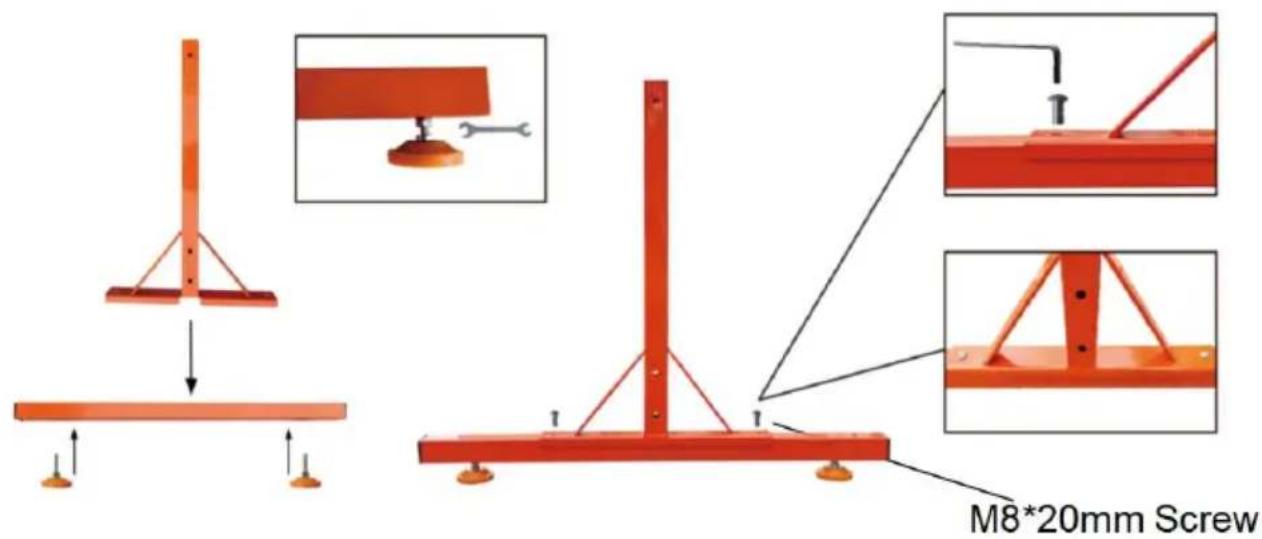

STEP 1:

Install the bottom caster bar with a wrench, properly place the lower pole vertically on the bottom caster bar, and use the hex wrench to tighten the bolts.

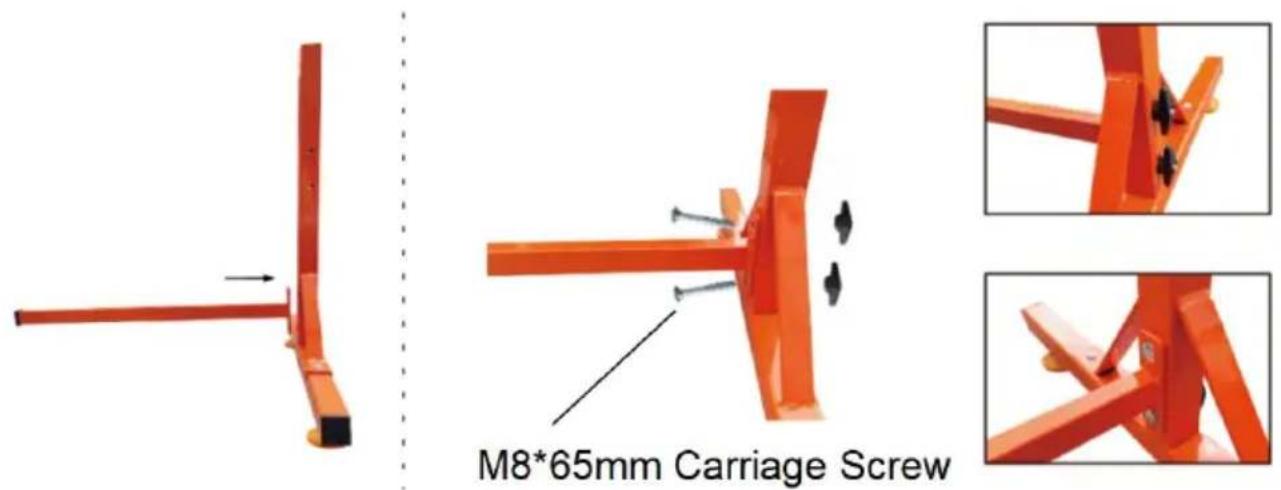

STEP 2:

Secure the legs with the knobs as shown.

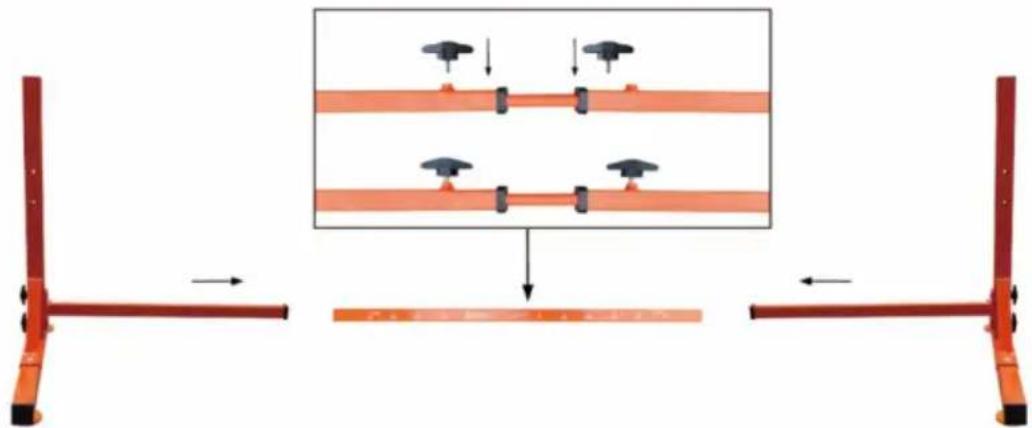

STEP 3:

Repeat the above steps to install the 2 legs, then the crossbar is attached and secured with knobs. When installing, take care to align the rod ends.

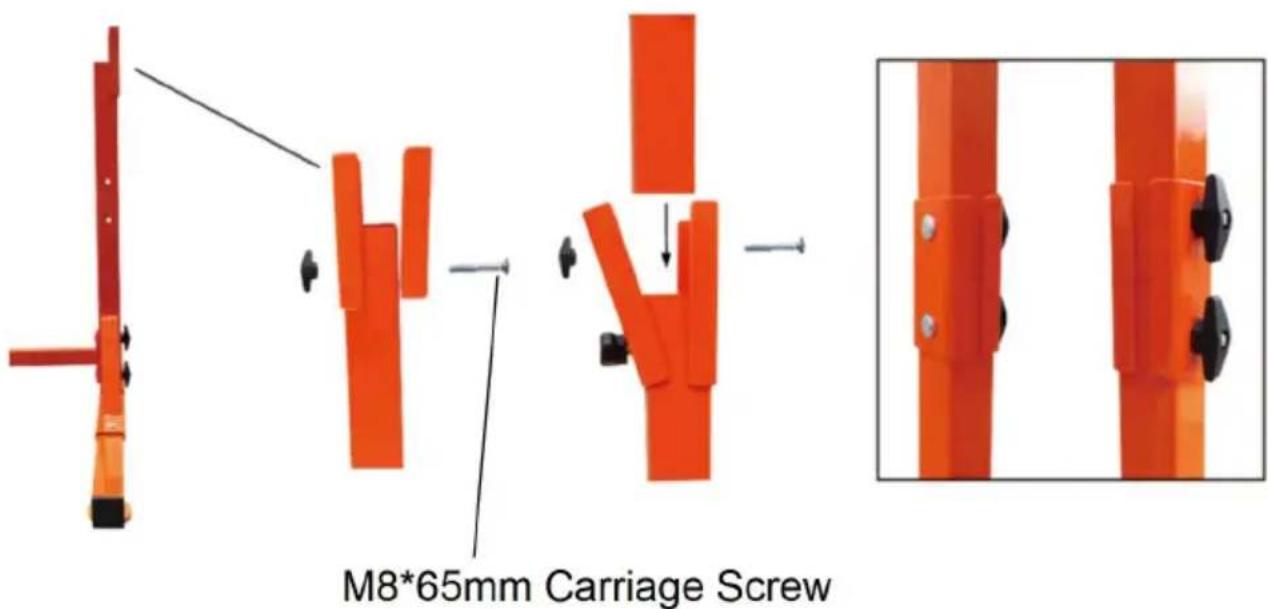

STEP 4:

Insert the upper post into the lower post and fix.

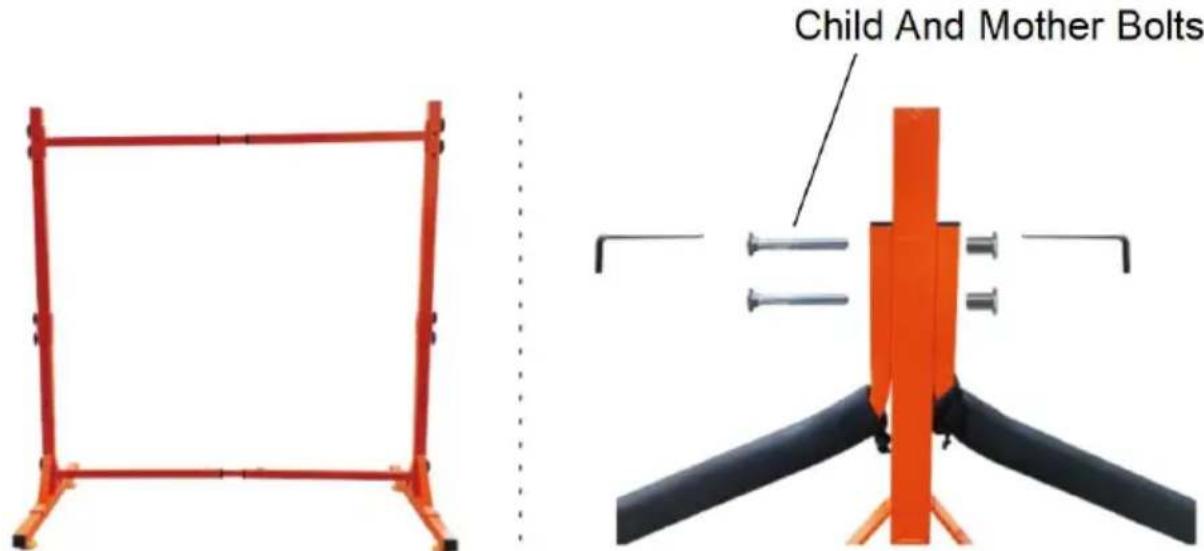

STEP 5:

Connect the arm to the bracket with the carriage bolt and tighten the bolt with the knob.

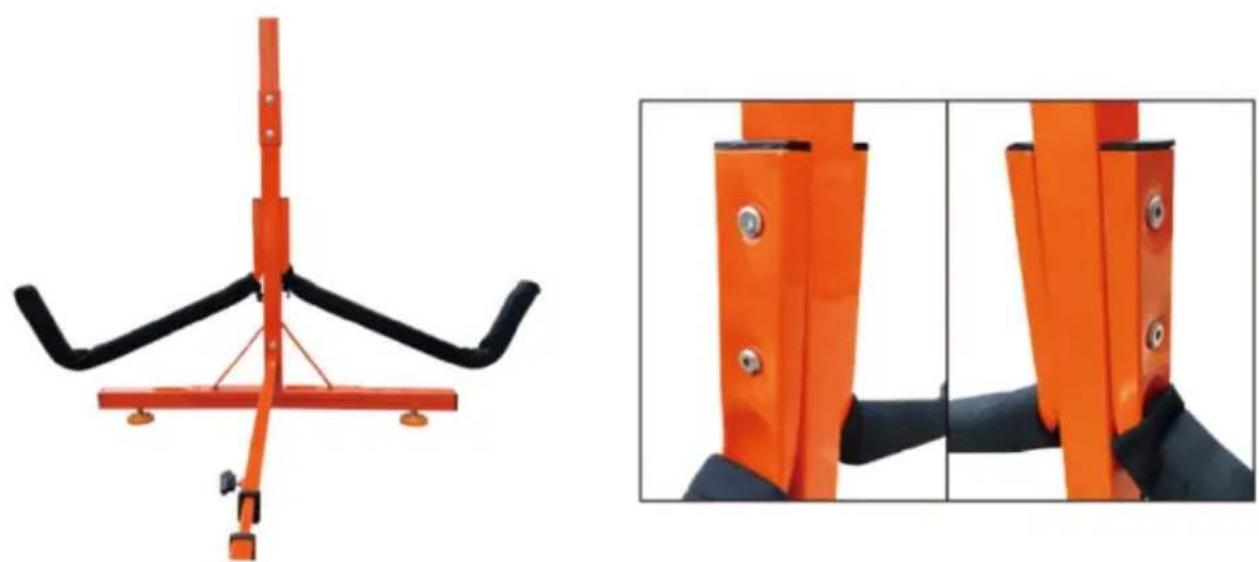

STEP 6:

Repeat the above steps to complete the installation. Pay attention to central alignment when installing uprights.

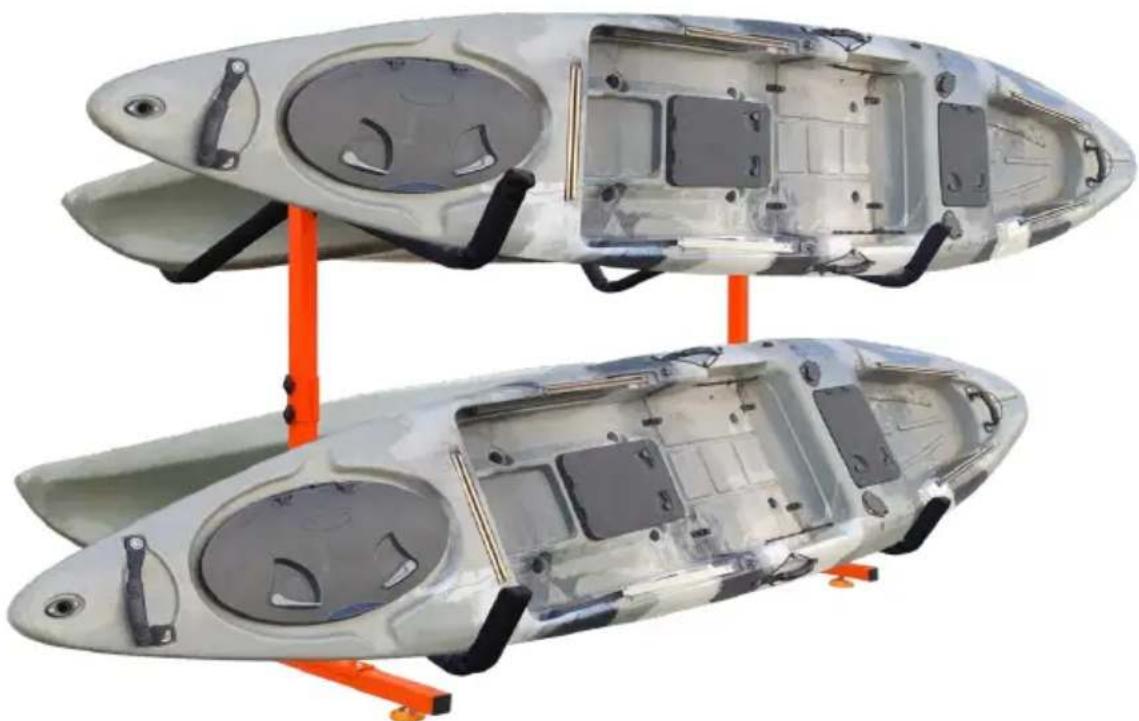

Use display
