TR13050180 - Storage support Vevor - Free user manual and instructions

Product Type	Tire Storage Rack
Brand	Vevor
Model	TR13050180
Dimensions (L × W × H)	1300 × 500 × 1790 mm
Number of Shelves	2
Storage Capacity	12 tires
Material	Steel
Recommended Use	Indoor Only
Assembly Required	Yes, with instructions provided
Power Supply	None (non-electric)
Main Function	Organized vertical tire storage
Safety	Keep out of reach of children; do not exceed rated capacity; assemble on a flat surface
Maintenance	Clean with a damp cloth; avoid exposure to excessive moisture
Spare Parts	Available via Vevor customer service (www.vevor.com/support)
Repairability	Simple structure, no repairs planned; replacement of damaged parts recommended
Warranty	Electronic warranty certificate available on Vevor website
Included Accessories	Uprights, beams, plastic feet, assembly manual
Mounting	Floor-standing, self-supporting (no wall attachment required)
Product Weight	Approximately 20 kg (estimated)
Safety Instructions	Read and understand the manual before use; do not use as a toy; keep children away

Frequently Asked Questions - TR13050180 Vevor

How to assemble the TR13050180 storage rack?

Follow the steps in the manual: start by attaching the plastic feet to the uprights, then insert the side and long beams into the keyhole slots. Use a rubber mallet to fully seat the dowels. An assistant is recommended to stabilize the frames during assembly.

What is the maximum capacity of this rack?

The TR13050180 model can store up to 12 tires distributed across its 2 shelves. Do not exceed this capacity to avoid any risk of instability.

Can I use this rack outdoors?

No, this rack is designed for indoor use only. Exposure to weather could corrode the steel and compromise its strength.

What types of tires can be stored?

The rack is suitable for most passenger car tires, including summer and winter tires. Check that your tire dimensions (width and diameter) fit the beam spacing.

Is the rack stable without floor fastening?

Yes, once properly assembled, the rack is self-supporting and does not require floor anchoring. Make sure it is placed on a flat and stable surface.

How to clean and maintain the rack?

Clean it with a damp cloth and mild detergent. Avoid abrasive products. To prevent rust, keep it dry and away from moisture.

Are spare parts available?

Yes, you can order spare parts (uprights, beams, feet) by contacting Vevor customer service at www.vevor.com/support.

Can the rack be disassembled for storage?

Yes, the rack can be disassembled by following the assembly steps in reverse order. Keep the manual to facilitate later reassembly.

Is there a warranty on this product?

Vevor offers an electronic warranty certificate. Register your product at www.vevor.com/support to benefit from technical support and warranty.

Can I contact Vevor customer service?

Yes, for any questions or issues, visit www.vevor.com/support. You will find technical support and warranty information there.

USER MANUAL TR13050180 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TIRE RACK

MODEL: TR15045200, TR13050180

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands, and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: TR15045200, TR13050180

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage

to valuable property.

• Avoid children using the product. And this product is not a toy. Do not allow children to play.

SET UP PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Keep the assembly area clean and well-lit.
3. Capabilities apply to properly and completely assembled product only.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs, or medication.
6. Keep away from sharp points, blades, and other items.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area. Please keep small spare parts out of children's reach.

SAVE THESE INSTRUCTIONS

SAFETY AND PRECAUTIONS

WARNING:

• Only used to place tires.
• This product is intended for indoor installation use only.

SPECIFICATION

Model	TR15045200	TR13050180
Size	L*W*H: 1500*450*1980mm	L*W*H: 1300*500*1790mm
Number of layers placed	3	2
Capacity	18 tyres	12 tyres

PART LIST

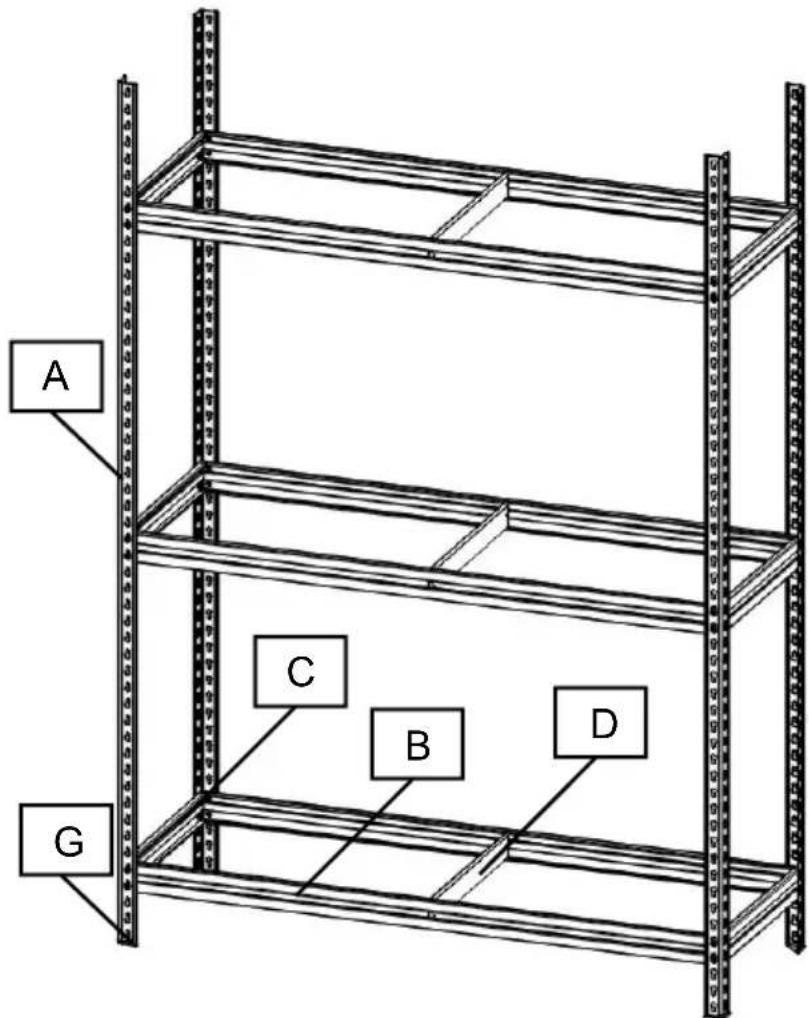

No.	identifier	Name	Picture	QTY
				TR15045200, TR13050180
1	A	Upright		4
2	B	Front & Bac Beam		6
3	C	Side Beam		6
4	D	Centre Support		3
5	G	Plastic foot		4
6		Manual	/	1

Tire Rack Assembly

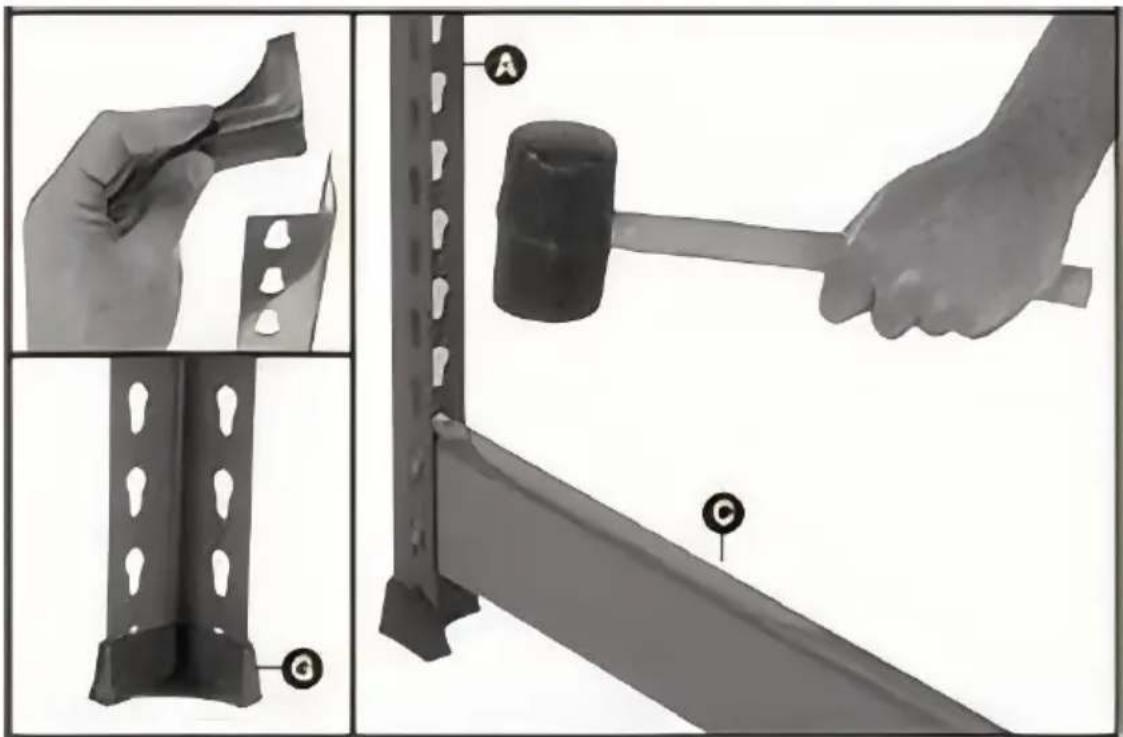

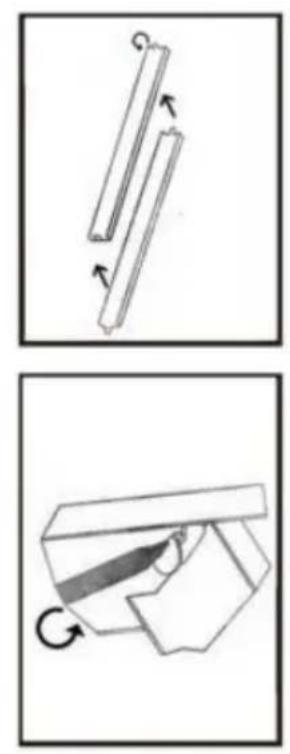

STEP 1. Select two uprights A and push plastic feet G onto the base. Insert a short side beam C into the key holes at the lowest shelf level required. Ensure the beam is 90 degrees to the upright.

Fig.1

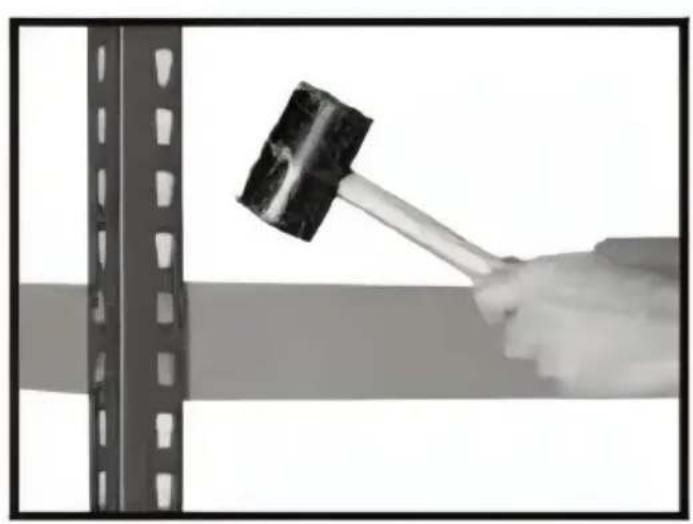

STEP2. Tap beam C with a rubber mallet to ensure the end studs are fully located in the bottom of the keyholes on both uprights. Lean the uprights A against a wall for support if needed.

Note: An assistant is recommended for installation.

Fig.2

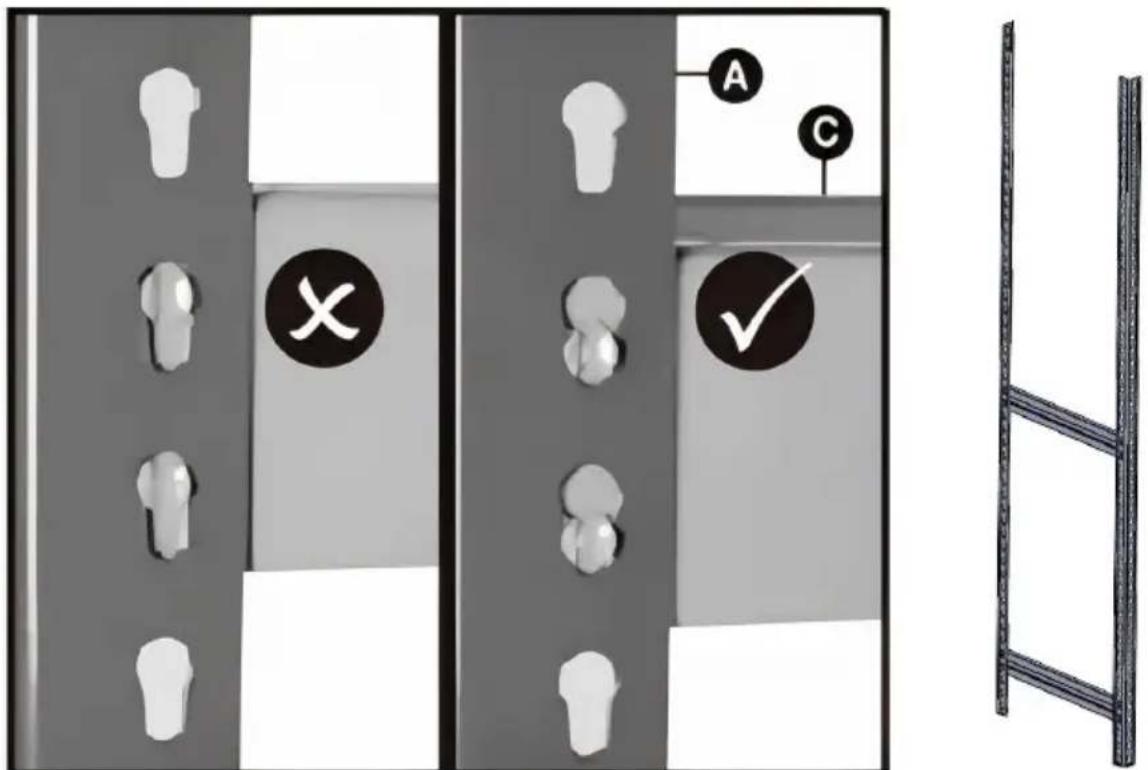

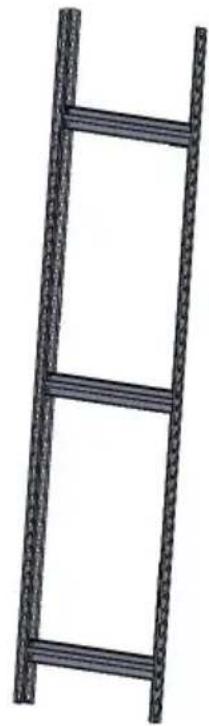

STEP3. Repeat steps 1 and 2 until you have created a "ladder style frame".

Tip: Now is a good time to check the space between beams for items you want to store on the shelves and adjust as required.

Fig.3

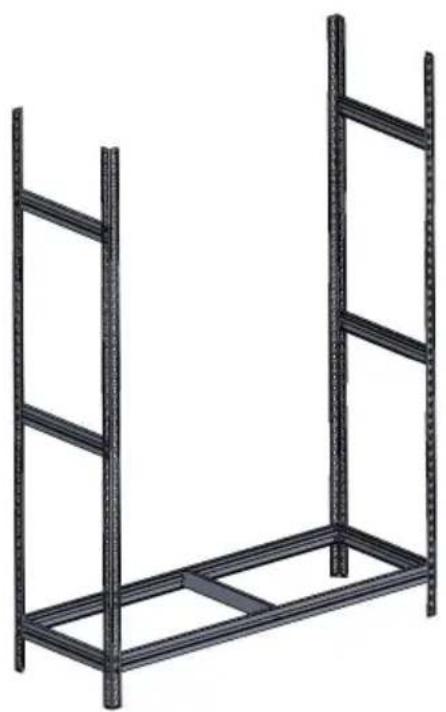

STEP4. Select two more uprights A and repeat steps 1 to 3 until you have a second "ladder style frame".

Tip: Use the first frame as a template to get the correct spacing.

Fig.4

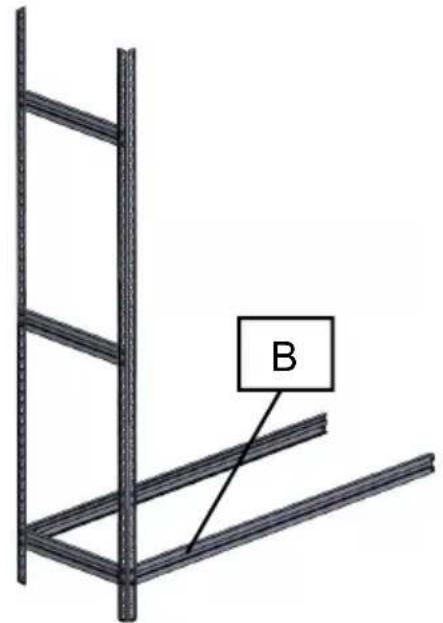

STEP5. Take two long beams B and insert them into the keyholes of one frame at the same height as the short beams. Tap into place with a rubber mallet.

Fig.5

STEP6. Insert the other ends of the beams B into the second frame from step 5.

Tip: Ask another person to hold the frames in place while you set them.

Fig.6

Step 7. Repeat steps 5 and 6 to add the remaining long beams. Ensure each long beam is located at the same height as the side beams.

Fig. 7

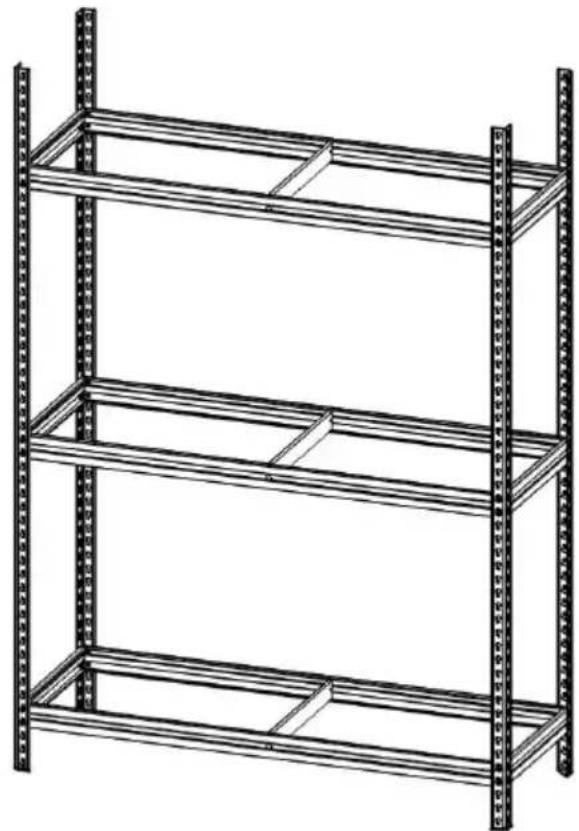

Step 8. Locate a centre support beam D onto the metal studs on the top of each long beam B. Tap into place and repeat for all levels.

Fig. 8

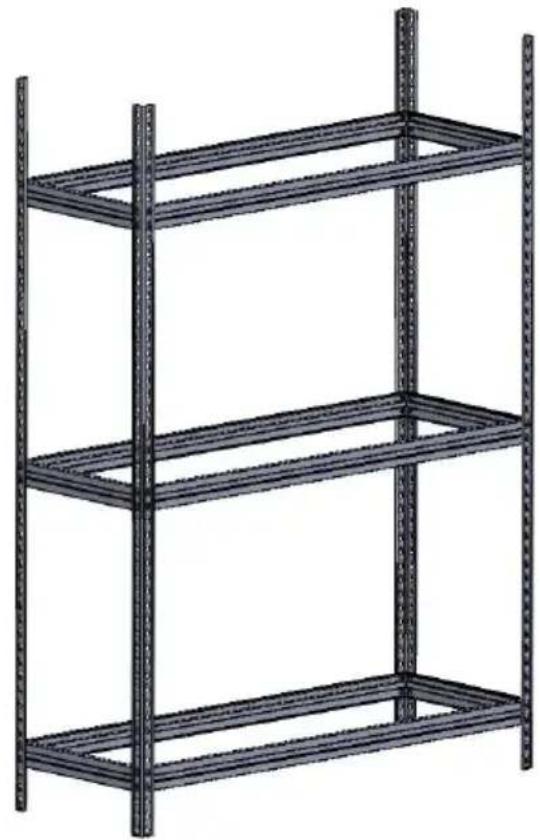

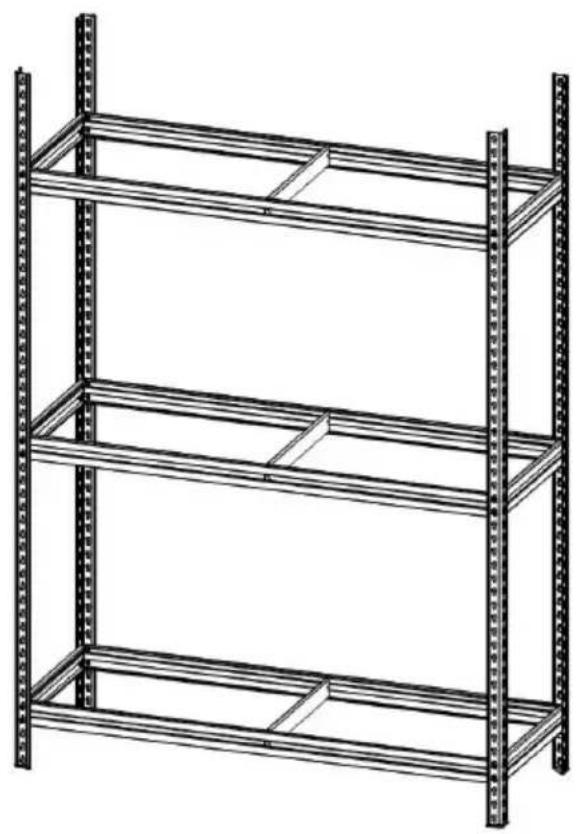

Step 9. The bay is now completed and ready to use.

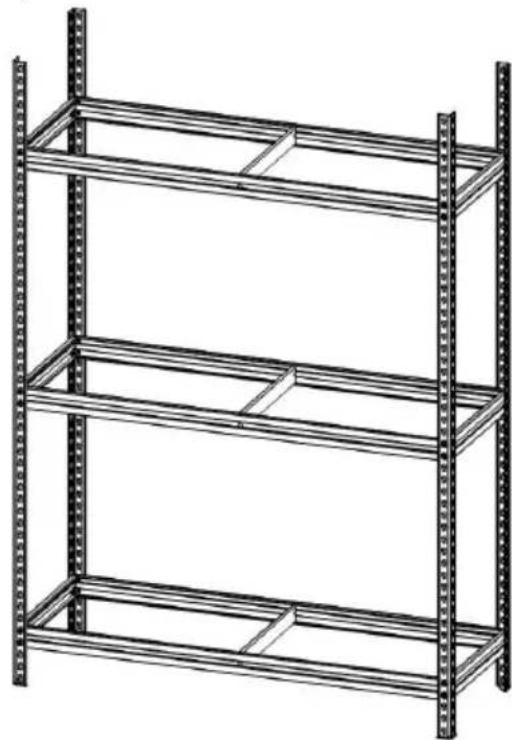

Fig. 9
