This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Pasta Roller & Cutter Safety Precaution:

Precaution:

Your safety and your family members' safety are very important! Many safety precaution messages had been laser-jet or printed on our products or

here. Please read carefully and obey all safety messages listed.

WARNING:

1. DO NOT put your hands into any attachments when it is running.

1. DO NOT put any metal items into any attachments when it is running.

2. DO NOT take it off the mixer before it stops completely.

3. DO NOT put pasta roller into dish washer for cleaning.

4. DO NOT put pasta roller into disinfection cabinet for sanitization.

5. Close supervision is necessary when this or any appliance is used near children.

6. If there is any damaged parts, please stop using immediately.

7. Keep safe distance if your are wearing tie、scarf、long necklace or loose clothes. Tie up your long hair for safe.

8. Pasta roller &cutter attachments are designed to be used with pastadough. To avoid damaging your pasta roller, do not cut or rollanything other than pa 10. No more than 3 minutes without load.

11 Let it cool naturally for 30 minutes, after it is used for 30 minutes contin

WARNING:

1. This product is not designed for little baby or disabled people. Pleasetak care of them.2. Clean table is needed for pasta processing

2. Power off the machine immediately if there is any emergency happened.

3. Be sure the food processing part has been completely cleaned after use

PRODUCT DESCRIPTION:

NOTE: Due to the differences in product appearance, the following picture are for reference only. Please refer to the actual product in the box for more information.

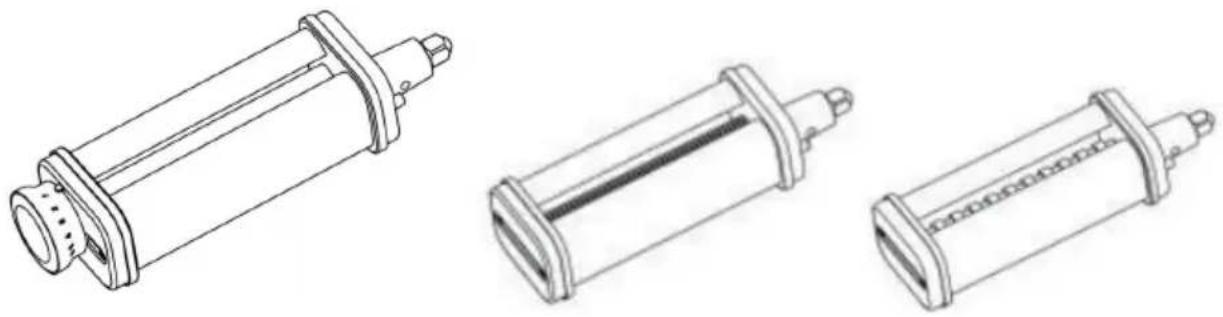

Pasta Roller	Lasagnette cutter	Fettuccine Cutter	Cleaning Brush

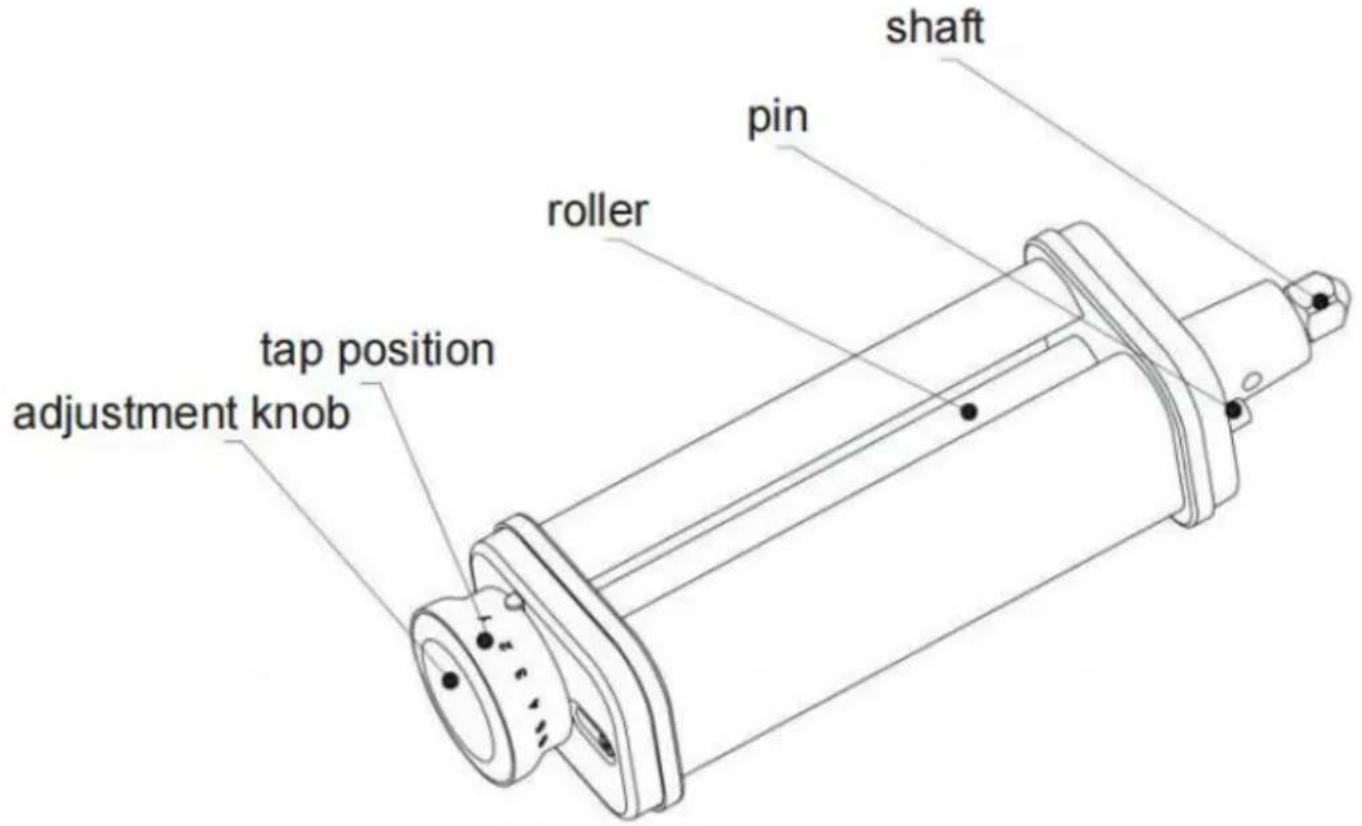

shaft pin roller tap position adjustment knob

MODEL/ROLLER CHART:

	Model	Specification	Type	Simplified Diagram
1	NP-0861	Pasta Roller

2	NP-0862	Lasagnette cutter
3	NP-0863	Fettuccine Cutter

USER INSTRUCTION:

1.SPEED SETTINGS CHART:

Attachment	Speed	Noodle Width	Suggested Uses
Pasta Roller	2	up to 140mm	See pasta roller settings ch
Lasagnette cutter	7	1.6mm	Thick Noodles
Fettuccine Cutter	5	6.3mm	Egg Noodles Fettuccine

2.PASTA ROLLER SETTINGS CHART:

Roller setting	Noodle thickness (approximate)
1	~0.3mm
2	~0.4mm
3	~0.6mm
4	~1.0mm
5	~1.3mm
6	~ 1.5mm
7	~ 1.8mm
8	~2.0mm

3.PRECAUTIONS BEFORE USING:

please remove the package and label before using. And clean the surface the pasta roller or cutterattachments, especially for the parts which are dealing with dough.(Refer to "Cleaning and Maintenance")

4.INSTALLATION INSTRUCTIONS:

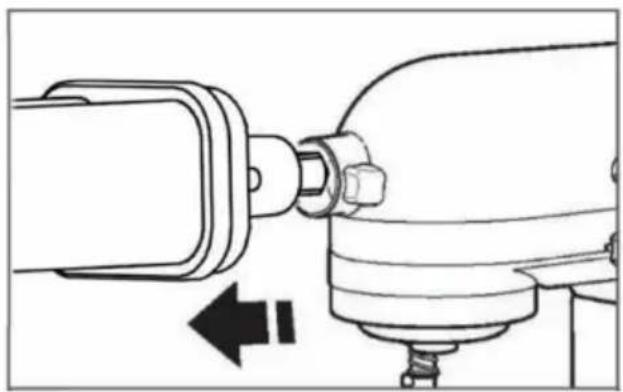

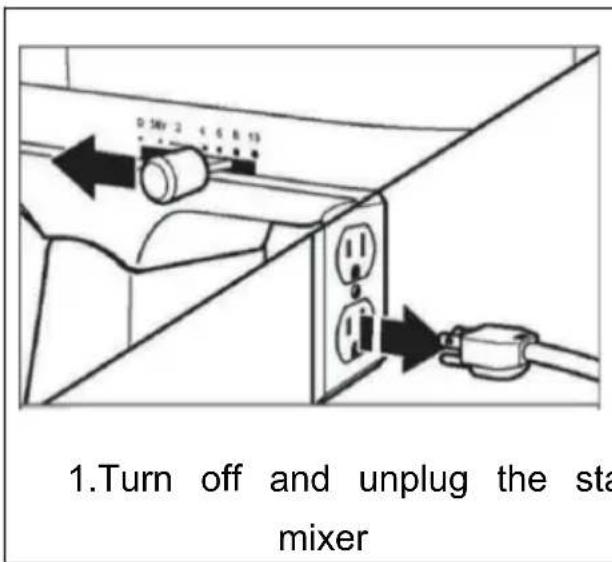

1.Turn off and unplug the sta mixer

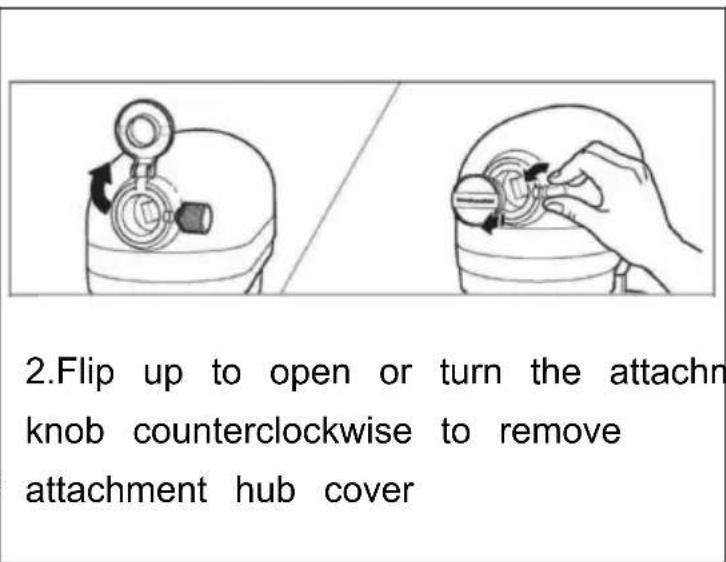

2.Flip up to open or turn the attach knob counterclockwise to remove attachment hub cover

Technical line drawing of a mechanical assembly with no visible text or symbols

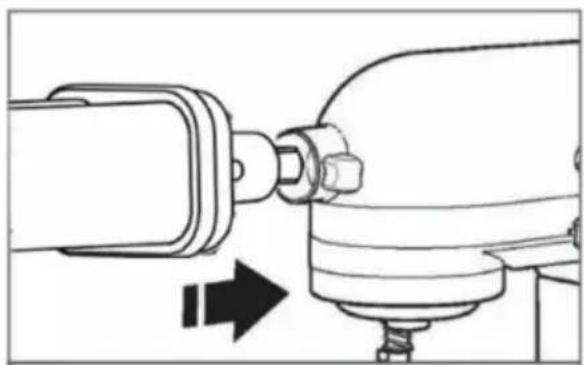

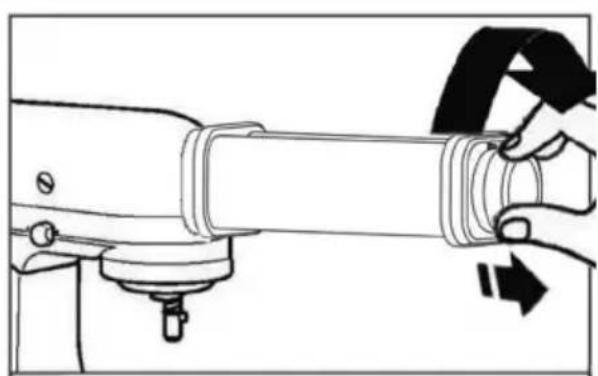

1. Insert attachment shaft housing into the attachment hub, making certain the power shaft fits into square hub socket. If necessary rotate the Pasta Roller or Cutte back and forth. The pin on the attachment housing fits into the notch of the hub rim when in proper position.

Line drawing of a hand turning a button into a device (no text or symbols)

1. Tighten the Stand Mixer attachment hub knob until the attachment is completely secured to the Stand Mixer.

5.HOW TO MAKE PASTA:

Line drawing of two hands rolling a rolled dough on a flat surface (no text or symbols)

Line drawing of a hand operating a cylindrical mechanical component with a knob, showing no text or symbols.

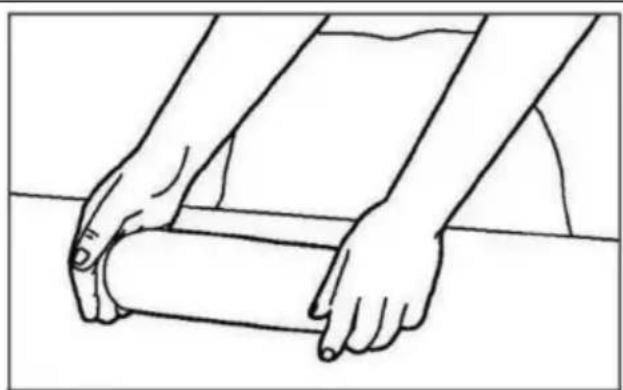

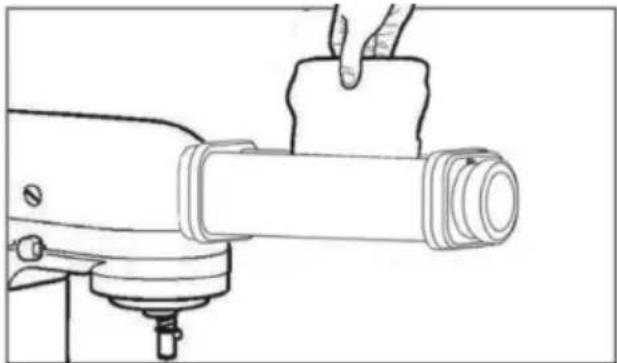

1.Prepare pasta dough (see “Recipe” section). Cut dough into sections that fit in the Pasta Ro	2.Pull out the dough knob adjustm knob and set it to setting 8. Th loosen the knob so that it is flush the surface shell.
3.Squeeze the dough by hand to thickness of about 1 cm and sprin small amount of flour between th rollers. Fold dough in half and again. Repeat until dough is smo and pliable and covers the width roller. Dust pasta with flour light while rolling and cutting to aid in and separation.	4.Gradually adjust the thickness adjustment knob setting, and repeat the surface pressing operation until desired thickness is reached. It is recommended to use setting 5 or make noodle thickness.

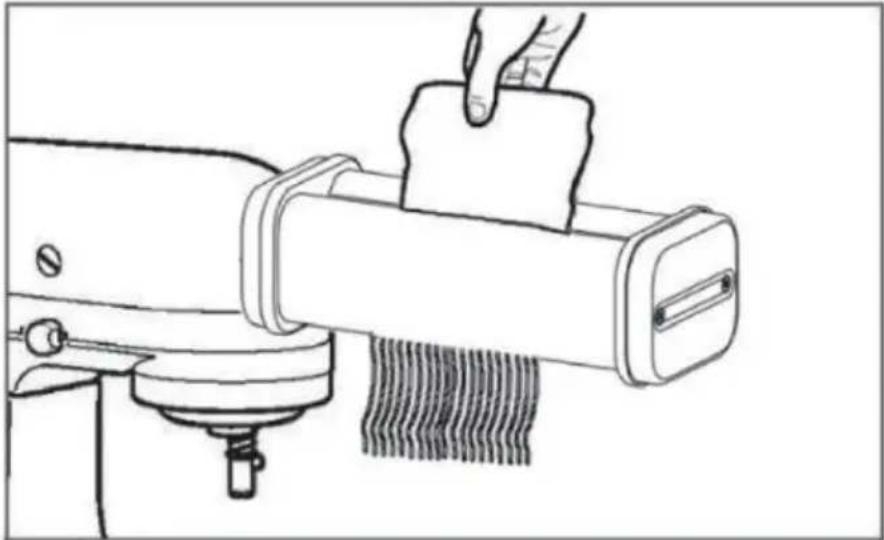

5.To make noodles, exchange the Pasta Roller for the Cutter of you

Feed the flattened sheets of dough through the cutter. See the “Rolle chart” to determine the correct thickness for each type of pasta

6.DISASSEMBLE THE PASTA ROLLER AND CUTTERS

0.5MHz 2 4 6 8 10

Technical line drawing of a mechanical assembly with a bolt and shaft, showing no text or symbols

1.Turn off and unplug the stand mix

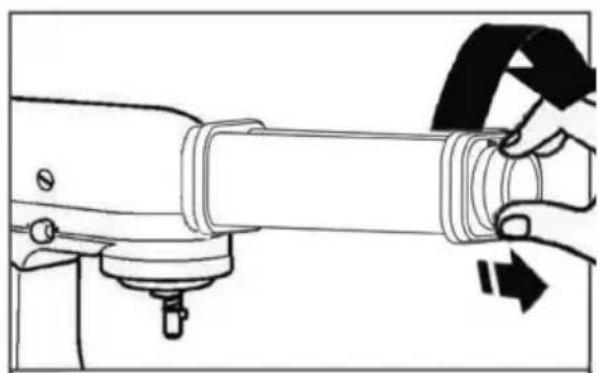

1. Remove the pasta roller or cutter from the stand mixer. After removing the pasta roller or cutter from the stand mixer, please be sure to cle the remaining dried dough. See "Care and Clean for details

Illustration of a hand using a tool to adjust or install a circular component, no text or symbols present

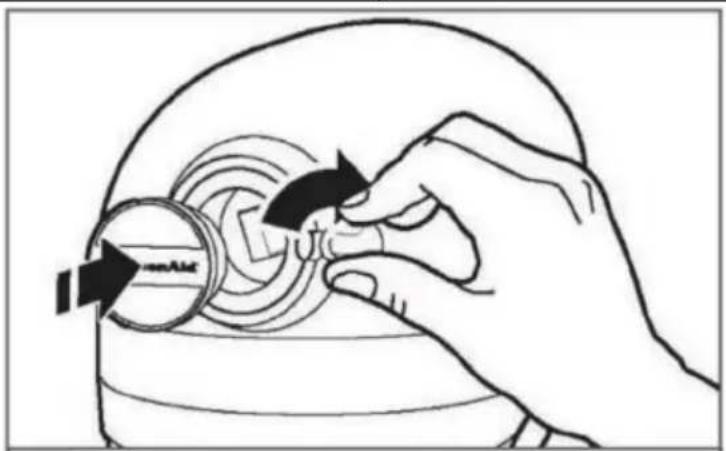

1. After removing the pasta roller and cutters, replace the hub cover an the attachment knob on the stand mixer

MAINTENANCE:

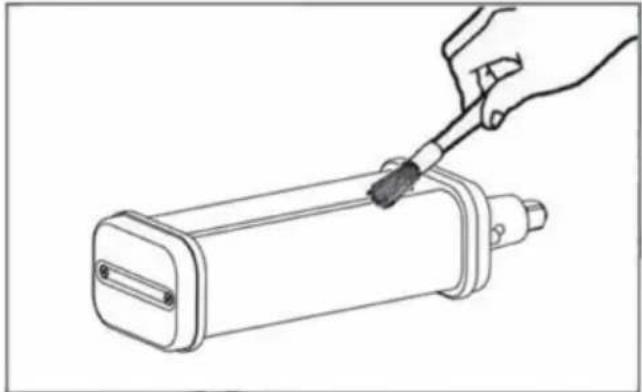

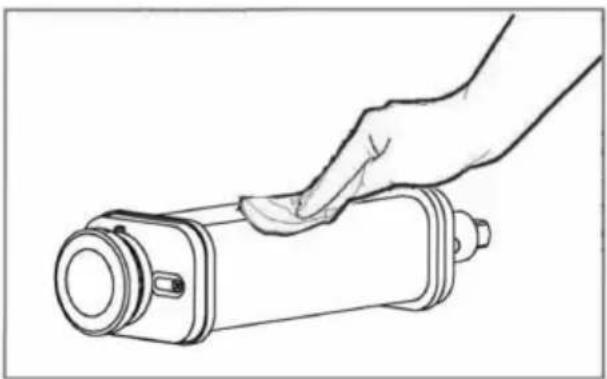

Please do not clean pasta roller &cutter attachments with metal tools (knif sharp items).

Please do not clean pasta roller & cutter in dish washer machine.

Please do not clean the pasta roller & cutter by dish towels or any cloth through them.

1. After use, keep the pasta roller cutter drying naturally for one ho Then clean the attachments by brush or other pastic/wood/bambo tools for hard dough.	2. Clean the surface with soft tow and let it dry naturally. Do not it in the dishwasher or do not sanitize it in disinfection cabinet.

DOUGH:

Basic Pasta dough	Pasta dough (100% wheat)	Pasta dough with tomato
flour500g	Whole wheat flour500g	flour500g
egg4	egg4	egg3
salt2.5 g	salt2.5 g	ketchup75 g
oil	oil	salt
2.5 ml	2.5 ml	2.5 g
water180ml-192ml	water180ml-192ml	water181ml-195ml
