Product Type	Dough Divider / Manual Pasta Machine
Brand	Vevor
Model	XZ-10
Main Material	Stainless steel and food-grade plastic
Power Supply	Manual (no electricity)
Main Functions	Pressing and dividing pasta dough
Tank Capacity	Approximately 1 kg of dough
Approx. Dimensions	40 × 30 × 30 cm
Approx. Weight	5 kg
Included Components	Clamping plate, dividing plate, paddle, front footrest, tank
Maintenance and Cleaning	Clean immediately after use with a clean cloth; do not use hard materials; lubricate the head regularly
Safety	Do not allow children under 14 to use; do not put hands in the feed inlet; use the provided stick
Spare Parts and Repairability	Screws and pressure plates available; technical support via www.vevor.com/support
General Information	Manufactured by Shanghaimuxinmuyeyouxiangongsi; distributed in the United States and Australia; electronic warranty available

Frequently Asked Questions - XZ-10 Vevor

How to install the Vevor XZ-10 pasta machine?

Place the machine on a dry, flat floor. Make sure it is stable without vibration. Attach the tank to the work platform.

What types of pasta can be made with this machine?

The machine is designed to press and divide pasta dough. It allows making fresh pasta like tagliatelle or lasagna depending on the plates used.

How to use the dough divider?

Put cooking oil in the tray, spread the dough in the bin, then press the bar guide 2-3 times. Push the handle down, then slowly release the chain guide.

Does the machine require electrical power?

No, it is a manual machine. No electrical power is needed.

How to clean the machine after use?

Clean immediately after each use. Remove the tank, unscrew the screws of the machine head, wipe with a clean cloth. For a thorough cleaning, disassemble the pressure plates.

Can I wash the parts in the dishwasher?

It is recommended to wash the parts by hand with a damp cloth. Avoid the dishwasher to preserve the materials.

What to do if the machine is jammed?

Do not force it. Check that no hard material is blocking the tank. Make sure the machine is on a stable surface and the chain guide is correctly positioned.

What safety precautions should I follow?

Do not let children under 14 use the machine. Do not put your hands in the feed inlet: use the provided stick to push the dough.

Where can I find spare parts or technical support?

Visit www.vevor.com/support for technical support and the electronic warranty certificate.

How to store the machine?

After cleaning, dry all parts. Store it in a dry place. Lubricate the head regularly if the machine remains unused for a long time.

USER MANUAL XZ-10 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DOUGH DIVIDER

MODEL:XZ-10, XZ-40, XZ-18

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:XZ-10, XZ-40, XZ-18

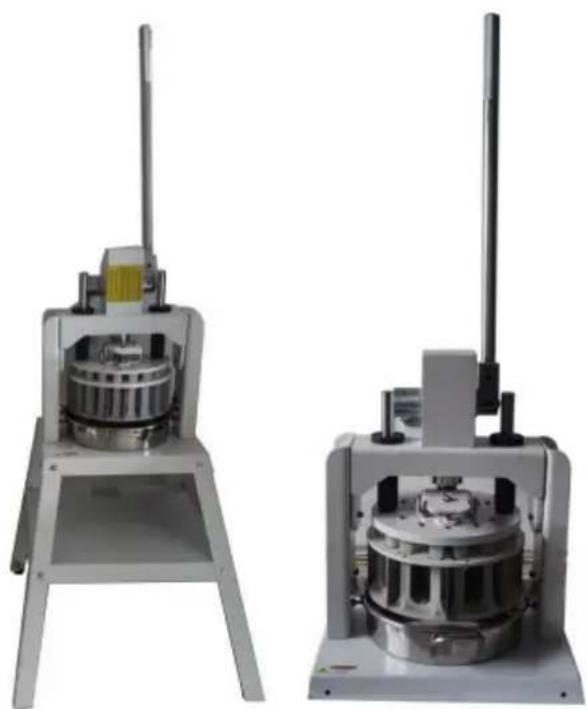

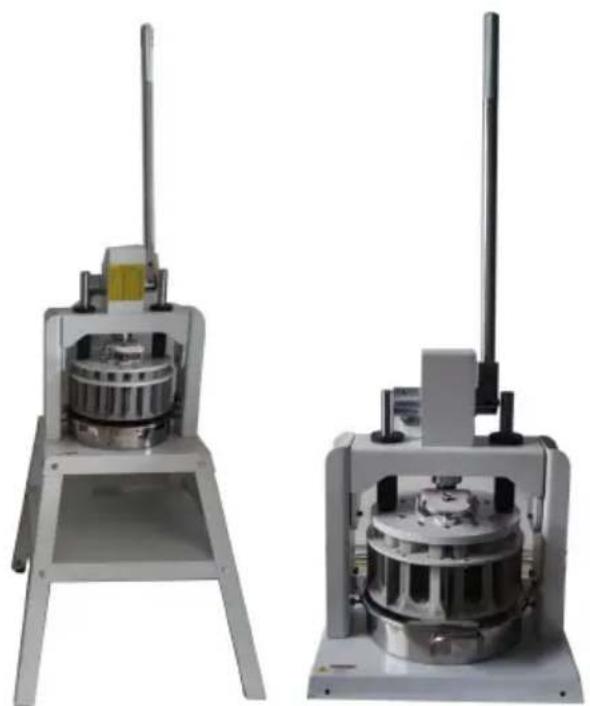

Two industrial mechanical devices with cylindrical components and vertical metal posts, no visible text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Before operating this device, please read this instruction manual completely and keep it handy for future reference. Always follow basic safety precautions when using these devices. These include:

1. Do not allow children younger than 14 years old to use the machine product may only be used or maintained by children 14 years of age older, individuals with reduced physical, sensory, or mental capacities, unskilled individuals with adequate adult supervision. Children must not play with the device.

2. For optimal operation and service life of the device, please follow the instructions.

3. Food acids will corrode the metal. Always clean this food preparation equipment immediately after every use. To maintain the appearance and increase the service life, clean it daily.

4. The use of accessories or modifications not provided by the manufacturer may cause hazards. This product must only be used for intended purpose and in the manner indicated in the instructions. All other types of use shall be considered inappropriate and hazardous. 1 manufacturer shall not be responsible for any improper or incorrect us and installation damage.

5. Don't put the dough into the feed inlet with your hands, press down the stick.

SAVE THESE INSTRUCTIONS

Installation and operation procedures

1. The machine needs a dry and flat ground, and the machine is st placed on the floor without vibration to ensure good performance.

2. Before using the machine, please put some cooking oil into the tray evenly put the dough into the material tray, mix according to the prescription, and let the dough relax for a while.

3. Place the basin on the work platform and secure it. First press th

bar 2-3 times to compacting the dough and ensuring an even cut, the press down on the handle and press the guide bar to the bottom. F slowly release the guide bar with your hand to ensure that the tool raised to the original position and the job is completed.

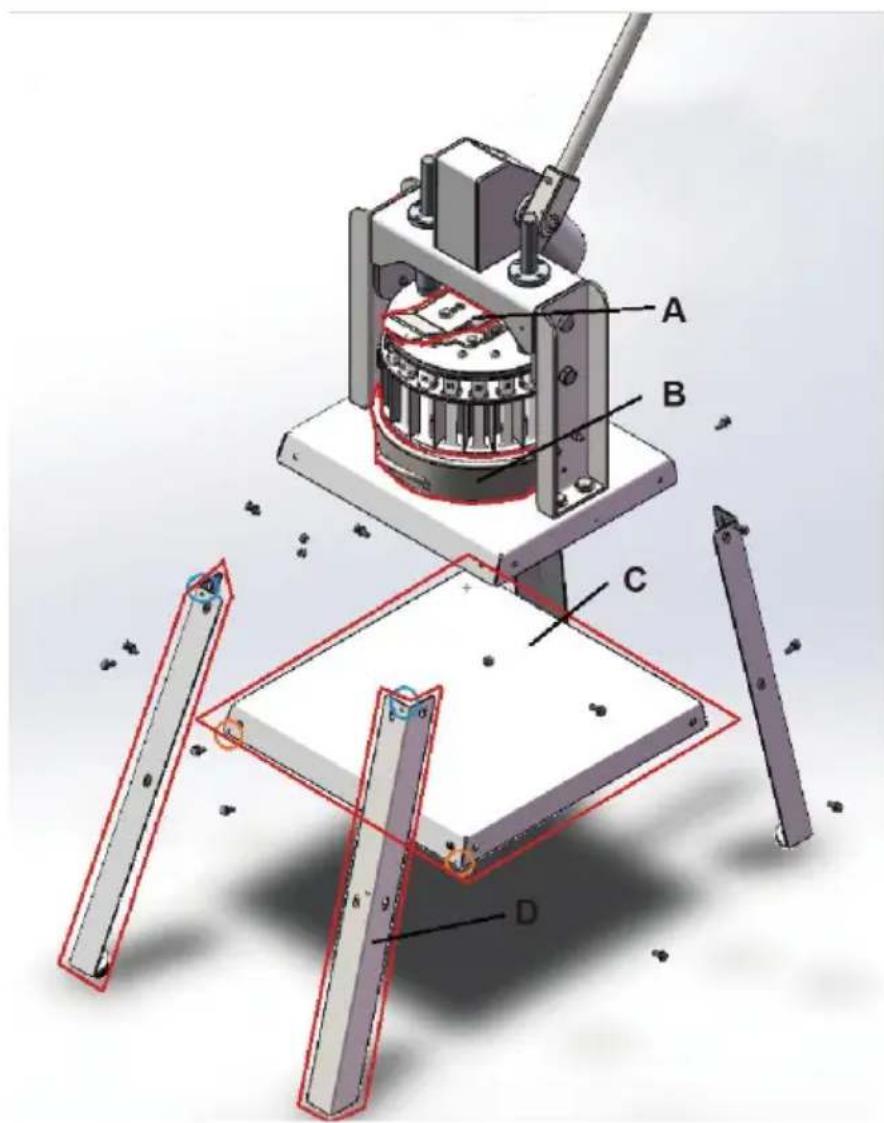

Product diagram

Installation notice

1. Only the front of the machine is easy to use the partition plate an pressure plate,
   2.There are 2 small holes on both sides of the plate to identify which on the front,
2. Only two support plates each have a small hole, which is easy to which side is on the front.

A. Clamp plate

B. Division plate

C.Pallet

D.Front foot board

Cleaning and maintenance process

1. Clean the machine after the day's work, take out the basin, unscr screws on both sides of the machine head (screw 1 and screw 2), rotate the machine head 90 degrees. Use a clean cloth to wipe the workbench and the tool holder.
2. If you need to clean all the tools one by one, unscrew all the s the tool holder (10 /40 in total), and then remove all the plastic pres plates for cleaning.
3. Do not put hard materials into the basin, can not take out the base unless the machine stops working, otherwise it will damage the machine.
4. Regularly clean the head, dust, etc. Keep the head lubricated before using a new machine or not using it for a long time.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
