Product Type	Outdoor Fire Ring Cover
Brand	Vevor
Model	YCSR-10001-40
Compatible Models	YCSR-10001-30, YCSR-10001-36, YCSR-10001-40
Outer Dimensions	Diameter 1020 mm x Height 550 mm
Inner Dimensions	Diameter 940 mm x Height 480 mm
Net Weight	7.3 kg
Material	Coated steel (estimated)
Color	Black (estimated)
Main Function	Weather and dust protection, child and pet safety
Usage	Outdoor, for open fire pits
Package Contents	Panels A, A1, A2, B, B1, B2, large and small handles, AA screws (20), BB screws (2), CC nuts (22), DD tubes (2), hex key, wrench, poker
Assembly Required	Yes, simple assembly with provided screws and nuts
Maintenance and Cleaning	Clean with a soft cloth; avoid abrasive products
Safety Precautions	Do not place on hot fire pit; keep out of reach of children; avoid sharp objects
Warranty	Technical support and electronic warranty certificate available at www.vevor.com/support
Manufacturer	Shanghai Muxin Muye Co., Ltd., Shanghai, China
Importer (Australia)	SIHAO PTY LTD, Eastwood NSW 2122
Importer (United States)	Sanven Technology Ltd., Rancho Cucamonga, CA 91730
Representative (United Kingdom)	YH CONSULTING LIMITED, London

Frequently Asked Questions - YCSR-10001-40 Vevor

How to install the Vevor YCSR-10001-40 fire ring cover?

Follow the steps in the manual: first assemble panels A with A1 and A2 using AA screws and CC nuts, then assemble B with B1 and B2. Attach the large (C) and small (D) handles with 2 AA screws and 2 CC nuts. Finally, connect the two assemblies with 2 BB screws, 2 CC nuts and 2 DD tubes. Tighten all screws with the provided hex key.

What are the dimensions and weight of the YCSR-10001-40 model?

The outer dimensions are 1020 mm in diameter and 550 mm in height. The inner dimensions are 940 mm in diameter and 480 mm in height. The net weight is 7.3 kg.

Can I use this cover on a hot fire pit?

No, absolutely not. To avoid burns, make sure the fire pit is completely cool before placing the cover. Failure to follow this instruction may cause injury or damage.

Is this cover suitable for all fire pit models?

This cover is specifically designed for Vevor models YCSR-10001-30, YCSR-10001-36, and YCSR-10001-40. It may fit other fire pits of similar dimensions, but check inner and outer diameters for a proper fit.

How to maintain and clean the cover?

Clean the cover regularly with a soft, dry cloth. Avoid abrasive products or chemical cleaners that could scratch or damage the surface. Store it in a dry place when not in use.

What to do if parts are missing during installation?

Check the package contents against the list: 20 AA screws, 2 BB screws, 22 CC nuts, 2 DD tubes, 1 hex key, 1 wrench, 1 poker, and panels A, A1, A2, B, B1, B2, as well as handles C and D. If any item is missing, contact Vevor support via www.vevor.com/support.

Is the cover weather resistant?

Yes, the cover is designed for outdoor use and protects the fire pit from rain, snow, and dust. However, prolonged exposure to extreme conditions may cause wear. It is recommended to store it under shelter if possible.

Can I repair or replace damaged parts?

Yes, parts such as screws, nuts, handles, and panels can be replaced. Contact Vevor for replacement parts. The poker and keys are also available if needed. Refer to the manual for part numbers.

How to get technical support or a warranty certificate?

Visit www.vevor.com/support for technical support and the electronic warranty certificate. You will also find contact information for the manufacturer and importers.

Is this product delivered with a manual in French?

Yes, the included user manual is available in French as well as other languages (English, German, Italian, etc.). You can also download it for free in PDF format from notice-facile.com.

USER MANUAL YCSR-10001-40 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

FIRE RING COVER

MODEL:YCSR-10001-30 /

YCSR-10001-36 / YCSR-10001-40

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:YCSR-10001-30 / YCSR-10001-36 / YCSR-10001-40

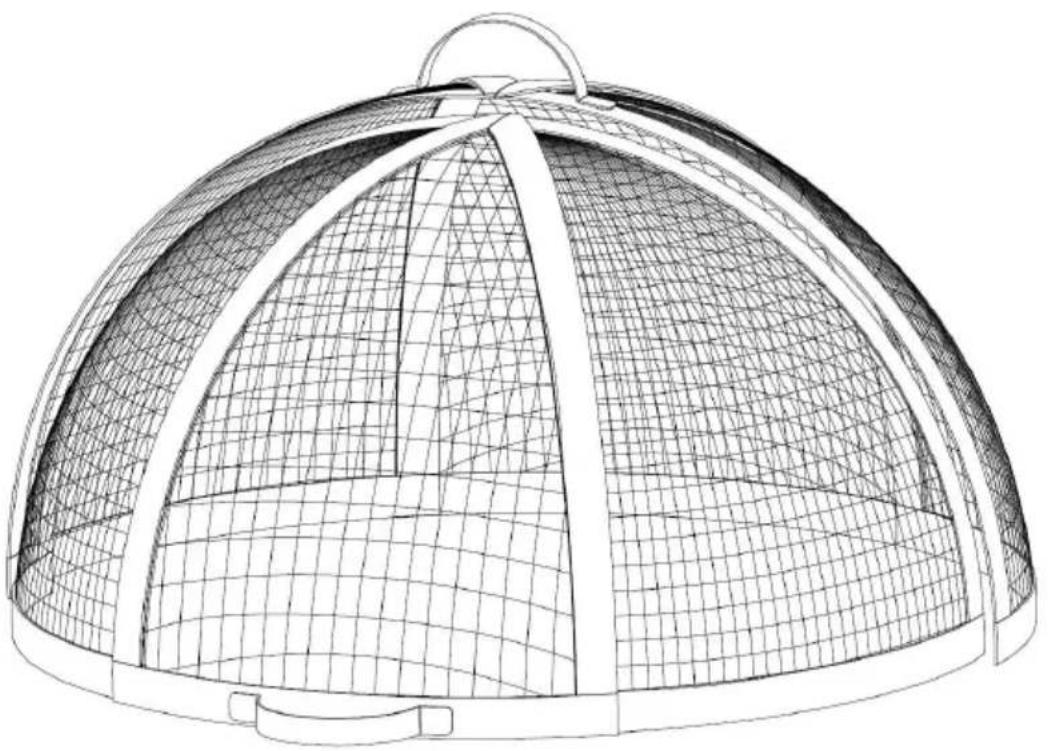

Line drawing of a dome-shaped metal structure with grid pattern and handle (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• To prevent burns from the heated lid, make sure the brazier is cc before placing the lid on it.
• Avoid children using the devices. and this product is not a toy. Do allow children to play with.
• Keep away from sharp points, blades and other items, so as not to scratch the product.

SAVE THESE INSTRUCTIONS

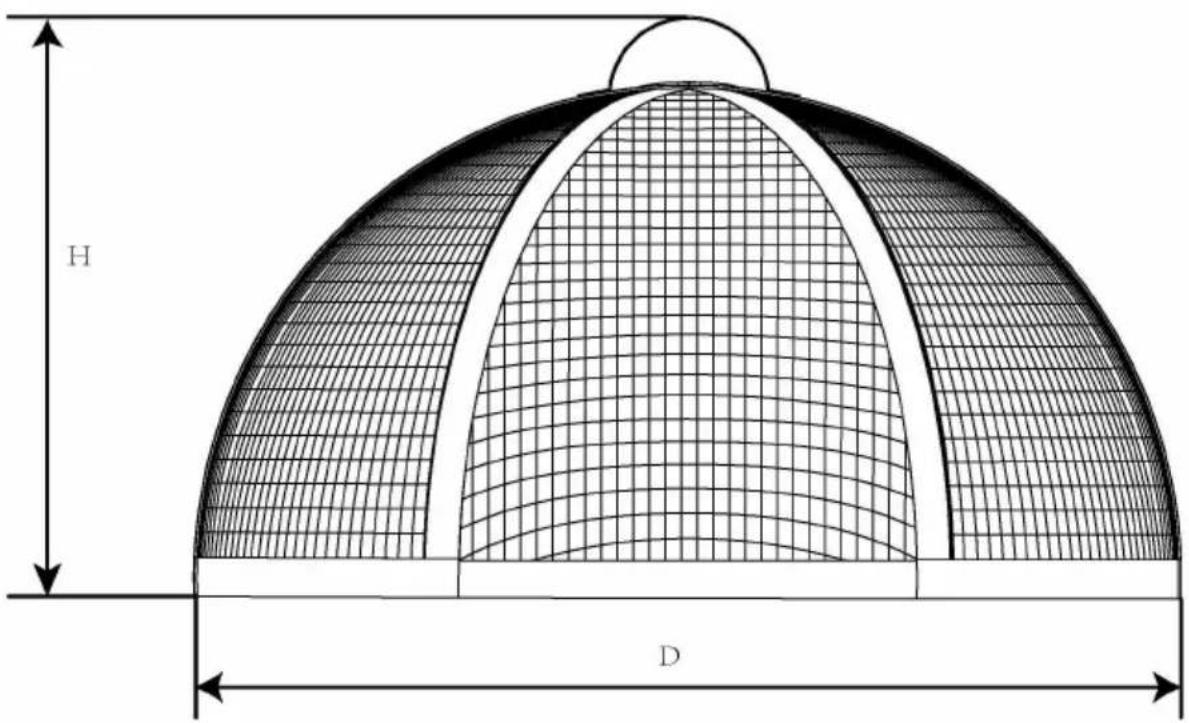

PRODUCT SPECIFICATIONS:

Model#	Product Size (mm)	Internal Size (mm)	Weight(kg)
YCSR-10001-30	φ770*430	φ705*350	5.1
YCSR-10001-36	φ930*500	φ850*430	6.4
YCSR-10001-40	φ1020*550	φ940*480	7.3

SIMPLE INSTRUCTION

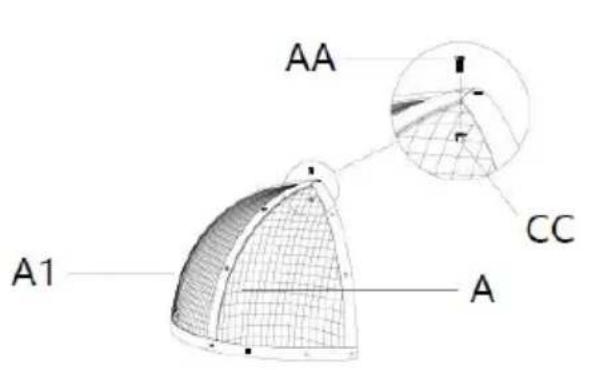

Step 1: Assemble A and A1 mesh
4 AA screws and 4 CC nuts

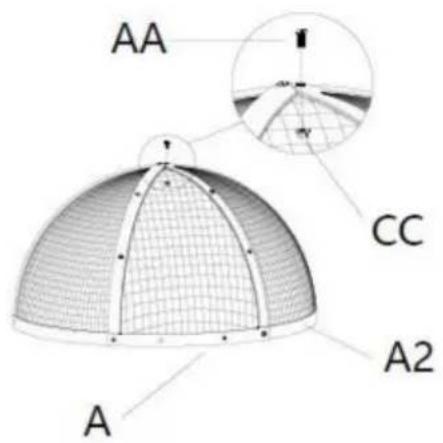

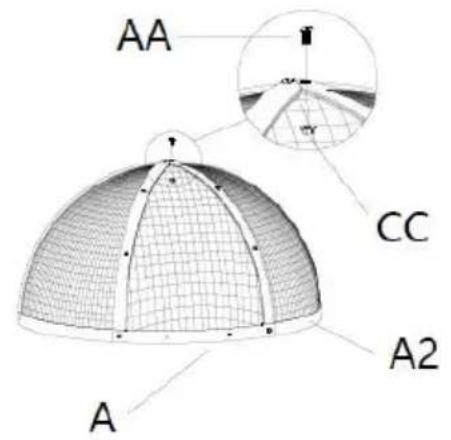

Step2: Assemble A and A2 mesh 4 AA screws and 4 CC nuts

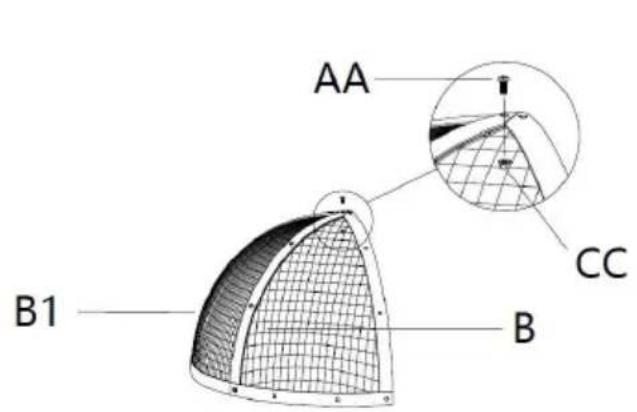

Step3: Assemble B and B1 mesh 4 AA screws and 4 CC nuts

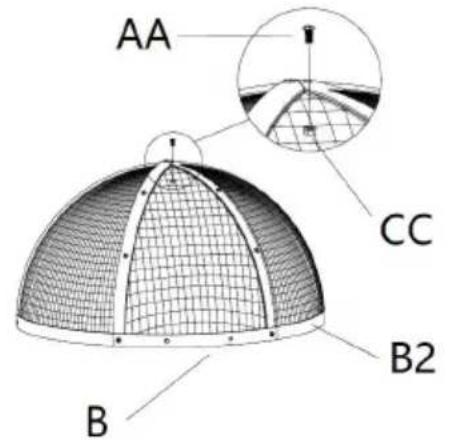

Step4: Assemble B and B2 mesh with 4 AA screws and 4 CC nuts

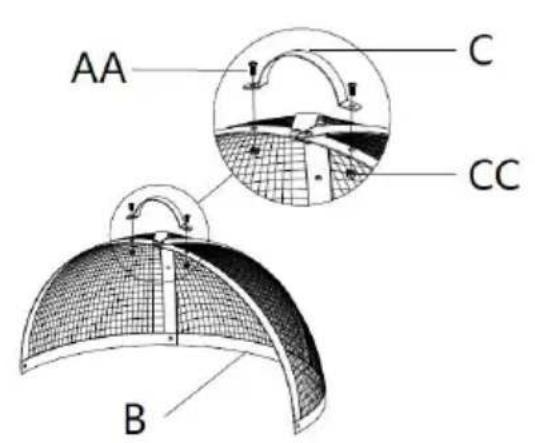

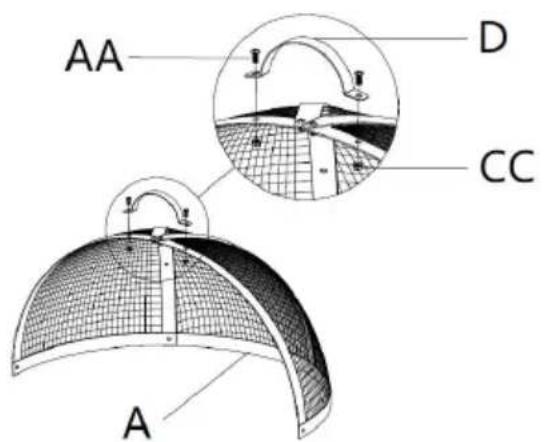

Step 5: Assemble the part and ha Step 6: Assemble the part and ha D assembled in Step 2, using 2 / C assembled in Step 4, using 2 / screws and 2 CC nuts. screws and 2 CC nuts.

Step 7: Assemble the parts of Steps 5 and 6 with 2 BB screws, 2 CC nuts and 2DD annular tubes.

ATTENTION:

• It is recommended to find someone to assist with the installation.
  ● Make sure that the fire ring cover panels are installed in the prop position, and then finally tighten the screws with the plate handle.
  ● After the entire fire ring cover is installed, check whether the inner net can be turned over smoothly

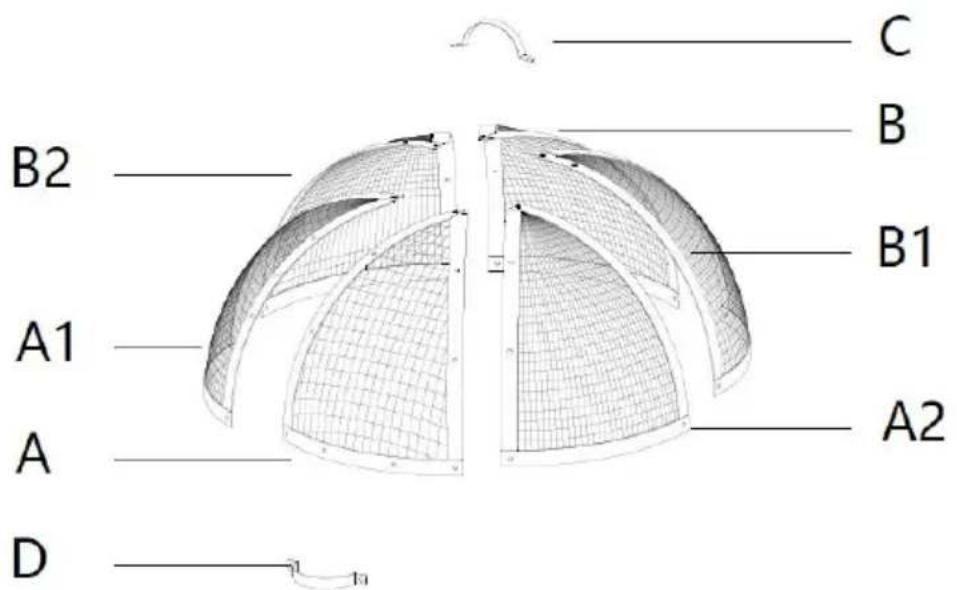

PACKAGE INCLUDE

NO	COMPONENTS	PICTURE	SYMBOL	Q'TY
				FITS MODEL #
				YCSR-10001-30/YCSR-10001-36/YCSR-10001-40
1	A-screen		A	1pcs
2	A1-screen		A1	1pcs
3	A2-screen		A2	1pcs
4	B-screen		B	1pcs
5	B1-screen		B1	1pcs
6	B2-screen		B2	1pcs
7	Big handle		C	1pcs
8	Small handle		D	1pcs
9	screw		AA	20pcs
10	screw		BB	2pcs
11	nut		CC	22pcs
12	Annular tubes		DD	2pcs
13	Hexagonal wrench		/	1pcs
14	wrench		/	1pcs
15	poker		/	1pcs

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a dome-shaped metal structure with grid pattern (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Route, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

www.vevor.com/support

FEUERRINGABDECKUNG

MODELL:YCSR-10001-30 /

YCSR-10001-36 / YCSR-10001-40

Technical line drawing of a dome-shaped metal structure with grid pattern (no text or symbols)

YH CONSULTING LIMITED. C/O YH Consulting

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

COPERTURA ANELLO FUOCO

MODELLO:YCSR-10001-30 /

YCSR-10001-36 / YCSR-10001-40

Technical line drawing of a dome-shaped metal structure with grid pattern (no text or symbols)

Fase 5: assemblare la parte e la maniglase 6: assemblare la parte e la maniglia

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

Strada, Staines-upon-Thames, Surrey, TW18 4AX

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a dome-shaped metal structure with grid pattern (no text or symbols)

YH CONSULTING LIMITADA. A LA CARGO DE YH Consulting

Carretera, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE CE

E-CrossStu GmbH

Technical line drawing of a dome-shaped metal structure with grid pattern (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIE Z NAMI!

YH CONSULTING LIMITED. C/O YH Consulting

Biuro Limited 147, Centurion House, Londyn

Droga, Staines-upon-Thames, Surrey, TW18 4AX

Przedstawiciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VUURRING DEKSEL

MODEL:YCSR-10001-30 /

YCSR-10001-36 / YCSR-10001-40

Technical line drawing of a dome-shaped metal structure with grid pattern (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

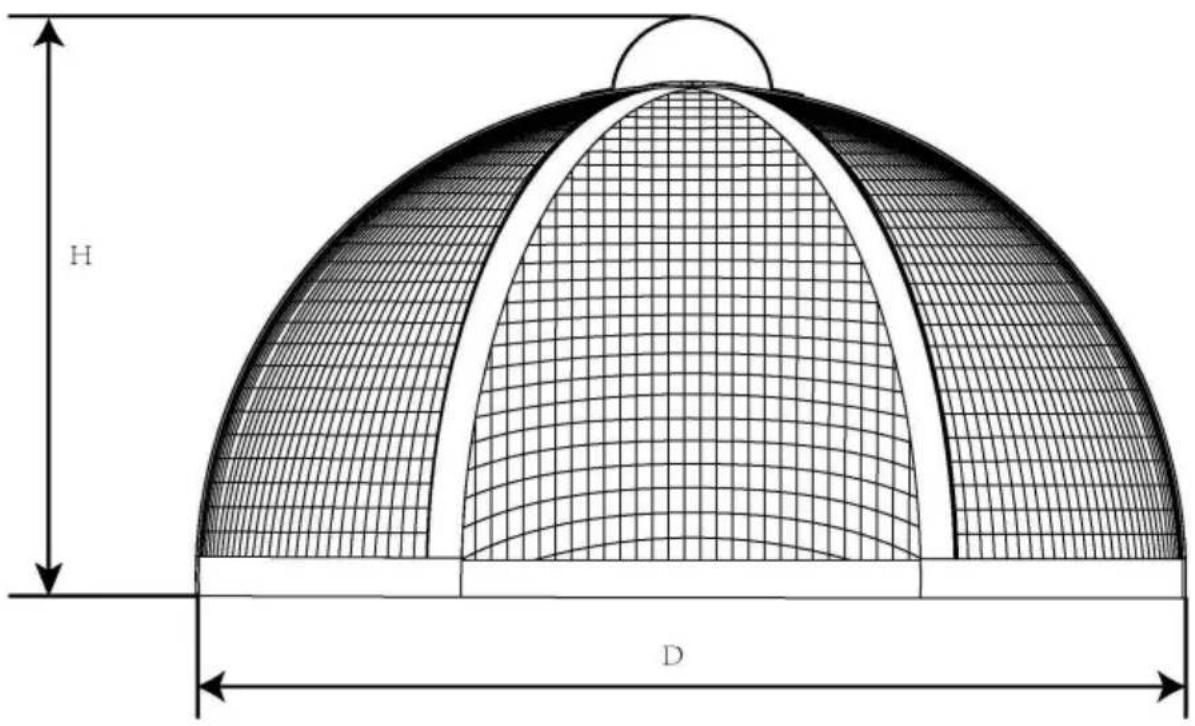

PRODUCTSPECIFICATIONS:
