Product Type	Trash Cart (Hand Truck)
Brand	Vevor
Model	Y02-1
Color	Blue/Gray
Maximum Load Capacity	200 kg (440 lb)
Compatible Trash Can Diameter	380-580 mm
Main Materials	Stainless steel tube, plastic block
Number of Wheels	4
Wheel Type	2 fixed, 2 swivel with brakes
Package Dimensions	Not specified (estimated: 80 x 40 x 20 cm)
Product Weight	Approximately 12 kg
Package Quantity	1
Package Contents	4 plastic blocks, 4 steel tubes, 4 wheels, 16 screws, screwdriver, tape measure, manual
Assembly Required	Yes, with included tools
Intended Use	Transporting trash cans up to 200 kg
Safety Instructions	Wear gloves, lock brakes, do not overload, keep out of reach of children
Maintenance and Cleaning	Clean with a damp cloth; dry after use
Spare Parts and Repairability	Replacement screws available; contact support for other parts
Technical Support	www.vevor.com/support
Warranty	Electronic warranty certificate available online

Frequently Asked Questions - Y02-1 Vevor

What is the load capacity of the Y02-1 hand truck?

The maximum load capacity is 200 kg (440 lb).

What types of trash cans are compatible?

Trash cans with a diameter between 380 and 580 mm are compatible.

How to assemble the Y02-1 hand truck?

Attach the wheels with the provided screws, insert the tubes into the corresponding holes, and lock the locks. Use the included screwdriver and tape measure. Refer to the installation diagram in the manual.

What safety instructions should be followed?

Wear gloves, ensure all locks are closed, do not overload the hand truck, and keep it out of reach of children. Lock the wheel brakes before use.

How to maintain the Y02-1 hand truck?

Clean it with a damp cloth and dry it after use. Regularly check the tightness of screws and the condition of the wheels.

Where can I find spare parts?

Contact technical support via www.vevor.com/support to obtain spare parts. Replacement screws are generally available.

Is the hand truck delivered assembled?

No, it requires simple assembly. All necessary tools and accessories are included in the package.

What is the color of the Y02-1 model?

The color is blue/gray according to the manual.

What is the warranty of this product?

Vevor provides an electronic warranty certificate. Visit www.vevor.com/support for more information.

Can I use the hand truck on rough terrain?

The hand truck is designed for use on flat surfaces. The swivel wheels make maneuvering easier, but it is not recommended for use on very uneven terrain.

USER MANUAL Y02-1 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

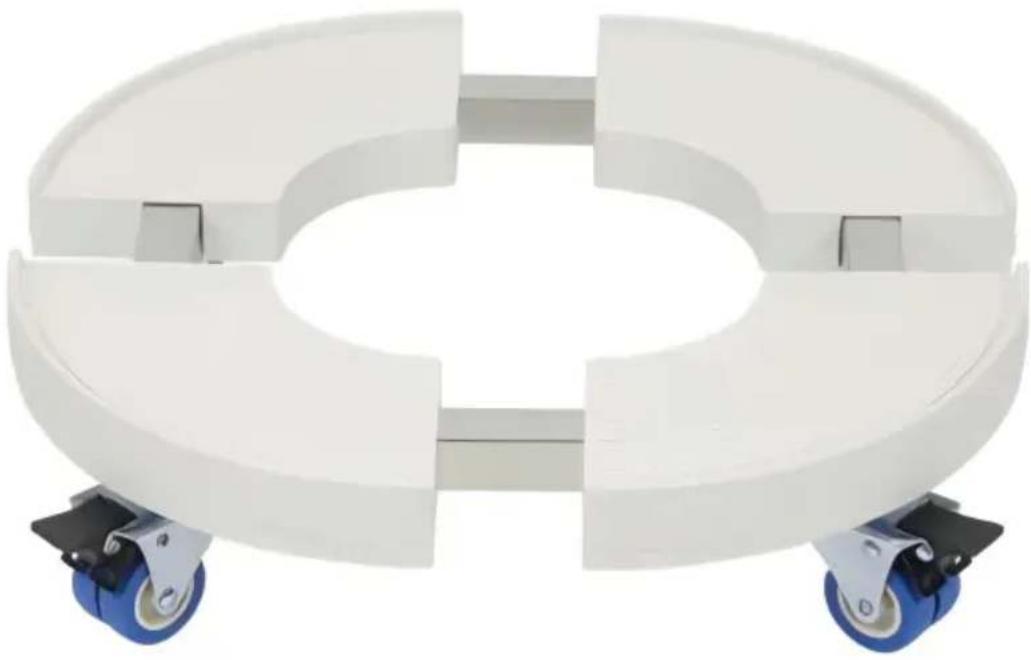

TRASH CAN DOLLY USER MANUAL

MODEL: Y21-1 & Y02-1 & Y21-2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: Y21-1 & Y02-1 & Y21-2

Note: The actual product you receive determines its look.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Important safety instructions

Warning - To reduce the risk of injury, the user must read instructions manual carefully.

This symbol, placed before a safety comment, indicates a kind precaution, warning, or danger. Ignoring this warning may lead accident. To reduce the risk of injury, fire, or electrocution, pl always follow the recommendations shown below.

Warning- Be sure to wear gloves when using this product.

WARNING!

1. Make sure all locks are locked after the product is assemble
2. This product is not a toy. Please keep it away from children
3. The product will slide, and people can not stand on it. Othere is easy to get hurt.
4. Do not overload the product.

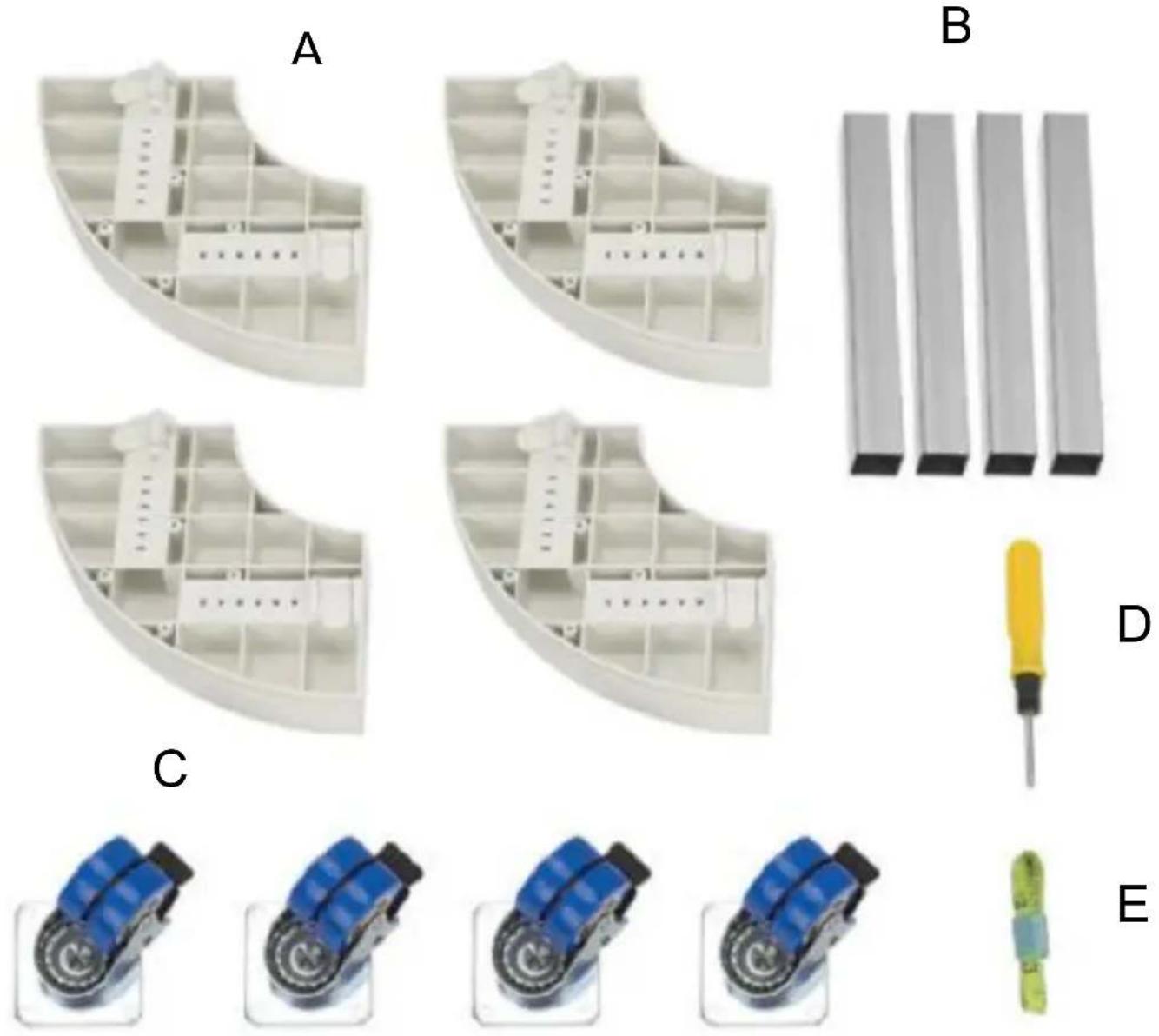

2\.Accessories introduction

Item	Description	Y21-1	Y02-1	Y21-2
A	Chassis plastic block	4pcs	8pcs	4pcs
B	Stainless steel tube	4pcs	8pcs	4pcs
C	Wheel	4pcs	8pcs	4pcs
D	Screwdriver	1pcs	1pcs	1pcs
E	Tape measure	1pcs	1pcs	1pcs
	Screw	16pcs	32pcs	16pcs
	Instruction book	1pcs	1pcs	1pcs

3.Installation procedures

1. Secure the wheel w four screws	2. Place the square tu as shown	3. Insert the square tu into the corresponding hole and close the loc
4. The finished product shown in the figure	5. Move into position a lock the wheel brakes keep the base steady.

4Parameter

Model	Y21-1	Y02-1	Y21-2
Size Range(OD)	380-580 mm
load-bearing	440 lbs
Number Of Packages	1 Pcs	1 Pcs	2 Pcs
Colour	Black	blue grey	Black
