XY-12 - Hand truck Vevor - Free user manual and instructions

Product type	Handling dolly (furniture transporter)
Brand	Vevor
Model	XY-12
Total load capacity	150 kg (330 lb)
Number of dollies included	4
Total number of wheels	8
Wheel type	PP (polypropylene)
Chassis material	Carbon steel
Recommended use	Flat, hard floor (indoor)
Maximum floor inclination	0° (flat floor only)
Recommended movement	Slow, at low speed
Direction	Swivel casters (good maneuverability)
Forbidden terrain	Uneven, soft, sloped or stepped floor
Included accessories	1 pry bar, 1 user manual
Group usage	3 or 4 dollies recommended for heavy furniture
Precaution for tall furniture	High center of gravity, risk of tipping over
Maintenance	Clean after use, store in dry place, inspect wheels
Wheel replacement	Replace immediately if damaged
Technical support	www.vevor.com/support
Warranty	See electronic warranty certificate on Vevor website

Frequently Asked Questions - XY-12 Vevor

How to use the XY-12 dolly?

Insert the pry bar under the furniture, lower the handle to lift, then slide a dolly under each corner. Repeat for all 4 dollies. Move slowly by pushing.

What is the maximum load capacity?

The total capacity is 150 kg (330 lb) for all 4 dollies combined. Do not exceed this load.

Can I use this product on carpet?

No, the product is designed for flat, hard floor. Carpets or soft floors can damage the wheels and reduce stability.

How many dollies are included?

The pack contains 4 dollies, 1 pry bar and the user manual.

How to maintain the product?

After use, clean the dollies and wheels to remove filings, sand or oil. Store in a dry place. Regularly inspect the wheels and replace if damaged.

Can I use it on a sloped surface?

No, use on slopes is strictly prohibited. The product is designed for flat floor only, any inclined terrain may cause accidents.

What to do if a wheel is damaged?

Immediately replace the defective dolly or wheel. Contact customer service via www.vevor.com/support to get spare parts.

Is it suitable for furniture with legs?

Yes, make sure the furniture legs are centered on the dolly. For flat furniture, place the dolly completely under the base.

How to move heavy furniture?

Use 3 or 4 dollies together. For tall furniture, watch the center of gravity. Move slowly and, if necessary, use a pry bar to help with steering.

What accessories are included?

The pack includes 4 dollies and 1 pry bar. The user manual is also provided.

USER MANUAL XY-12 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

MACHINERY MOVER

USER MANUAL

Model: XY-7, XY-8, XY-9, XY-10, XY-11, XY-12

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us whether you are actually saving half in comparison with the top major brands.

XY-7 & XY-8 & XY-9 XY-10

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.
2. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

GENERAL SAFETY RULES

1. It is recommended to use this product on flat, hard ground.
2. It is strictly prohibited to use this product on uneven or soft ground, which is liable to cause property damage and personal injury.
3. This product is not suitable for use on sloping ground, otherwise accidents will occur easily.
4. Do not exceed the product's load capacity.
5. Because the ground is not smooth, the wheels of each mover may not all be involved in the work; it is recommended to use under the normal load.
6. When using this product, it should be moved slowly at a low speed; excessive speed can easily cause the mover to slide out, and accidents can happen easily.
7. When the load is lighter, the steering performance of the mover is good; conversely, the steering performance of the mover is not good. Do not swerve when the operator is struggling to turn. It is recommended to use a crowbar to lift and assist the mover in steering.
8. In the use of this product, avoid collision, otherwise the product may be damaged and become unusable.
9. It is not recommended to use a single mover or two movers together for large furniture, as such use is not safe; for heavy furniture, 3 or 4 movers are usually used together.
10. For high and narrow furniture, due to the high center of gravity, take mover handling measures to prevent possible overturning.
11. When multiple movers are used together, non-slip mats are added

to ensure consistency in height; when handling, control the direction of each mover so that they are consistent, otherwise it is difficult or impossible to move. When turning, it is suggested to lift the weight slightly with a crowbar or other tools to facilitate the mover to turn.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	XY-7	XY-8	XY-9	XY-10	XY-11	XY-12
Total Load Capacit	440 lbs	440 lbs	661 lbs	661 lbs	440 lbs	330 lbs
Package	4pcs	4pcs	4pcs	4pcs	4pcs	4pcs
Number of Wheels	5	5	5	5	3	8
Wheel Type	PP	PP	PP	PP	PP	PP
Material	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel

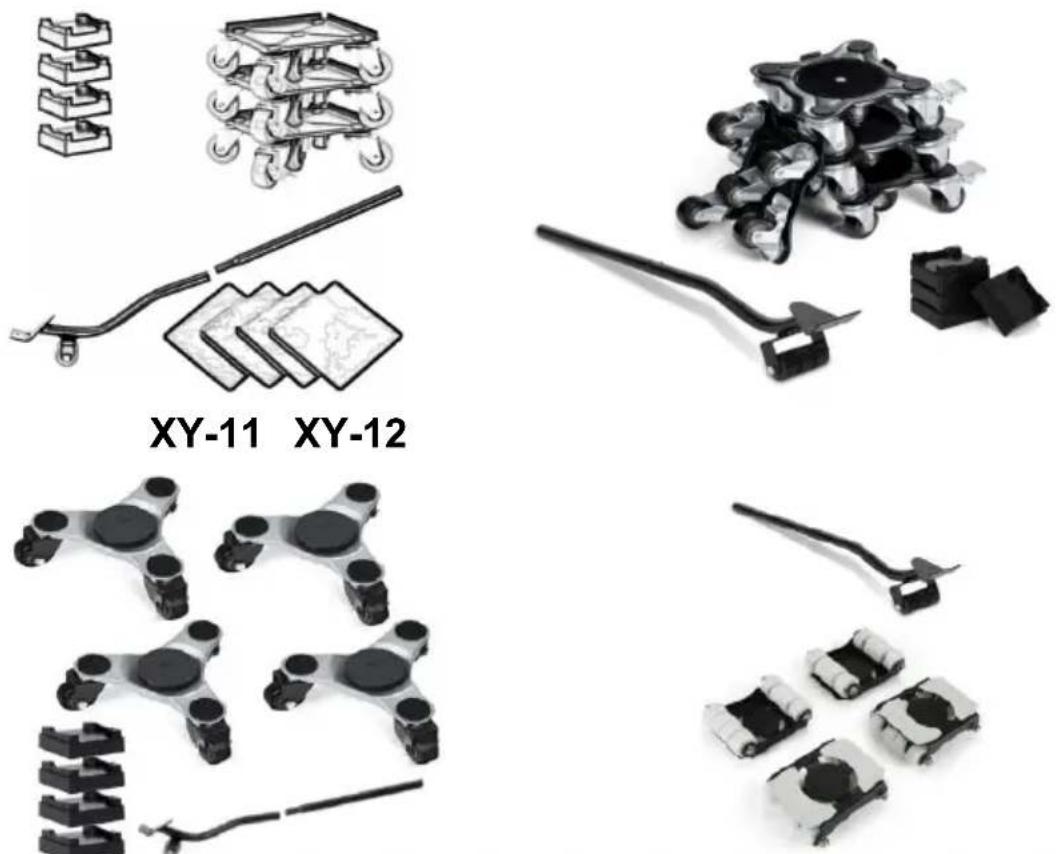

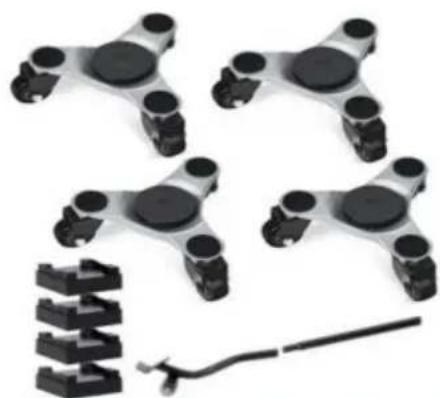

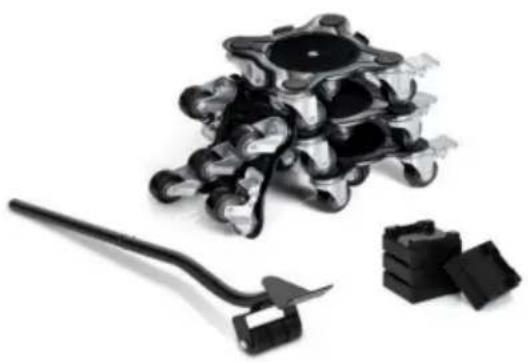

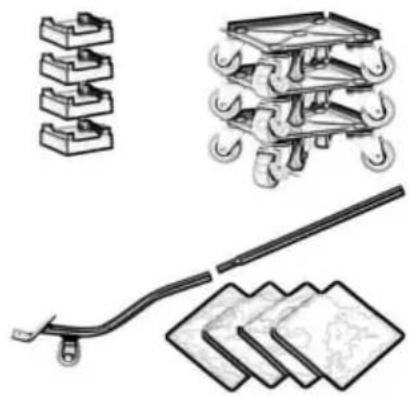

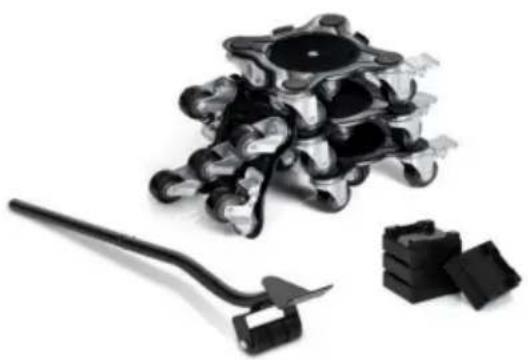

COMPONENTS

Name	XY-7	XY-8	XY-9	XY-10	XY-11	XY-12
Machinery Mover	4	4	4	4	4	4
Crowbar	1	1	1	1	1	1
Raising Block	4	4	4	4	4	/
Non-slip Mat	4	4	4	4	4	/
Glove	1	1	1	1	/	/
Storage Bag	1	1	1	1	/	/
Crowbar Non-slip Mat	4	4	4	4	/	/
elastic rope	/	1	1	/	/	/
User manual	1	1	1	1	1	1

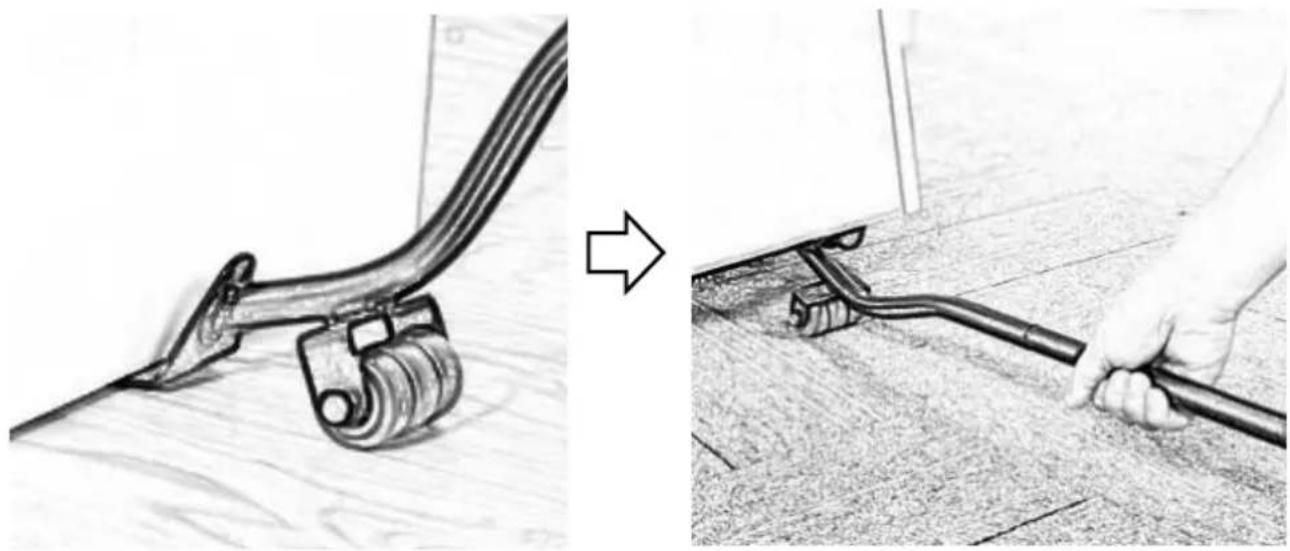

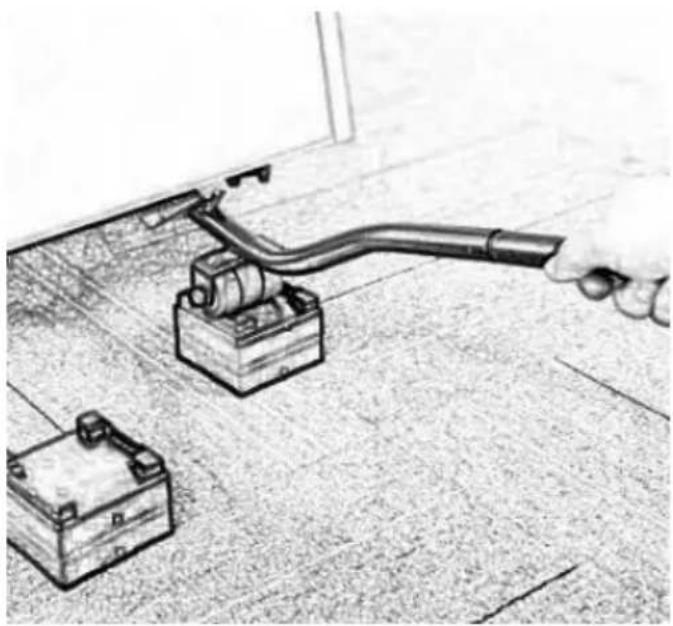

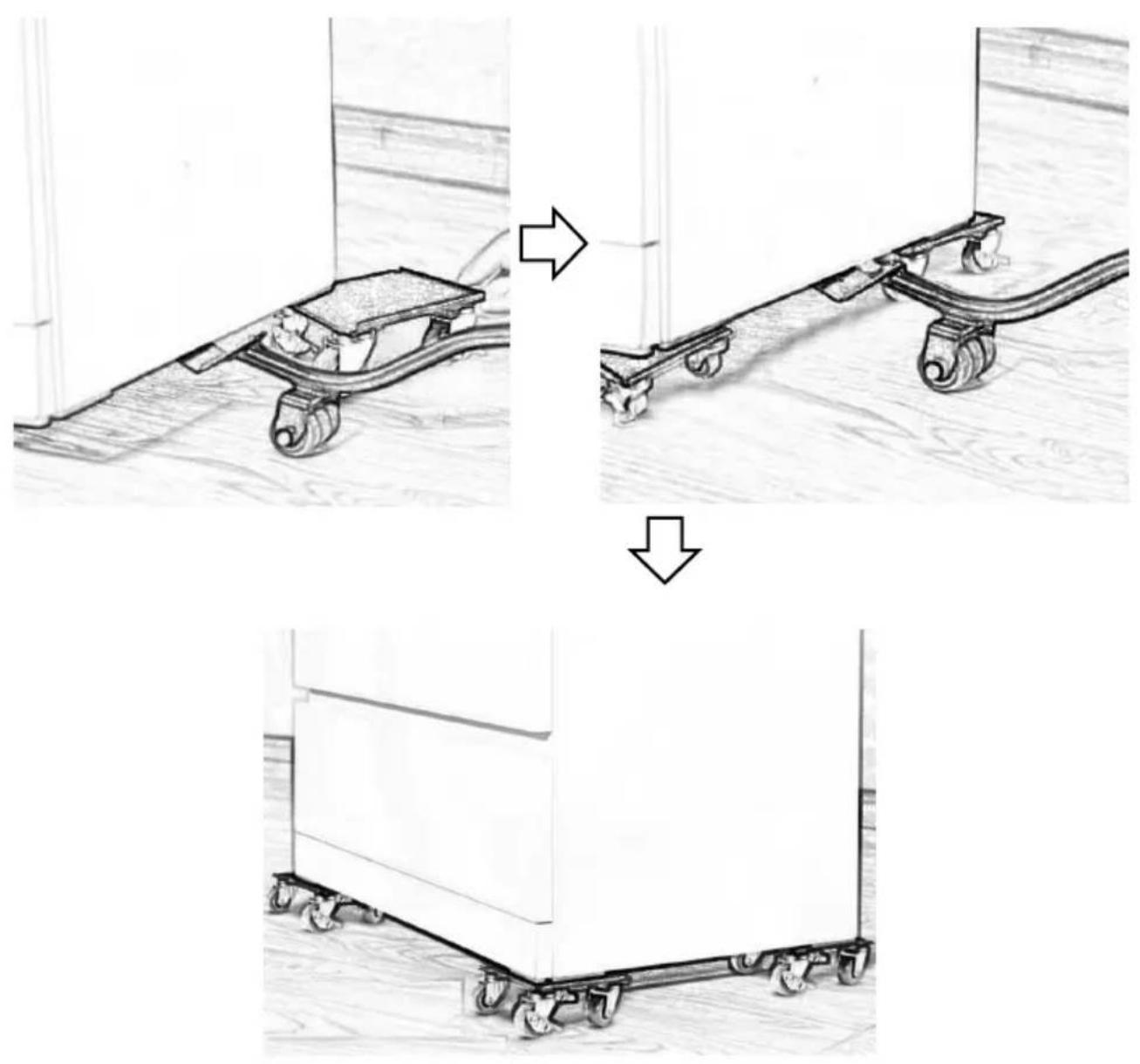

Step 1: Push the crowbar into the bottom of the furniture, hold the handle and press down.

NOTE: The crowbar is equipped with heightening pads to fit furniture of different heights.

Step 2: Push household machinery movers into the bottom of the furniture, pull out the crowbar.

Step 3: Push 4 household machinery movers into the bottom four corners of the furniture.

Make sure the installation is secure and you can move the furniture.

NOTE:

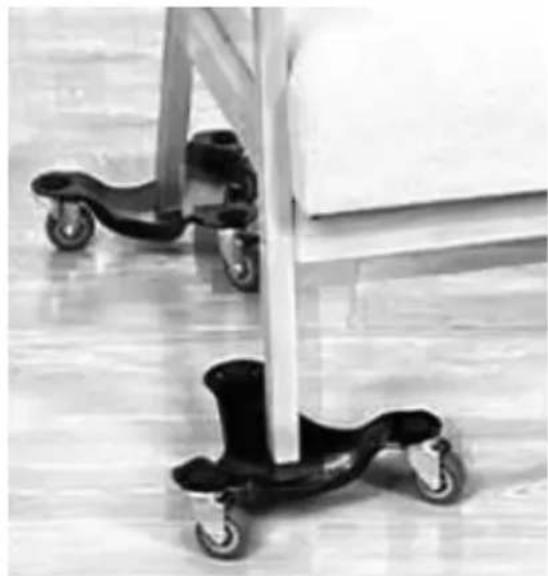

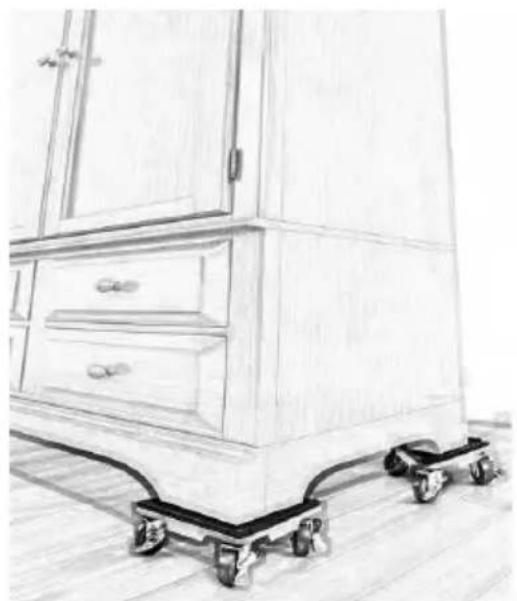

1) This product is suitable for moving furniture indoors on a flat floor. It cannot be used on uneven, soft ground, such as cement, similar cement, carpets, and so on. 2) This product is not suitable for sloping ground or ground with steps. 3) For furniture with legs, make sure the legs of the furniture are placed on the mover. The correct usage is shown below in Fig 1 and Fig 2.

Fig 1 Fig 2

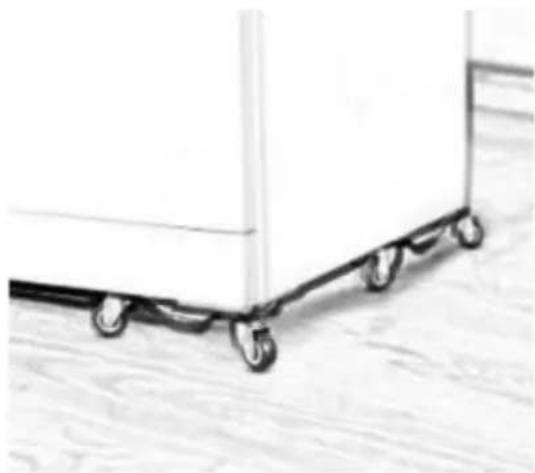

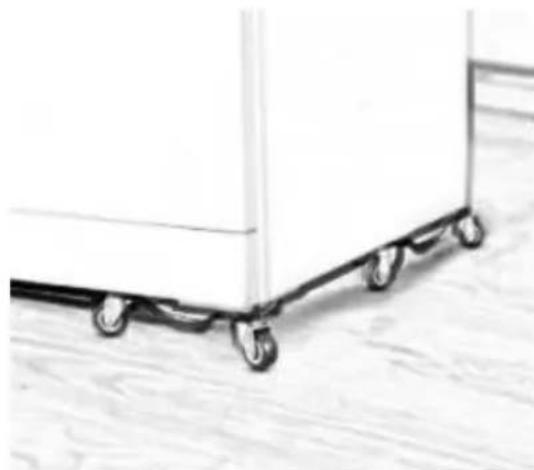

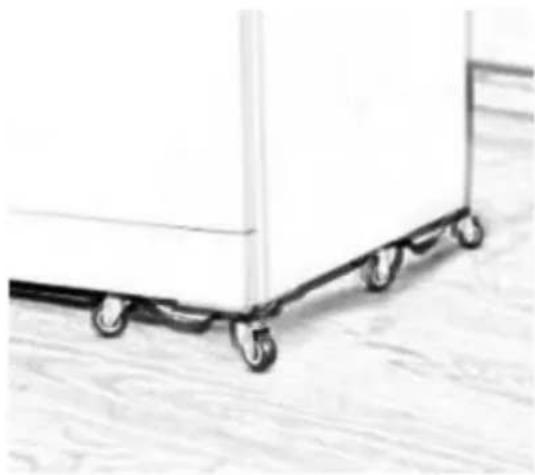

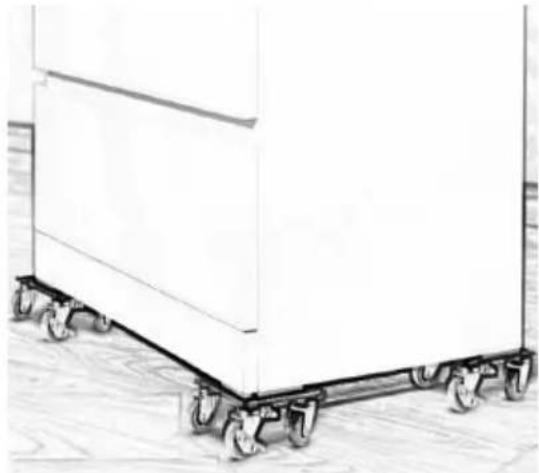

4) For bottom flat furniture, make sure the top side of the tool is completely flat against the bottom of the furniture, as shown below in Fig 3 and Fig 4.

Fig 3 Fig 4 (JYS-135)

5) When using this product, it should be moved slowly at a low speed. Excessive speed can easily cause the mover to slide out. 6) A mover equipped with universal wheels has good steering performance and requires slow rotation when turning. 7) A mover (JYD-114) equipped with directional wheels requires manual assistance when turning. 8) A mover equipped with brakes can be used when needed to prevent the mover from moving.

MAINTENANCE

1. After the mover is used, please clean it first and keep it in a dry environment.
2. Regularly inspect the mover. Replace the wheel or the mover if the wheel is damaged.
3. After use, the mover with PP wheels should be cleaned in time, because the wheels can easily be damaged by sharp objects such as iron filings, sand, etc.
