USER MANUAL 2025C Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

STAIR CLIMBING CART

MODEL: 2025C

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

STAIR CLIMBING CAR ^T

MODEL:2025C

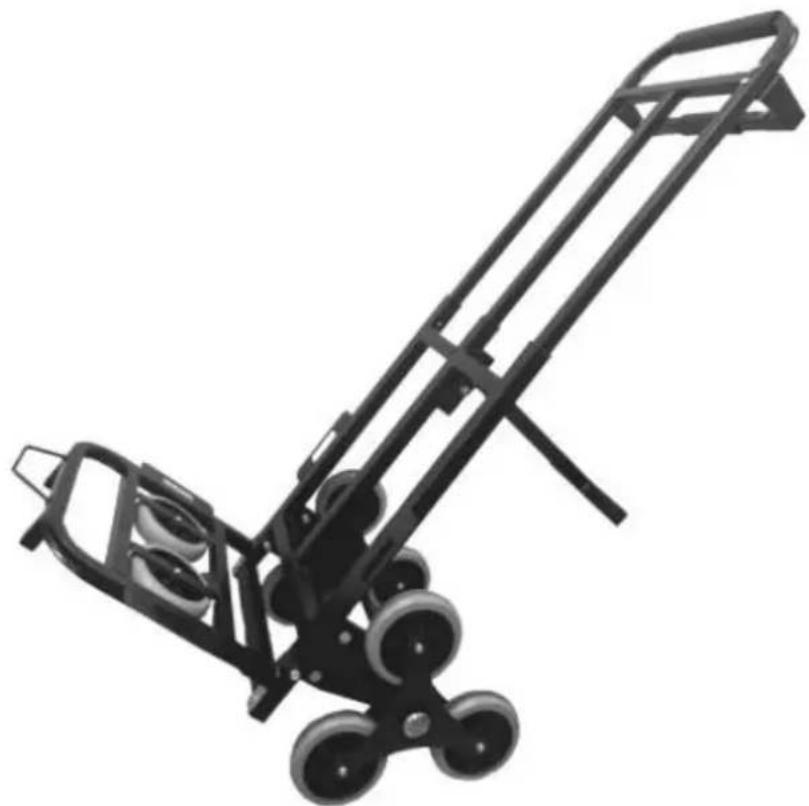

Black-and-white photo of a multi-wheeled pallet jack with wheels and frame structure (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

1. Please do not put it near flammable materials.
2. It is forbidden to carry people under any condition.
3. Please pay attention to safety when going up and down stairs.
4. Overload is strictly prohibited.
5. Don't move too fast when passing pothole areas.

MODEL AND PARAMETERS

Model	2025C
Maximum Load(Flat Ground)	460lbs
Maximum Load(Climb Stairs)	220lbs
Color	Black
Material	Steel+Rubber+PP

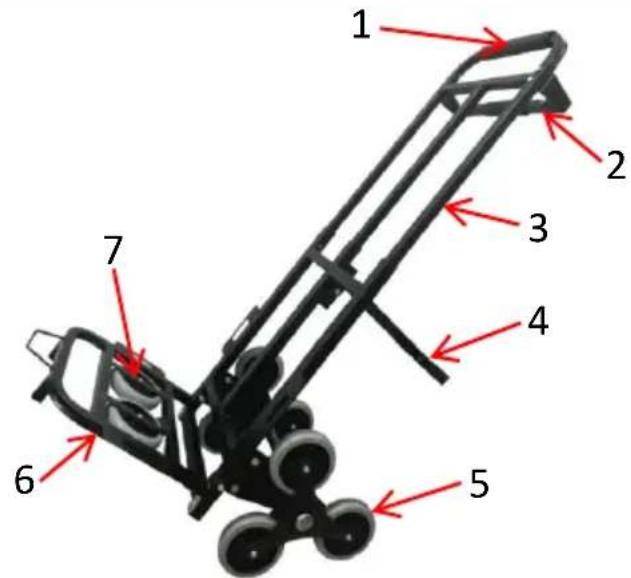

STRUCTURE DIAGRAM AND COMPONENTS

1 2 3 4 5 6 7

1. Handle 1 2. Handle 2 3. Frame 4. Support bar 5. Climbing Wheel 6. Tray 7. Spare wheels

COMPONENTS

A: Cart Frame x1	B: Wheel Frame x1
C: Wheel Sets x2	D: Nuts x4
E: Washer x2	F: Bolts x4
G: A plum lock x2	Elastic Binding Rope x2
Installation Tools x2	User manual x1

ASSEMBLY

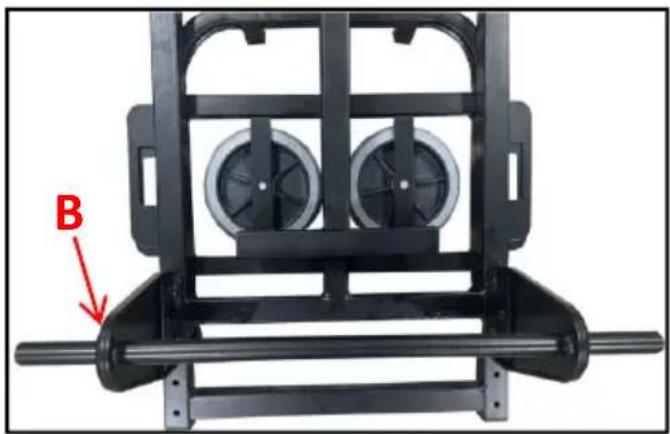

1. Place the frame(A), and then install the Wheel Frame(B).

Mechanical device with two circular components mounted on a rail, labeled B with red arrow (no text or symbols on the device itself)

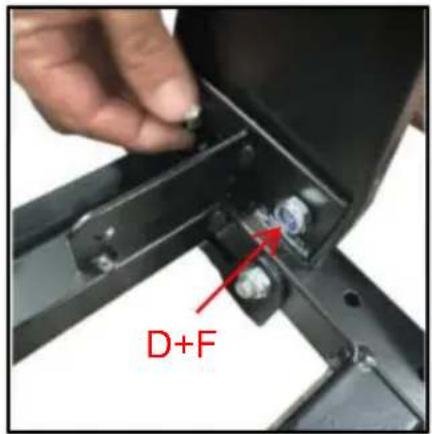

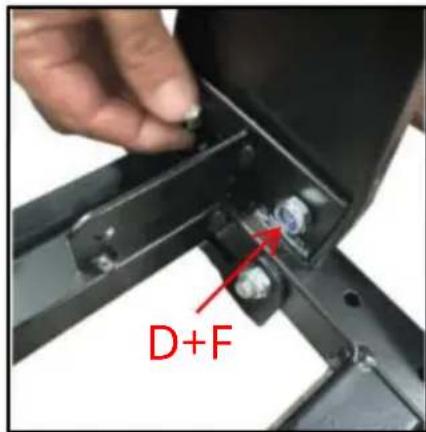

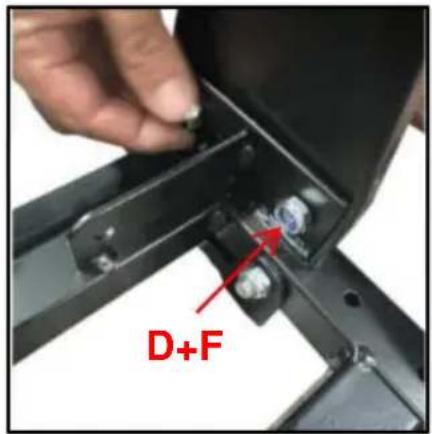

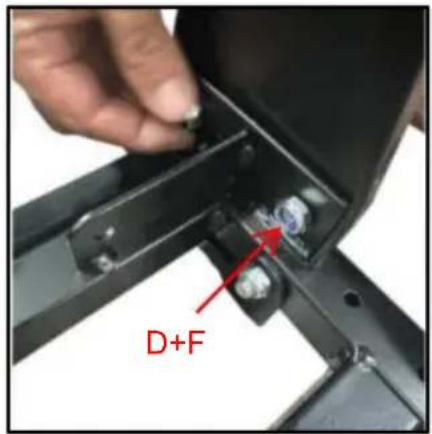

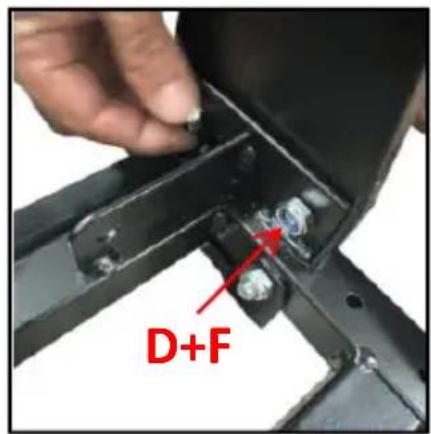

D+F

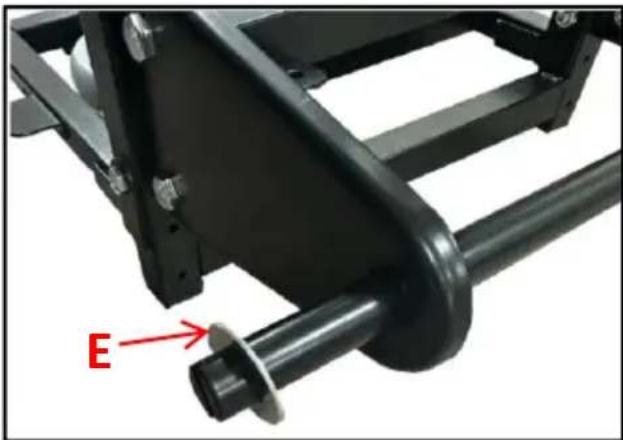

1. Put the Washer(C) on each end.

Mechanical assembly with black frame and pipe fitting, labeled 'E' pointing to a component (no text or symbols beyond label)

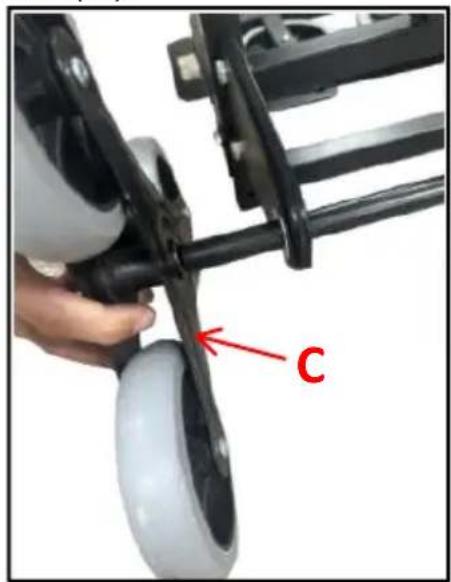

1. Install the Wheel Sets(C).

C

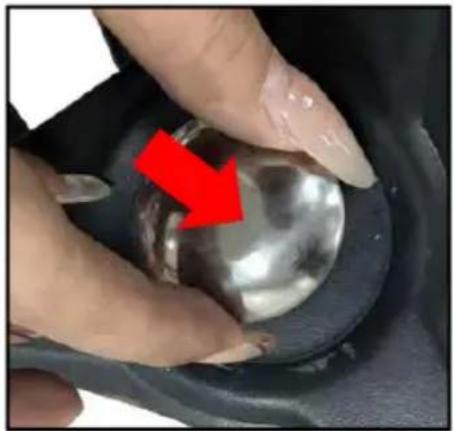

1. Install the A plum lock (G).(Note: Press into with force.)

Close-up of hands holding a metallic mechanical component with a red arrow pointing to it (no text or symbols visible)

MAINTENANCE

1. Avoid prolonged exposure to the sun to avoid aging.
2. Avoid children taking the stair climbing cart to play.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
