Product Type Water Cooler Processor
Brand Vevor
Model YC-01-SS-002
Cooling Method Water
Radiator Size 240 mm
Number of Fans 2
Fan Diameter 120 mm
Fan Type PWM
Maximum Rotation Speed 2200 rpm
Noise Level ≤ 33.7 dB-A
Input Voltage 12 V DC
Input Current 0.7 A
Intel Socket Compatibility LGA 115X/1366/2011/1700/1200
AMD Socket Compatibility AM5/AM4
Supported Operating Systems Windows 10, Windows 11
Radiator Dimensions (approx.) 277 x 120 x 27 mm
Fan Dimensions (approx.) 120 x 120 x 25 mm each
Total Weight (approx.) 1.2 kg
Radiator Material Aluminum
Certification FCC
Maintenance Regularly clean the fans and radiator with a soft cloth
Safety Do not expose to water or excessive humidity. Use on a stable surface
Spare Parts Fans, radiator, pump (contact customer service)
Repairability Contact a professional or after-sales service

Frequently Asked Questions - YC-01-SS-002 Vevor

What is the compatibility of the YC-01-SS-002 with Intel and AMD sockets?
The cooler is compatible with Intel sockets LGA 115X, 1366, 2011, 1700 and 1200, as well as AMD sockets AM5 and AM4.
How to install the Vevor YC-01-SS-002 processor cooler?
Follow the steps in the provided installation manual. First fix the radiator to the chassis using the 8 included screws, then mount the pump on the processor applying thermal paste if necessary, and connect the PWM fans to the motherboard.
What is the maximum noise level of the fan?
The maximum noise level is 33.7 dB-A, which is relatively quiet for a liquid cooler.
Does the cooler require special maintenance?
Regular maintenance is recommended: clean the fans and radiator with a soft cloth to avoid dust accumulation. Also check the connections and tightness of the cooling circuit.
Can I use this cooler with Windows 11?
Yes, the YC-01-SS-002 is compatible with Windows 10 and Windows 11.
What is the power consumption of the cooler?
The required power supply is 12 V DC and 0.7 A, which is about 8.4 W.
Is the cooler pre-filled with liquid?
Yes, it is a closed liquid cooling system (AIO) pre-filled at the factory. No fluid maintenance is required.
How to contact Vevor after-sales service?
You can contact technical support and obtain the electronic warranty certificate at www.vevor.com/support.
What accessories are included in the package?
The package includes the 240 mm radiator, two 120 mm PWM fans, the pump with CPU block, 8 chassis screws, and the user manual.
Is the cooler compatible with operating systems other than Windows?
The manual only mentions Windows 10 and Windows 11. For other systems, compatibility is not guaranteed, but the cooler should work with any system supporting PWM management.

User questions about YC-01-SS-002 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Other computer accessories in PDF format for free! Find your manual YC-01-SS-002 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. YC-01-SS-002 by Vevor.

USER MANUAL YC-01-SS-002 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

CPU COOLER

USER'S GUIDE

MODEL:YC-01-SS-002

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL:YC-01-SS-002

Vevor YC-01-SS-002 - USER'S GUIDE - 1

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.
This device complies with Part 15 of the FCC Rules. 0 is subject to the following two conditions:(1)This device cause harmful interference, and (2)this device must acce interference received, including interference that may cause undesired operation.
This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refus collection in the European Union. This applies to the p and all accessories marked with this symbol. Products r as such may not be discarded with normal domestic w must be taken to a collection point for recycling electric electronic devices

INSTRUCTIONS

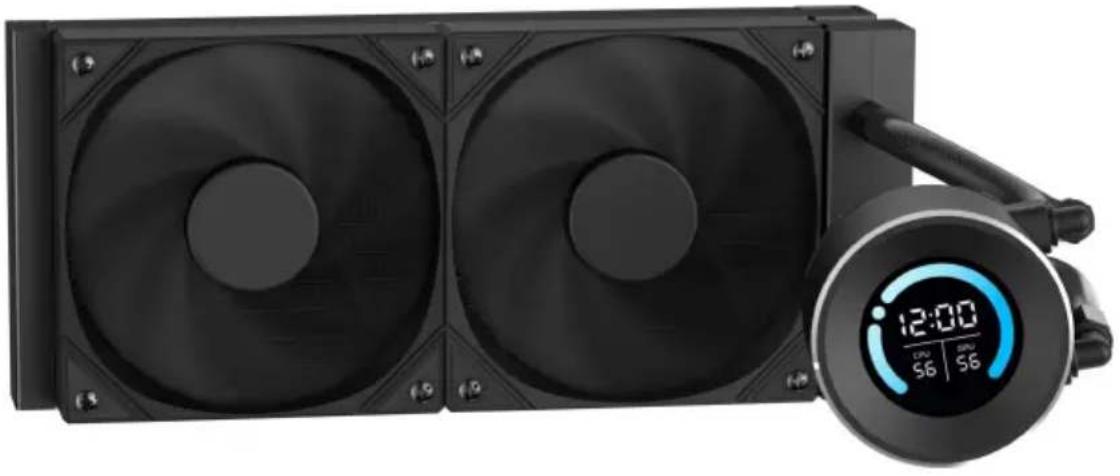

  • The CPU cooler is equipped with a 240mm radiator and two 120mm fans to ensure excellent heat transfer from the CPU. The 120mm PWM fan delivers improved airflow for extreme CPU cooling performance.
  • Compatible with multiple sockets like Intel 115X/1366/2011/1700/1200 & AMD AM5/AM4.
  • Compatible with Windows 10 and Windows 11 operating systems.

Parameter

Model: YC-01-SS-002 Input: 12VDC 0.7A Cooling Method: Water Maximum Rotational Speed: 2200 RPM Noise Level: ≤33.7dB-A

Installation Steps

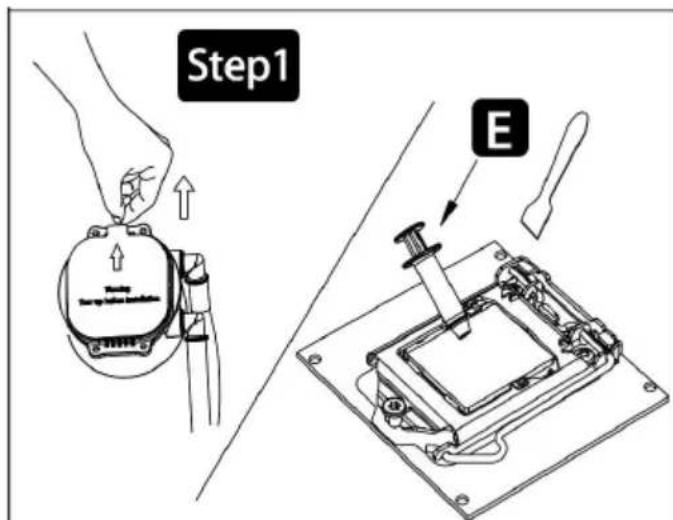

Remove the protection film / Applying thermal pasteVevor YC-01-SS-002 - Installation Steps - 1

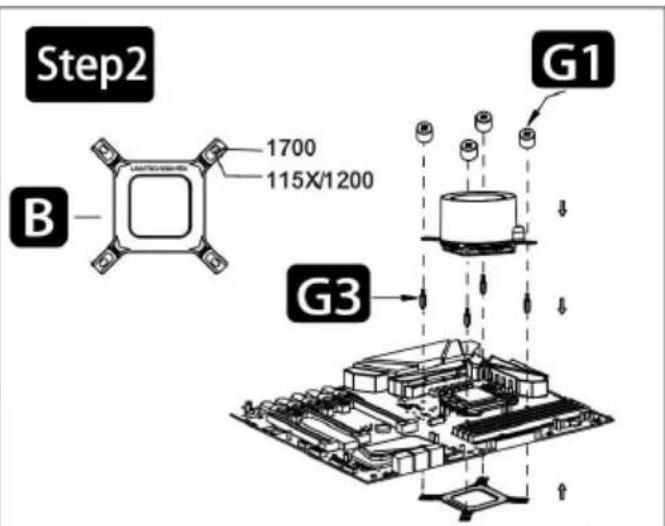

Secure the cooler -Intel LGA 115x/1200/1700Vevor YC-01-SS-002 - Installation Steps - 2

Step2.1

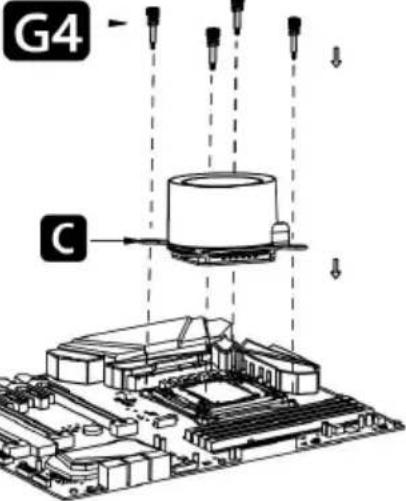

Secure the cooler -Intel LGA 2011Vevor YC-01-SS-002 - Step2.1 - 1

Step3

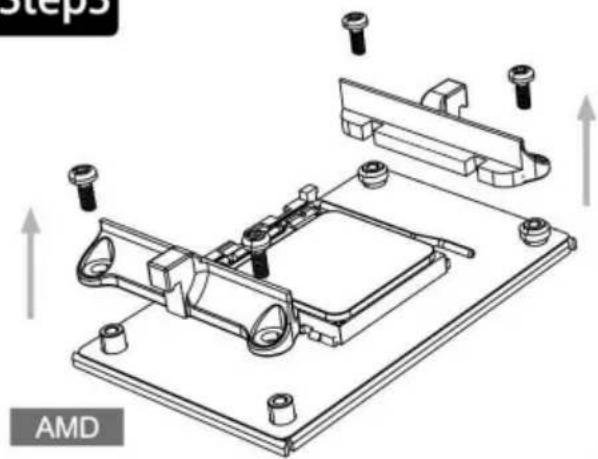

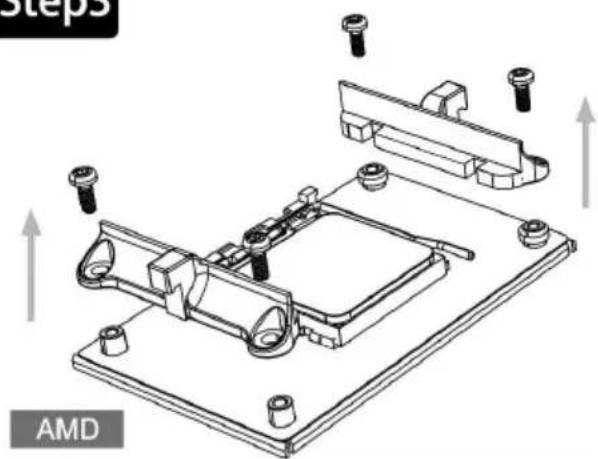

Remove the motherboard socket. Retain the backplane.Vevor YC-01-SS-002 - Step3 - 1

Vevor YC-01-SS-002 - Step3 - 2

Vevor YC-01-SS-002 - Step3 - 3

Vevor YC-01-SS-002 - Step3 - 4

Vevor YC-01-SS-002 - Step3 - 5

Vevor YC-01-SS-002 - Step3 - 6

Vevor YC-01-SS-002 - Step3 - 7

Vevor YC-01-SS-002 - Step3 - 8

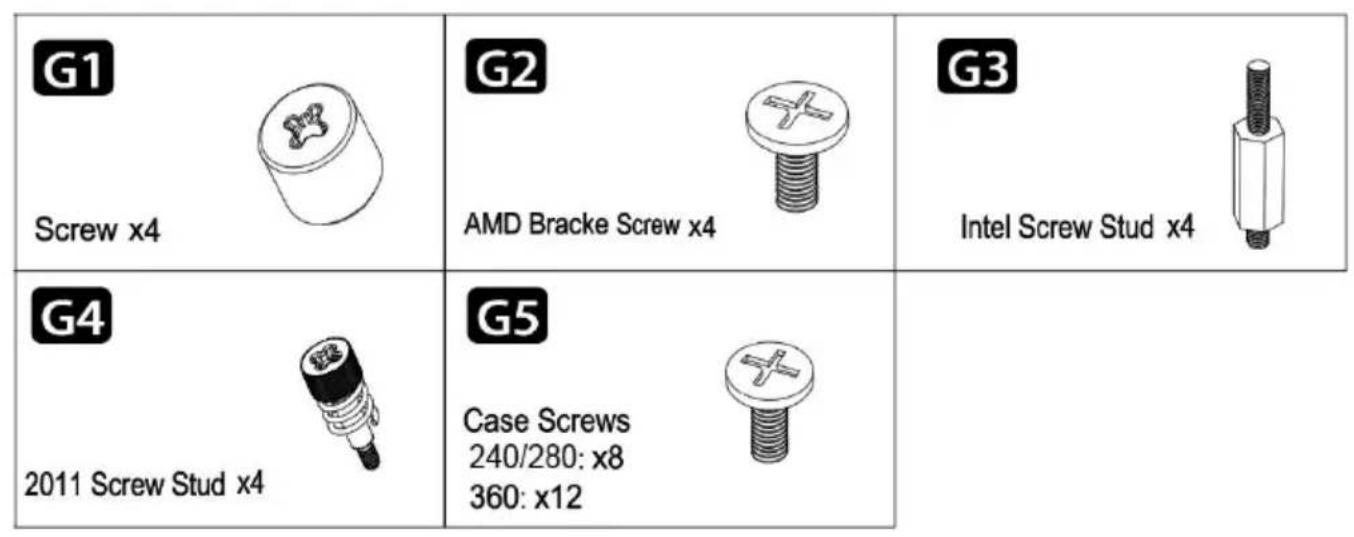

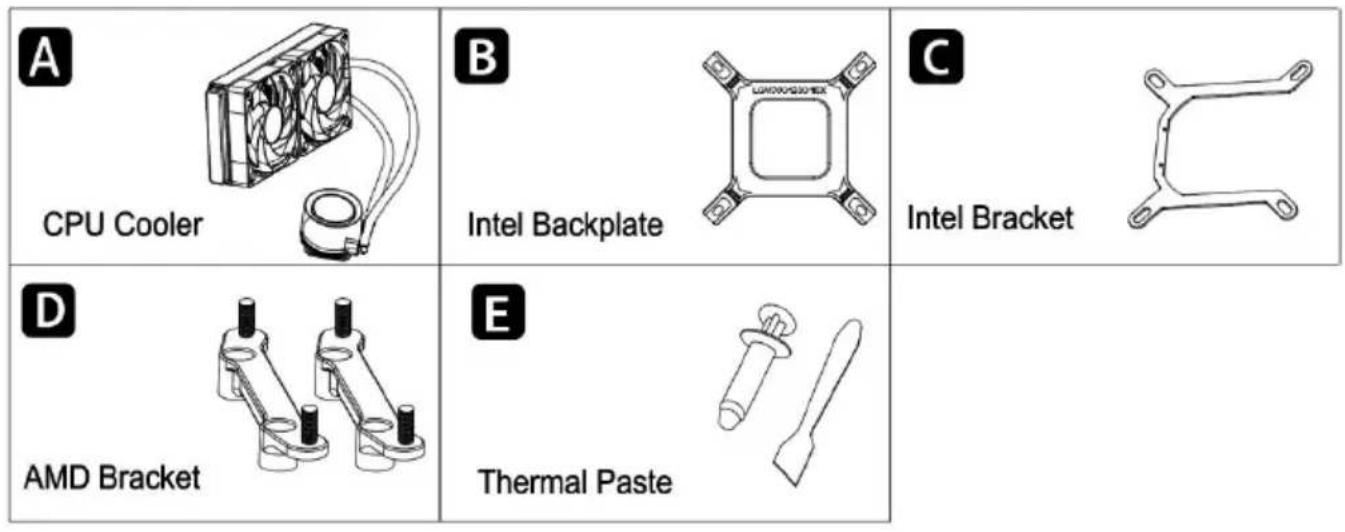

List Of Accessories

Intel backplane * 1

Intel bracket * 1 AMD bracket * 2 Thermal grease / scraper * 1 Installation nuts * 4 AMD bracket screws * 4 Intel screw rods * 4 2011 studs * 4 Chassis screws: 8 for 240 water cooling

Vevor YC-01-SS-002 - List Of Accessories - 1

Vevor YC-01-SS-002 - List Of Accessories - 2

https://diy-ideas.oss-us-west-1.aliyuncs.com/wp-content/uploads/2024/11/Vevor_CPU_cooler_driver_SKU1.zip

Manufacturer: Shanghaiuxinmuyeyouxiangonsi

Address: Shuangchenglu 803, Lane 11, No. 1602A-1609, Baoshan District, Shanghai 200000, CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD, NSW 2122, Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Vevor YC-01-SS-002 - Software Download Link - 1

E-CrossStu GmbH

Mainzer Landstr. 69, 60329 Frankfurt am Main

Vevor YC-01-SS-002 - Software Download Link - 2

YH CONSULTING LIMITED.

C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR

TOUGH TOOLS, HALF PRICE

https://diy-ideas.oss-us-west-1.aliyuncs.com/wp-content/uploads/2024/11/Vevor_CPU_cooler_driver_SKU1.zip

Manufacturer: Shanghai Uxin Muye Youxian Gongsi

Address: Shuangchenglu 803, Lane 11, No. 1602A-1609, Baoshan District, Shanghai 200000, CN.

Imported in Australia: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

CPU COOLER

USER MANUAL

MODEL: YC-01-SS-002

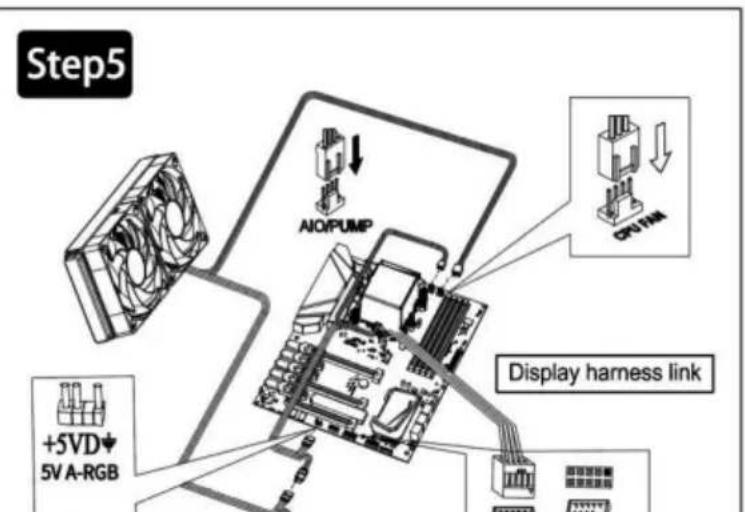

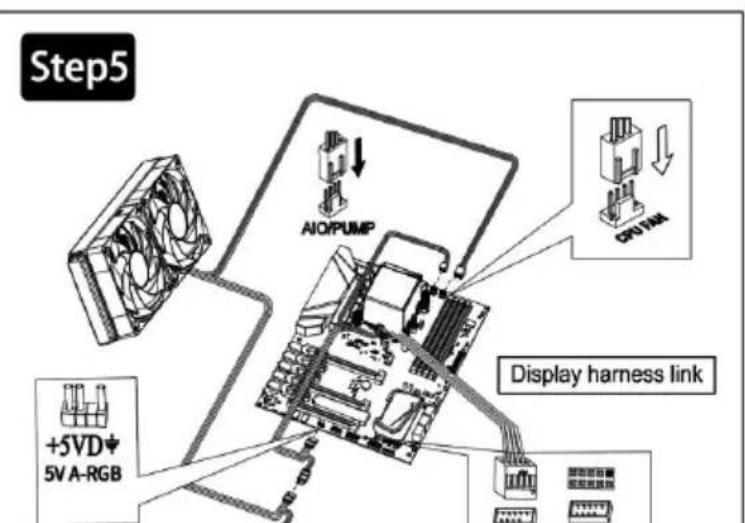

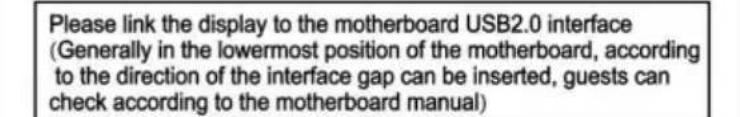

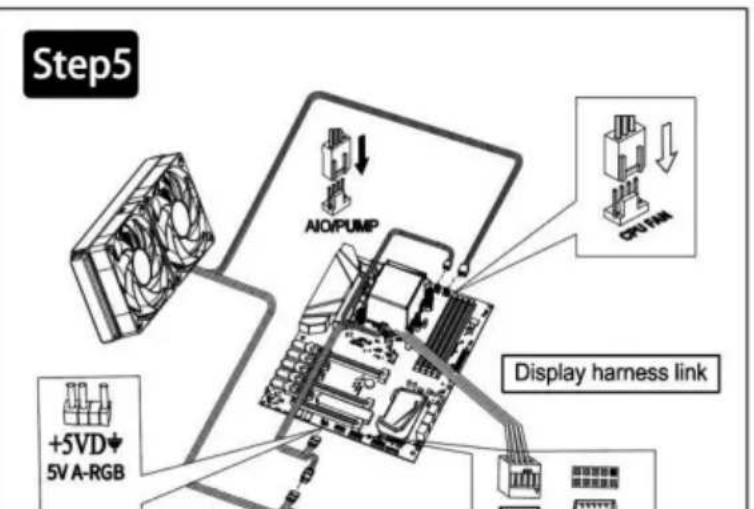

Connect the display to the motherboard's USB 2.0 interface (usually located at the bottom of the motherboard; align the connector with the notch and insert it. Refer to the motherboard manual for details).

Connect the 3-pin connector from the pump unit to the AIO/PUMP header on the motherboard.

Connect the 4-pin fan PWM connector to the CPU_FAN header on the motherboard.

Connect the fan to the 5V ARGB header on the motherboard.

Accessories list

https://diy-ideas.oss-us-west-1.aliyuncs.com/wp-content/uploads/2024/11/Vevor_CPU_cooler_driver_SKU1.zip

Manufacturer: Shanghaiuxinmuyeyouxiangongsi

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, CN.

Imported into Australia by: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia.

Imported into the USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730.

Vevor YC-01-SS-002 - Accessories list - 1

E-CrossStu GmbH

Mainzer Landstr. 69, 60329 Frankfurt am Main.

Vevor YC-01-SS-002 - Accessories list - 2

YH CONSULTING LIMITED.

C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX.

VEVOR

TOUGH TOOLS, HALF PRICE

Electronics www.vevor.com/support

CPU COOLER

USER MANUAL

MODEL: YC-01-SS-002

Step 3: Remove the motherboard socket. Retain the backplane.Vevor YC-01-SS-002 - MODEL: YC-01-SS-002 - 1

Vevor YC-01-SS-002 - MODEL: YC-01-SS-002 - 2

Vevor YC-01-SS-002 - MODEL: YC-01-SS-002 - 3

Vevor YC-01-SS-002 - MODEL: YC-01-SS-002 - 4

Vevor YC-01-SS-002 - MODEL: YC-01-SS-002 - 5

Vevor YC-01-SS-002 - MODEL: YC-01-SS-002 - 6

Vevor YC-01-SS-002 - MODEL: YC-01-SS-002 - 7

Vevor YC-01-SS-002 - MODEL: YC-01-SS-002 - 8

https://diy-ideas.oss-us-west-1.aliyuncs.com/wp-content/uploads/2024/11/Vevor_CPU_cooler_driver_SKU1.zip

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported into AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported into USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Vevor YC-01-SS-002 - MODEL: YC-01-SS-002 - 9

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

Vevor YC-01-SS-002 - MODEL: YC-01-SS-002 - 10

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, Via Roma, 101, 00186 Rome, Italy

VEVOR

TOUGH TOOLS, HALF PRICE

https://diy-ideas.oss-us-west-1.aliyuncs.com/wp-content/uploads/2024/11/Vevor_CPU_cooler_driver_SKU1.zip

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to Australia: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Vevor YC-01-SS-002 - VEVOR - 1

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

Vevor YC-01-SS-002 - VEVOR - 2

YH CONSULTING LIMITADA.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR

TOUGH TOOLS, HALF PRICE

Technical support and electronic warranty certificate www.vevor.com/support

VEVOR

TOUGH TOOLS, HALF PRICE

https://diy-ideas.oss-us-west-1.aliyuncs.com/wp-content/uploads/2024/11/Vevor_CPU_cooler_driver_SKU1.zip

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Vevor YC-01-SS-002 - TOUGH TOOLS, HALF PRICE - 1

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

Vevor YC-01-SS-002 - TOUGH TOOLS, HALF PRICE - 2

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

https://diy-ideas.oss-us-west-1.aliyuncs.com/wp-content/uploads/2024/11/Vevor_CPU_cooler_driver_SKU1.zip

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported by AUS: SIHAOPTYLTD.1ROKEVASTREETEASTWOODNSW 2122 Australia

Imported to the US: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Vevor YC-01-SS-002 - NEED HELP? CONTACT US! - 1

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

Vevor YC-01-SS-002 - NEED HELP? CONTACT US! - 2

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR

TOUGH TOOLS, HALF PRICE

Technical support and e-warranty certificate www.vevor.com/support

VEVOR

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

CPU COOLER

USER GUIDE

MODEL: YC-01-SS-002

Step 3: Remove the motherboard socket. Retain the backplane.Vevor YC-01-SS-002 - MODEL: YC-01-SS-002 - 1

Vevor YC-01-SS-002 - MODEL: YC-01-SS-002 - 2

Vevor YC-01-SS-002 - MODEL: YC-01-SS-002 - 3

Vevor YC-01-SS-002 - MODEL: YC-01-SS-002 - 4

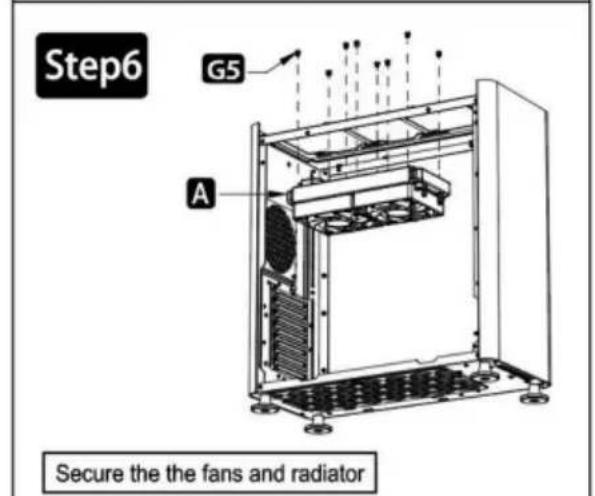

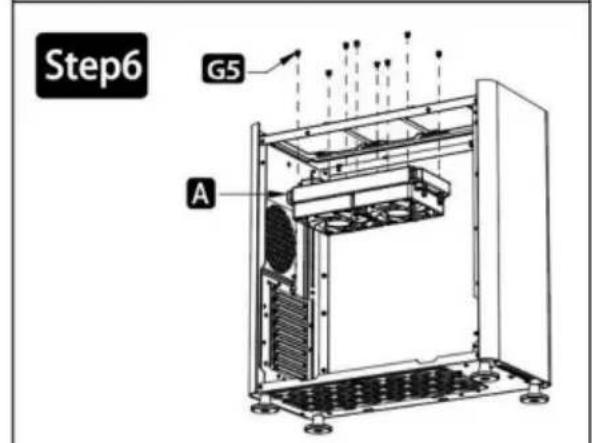

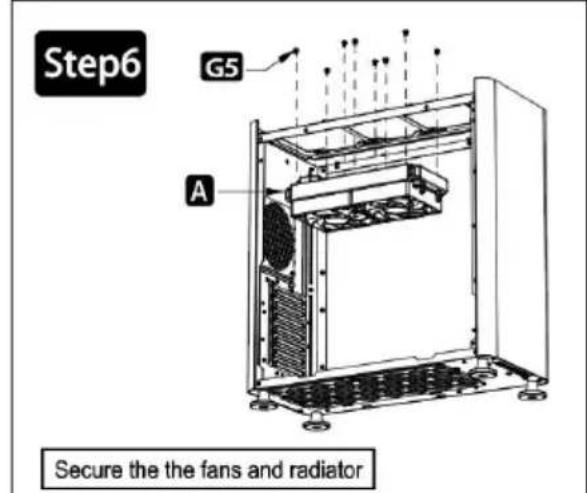

Secure the fans and radiator. Connect the 3-pin connector from the pump unit to the AIO/PUMP socket on the motherboard. Connect the 4-pin fan PWM connector to the CPU_FAN socket on the motherboard. Connect the fan to the 5V ARGB socket on the motherboard.Vevor YC-01-SS-002 - MODEL: YC-01-SS-002 - 5

Add accessories

https://diy-ideas.oss-us-west-1.aliyuncs.com/wp-content/uploads/2024/11/Vevor_CPU_cooler_driver_SKU1.zip

Manufacturer: Shanghaiixinmuyeyouxiangonsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Vevor YC-01-SS-002 - Add accessories - 1

E-CrossStu GmbH

Mainzer Landstr. 69, 60329 Frankfurt am Main.

Vevor YC-01-SS-002 - Add accessories - 2

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR

TOUGH TOOLS, HALF PRICE
