Product Type	Portable air pump with TSA lock for luggage
Brand	Vevor
Model	CCH001
Dimensions	49 x 48 x 67 mm
Maximum Pressure	0.6 PSI (4.1 kPa)
Airflow (Inflation/Deflation)	13 CFM (360 L/min)
Battery Capacity	1300 mAh (4.8 Wh)
Charging Time	1 hour (5 V / 2 A)
Charging Port	USB Type-C
Battery Indicator	Flashing orange (0-10%), solid orange (10-30%), solid white (30-100%)
Operating Temperature	Charging: 0°C to 45°C; Use: -20°C to 74°C
Storage Temperature	-20°C to 55°C
Main Functions	Inflation and deflation of inflatable items; TSA lock for luggage
Care and Cleaning	Do not immerse in water; clean with a dry cloth; do not block ventilation openings
Safety	Flammable - keep away from open flames; do not expose to rain or water; adult use only; do not drop in water
Warranty	2 years
Country of Origin	China (Manufacturer: Shanghai)
Category	Other Computer Accessories

Frequently Asked Questions - CCH001 Vevor

How to set the TSA lock of the backpack?

The lock is shipped with the factory combination 0-0-0. To customize it: 1) Turn the dials to 0-0-0. 2) Press the reset button (a) until you hear a 'click'. 3) Turn the dials to your new combination (e.g., 8-8-8). 4) Press button (c) in the direction of the arrow until button (a) returns to its initial position. Remember your combination. To reset, repeat the steps.

How to use the air pump to inflate an object?

Press and hold the power button (2) for 1 second to turn on the pump. Connect the item to inflate to the inflation port (6). Briefly press the Start/Pause button to begin inflation. Caution: the pump does not stop automatically; monitor the pressure and stop manually.

How to deflate an object with the pump?

Connect the object to the deflation port (1). Turn on the pump by pressing and holding the power button. Press Start/Pause to start deflation. Stop manually once the air is released.

How long does it take to charge the battery?

Full charging takes about 1 hour with a 5V/2A charger connected to the USB Type-C port (5). Use a compatible charger.

What does the flashing orange light mean?

The flashing orange light indicates the battery is between 0 and 10% charge. It's time to recharge the device.

Can I use the pump in rain or water?

No, the product is not waterproof. Do not expose it to rain, water, or hail. Do not immerse it in water.

What to do if the pump does not work or the red light flashes?

A flashing red light indicates high temperature or overload. Check that the ventilation openings are not blocked and let the device cool down. If the problem persists, contact after-sales service.

Can the pump be used by children?

No, this device is not intended for children. Adult use only. Children should be supervised to prevent them from playing with it.

How to maintain the pump and lock?

For the pump, clean the exterior with a dry cloth. Do not use water. For the lock, keep it clean and dry. Do not insert objects into the connectors. Store the device in a dry place at room temperature.

What to do if the device does not charge?

Use a charger compatible with 5V/2A output. Check the USB-C cable and charging port. If the battery does not charge after several attempts, contact after-sales service under the 2-year warranty.

USER MANUAL CCH001 Vevor

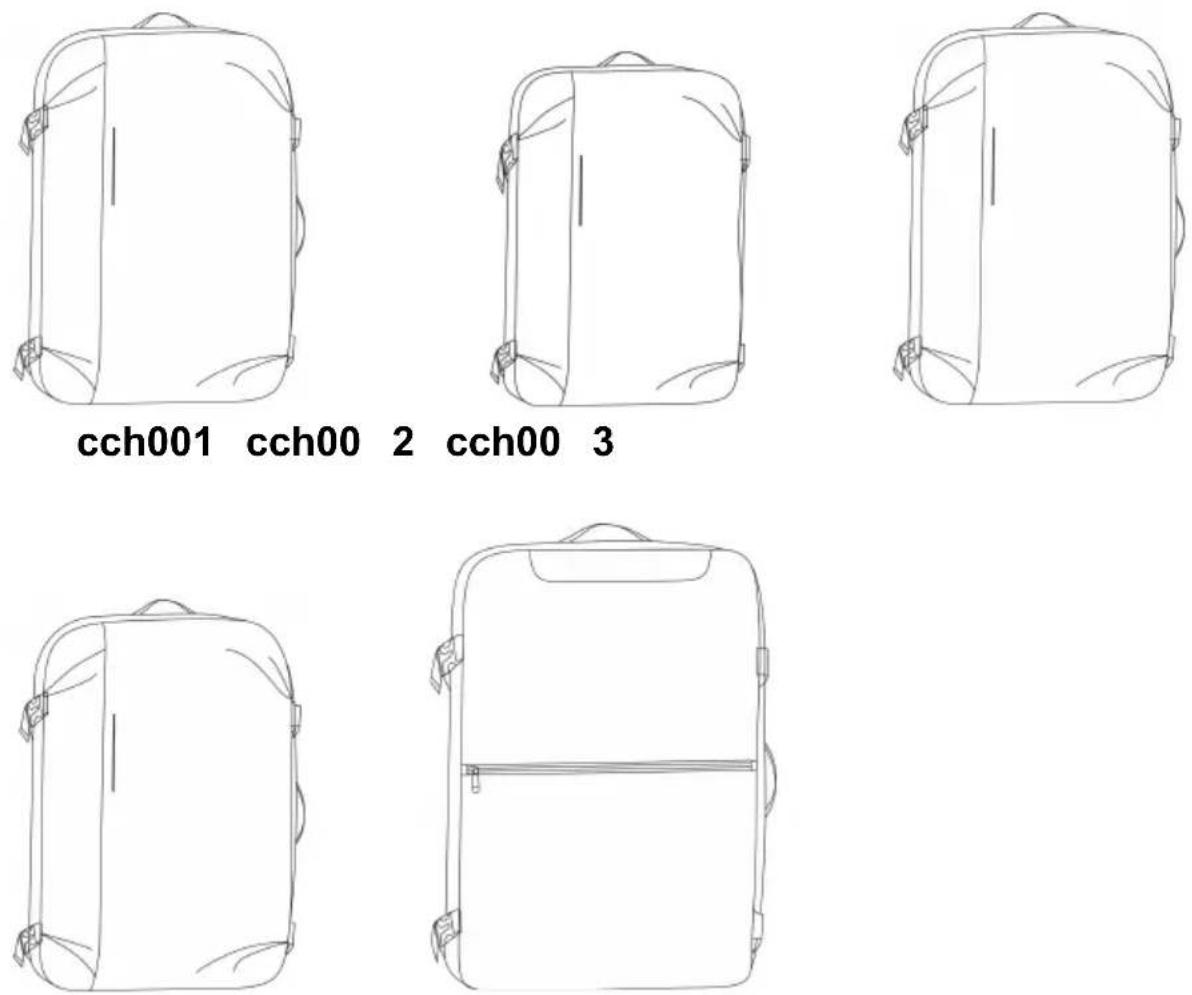

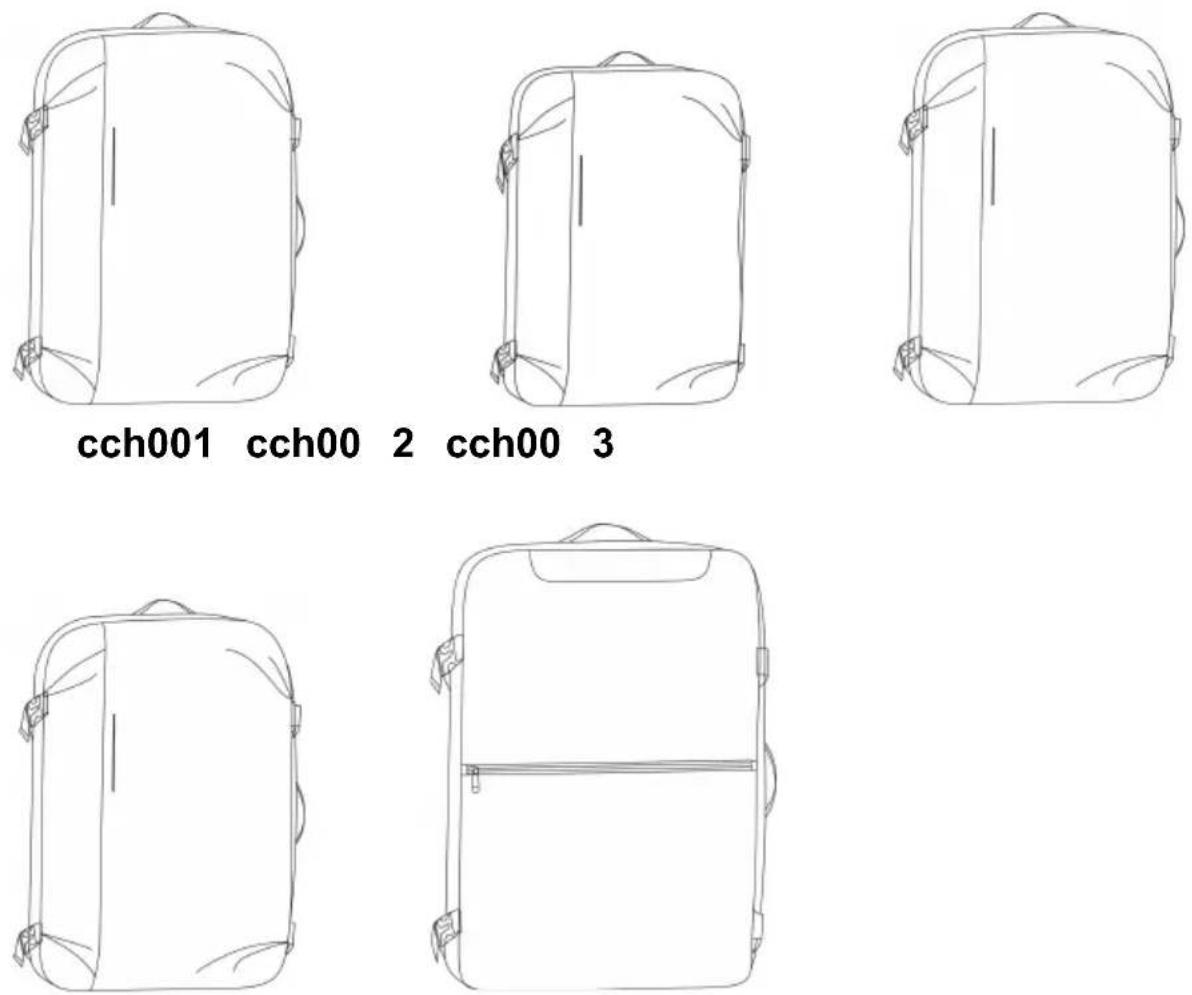

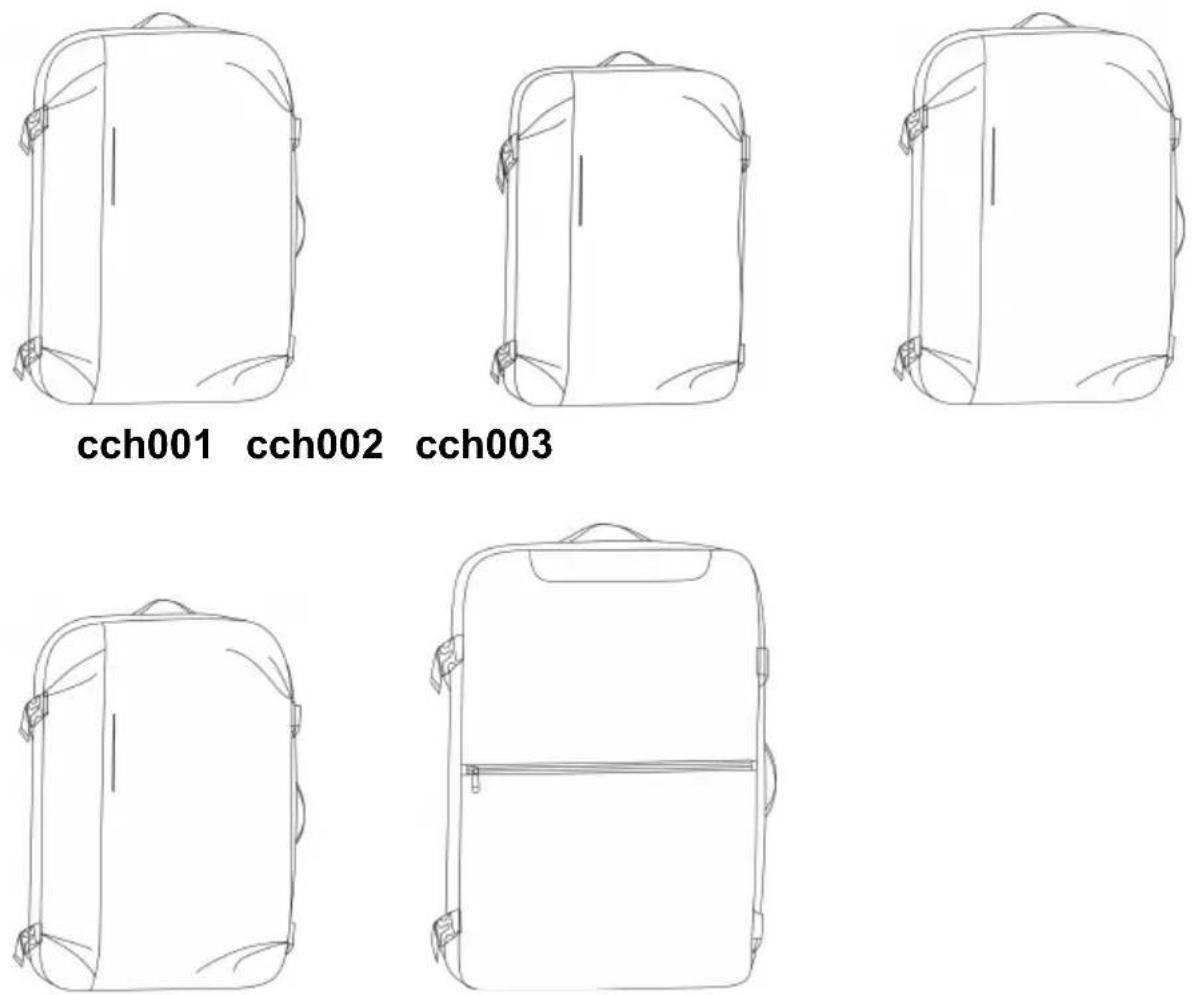

Vacuum Travel Backpack

Model: cch001/cch002/cch003/cch004/cch005

VEVOR

Vacuum Travel Backpack

cch004 cch005

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you receive. Please forgive us that we won't inform you again if there are any technical or software updates on our product.

Warning: To reduce the risk of injury, user must read instruction manual carefully.

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

WARNING:

1. Please read this manual carefully before using the product.
2. Flammable: Keep away from open flame. This product will ignite and burn if brought into contact with an open flame.
3. Keep away from sharp points, blades and other items, so as not to scratch the product.
4. This product is not a toy. Suitcase cannot be used as toys for children to play with.
5. Keep away from rain, water, hail, etc.

Using this Travel Sentry® Approved lock allows your luggage to be opened, inspected, and relocked by security authorities without damage.

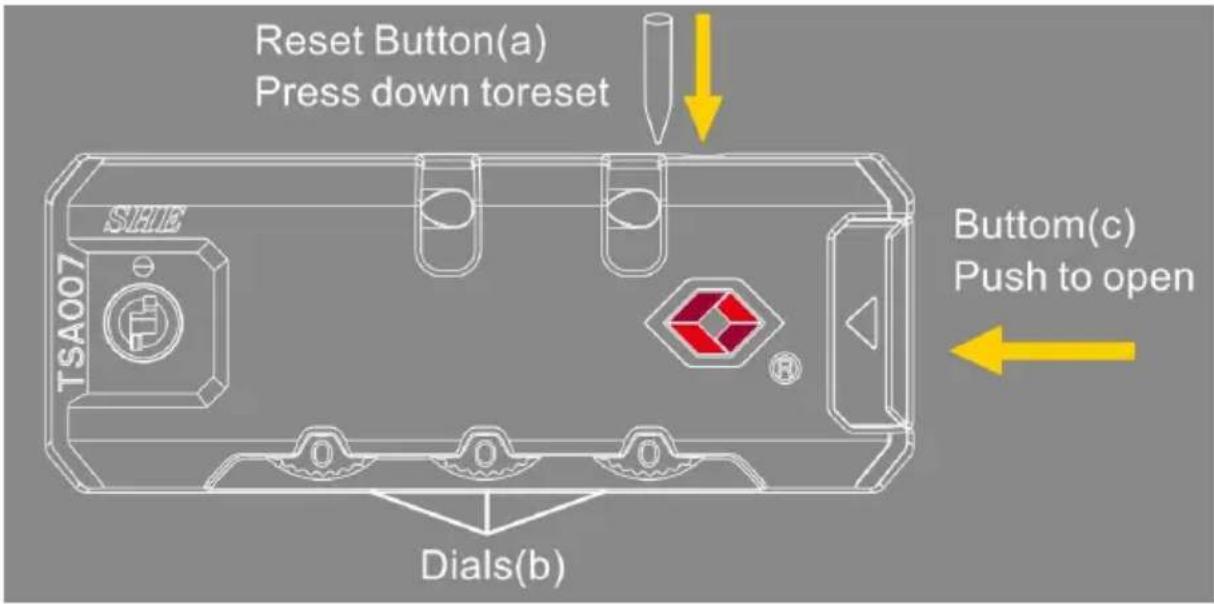

TSA23119 INSTRUCTIONS

The original number is 0-0-0. To set your personal combination, follow these steps:

1. Put the dials at their original numbers 0-0-0;
2. Press down the reset button (a) with a tool until you hear the "click" sound.
3. Set your combination by turning the dials (b), for example 8-8-8. The
4. Push the button (c) towards the direction of the arrow and the reset button (a) will be back when you hear the "Click" sound. Now you have finished setting your personal combination.

Please remember your personal combination by heart. Please repeat the above steps to reset the numbers.

WARNING: If the cylinder is opened, please pay attention to lock it again by turning it to the position by the direction of the arrow (Any tool can be inserted in the cylinder is OK).

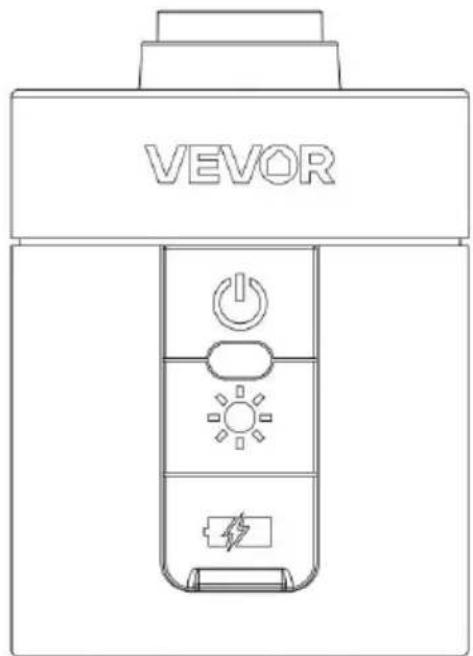

Air 3 Air Pump

Read all instructions and safety warnings before use. If you have questions or comments, contact us.

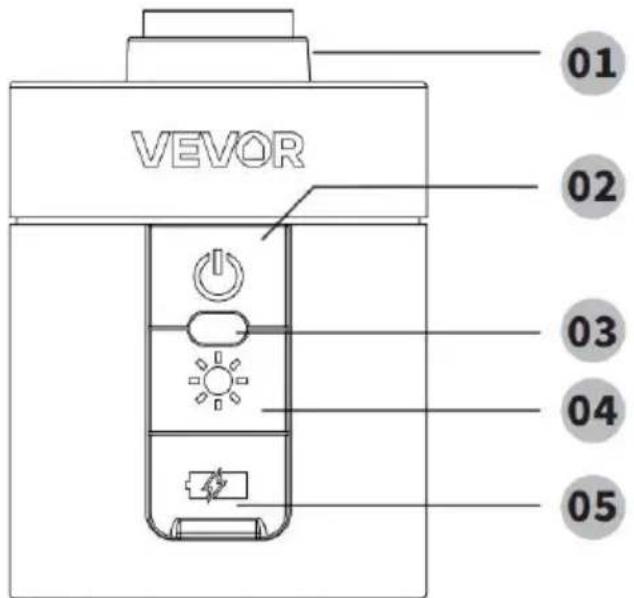

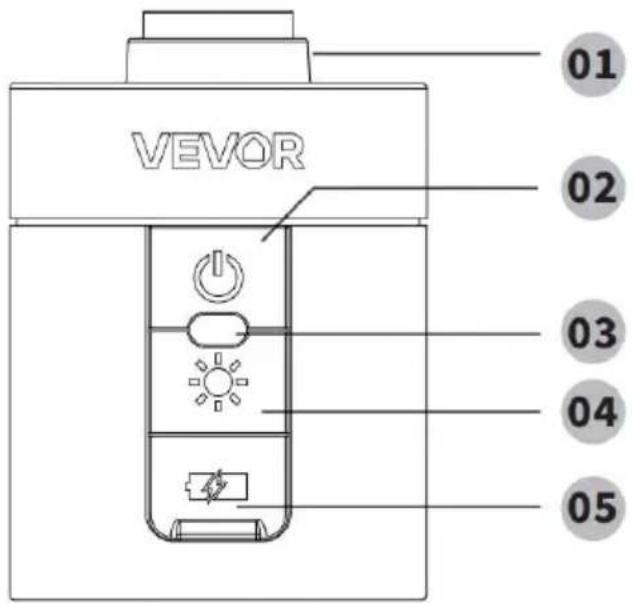

01. PRODUCT OVERVIEW

1. Deflation port

2. Start/Pause power button

3. Battery indicator

4. Light button

5. Type-C charging port

6. Inflation port

02. QUICK START GUIDE

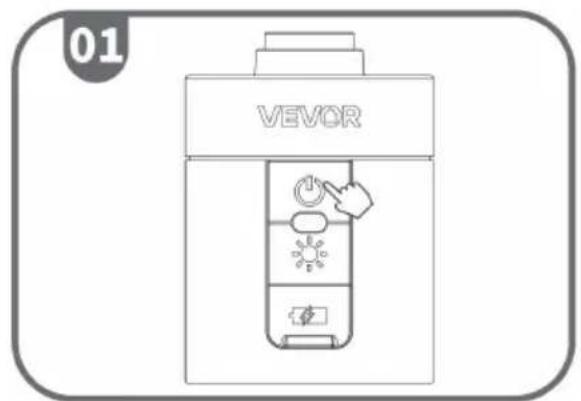

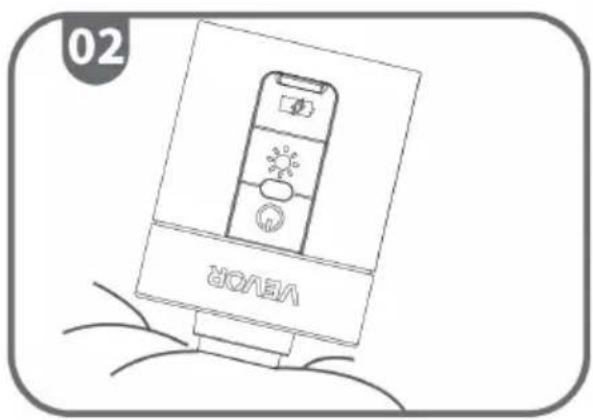

Steps to deflate

1. Long-press the Start/Pause power button for 1 second to activate the pump; press the Start/Pause power button again to stop deflation.

1. Connect the object to be pumped and press the Start/Pause power button. P.S. The air pump needs manual stopping; it won't stop automatically.

03. OPERATION GUIDE

Long-press the power button for 1 second to turn on the device; it will automatically start functioning.

04. SPECIFICATION

Name	Air 3 pump
Dimensions	49*48*67mm
Pressure	Speed flow:0.6PSI/4.1kPa
Inflation / Deflation speed	Speed flow:13CMF/360LM
Battery capacity	1300mAh(4.8Wh)
Charging time	1 hours(5V/2A)
Operating temperature	Charging: 0°C-45°C/32°F-113°FOperating: -20°C-74°C/-4°F-165°F
Storage temperature	-20°C-55°C/-4°F -131°F
Battery indicator (discharging)	0-10%orange flashing10%-30% orange30%-100% white
While Charging	0-30% orange flashing30%-99% white flashing100% full charged white

05. SAFETY INSTRUCTIONS

1. Red flashing light: high temperature warning or overload; check for vent blockage. 2. Use a compatible charger if unable to charge. 3. Adult use only. 4. Do not drop unit into water or expose unit to rain or water. 5. Do not obstruct vent holes or air source.

Do not insert objects into the inflation or deflation connector.

6. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Please charge once every six months to maintain battery performance. 7. Children should be supervised to ensure that they do not play with the appliance. 8. This product is not waterproof, please do not immerse it in water.

06. WARRANTY

2-years coverage

Within two years of purchase, we will provide timely and effective online after-sale service. We will repair or replace any defective product (due to manufacturing fault) within this warranty period.

Attention: CCH001 does not have a vacuum pump, and CCH002 cannot have a customs lock.

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
