YD00018 - Clothes racks Vevor - Free user manual and instructions

USER MANUAL YD00018 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

GARMENT RACKS

USER MANUAL

MODEL:YD00018

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

GARMENT RACKS

MODEL:YD00018

Line drawing of a two-hold cart with wheels and metal frame (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

[e-mail]

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of safely supporting the Garment Racks.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or near this item.
3. Do not exceed weight capacities.
4. Use only on a flat, level, hard and smooth surface capable of safely supporting a fully loaded Garment Racks.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

PARTS LIST

1. Left Bottom Flat Head Pipe x1		2. Right Bottom Flat Head Pipe x1
3. Left Bottom Shrink Head Pipe x1		4. Right Bottom Shrink Head Pipe x1
5. Top Flat Head Pipe x2		6. Top Shrink Head Pipe x2
7. Foot Frame x2		8.Middle Frame x2
9. Middle Pipe x4		10. Mesh x2
11- 1. Brake Wheel x2	11- 2. Wheel x2	[W6x7]12. Cap x4	13. Spanner x1

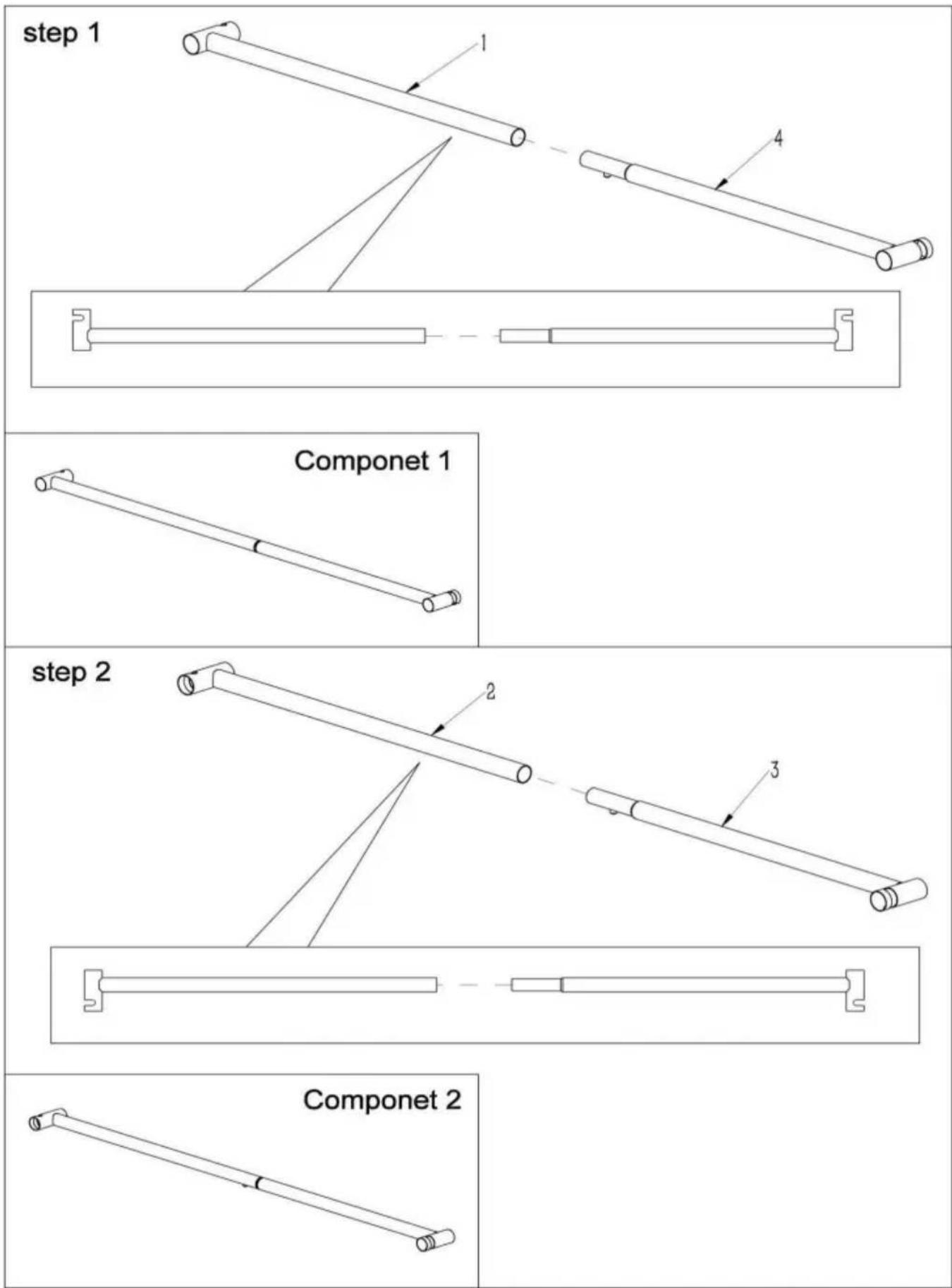

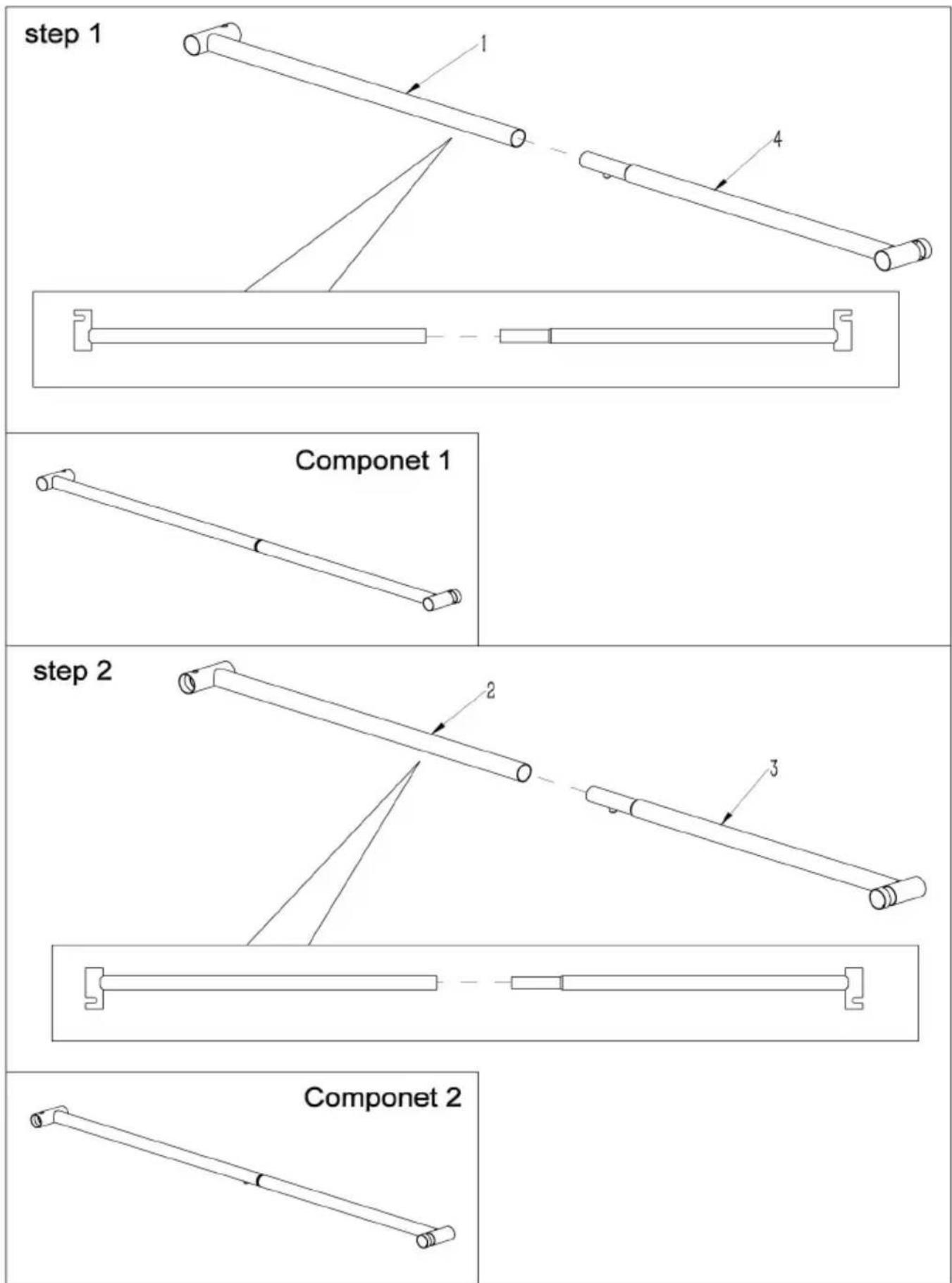

ASSEMBLY STEP

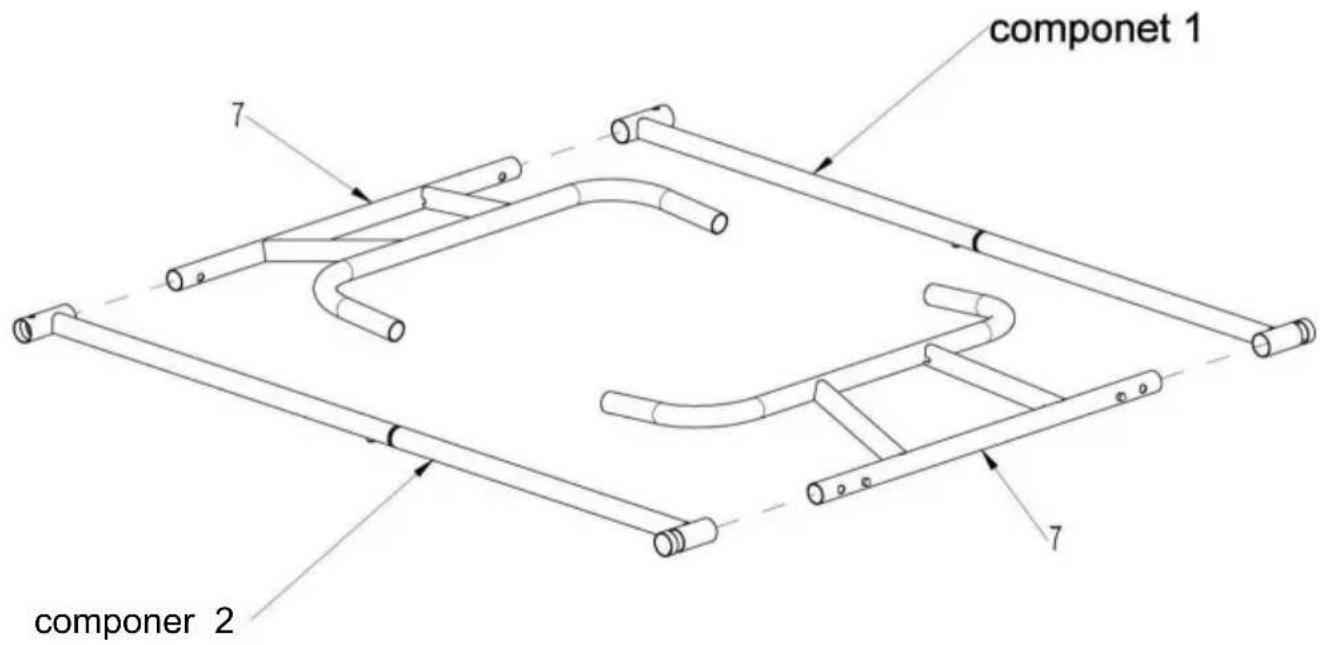

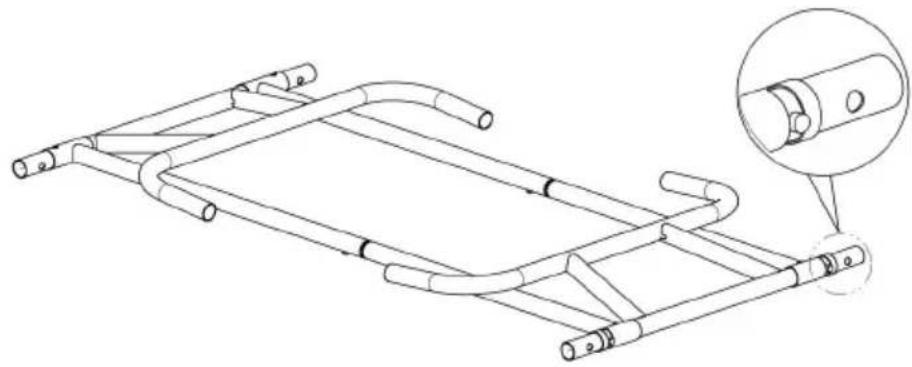

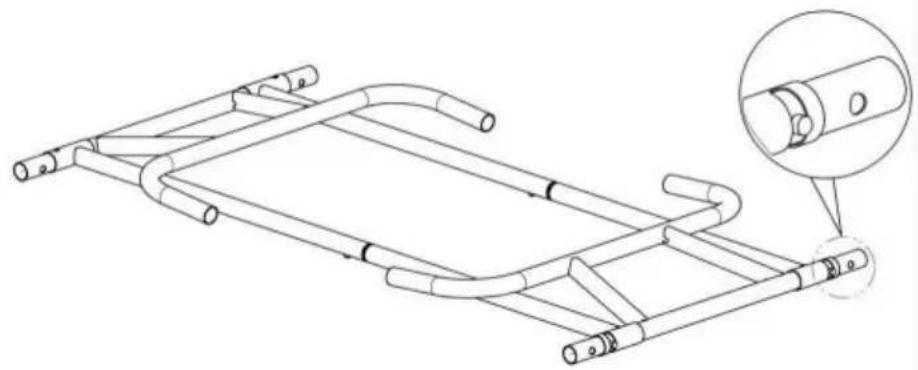

step 3

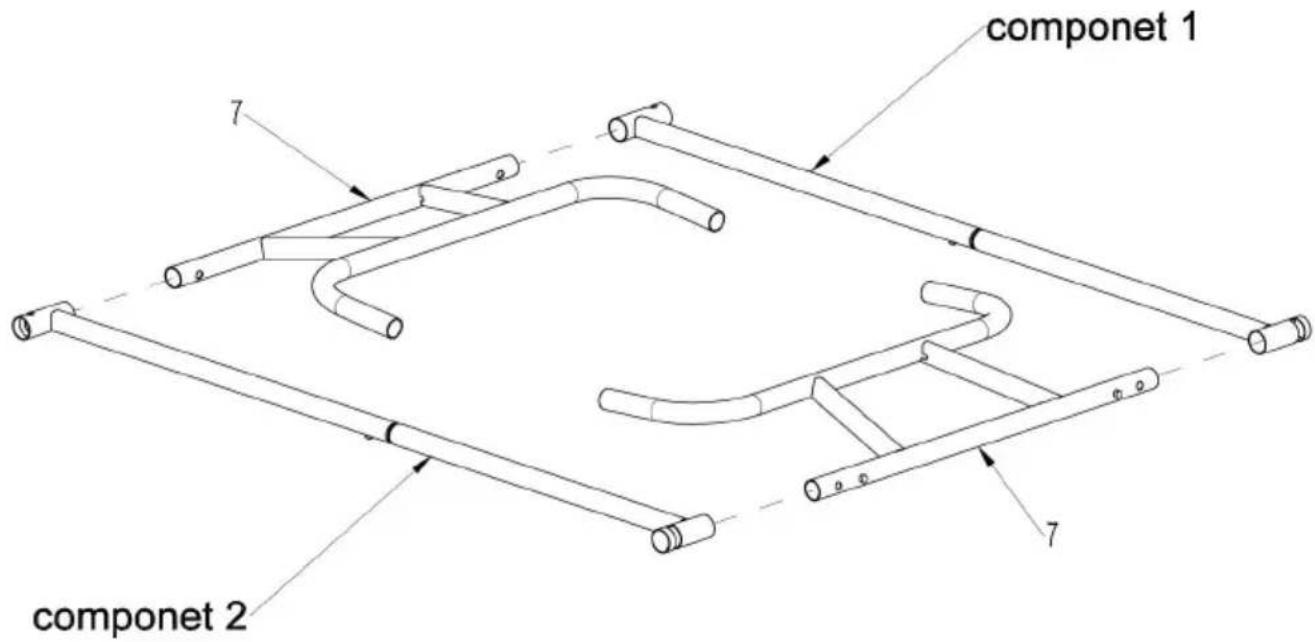

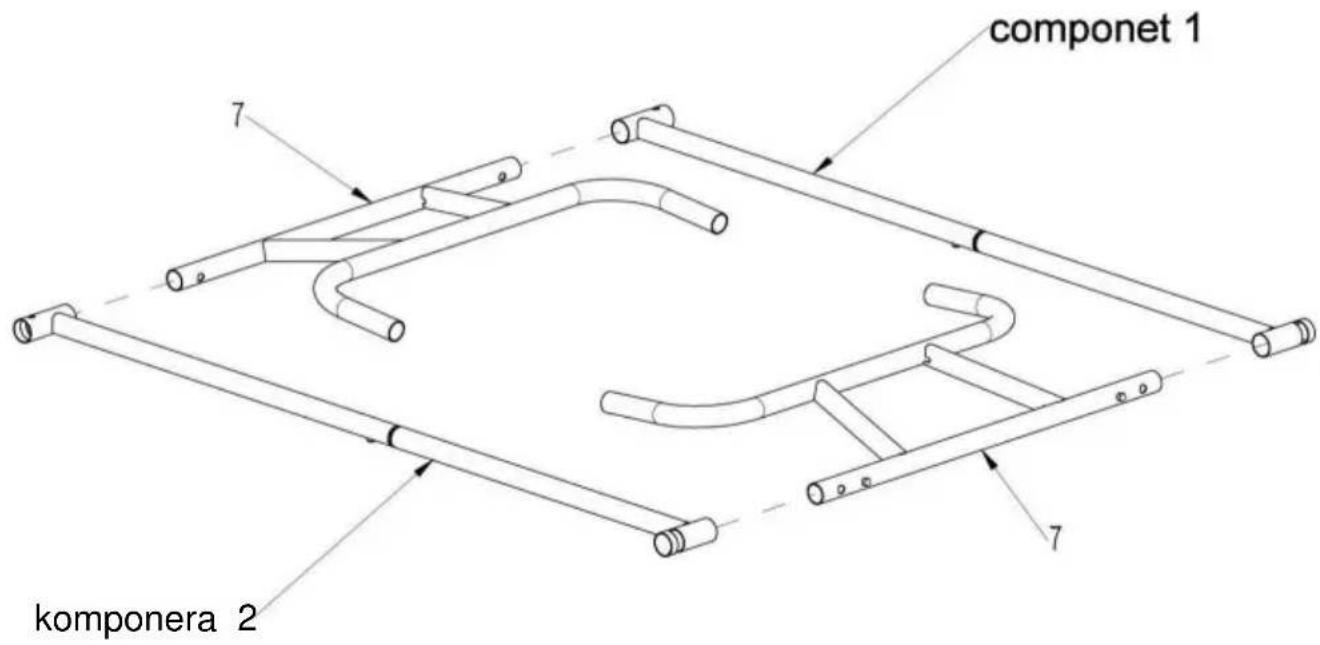

component 1 7 7 component 2

Componet 3

Technical line drawing of a mechanical ladder assembly with a magnified inset showing a detail (no text or symbols)

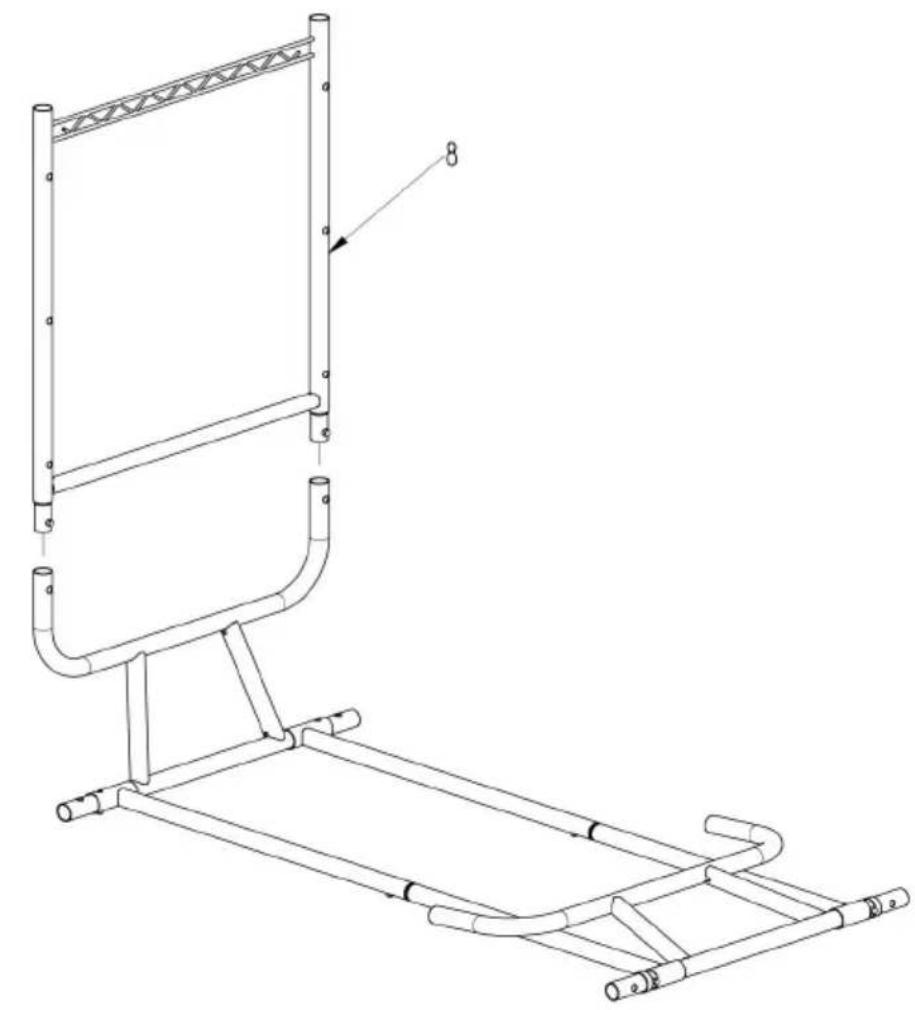

step 4

Technical line drawing of a mechanical support structure with no visible text or symbols

Componet 4

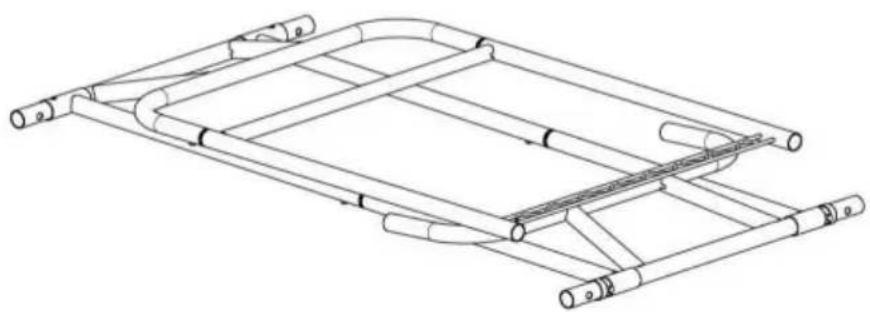

Technical line drawing of a mechanical assembly with multiple cylindrical components and internal ribs (no text or symbols)

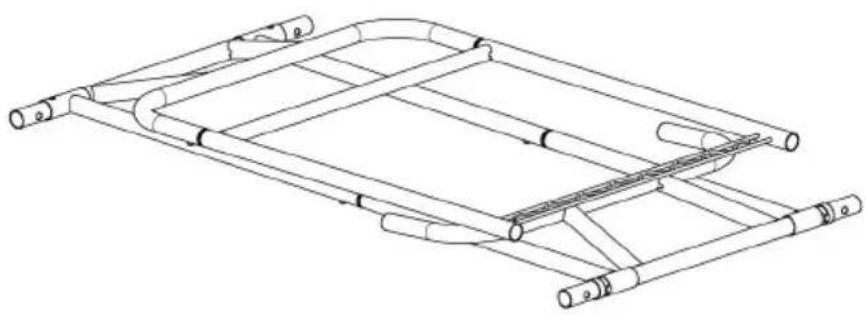

step 5

Technical line drawing of a mechanical assembly with pipes and a ladder, no text or symbols present

Componet 5

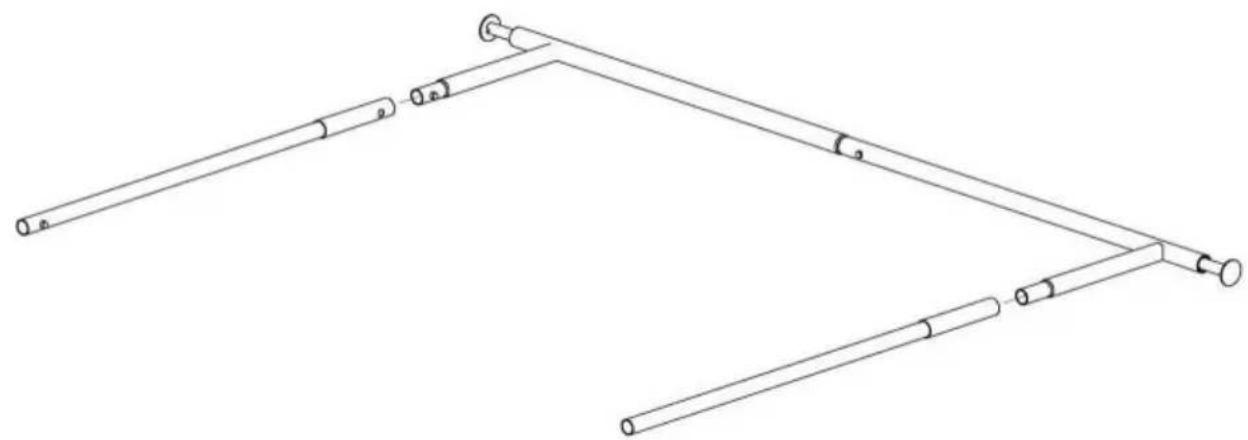

Line drawing of a bamboo raft structure with multiple rods and ribbed sides (no text or symbols)

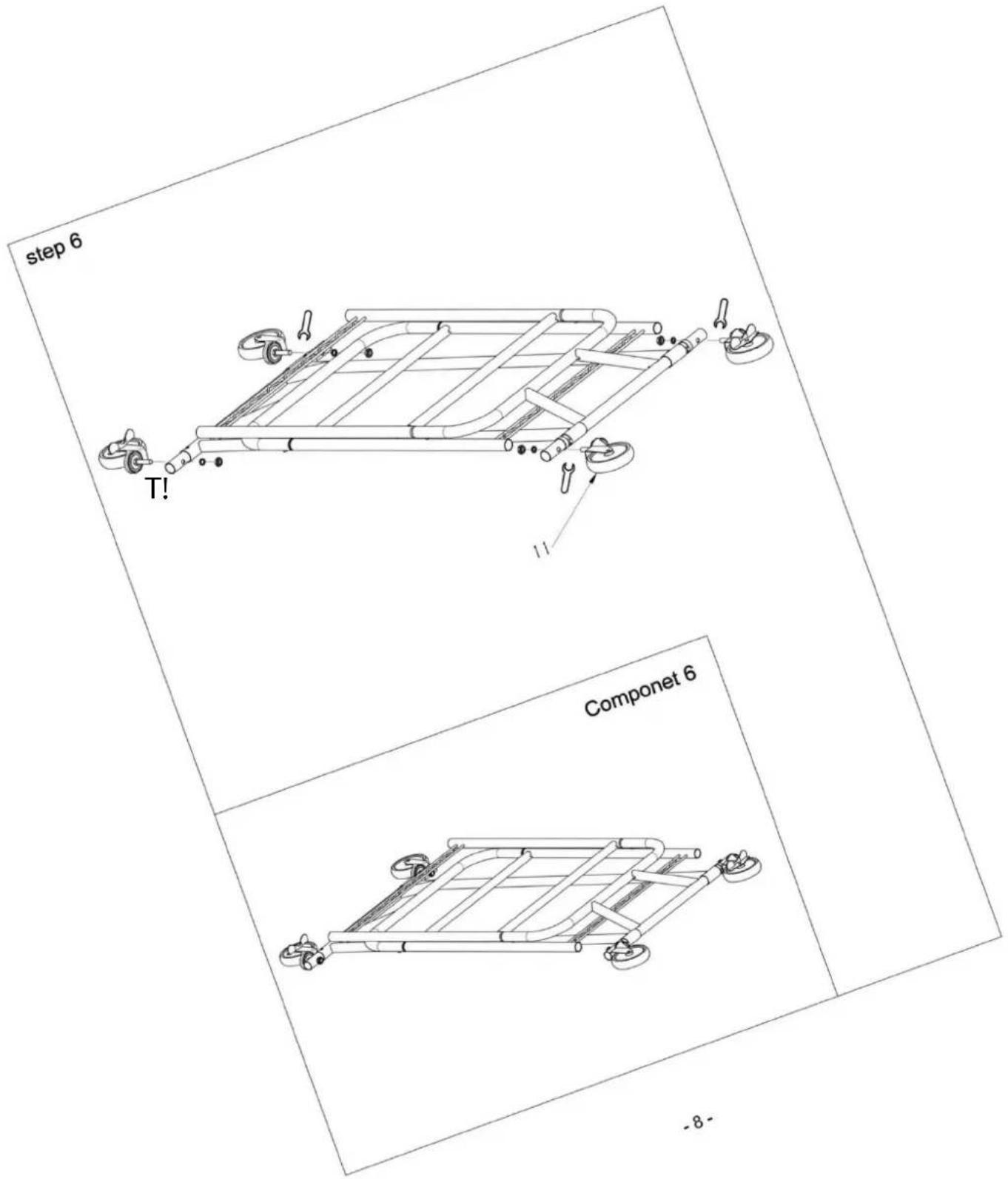

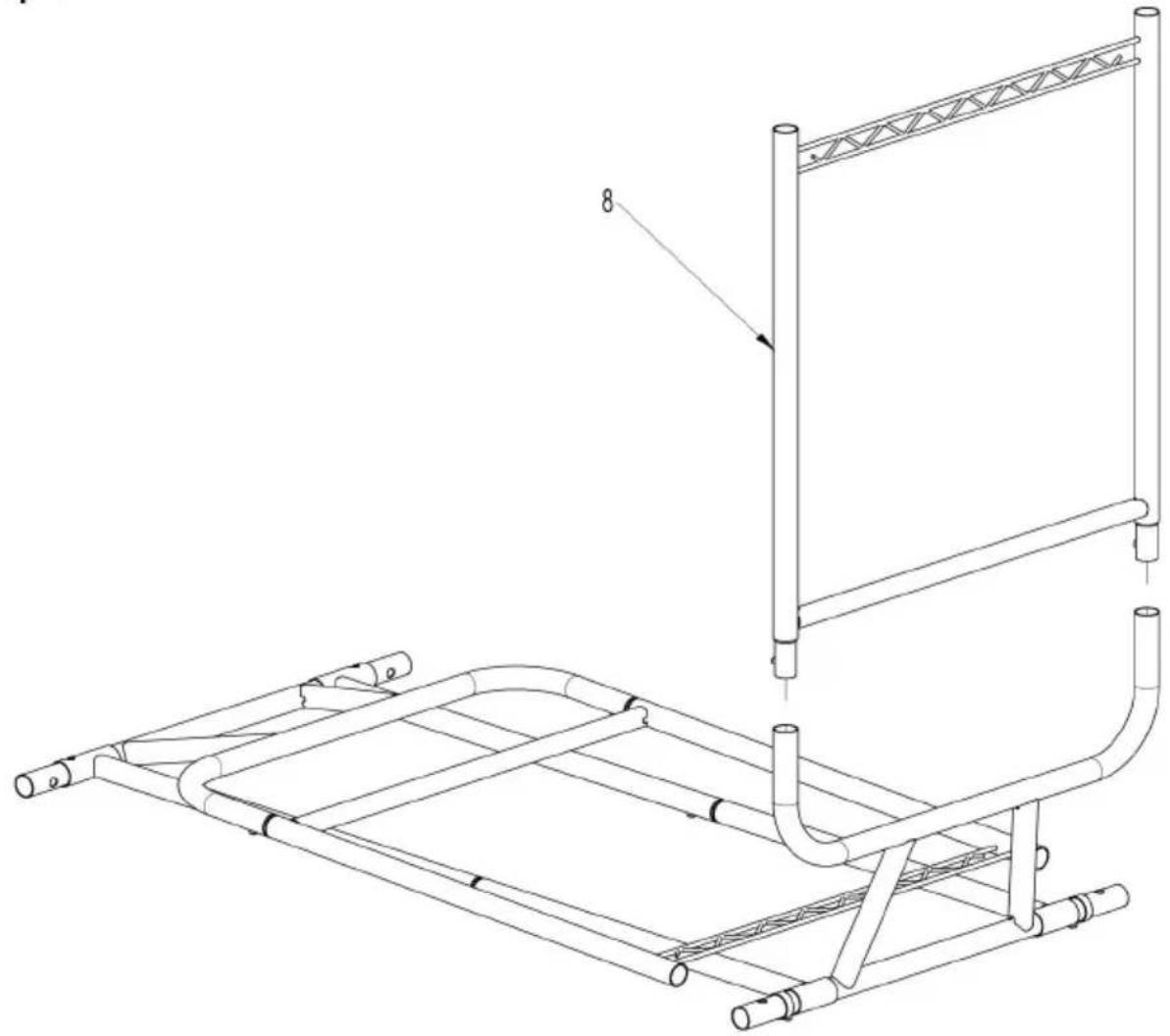

step 6

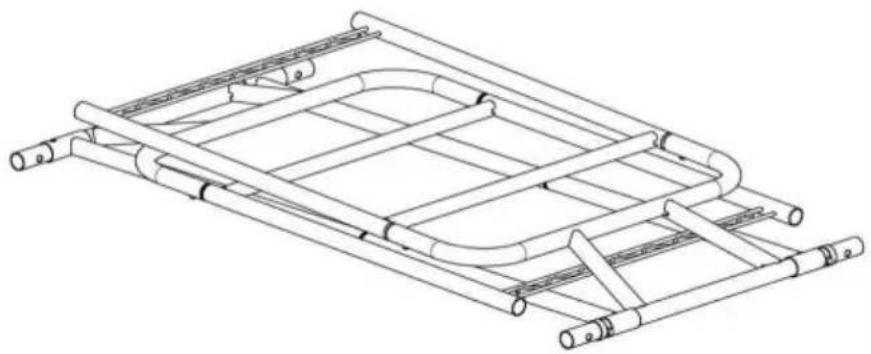

Technical line drawing of a mechanical assembly with rollers, gears, and a ladder (no text or symbols)

Componet 6

Line drawing of a four-legged metal ladder with handles and wheels (no text or symbols)

step 7

Technical line drawing of a mechanical ladder assembly with rollers and pulleys (no text or symbols)

Componet 7

Line drawing of a mechanical ladder with four wheels and a curved handle (no text or symbols)

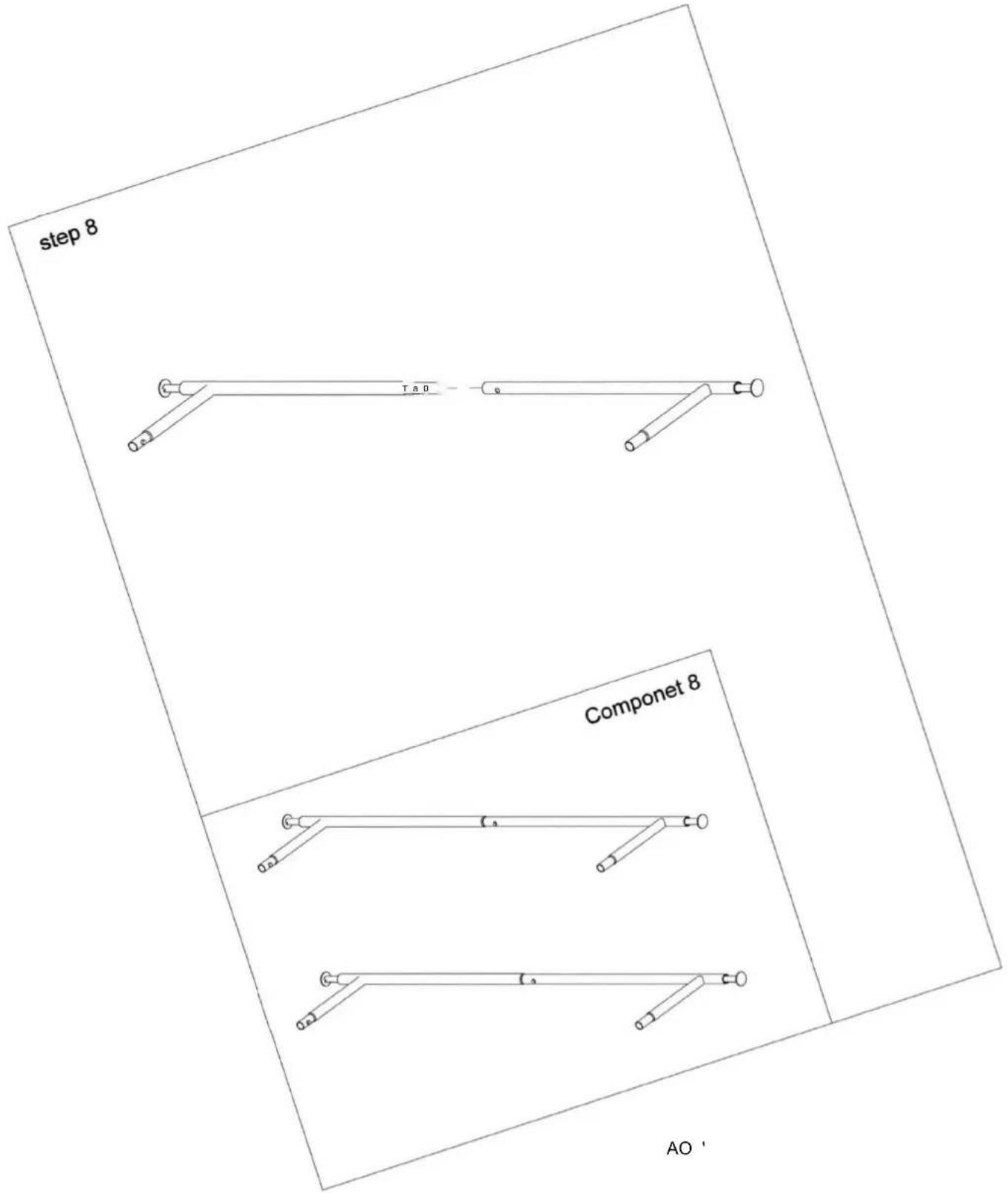

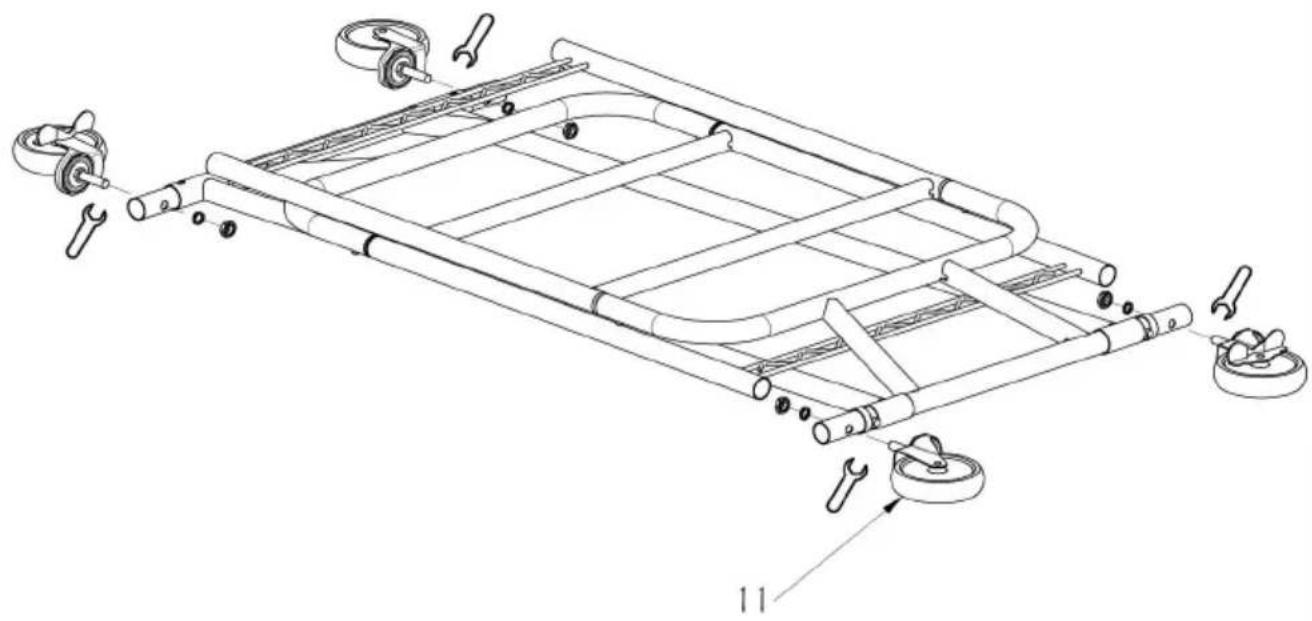

step 8

Pure mechanical linkage diagram showing two parallel rods with circular end caps and a central rod (no text or symbols)

Componet 8

Two identical line drawings of a mechanical lever or support structure, no text or symbols present.

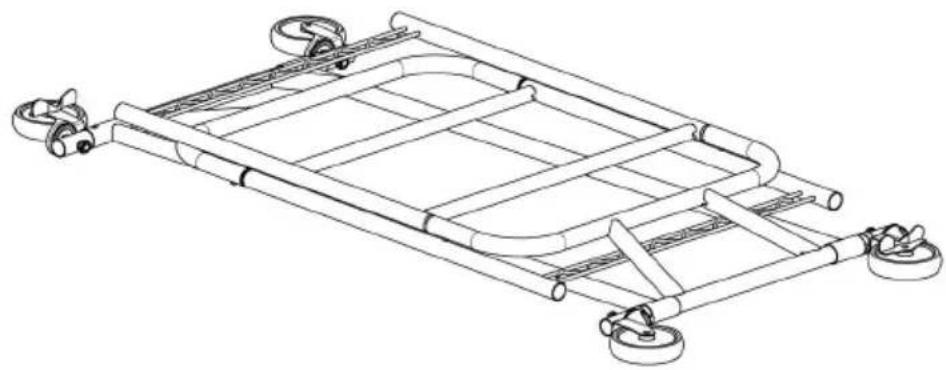

step 9

Simple line drawing of a mechanical linkage or support structure with multiple rods and cylindrical components (no text or symbols)

Componet 9

Two identical line drawings of a mechanical linkage or support structure with no text, numbers, or symbols.

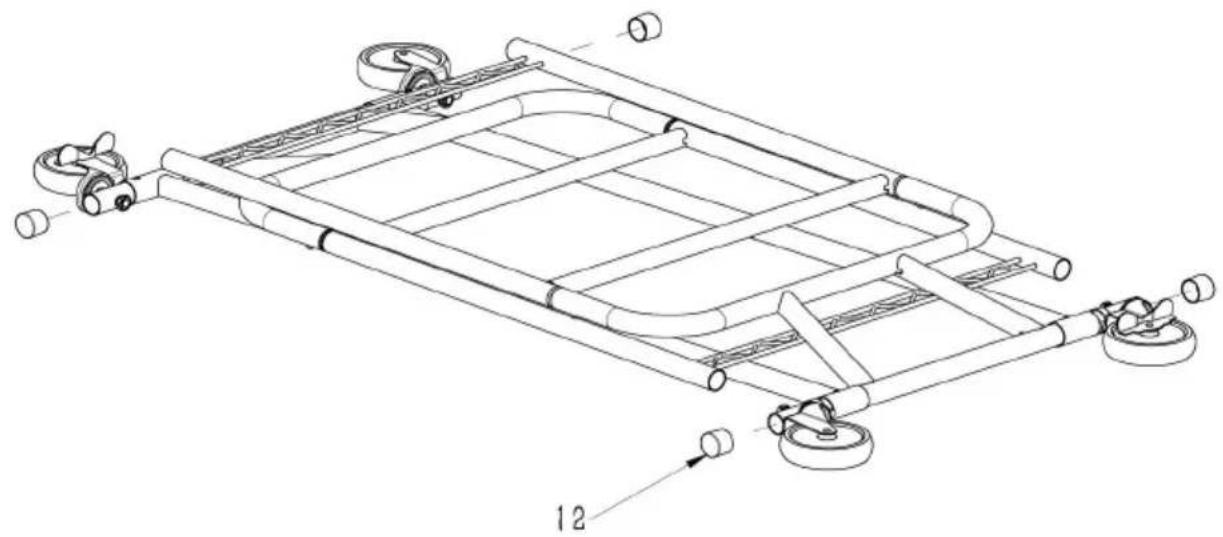

step 10

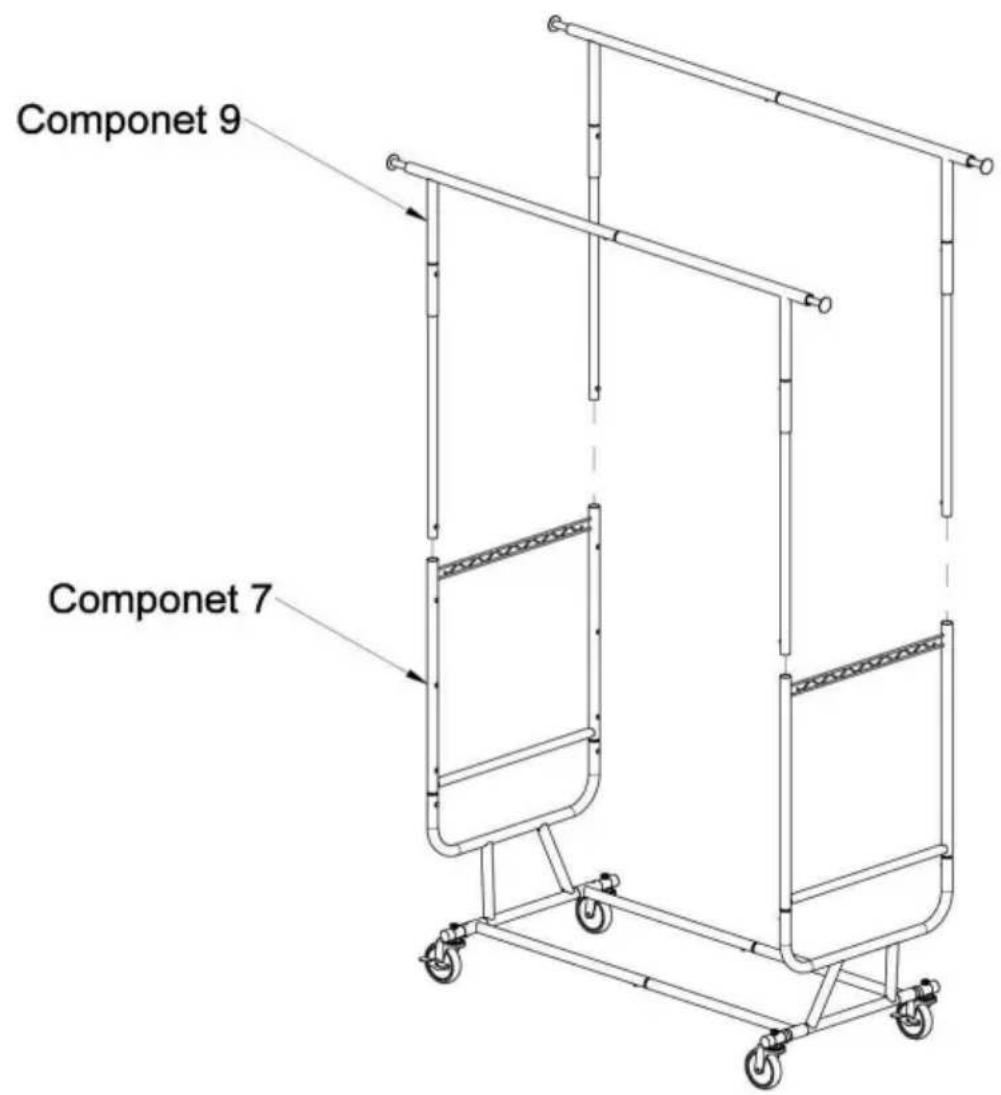

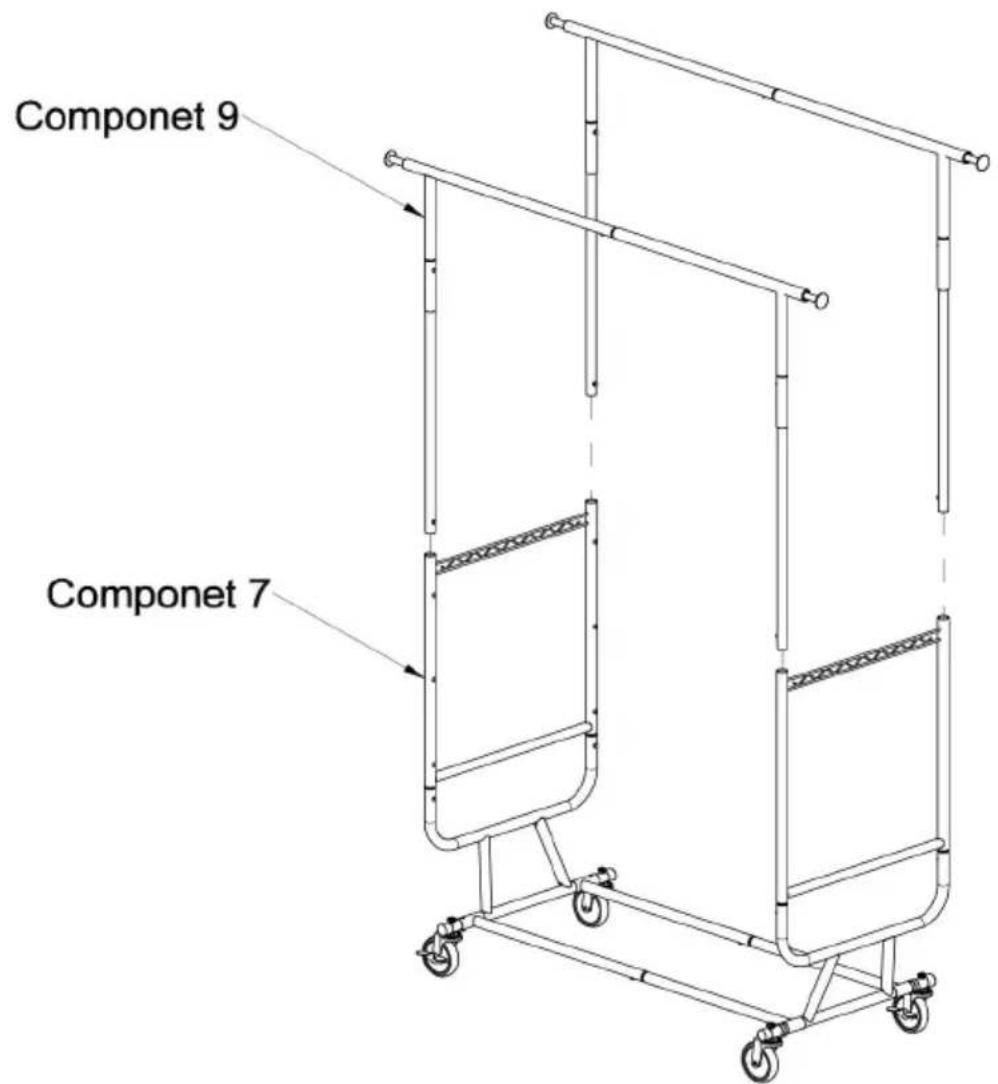

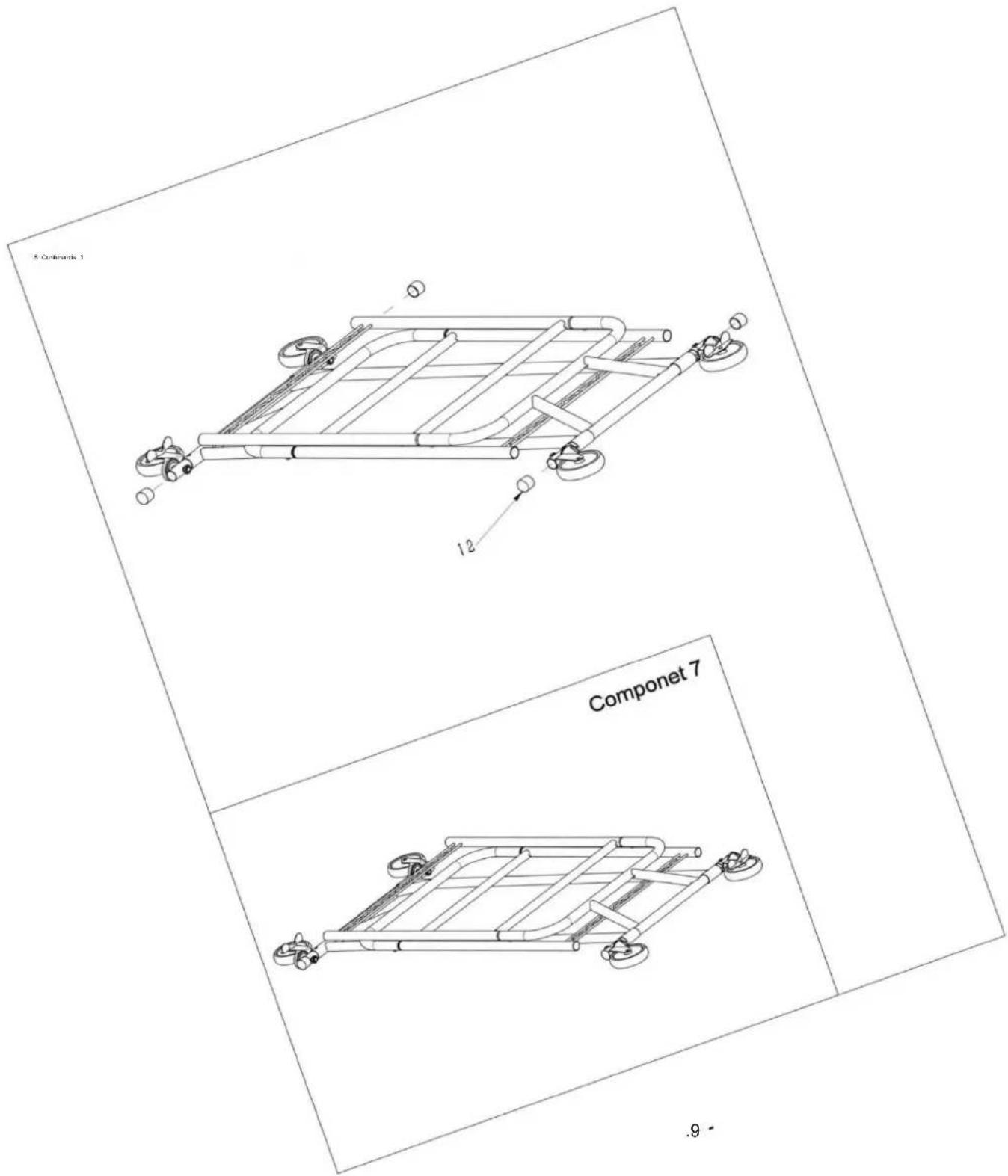

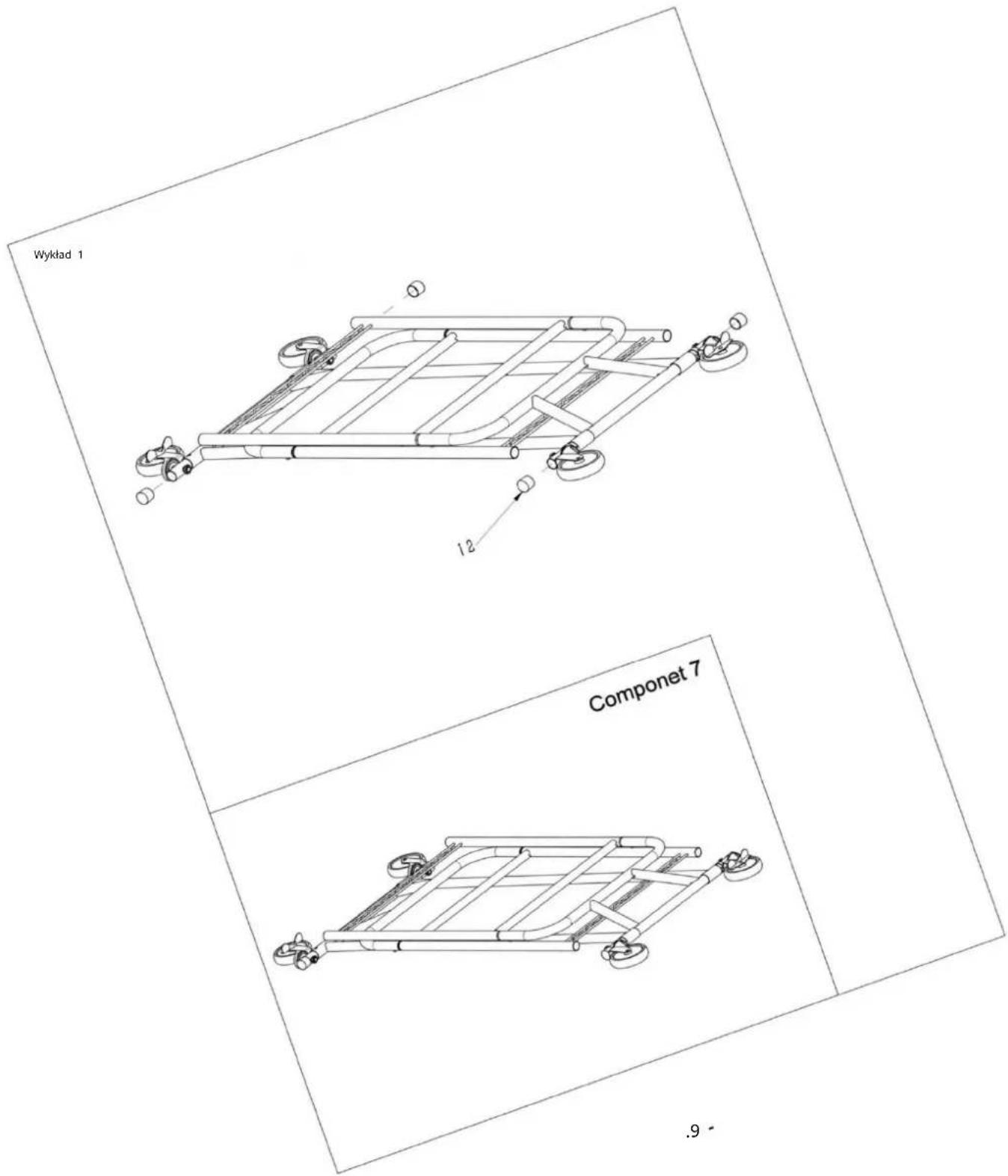

Componet 9 Componet 7

Line drawing of a dual-side cart with wheels and side supports (no text or symbols)

Componet 10

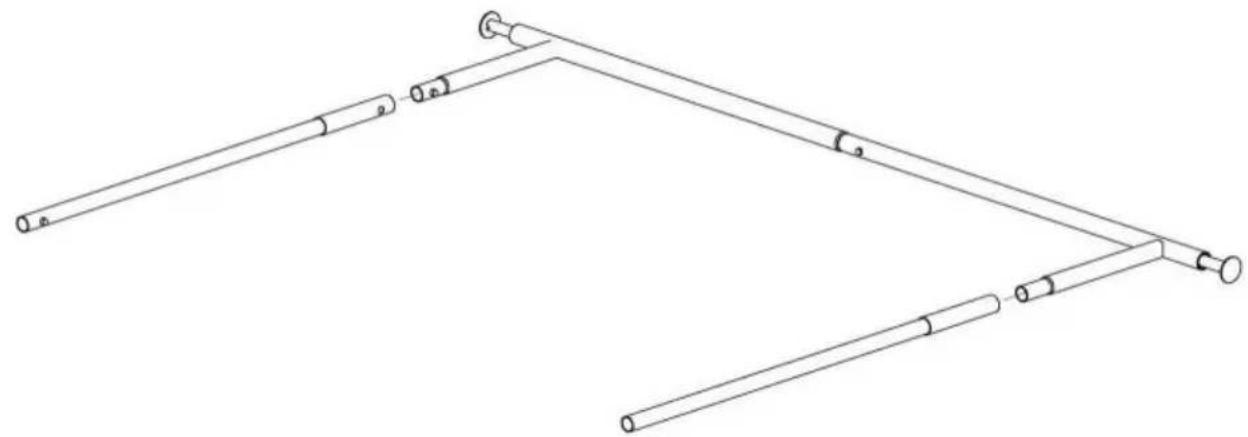

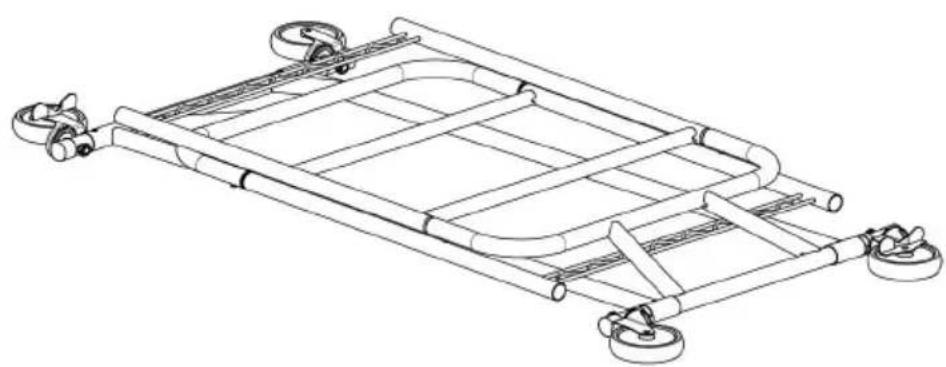

step 11

Technical line drawing of a two-wheeled cart with metal frame and grid base (no text or symbols)

Line drawing of a two-decker cart with wheels and overhead railings (no text or symbols)

Componet 11

COMPLETION

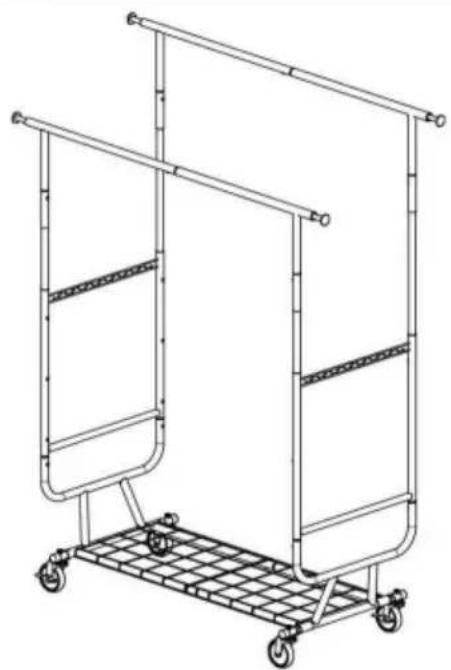

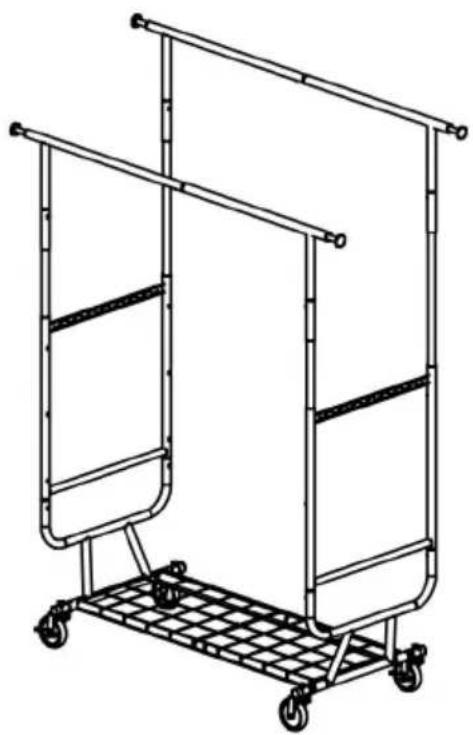

Technical line drawing of a two-hold cart with wheels and a grid base, no text or symbols present

40kg/Each Side, Even Distribution

60kg, Even Distribution

PRODUCT PARAMETER

Model	YD00018
Safe Loading Weight	140kg
Product Size	Max 1877*545*1867 mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEAST-WOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

CONSIGNES DE SÉCURITÉ

AVERTISSEMENT :

componet 1 7 7 composer 2

Composer 3

Technical line drawing of a mechanical assembly with no visible text or symbols

step 4

Technical line drawing of a mechanical support structure with no visible text or symbols

Componet 4

Technical line drawing of a mechanical assembly with multiple cylindrical rods and a central horizontal bar (no text or symbols)

étape 5

Technical line drawing of a mechanical assembly with pipes and supports (no text or symbols)

Composer 5

Line drawing of a modular ladder structure with multiple rods and a curved internal frame (no text or symbols)

step 6 t! 11 Componet 6 -8 -

5. Collaborer 1 12 Componet 7 .9 -

step 8 T a 0 Componet 8 AO '

étape 9

Pure technical line drawing of a mechanical assembly with no text or symbols

Composer 9

Pure line drawing of a mechanical linkage or support structure without any text, numbers, or symbols

Pure line drawing of a mechanical linkage or support structure without any text, numbers, or symbols

step 10

Componet 9 Componet 7

Line drawing of a dual-side cart with wheels and horizontal bars (no text or symbols)

Componet 10

step 11

Technical line drawing of a two-wheeled cart with metal frame and grid base (no text or symbols)

Line drawing of a two-decker cart with wheels and overhead railings (no text or symbols)

Composer 11

ACHÈVEMENT

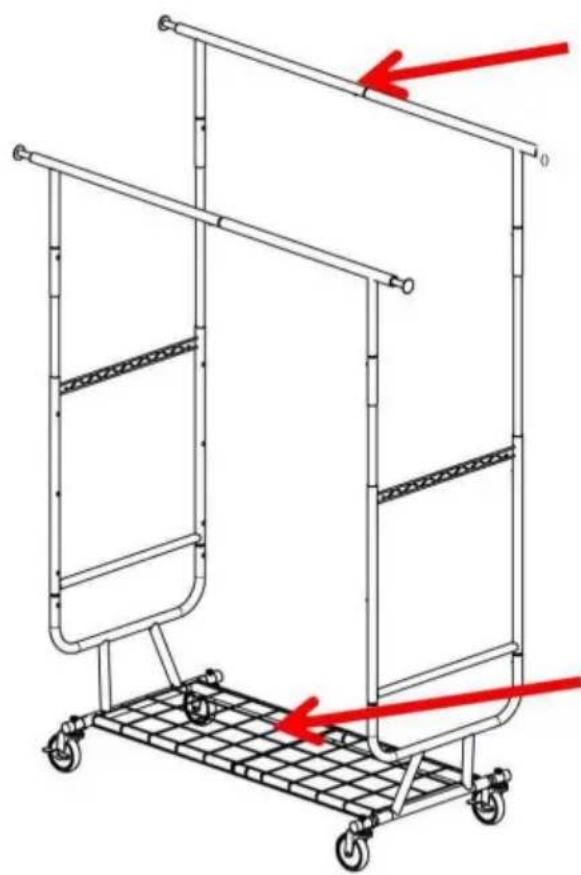

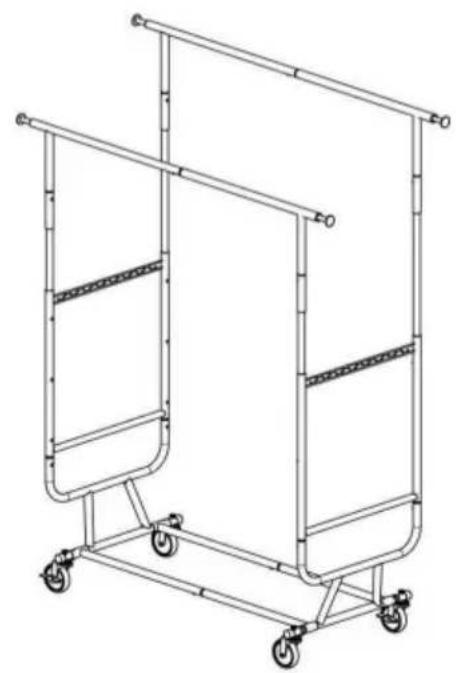

Technical line drawing of a two-bar cart with wheels and a red directional arrows indicating motion (no text or symbols)

40kg/Each Side, Even Distribution

60kg, Even Distribution

PARAMÈTRE DU PRODUIT

C/O YH Consulting Limited Bureau 147, Centurion House,

Route de Londres, Staines-upon-Thames, Surrey, TW18 4AX

Fabriqué en Chine

SICHERHEITSHINWEISE

ACHTUNG:

Simple line drawing of a rod with two cylindrical ends (no text or symbols)

Simple line drawing of a long rod with a cylindrical end (no text or symbols)

Simple line drawing of a rod with two cylindrical ends (no text or symbols)

Simple line drawing of a mechanical lever or fulcrum (no text or symbols)

Simple line drawing of a mechanical lever or support structure (no text or symbols)

Simple line drawing of a mechanical lever or support structure (no text or symbols)

Line drawing of a ladder with curved and straight ends, no text or symbols present

1. Fußrahmen x2

Line drawing of a folded scroll or sheet with multiple rolled edges (no text or symbols)

Simple line drawing of a cylindrical object with two ends, no text or symbols present

1. Mittelrohr x4

Isometric line drawing of a grid-like structure with no text or symbols

1. Masche x2

1. Schraubenschlüssel x1

ASSEMBLY STEP

Schritt 3

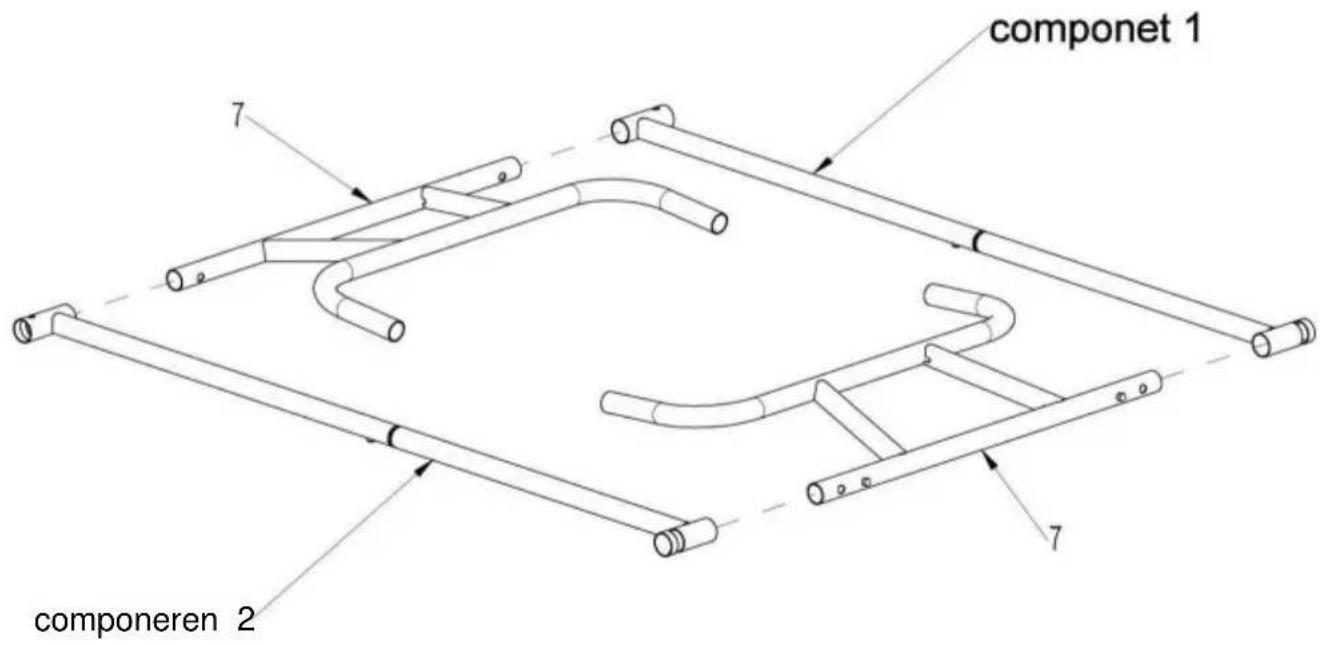

componet 1 7 7 komponieren 2

Verfassen Sie 3

Technical line drawing of a mechanical assembly with pipes and connectors, showing a close-up inset (no text or symbols)

step 4

Technical line drawing of a mechanical support structure with no visible text or symbols

Componet 4

Technical line drawing of a mechanical assembly with multiple cylindrical rods and ribbed components (no text or symbols)

Schritt 5

Technical line drawing of a mechanical assembly with pipes and a ladder, no text or symbols present

Verfassen Sie 5

Line drawing of a modular ladder structure with multiple rods and a curved internal frame (no text or symbols)

step 6 T! 11 Componet 6 -8 -

S. Vortezung 1 12 Componet 7 .9 -

step 8 T sin 0 Componet 8 AO'

Schritt 9

Pure technical line drawing of a mechanical assembly with no text or symbols

Verfassen Sie 9

Two identical line drawings of a mechanical linkage or support structure with no text, numbers, or symbols.

step 10

Componet 9 Componet 7

Line drawing of a dual-side cart with wheels and horizontal bars (no text or symbols)

Componet 10

step 11

Technical line drawing of a multi-level industrial cart with wheels and structural supports (no text or symbols)

Line drawing of a two-decker cart with wheels and overhead railings (no text or symbols)

Verfassen Sie 11

FERTIGSTELLUNG

Technical line drawing of a two-bar cart with wheels and a red directional arrows indicating motion (no text or symbols)

40kg/Each Side, Even Distribution

60kg, Even Distribution

PRODUKTPARAMETER

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Technical line drawing of a mechanical assembly with pipes and connectors, showing a close-up inset (no text or symbols)

step 4

Technical line drawing of a mechanical support structure with no visible text or symbols

Componet 4

Technical line drawing of a mechanical assembly with multiple cylindrical rods and ribbed components (no text or symbols)

passo 5

Technical line drawing of a mechanical assembly with pipes and structural supports (no text or symbols)

Componi 5

Line drawing of a modular ladder structure with multiple rods and a curved internal frame (no text or symbols)

step 6 T! 11 Componet 6 -8 -

Pure technical line drawing of a mechanical assembly with no text or symbols

Componi 9

Pure line drawing of a mechanical linkage or support structure without any text, numbers, or symbols

Pure line drawing of a mechanical linkage or support structure without any text, numbers, or symbols

step 10

Componet 9 Componet 7

Line drawing of a dual-side cart with wheels and horizontal bars (no text or symbols)

Componet 10

step 11

Technical line drawing of a multi-level industrial cart with wheels and structural supports (no text or symbols)

Line drawing of a two-decker cart with wheels and overhead railings (no text or symbols)

Componi 11

COMPLETAMENTO

Technical line drawing of a two-bar cart with wheels and a red directional arrows indicating motion (no text or symbols)

40kg/Each Side, Even Distribution

60kg, Even Distribution

PARAMETRO PRODOTTO

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEAST-WOOD NSW 2122 Australia

Importato negli USA: San ven Technology Ltd. Suite 250, 9166 Ana-heim Place, Rancho Cucamonga, CA91730

E-CrossStu GmbH

izer Landstr.69, 60329 Francoforte sul Meno.

CONSULENZA YH LIMITATA.

C/O YH Consulting Limited Ufficio 147, Centurion House,

Via Roma, 101, 00186 Roma, Italia

Made in China

Simple line drawing of a rod with two cylindrical ends (no text or symbols)

Simple line drawing of a long rod with a cylindrical end (no text or symbols)

Simple line drawing of a rod with two cylindrical ends (no text or symbols)

Simple line drawing of a mechanical lever or fulcrum (no text or symbols)

Simple line drawing of a mechanical lever or support structure (no text or symbols)

Simple line drawing of a mechanical lever or support structure (no text or symbols)

Line drawing of a ladder with curved and straight ends, no text or symbols present

1. Marco para pies x2

Line drawing of a folded scroll or sheet with multiple rolled edges (no text or symbols)

1. Marco intermedio x2

Simple line drawing of a cylindrical object with two ends, no text or symbols present

1. Tubo intermedio x4

Isometric line drawing of a grid-like structure with no text or symbols

1. Malla x2

11-1. Rueda de freno x2 11-2. Rueda x2 12. Tapa x4

B

1. Llave inglesa x1

ASSEMBLY STEP

Paso 3

component 1 7 7 component 2

Componer 3

Technical line drawing of a mechanical assembly with no visible text or symbols

step 4

Technical line drawing of a mechanical support structure with no visible text or symbols

Componet 4

Technical line drawing of a mechanical assembly with multiple cylindrical rods and ribbed components (no text or symbols)

Paso 5

Technical line drawing of a mechanical assembly with pipes and supports (no text or symbols)

componer 5

Line drawing of a modular ladder structure with multiple rods and a curved internal frame (no text or symbols)

step 6 iSif! 11 Componet 6 -8 -

5 Conferenc 1 12 Componet 7 .9 -

step 8 T a 0 Componet 8 AO '

Paso 9

Pure technical line drawing of a mechanical assembly with no text or symbols

componer 9

Two identical line drawings of a mechanical linkage or support structure with no text, numbers, or symbols.

step 10

Componet 9 Componet 7

Line drawing of a dual-side cart with wheels and horizontal bars (no text or symbols)

Componet 10

step 11

Technical line drawing of a multi-level industrial cart with wheels and structural supports (no text or symbols)

Line drawing of a two-decker cart with wheels and overhead railings (no text or symbols)

Componer 11

TERMINACIÓN

Technical line drawing of a two-bar cart with wheels and a red directional arrows indicating motion (no text or symbols)

40kg/Each Side, Even Distribution

60kg, Even Distribution

PARÁMETRO DEL PRODUCTO

C/O YH Consulting Limited Oficina 147, Centurion House,

Carretera de Londres, Staines-upon-Thames, Surrey, TW18 4AX

Hecho en china

INSTRUKCJE BEZPIECZEŃSTWA

OSTRZEŻENIE:

Simple line drawing of a rod with two cylindrical ends (no text or symbols)

Simple line drawing of a long rod with a small circular end (no text or symbols)

Simple line drawing of a rod with two cylindrical ends (no text or symbols)

Simple line drawing of a lever handle with two cylindrical ends (no text or symbols)

Simple line drawing of a mechanical lever or support structure (no text or symbols)

Simple line drawing of a mechanical lever or support structure (no text or symbols)

1. Górna rura termokurczliwa x2

Line drawing of a ladder with curved and straight ends, no text or symbols present

1. Rama stóp x2

Line drawing of a tilted rectangular scroll or sheet with multiple cylindrical ends (no text or symbols)

8.Środkowa rama x2

Simple line drawing of a cylindrical object with two ends, no text or symbols present

1. Rura środkowa x4

Isometric line drawing of a grid-like structure with no text or symbols

1. Siatka x2

Technical line drawing of a mechanical device with a magnified inset showing a cylindrical component (no text or symbols)

step 4

Technical line drawing of a mechanical support structure with no visible text or symbols

Componet 4

Technical line drawing of a mechanical assembly with multiple cylindrical rods and ribbed components (no text or symbols)

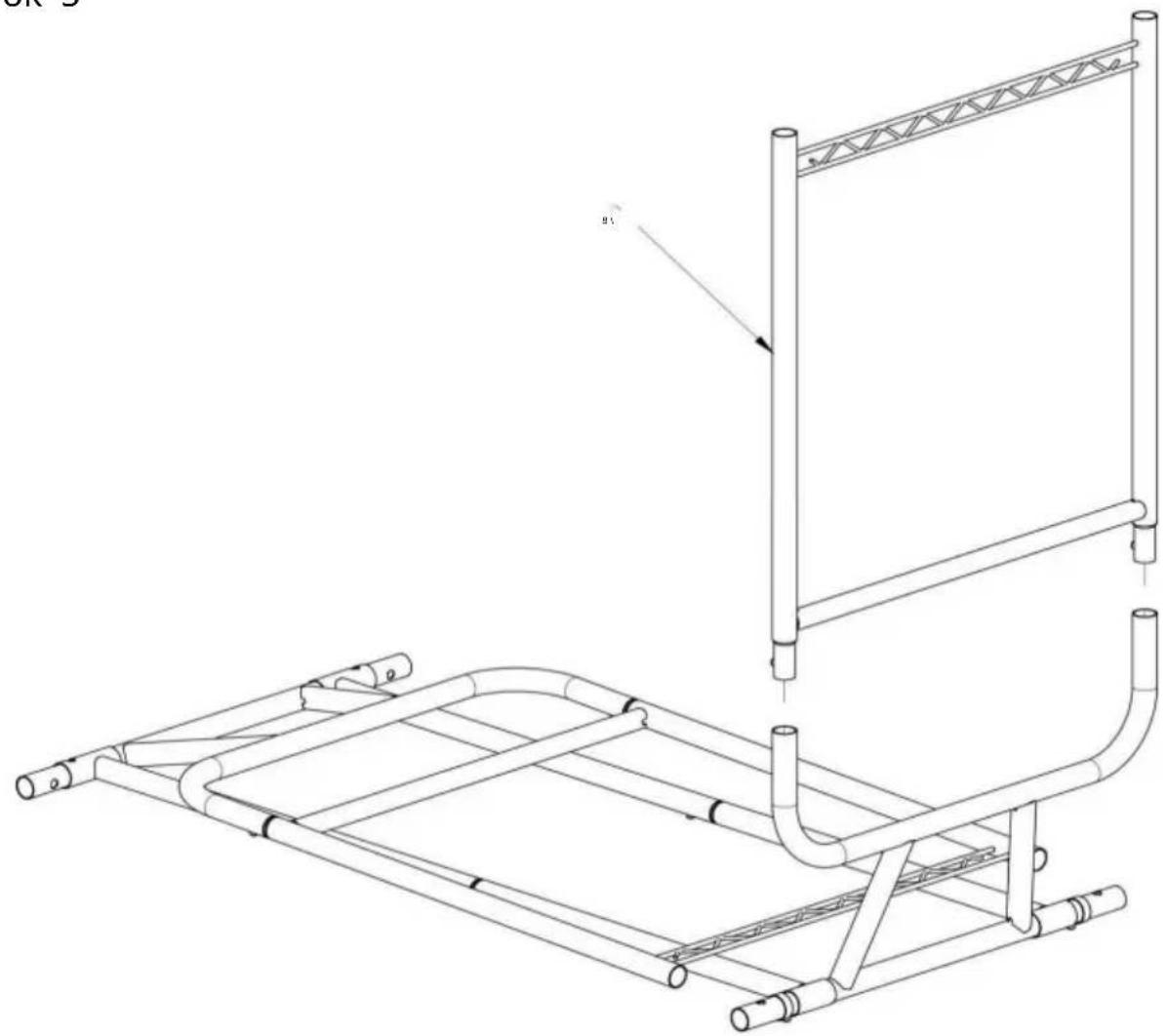

krok 5

Technical line drawing of a mechanical assembly with pipes and a ladder, no text or symbols present

Skomponuj 5

Line drawing of a modular ladder structure with multiple rods and a curved internal frame (no text or symbols)

step 6 T! 11 Componet 6 -8 -

Wyklad 1 12 Componet 7 .9 -

step 8 T a 0 Componet 8 AO'

krok 9

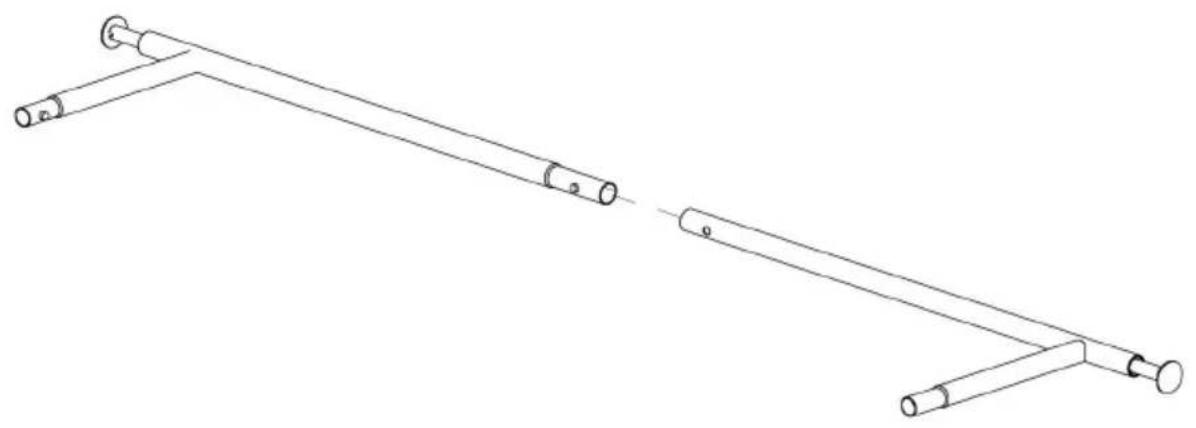

Pure technical line drawing of a mechanical linkage or support structure without any text, numbers, or symbols

Skomponuj 9

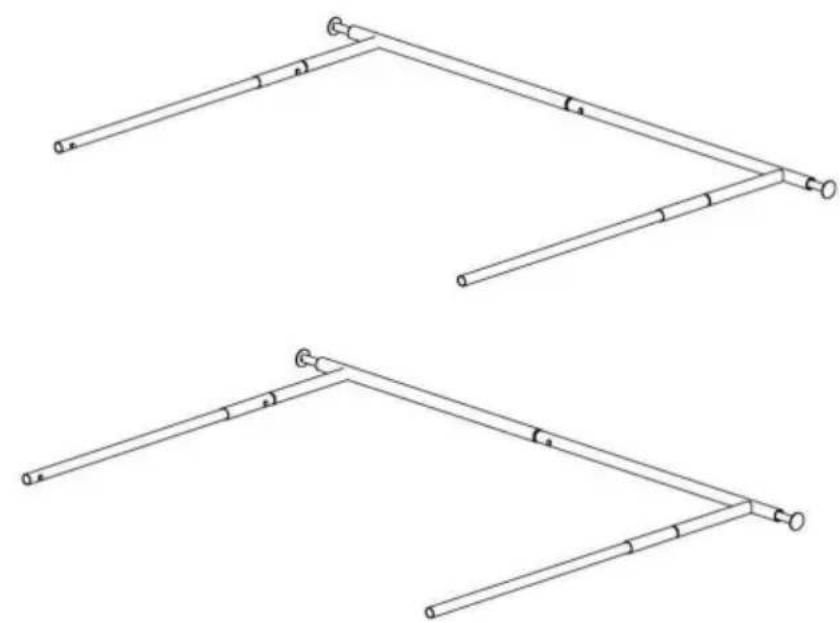

Two identical line drawings of a mechanical linkage or support structure with no text, numbers, or symbols.

step 10

Componet 9 Componet 7

Line drawing of a dual-side cart with wheels and horizontal bars (no text or symbols)

Componet 10

step 11

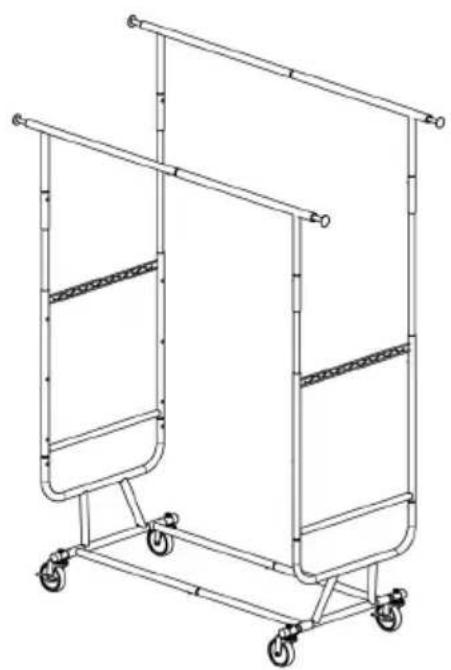

Technical line drawing of a multi-level industrial cart with wheels and structural supports (no text or symbols)

Line drawing of a two-decker cart with wheels and overhead railings (no text or symbols)

Skomponuj 11

UKOŃCZENIE

Technical line drawing of a two-bar cart with wheels and a red directional arrows indicating motion (no text or symbols)

40kg/Each Side, Even Distribution

60kg, Even Distribution

PARAMETR PRODUKTU

C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Simple line drawing of a rod with two cylindrical ends (no text or symbols)

Simple line drawing of a long rod with a cylindrical end (no text or symbols)

Simple line drawing of a rod with two cylindrical ends (no text or symbols)

Simple line drawing of a mechanical lever or fulcrum (no text or symbols)

Simple line drawing of a mechanical lever or support structure (no text or symbols)

1. Bovenste platte kopbuis x2

Simple line drawing of two connected pipes or rods (no text or symbols)

1. Bovenste krimpkopbuis x2

Line drawing of a ladder with curved and straight ends, no text or symbols present

1. Voetframe x2

Line drawing of a folded scroll or sheet with multiple rolled edges (no text or symbols)

8.Middenframe x2

Simple line drawing of a cylindrical object with two ends, no text or symbols present

1. Middelste pijp x4

Isometric line drawing of a grid-like structure with no text or symbols

1. Gaas x2

11-1. Remwiel x2 11-2. Wiel x2 12. Dop x4

B

1. Sleutel x1

ASSEMBLY STEP

stap 3

componet 1 7 7 componeren 2

Componeer 3

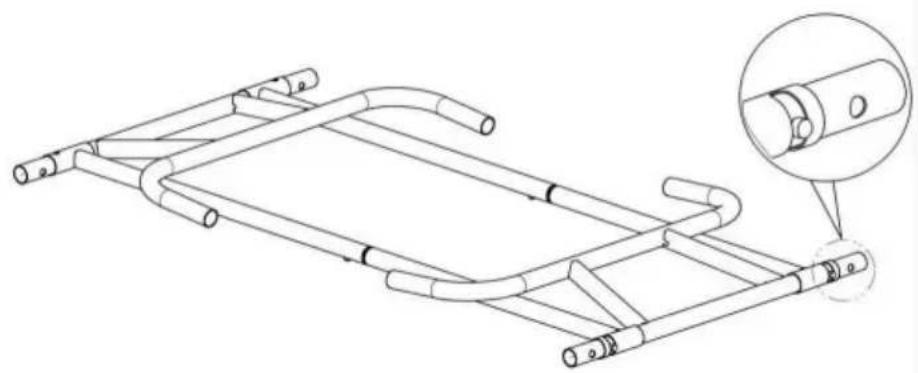

Technical line drawing of a mechanical assembly with pipes and connectors, showing a close-up inset (no text or symbols)

step 4

Technical line drawing of a mechanical support structure with no visible text or symbols

Componet 4

Technical line drawing of a mechanical assembly with multiple cylindrical rods and ribbed components (no text or symbols)

stap 5

Technical line drawing of a mechanical assembly with pipes and a ladder, no text or symbols present

Componeer 5

Line drawing of a modular ladder structure with multiple rods and a curved internal frame (no text or symbols)

step 6 T! 11 Componet 6 -8 -

S Lezing 1 12 Componet 7 .9 -

step 8 Componet 8 AO'

stap 9

Pure technical line drawing of a mechanical assembly with no text or symbols

Component 9

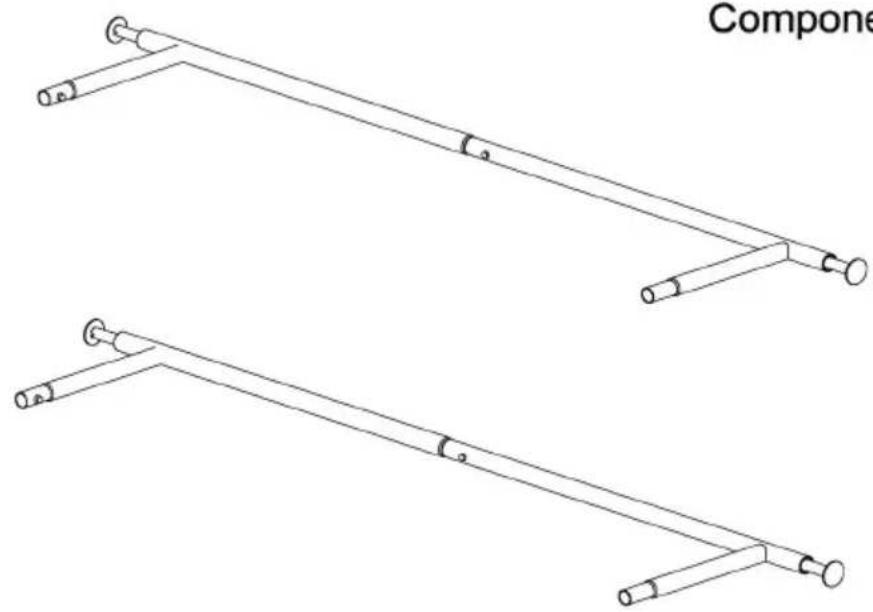

Two identical line drawings of a mechanical linkage or support structure with no text, numbers, or symbols.

step 10

Componet 9 Componet 7

Line drawing of a dual-side cart with wheels and horizontal bars (no text or symbols)

Componet 10

step 11

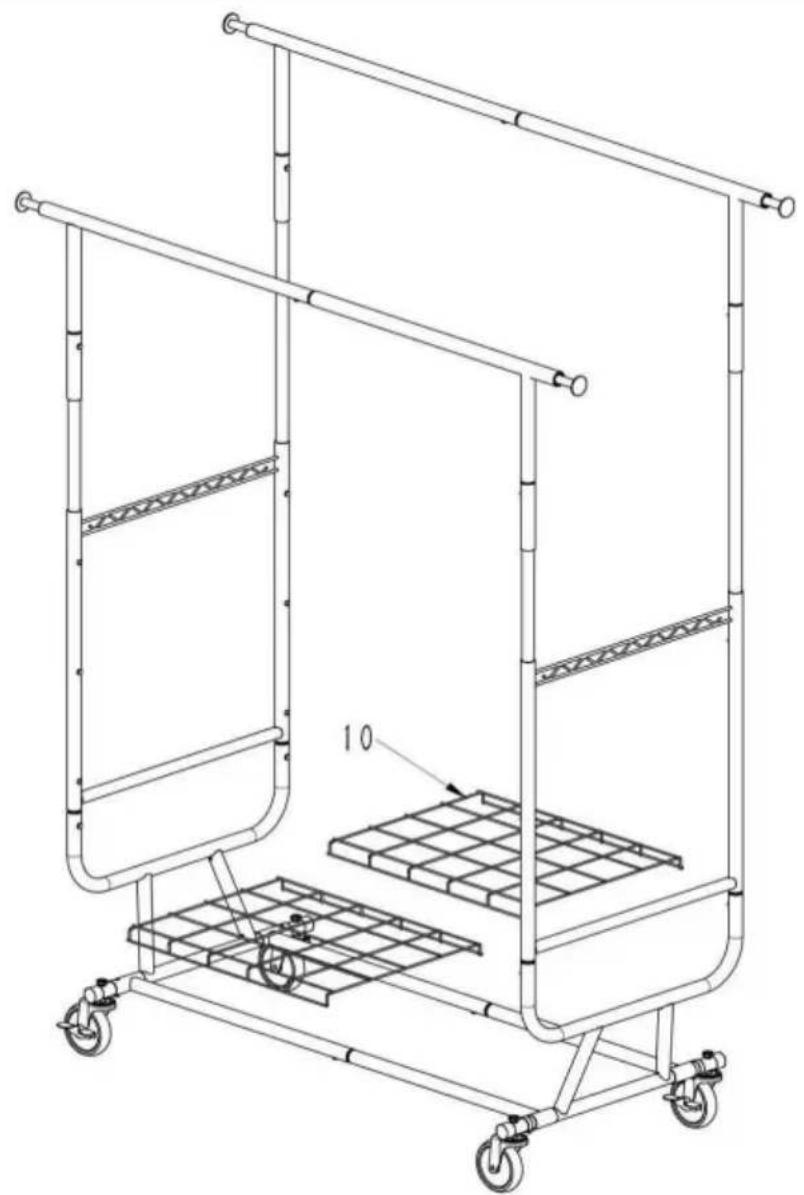

Technical line drawing of a multi-level industrial cart with wheels and structural supports (no text or symbols)

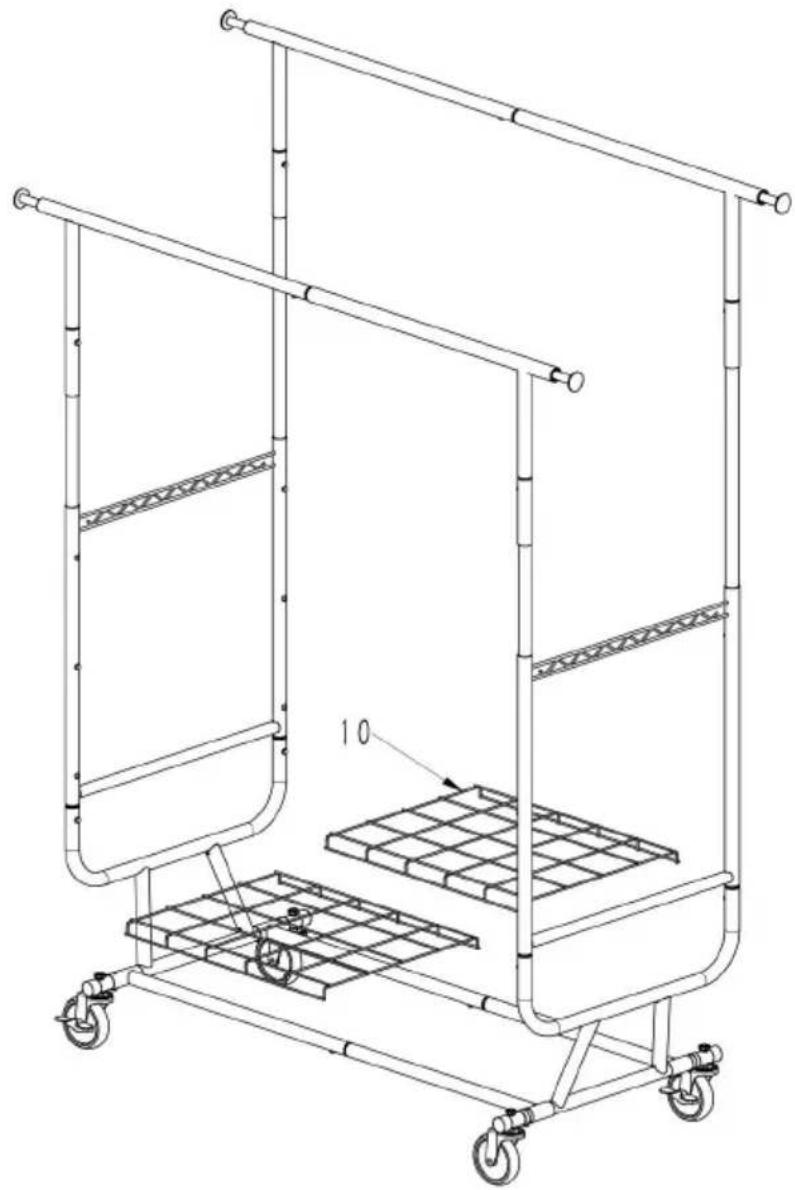

Line drawing of a two-decker cart with wheels and overhead railings (no text or symbols)

Componeer 11

VOLTOOING

Technical line drawing of a two-bar cart with wheels and a red directional arrows indicating motion (no text or symbols)

40kg/Each Side, Even Distribution

60kg, Even Distribution

PRODUCTPARAMETER

Model	Jaar 00018
	140kgVeilig laadgewicht
Productgrootte	Maximaal 1877*545*1867 mm

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11 hao1602A-1609shi,

baoshanqu, sjanghai 200000 CN.

C/O YH Consulting Limited Kantoor 147, Centurion House, Londen Road, Staines-upon-Thames, Surrey, TW18 4AX

Gemaakt in China

SÄKERHETSINSTRUKTIONER

WARNING:

Simple line drawing of a rod with a flanged end and a small cylindrical cap (no text or symbols)

Simple line drawing of a long rod with a cylindrical end (no text or symbols)

Simple line drawing of a rod with two cylindrical ends (no text or symbols)

Simple line drawing of a long rod with a cylindrical end, no text or symbols present

Simple line drawing of a mechanical lever or fulcrum with two ends and a central shaft (no text or symbols)

Simple line drawing of a mechanical lever or support structure (no text or symbols)

1. Toppkrymphuvud x2

Line drawing of a ladder with curved railings and a cylindrical rod (no text or symbols)

1. Fotram x2

Line drawing of a tilted rectangular scroll or sheet with multiple rolled ends (no text or symbols)

1. Mellanram x2

Simple line drawing of a cylindrical rod or tube with two ends (no text or symbols)

1. Mellanrör x4

Isometric line drawing of a grid-like structure with no text or symbols

1. Mesh x2

11-1. Bromshjul x2 11-2. Hjul x2 12. Cap x4

B

1. Nyckel x1

ASSEMBLY STEP

steg 3

componet 1 7 7 komponera 2

Komponera 3

Technical line drawing of a mechanical device with a magnified inset showing a cylindrical component (no text or symbols)

step 4

Technical line drawing of a mechanical support structure with no visible text or symbols

Componet 4

Technical line drawing of a mechanical assembly with multiple cylindrical rods and ribbed components (no text or symbols)

steg 5

Technical line drawing of a mechanical assembly with pipes and structural supports (no text or symbols)

Komponera 5

Line drawing of a modular ladder structure with multiple rods and a curved internal frame (no text or symbols)

step 6 t! 11 Componet 6 -8 -

5. Replacing 1 12 Componet 7 .9 -

step 8 T a 0 Componet 8 AO'

steg 9

Pure technical line drawing of a mechanical assembly with no text or symbols

Komponera 9

Two identical line drawings of a mechanical linkage or support structure with no text, numbers, or symbols.

step 10

Componet 9 Componet 7

Line drawing of a dual-side cart with wheels and horizontal bars (no text or symbols)

Componet 10

step 11

Technical line drawing of a multi-level industrial cart with wheels and structural supports (no text or symbols)

Line drawing of a two-decker cart with wheels and overhead railings (no text or symbols)

Komponera 11

KOMPLETTERING

Technical line drawing of a two-bar cart with wheels and a red directional arrows indicating motion (no text or symbols)

40kg/Each Side, Even Distribution

60kg, Even Distribution

PRODUKTPARAMETER

Modell	YD00018
Säker lastvikt	140 kg
Produktstorlek	Max 1877*545*1867 mm

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11 hao1602A-1609shi,

baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEAST-WOOD NSW 2122

Australien

Importerad till USA: San ven Technology Ltd. Suite 250, 9166 Ana-heim Place, Rancho

Cucamonga, CA91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

Tillverkad i Kina
