DIRT BIKE STAND

MODEL: TD-059-02

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

DIRT BIKE STAND

Model: TD-059-02

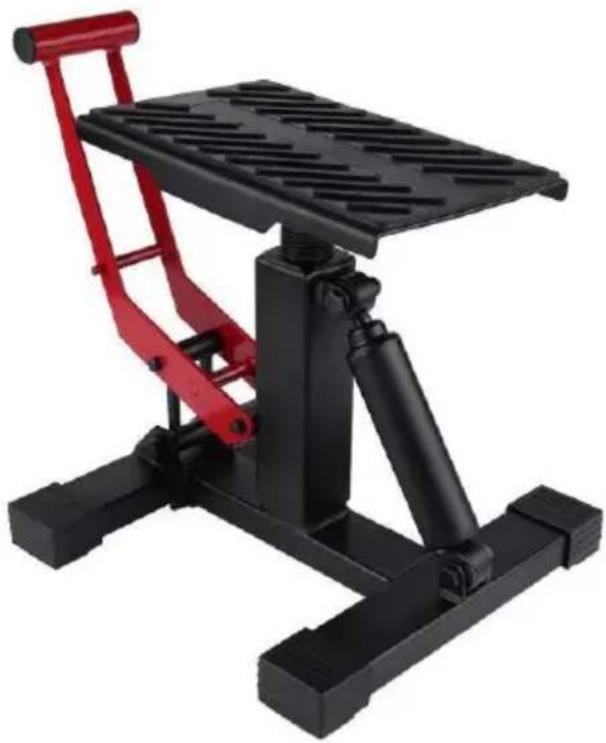

Black and red manual exercise stand with a flat top and vertical legs (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFETY PRECAUTIONS

Warning - To reduce the risk of injury, user must read in manual carefully.

• Read and understand this entire manual before assembling, installir operating, or servicing this product. Failure to follow these warning and instructions can cause death, personal injury or damage to valuable property.
• Adhere to all Department of Transportation (D.O.T.) requirements when using this product.
• Use common sense when working. Stay alert and concentrate when setting up and using this product. Never work while under the inf of alcohol, drugs or medications.
  ● While assembling and using this product keep work area clean ar well lighted. Keep spectators and children out of the work area.
• Dress appropriately. Never wear loose fitting clothing or jewelry wr working. Contain long hair, and keep hair, clothing and gloves aw from moving parts.
  ● Always keep this stand away from children.
• Check the stand is in good condition before using it.

SPECIFICATIONS

Model Series	TD-059-02
Maximum Load Capacity (lbs)	1200
Support height (inch)	10-18

PRODUCT PARAMETERS

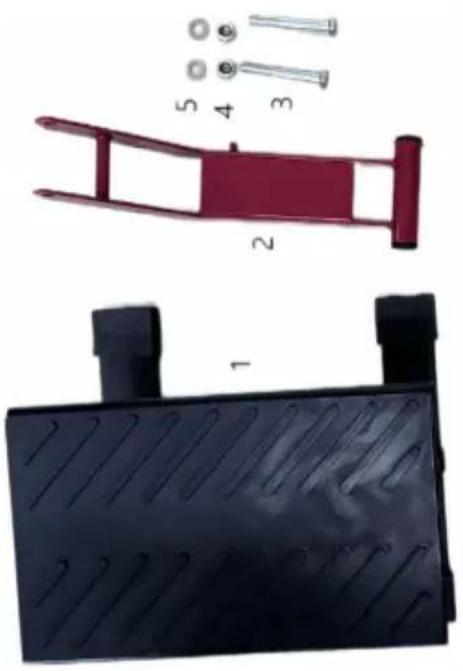

SN	Description	Qty
1	Bracket main body	1
2	Kick arm	2
3	Screw M10×75	2
4	Lock nut M10	2
5	Washer d10	4

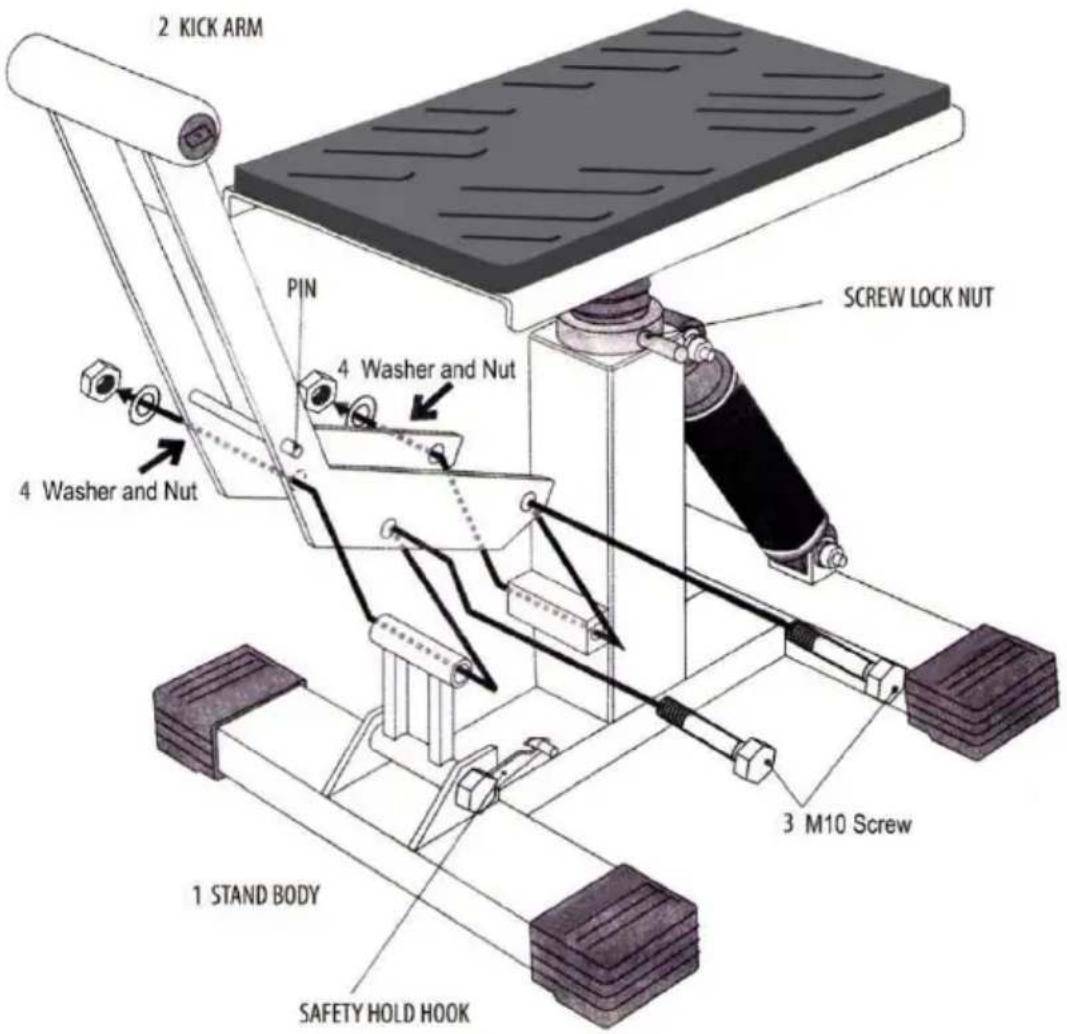

2 KICK ARM PIN 4 Washer and Nut 4 Washer and Nut 1 STAND BODY SAFETY HOLD HOOK 3 M10 Screw SCREW LOCK NUT

ASSEMBLY INSTRUCTIONS

1) Install kick arm to stand body with screws.
2) Put on the washers and use tools to screw up the nut.

NOTE

It will be much easier to lift up your bike if you set the top plate it lower than your bike's ground clearance.

CAUTION

1) After you set the stand's height, please tighten "Screw lock nut" a "Lifting Shaft".
2) This Stand's maximum weight capacity is 1200lbs
3) Don't sit on the bike while it is on the stand.
4) When released, the kick arm will come up fast. Please be careful your leg or other body parts do not get caught between the kick arm top plate or your bike.
5) After the motorcycle has been lifted, use "Safety hold hook" to he prevent an unintentional descent.

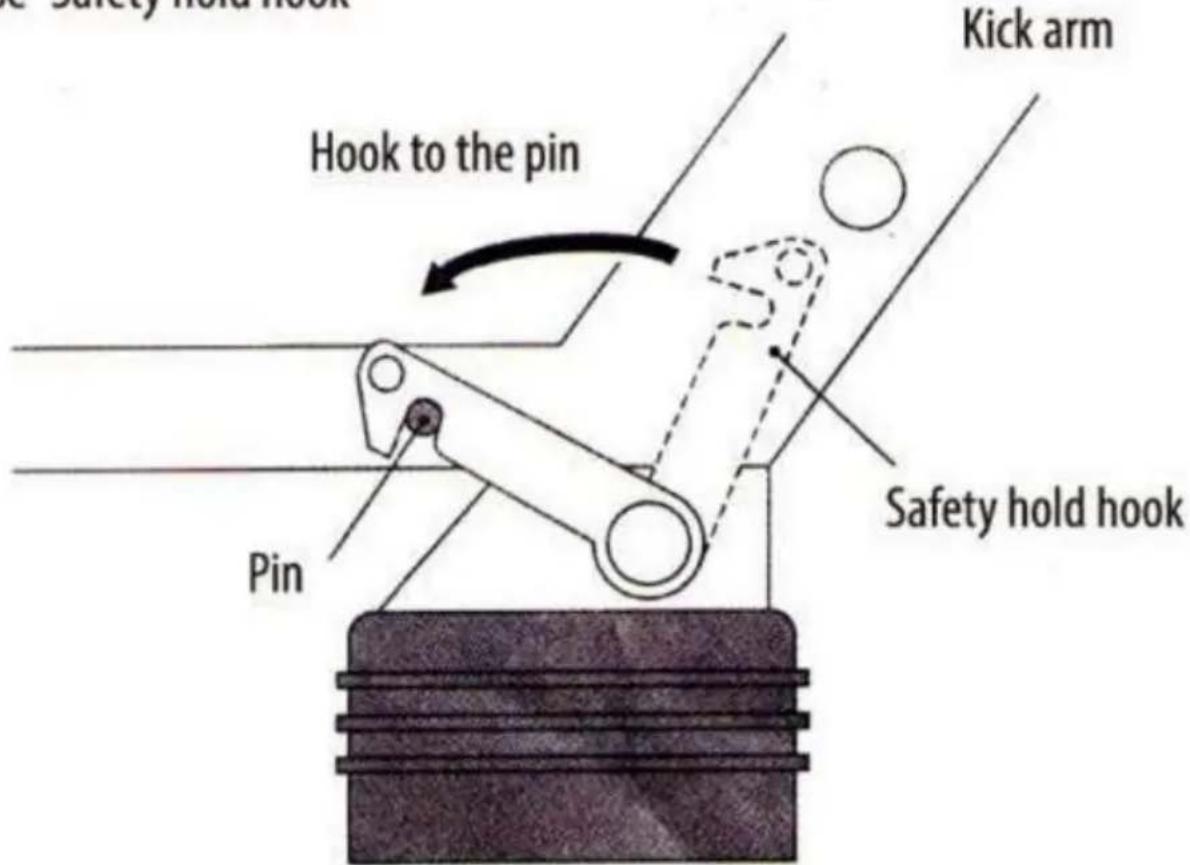

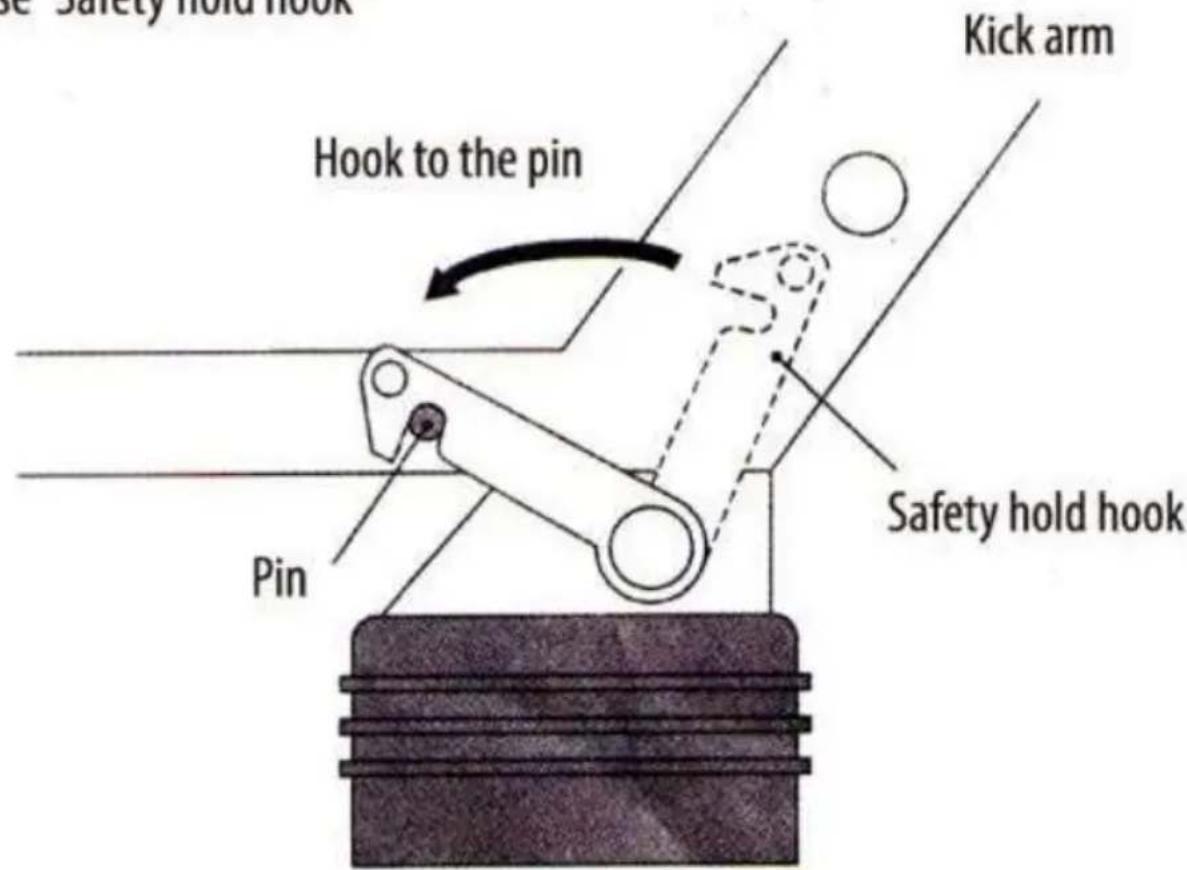

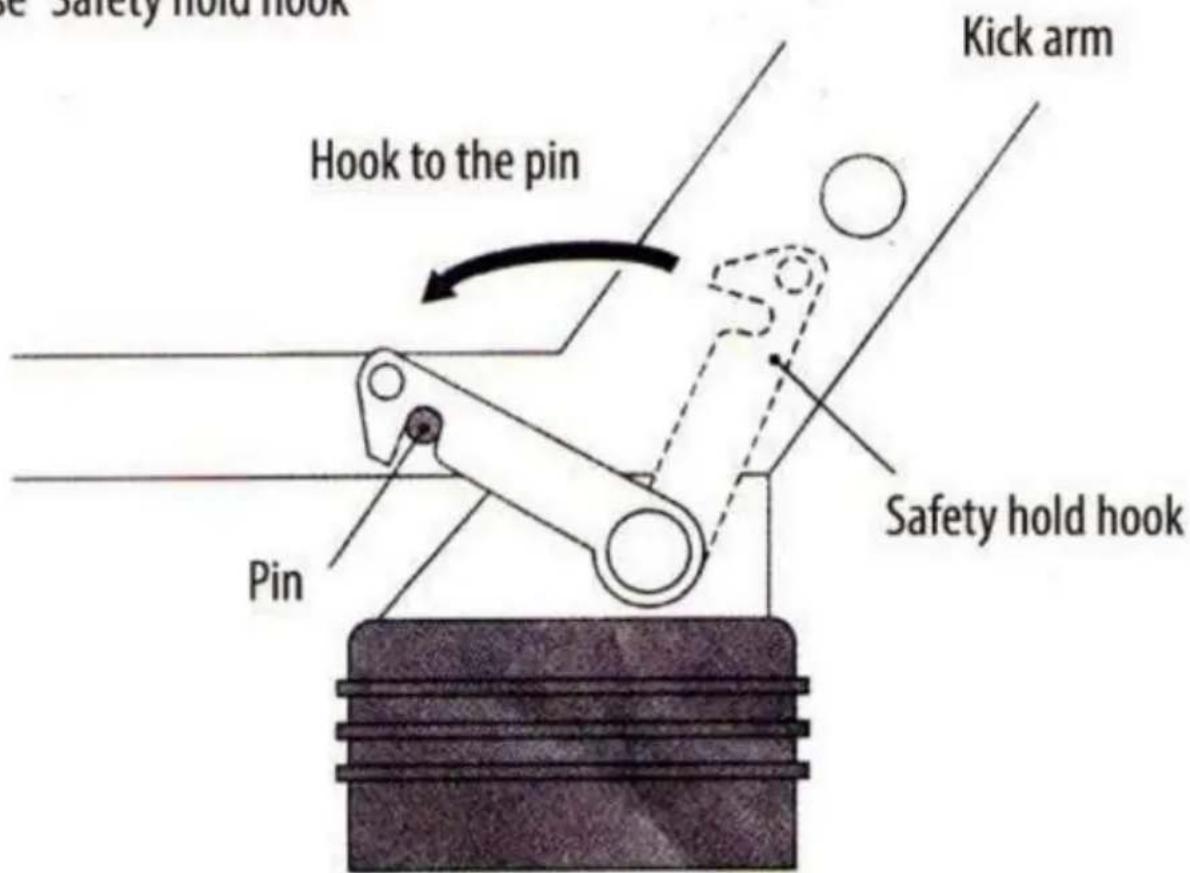

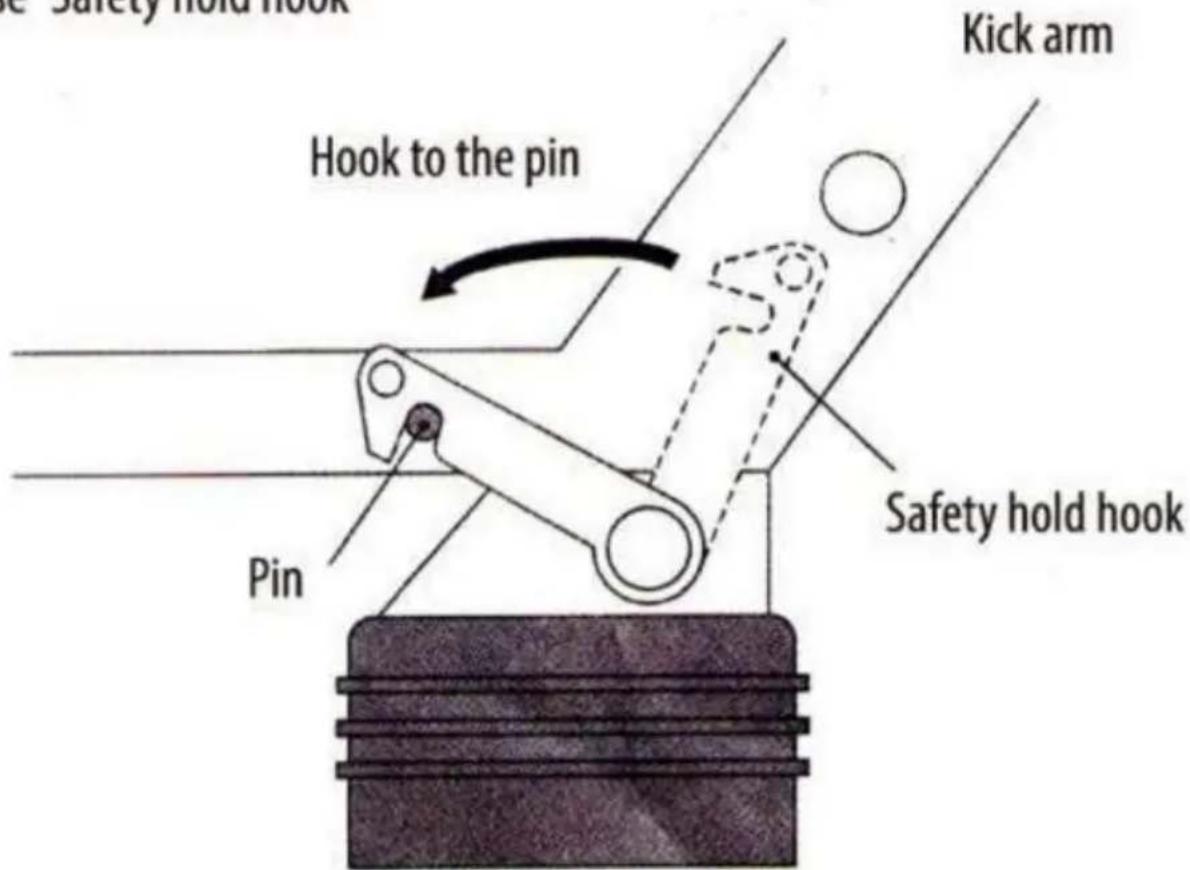

How to use "Safety hold hook"

Safety hold hook Hook to the pin Kick arm Safety hold hook Pin

Figure 2
