T-200X - Lighting Vevor - Free user manual and instructions

Product Type	Garage Light with Motion Sensor
Brand	Vevor
Model	T-200X
Power Supply	AC 85-265V, 50/60Hz
Power	65 W
Operating Modes	Constant on, off, motion detection
Control Method	Push button on the housing
Sensor Type	Passive Infrared (PIR) sensor with photocell
Detection Distance	10-12 feet (recommended)
Detection Angle	Not disclosed (sensor facing downward)
Screw Base	E26/E27 (medium standard, socket not included)
Color Temperature	6500K (cool white light)
Lifespan	Over 50,000 hours
Recommended Installation Height	8 feet (approx. 2.4 m)
LED Panel Adjustment	Vertical rotation up to 90°
Usage	Indoor only, do not expose to moisture
Operating Ambient Temperature	-20°C to 50°C
Compliance	FCC Part 15, WEEE Directive 2012/19/EC
Warranty and Support	Electronic warranty certificate via www.vevor.com/support

Frequently Asked Questions - T-200X Vevor

How to install the Vevor T-200X garage light?

No tools or assembly required. Simply screw the light into a standard E26 or E27 socket (not included) using both hands. Do not overtighten. Then adjust the LED panels to the desired position and push the motion sensor switch to the chosen setting.

What are the different operating modes?

Three modes are available: position 'I' = constant on (regular light), position 'O' = off, position 'II' = motion detection with PIR sensor and photocell (only turns on in darkness or low ambient light).

Why does the light not turn on in motion detector mode?

Check that the switch is in position 'II'. Make sure the environment is dark enough (the photocell prevents turning on in bright light). The sensor may be blocked by walls, ceilings, or metal objects; install it in an open space. The recommended detection distance is 10 to 12 feet.

The light stays on constantly or flashes, what to do?

In detector mode, the light may stay on if motion is continuously detected. It turns off automatically after 3 minutes of no motion. If it flashes, turn it off via the wall switch, wait a few seconds, and turn it back on to reset the sensor.

What is the recommended installation height?

The recommended installation height is 8 feet (approximately 2.4 meters). A different height may affect the detection distance.

Can I use this light outdoors?

No, the Vevor T-200X light is designed for indoor use only. Do not expose it to moisture or weather.

What type of bulb does this lamp use?

This lamp is equipped with integrated non-replaceable LED panels. You do not need to buy an additional bulb. The lifespan is over 50,000 hours.

How to clean the light?

Unplug the device before cleaning. Use a soft, dry cloth. Do not use chemicals or liquids.

Can the motion sensor penetrate walls?

No, the infrared sensor cannot penetrate walls, ceilings, or metal surfaces. Install it in an open space for optimal detection.

What to do if the light stops working?

First check the power supply and socket. If the problem persists, contact Vevor technical support via www.vevor.com/support for assistance with the electronic warranty.

USER MANUAL T-200X Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

GARAGE LIGHT

USER MANUAL

MODEL: T-200X

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:T-200X

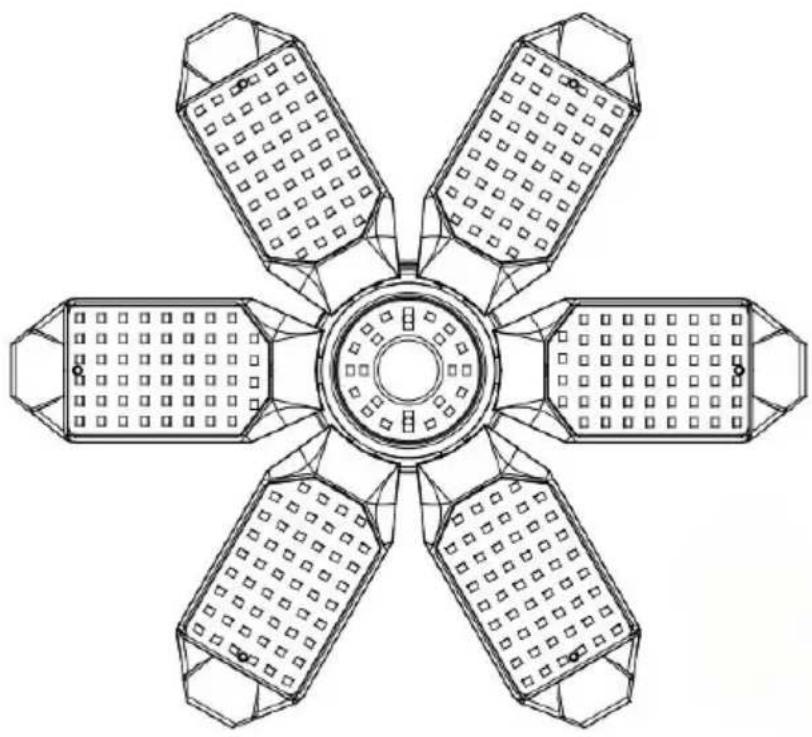

Top-down line drawing of a six-petal mechanical component with grid-like surfaces and central hub (no text or symbols)

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read in manual carefully.
	This device complies with Part 15 of the FCC Rules. (1) This device is subject to the following two conditions: (1) This device cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation.
	This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products are such may not be discarded with normal domestic waste must be taken to a collection point for recycling electric electronic devices

SPECIFICATIONS

Model: T-200X

Input Voltage: AC85\~265V, 50/60Hz 65W

Modes: Always ON/Always Off/Motion Sensor

Control Method: Push Button

Detection Distance: recommended 10-12 FT

Base: Medium Screw(Europe: E27; America: E26)

Adjustable LED Panel: 90°

Color Temperatute: 6500K

Lifespan: 50000+ Hours

Recommended Installation Height: 8 FT

SAFETY

WARNING: This product contains high intensity LED devices. To prevent permanent eye damage, do not stare into the light beam at close range;

Avoid infrared interference around the lamp, such as infrared cameras.

Kind Reminder

1. Not rated for outdoor use. Should not be exposed to moisture or outdoor elements.
2. Sensing distance may vary from model, environmental interference, appliance frequency and ceiling height. Objects blocking the sensor process may prohibit the light from turning on. Infrared devices can interfere with sensor signal.
3. Recommend installation environment temperature . -20 °C to 50 °C note the over high and low temperature will affect the sensing distance.

INSTALLION

NO TOOLS OR ASSEMBLY REQUIRED TO INSTALL LIGHT(Motion sensor cannot penetrate walls, ceilings, metal. Suggested installation in an open indoor environment for usage scenarios)

1. Using both hands screw the into light a standard medium(E26) bas lampholder(lampholder not included)

DO NOT OVERTIGHTEN. Doing so may cause damage to the li

1. Adjust LED panels to desired position.
2. Push motion sensor switch to desired setting.

OPENRATION

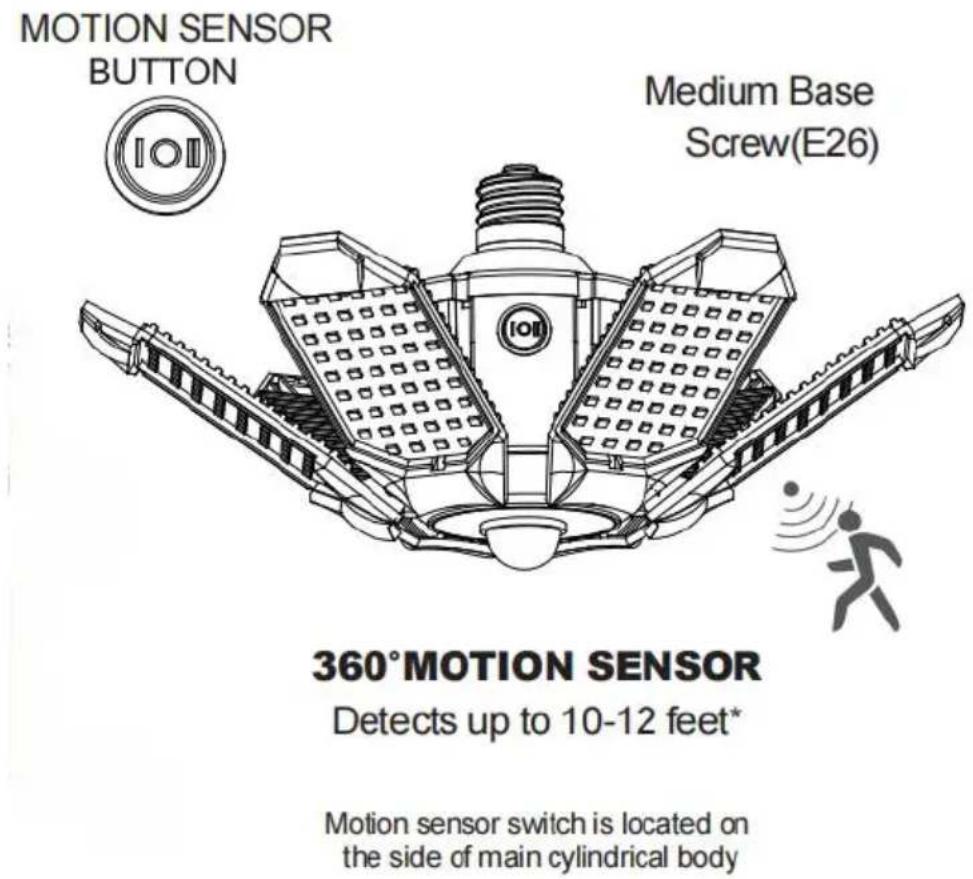

MOTION SENSOR ON:

Push the switch to position "II", the motion sensor is on.

When the motion sensor is turned on for the first time, it will enter process, the light will be on for about 15 seconds and then auto off this it will be on if motion is detected.

If motion is continuously detected, the light will stay on. If no motion detected within 3 minutes, the light will auto turn off.

NOTE:

Since the light adopts PIR and Photocell sensors, in Mode "II", only dark or the ambient light is dim the light will be on when motion de If you use the motion sensor switch or wall switch to turn off the light next time you turn on the motion sensor, the light will still enter self process, this is normal.

MOTION SENSOR OFF:

Push the switch to position "I", the light stays on like a regular light - Push the switch to position "o", the light keeps off.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4
