USER MANUAL SUP-320 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PADDLE BOARD

SERIES:SUP-X

( TIPS : X IS 305/320/335/305S/320S )

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

PADDLE BOARD

SERIES:SUP-X

Line drawing of a boat hull with internal compartments and star-shaped structural elements (no text or symbols)

SUP-305/SUP-320/SUP-335

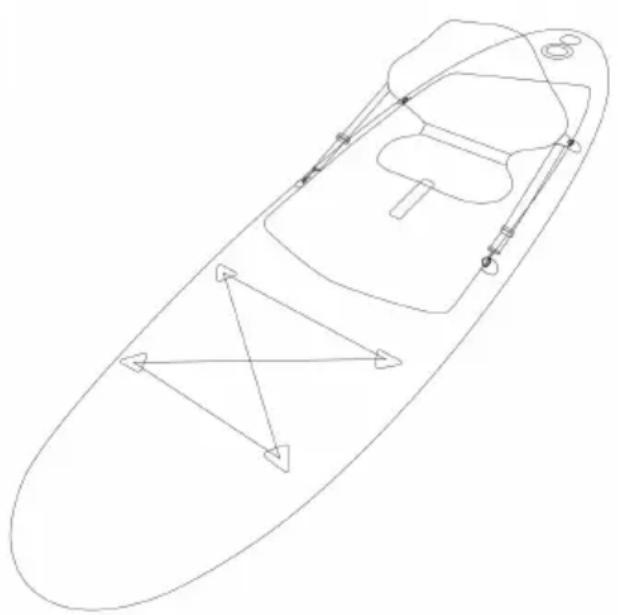

Top-down line drawing of a boat with structural lines and star-shaped markings (no text or symbols)

SUP-305S /SUP-320S

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

Warning-To reduce the risk of injury, users must read instructions manual carefully.

PRODUCT PAREMETERS

Model	SUP-305	SUP-320	SUP-335	SUP-305S	SUP-320S
Seat	NO	NO	NO	YES	YES
Size	10ft×33in	10.6ft×33in	11ft×33in	10ft×33in	10.6ft×33in
Load	330lbs	350lbs	370 lbs	330lbs	350lbs

ACCESSORY LIST

NO	PICTURE	NAME	QTY	NO	PICTURE	NAME	QTY
A		Backpack	1	F		Hand Pump	1
B		Inflatable SUP	1	G		Fin	3
C		Aluminium Paddle (3-piece)	1	H		Waterproof Dry Bag	1
D		Leash	1	I		Repair Kit	1
E		Phone Waterproof Bag	1	J		Seat (only for SUP-305S &SUP-320S)	1
H		Velcro Straps	1	1		Repair piece	2

SAFETY WARNINGS

Disregarding any of the safety precautions and instructions contained in owner's manual on the product may result in injury, including the possik of death.

• Always wear your safety leash.

When it comes to paddle board safety, the most important tool is ,the leash matter you are a beginner or an elite paddle boarder, the leash may be the difference between life and death. A leash is a tool that connects you to yo Your board is your personal flotation device that can soon help you float in after falling. Using a leash means you are not only protecting your own life lives of those around you.

- Always wear a coast guard approved personal flotation device.

The second most important tool for paddle board safety is the life jacket. An point of stand-up paddle board you should be aware is that when a paddle used in areas "beyond the narrow limits of a swimming, surfing, or bathing a will be considered as a vessel. In these areas, you are required by law to United States Coast Guard approved flotation device every time you paddle o Here you will use a life jacket that provides maximum buoyancy.

- Monitor the weather before paddle boarding.

It seems to be effortless to use a Stand-up paddle board but please note the skillful sport and demands awareness of dangers that may incur due to the changing forces of nature.

• Before paddling the board, for safety concern, never drink alcohol or anything else that may impair your coordination, judgment and paddle boarding ability.
• Never allow minors to use this board without any adult supervision.
• Never paddle the board after sunset, before dawn or at any time in plighting, avoid paddling in offshore wind or windy conditions.
• Do not exceed your paddling abilities. Be aware of your limitations. Paddle within your capacities, do not overload.
• Check local laws and regulations regarding proper and safe use of this product.

OPERATION

Inflating Your Board

1. Unfold the paddle board on a clean and smooth surface.

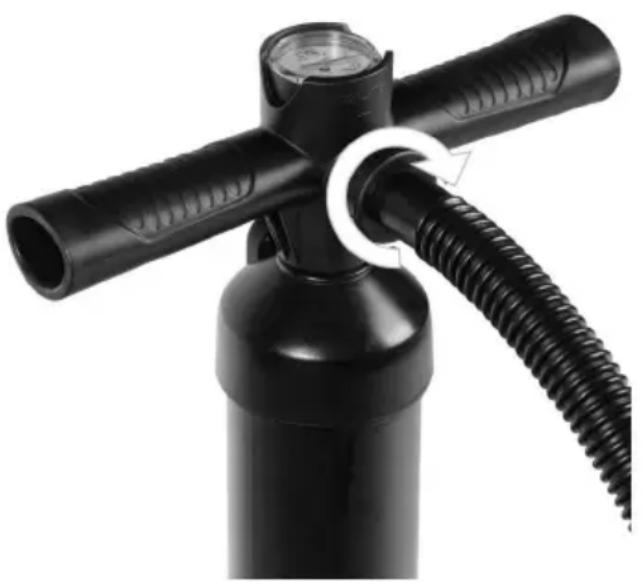

2. Remove the valve cover and press down spring. Turn counter clockwise open it
3. Connect the air tube to the pump tighten it by turning clockwise.
4. Inflate the board until reaching the required 12-15 PSI.
5. Lock the valve cover over the valve stem.

Close-up of a black cylindrical oxygen regulator with coiled tubing and pressure gauge (no text or symbols visible)

There is no worry about over-inflating or damaging the board when using pump. It takes 3 PSI of pressure in the board before the gauge on the register. While your board may look and feel rigid, continue to pump until reaches the recommended pressure of 12-15 PSI. The pump will offer a significant amount of resistance the closer you get to the recommended pressure.

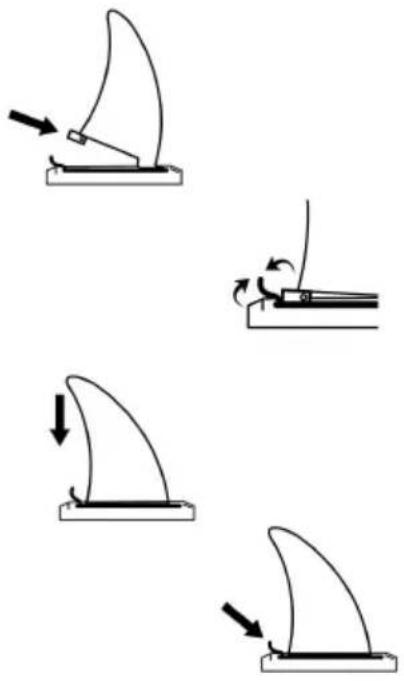

Installing Center Detachable Fin

1. Insert the fin's front end into the opening front of the fin box.

2. Push the fin down until it is flush with the the fin box. Apply pressure if needed.

3. Make sure the fin tab is in the middle pos before placing the back of the fin in.

4. Push fin lock down tab to secure the fin in place.

Four-step diagram showing a mechanical or robotic device with curved blades and directional arrows indicating motion (no text or symbols)

Installing Leash

Please note that you should always attach your SUP coil leash to your board also recommended to remove your leash after use to prevent unintentional snagging. Warping a leash around the board and fins may result in damage leash.

① Thread string loop through the hand at the tail of the board.

② Thread cuff through string loop and pull up tight onto the board.

③ Open up velcro cuff and insert thr string loop.

Illustration of a battery with a hand holding a spring, showing an arrow indicating direction (no text or symbols)

④ Fold over and close the first two straps.

Diagram of a satellite with a belt and arm, showing a rotation arrow (no text or symbols)

Simple line drawing of a device with an arrow indicating rotation, no text or symbols present

⑤ Fold over the final velcro tab and firmly to secure it in place.

Adjusting Aluminum Paddle (3-pieces)

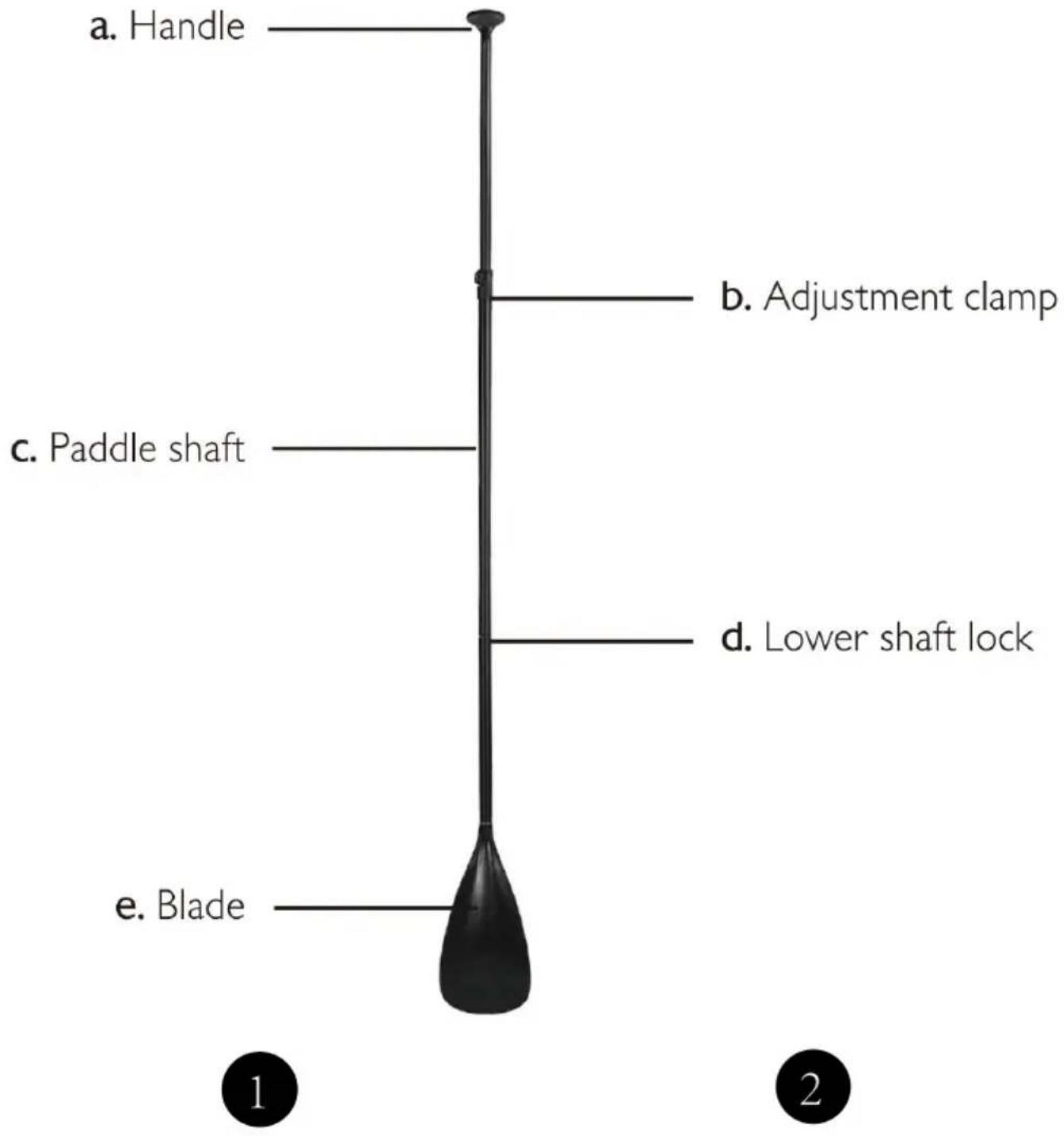

a. Handle b. Adjustment clamp c. Paddle shaft d. Lower shaft lock e. Blade 1 2

Open adjustment clamp to lengthen shorten your paddle.

Close adjustment clamp to secure your paddle length in the place you want

Note: If the inner shaft twists or slides, the adjustment clamp may not be ti enough. Rotate the clamp clockwise to tighten; counterclockwise to loosen.

1) Do not extend upper shaft beyond the maximum paddle length mark.
2) Extending beyond the maximum extension limit can result in permanent damage to the adjustment clip while padding.
3) We recommend rinsing your paddle with fresh water after each use and removing upper shaft for drying.
4) Do not leave exposed to direct sunlight for prolonged periods. The sun car damage the paddle.

Installing seat

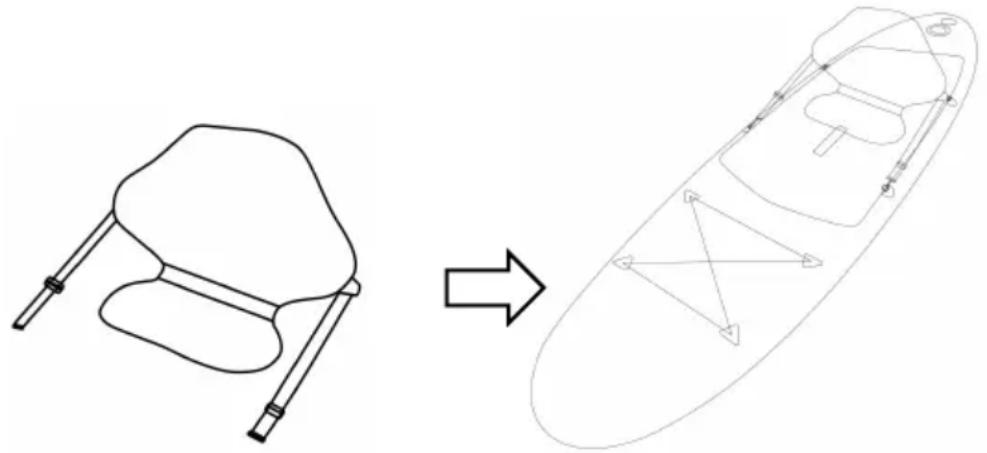

It is easy to install kayak seat to the paddle board, seat hooks hang directly D rings.

Diagram showing a mechanical component transforming into a boat-like structure (no text or symbols)

STORAGE AND MAINTAIN

Board is made of PVC that can offer superior UV protection. However, to er longer lifetime, please avoid storing the board where it may be exposed to v or in direct sunlight.

Please check the following list of storage tips:

1) Make sure to fully deflate the board, remove the center fin and your lease
2) Clean and check the boards after each use. Rinse your board thoroughly, sure to remove any residues of sand and salt water build up. Use a mild s remove any dirt, avoid all heavy chemical based products. Make sure the box completely dry before storing it away.

3) When folding up your board for storage, make sure to roll from the nose leaving the inflation valve open while doing this. Once the board is fully rolled be sure to close and lock the inflation valve and secure the board strap and your rolled up board.
4) When storing your board, keep it in a clean and dry place that will not affected by the elements or major temperature changes. Please don't store board outdoors.

Limit exposure of direct sunlight to the Deck-side.

1) While the benefits of a non-slip traction pad are obvious, they also increase risk of overheating.
2) While in use, water flowing over the deck helps to regulate surface temperature
3) But when the deck traction pad is dry, the effects of heat absorption are amplified when exposed to direct sunlight.
4) If you must expose your board to direct sunlight during transport or temperature storage, it is safest to keep the bottom facing up.

Avoid heat damage always.

1) When not in use, never leave your board exposed to direct sunlight for periods.
2) Always keep your board in a shaded area when not in use.
3) When not in use, never leave your deck pad exposed and facing the sur

OVERHEATING YOUR PADDLE BOARD IS NOT COVERED BY MANUFACTURING WARRANTY!

Address : Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a boat hull with star-shaped structural elements (no text or symbols)

Line drawing of a boat with structural lines and star-shaped markings (no text or symbols)

SUP-305S /SUP-320SSUP-305/SUP-320/9

BESOIN D'AIDE? CONTACTEZ-NOUS!

PARAMÈTRES DU PRODUIT

Close-up of a black cylindrical device with coiled tubing and a pressure gauge (no text or symbols visible)

Diagram of a device with a black arrow indicating direction, showing a cable or wire being inserted (no text or symbols present)

Diagram of a satellite with a curved arrow indicating rotation (no text or symbols)

Diagram of a device with a handle and cable, showing a curved arrow indicating rotation (no text or symbols)

Diagram showing a simple mechanical component transforming into a multi-rotor boat with structural lines (no text or symbols)

STOCKAGE ET ENTRETIEN

Line drawing of a boat hull with internal compartments and star-shaped connectors (no text or symbols)

SUP-305/SUP-320/SUP-335

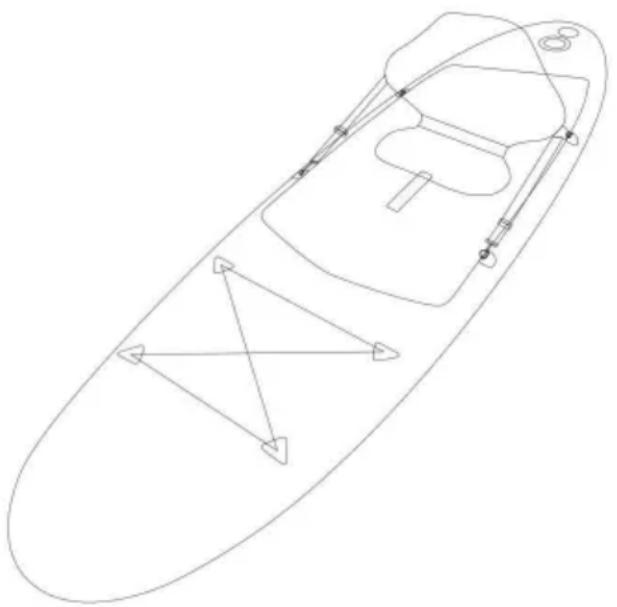

Line drawing of a boat with structural components and star-shaped markings (no text or symbols)

SUP-305S /SUP-320S

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Close-up of a black cylindrical device with coiled tubing and a pressure gauge, no visible text or symbols.

Diagram of a device with a black arrow indicating direction, showing a cable or wire being inserted (no text or symbols present)

Diagram of a satellite with a curved arrow indicating rotation (no text or symbols)

Diagram of a device with a handle and cable, showing a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical component transforming into a boat-like structure with no text or symbols

LAGERUNG UND PFLEGE

Line drawing of a boat hull with internal compartments and star-shaped connectors (no text or symbols)

SUP-305/SUP-320/SUP-335

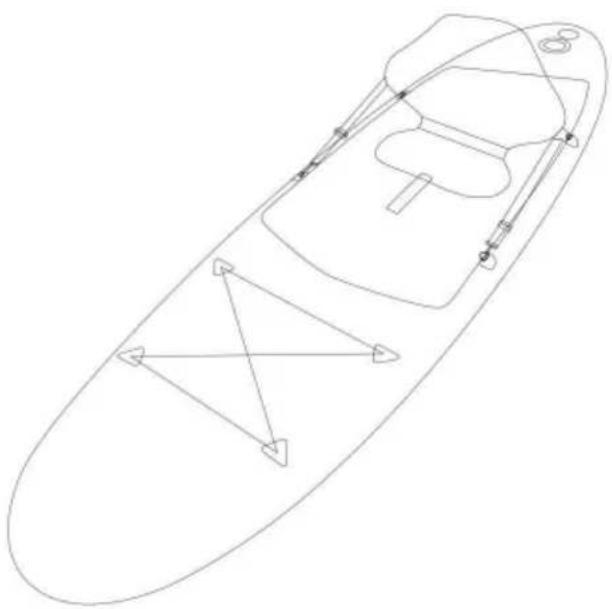

Line drawing of a boat with structural lines and star-shaped markings (no text or symbols)

SUP-305S/SUP-320S

HO BISOGNO DI AIUTO? CONTATTACI!

Close-up of a black cylindrical oxygen regulator with coiled tubing and pressure gauge (no text or symbols visible)

Diagram of a device with a black arrow indicating direction, showing a cable or wire being inserted (no text or symbols present)

Diagram of a satellite with a curved arrow indicating rotation (no text or symbols)

Diagram of a device with a handle and cable, showing a curved arrow indicating rotation (no text or symbols)

Diagram showing a simple mechanical component transforming into a multi-rotor boat with structural lines (no text or symbols)

Importato in Australia: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD

NSW 2122Australia

Anaheim Place, Rancho Cucamonga, CA 91730

REP. DEL

REGNO UNITO

Gruppo Pooledas Ltd

Line drawing of a boat hull with internal compartments and star-shaped connectors (no text or symbols)

SUP-305/SUP-320/SUP-335

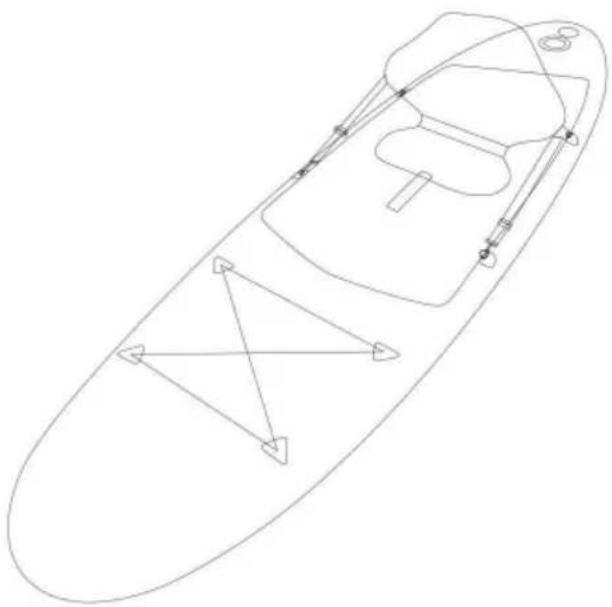

Line drawing of a boat with structural lines and star-shaped markings (no text or symbols)

SUP-305S/SUP-320S

Close-up of a black cylindrical oxygen regulator with coiled tubing and pressure gauge (no text or symbols visible)

Diagram of a device with a black arrow indicating direction, showing a cable or wire being inserted (no text or symbols present)

Diagram of a satellite with a curved arrow indicating rotation (no text or symbols)

Diagram of a cable being inserted into a device with a handle, showing motion direction (no text or symbols)

Diagram showing a simple mechanical component transforming into a multi-rotor boat with structural lines (no text or symbols)

Line drawing of a boat hull with internal compartments and star-shaped connectors (no text or symbols)

SUP-305/SUP-320/SUP-335

Line drawing of a boat with structural lines and triangular supports (no text or symbols)

SUP-305S/SUP-320S

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Close-up of a black cylindrical oxygen regulator with coiled tubing and pressure gauge (no text or symbols visible)

Diagram of a device with a black arrow indicating direction, showing a cable or wire being inserted (no text or symbols present)

Diagram of a satellite with a curved arrow indicating rotation (no text or symbols)

Diagram of a device with a handle and cable, showing a curved arrow indicating rotation (no text or symbols)

Machine Translated by Google

Diagram showing a simple mechanical component transforming into a multi-rotor boat with structural lines (no text or symbols)

PRZECHOWYWANIE I KONSERWACJA

Import do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

PADDELBORD

SERIE:SUP-X\_

(TIPS:X ↓S 305/320/335/305S/320S)

Line drawing of a boat hull with internal compartments and star-shaped connectors (no text or symbols)

SUP-305/SUP-320/SUP-335

Line drawing of a boat with structural lines and triangular supports (no text or symbols)

SUP-305S/SUP-320S

HULP NODIG? NEEM CONTACT MET ONS OP!

VEILIGHEIDSWAARSCHUWINGEN

Close-up of a black cylindrical device with coiled tubing and a pressure gauge (no text or symbols visible)

Diagram showing a device being connected to a cable with a magnified inset (no text or symbols)

Diagram of a satellite with a curved arrow indicating rotation (no text or symbols)

Diagram of a cable or connector being inserted into a device, showing a curved arrow indicating direction (no text or symbols present)

Diagram showing a simple mechanical component transforming into a multi-rotor boat with structural lines (no text or symbols)

OPSLAG EN ONDERHOUD

Line drawing of a boat hull with internal compartments and star-shaped connectors (no text or symbols)

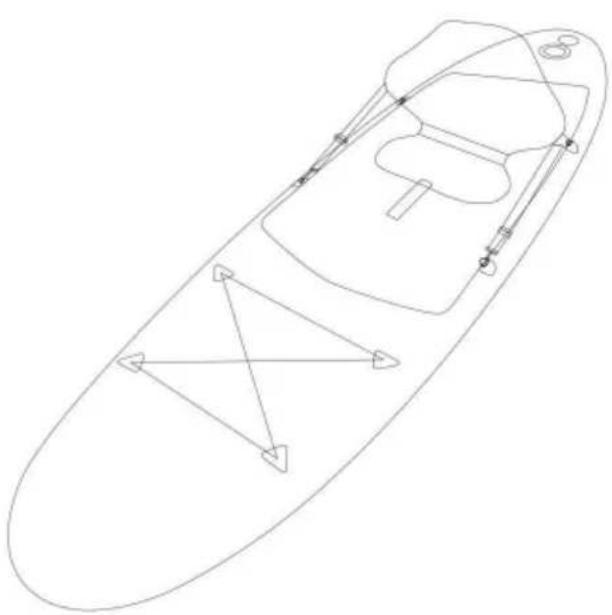

Top-down line drawing of a boat with structural lines and star-shaped markings (no text or symbols)
